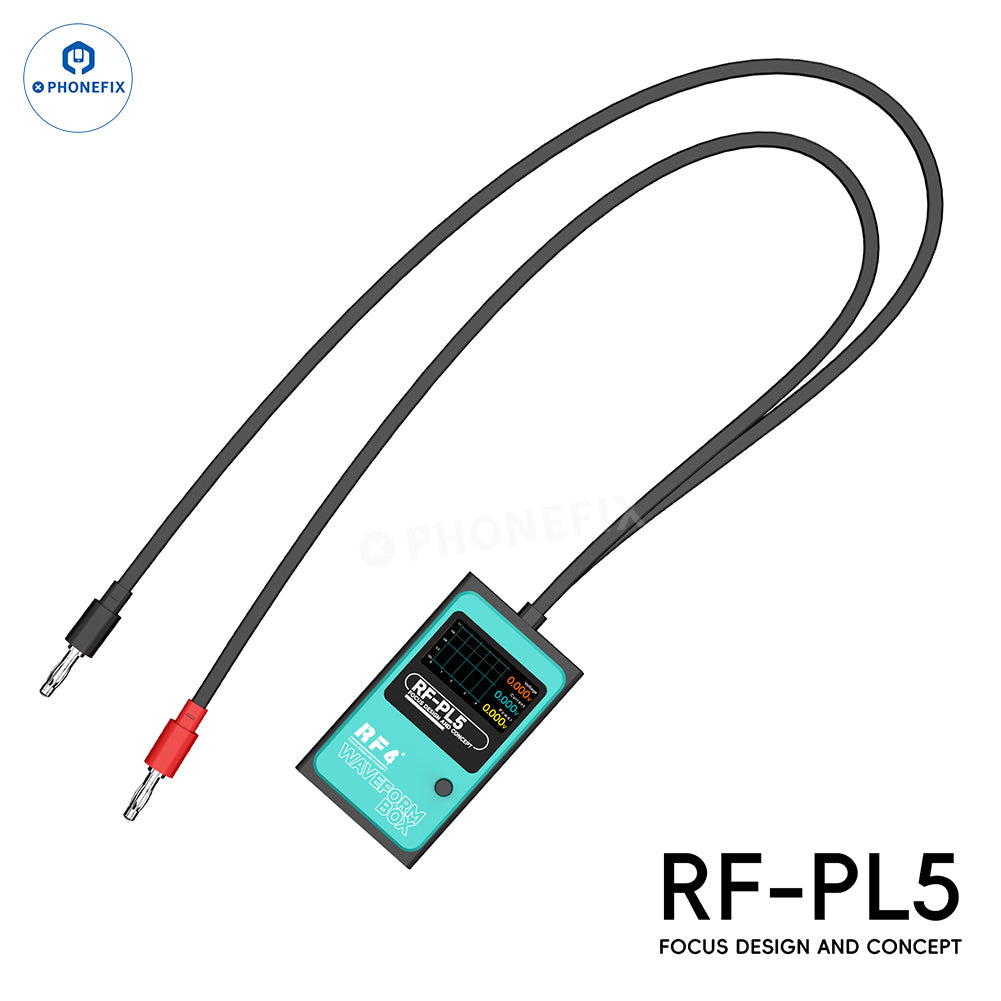

RF4 RF-PL5 Waveform Tester with Boot Cable is a portable diagnostic tool for iPhone 11-17 Pro Max Repair. RF4 RF-PL5 Voltage & Current Analyzer can quickly pinpoint motherboard faults by monitoring real-time voltage and current waveforms. No need for repeated component replacements; simply visually inspect the power curve to identify unstable signals or short circuits within seconds. The included iBoot power cable cable ensures seamless connectivity with various mobile phone models. Ideal for mobile phone repair shops and repair technicians.
Features:
1. Real-time Current Waveform Monitoring: Dynamically displays voltage and current curves, helping engineers quickly assess the motherboard's operating status.
2. Visualized Fault Analysis: Intuitively identifies abnormal current behavior through waveform changes, improving the accuracy of repair diagnoses.
3. Precise Motherboard Fault Location: Assists in detecting common issues like leakage, short circuits, and power-on failures, reducing the need for repetitive testing.

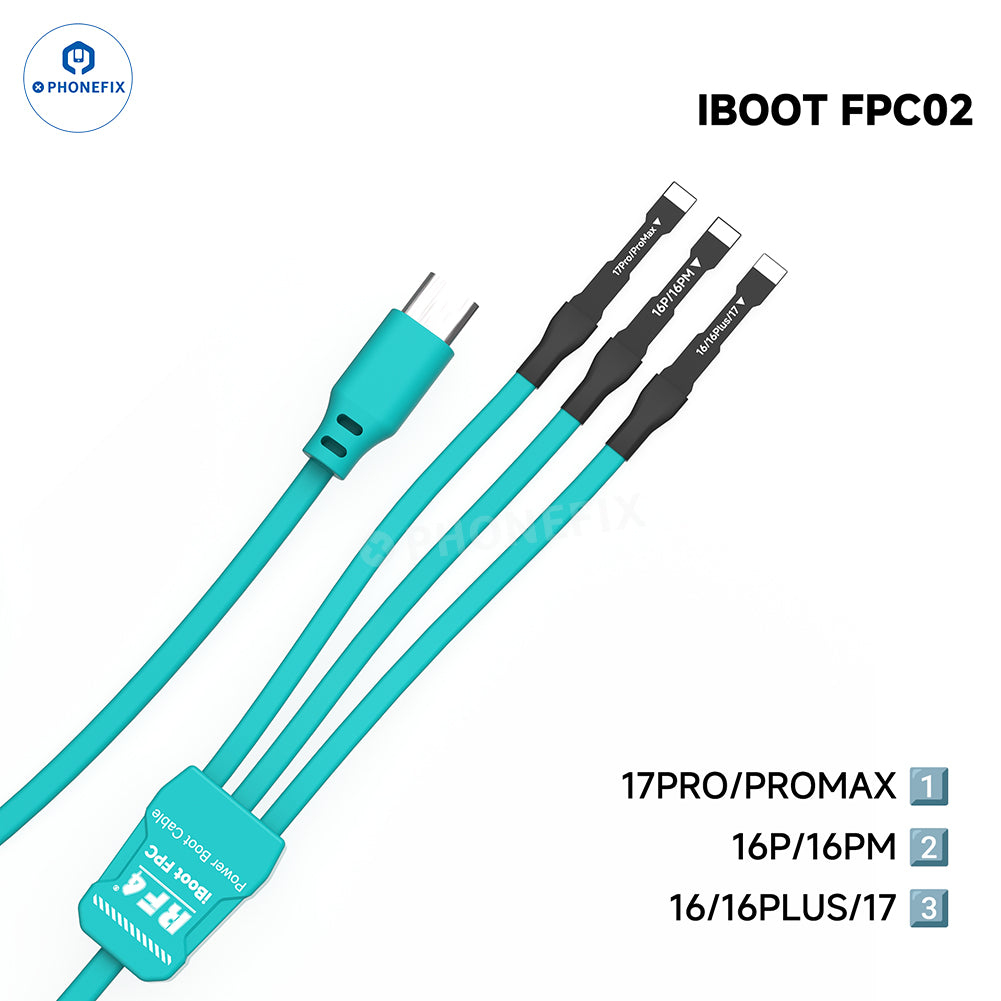

4. Multi-Model Compatibility: Compatible with the iBoot FPC02 adapter cable to cover repair needs for various iPhone motherboard series.
5. Compact and Portable Design: Small size makes it easy to carry; suitable for use at repair benches or for on-the-go repairs.
6. Real-time Parameter Display: Simultaneously displays voltage, current, and power data for a more intuitive repair process.
Product Specifications
Brand: RF4
Product Name: Current Waveform Test Box
Model: PL5
Product Type: Mobile Phone Motherboard Current Waveform Test Box
Functions: Real-time voltage/current waveform monitoring, motherboard fault diagnosis
Displayed Parameters: Voltage / Current / Power
Example Display: Voltage 4.200V / Current 0.913A / Power 3.834W

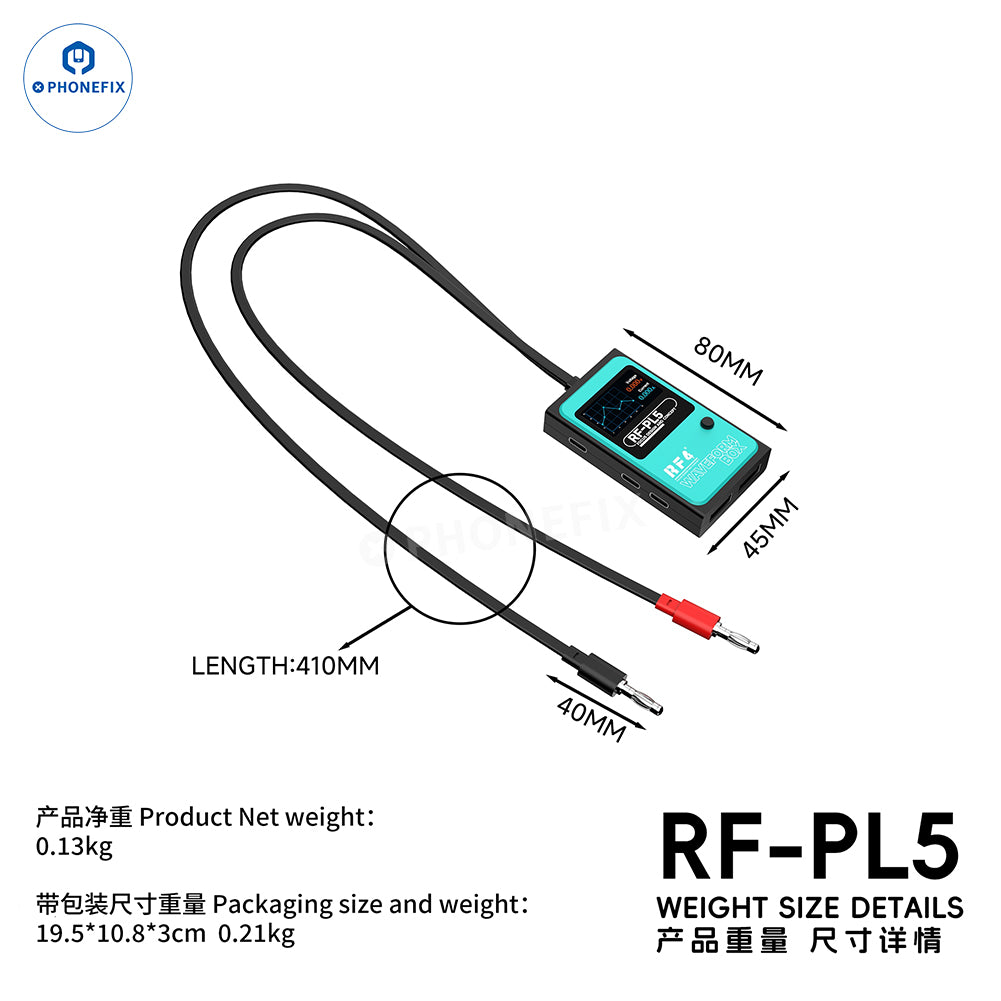

Main Unit Dimensions: 80x45mm
Input Clip Size: 40mm
Cable Length: 410mm
Net Weight: 0.13kg
Package Weight: 0.21kg
Package Dimensions: 19.5x10.8x3cm
