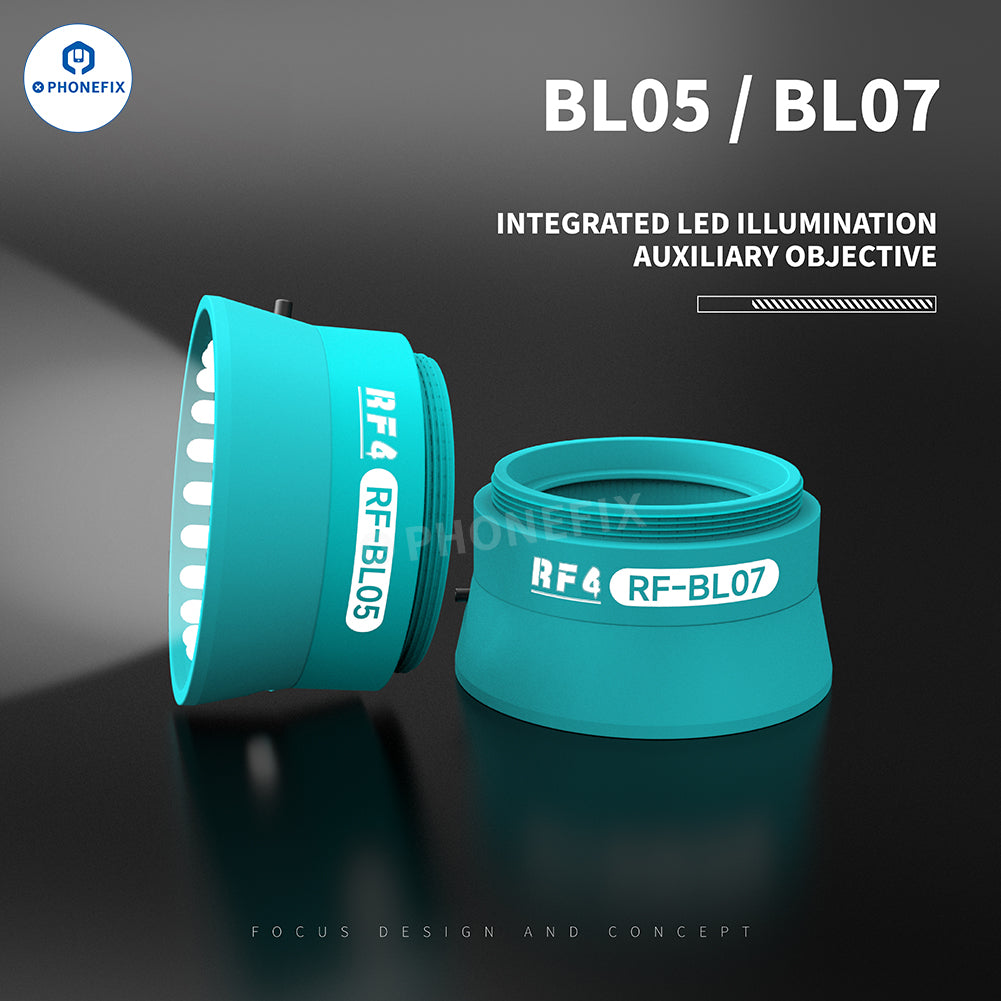

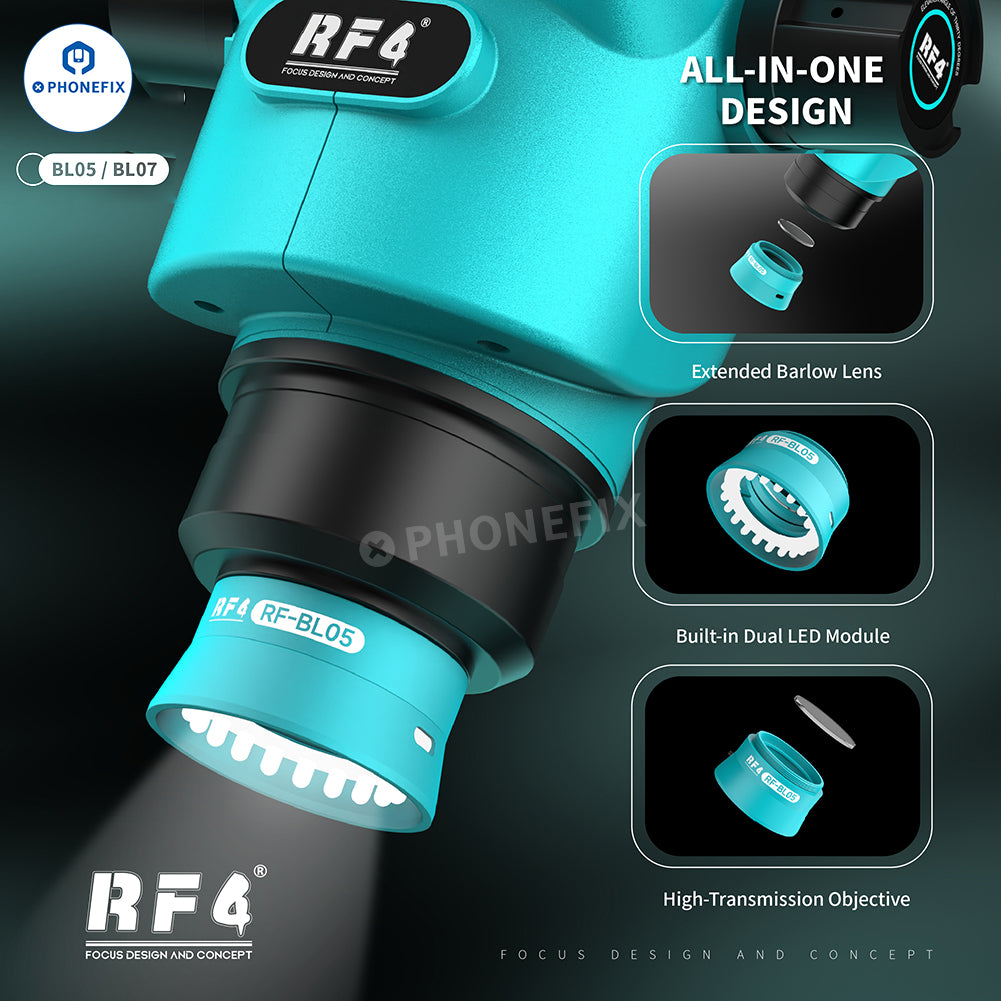

RF4 RF-BL05 RF-BL07 0.5X 0.7X Barlow Lens Integrated LED Illumination Auxiliary Objective features an all-in-one design, suitable for most of Stereo Microscopes. Integrating an extended magnifying lens with a dual LED illumination module. Optimized optical path illumination makes BGA chips, PCB circuitry, and minute solder joint details more clearly visible, suitable for the inspection, testing, and fault analysis of precision electronic products.
Option:
1. RF-BL05: 0.5X lens.
2. RF-BL07: 0.5X lens.
Features:
1. For the inspection, testing, and fault analysis of precision electronic products.

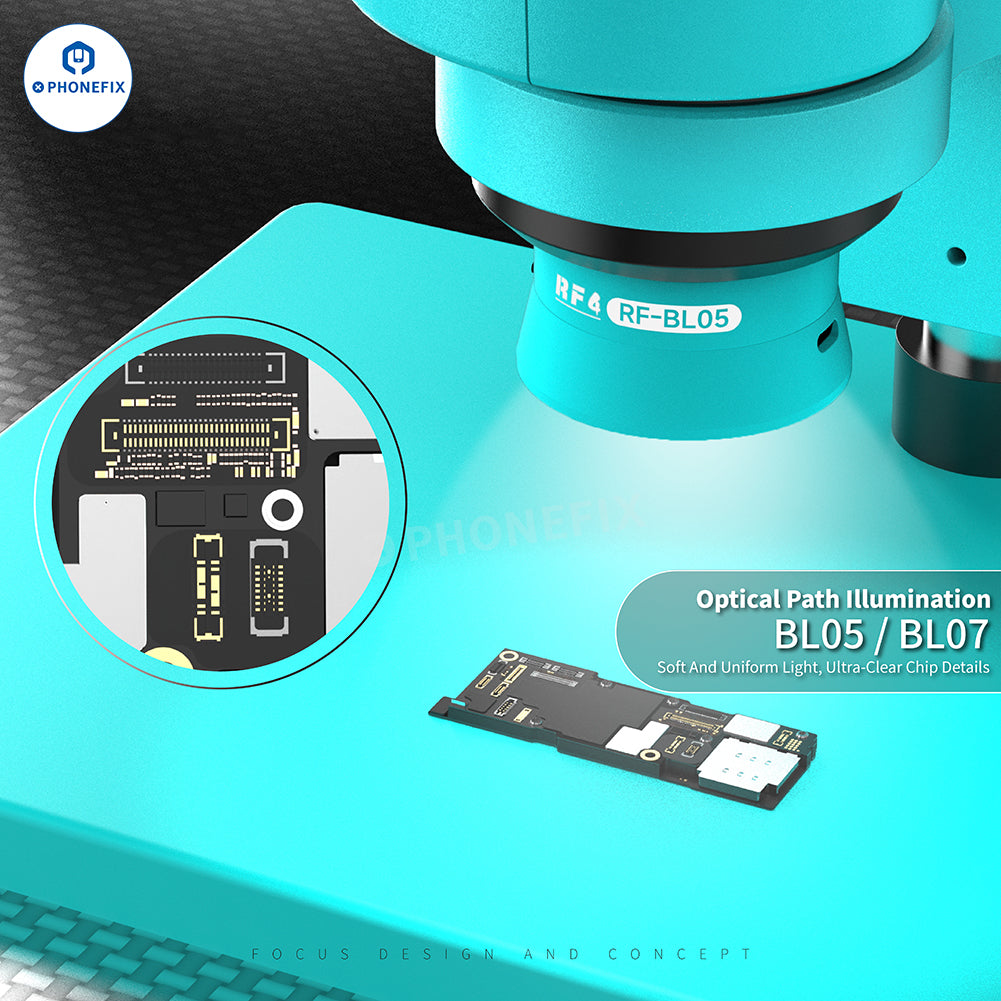

2. Provides soft, uniform light, reduces shadows, and improves chip detail recognition.
3. Enhances image clarity, revealing more realistic details in the repair area.
4. Offers 0.5X and 0.7X magnification options to meet different microscopic observation needs.
5. Compatible with various microscope systems, facilitating the upgrade of existing repair equipment.
6. Easy installation, reducing external accessories and improving repair efficiency.

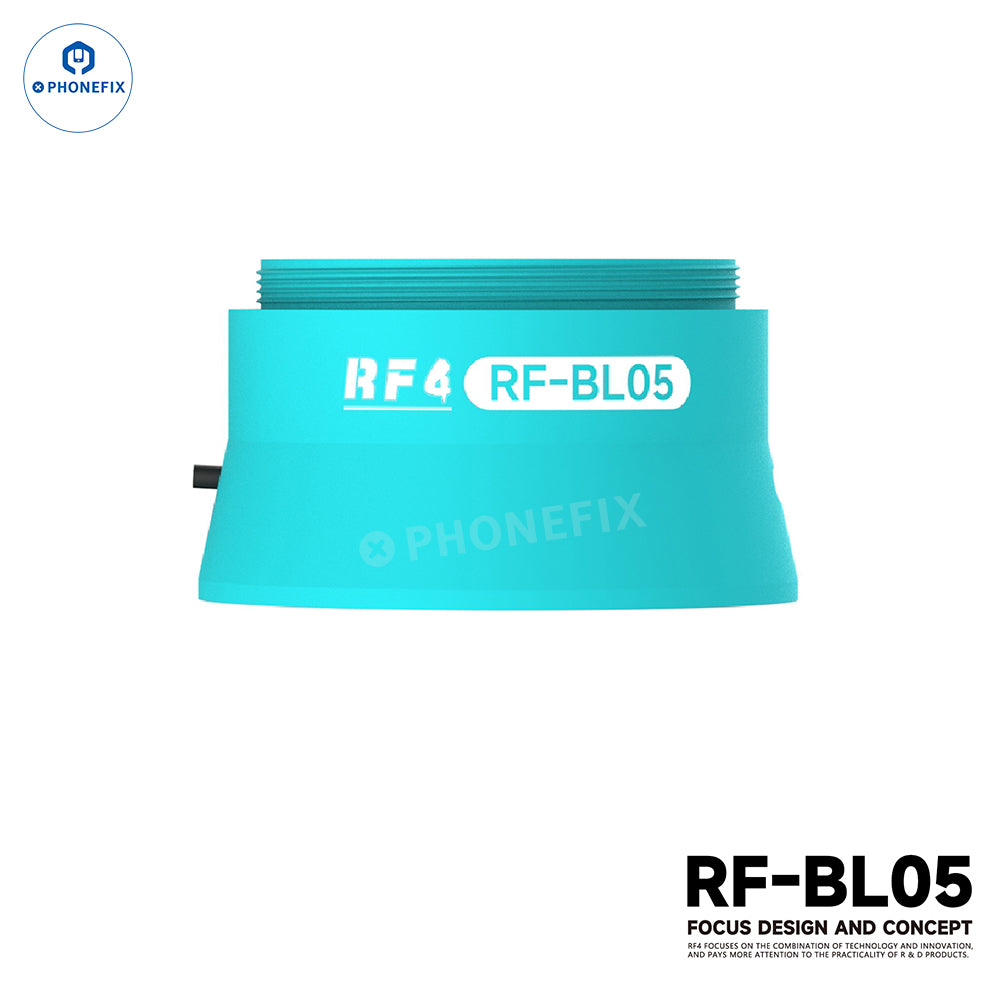

RF-BL05 Product Specifications
Model: BL05
Product Type: LED Illumination Auxiliary Objective

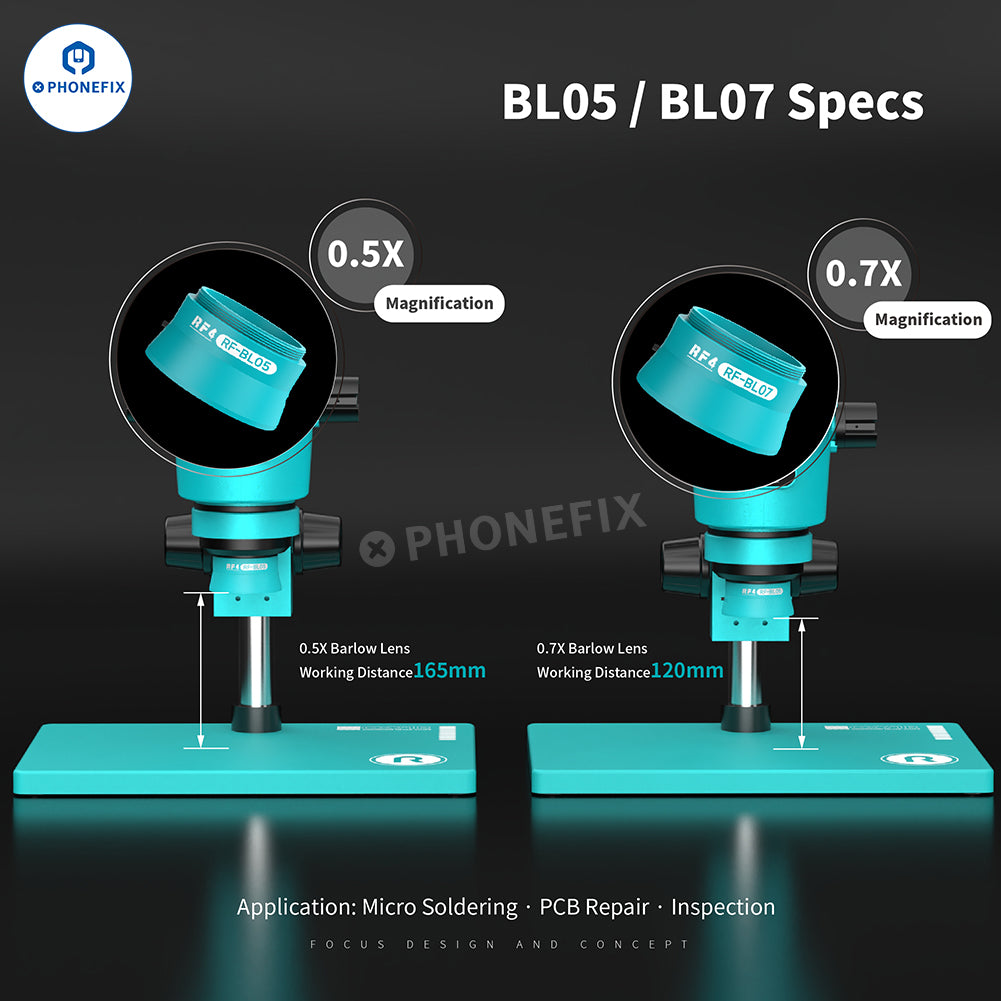

Magnification: 0.5X
Working Distance: 165mm

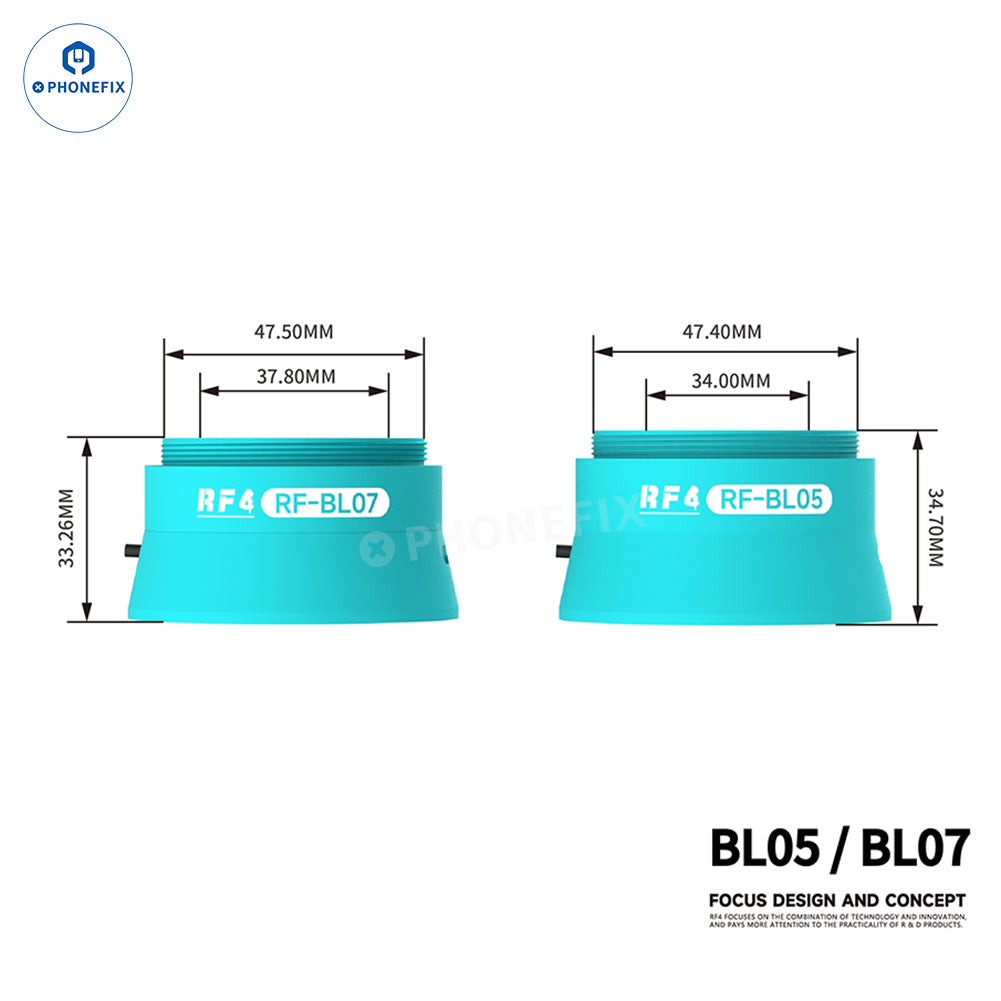

Top Thread Interface Outer Diameter: 47.40mm / 34.00mm
Product Height: 34.70mm
Light Source Structure: Built-in Dual LED Module
Optical Design: High Transmittance Objective

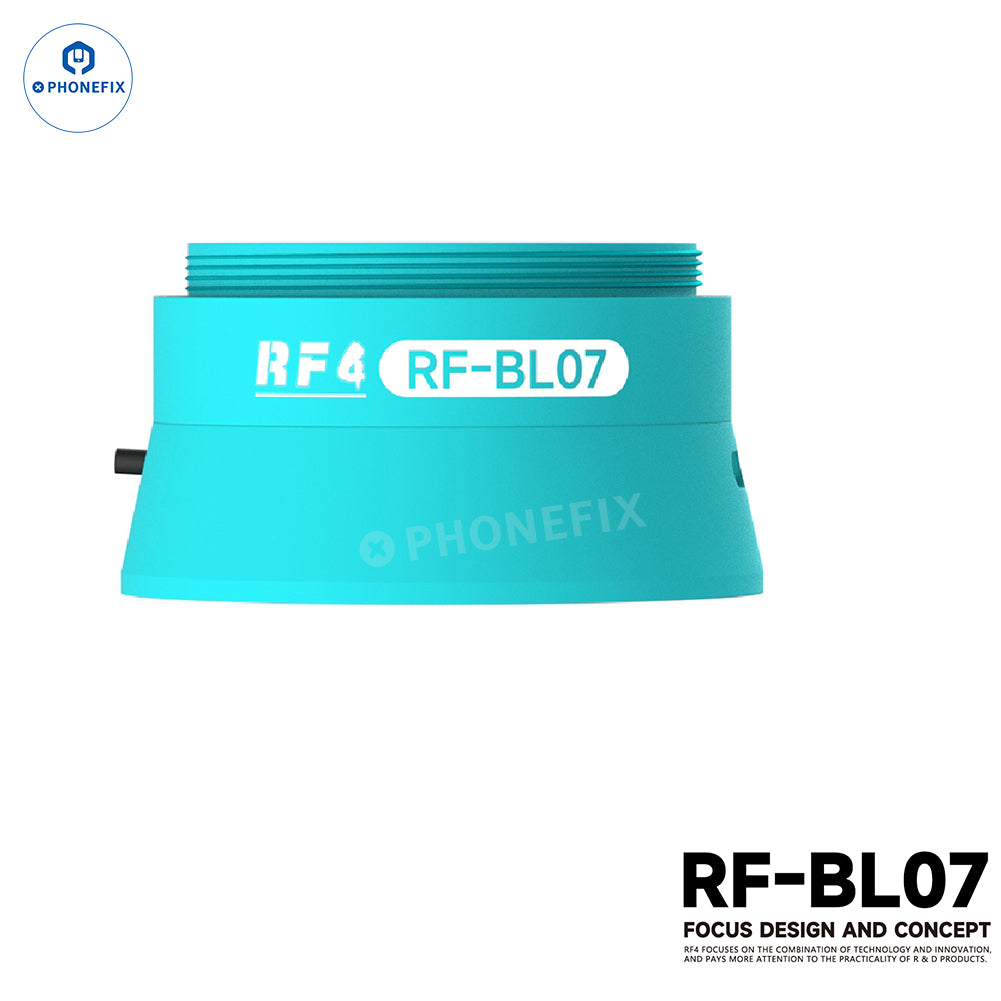

RF-BL07 Product Specifications
Model: BL07
Product Type: LED Illumination Auxiliary Objective
Magnification: 0.7X
Working Distance: 120mm
Top Thread Interface Outer Diameter: 47.50mm / 37.80mm
Product Height: 33.26mm
Light Source Structure: Built-in Dual LED Module
Optical Design: High Transmittance Objective
