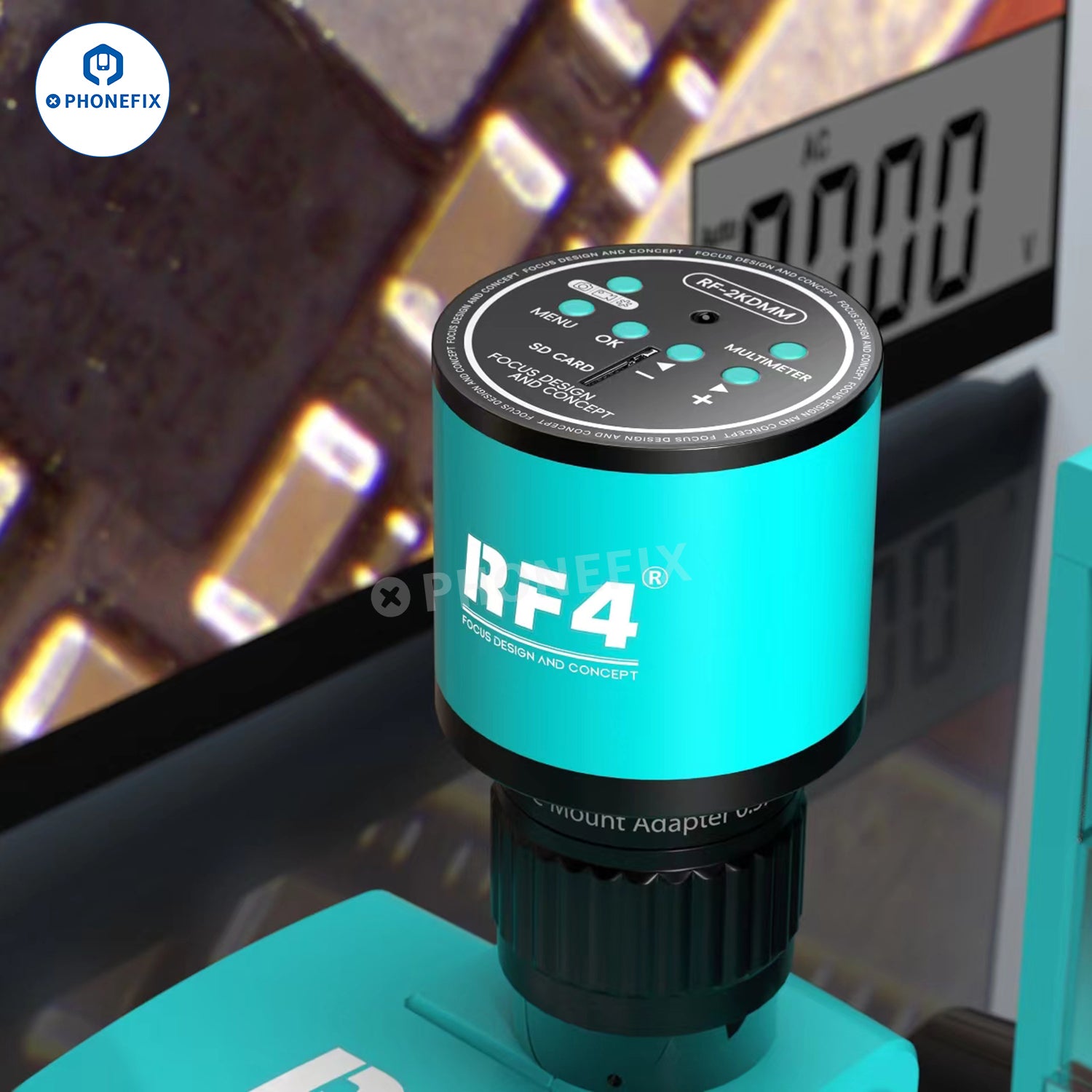

RF4 RF-2KDMM 2K Camera with multimeter function for BGA SMD PCB resistance voltage diode capacitance frequency detection. RF4 RF-2KDMM 2K Ultra HD Stereo Trinocular Microscope Camera CCD CMOS HDMI 1080P 60FPS Industrial Video Digital Image Acquisition Camera.

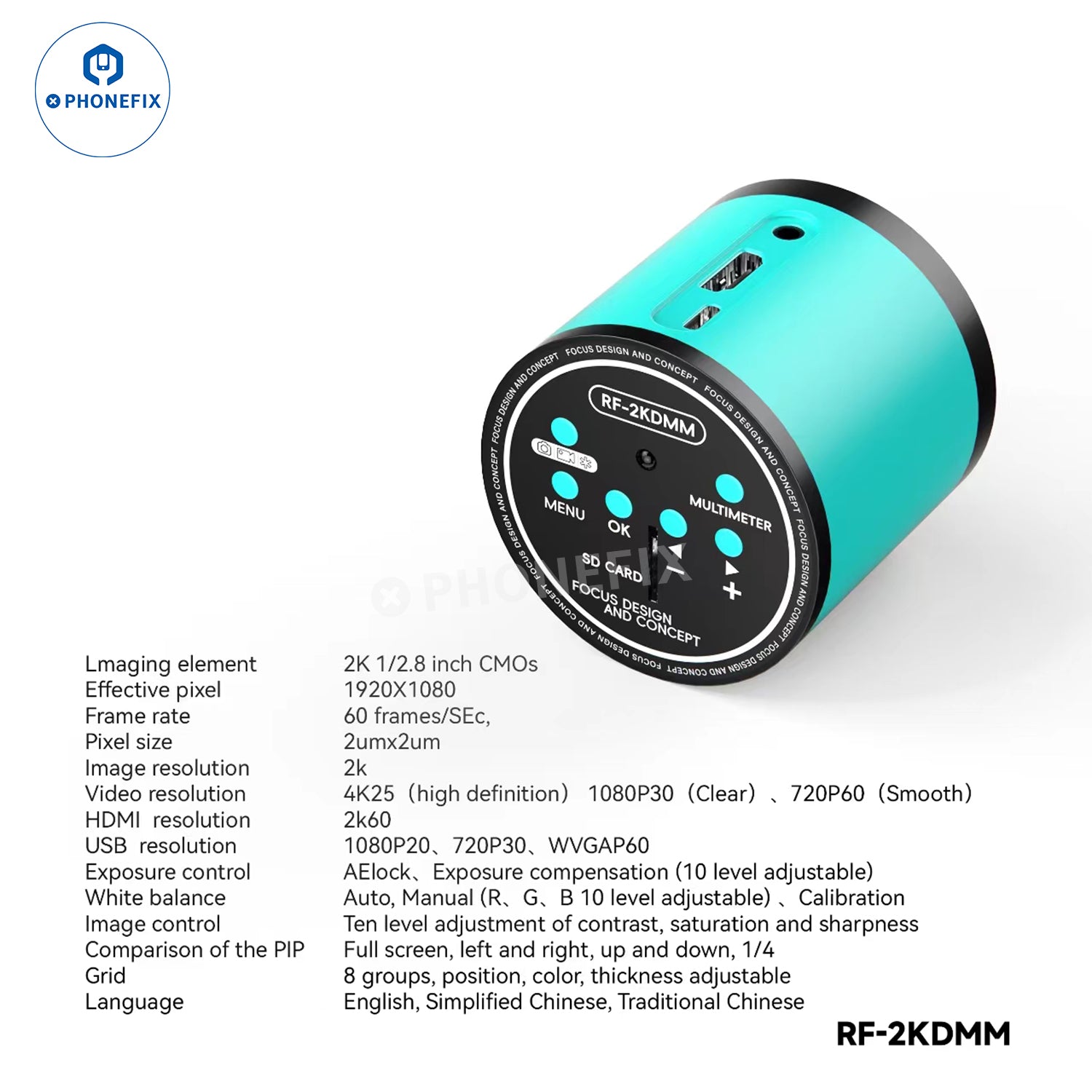

RF-2KDMM Parameters:
Imaging element: 2K 1/2.8 inch CMOs.
Effective pixel: 1920X1080.
Frame rate: 60 frames/SEc.
Pixel size: 2umx2um.
Image resolution: 2k.
Video resolution: 4K25 (high definition) 1080P30 (Clear), 720P60 (Smooth).
HDMI resolution: 2k60.
USB resolution: 1080P20, 720P30, WVGAP60.
Exposure control: AElock, Exposure compensation (10 level adjustable).
White balance: Auto, Manual (R. G. B 10 level adjustable), Calibration.
Image control: Ten level adjustment of contrast, saturation and sharpness.
Comparison of the PIP: Full screen, left and right, up and down, 1/4.
Grid: 8 groups, position, color, thickness adjustable.
Language: English, Simplified Chinese, Traditional Chinese.
RF-2KDMM Features:

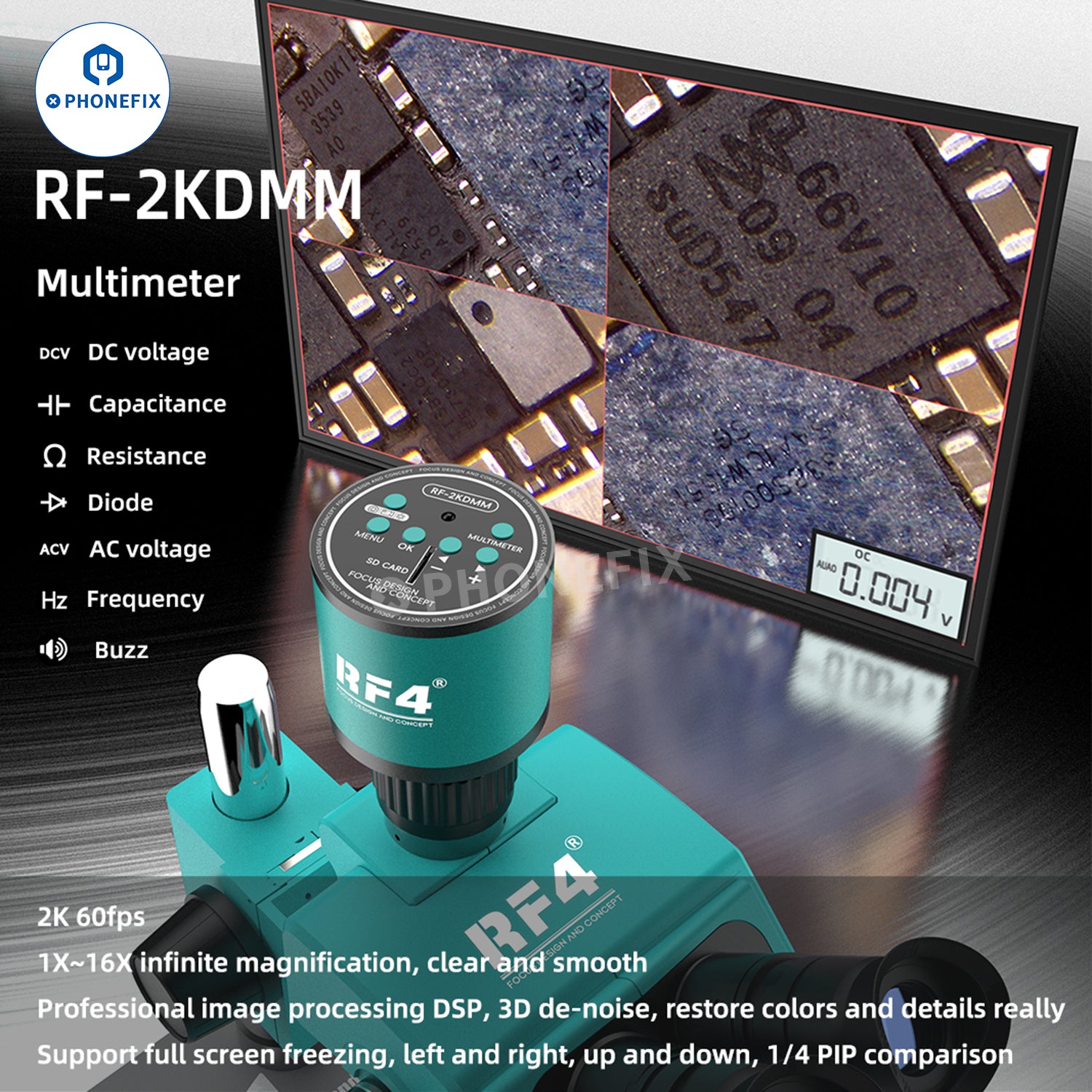

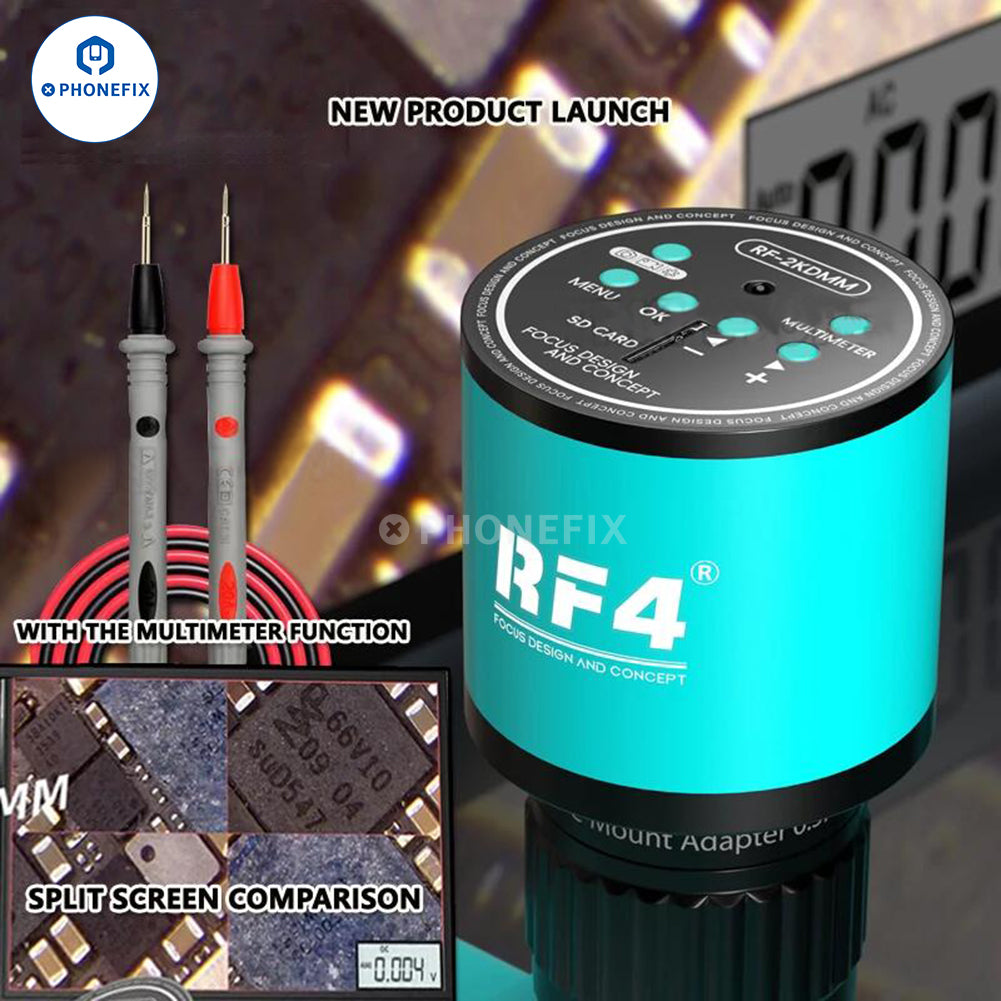

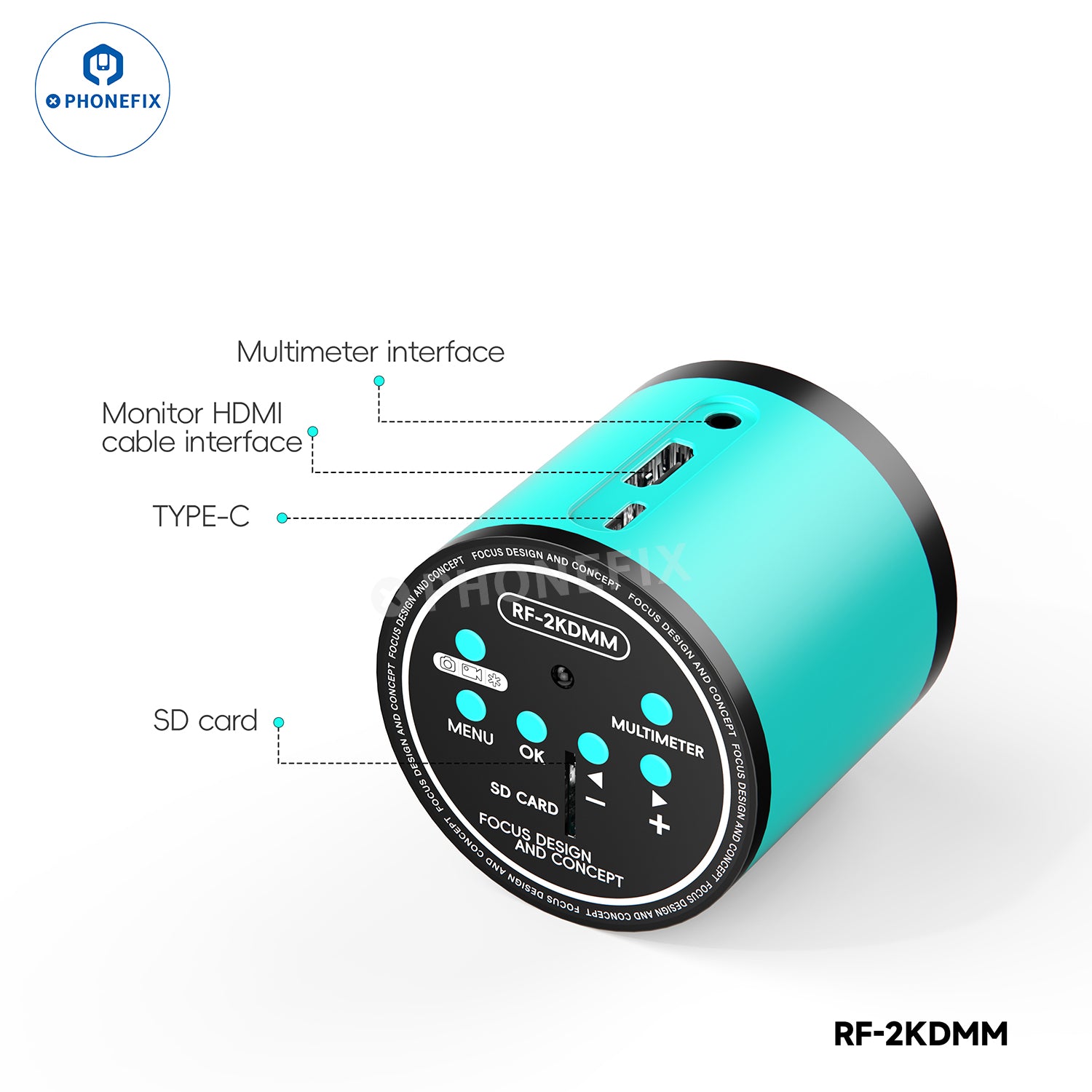

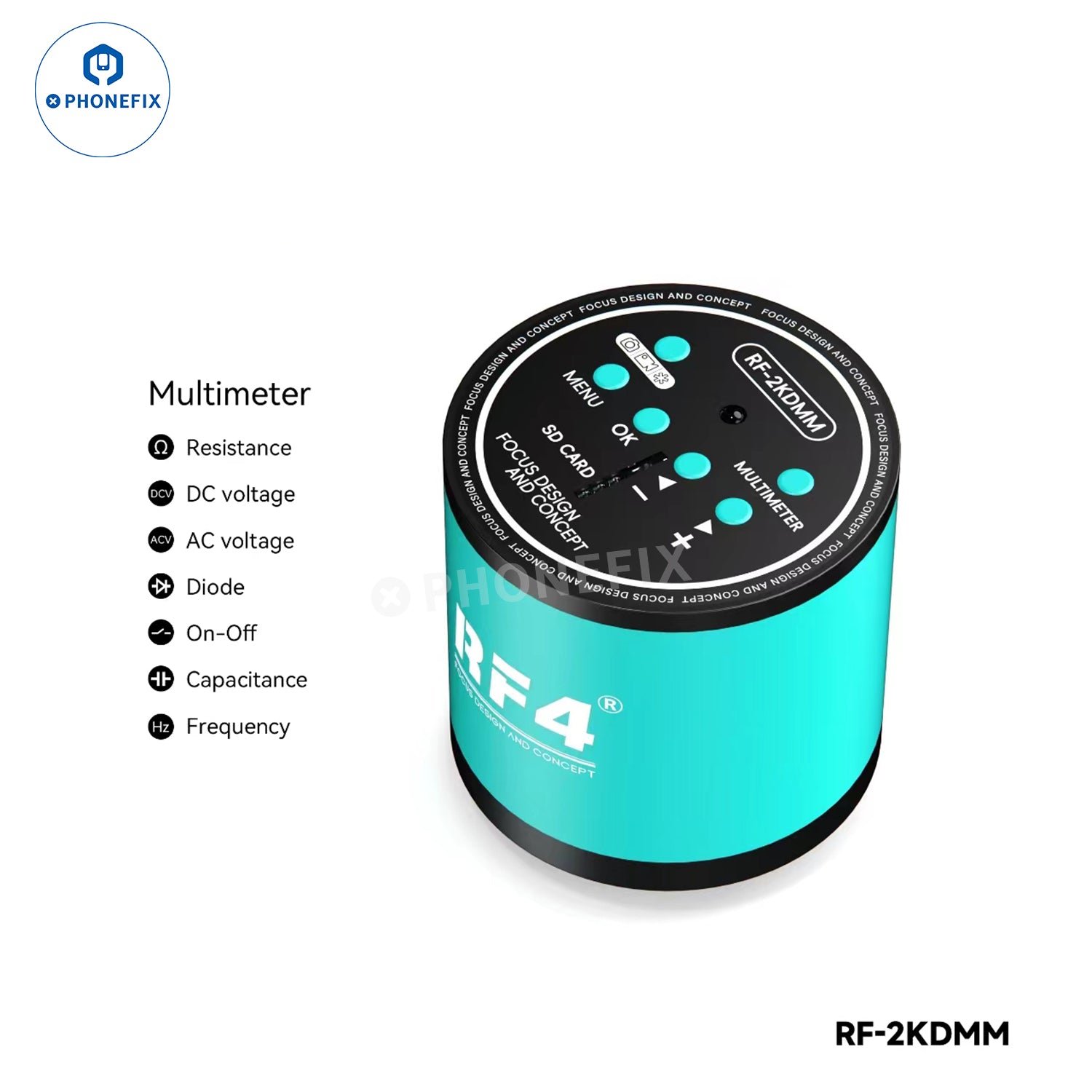

1. RF-2KDMM camera, with a new multimeter detection function, will be connected to the camera, the multimeter interface is displayed in the lower right corner, practical and convenient.
2. 1X~16X infinite magnification, clear and smooth.
3. Support full screen freezing, left and right, up and down, 1/4 PIP comparison.

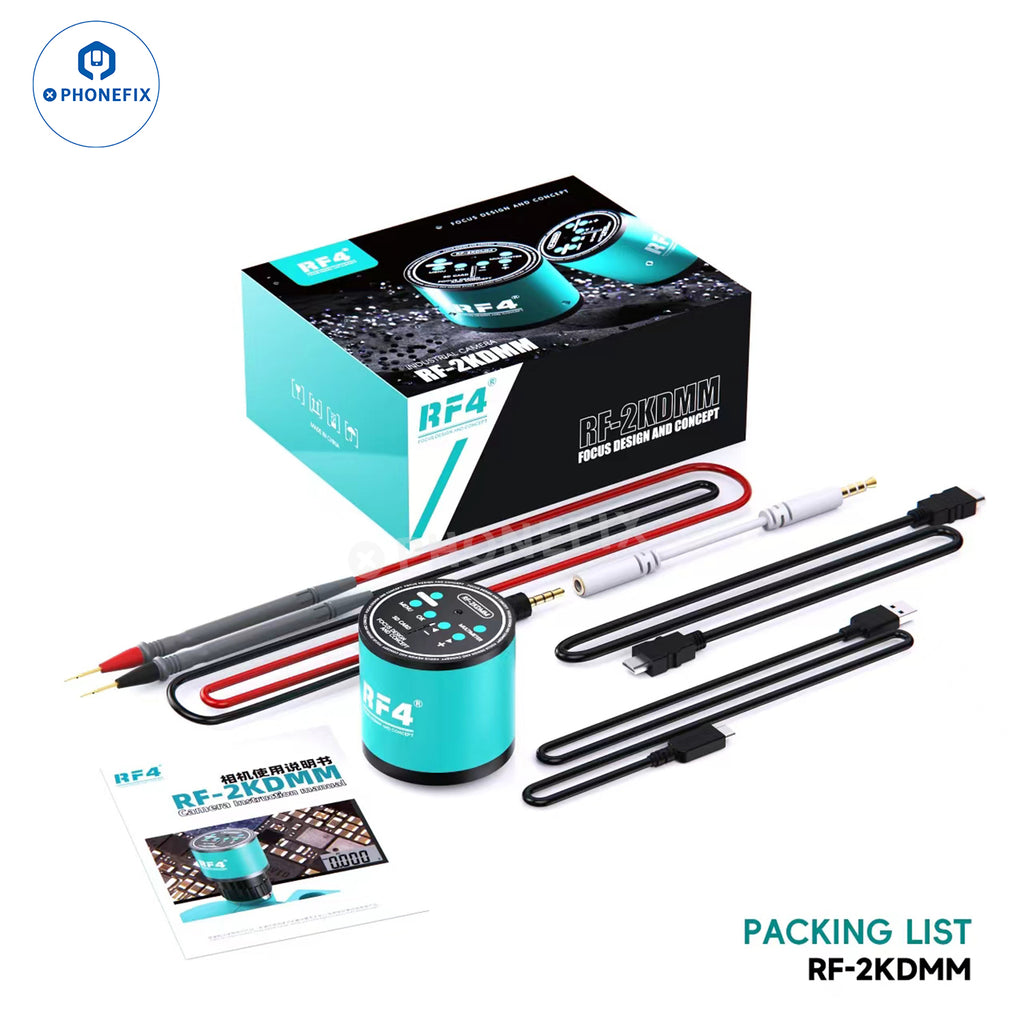

Package List:

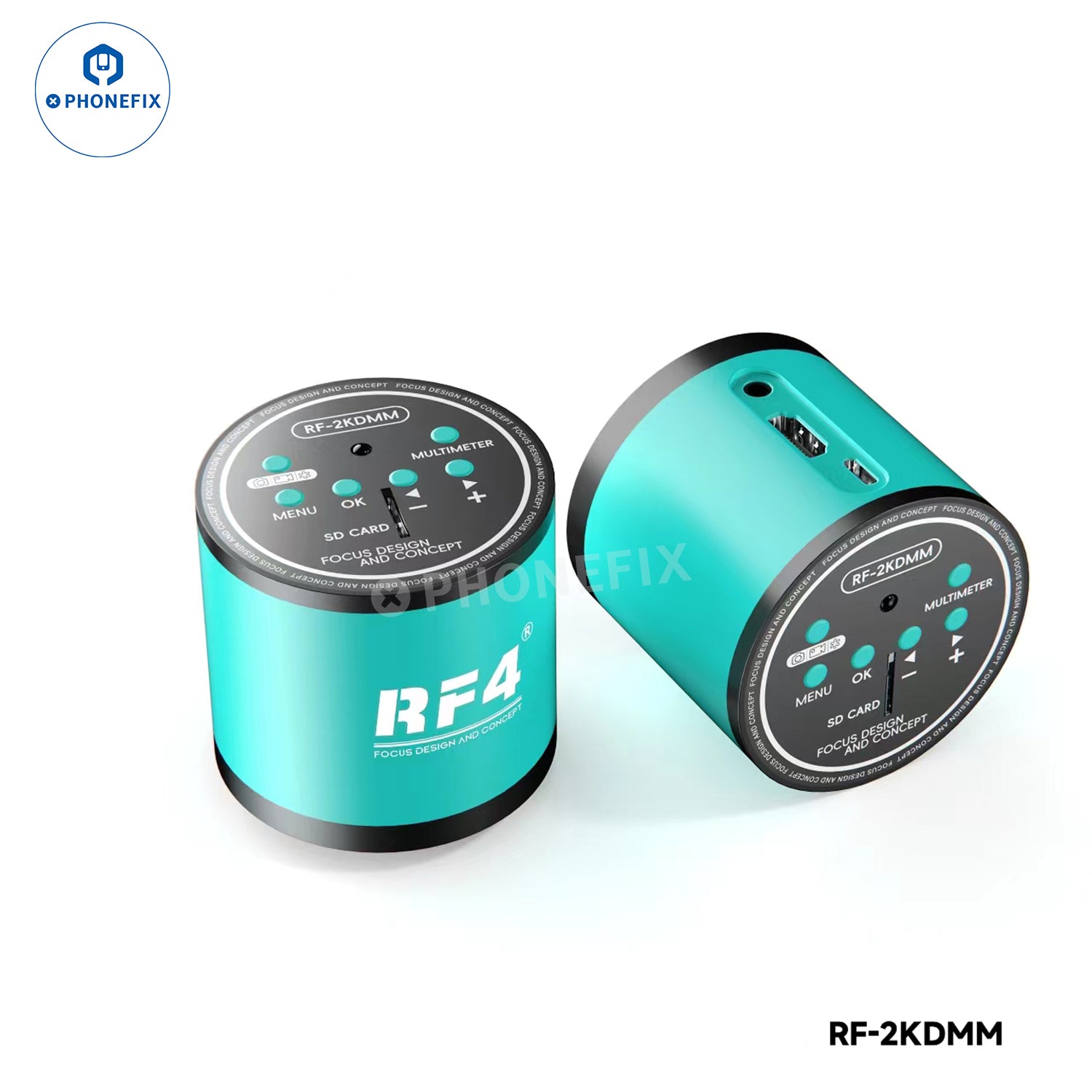

RF-2KDMM Microscope Camera
Multimeter Function Cable
