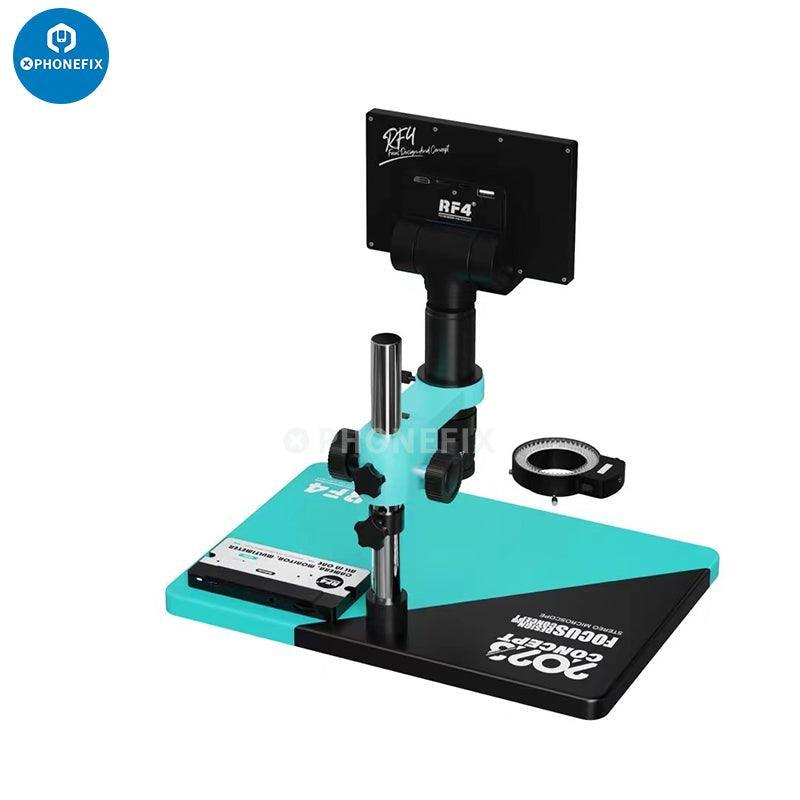

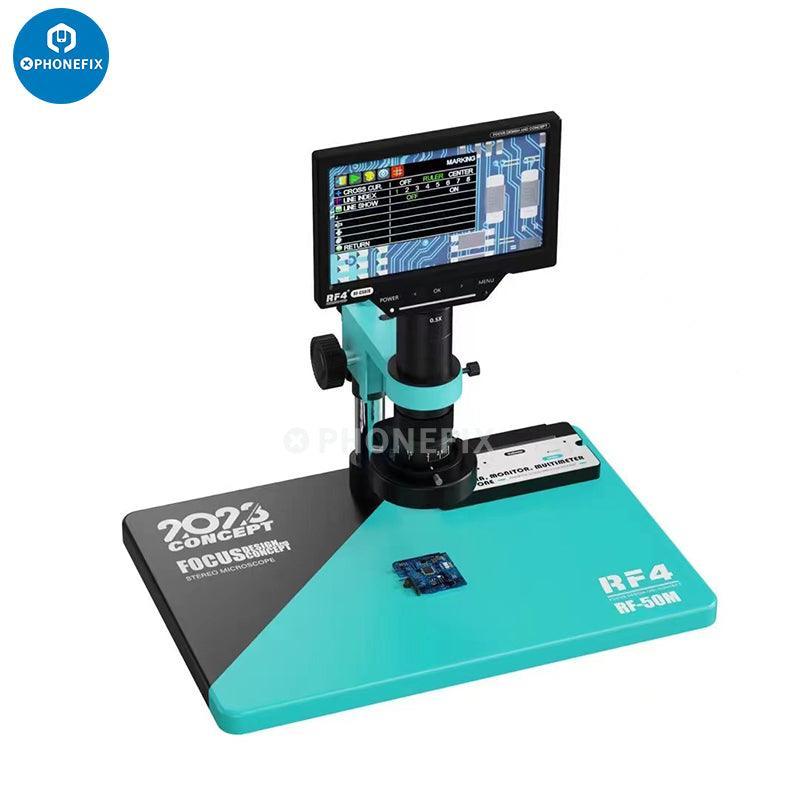

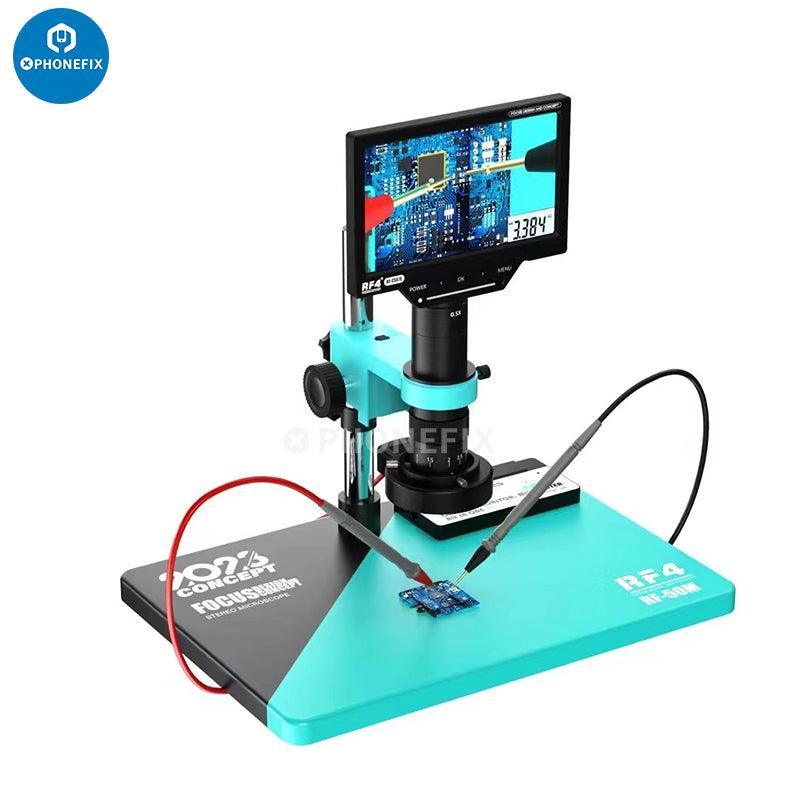

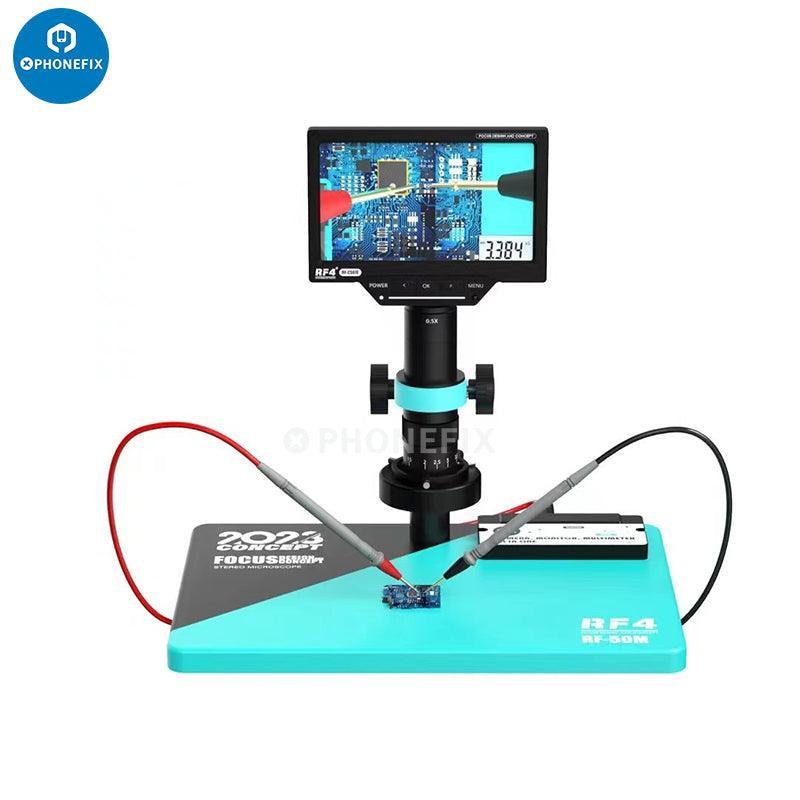

RF4 RF-50M HD Digital Microscope Camera Multimeter Probes Monitor All In One Machine. RF4 RF-50M Built-in 1080P HD Microscope And With Multimeter Probes Tester BGA Welding Workbench For Electronic Motherboard PCB CPU IC BGA SMD Testing Soldering Repair, like Mobile Phone, iPad, Tablets, ect.
Features:
- This device can zoom in and out infinitely between 1X~16X.
-
Mouse pointer: Pointer, Cross, Gesture 3 different shapes optional.
- This device provides a power indicator and low battery tips function.
-
Cross cursor: Switch off, Ruler and Centre 3 different shapes optional.
- This device provides a rich marking function for reference during use.
- This device can support an IR remote to make the device avoid image shaking.
- Zoom rate adjustment, Press the left or right button to adjust the zoom rate and then reach the best display effect.
-
Grid line: Provide 8-line grids, each line can set turning on/off type (Horizontal. Vertical), position, line width, color, etc.

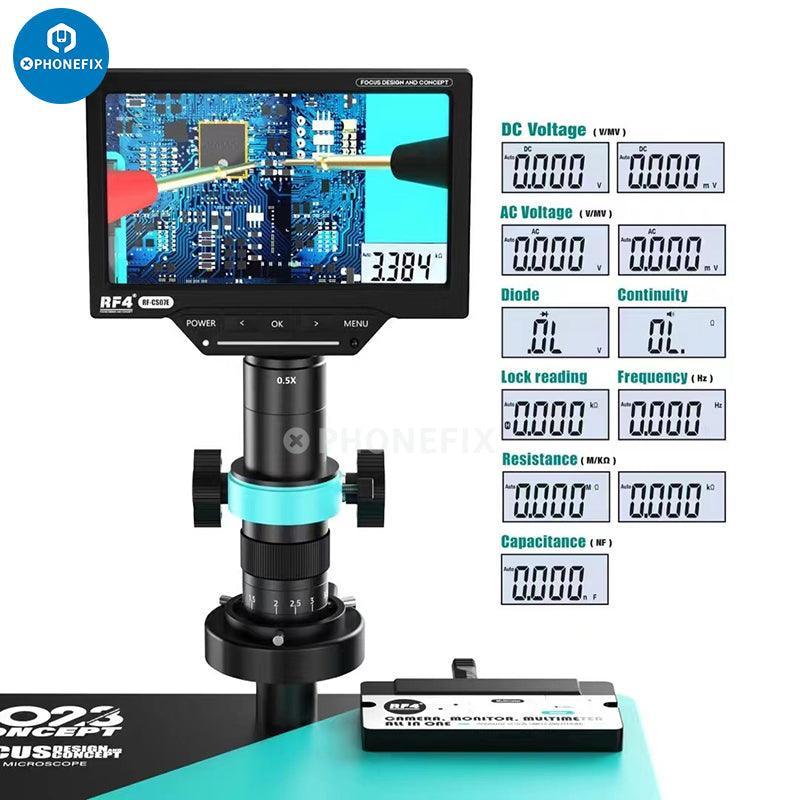

- This device provides a multimeter function, including resistance, DC voltage (0~36V), AC voltage(0~36V), diode, on-off, capacitance, frequency measurement.
-
Photo and video recording function: preview menu system shortcut set as a photo or video recording, in the preview menu, press confirm button, and can take a photo or video recording.
- In the preview, the menu system freeze is set as full screen, left and right, up and down, and 1/4 screen, in the preview menu, pressing confirm button, can freeze the monitor to make a comparison.
Specification:
- Model: RF-50M
- Digital magnification: 7-50X
- Resolution: 1080P@30fps
- Display size: 7-inch
- Net weight: 3.38kg
- Product Size: 380*260*430mm
- Package size 440*330*260mm

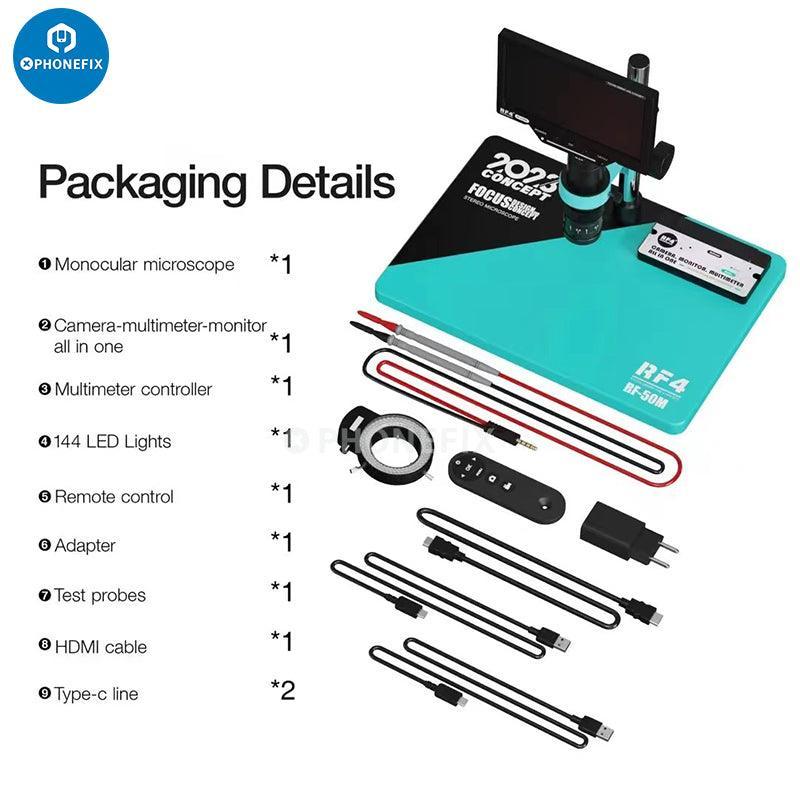

Package includes:
- 1 x Monocular Microscope
- 1 x Monitor
- 1 x Multimeter controller
- 1 x 144 LED Lights
- 1 x Remote Control
- 1 x Adapter
- 1 x Test Probes
- 1 x HDMI Cable
- 1 x Type-C Line
