Description

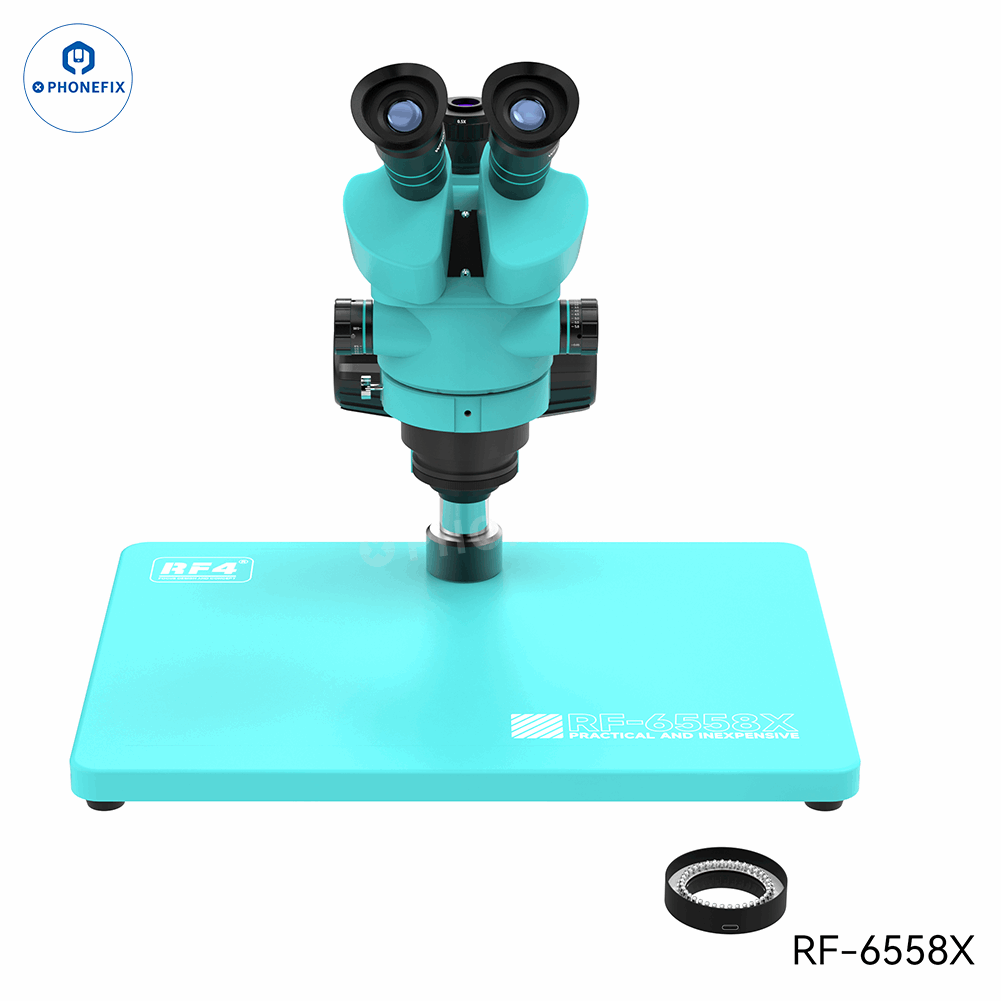

RF4 RF-6558X Features:
1. Eyepiece type: equipped with WF10X/23mm wide-angle eyepieces, enhancing the field of view and comfort during long-term use.
2. Has a built-in lighting system, including LED lights, to ensure that the sample is fully illuminated without interfering reflections.
3. Trinocular lens can accommodate a camera, enabling users to capture images and videos of observations.
4. Dust-proof design: The microscope adopts a dust-proof design, which effectively reduces the need for frequent cleaning and maintenance, thereby extending its service life.
5. Microscope provides synchronized adjustment between the eyepiece and any connected camera, ensuring that both the observer and the captured image maintain the same focus and field of view.

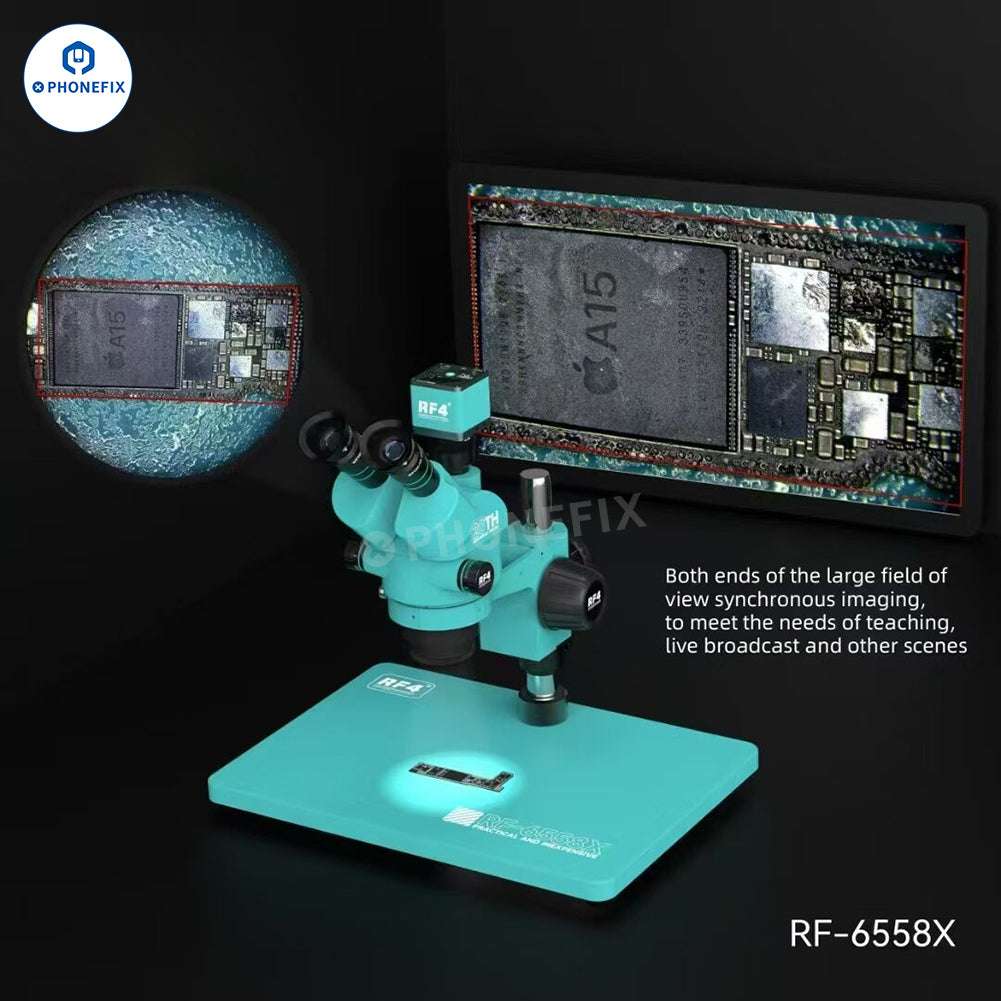

6. RF4 new RF-6558X triocular microscope, both ends of the large field of view synchronous imaging, to meet the needs of teaching live broadcast and other scenes.

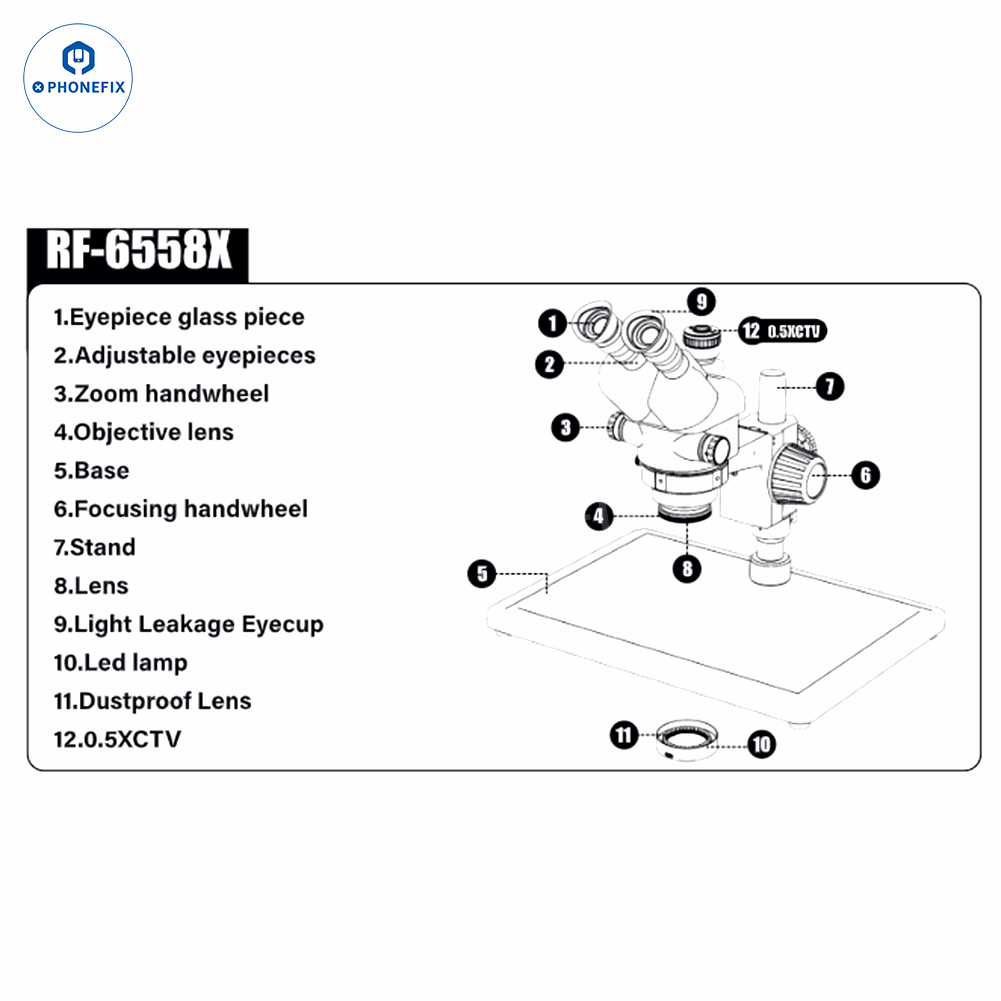

RF-6558X Specifications:
1. Eyepiece glass piece
2. Adjustable eyepieces
3. Zoom handwheel
4. Objective lens
5. Base
6. Focusing handwheel
7. Stand
8. Lens
9. Light Leakage Eyecup
10. Led lamp
11. Dustproof Lens
12. 0.5XCTV

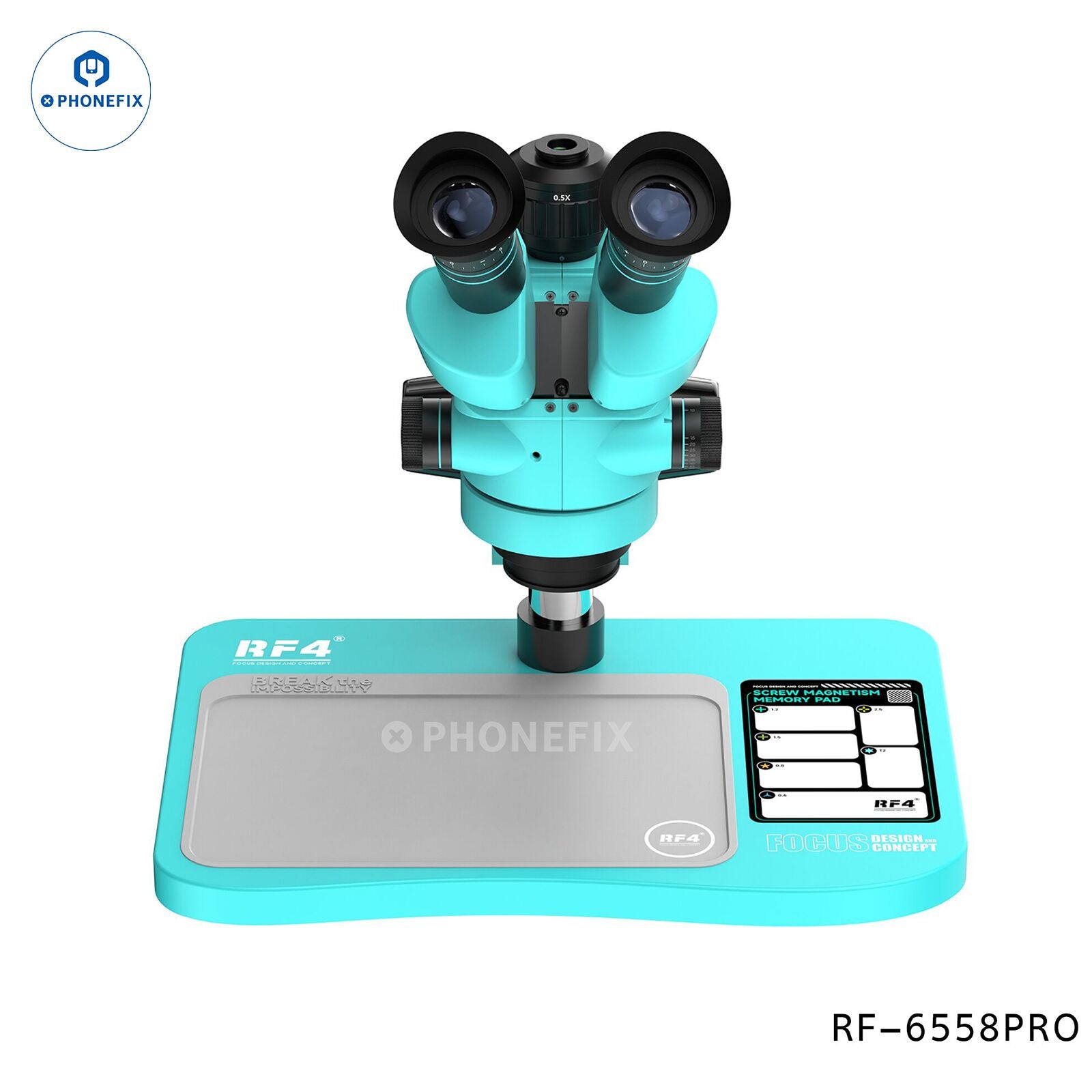

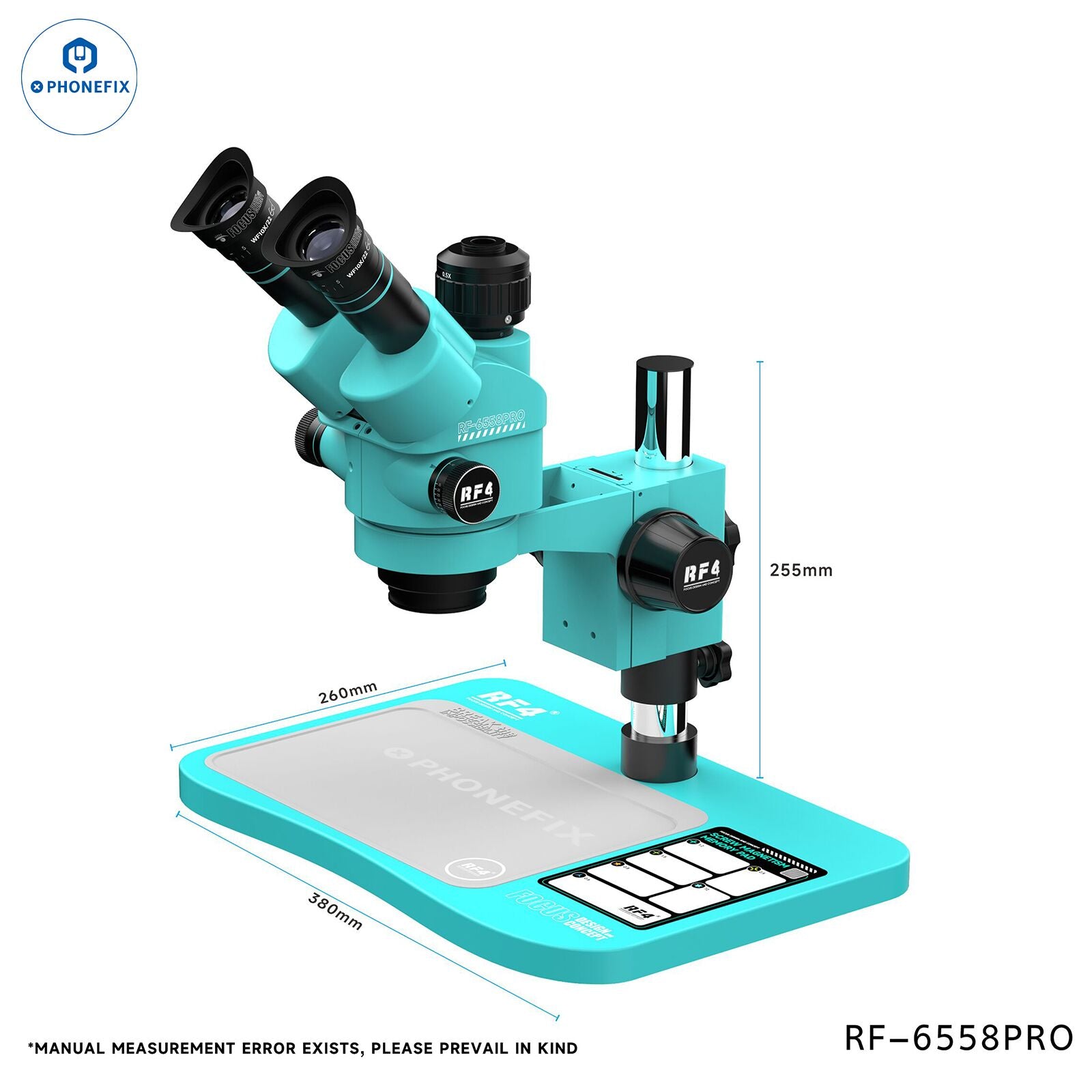

RF4 RF-6558 Pro Specification:

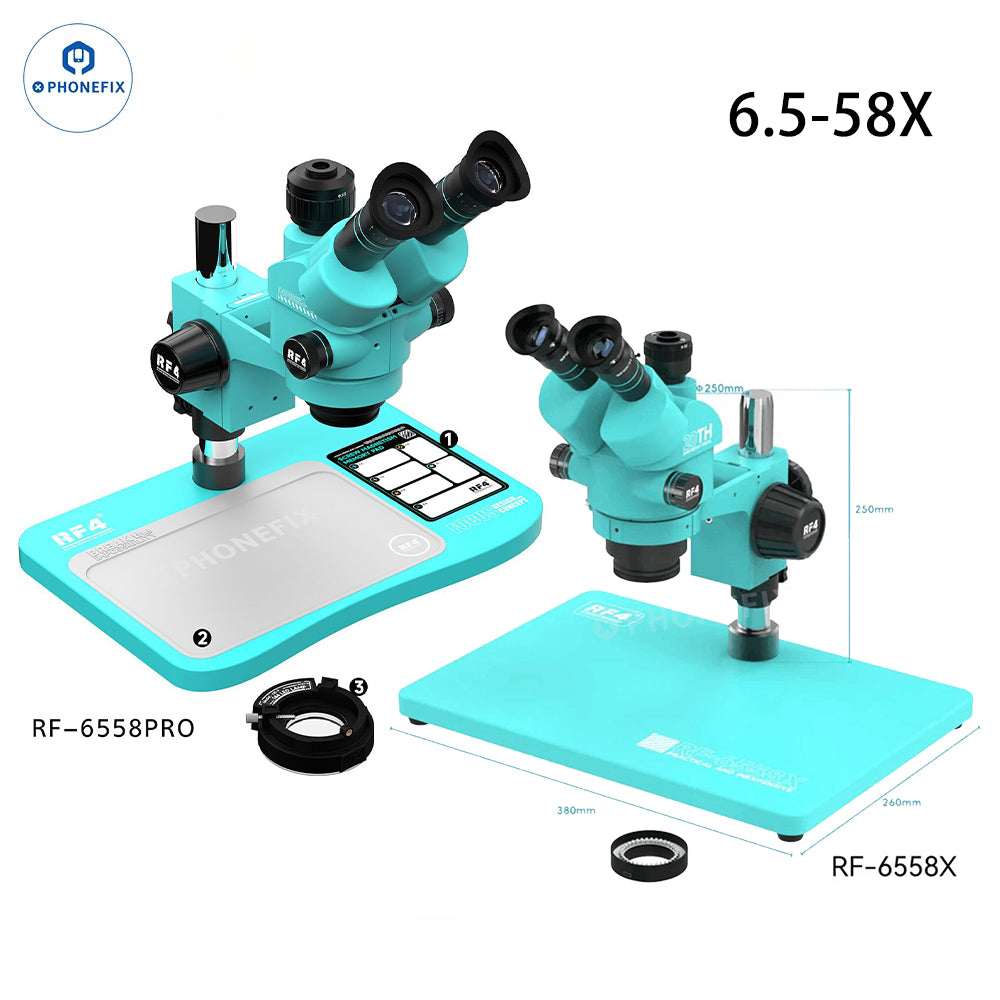

Magnification: Continuous zoom 6.5X to 58X.
Head: 45-degree inclined 360-degree swiveling trinocular.
Eyepiece: WF10X/22MM adjustable.
Objective: 0.65-5.8X.
Zoom Knob: Metal knob.
Camera connector: 0.5X CTV (Monitor and eyepiece Synchronous zoom).

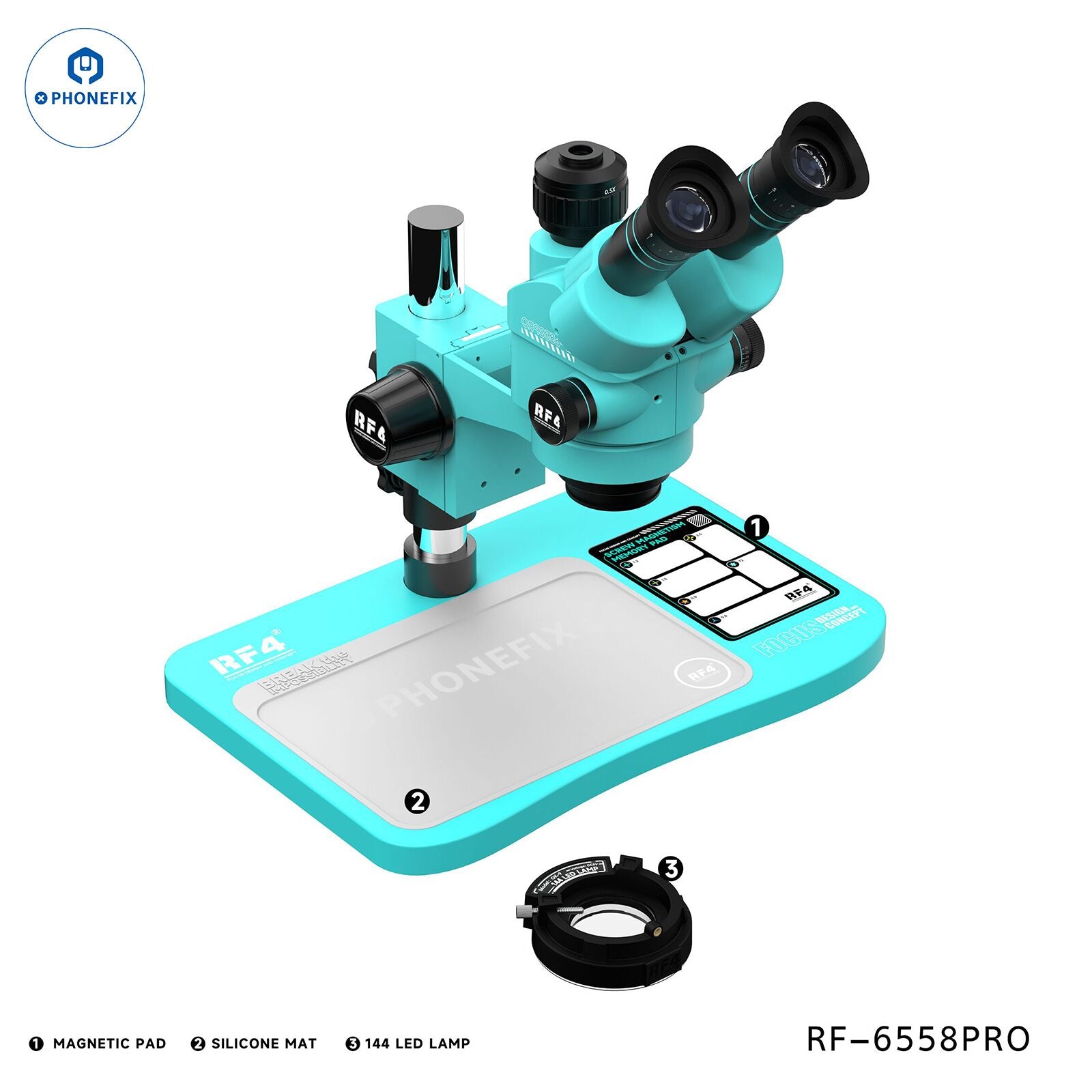

Accessories: 144 light dust proof lens Limit lock Leak-proof eye cup.
Base pad: 260*380mm Multifunctional aluminum alloy repair base + silicone pad + screw magnetic storage pad.

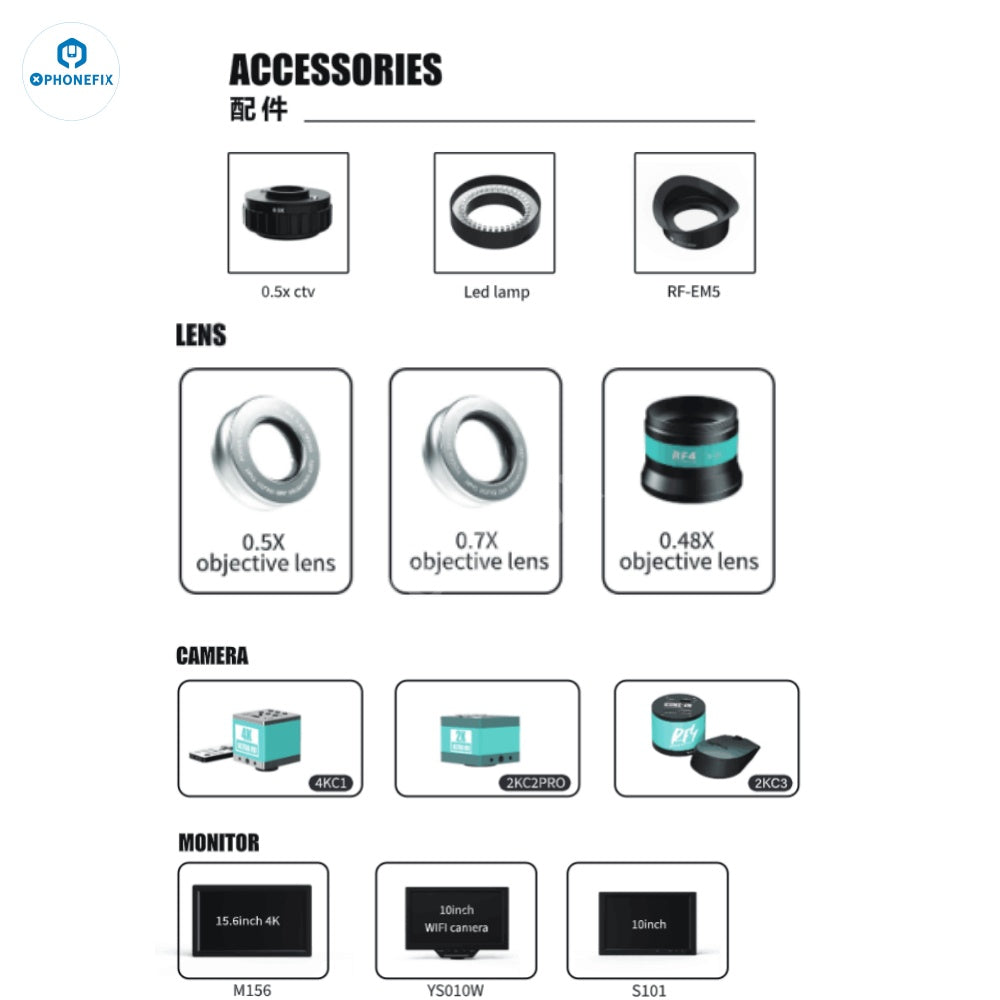

Accessories:
1. 0.5x ctv
2. Led lamp
3. RF-EM5
4. Optional LENS: 0.5X/0.7X/0.48X objective lens.
5. Optional Camera: 4KC1, 2KC2PRO, 2KC3.
6. Optional Monitor: M156, YS010W, S101.
Support Parameters:
Column aperture: Φ25mm
Lens aperture: Φ76mm
Center distance: 155mm
Lifting range: 50mm

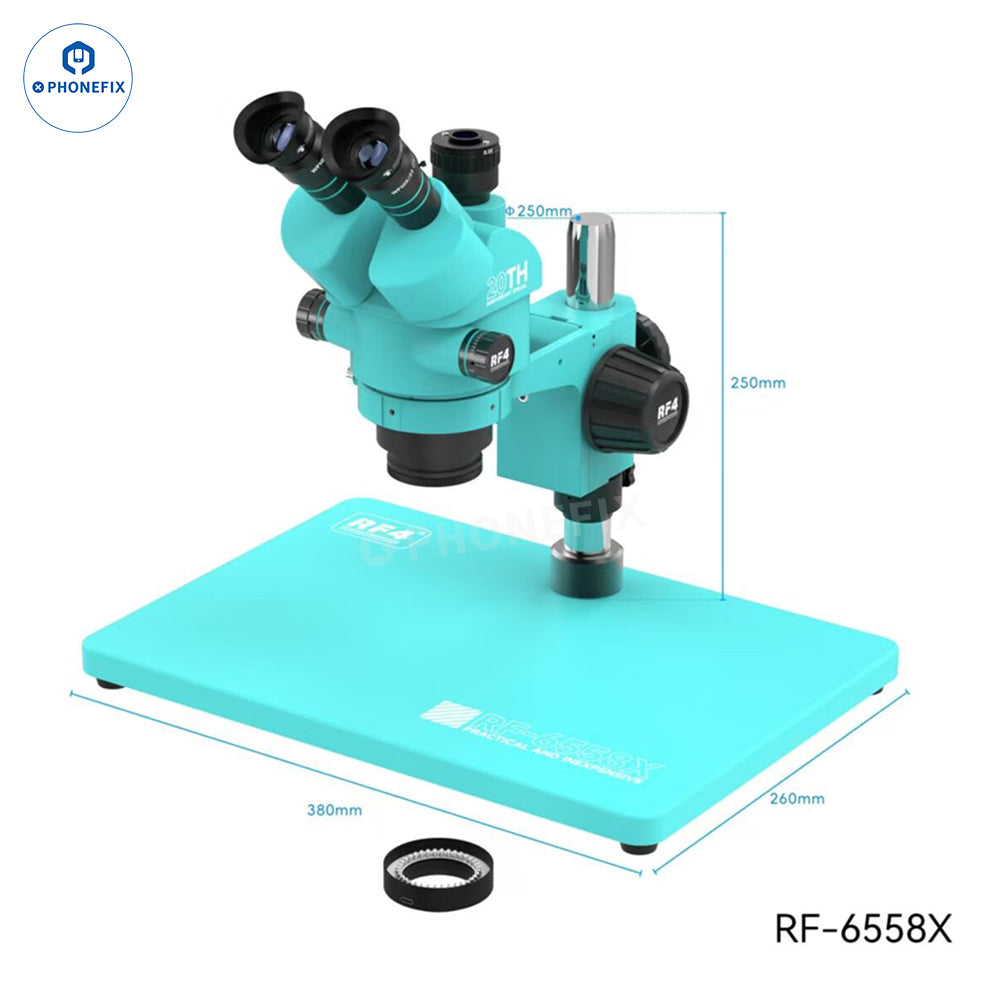

Base size: 380*260mm
Wide-angle 10X/22 Eyepieces:
Magnification: 10X
Wide field of view 22mm
Matching size: 30mm
Applicable models: Stereoscopic, fixed, and continuous magnification microscopes
0.5X CTV Len:
The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet
The adapter ring can use LCD to focus, this kind of focus method is manual focus
The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming
144 LED Ring Light:
Input: AC 100-240V 50/60Hz
Output: DC 12V, Max 700mA
Light color: White
Number of lights: 144 LEDs
Inside diameter: 60mm
RF-6558X microscope configuration:
Different eyepieces match different magnifications of the same objective lens:
