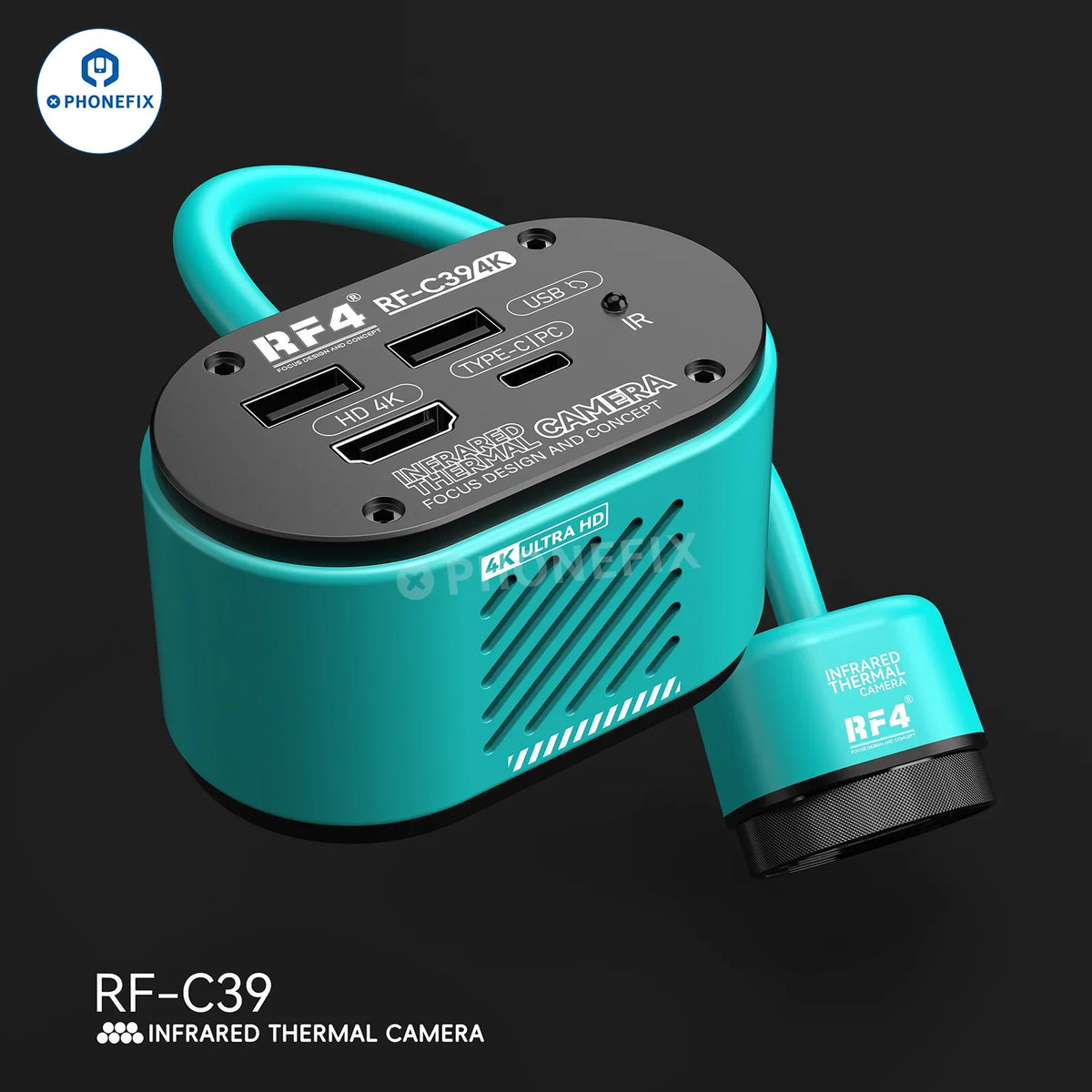

RF4 RF-C39 RF-C39L 4K microscope camera and infrared dual-spectral thermal imaging 2-in-1 camera for PCB circuit board soldering observation and phone motherboard short circuit repair. Upgraded RF4 RF-C39L Camera With Fixed Trestle. Adjust the angle and direction at will.

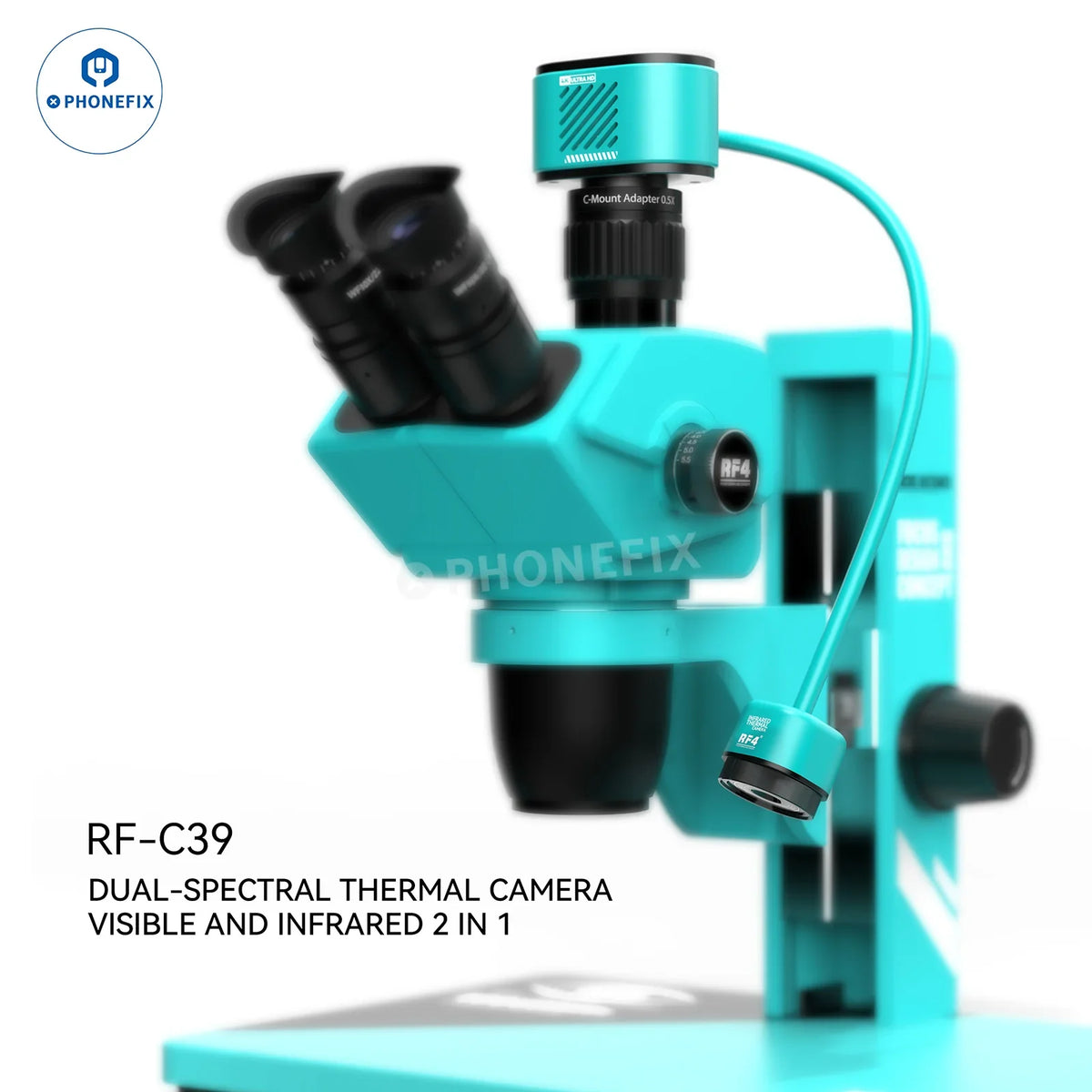

RF4 RF-C39 4K HD visible and infrared thermal camera is used with a trinocular stereo microscope for object magnification observation and motherboard fault diagnosis repair, etc.
Option:
1. RF4 RF-C39.
2. RF4 RF-C39L.

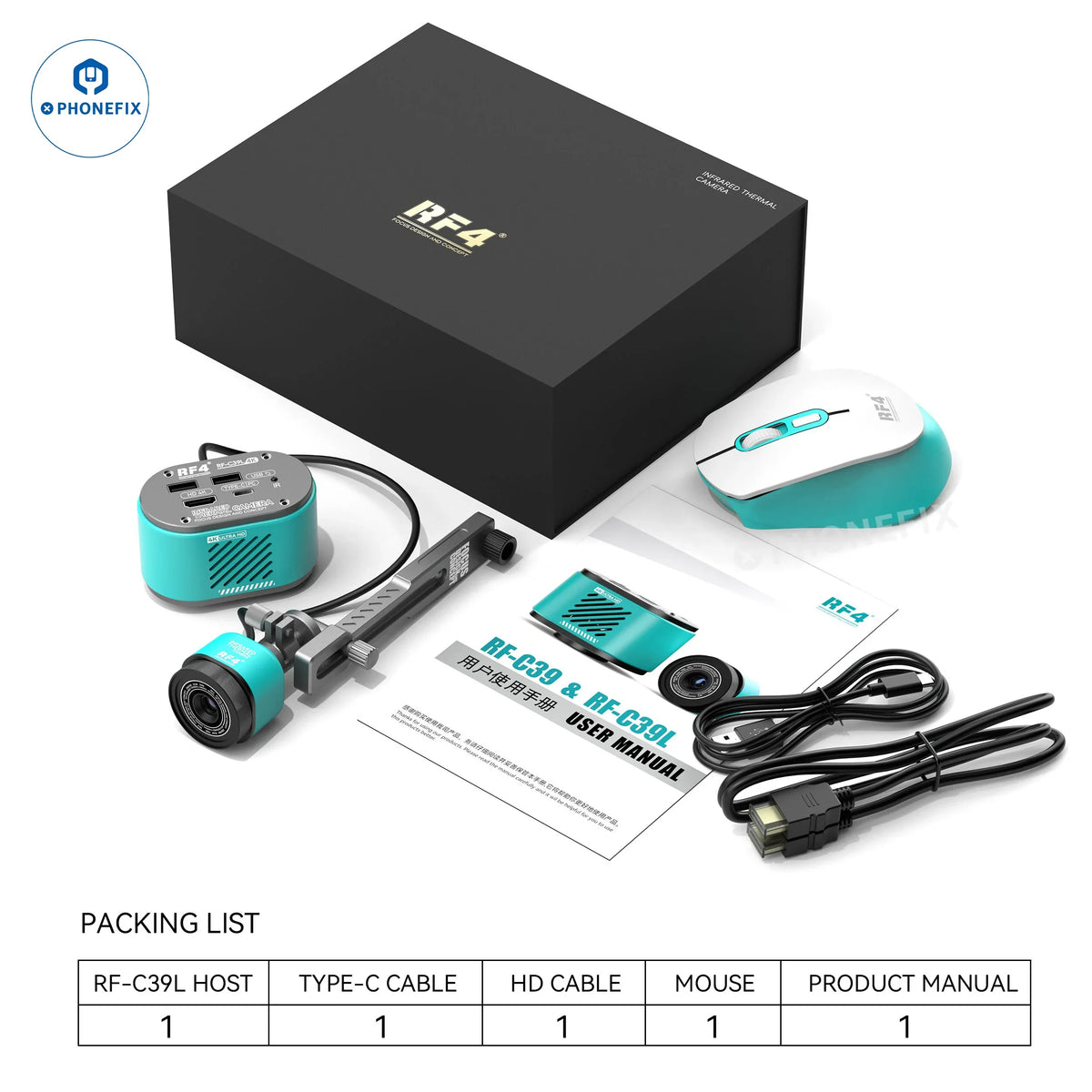

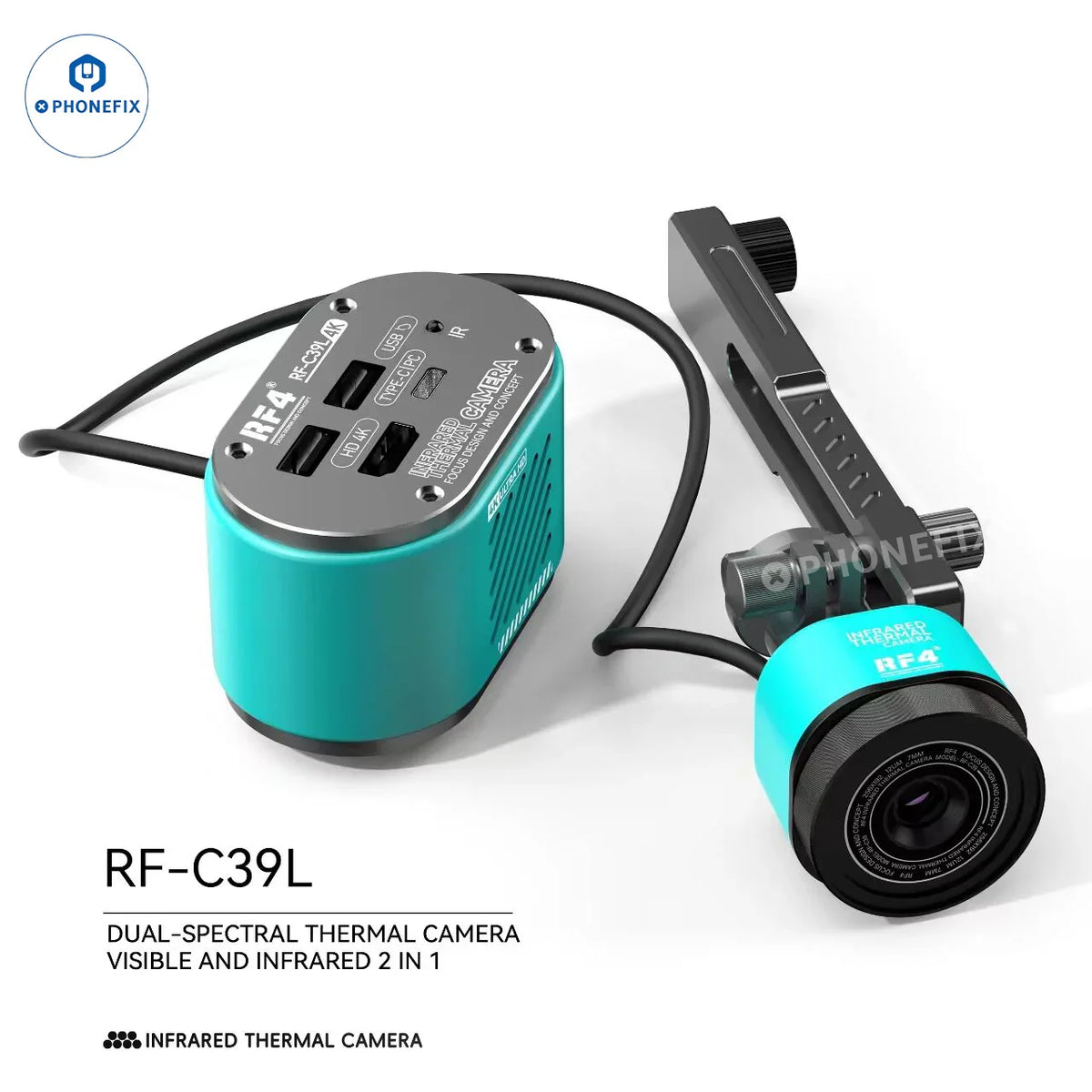

Different between RF-C39 and RF-C39L: RF-C39L has a fixed bracket, but the RF-C39 does not.
Please note: The bracket cannot be purchased separately as it contains a specific data cable.
Features:

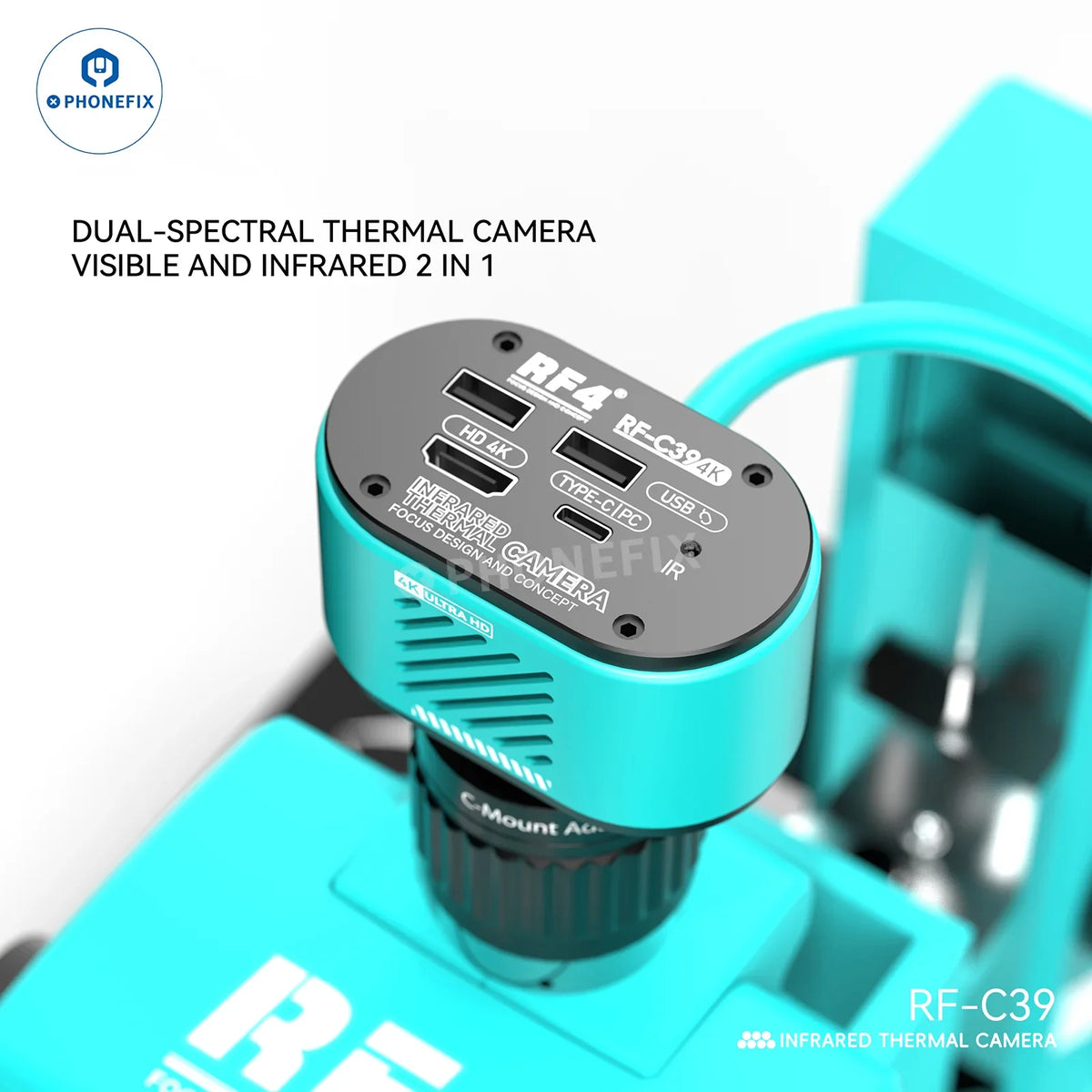

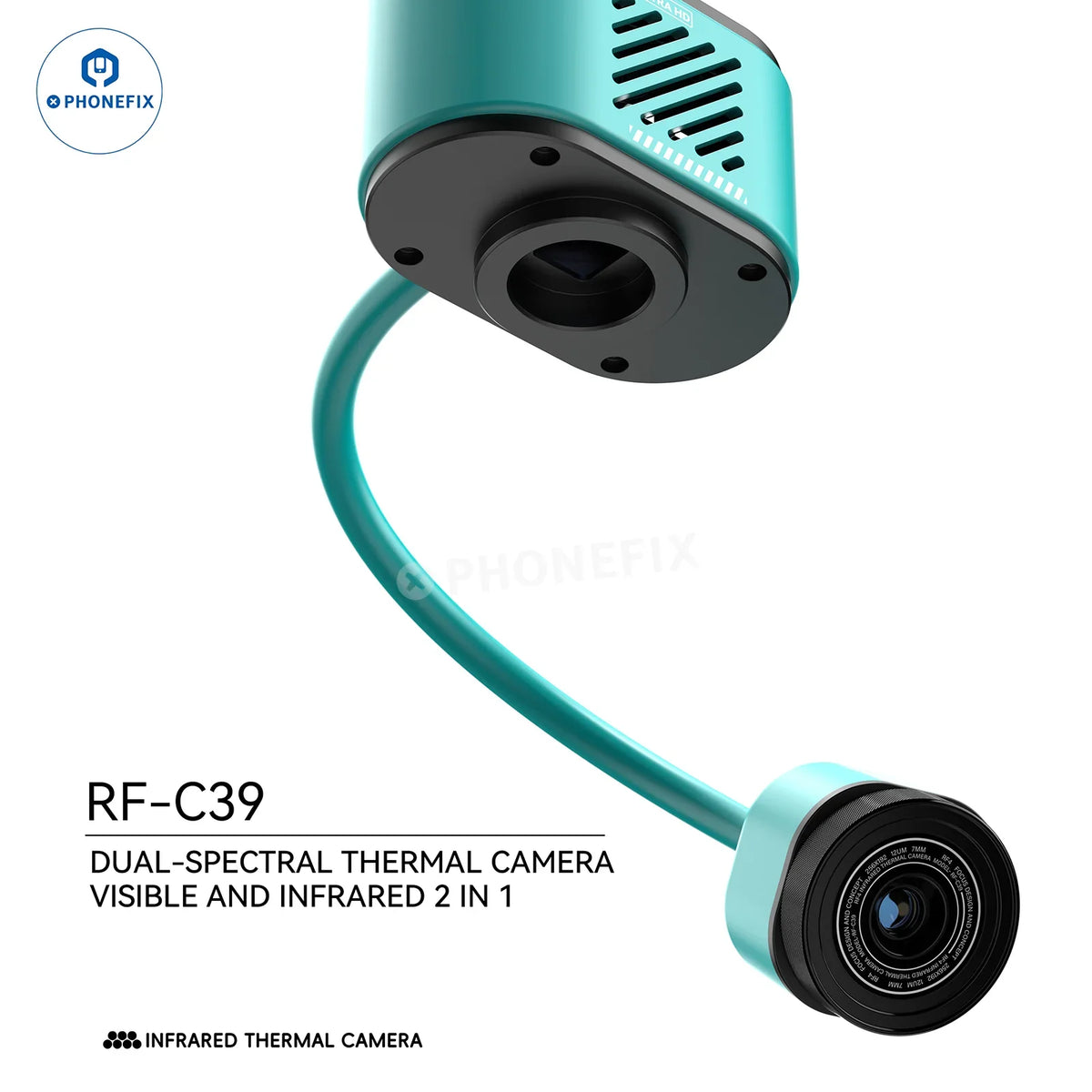

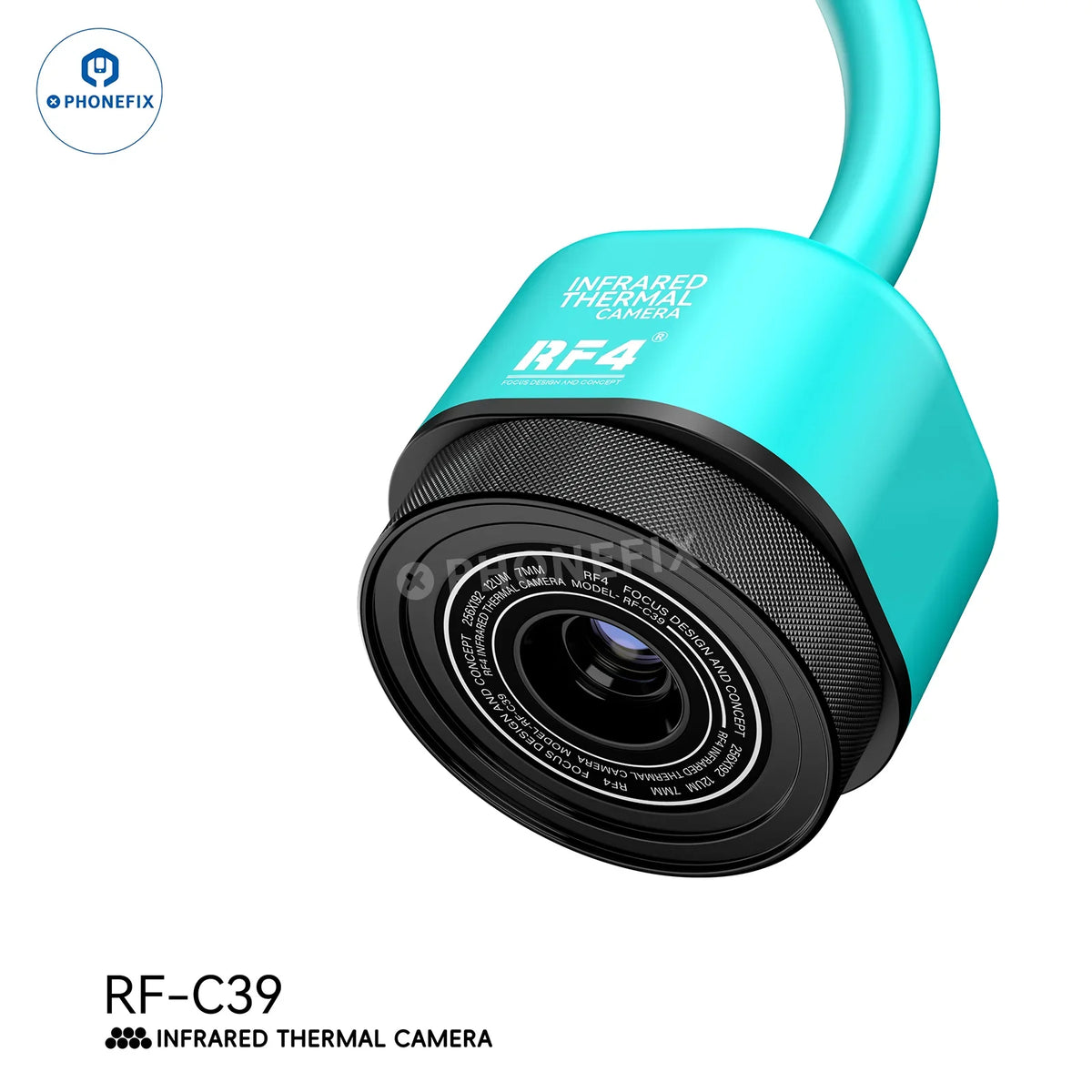

1. RF4 RF-C39 Dual-Spectral thermal imager 4K camera all in one.

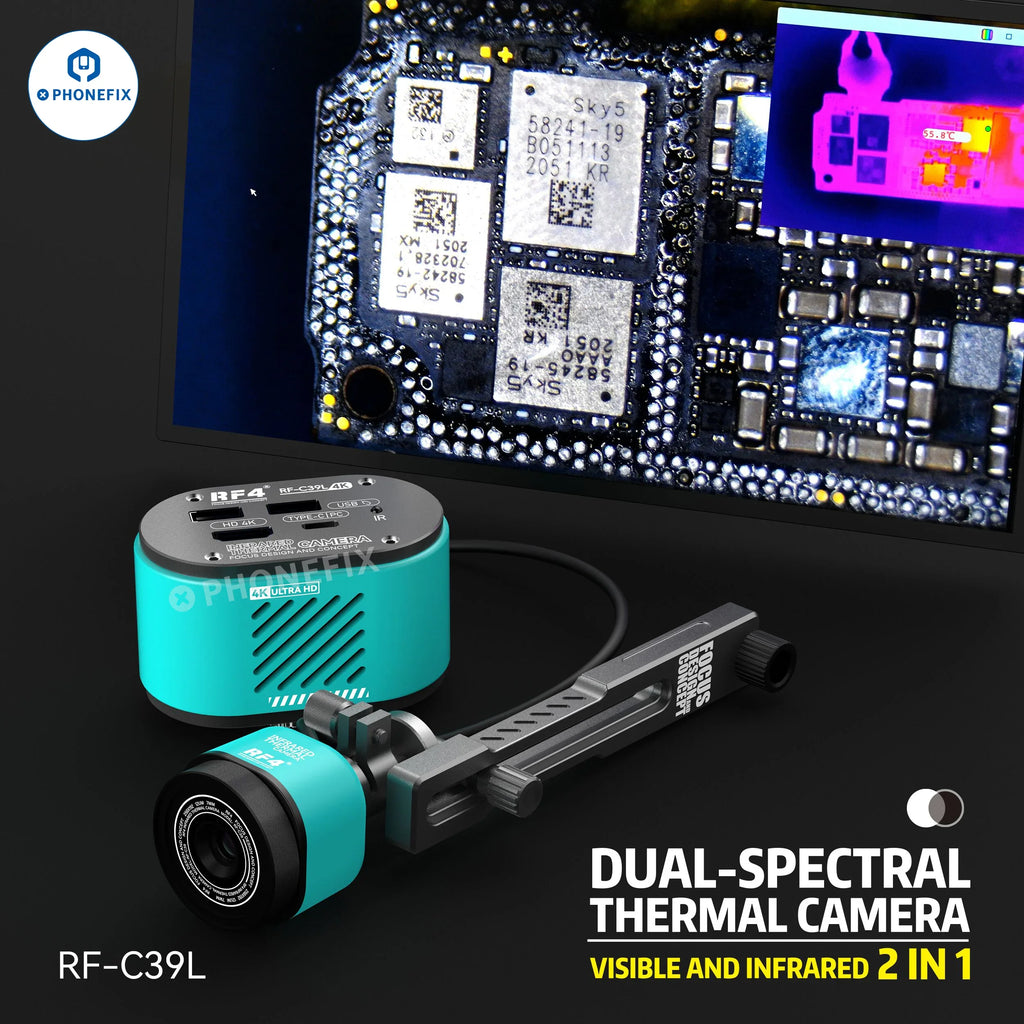

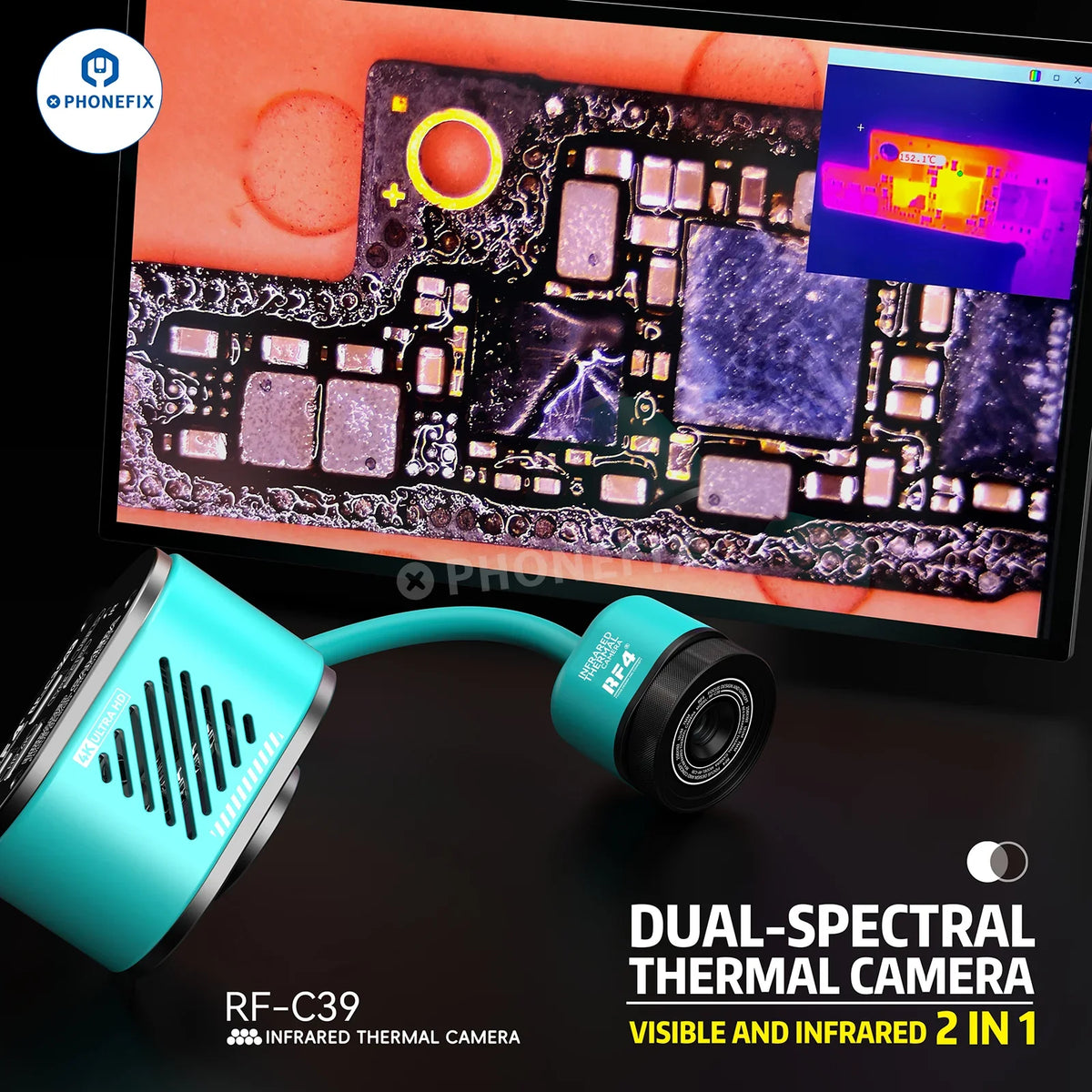

2. Infrared dual-spectral thermal imaging camera for PCB motherboard fault diagnosis, detection and maintenance.
3. New trinocular stereo microscope 4K camera for photo and video photography.
4. Professional image processing DSP, 3D de-noise, and restore colors and details really.
5. Easy to carry and use, no need for a computer or a mobile phone.
6. Support full-screen freezing, left and right, up and down, 1/4 PIP comparison. Usually used in laboratories, schools, teachers, sample observation, eyepiece protection, etc.

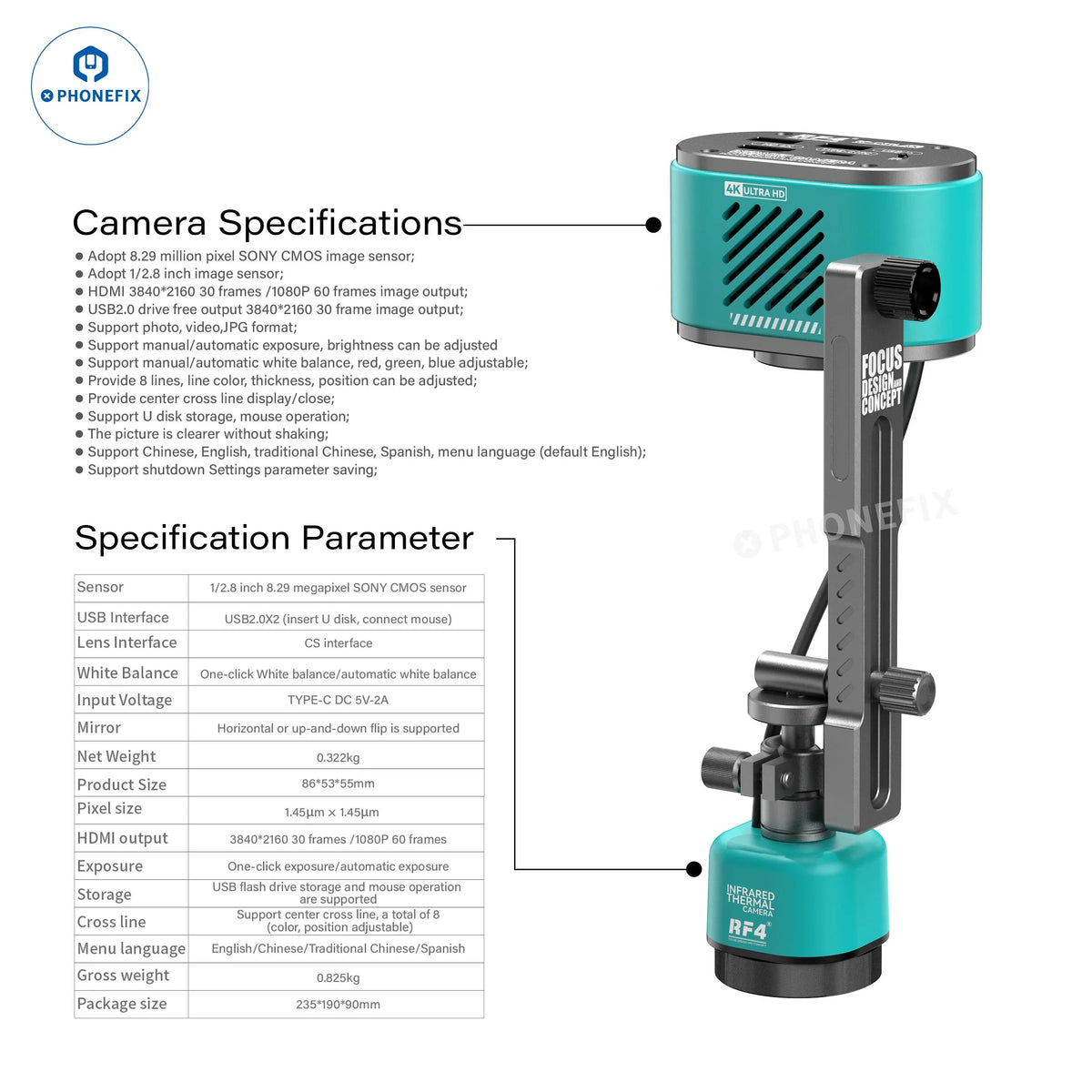

Specification:
Sensor: 1/2.8 inch 8.29 megapixel SONY CMOS image sensor.
USB Interface: USB2.0*2 (insert U disk, connect mouse).
HDMI output: 3840*2160 30 frames, 1080P 60 frames.
Lens Interface: CS interface.
Pixel size: 1.45um*1.45um.
White Balance: One-click white balance, manual/automatic white balance, red, green, blue adjustable.
Exposure: One-click exposure, support manual/automatic exposure, brightness can be adjusted.
Cross line: Support center cross line, a total of 8 (color, position adjustable).
Input Voltage: Type-C DC 5V-2A.
Mirror: Horizontal or up-and-down flip is supported
Storage: USB flash drive storage and mouse operation are supported.
Menu language: English/Chinese/Traditional Chinese/Spanish, menu language (default English).
USB2.0 drive free output 3840*2160 30 frame image output.
Provide 8 lines, line color, thickness,position can be adjusted.
Provide center cross line display/close.
Support photo, video, JPG format, the picture is clearer without shaking.
Support shutdown Settings parameter saving.
