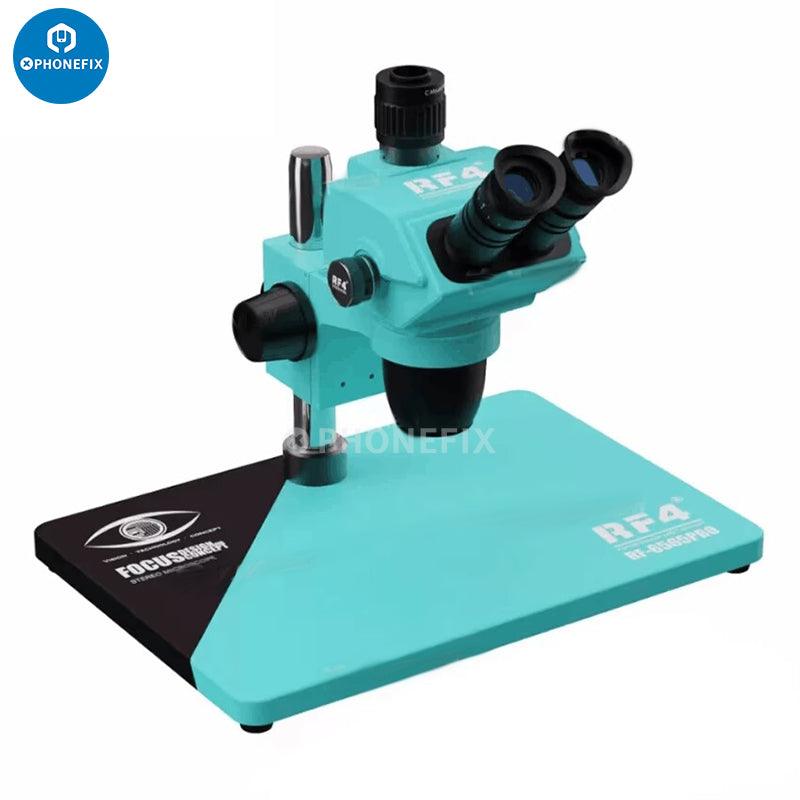

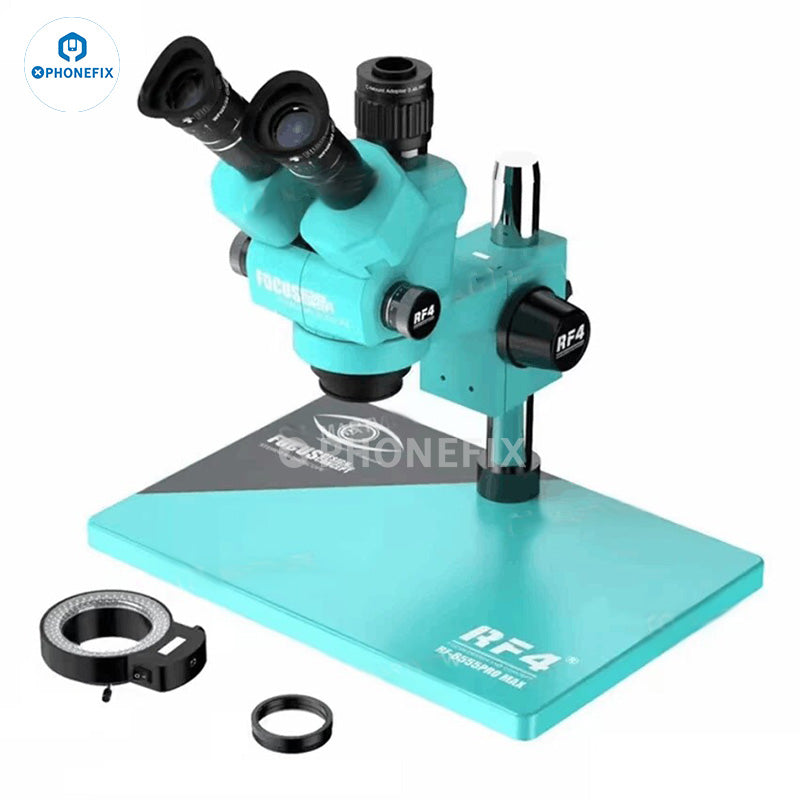

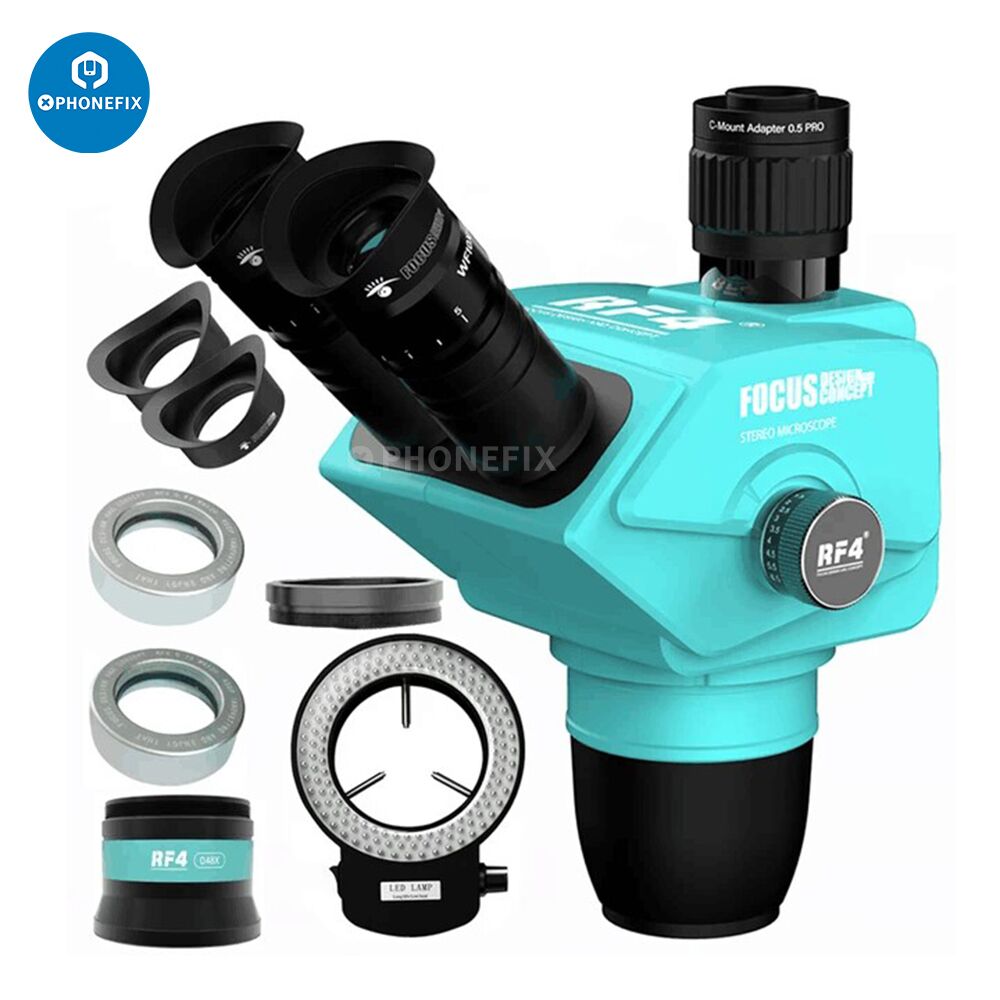

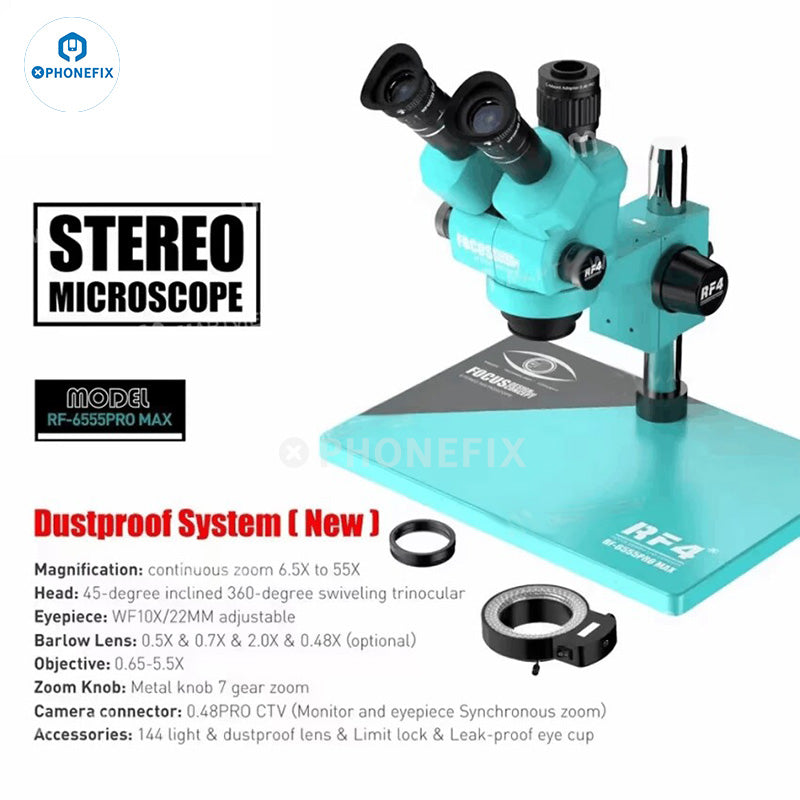

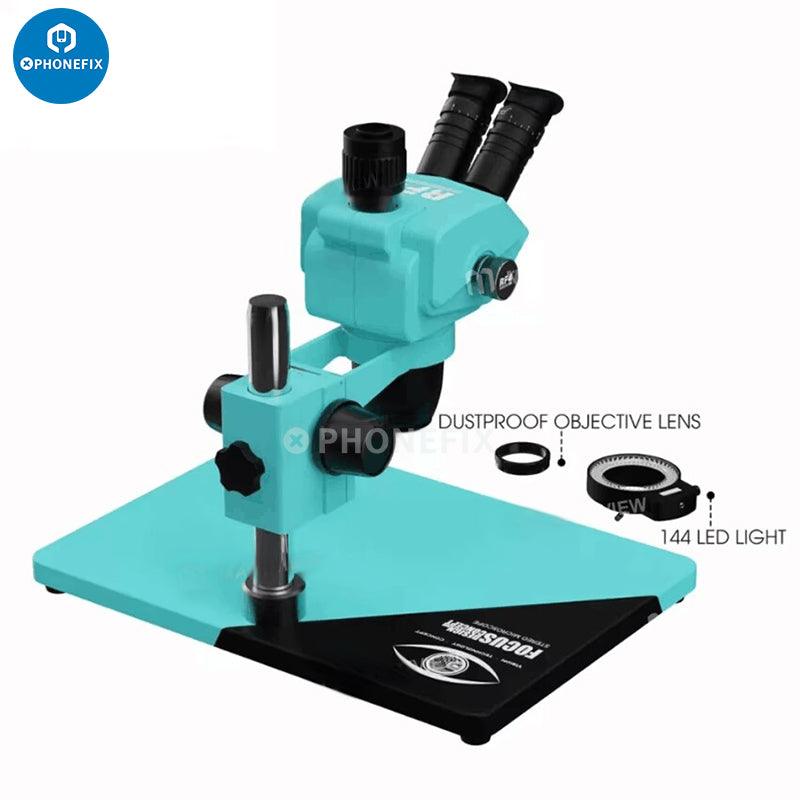

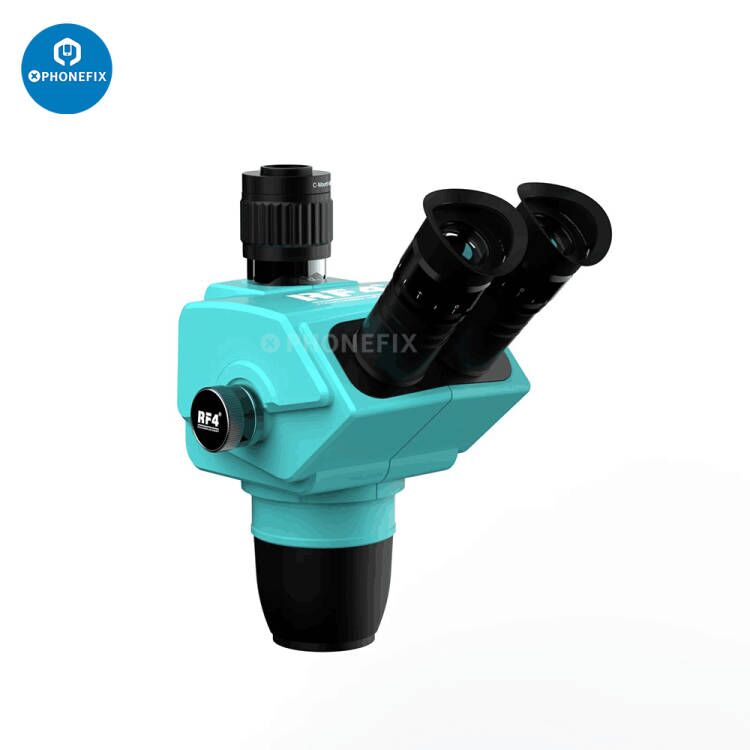

RF4 RF6565Pro 6.5-65X Synchronous Zoom Trinocular Stereo Microscope with Aluminum Alloy Base. RF4 6.5-65X Synchronous Zoom Trinocular Stereo Microscope Head with 0.5Pro C-Mount Adapter. RF4 RF6555Pro Max 6.5-55X Synchronous Zoom Trinocular Stereo Microscope for mobile phone PCB BGA repair.

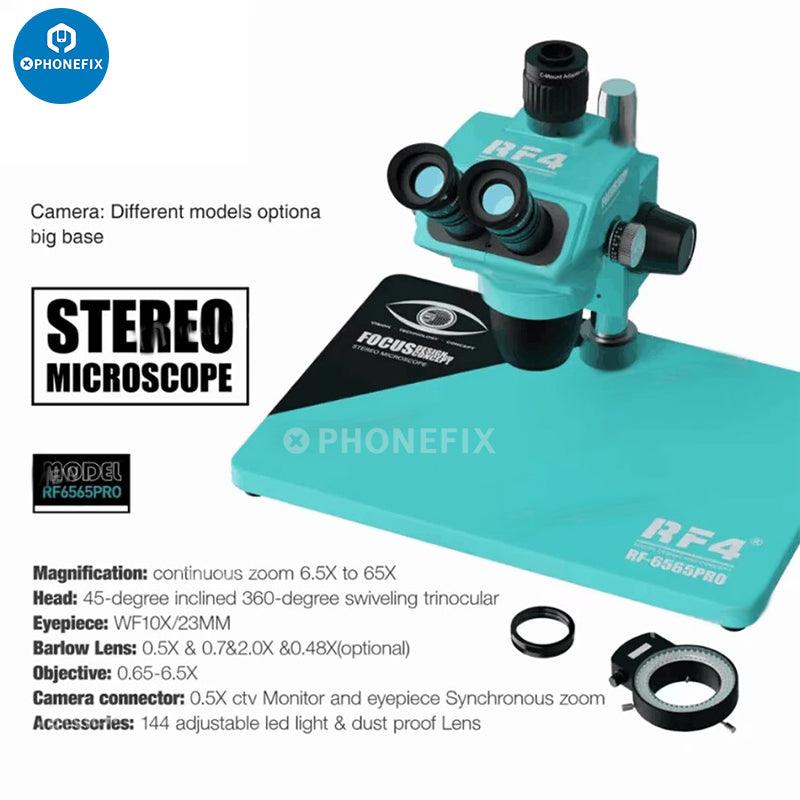

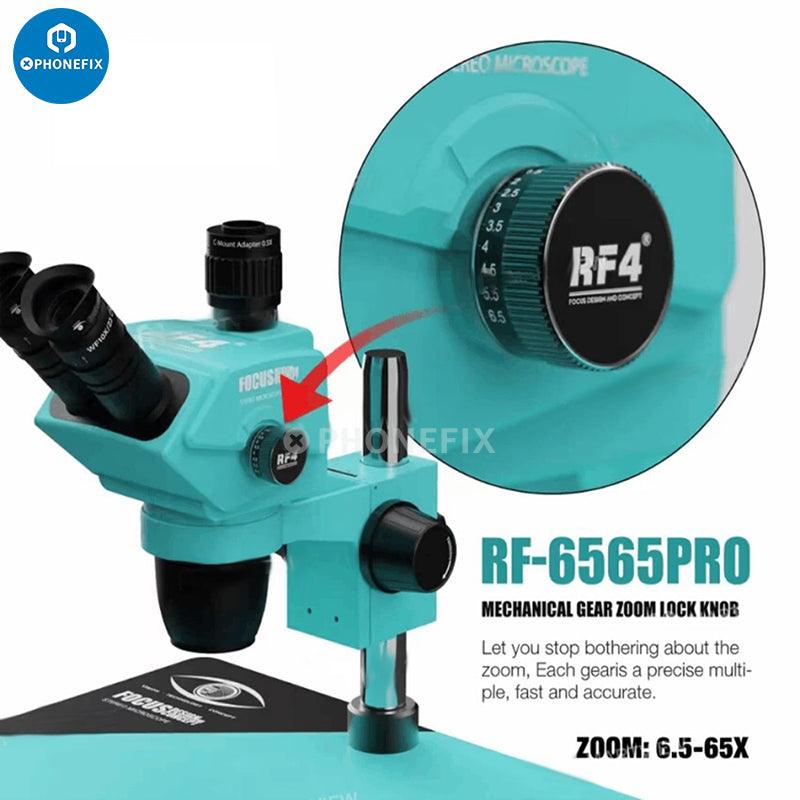

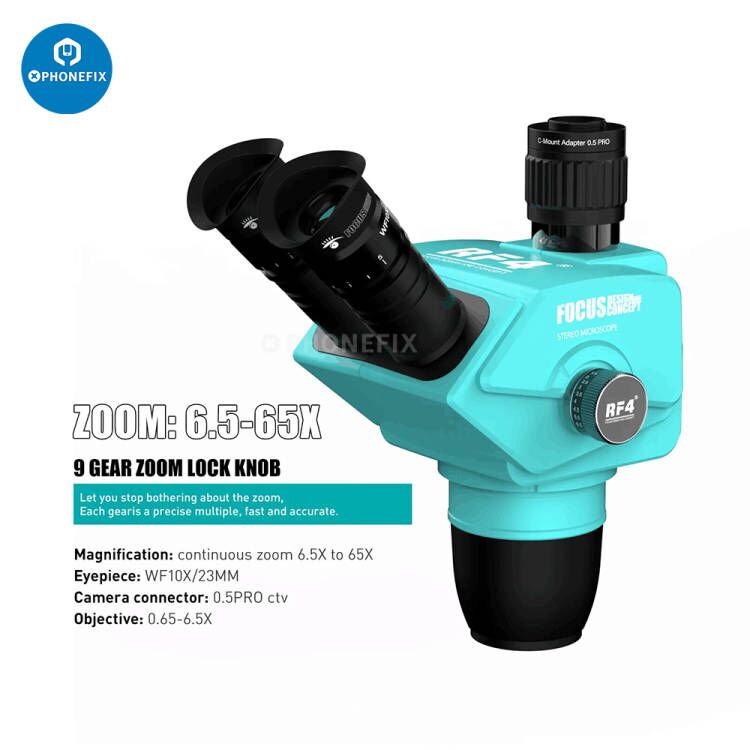

Specification: Magnification: Continuous zoom 6.5X to 65X. Head: 45-degree inclined 360-degree swiveling trinocular. Eyepiece: WF10X/22MM. Objective: 0.65-6.5X. Camera connector: 0.5X. Monitor and eyepiece: Synchronous zoom. Accessories: 144 adjustable led lights & dust proof Lens.

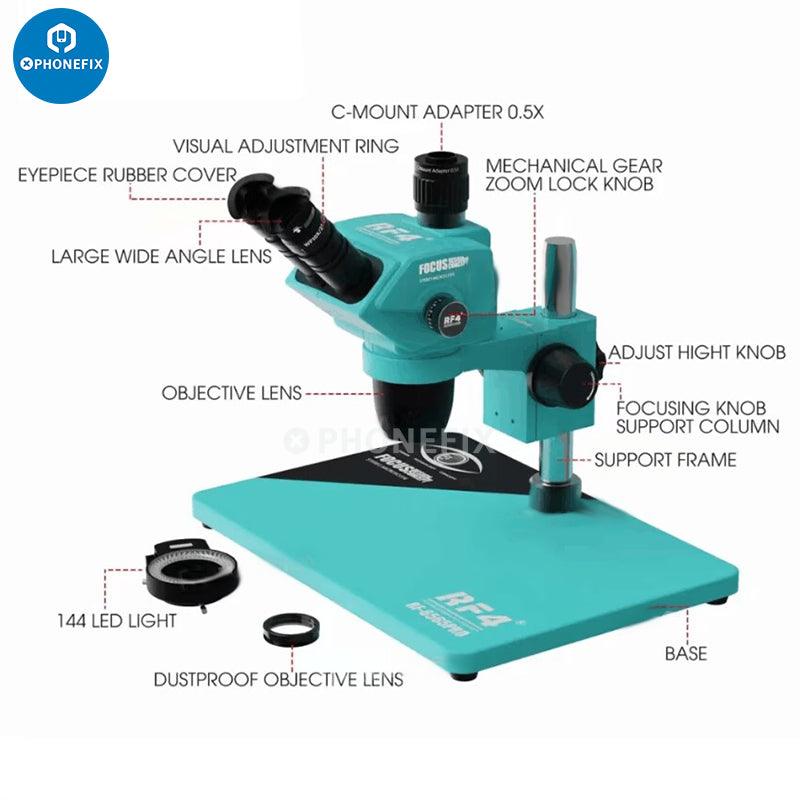

Support Parameters: Column aperture: Φ32mm Lens aperture: Φ76mm Center distance: 155mm Lifting range: 50mm
Wide-angle Eyepieces 10X/22: Magnification: 10X Wide field of view 22mm Matching size: 30mm Applicable models: Stereoscopic, fixed, and continuous magnification microscopes.
0.5X CTV Len: The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet. The adapter ring can use LCD to focus, this kind of focus method is manual focus. The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming.
144 LED Ring Light: Input: AC 100~240V 50/60Hz Output: DC 12V, Max 700mA Light color: White Number of lights: 144 LEDs Inside diameter: 60mm

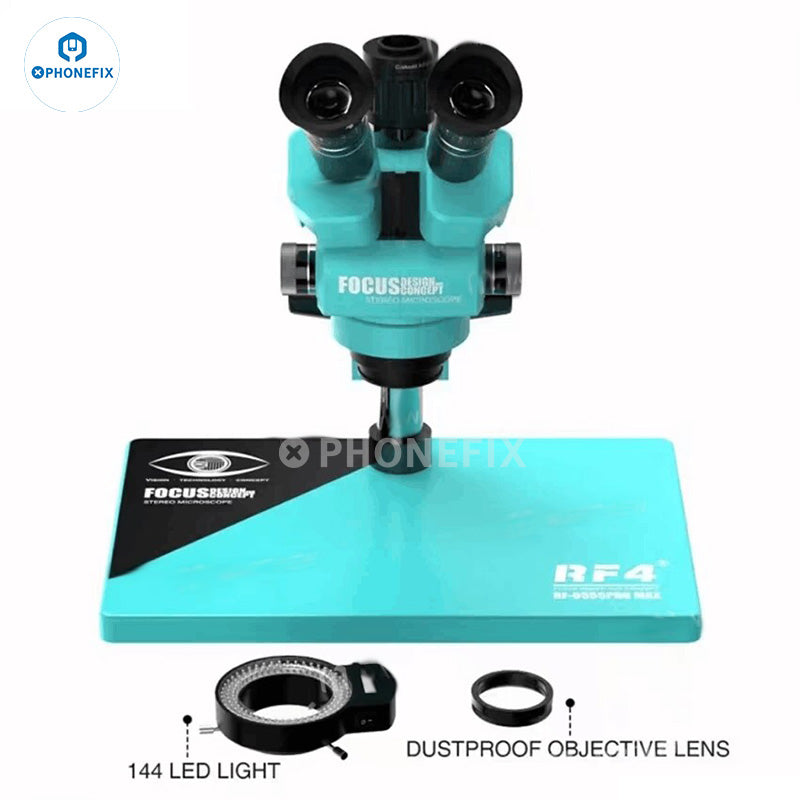

Package includes: 1 x Trinocular Microscope 1 x Aluminum Alloy Plate 1 x 144 LED Light 1 x Dustproof Len 1 x 0.5X CTV Lens
