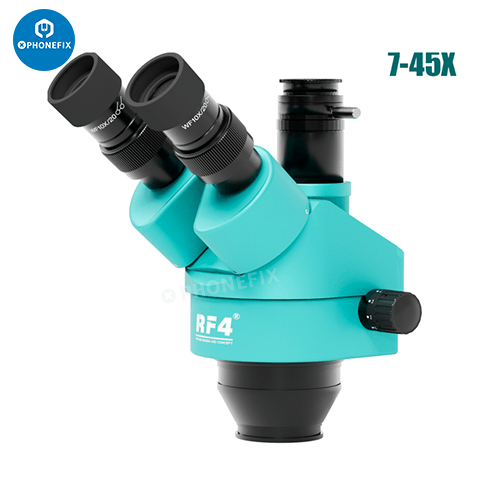

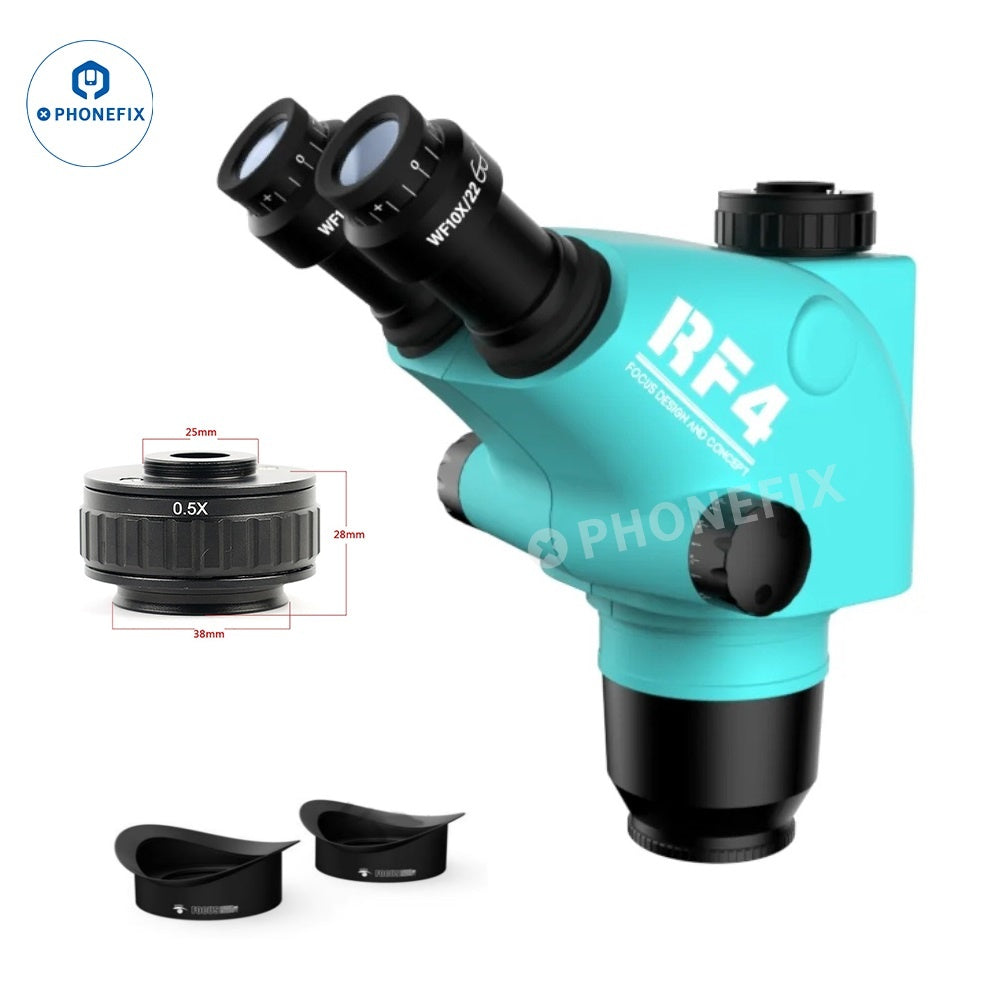

RF4 trinocular zoom stereo microscope head with eyepiece and CTV adapter for mobile phone circuit board BGA soldering repair, including 6.5-55X/7-50X/6.5-65X industrial microscope head, 45-degree inclined 360-degree swiveling trinocular, WF10X/22MM adjustable eyepiece, and CTV adapter lens for HDMI camera.
Option (with eyepiece and CTV adapter):

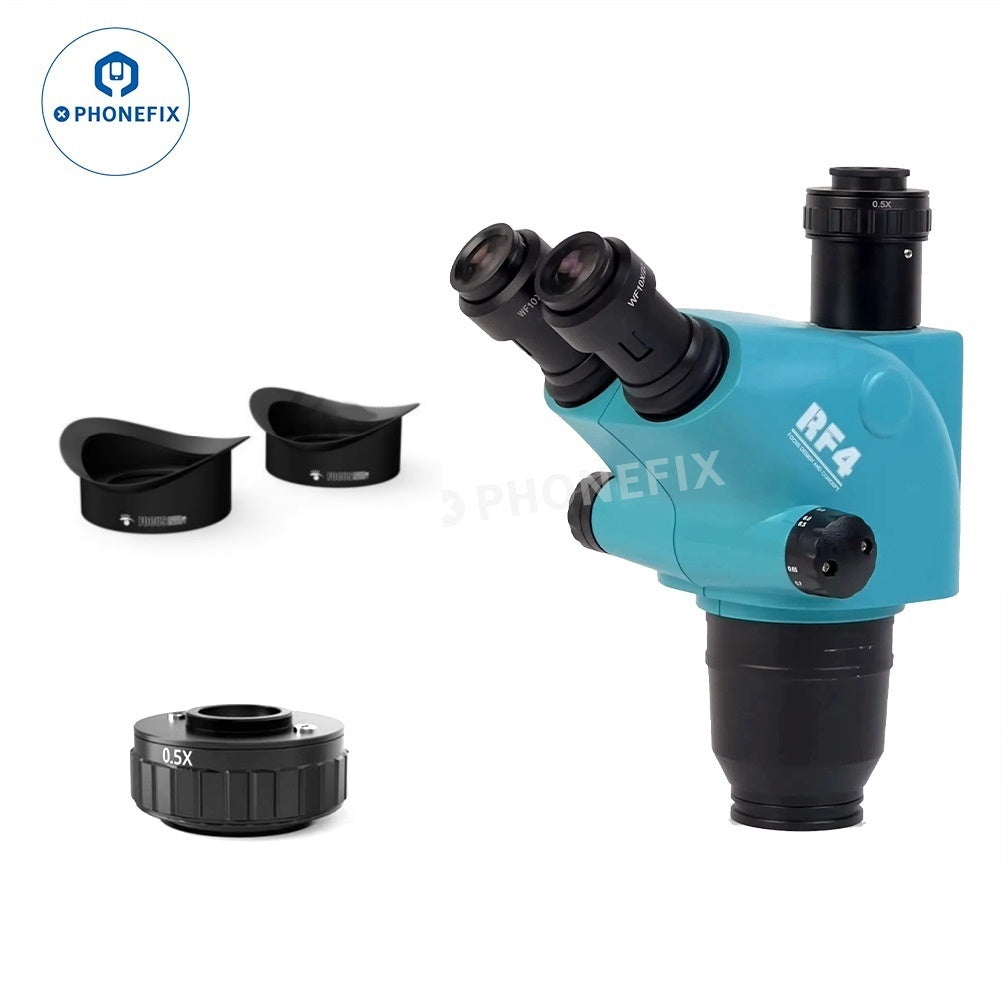

1. RF4 RF6555PRO microscope head.

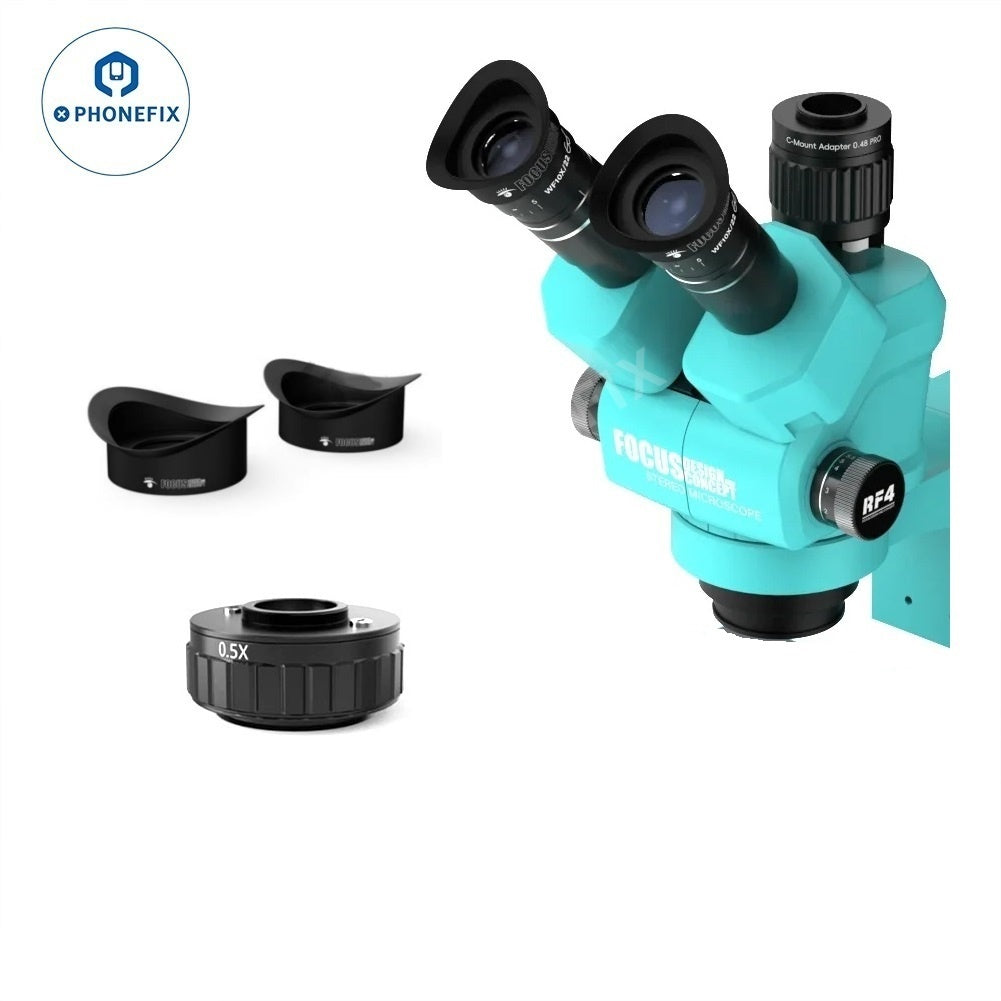

2. RF4 RF6555Pro Max microscope head.

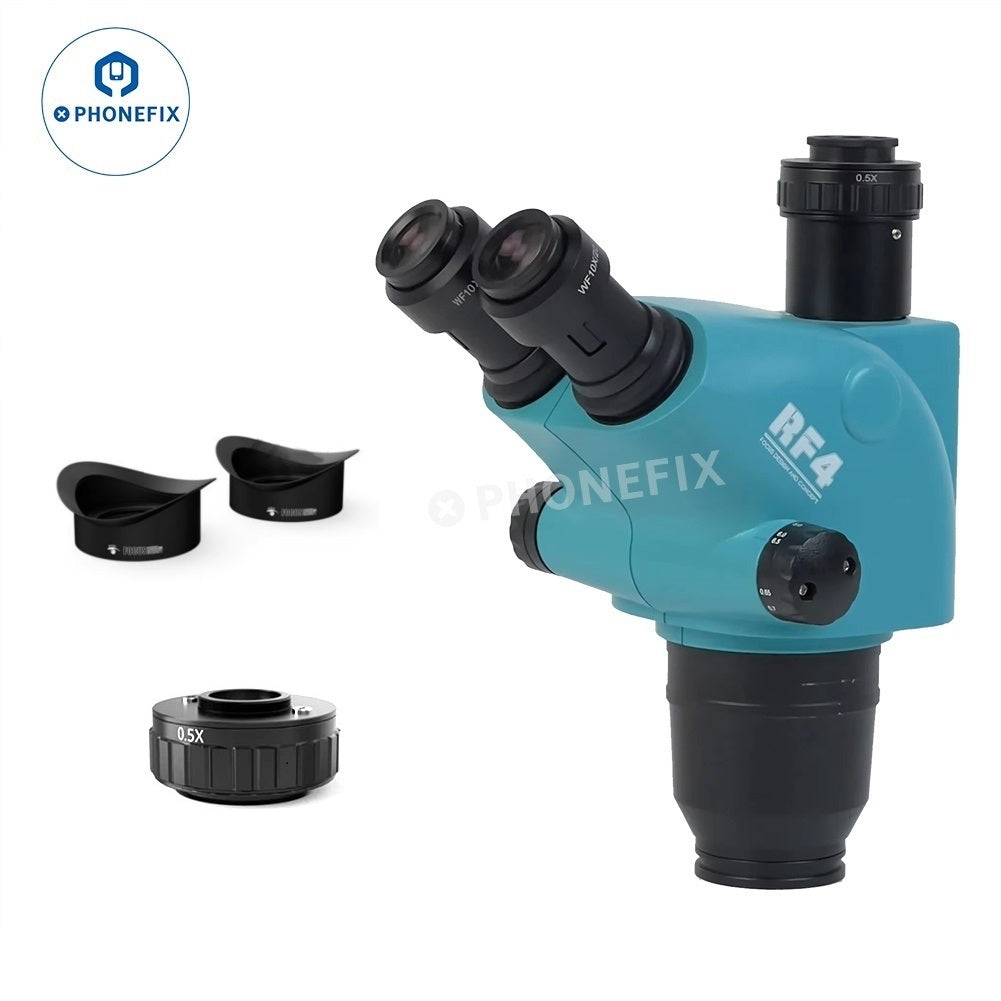

3. RF4 RF6555TVP microscope head.
4. RF4 RF6565TV microscope head.
5. RF4 RF6565PRO microscope head.

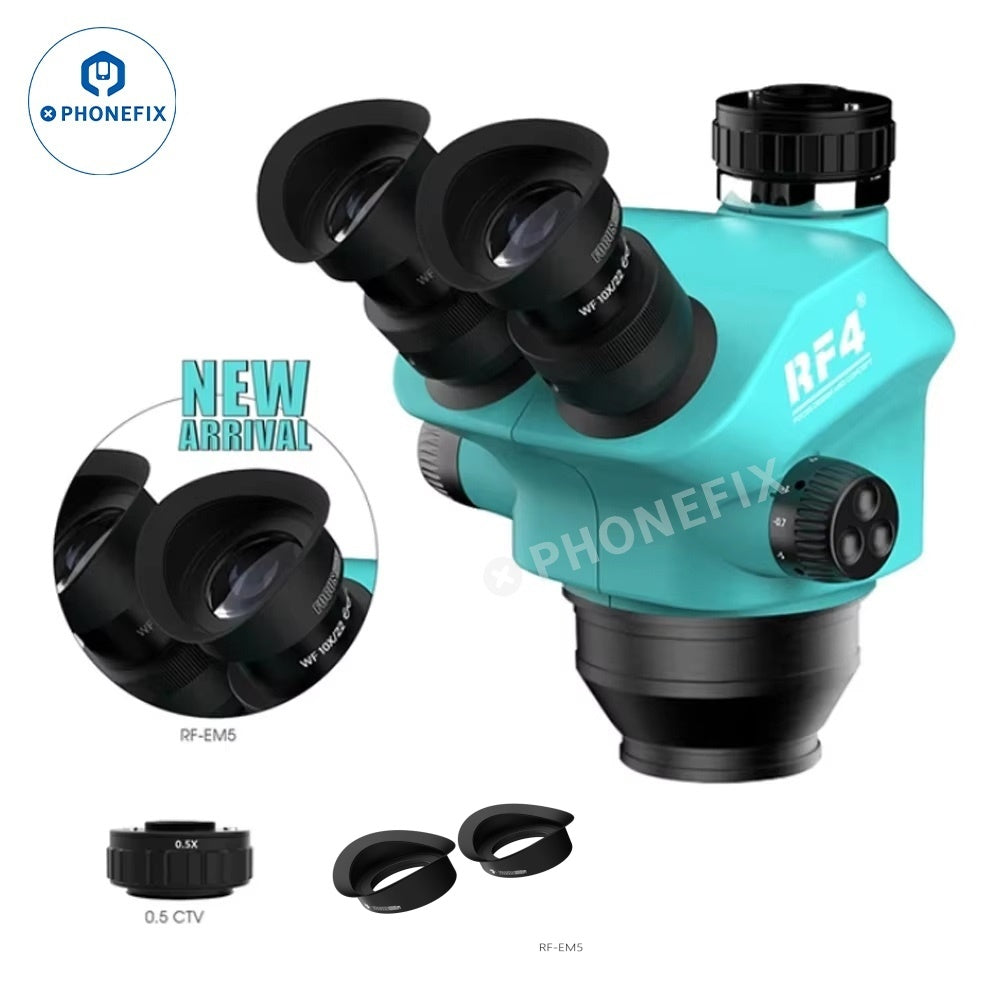

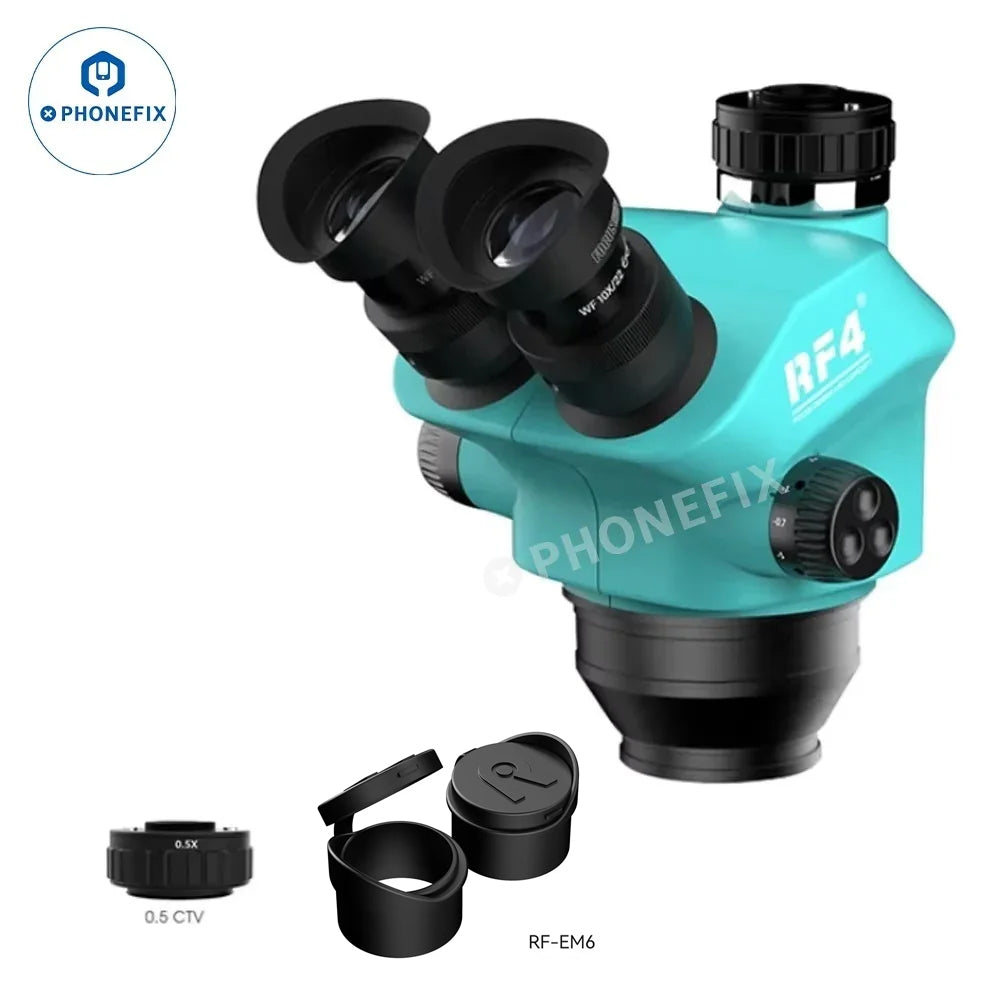

6. RF4 RF7050TV microscope head.

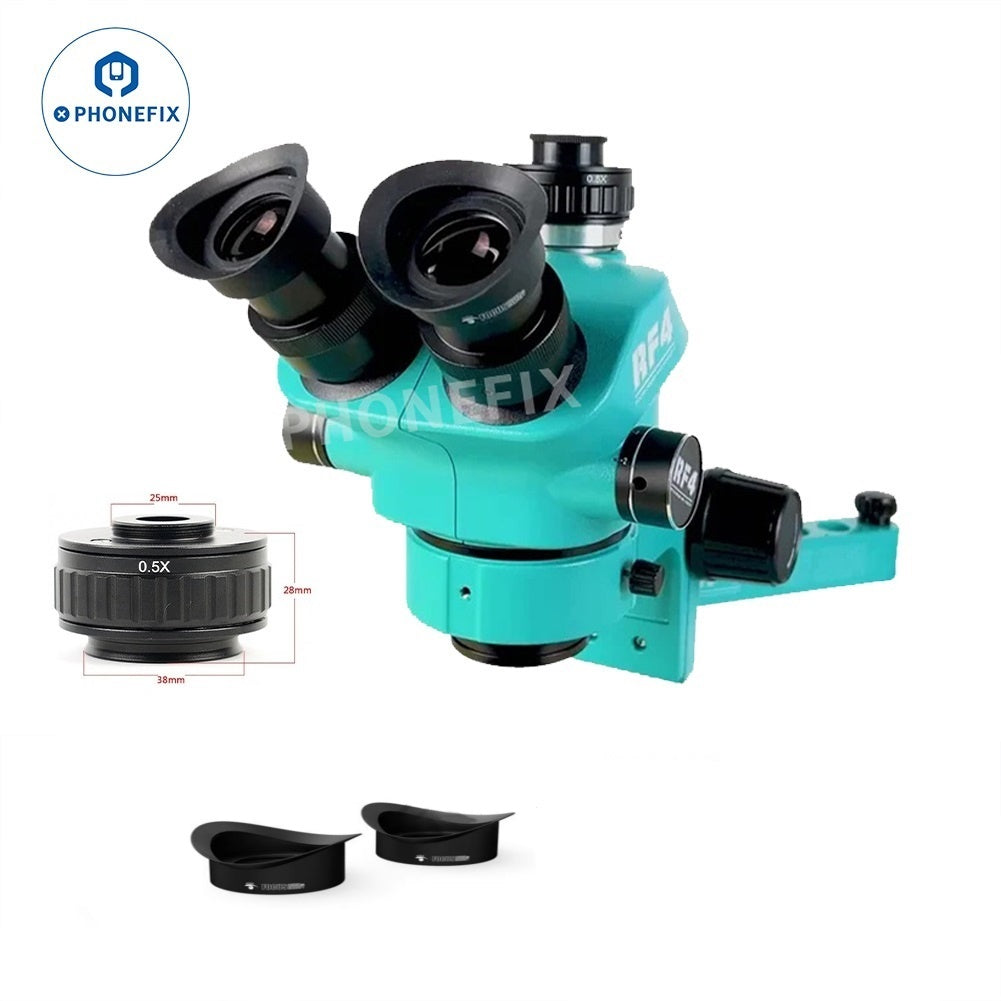

7. RF4 RF7050Pro microscope head.
Feature:
- 45-degree tilt trinocular parfocal head with ultra-wide high eyepoint eyepiece.
- Trinocular port for adding photo or video capabilities.

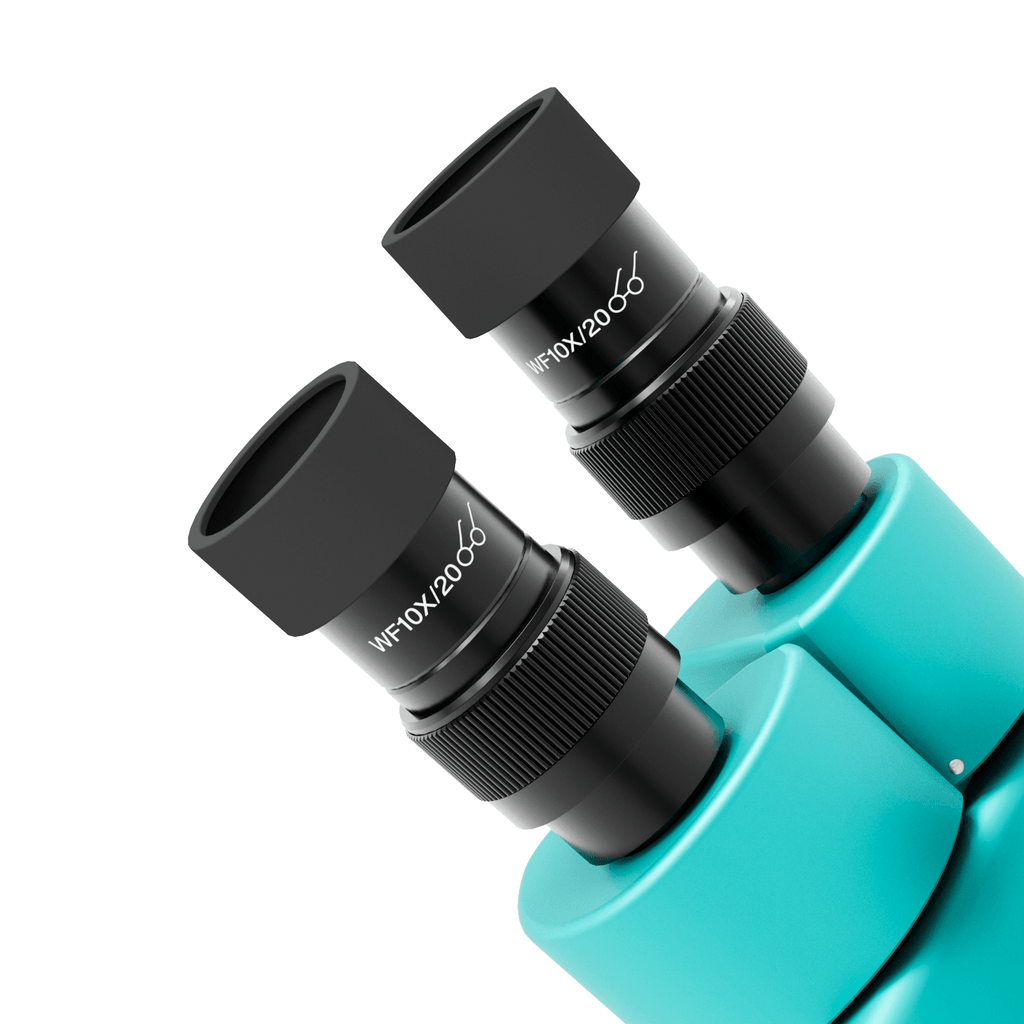

- 30mm ultra-wide-angle WF10X eyepiece, 20mm field of view.
- High resolution with excellent flatness and contrast.
- Clear stereoscopic upright images over a wide field of view.
- Crystal clear pristine true color images.
- Large working distance.
- Accurate alignment ensures fatigue-free viewing.
- All-optical glass element.
- Precision frosted glass lens.
- All metal mechanical parts.
- Adjustable interpupillary distance.
- Manufactured according to ISO 9001 quality control standards.
Specification:
- Head: 45-degree tilt, 360-degree rotation, trinocular parfocal
- Eyepiece: 30mm super wide-angle high eye point WF10X/20
- Objective lens: 0.7-4.5X
- Zoom Range: 6.5:1
- Trinocular port: 23mm photo port
- Interpupillary Distance: 2-1/8" to 3" (54-76mm)
- Field of View: 1-1/4" (33mm)
- Working distance: 7X-45X (100mm) with 0.5x objective 3.5X-45X(165mm) with 2.0x objective 7X-90X(40mm)
- Head Mounting Dimensions: 3" (76mm) diameter
- Attachment Mounting Dimensions: 1-7/8" (48mm female thread) diameter
Note: The microscope uses a 76mm mounting diameter focusing bracket, the auxiliary objective has a 48mm mounting thread, uses a 0.5X or 0.35X C-mount adapter lens, and the camera is a standard C-mount 25mm.
