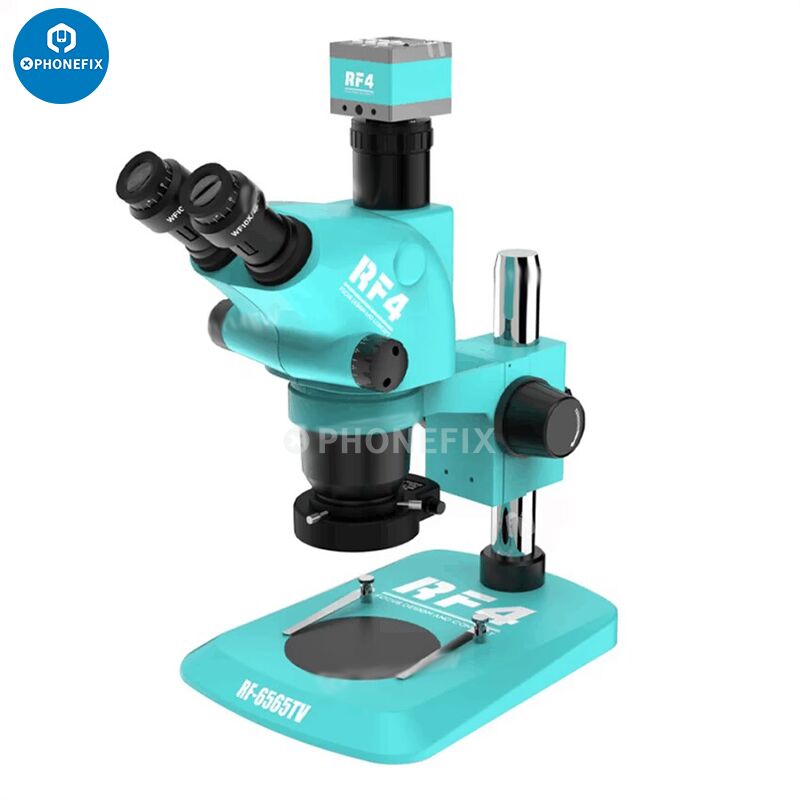

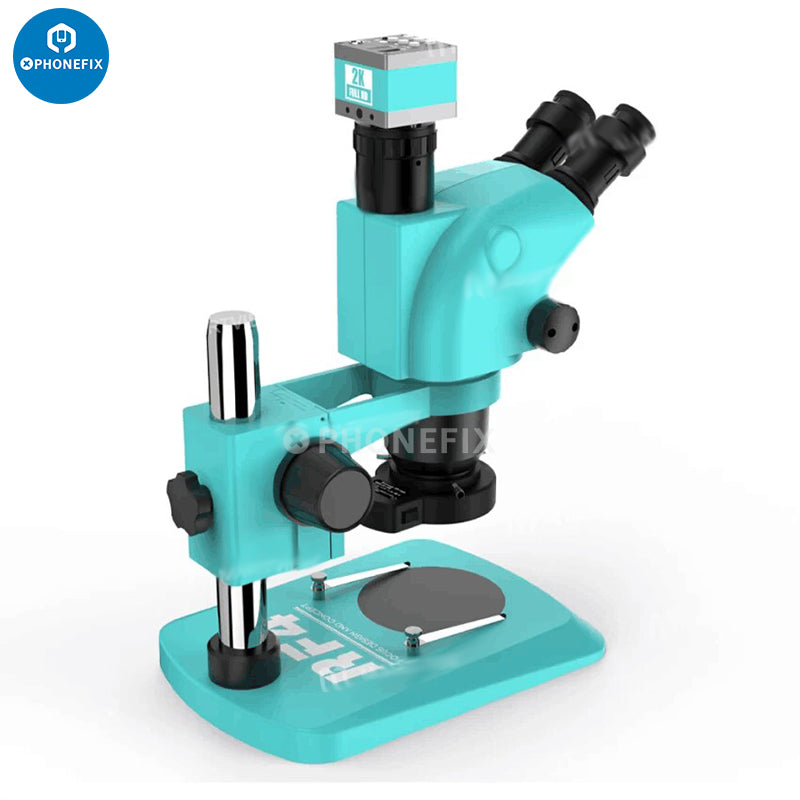

RF4 RF6565TV-2K Trinocular Stereo Microscope 6.5-65X Continuous Zoom HDMI USB with 144 LED Light 2K Camera. RF4 RF6565TV-2K Trinocular Stereo Zoom Industrial Microscope with 2K Full HD Camera for mobile phone PCB repairing.
Features:
- Magnification: Big continuous zoom 6.5X to 65X.
- Head: 45-degree inclined 360-degree swiveling trinocular.
- Eyepiece: WF10X/22MM Adjust the focal.
- Barlow Lens: 0.5X & 0.7&2.0X(optional).
- Objective: 0.65-6.5X.
- Camera connector：1/2CTV.
- Monitor and eyepiece. Synchronous zoom.
- Camera: Different models optional.
- Boom Stand: 250mm φ32mm pillar, 200mm*255mm base with White/Black Round Plastic Plate.

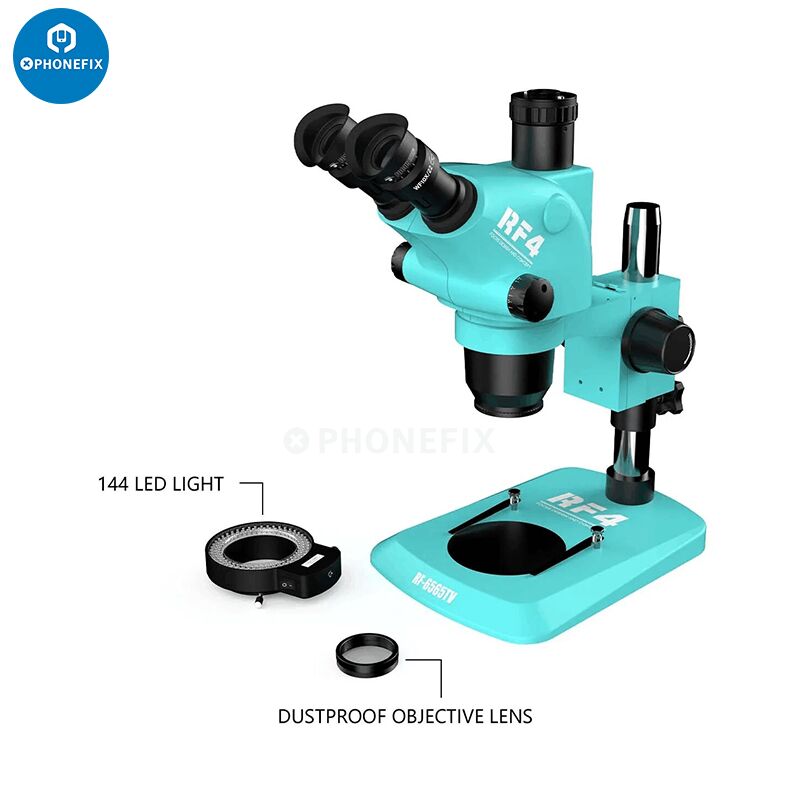

- Accessories: 144 adjustable led light & dustproof Lens.

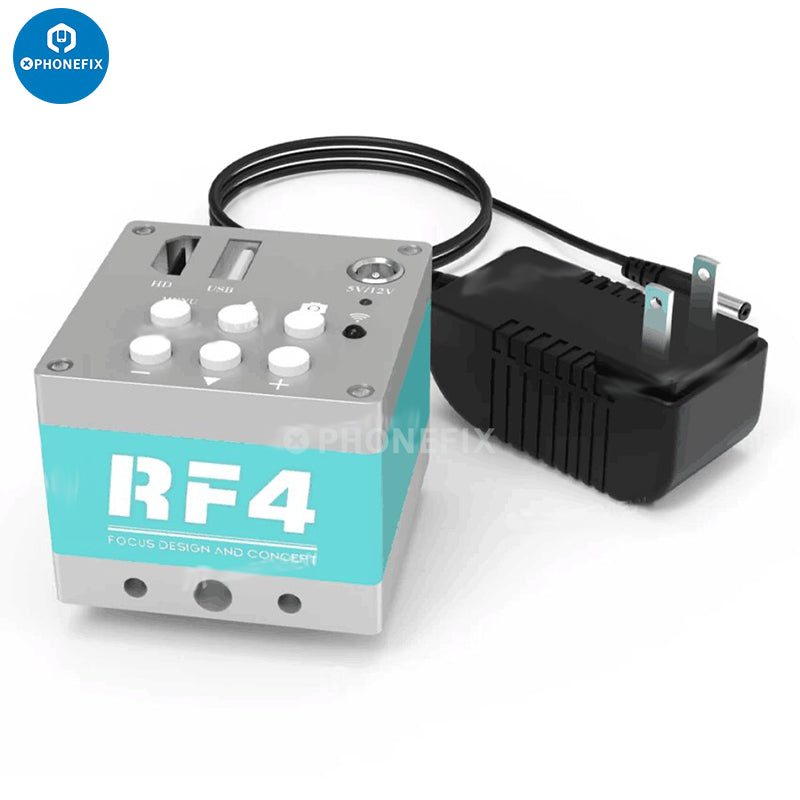

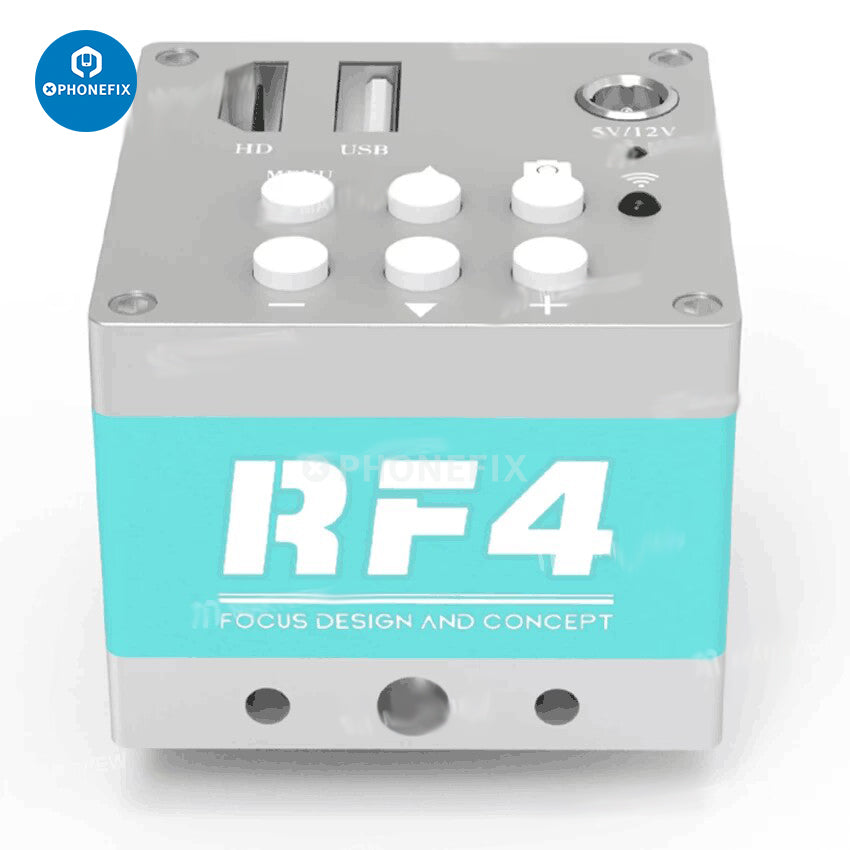

Specification:Sensor Target surface size: 1/2.8 inches
The sensor resolution: 2K/2048*1080@30fp5
Output interface: HDMI 2K@30fps
Mode of operation: Button
Working voltage: DC 12V
Storage: USB disk, capacity<=64GB
The lens type: Supports C/CS interfaces
Photograph: 8 million, JPG
Video: 048*1080avi
Cross curve: 8*8 groups
File Manager: With
Package includes:1 x Microscope
1 x Ring light
1 x Base
1 x Dustproof lens
1 x 2K camera
