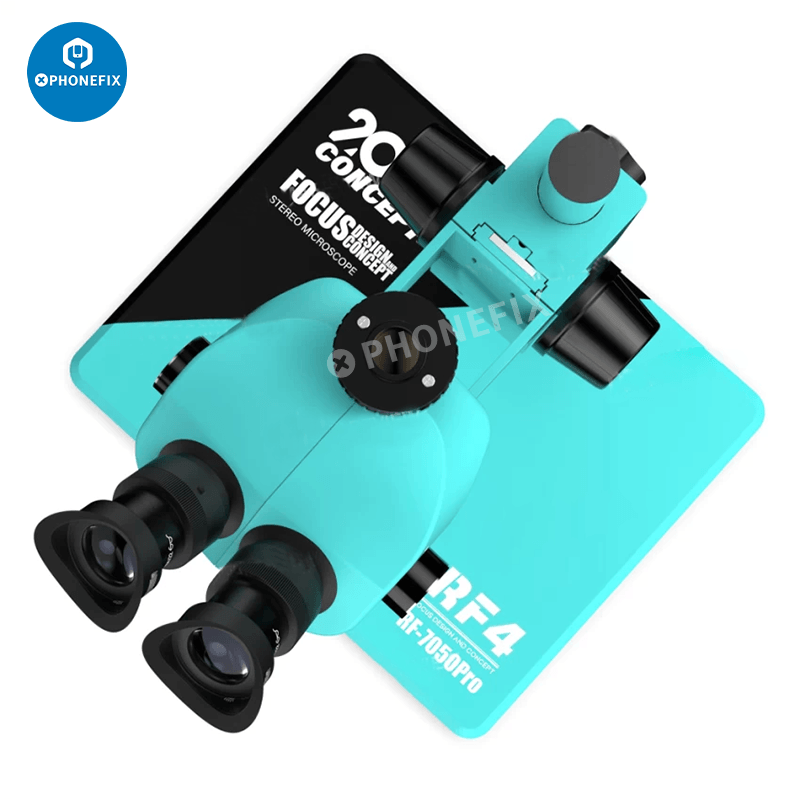

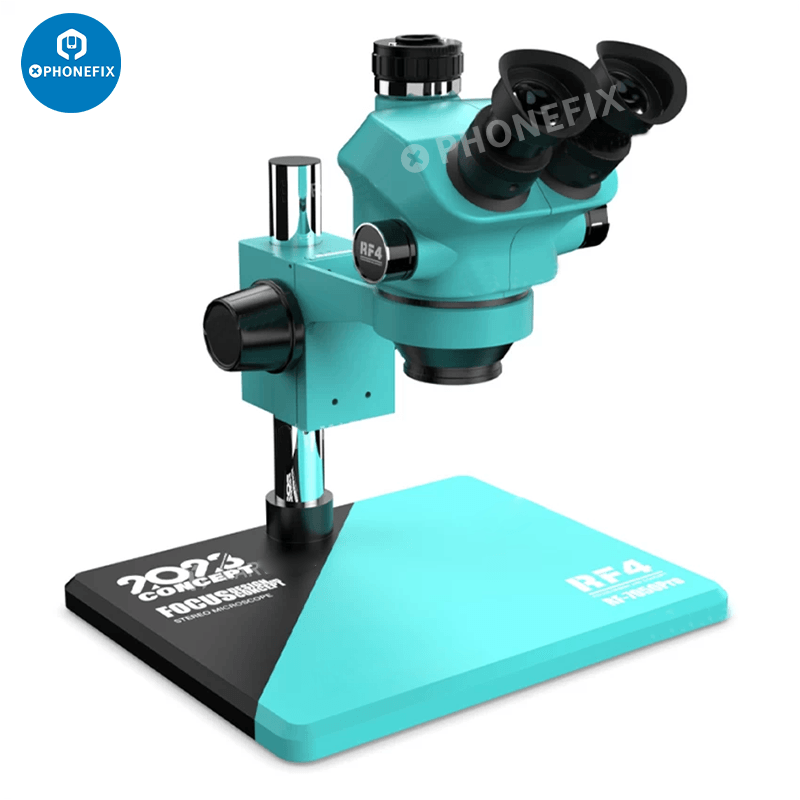

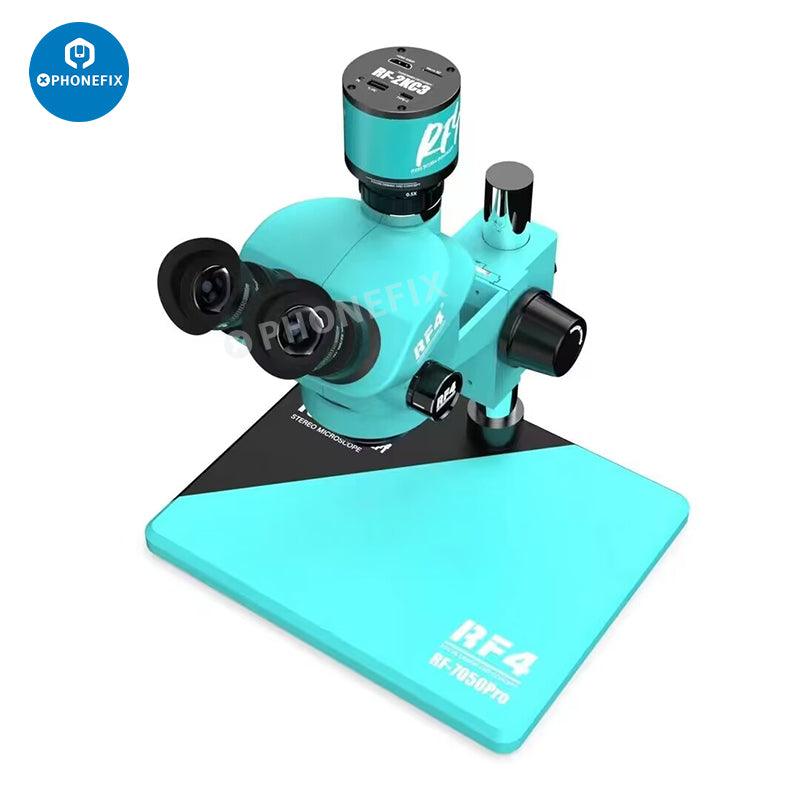

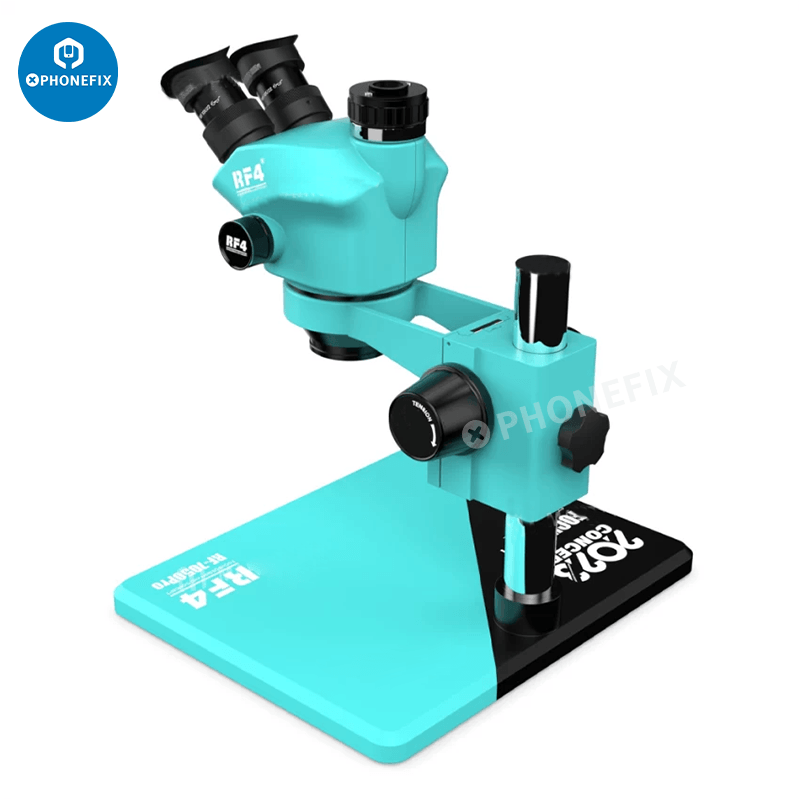

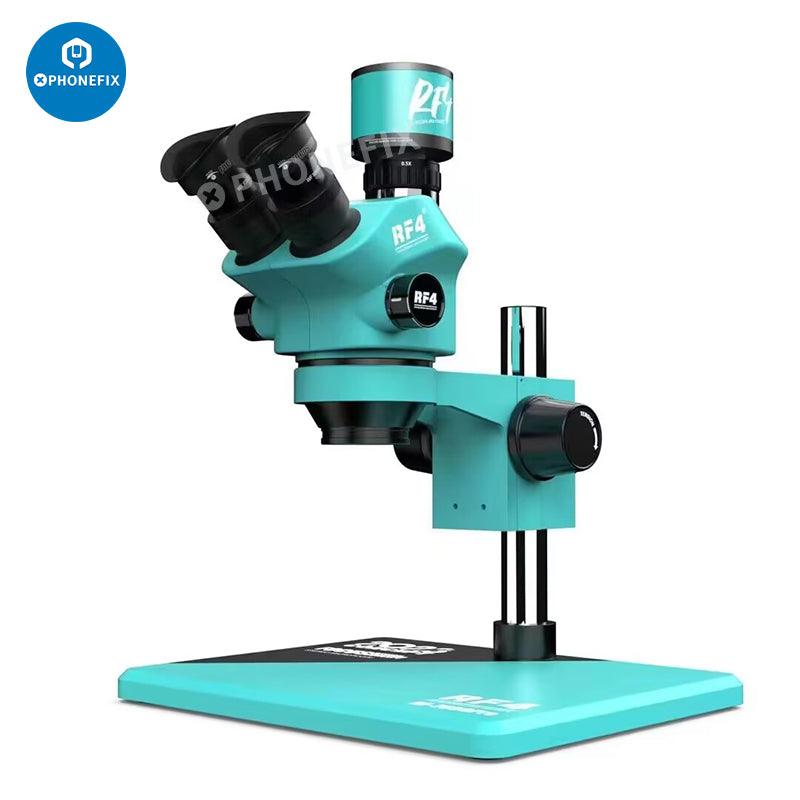

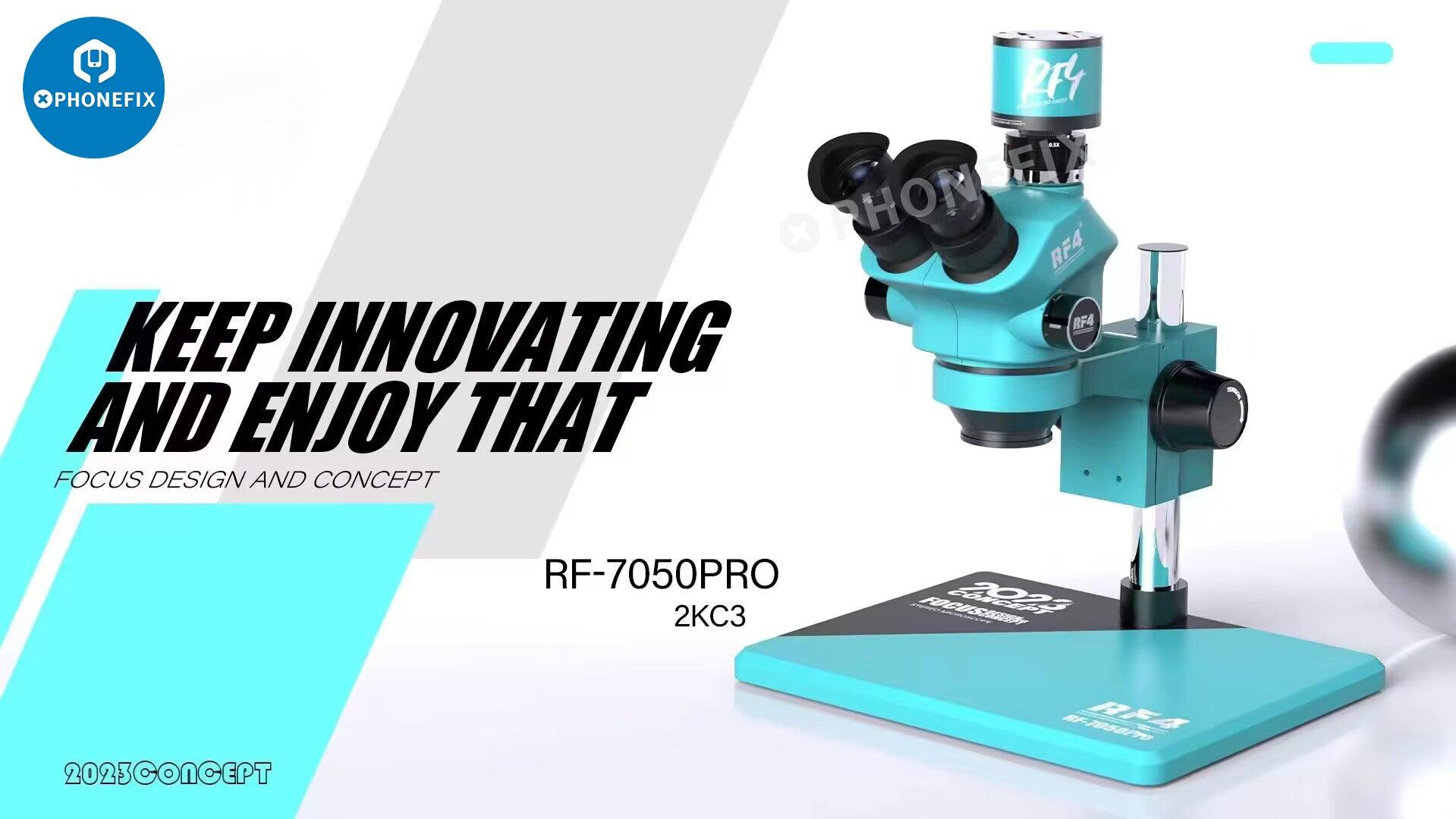

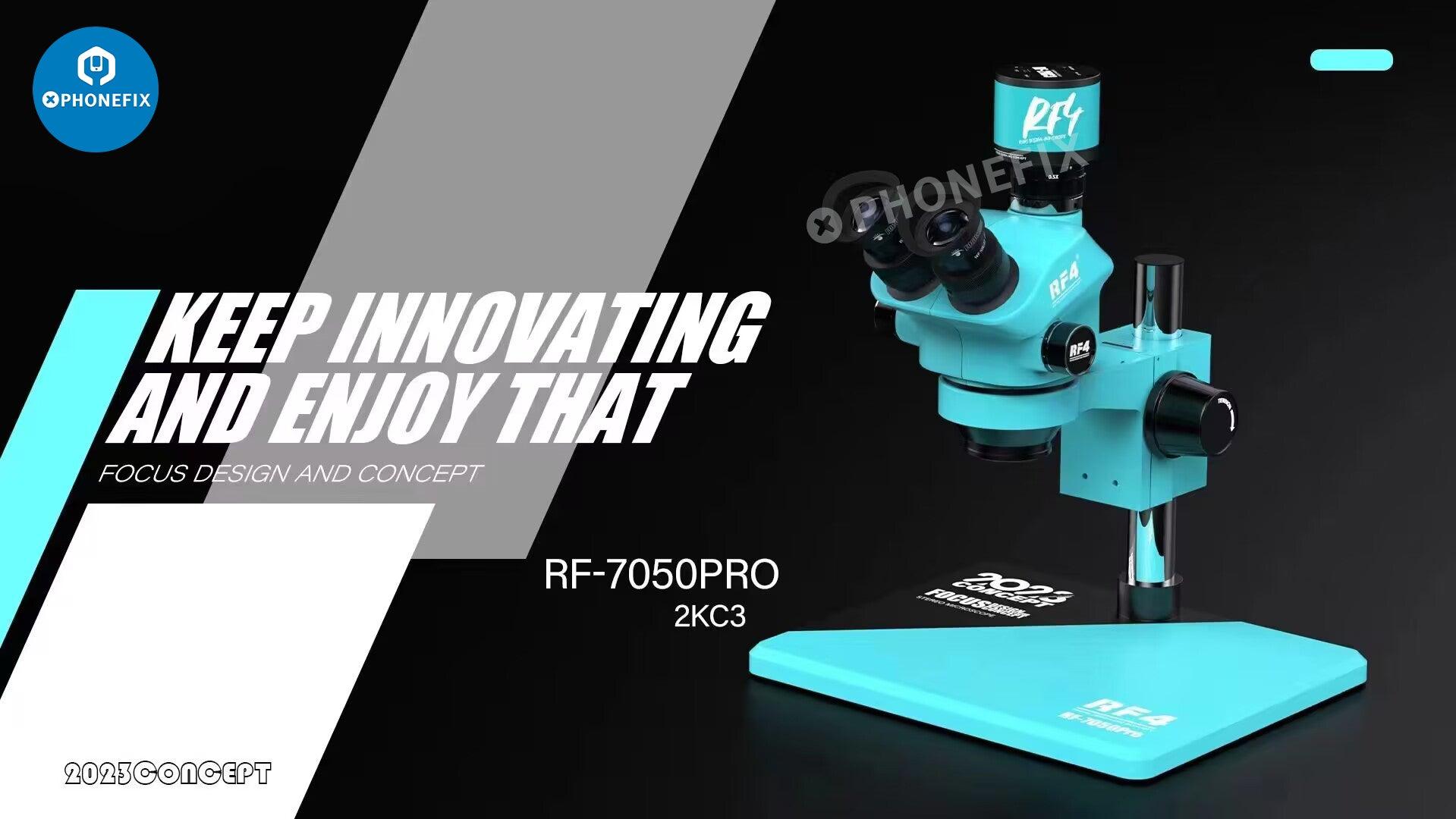

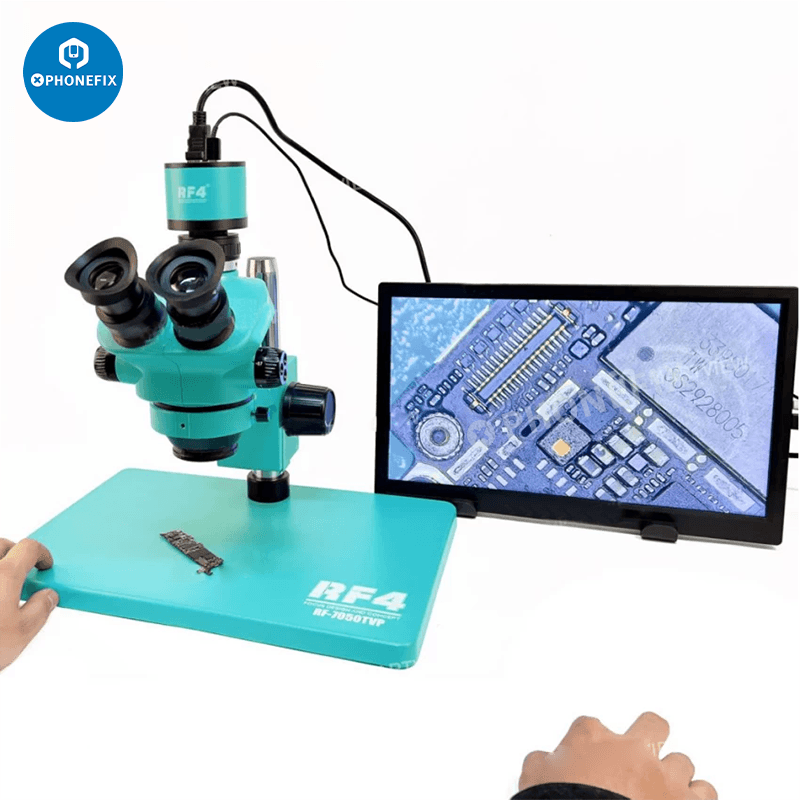

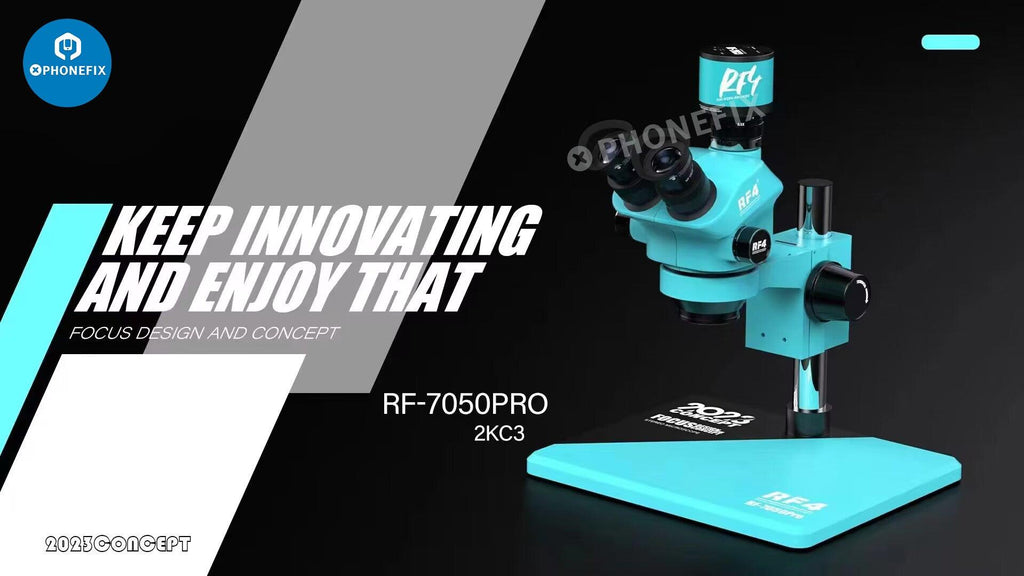

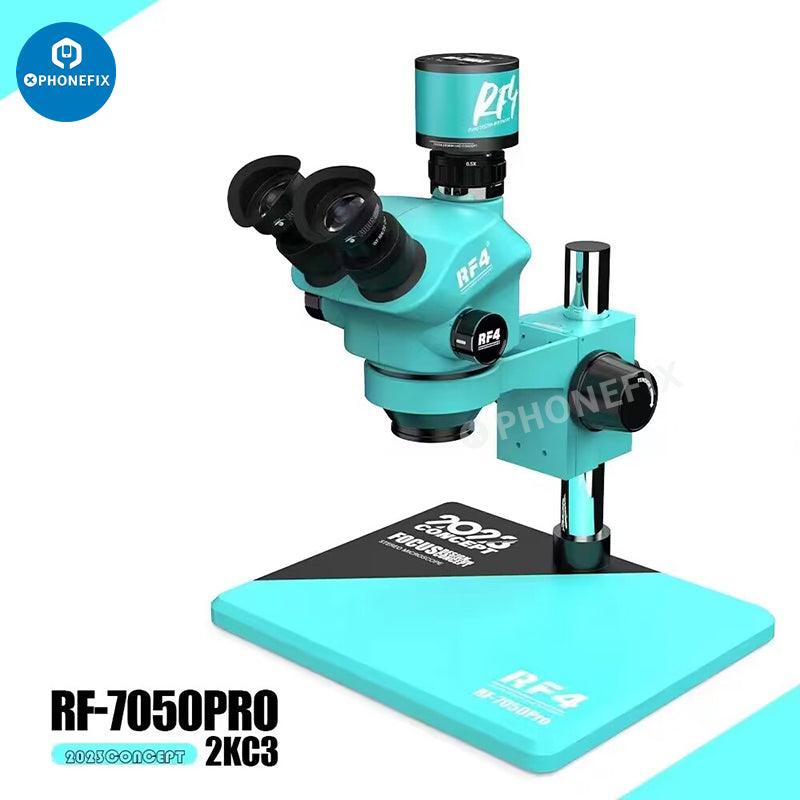

RF-705OPRO 2KC3 7-50X Synchronous zoom Trinocular stereo microscope with aluminum alloy base for smart phone, tablet and laptop repairing, soldering tool.
Newly upgraded 2023 new microscope, 6 gears accurately lock magnification, without tedious operation and repeated confirmation, more quickly and accurately for you to find magnification. Efficiency saves time and energy.
Specification:
- Magnification: Continuous zoom 7X to 50X
- Head: 45-degree inclined 360-degree swiveling trinocular
- Eyepiece: WF10X/22MM
- Objective: 0.7-5.0X
- Camera connector: 0.5X
- Monitor and eyepiece: Synchronous zoom
- Accessories: 144 adjustable led lights & dust proof Lens
Support Parameters:
- Column aperture: Φ32mm
- Lens aperture: Φ76mm
- Center distance: 155mm
- Lifting range: 50mm
- Wide-angle Eyepieces 10X/22:
- Magnification: 10X
- Wide field of view 22mm
- Matching size: 30mm
- Applicable models: Stereoscopic, fixed, and continuous magnification microscopes.
0.5X CTV Len:
- The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet.
- The adapter ring can use LCD to focus, this kind of focus method is manual focus.
- The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming.

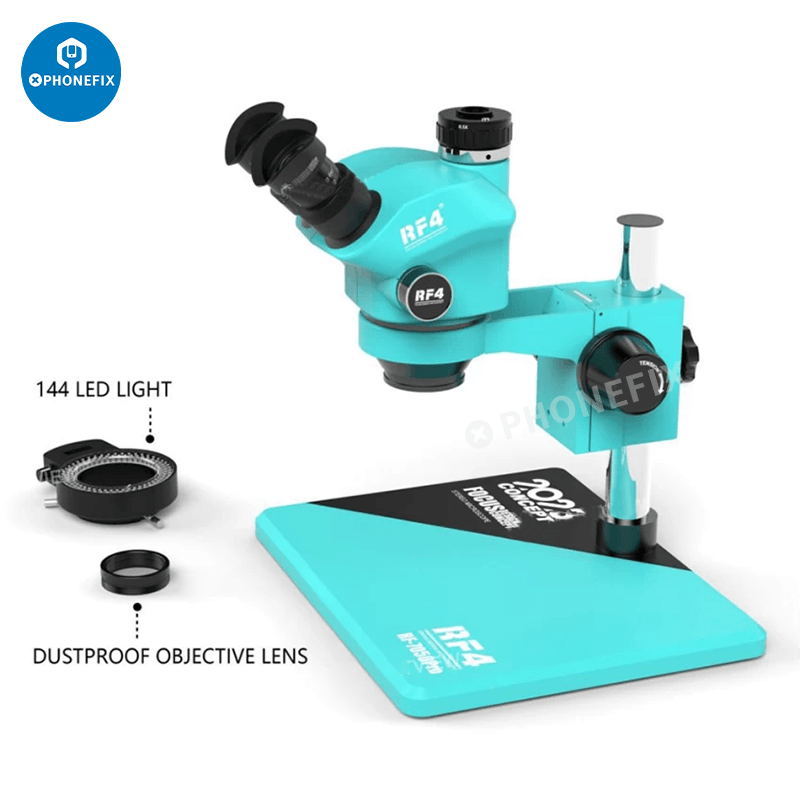

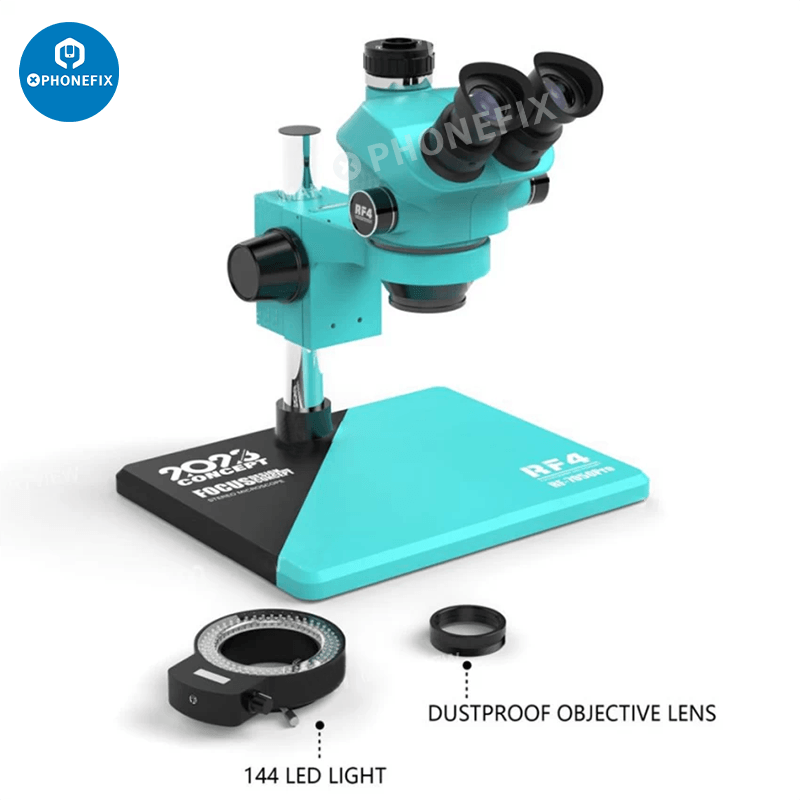

144 LED Ring Light:
- Input: AC 100~240V 50/60Hz
- Output: DC 12V, Max 700mA
- Light color: White
- Number of lights: 144 LEDs
- Inside diameter: 60mm
Package includes:1 x RF-705OPRO 2KC3 Microscope

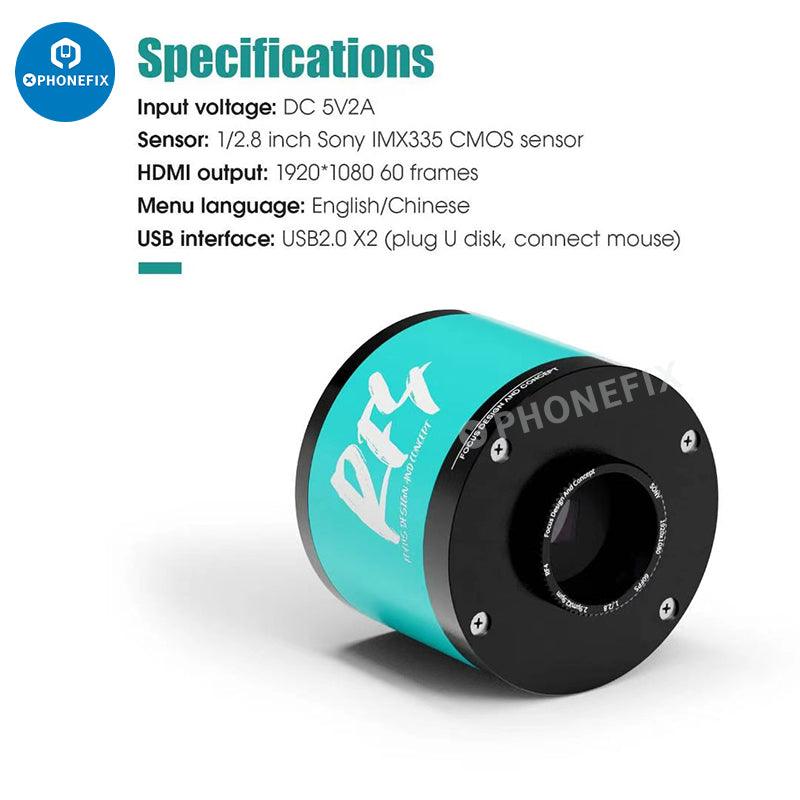

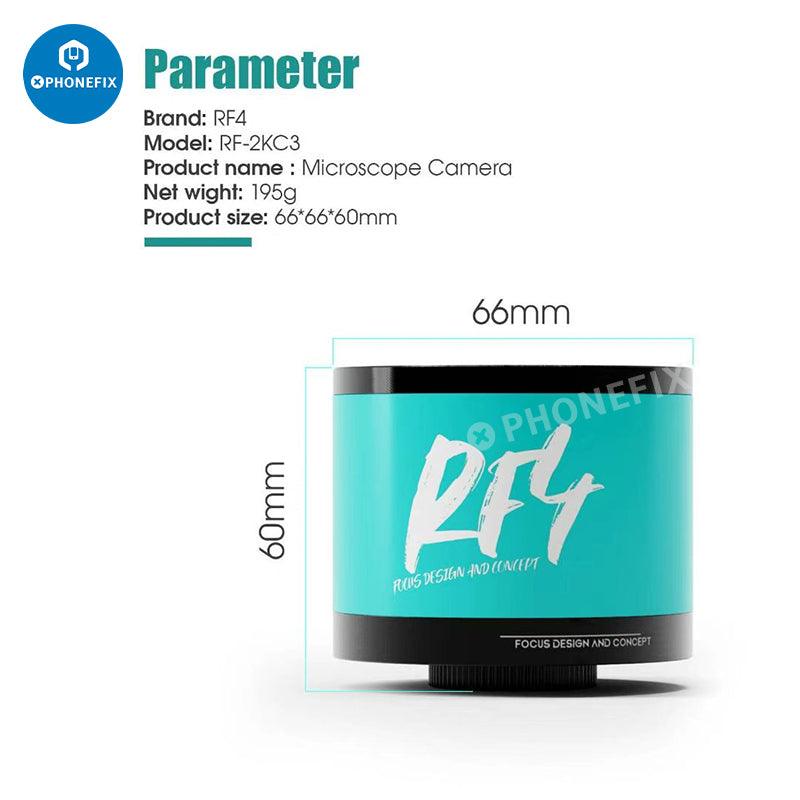

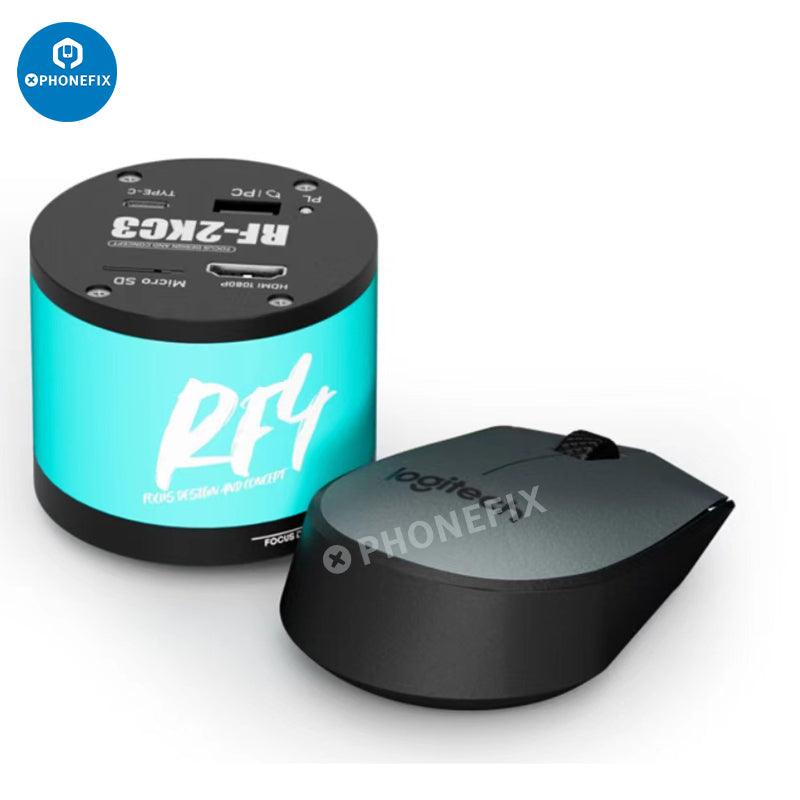

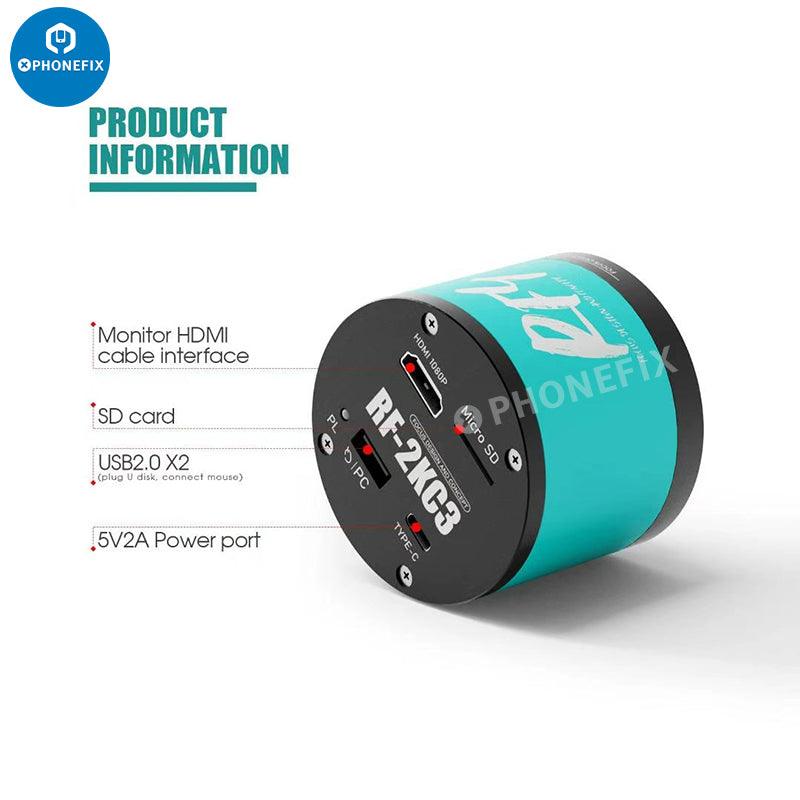

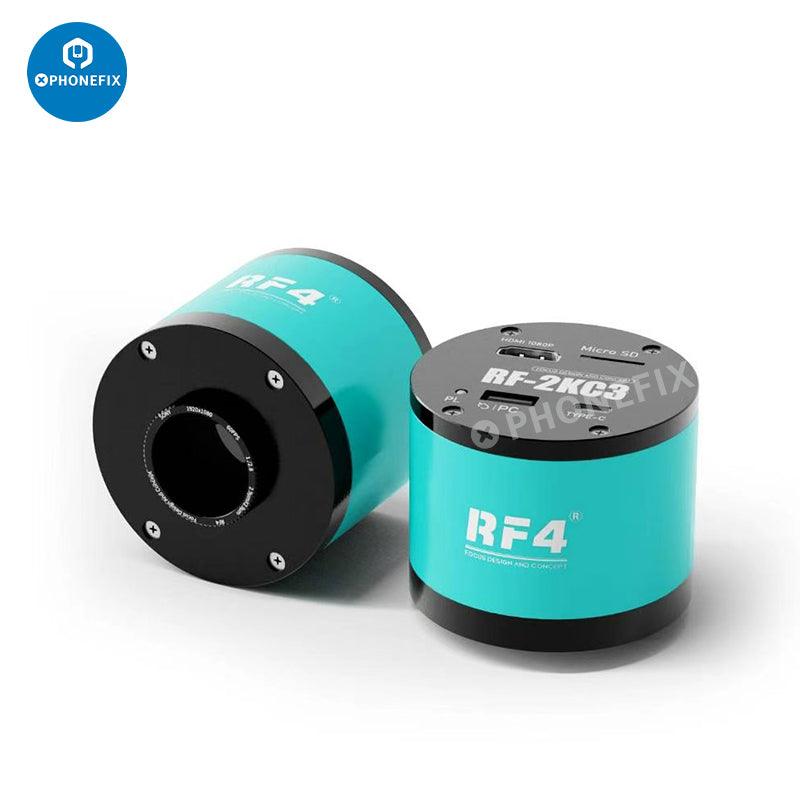

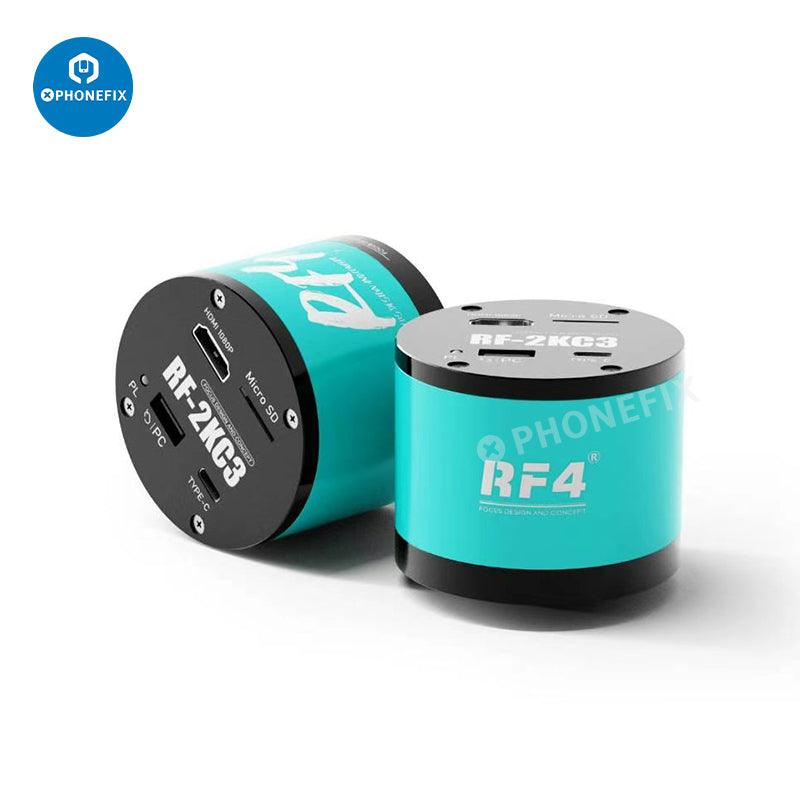

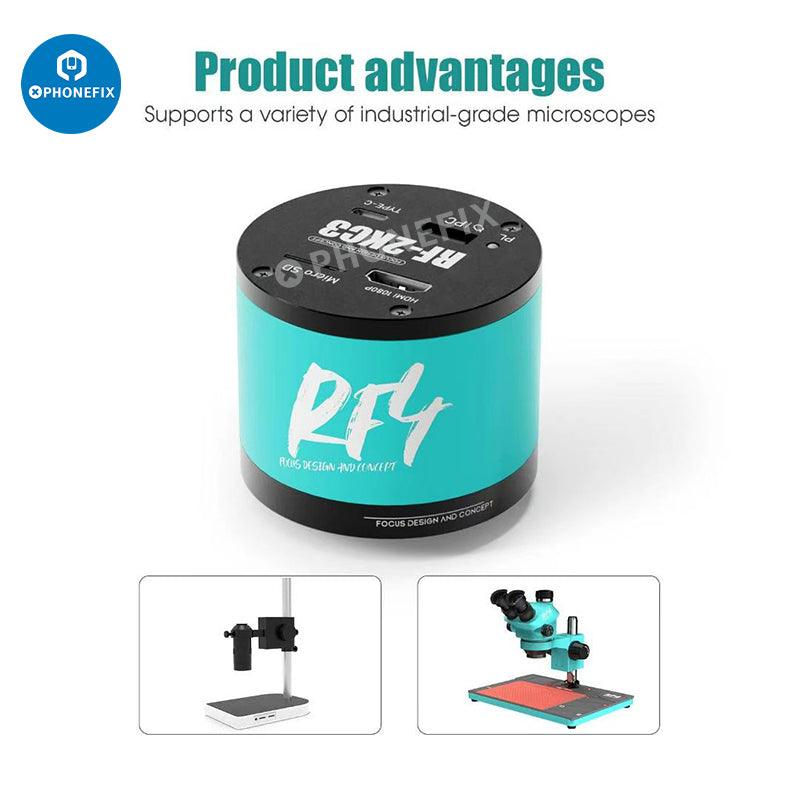

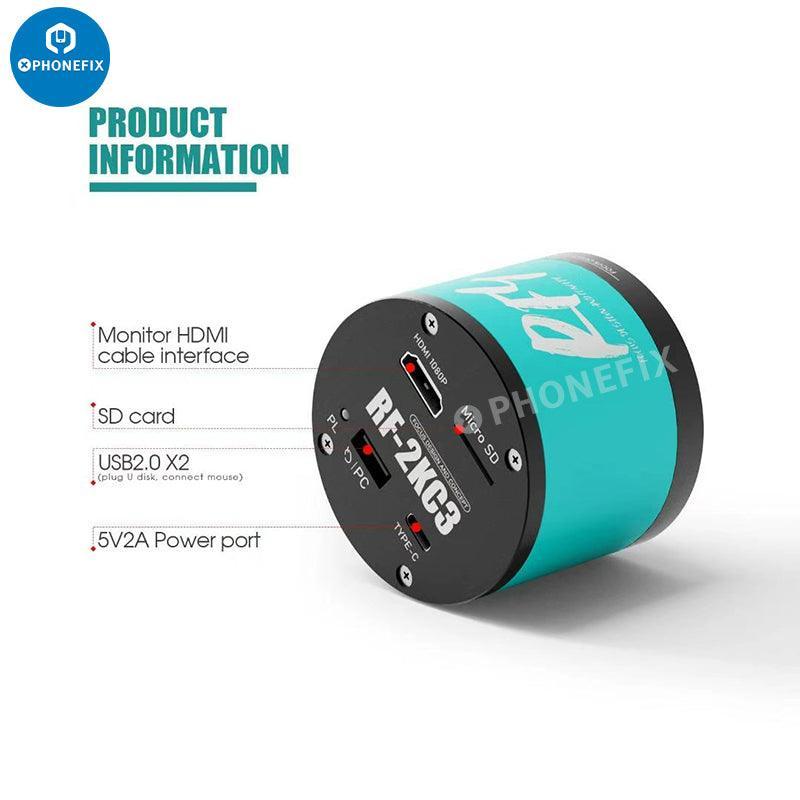

1 x RF-2KC2 Camera
1 x Aluminum Alloy Plate
1 x 144 LED Light
1 x Dustproof Len
1 x 0.5X CTV Lens
1 x Silicone Pad
