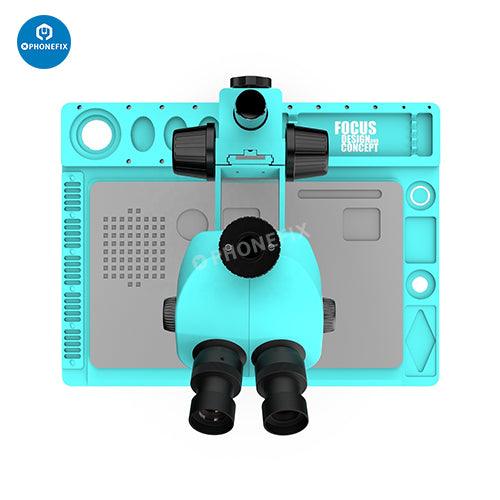

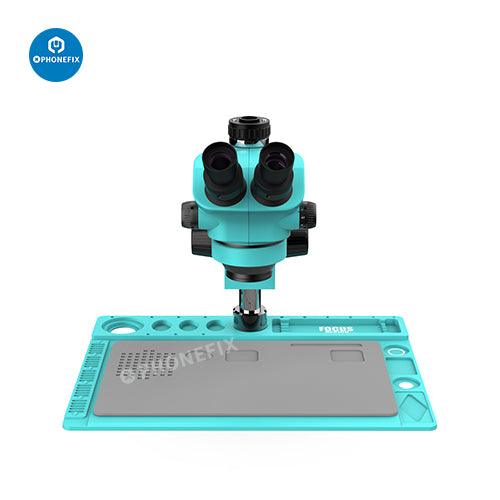

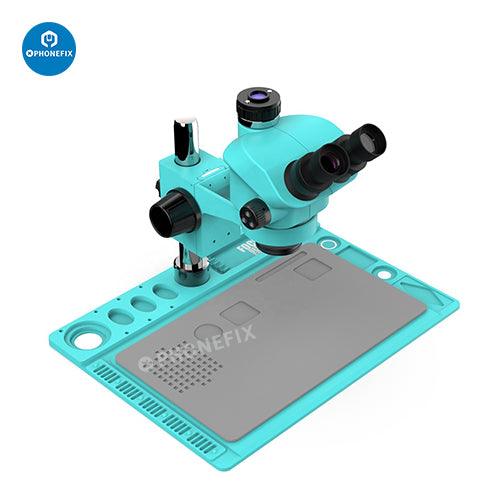

RF7050TVD2 Simul-Focal Trinocular Zoom Stereo Industrial Microscope

RF7050TVD2 With 20B Base Simul-Focal Trinocular Zoom Stereo Industrial Microscope Synchronous 0.5X CTV Auxiliary Len Phone PCB Repair tool.

Features:

1. Magnification: continuous zoom 7X to 50X
2. Head: 45-degree inclined 360-degree swiveling trinocular
3. Eyepiece: WF10X/22MM
4. Barlow Lens: 0.5X & 0.7&2.0X (Optional)
5. Objective: 0.7-5.0X
6. Camera Connector: 1/2CTV
7. Monitor And Eyepiece. Synchronous zoom
8. Camera: Different models optional
9. Stand: 410*300mm Accessories: 144 adjustable led light & dust proof Lens

Microscopic Structure

1. Eyepiece Shield
2. Eyepieces
3. Zoom Control Knob
4. Microscope Objective
5. Silicone Pad
6. Aluminium Alloy Base
7. Round Pillar
8. Focusing Knob

Parameters

• Column aperture: Φ32mmLens
• Aperture: Φ76mm
• Center Distance: 155mm
• Lifting Range: 50mm
• 240mm φ32mm Pillar 410*300mm
• Multifunctional Aluminum Alloy Repair Base
• Expand Silicone Pad Size: 330*198mm
• Wide-Angle eyepieces 10X/22
• Magnification: 10X
• Wide Field Of View 22mm
• Matching Size : 30mm

0.5X CTV

1. The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome-plated bayonet.
2. The adapter ring can use LCD to focus, this kind of focus method is manual focus.
3. The adapter has a transparent mirror inside, which can help the microscope display and the other display to achieve synchronous zooming.
4. Different eyepieces match different magnifications of the same objective lens.
