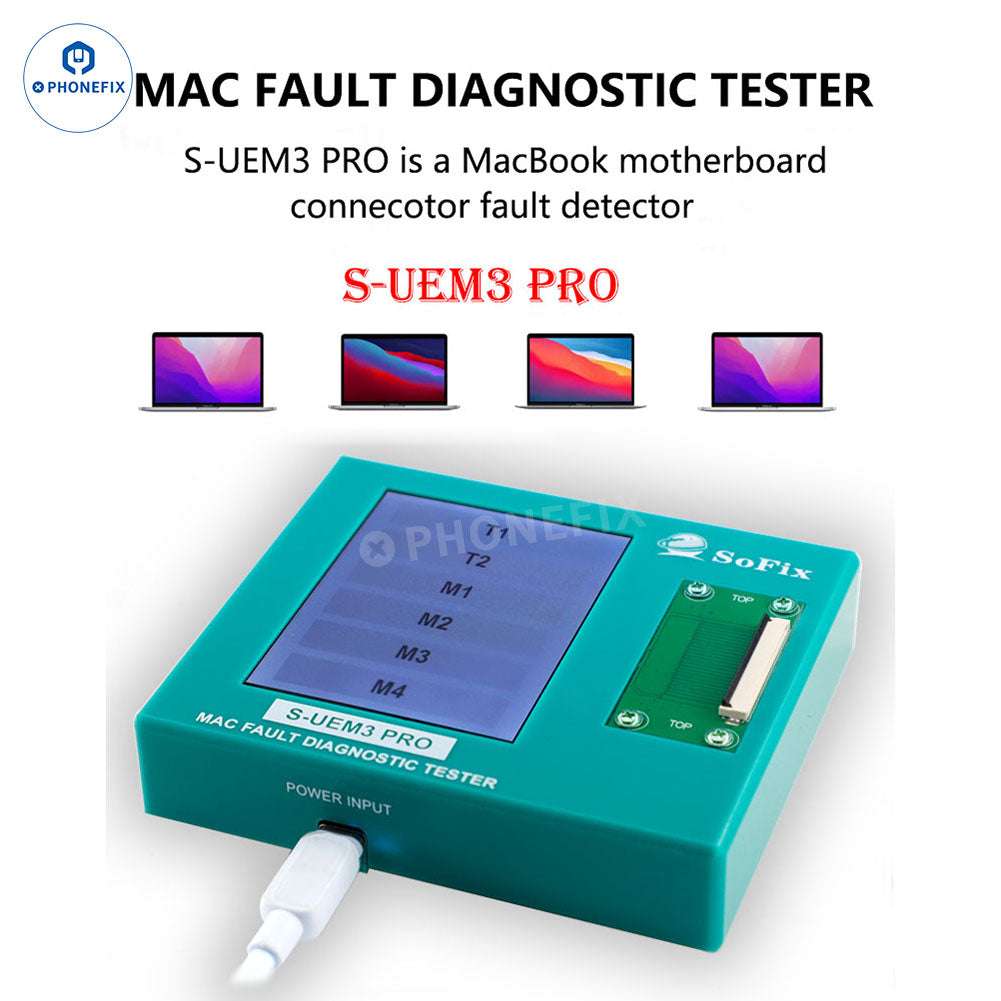

Sofix S-UEM3 PRO MAC Fault Diagnostic Tester is designed for measuring motherboard connectors on Apple MacBooks from 2016 to 2025, quickly locating faults via USB-C, EDP, and JP900 ports. It features a touch-operated LED screen that clearly displays measured values that are too high, too low, or indicate a short circuit. The Sofix S-UEM3 PRO is a professional MacBook motherboard interface fault detector, and compatible with MacBook Air and MacBook Pro series models featuring T1, T2, M1, M2, M3, and M4 chips.

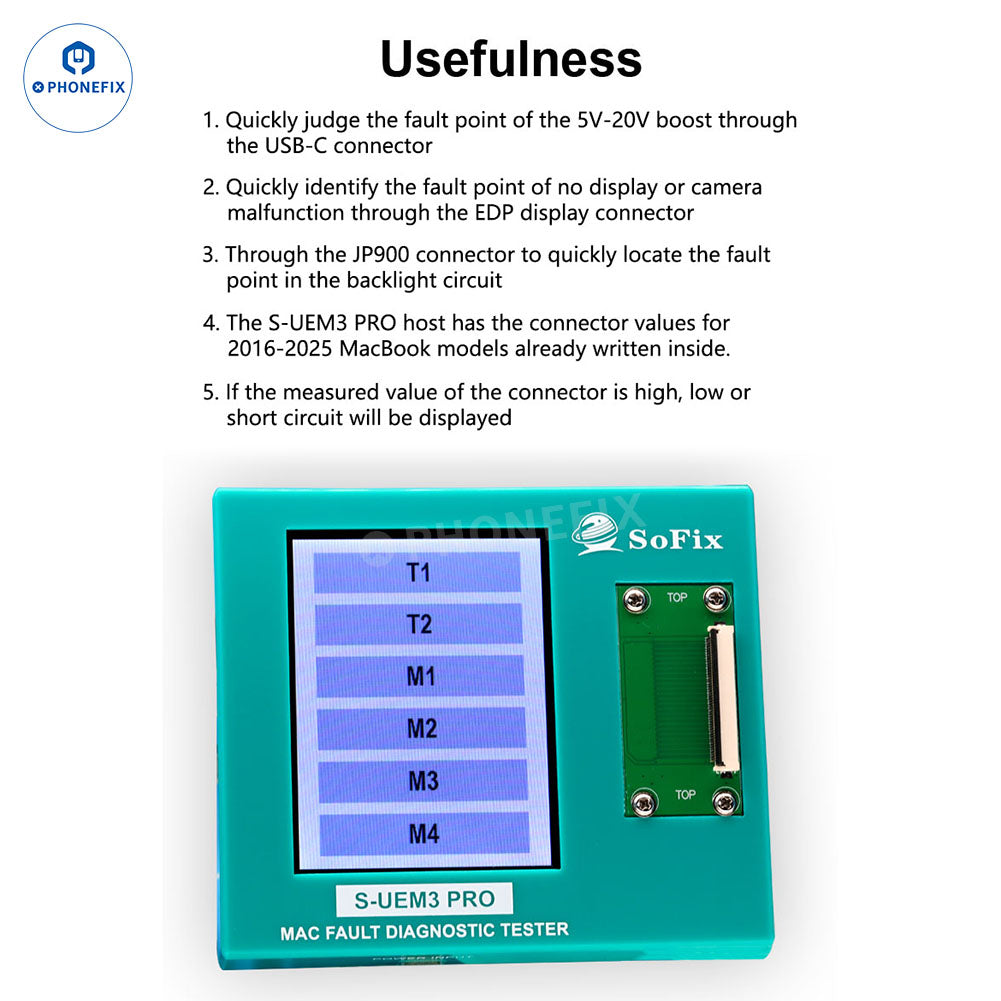

Features:
1. Rapid Diagnosis: Quickly identify fault points within the 5V-20V boost circuit via the USB-C connector.
2. Display & Camera Detection: Quickly pinpoint issues related to "no display" or camera malfunctions using the eDP display connector.
3. Backlight Circuit Localization: Rapidly identify problems within the backlight circuit via the JP900 interface.
4. Preset Motherboard Values: The main unit features built-in reference values for standard connector readings across MacBook models from 2016 to 2025.
5. Fault Alerts: The device directly displays the abnormal status whenever high voltage, low voltage, or a short circuit is detected.

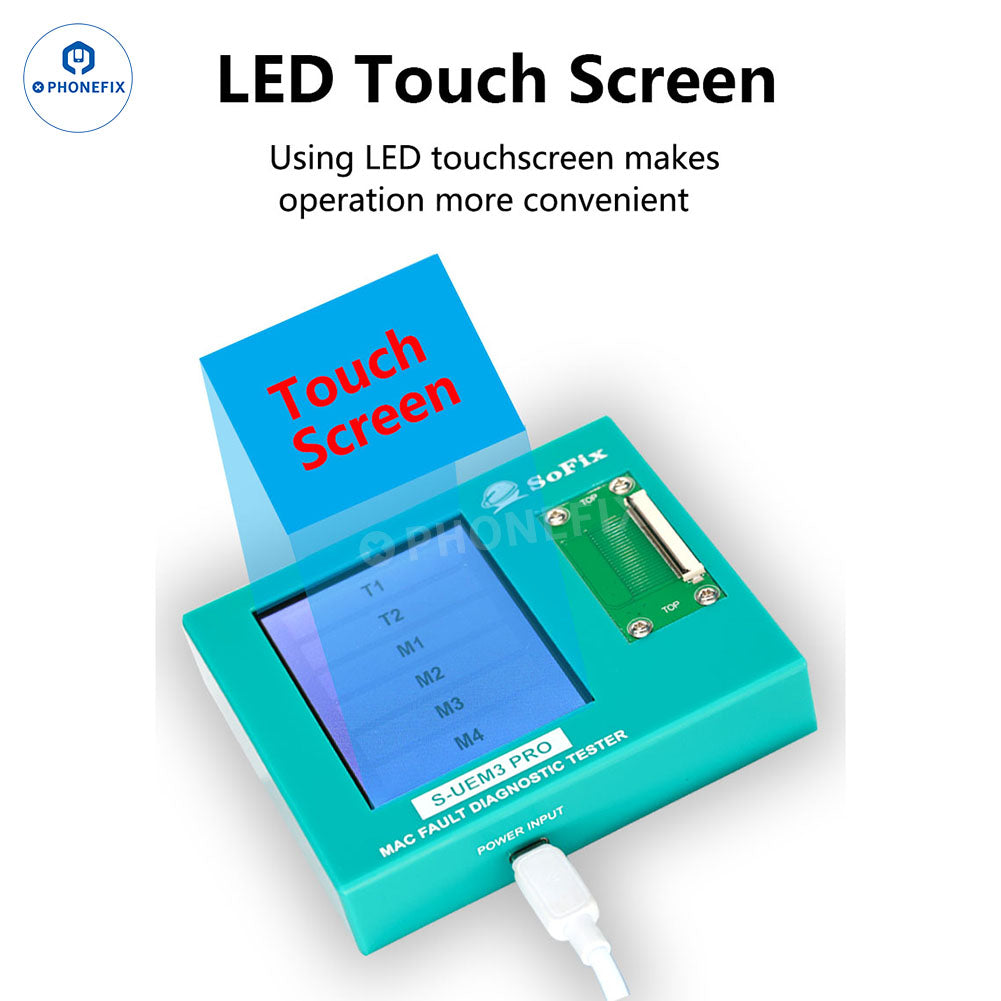

6. Convenient Operation: Features an intuitive LED touchscreen interface and flexible connection cables, ensuring quick and simple usage.
7. Comprehensive Compatibility: Covers all MacBook Air and MacBook Pro models from T1 through M4 generations; supports USB-C, display, camera, and backlight ports.

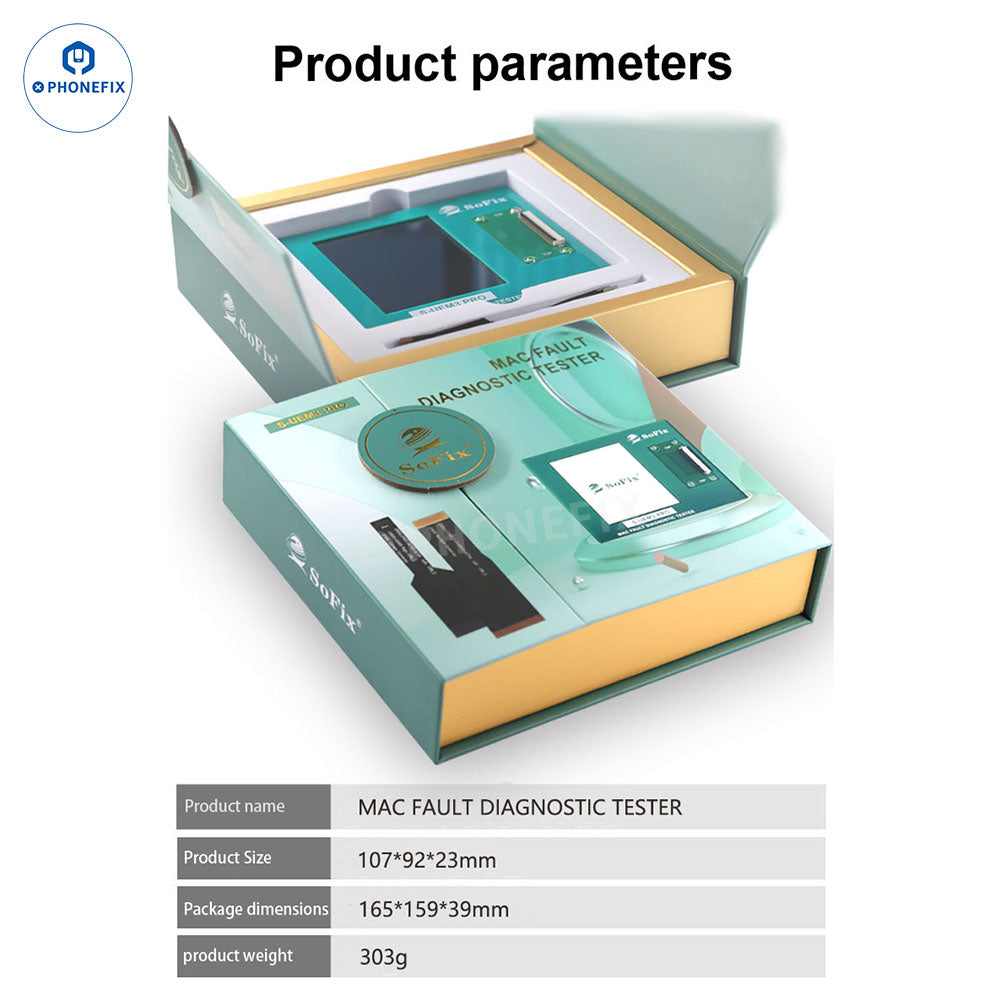

Product Specifications:

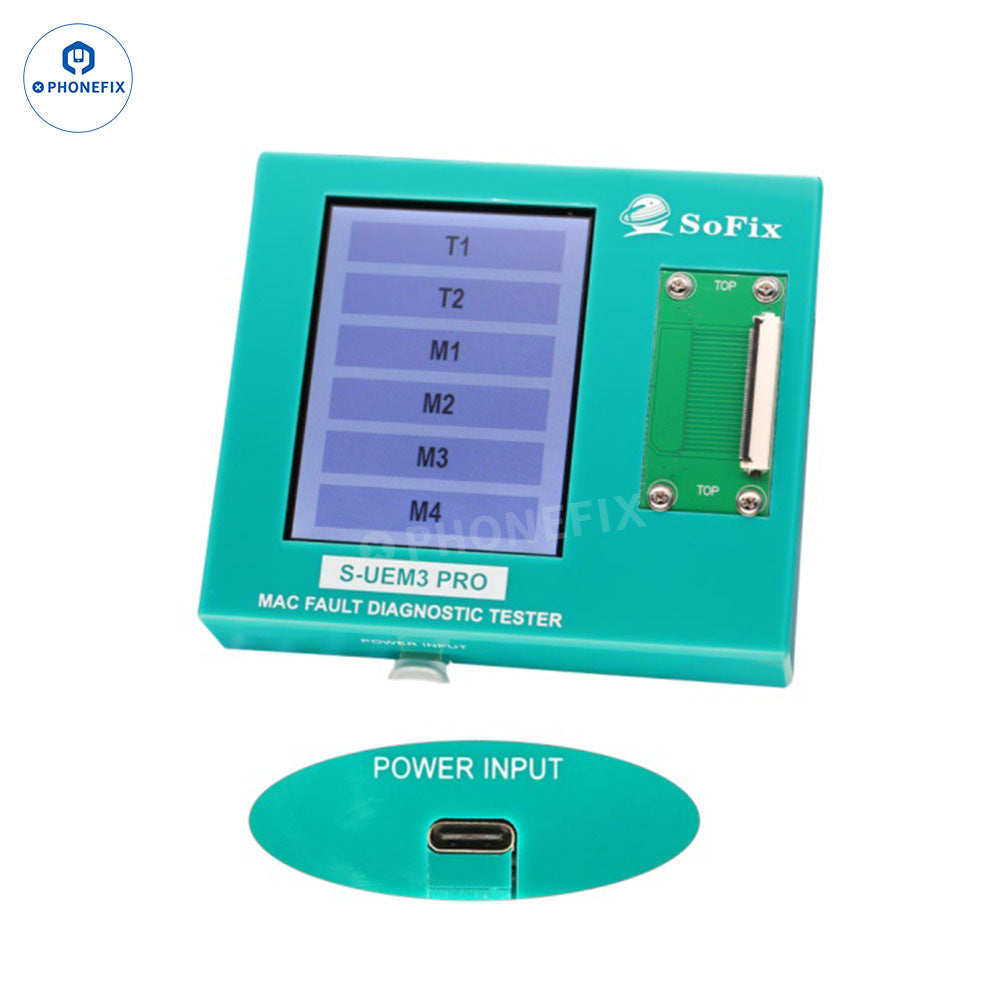

Name: Sofix S-UEM3 PRO Mac Fault Diagnostic Tester
Product Dimensions: 107x92x23 mm
Package Dimensions: 165x159x39 mm
Product Weight: 303g

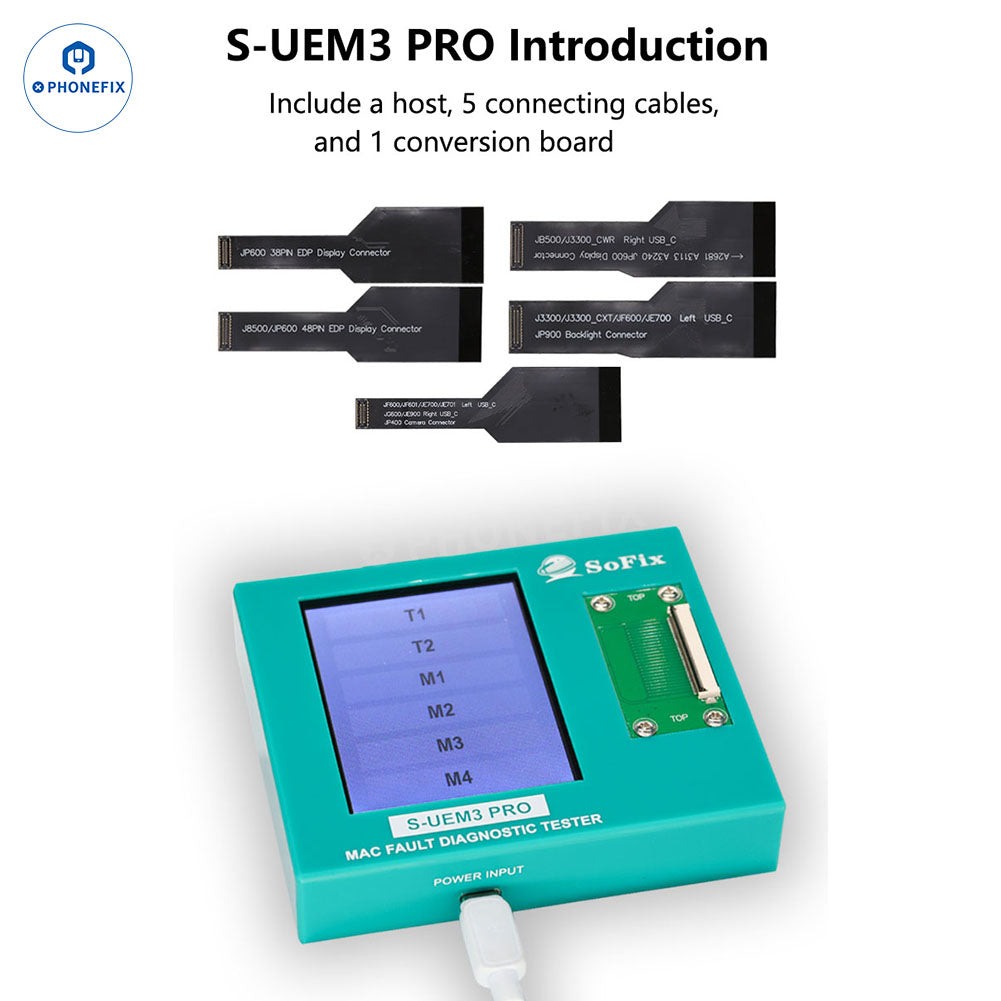

Connection Cables: 5 cables included, supporting various USB-C, display, camera, and backlight interfaces.
Display: LED Touchscreen
Supported Models: MacBook Air / Pro T1, T2, M1, M2, M3, M4 (2016–2025)
