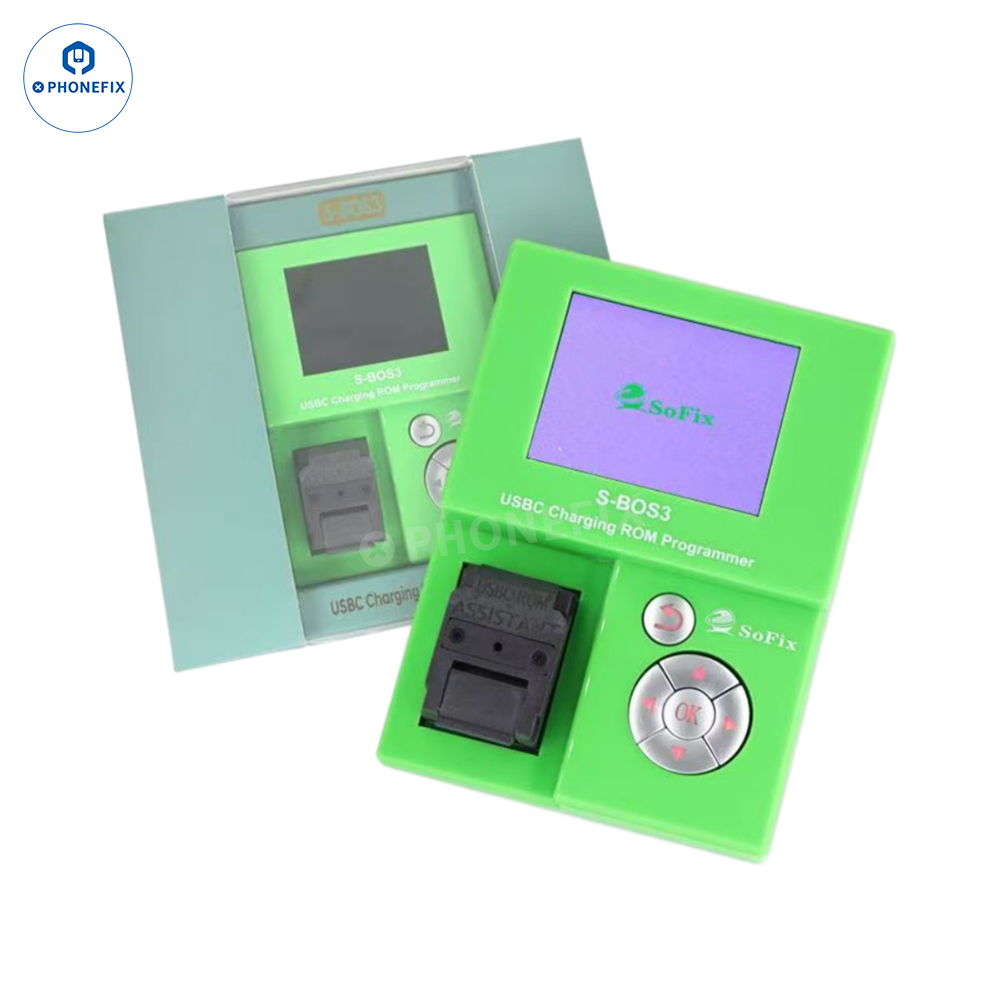

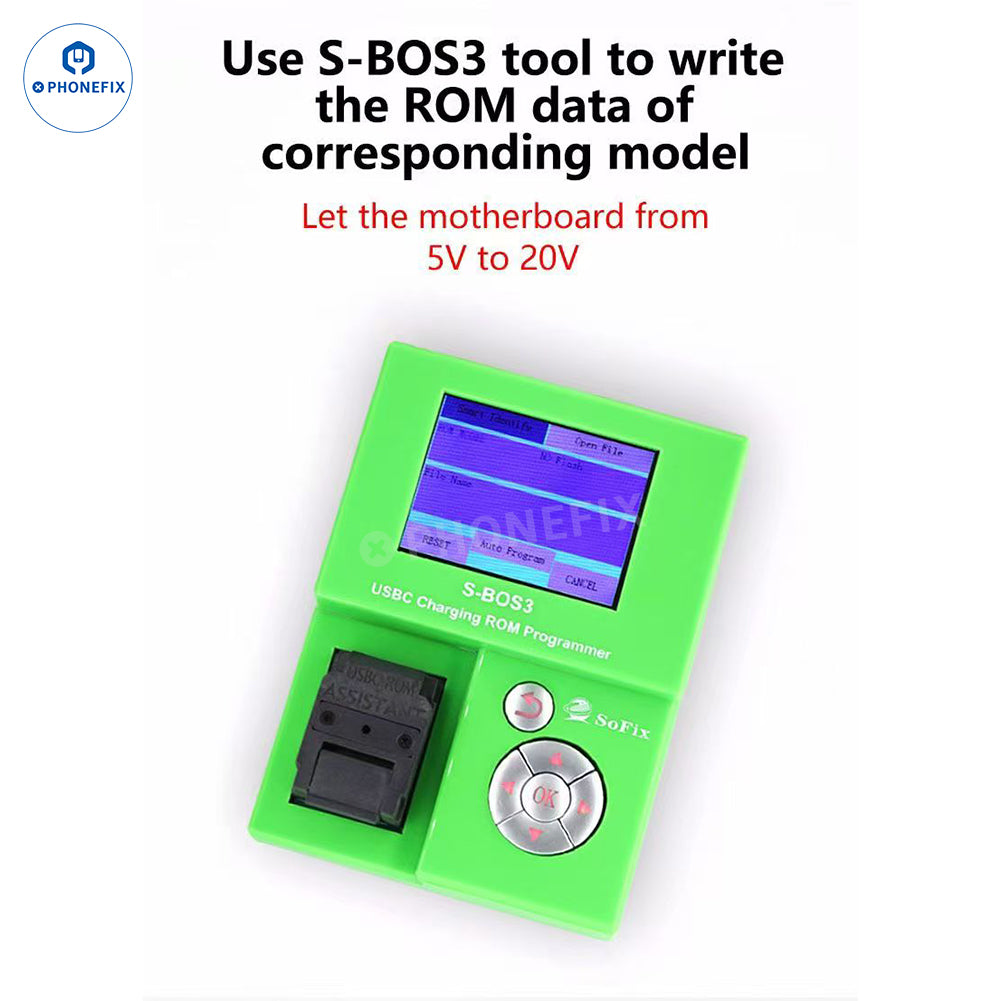

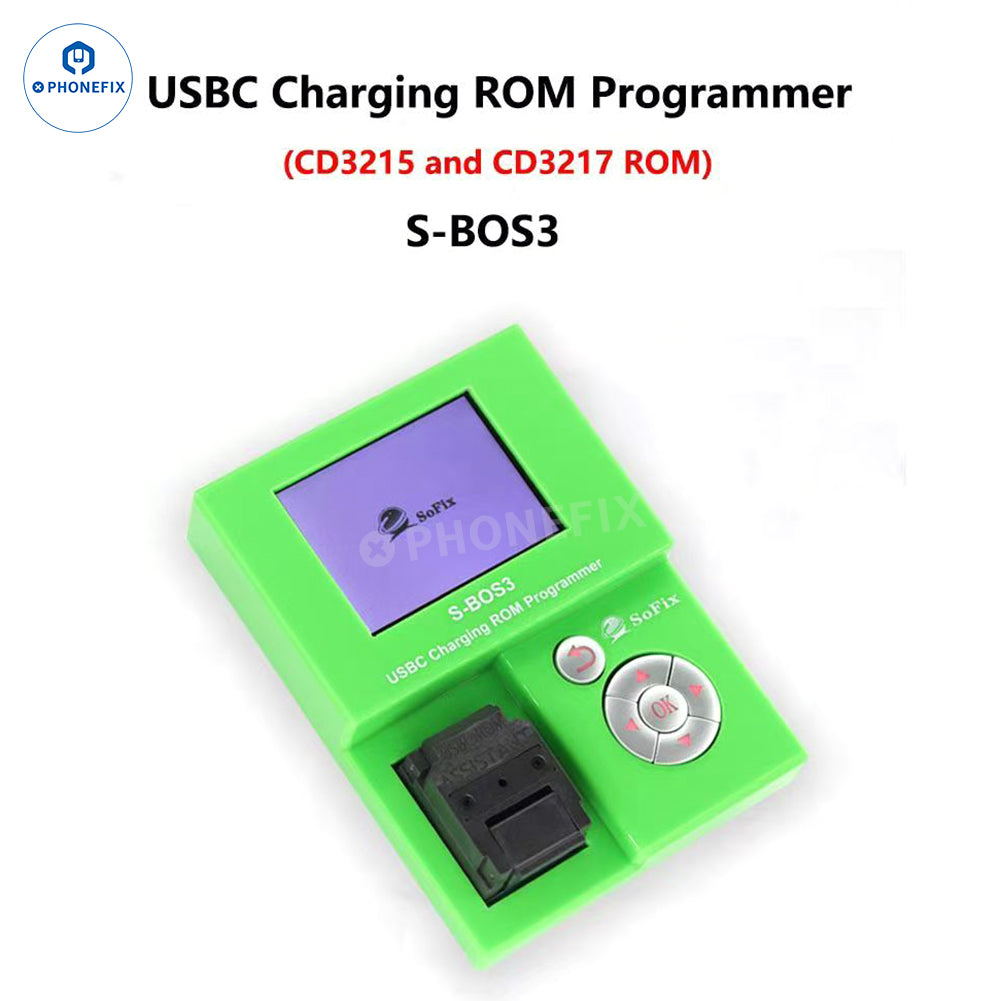

SOFIX S-BOS3 USB-C Charging ROM Programmer is a professional CD3215 CD3217 USB-C Charging chip ROM data writing tool, compatible with MacBook, iPad, and iPhone models equipped with Type-C ports manufactured between 2016 and 2023. Use SOFIX S-BOS3 programmer to write the appropriate ROM data for the specific model, thereby restoring the MacBook motherboard's power supply to its normal 20V boost state.
Features:
1. Supports writing ROM data to both CD3215 and CD3217 chips, covering MacBook, iPad, and iPhone models released between 2016 and 2023.
2. Pre-loaded with original factory ROM data covering a wide range of iPad, iPhone, and MacBook models.

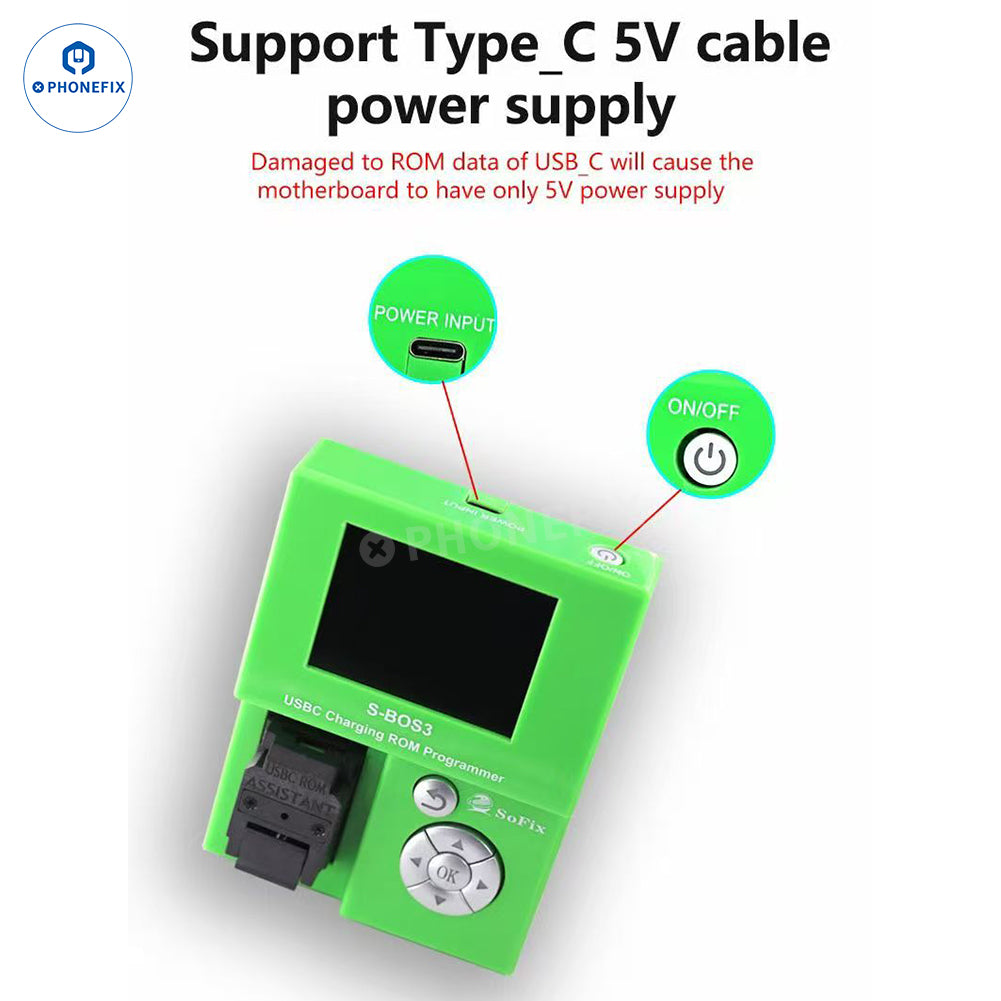

3. Supports power supply via a Type-C 5V cable connection.
4. Helps repair device voltage output—restoring it to the normal 20V state—in instances where ROM data has become corrupted.
5. Capable of resolving motherboard issues characterized by repetitive power cycling (rebooting) caused by missing ROM data.
6. Supports various MacBook models from 2016 to 2023—including M1, M2, M3, and other variants—as well as different versions of iPads and iPhones.

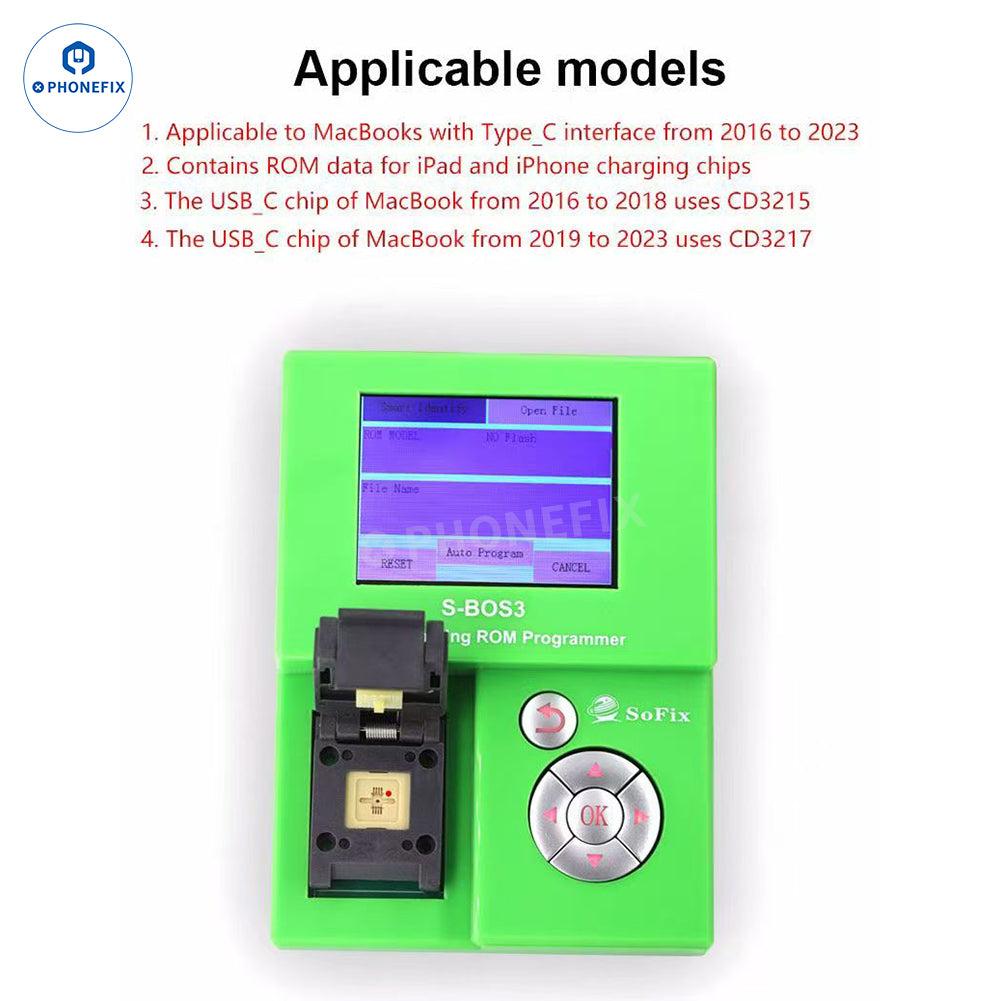

Supported Models:
Compatible with MacBook, iPad, and iPhone models equipped with a Type-C port, manufactured between 2016 and 2023.
MacBook models manufactured between 2016 and 2018 utilize the CD3215 USB-C chip.
MacBook models manufactured between 2019 and 2023 utilize the CD3217 USB-C chip.

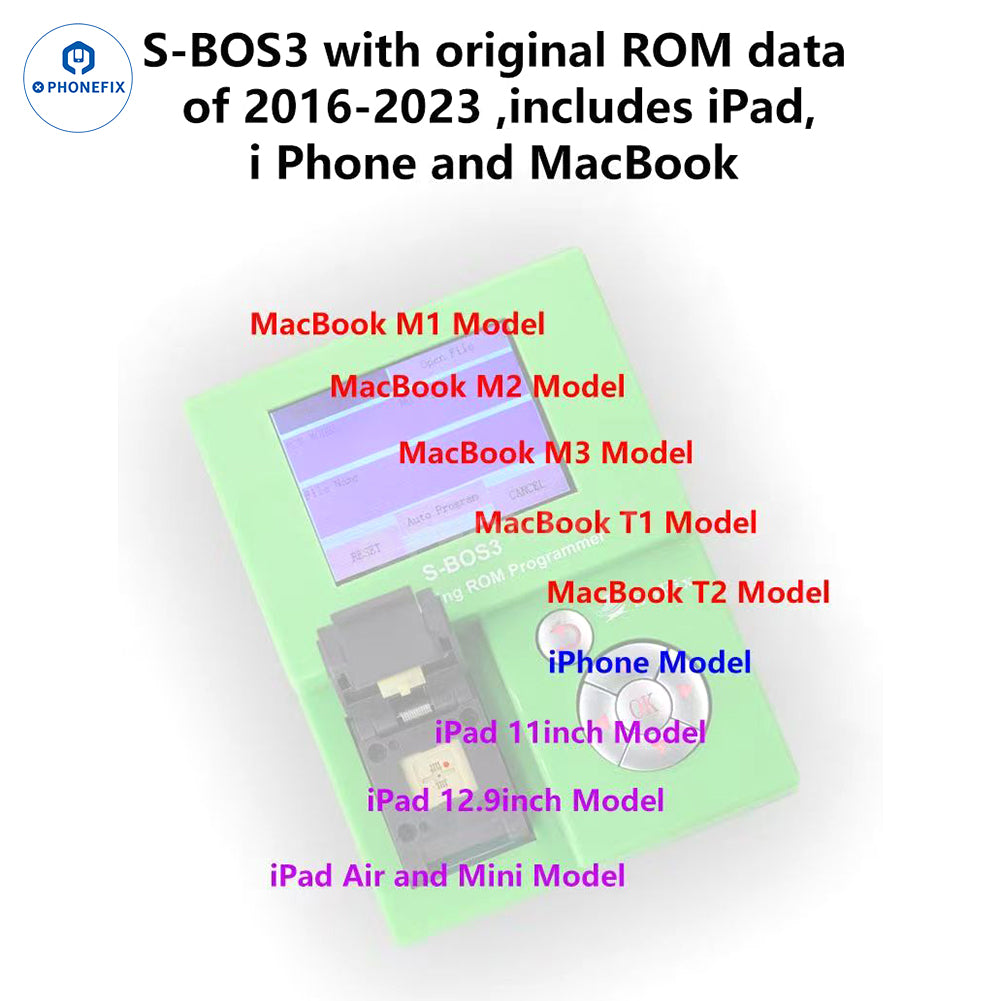

Corresponding ROM Data Models:
iPad 11-inch
iPad 12.9-inch
iPad Air and Mini
iPhone
MacBook M1
MacBook M2
MacBook M3
MacBook T1
MacBook T2

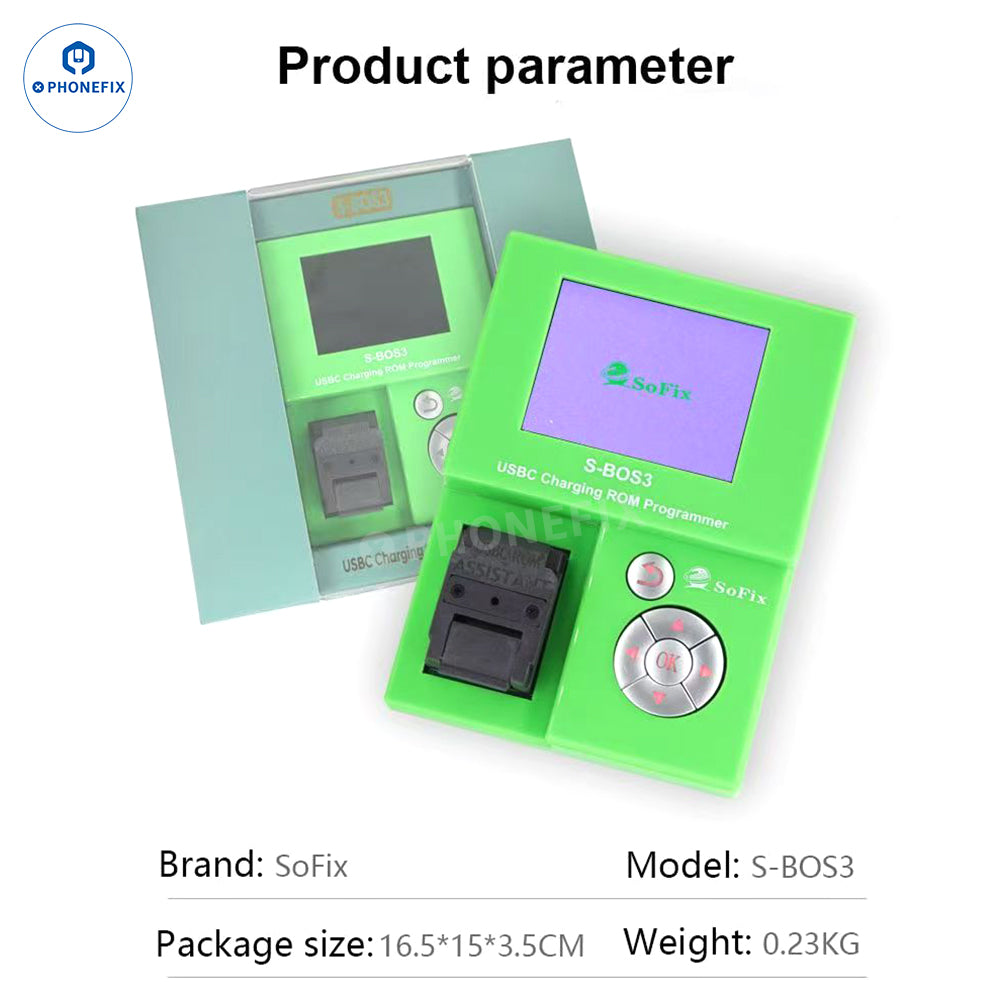

Product Specification:
Name: USB-C Charging ROM Programmer
Brand: SoFix
Model: S-BOS3
Weight: 0.23 kg
Package Dimensions: 16.5x15x3.5 cm
