Flux Pen BON-102 Original Japan Bon-102 Flux Paste Solder Paste Flux pen Welding Flux 2pcs/lot, new Flux Pen PCB Soldering Solder Tool Applicator Brush Head No Clean 102 Flux Paste/solder Paste/ Flux Pen/ welding paste flux

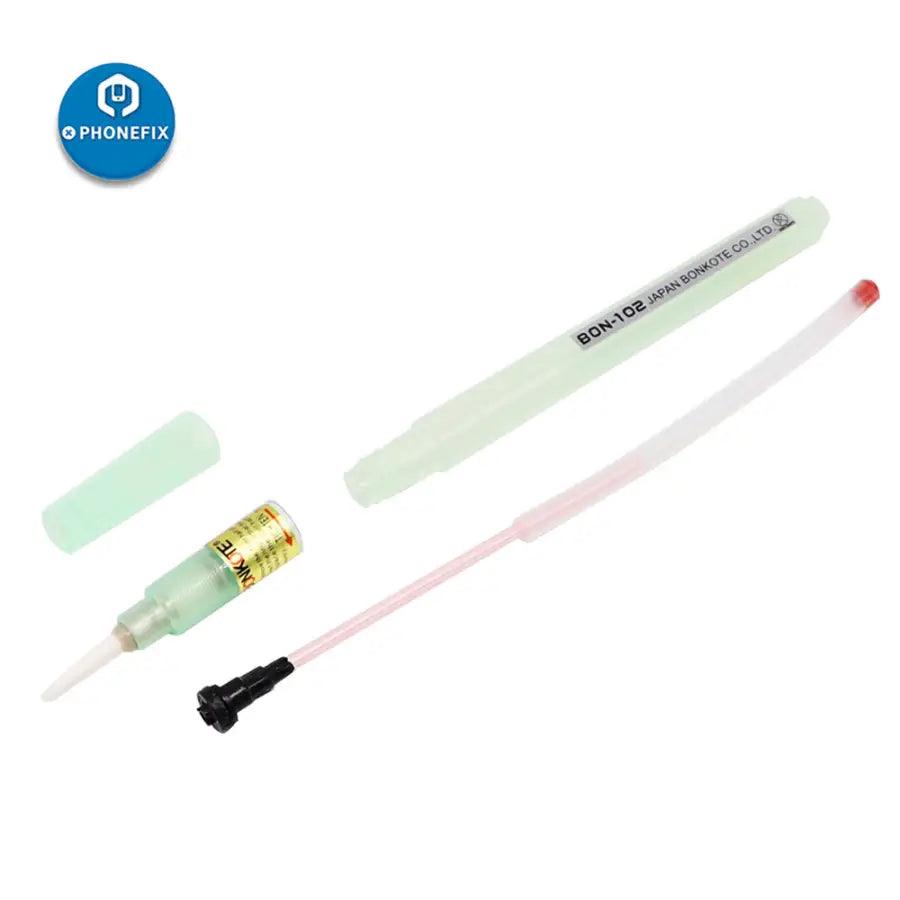

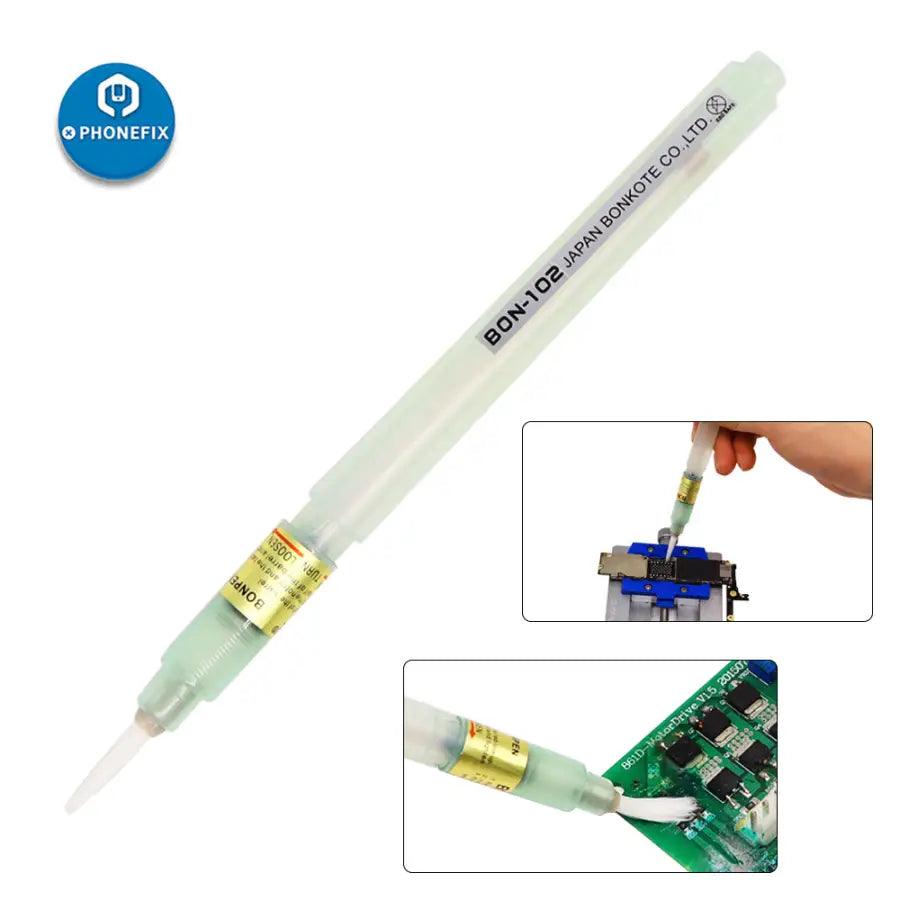

BON-102 Solder Paste Pen Flux-Coating Tool Flux paste brush for PCB welding
Specification :
- Name: Flux Pen
- Condition: Brand New From Factory
- Model: BON102
- Capacity: 7ml
- Tip Size: 4.3mm
- Tip Length: 14mm
- Total Size: 18.5cm
- Weight: 50g
Features :
- Easy application of flux with pen-like brush
- It is excellent in workability and easy to carry.
- Flux replenishment can be done repeatedly.
- Flux vaporization is stopped to keep density constant.
- Dripping is prevented because of proper flow adjustment mechanism.
- It can be used as cleaning brush when charged with alcohol.
- The body is transparent and remaining amount can be known at a glance
Usage :
- Before welding, flux coated on the base material (to improve wettability)
- Adoption of amendments to the object when the applied flux, oxidation can remove wax and improve infiltration.
- used alcohol to clean the substrate (prohibiting the use other organic solvents)
Note : There is not any rosin in this flux pen, you should fill some rosin yourself.
