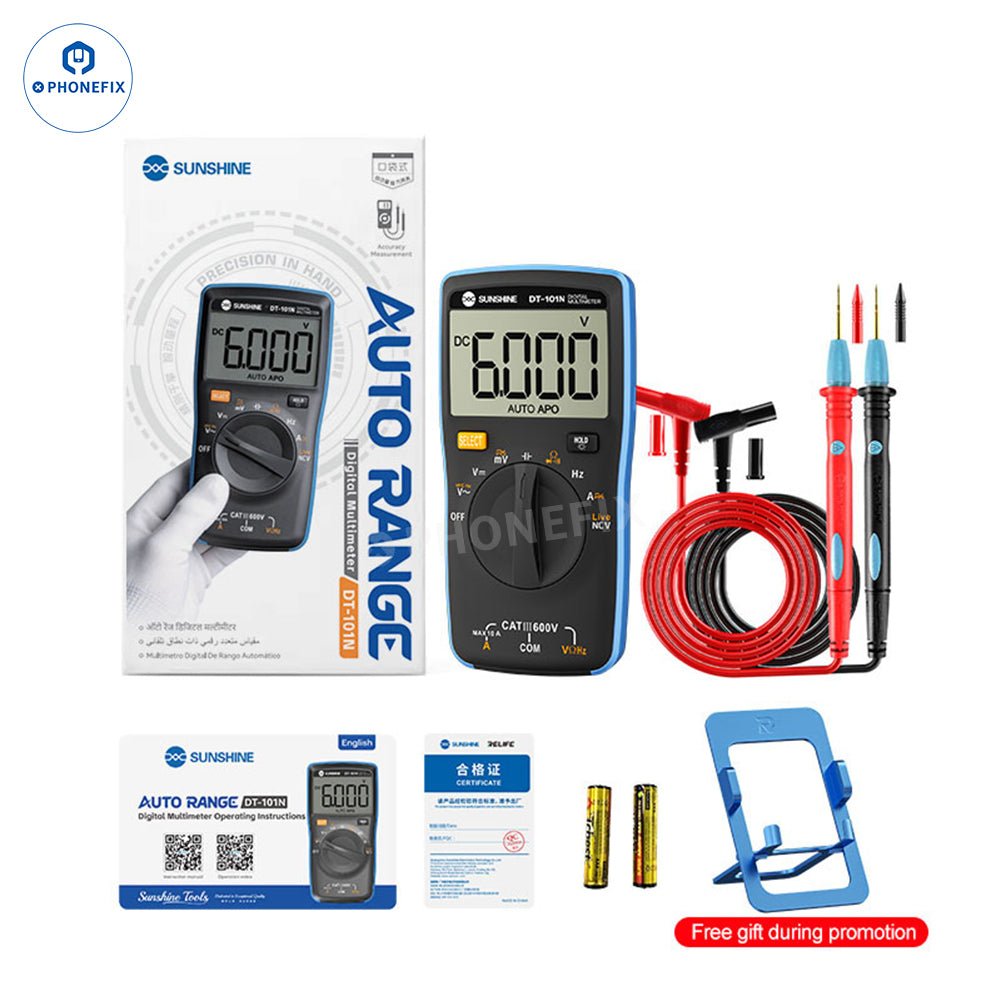

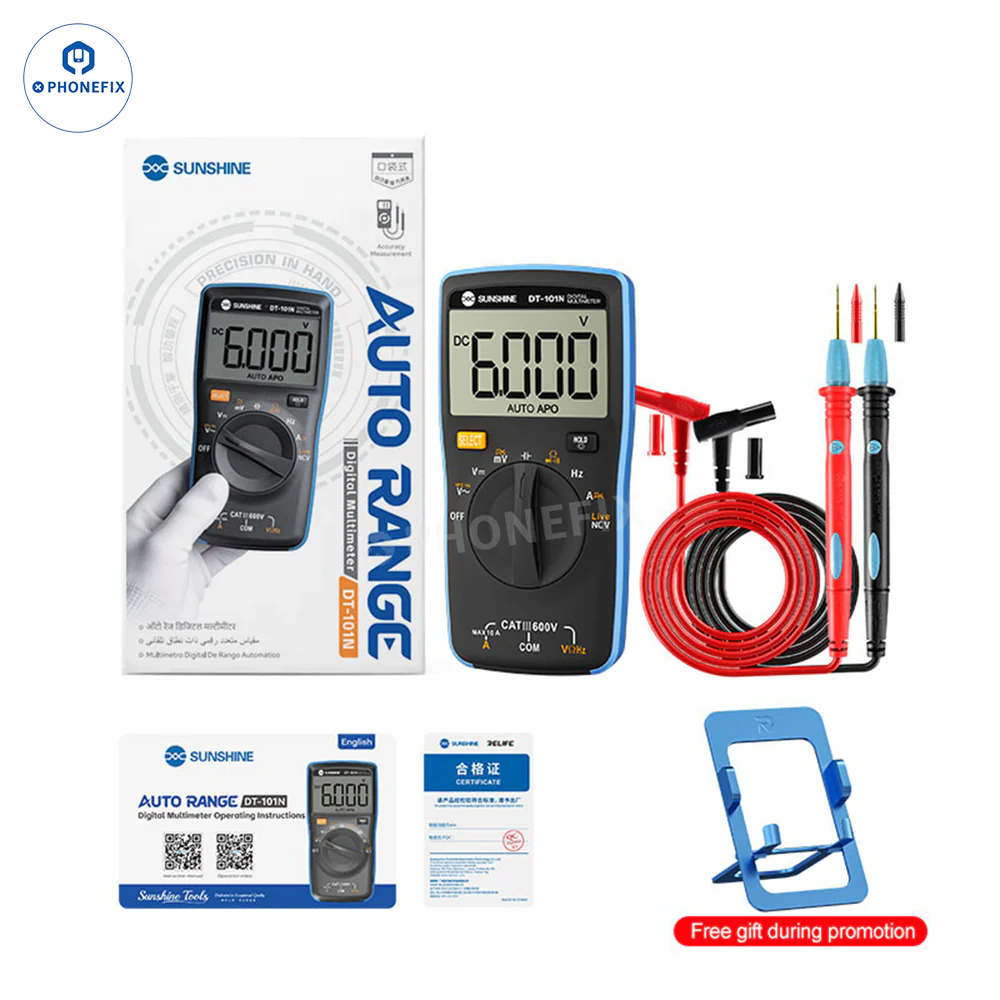

SUNSHINE DT-101N Auto-Ranging Multimeter utilizes a high-precision measurement system and dual-slope A/D conversion technology. It supports True RMS measurement and features a high-definition display with a 5999-count resolution. Equipped with functions such as automatic range switching, NCV (Non-Contact Voltage) detection, and a large backlit display, it is ideal for mobile phone repair, circuit diagnostics, motherboard troubleshooting, and electronic engineering debugging.
Please note: Due to shipping restrictions, the batteries will not be shipped.
Features:

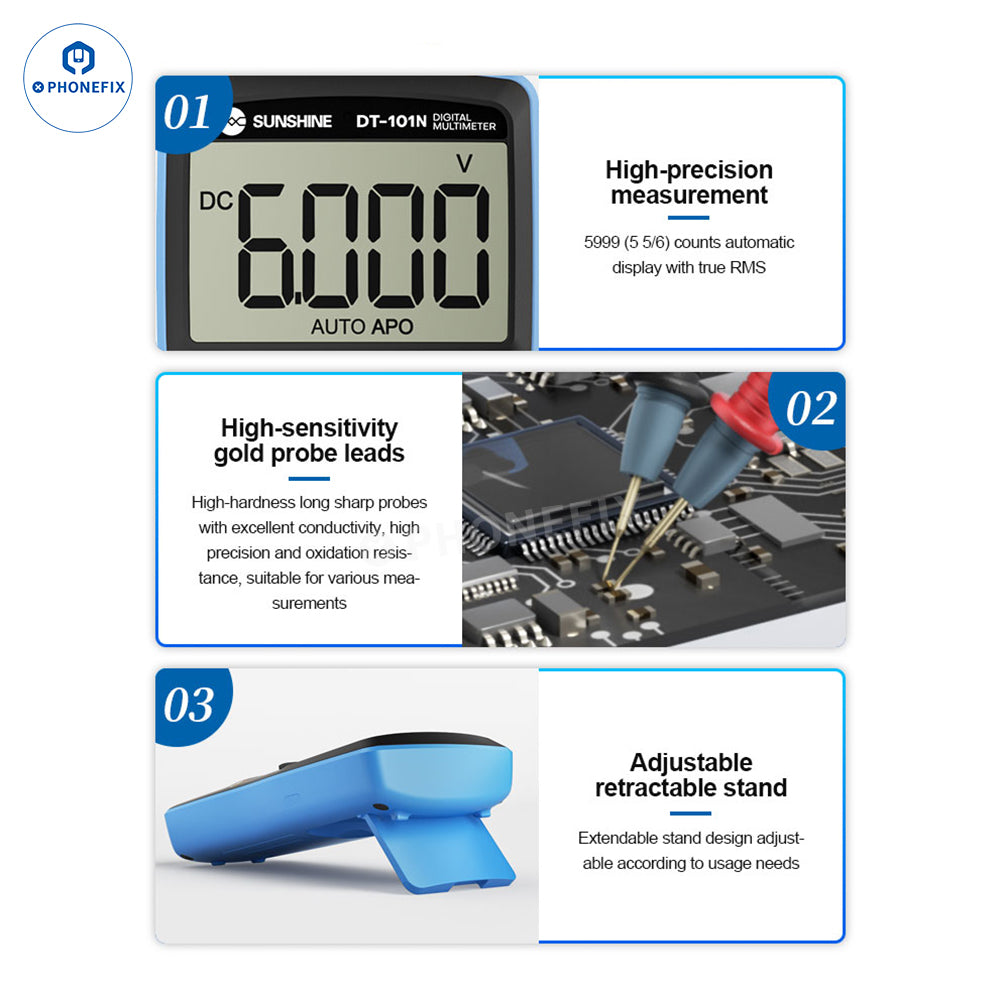

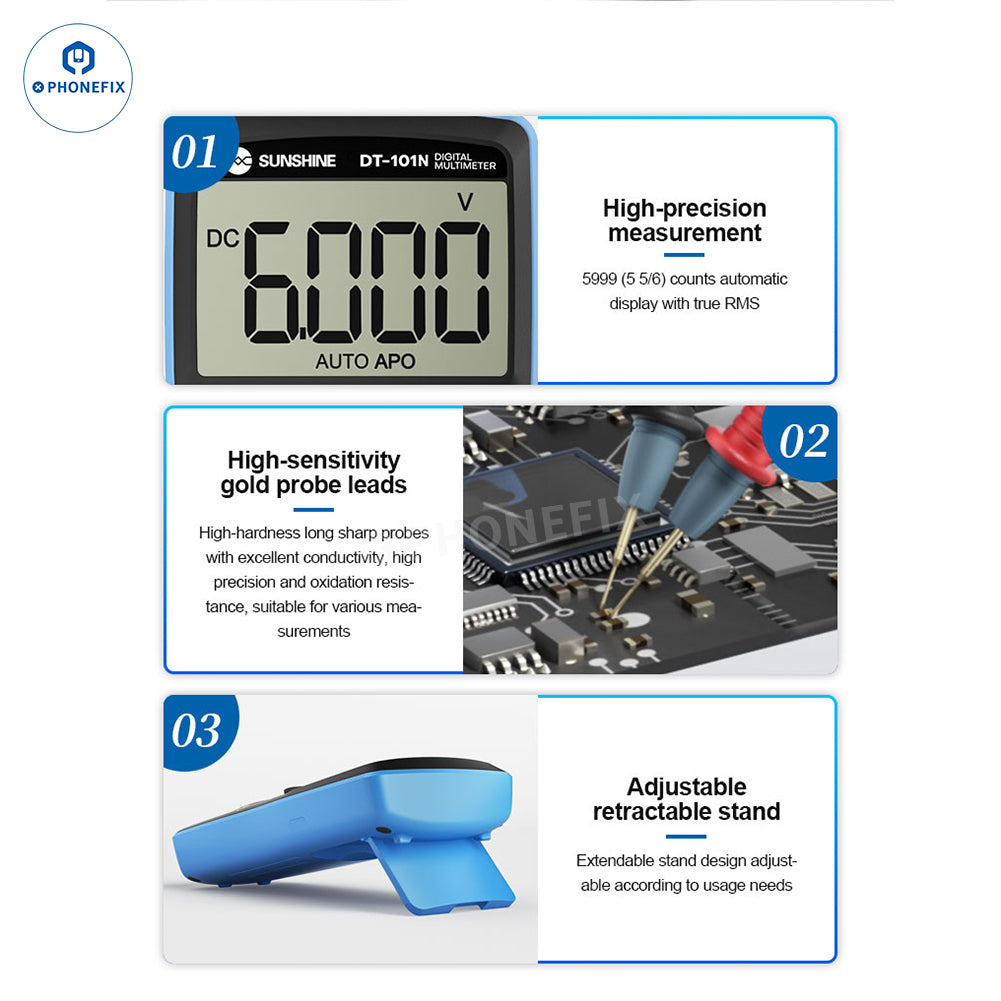

1. High-precision 5999-count display system; provides stable readings without drift and supports True RMS measurement.
2. No need for manual range switching; the system automatically identifies the measurement range, enhancing both efficiency and safety.
3. Detects voltage status without requiring direct contact with conductors, thereby elevating operational safety levels.
4. Supports a wide range of functions, including measurements for voltage, current, resistance, capacitance, frequency, duty cycle, as well as diode and continuity testing.
5. Features a high-definition LCD screen with a backlight design, ensuring clear readability in both bright and dim lighting environments.
6. Pocket-sized body design makes it highly portable, making it suitable for on-the-go repairs and field diagnostics.

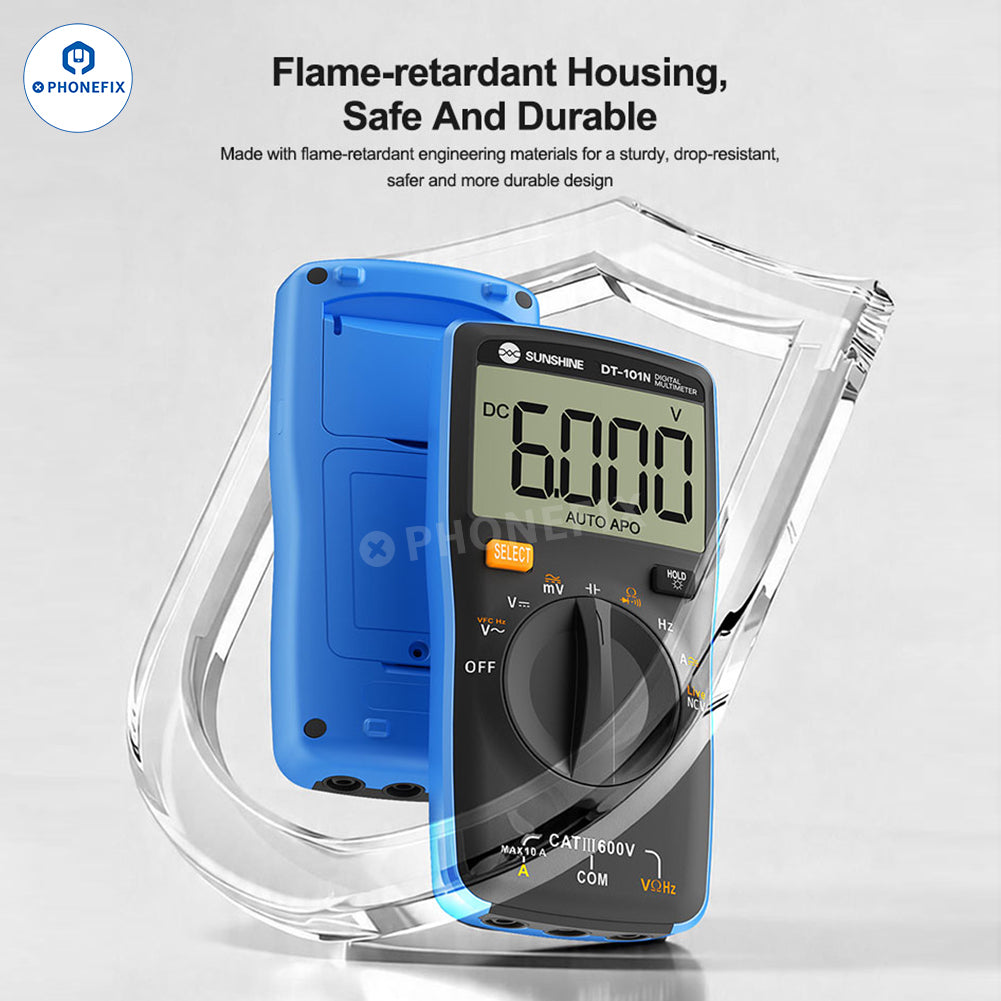

7. Constructed with flame-retardant materials; the drop-resistant and shock-proof body design ensures user safety.
8. Features high-hardness probe tips with excellent conductivity and strong resistance to oxidation.
Product Specifications
Brand: SUNSHINE
Name: Auto-Ranging Multimeter
Model: DT-101N
Display Mode: LCD display
Maximum Display: 5999 (5 5/6) counts with automatic polarity indication
Measurement Method: Dual-slope A/D conversion
Sampling Rate: Approximately 3 times per second
Over-range Indication: The highest digit displays "OL"
Operating Environment: (0~40)°C, relative humidity <80%
Power Supply: 2x AAA 1.5V batteries
Net Weight: ≈155g
Gross Weight: ≈530g

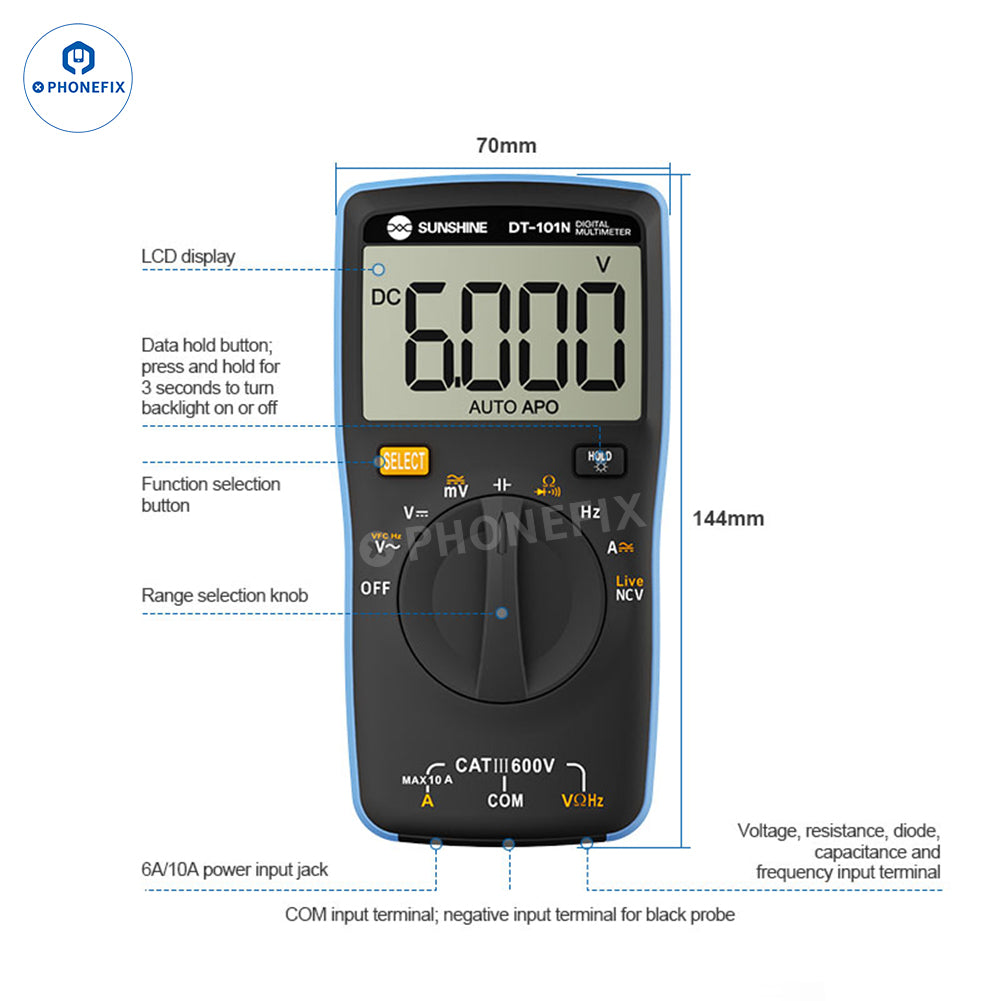

Product Dimensions: 144x70x33mm
Package Dimensions: 99x65x185mm
