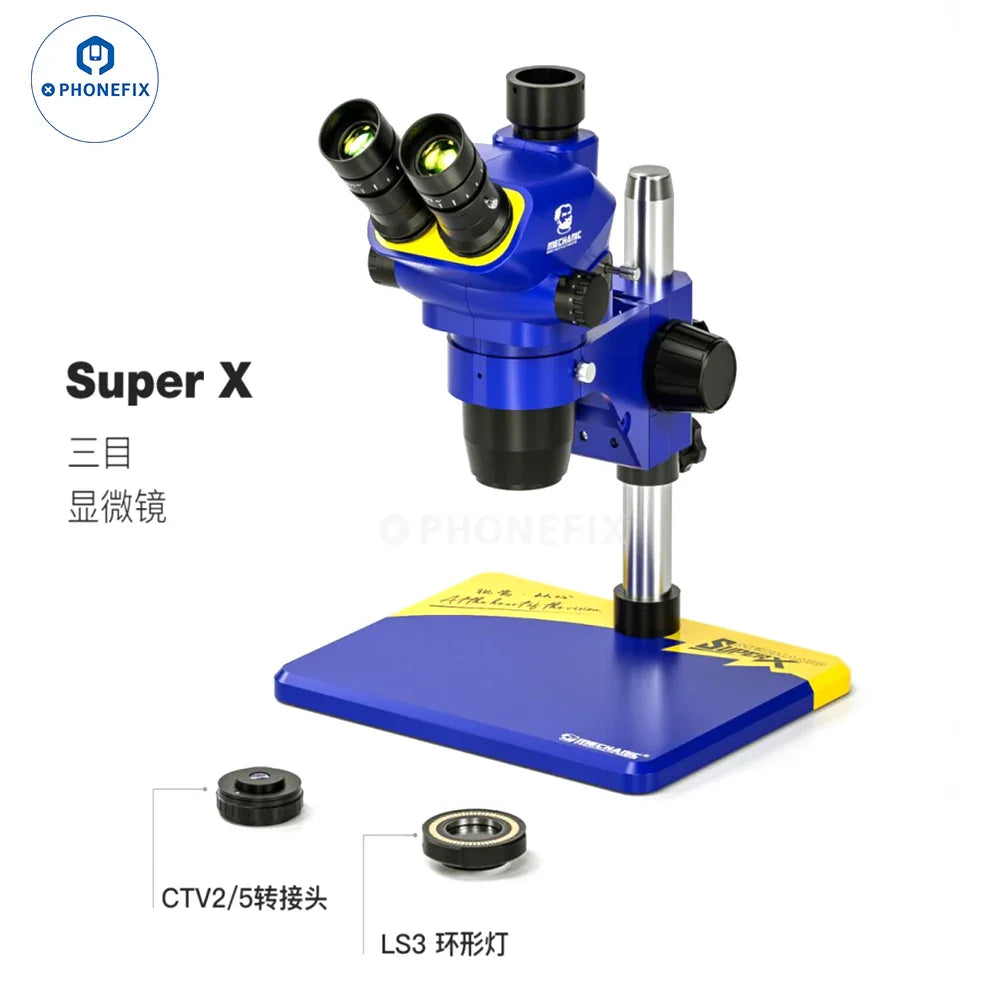

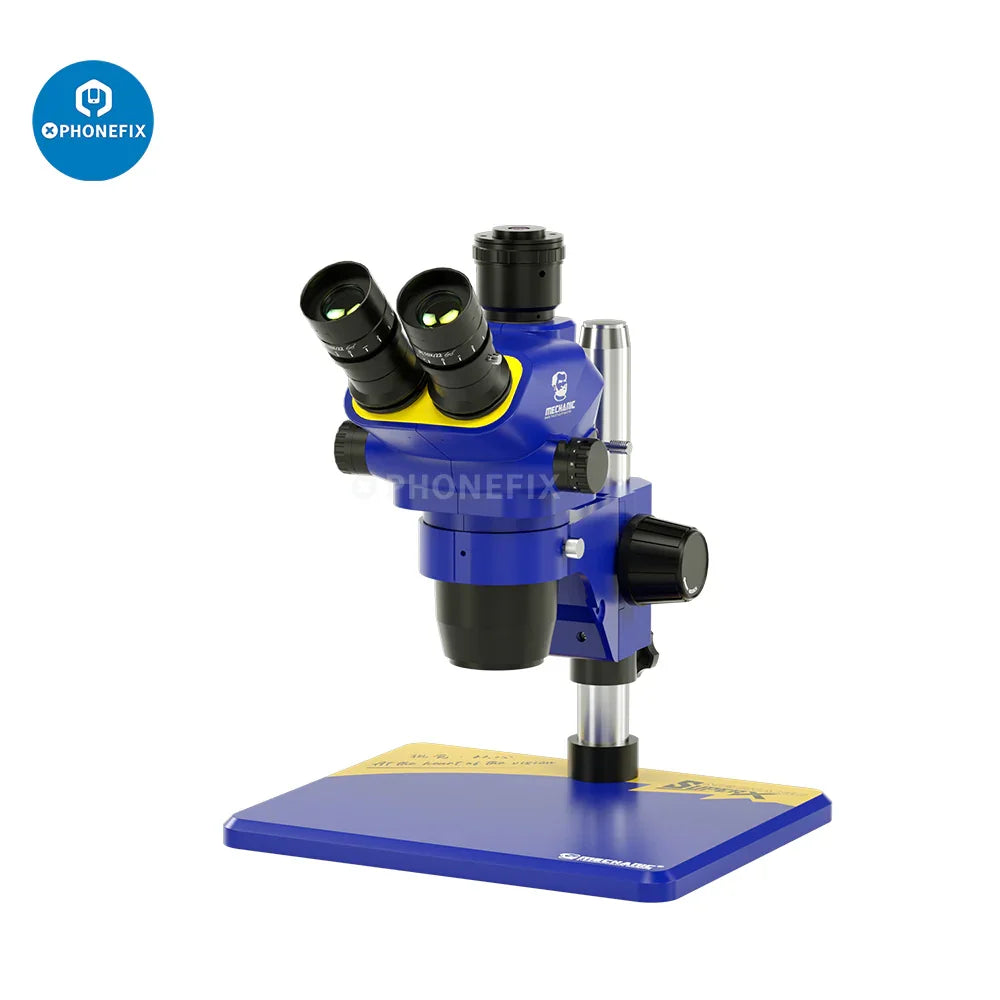

MECHANIC Super X Pro 6.5X-55X Continuous Zoom Trinocular Stereo Microscope for precision electronics repair, PCB micro soldering, and mobile phone repair. Featuring a 6.5X to 55X continuous zoom range with a 1:8.4 zoom ratio and PL10X26 adjustable wide-field eyepieces, The trinocular port supports CCD camera attachment via a 0.45X CTV adapter for live viewing, recording, and documentation. Its advanced dust-proof design, inner oblique V-shaped optical system with three-layer coated lenses, and click-stop zoom mechanism (switchable between continuous and fixed magnification) make it the ultimate microscope for phone repair technicians, PCB inspectors, and micro-soldering professionals.
Option:

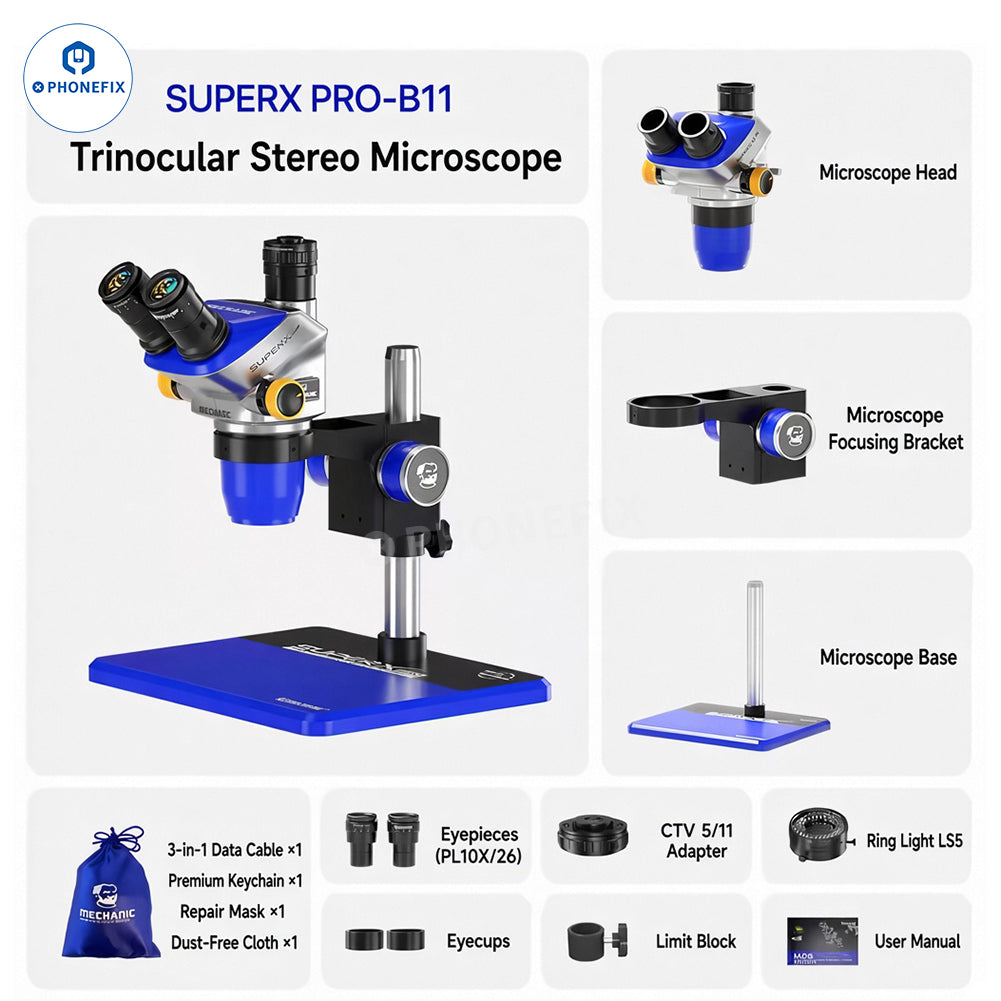

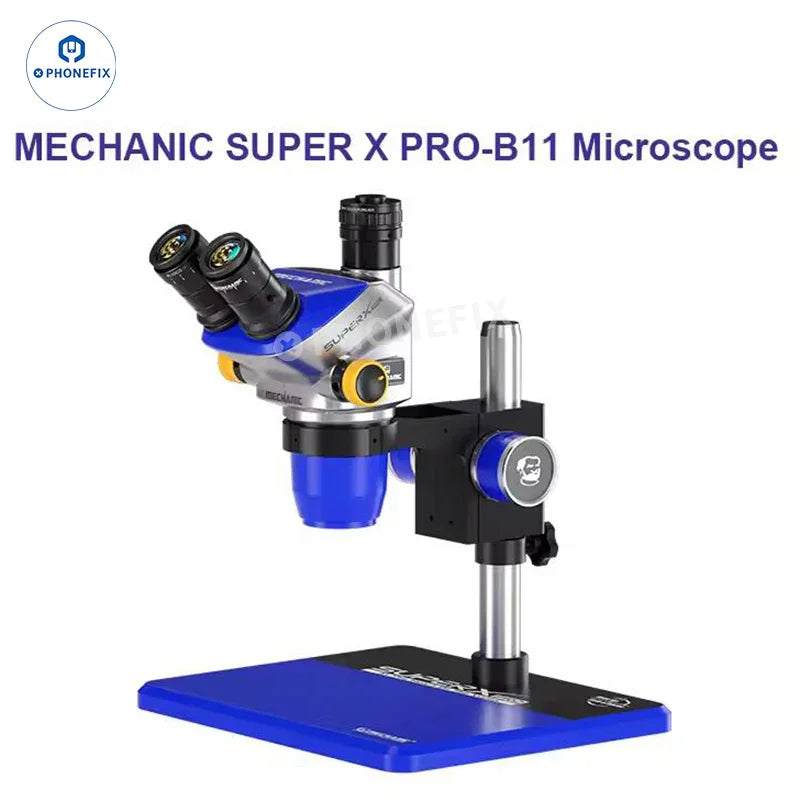

1. Mechanic Super X Pro-B11.

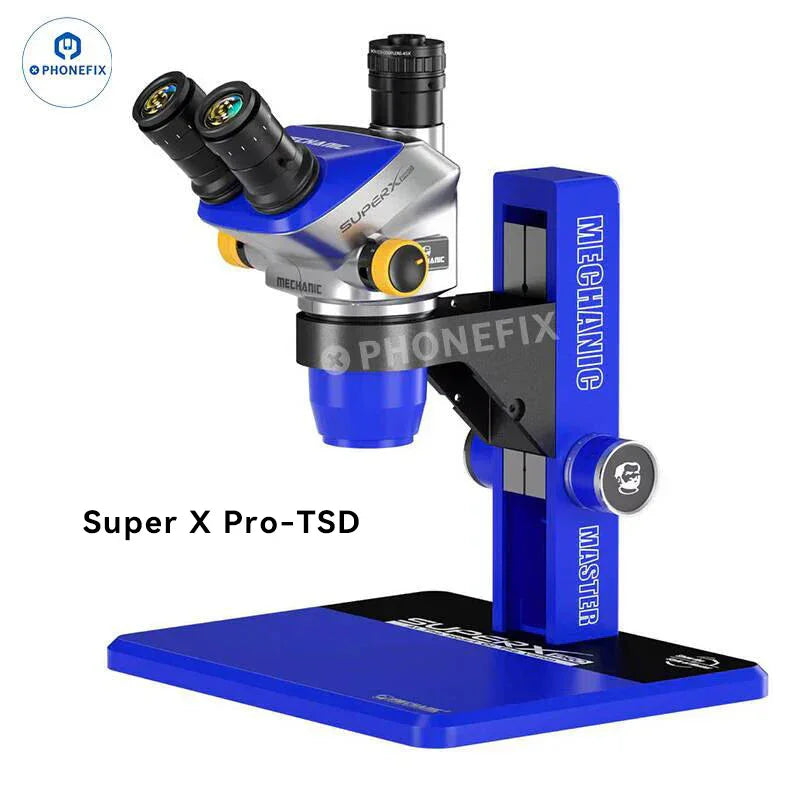

2. Mechanic Super X Pro-TSD.

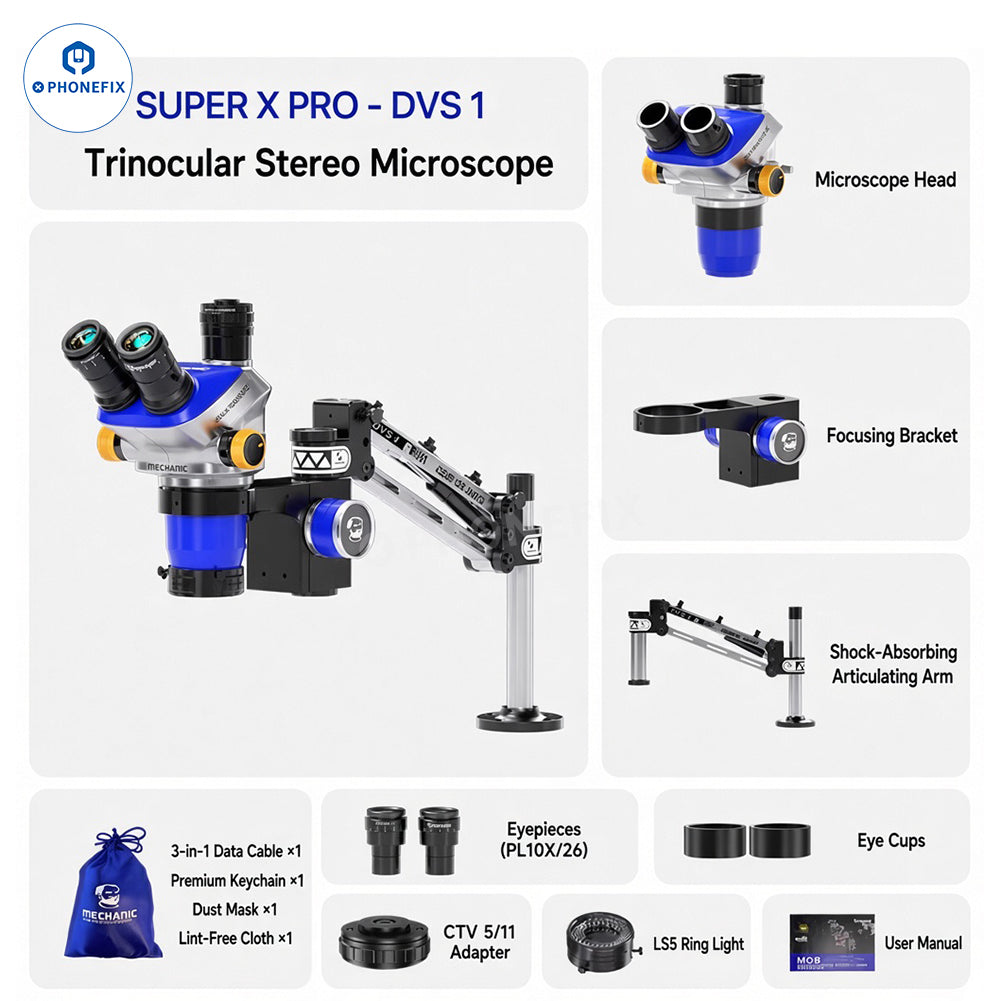

3. Mechanic Super X Pro-DVS-1.

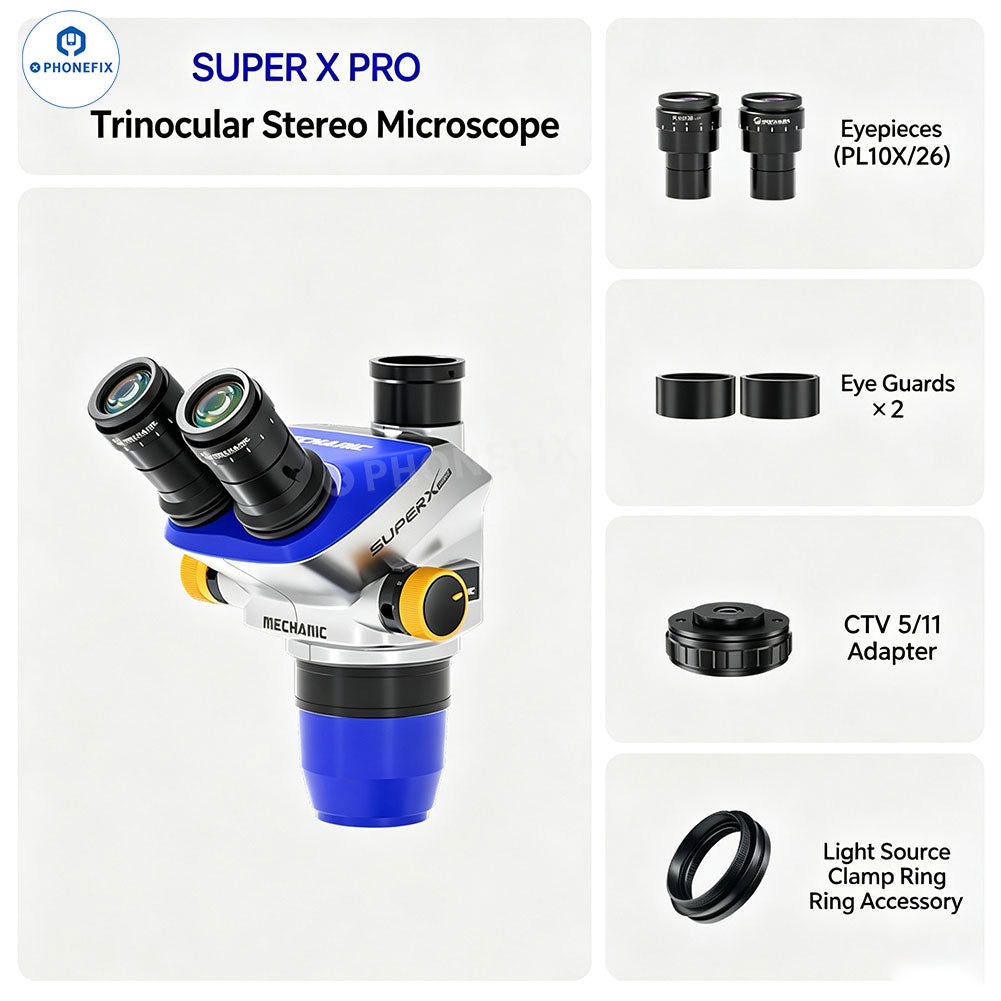

4. Mechanic Super X Pro head only.
Features:
1. 6.5X-55X Continuous Zoom – Smooth magnification range with 1:8 ultra-high zoom ratio for versatile inspection and repair tasks.
2. PL10X26 Adjustable Eyepieces – True flat-angle field of view with 26mm viewing range; effectively reduces image edge distortion.

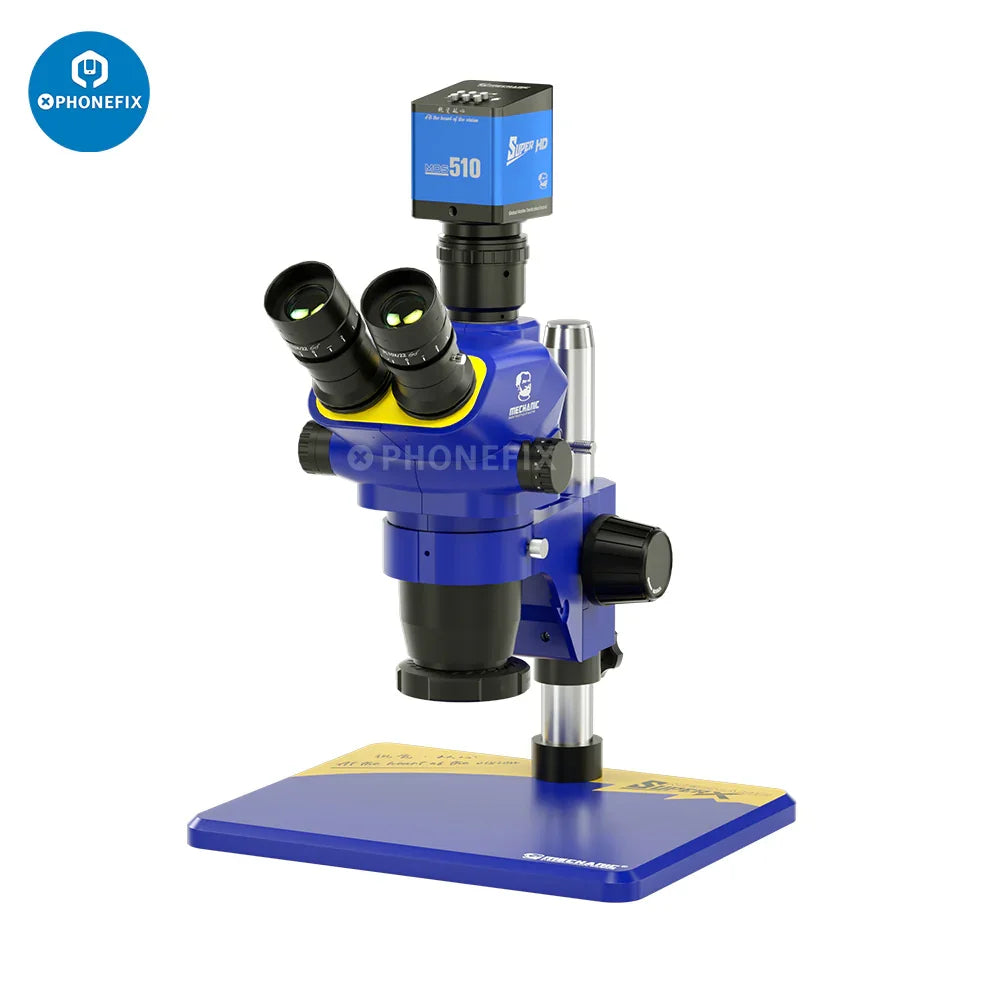

3. Trinocular Port with 0.45X CTV Adapter – Supports CCD camera attachment for live viewing, recording, and documentation; eliminates dark corners.

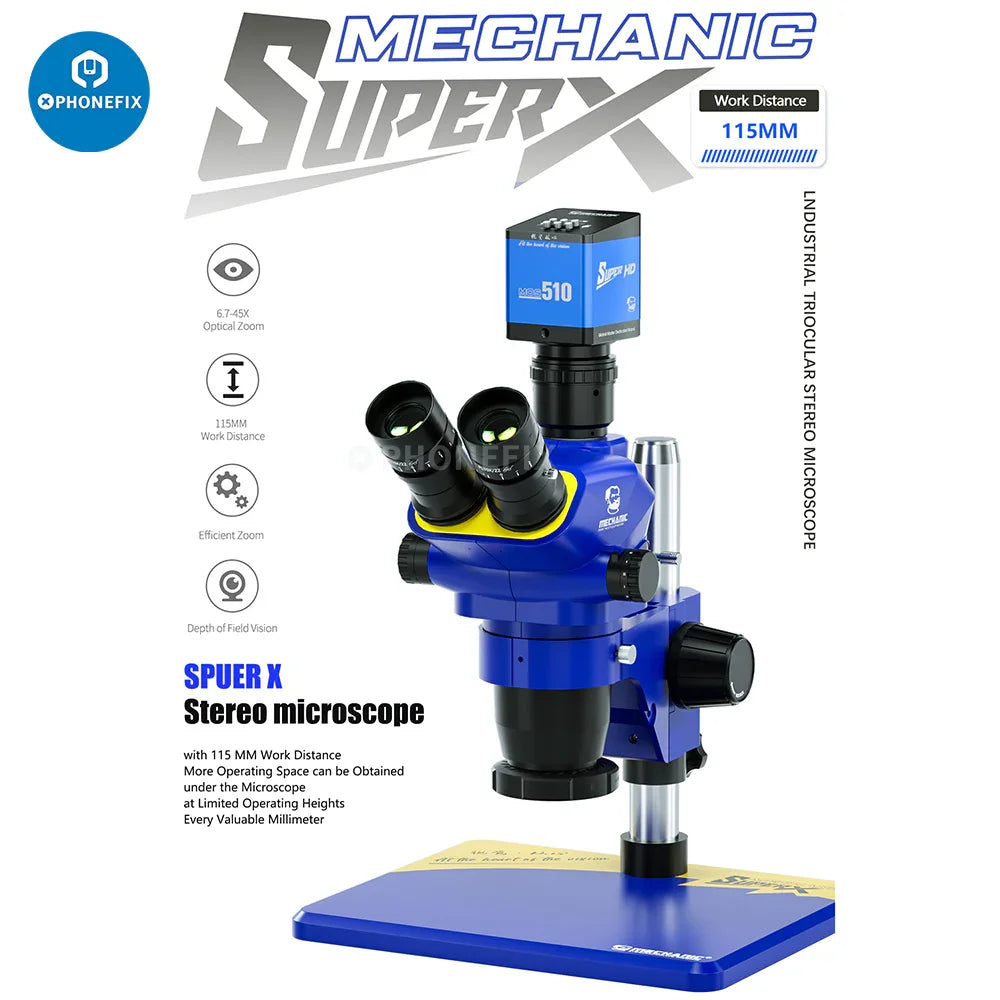

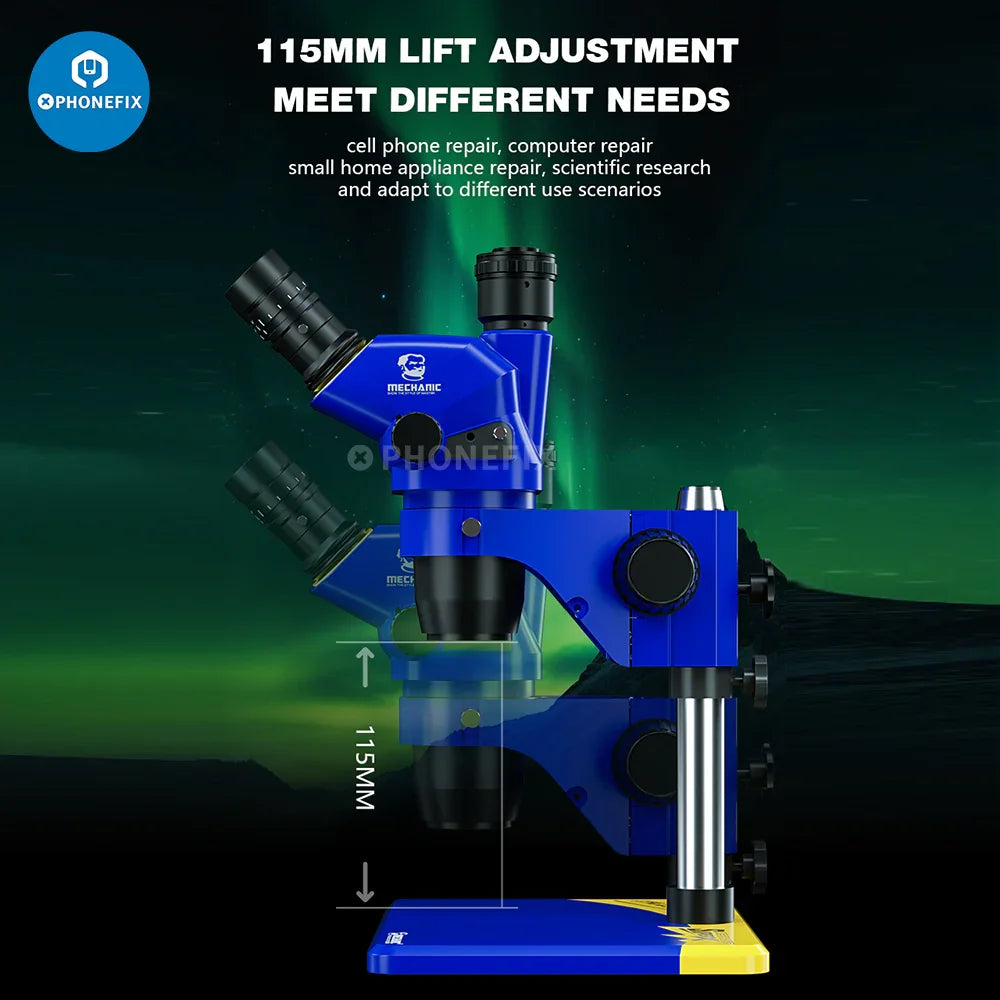

4. 115mm Comfortable Working Distance – Ample space for tools and soldering work; reduces fatigue and improves stability.
5. Click-Stop Zoom Mechanism – Switchable between continuous and fixed magnification; tactile gear design for precise magnification locking.
6. Dust-Proof Optical Protection – High-transmittance flat glass shields internal optics from dust and oil smoke.
7. Inner Oblique V-Shaped Optical System – Three-layer precision-ground coated lenses; delivers greater depth of field, clarity, and contrast.

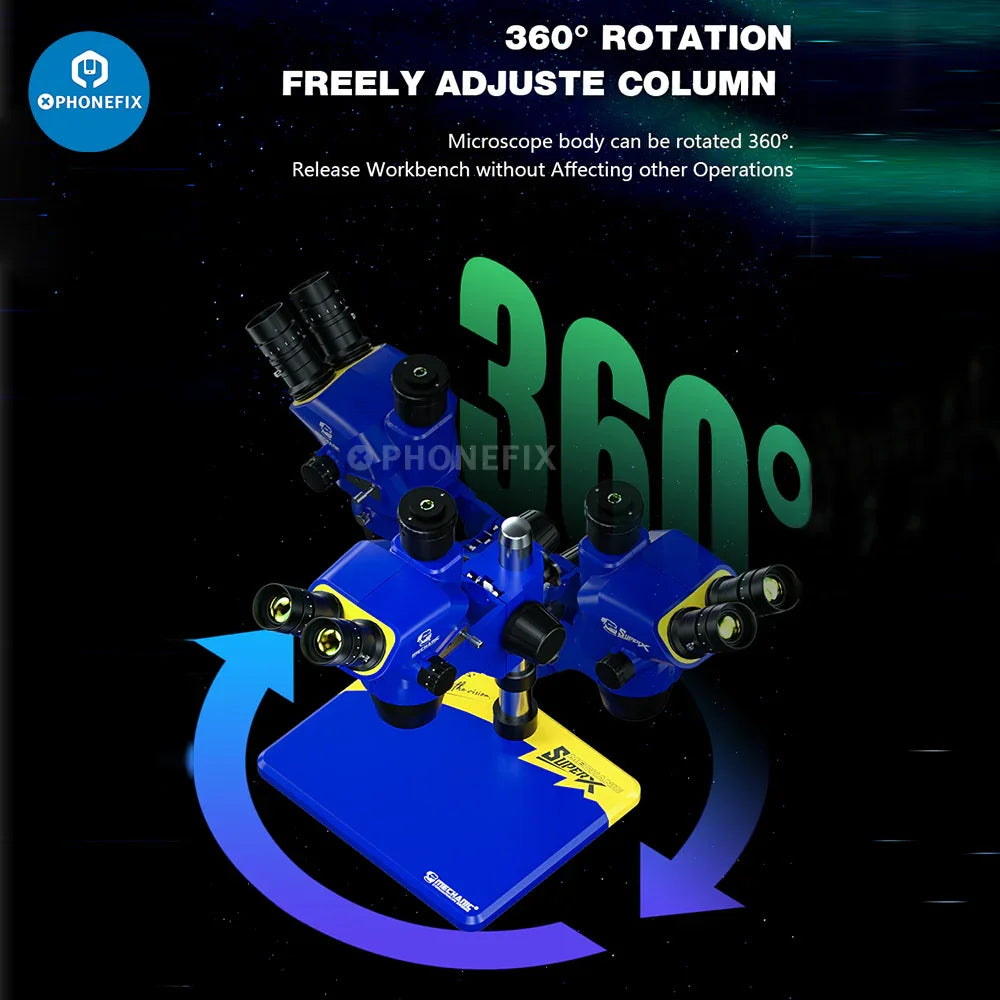

8. Ergonomic Observation Head – 45° tilt, 360° rotation, 54-76mm interpupillary adjustment, and ±5 diopter correction on both sides.
9. High Light Throughput Design – Captures more light for bright, clear viewing even without additional illumination.
10. IML Craftsmanship – Scratch-resistant, corrosion-resistant surface with long-lasting color retention.
11. Application: Phone motherboard repair, PCB inspection & rework, Micro-soldering, Jewelry appraisal, Research & education, etc.
Technical Specifications:
Brand: MECHANIC
Model: Super X Pro / Super X Pro-B11
Magnification: 6.5X – 55X (continuous zoom)
Zoom Ratio: 1:8
Eyepieces: PL10X26 adjustable, flat-angle field of view
Field of View: 36.61mm – 4.6mm
Working Distance: 115mm
Observation Head: 45° tilt, 360° rotation
Interpupillary Distance: 54 – 76mm
Diopter Adjustment: ±5 (both sides)
Trinocular Port: CCD 0.45X CTV adapter
Base Size: 320 × 260mm
Package Dimensions: 424 × 328 × 250mm
