TBK-219 Curved DC Regulated Power Supply with C210 Soldering Iron Short Circuit Tester and Fast Charging 4 In 1 Workstation for Mobile Phone Repair. TBK 219 20V 5A Power Supply C210 Soldering Iron for mobile phone motherboard and electronic circuit board repair.
Feature:
1. Real-time display of current curve, high refresh current curve, predict overload/short circuit risk.
2. Visualize USB and Type-C charging voltage/current/power and other data. The QC protocol uses DM and DP,and the PD protocol uses CC1and CC2.

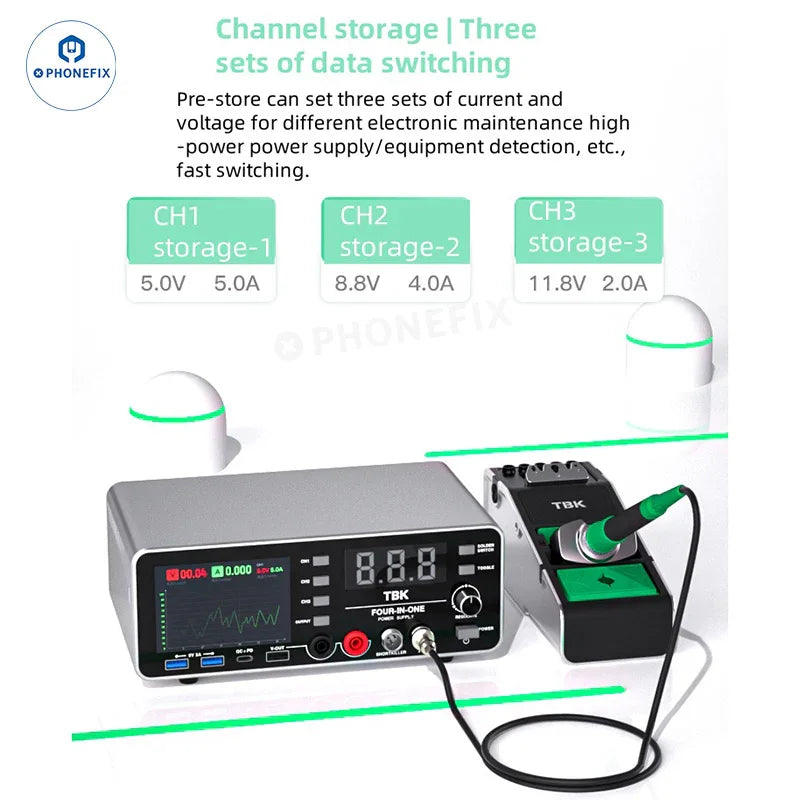

3. Channel storage, three sets of data switching. Pre-store can set three sets of current and voltage for different electronic maintenance, high power power supply/equipment detection, etc., fast switching.
4. T210 soldering iron 1 second quick heating, aerospace grade ceramic heating core + dynamic PID algorithm, from cold machine to molten tin in just a blink of an eye.

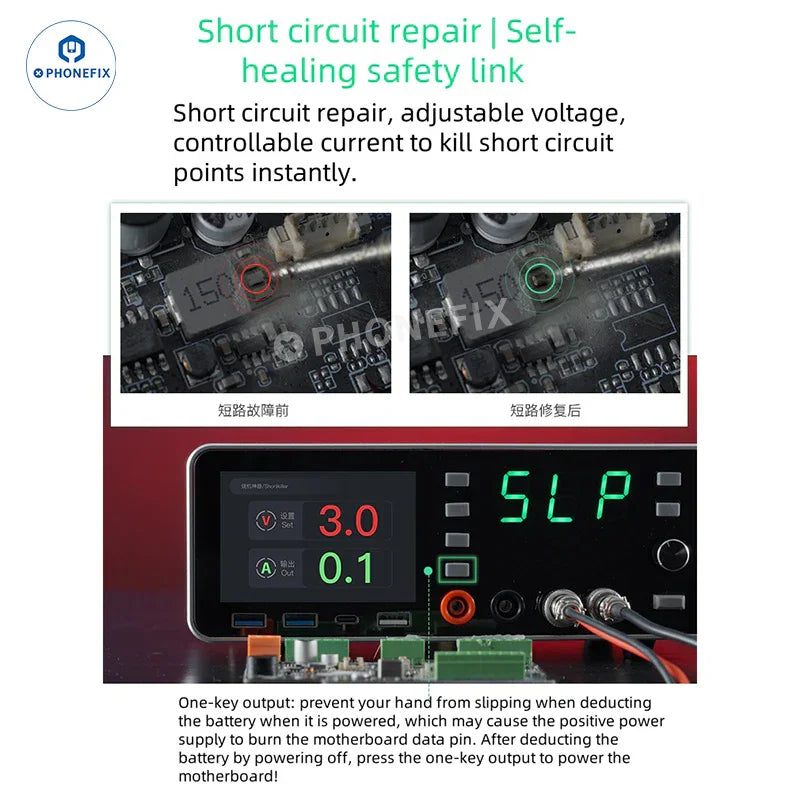

5. Short circuit repair self-healing safety link, short circuit repair, adjustable voltage, controllable current to kill short circuit points instantly.

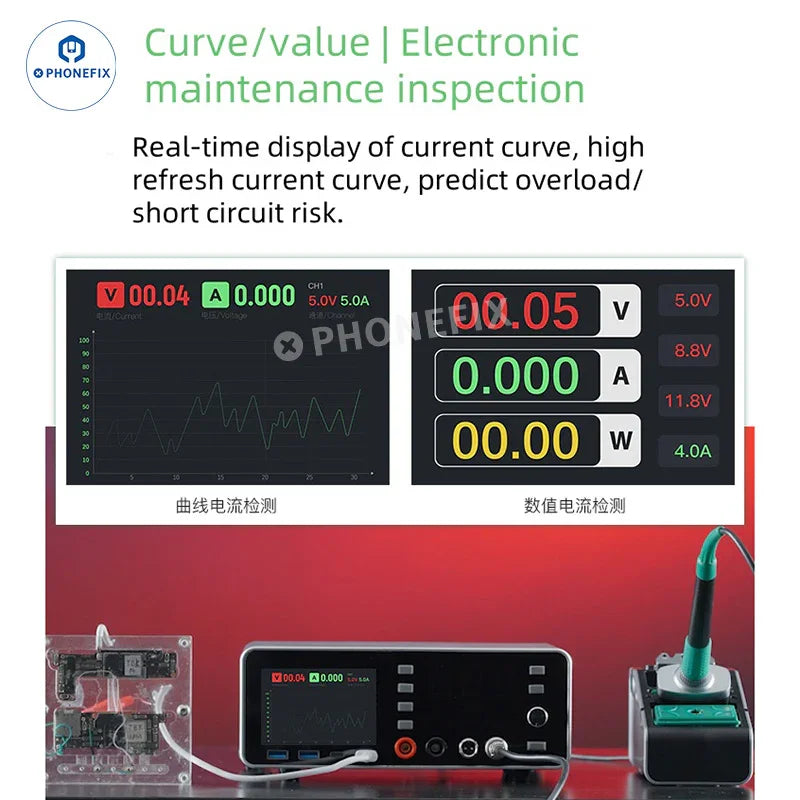

6. Curve value electronic maintenance inspection, real-time display of current curve, high refresh current curve, predict overload/short circuit risk.

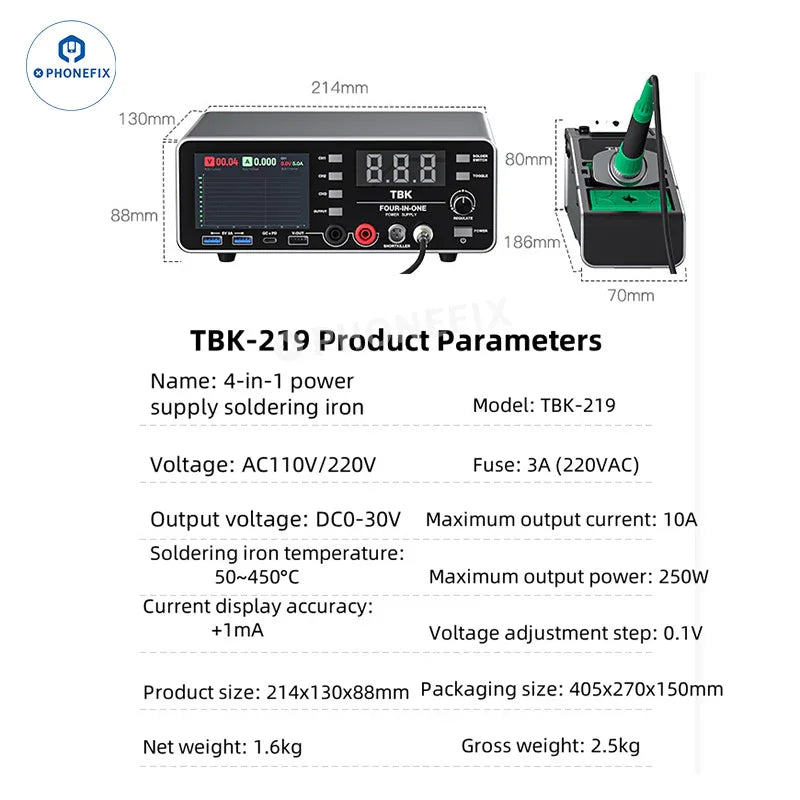

Product Parameters:
Name: TBK-219 4-in-1 Power Supply
Net weight: 1.6kg
Fuse: 3A(220VAC)
Voltage: AC110V/220V
Temperature: 50~450℃
Output voltage: DC 0~30V
Maximum output current: 10A
Voltage adjustment step: 0.1V
Product size: 214x130x88mm
Maximum output power: 250W
Current display accuracy: ±1mA
Package Lists:
1 x Host
1 x Sleep line
1 x Sleep seat
1 x Power cord
1 x Burm-in line
1 x Alligator clip wire
1 x Soldering handle
1 x 210-K Soldering iron tip
