TBK-918 Smart Cutting Grinding Machine for Phone Flat/Curved Screen IC Grinder Back Cover Glass Polishing Repair. TBK 918A IC Grinder Phone CPU Chip Polisher for mobile phone RAM CPU IC grinding. TBK918 intelligent cutting and grinding machine, mobile phone curved screen cutting, chip grinding all-in-one machine, high-precision adjustment, simple operation.

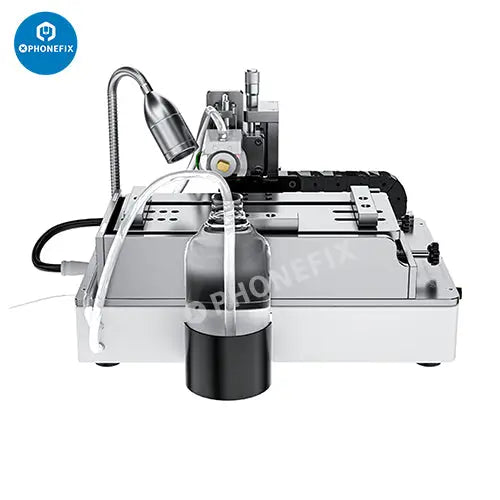

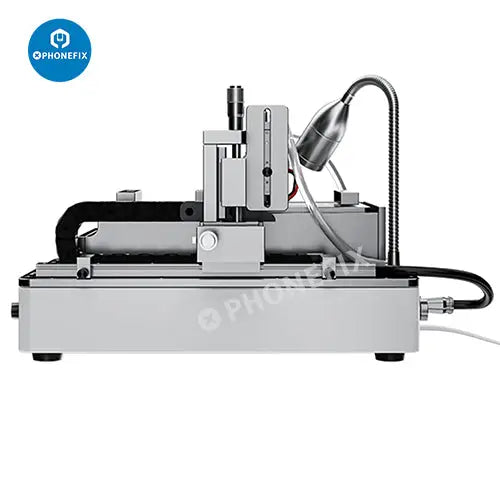

TBK-918 Features:
- Mobile phone maintenance intelligent cutting curved screen grinding chip all-in-one machine
- High precision multi-directional limit free adjustment high-speed aero motor
- Free switching between cutting and grinding, one machine for two purposes
- Cutting curved screen and polishing IC chip flexible switching
- Aviation brushless motor, high reliability, step-less variable, frequency speed regulation
- Low energy consumption and low noise
- Limit suspension cutting screen, flexible cutting of straight screen-curved screen multiple screens
- Multiple protection/Limit cutting piece/Safe and reliable
- Cutting multiple adjustments, adaptive to different heights, suspension limit cutting retine on
- Water bottle rack design, place water bottle, easy to catch water, not easy to fall
- Equipped with emery grinding head, precise grinding depth
- The proper amount of water can be adjusted, to reduce dust flying, increase cutting heat dissipation
- Stepless regulating motor speed
- The platform can tilt left and right, convenient for work
- Adjust fixed mobile phone Convenient for work
- Adopt a linear guide rail and add a bilateral stop block
- The water inlet can be connected outlet
- The motor can be adjusted left and right, and precise positioning

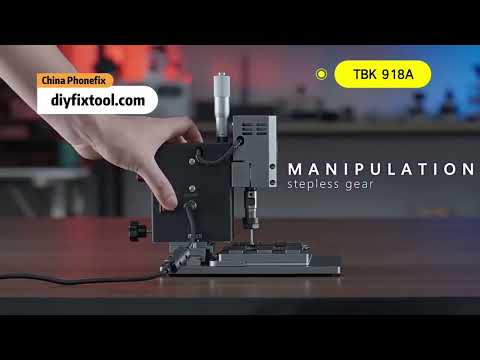

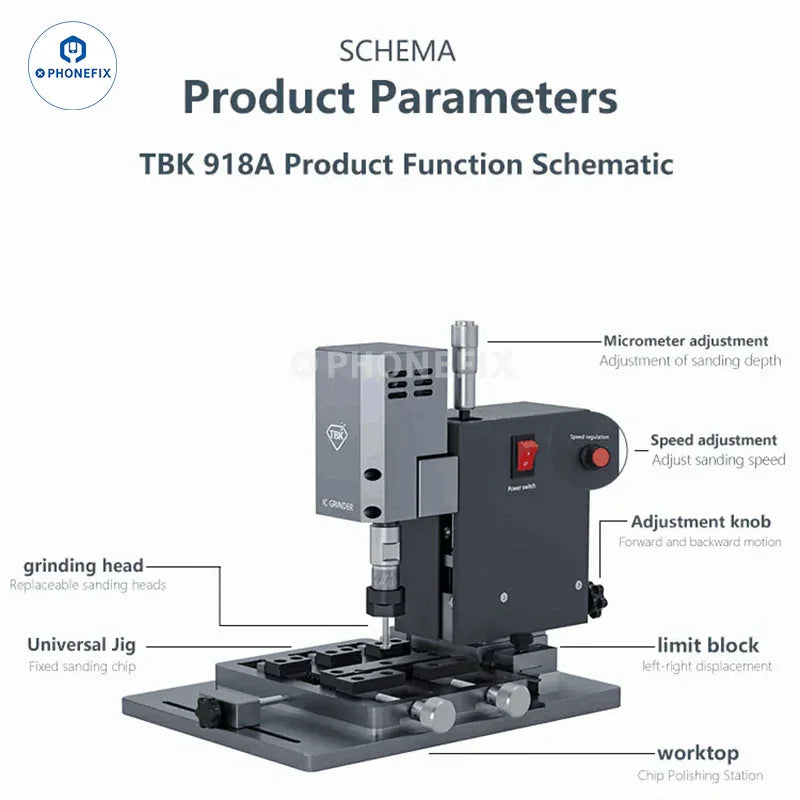

TBK 918A Features:1. Master chip polisher., easy control for more efficient sanding, multifunctional, multi-purpose, optional drill bits.
2. Fine grinding, easier to maneuver, commonly used in touch ic motherboard chips and other polishing.

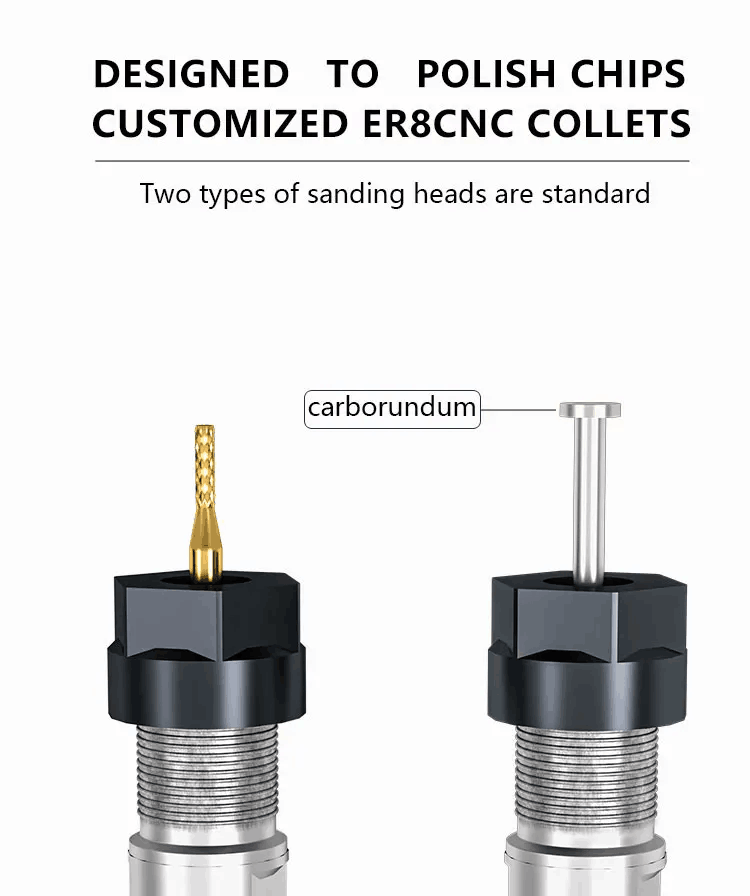

3. Designed to polish chips, customized ER8 CNC collects two types of sanding heads that are standard.
4. Custom high-speed motors with step-less speed control powerful, safe, and efficient strong, load capacity.
5. Small size, high speed, fast grinding, chip polisher, the new generation of design polishing is easier, the new generation of design polishing is easier.

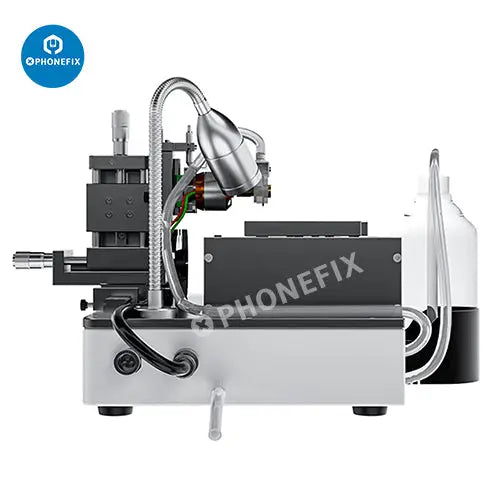

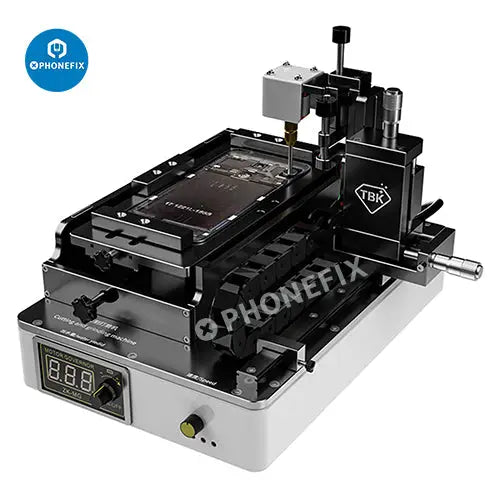

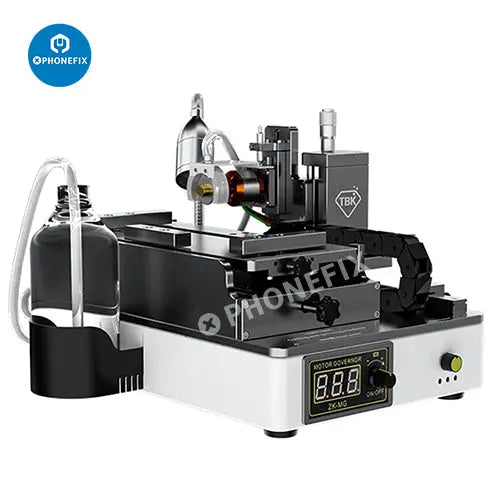

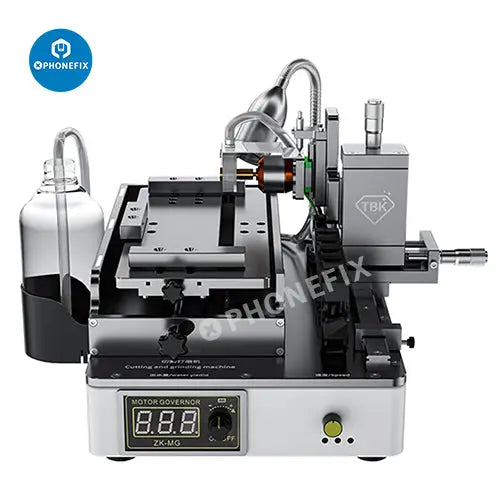

TBK-918 Specification:Brand: TBK
Product model: TBK-918
Product voltage: 110-220V
Product power: 100W
Net weight: 6kg
Product size: 20*30*22cm
Gross weight: 8kg
Product packaging: 26*36*25cm

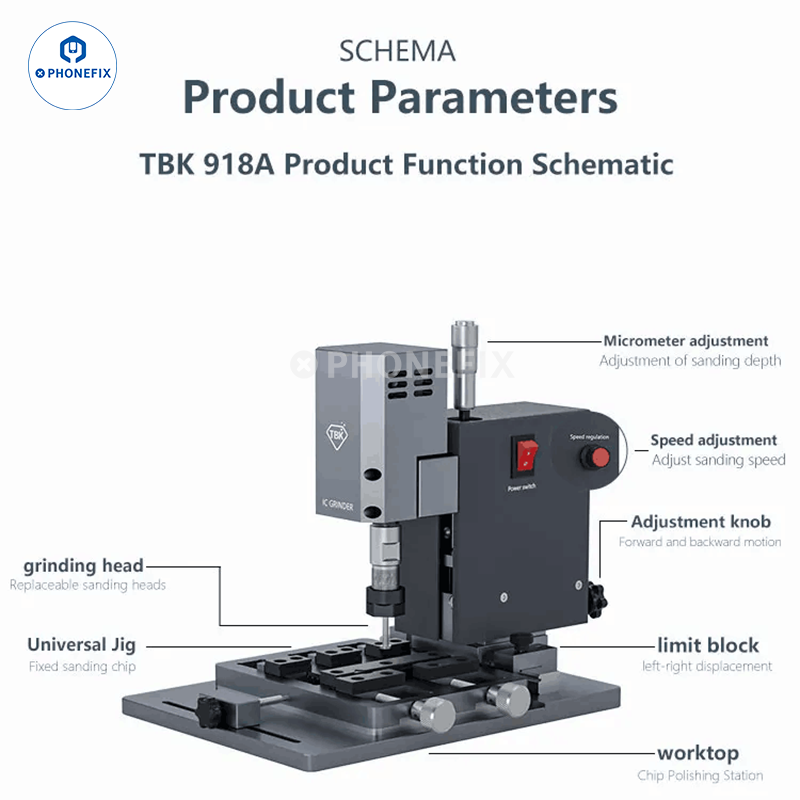

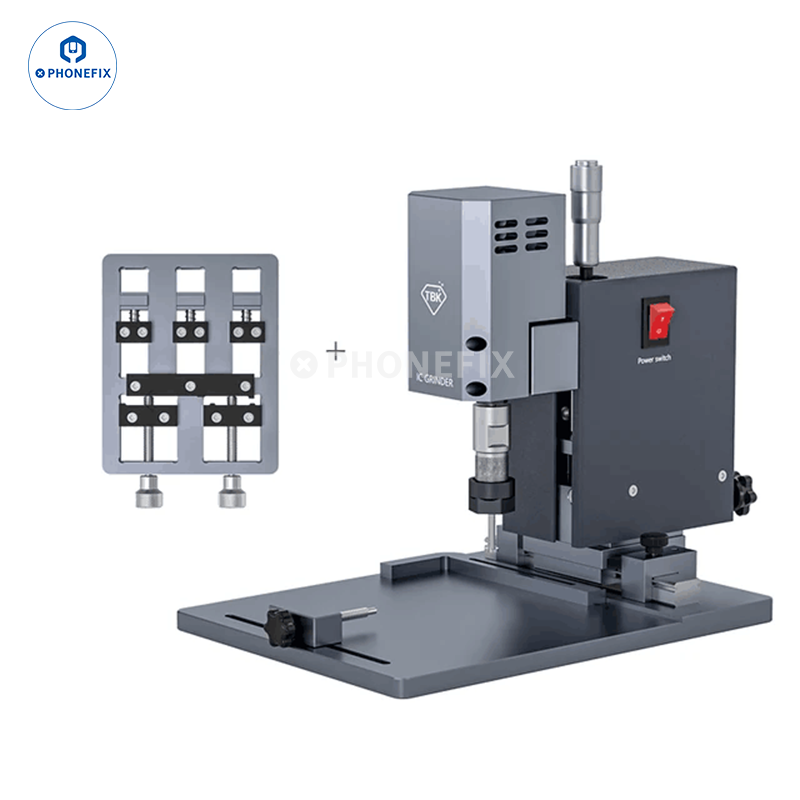

TBK 918A Specification:Model: TBK 918A Chip Polisher.
Maximum no-load speed: 20000r/Min.
Input Voltage: DC 24V.
Product Size: 245*150*220mm.
Table size: 198*149mm.
Functions and Uses: IC RAM CPU.
Package Size: 290*290*240mm.
How to Use TBK-918:Cutting:
- Connection (power line, motor line, water interface)
- Install the cutting motor
- Put the mobile phone into the working platform (adjust the tilt and fix the mobile phone)
- Adjust the position of the mobile motor (adjust the motor down and the x-axis to make the mobile motor reaches the corresponding cutting position)
- Adjust the bilateral limit block(limit the working range of the mobile motor according to the length of the mobile phone)
- Put the mineral water bottle on the water bottle rack(connect three water volume corresponding interfaces)
- Turn the water volume switch and motor switch
- Move the motor to work (if you can't see clearly, you can turn on the light switch)
- Polishing:
- Connection (power line, motor line)

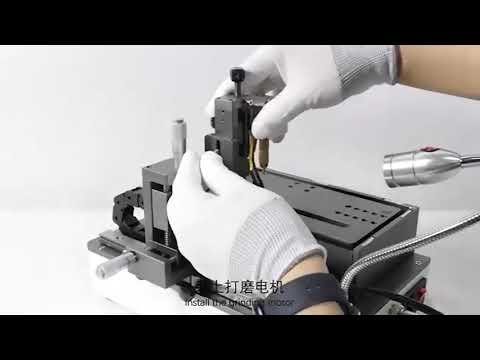

- Install the grinding motor
- Put the mobile phone into the working platform (adjust and fix the mobile phone)
- Measure the depth to be polished
- Adjust the position of the mobile motor (adjust the motor down and the x-axis to make the mobile motor reaches the corresponding grinding position)
- Adjust the bilateral stop block(limit the working range of the mobile motor according to the grinding length)
- Adjust the grinding depth limit(for the depth measured in front, take the corresponding feeler gauge size limit)
- Turn the motor switch
- The mobile motor starts to work (if you can't see clearly, you can turn on the light switch)
TBK-918 Package includes:1 x Cutting & Grinding Machine
1 x Power cable
TBK 918A Standard package: 1 x Chip Polisher.

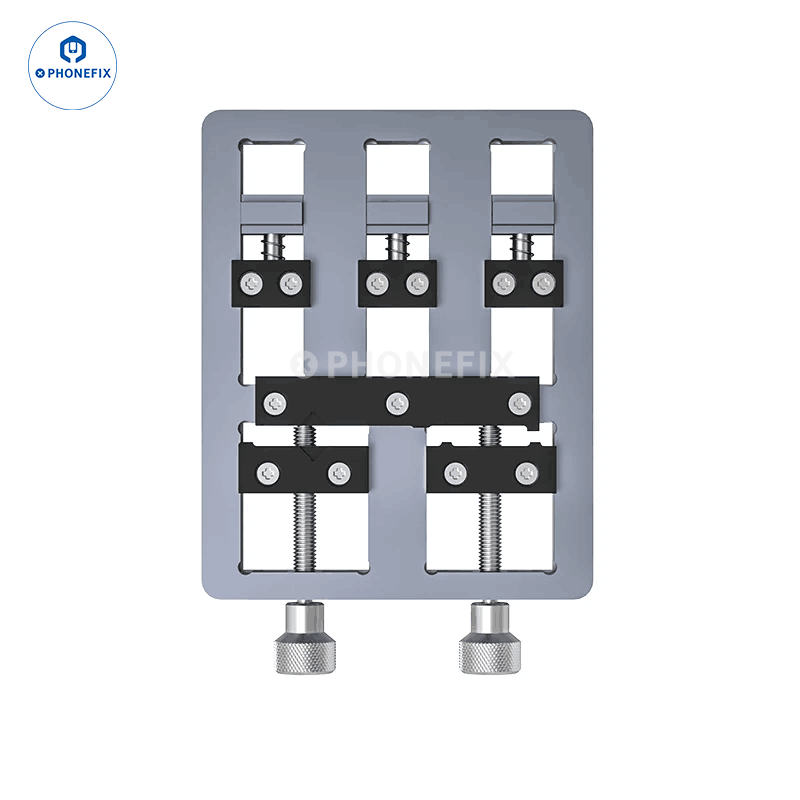

1 x Fixture.
1 x Power Cable.
