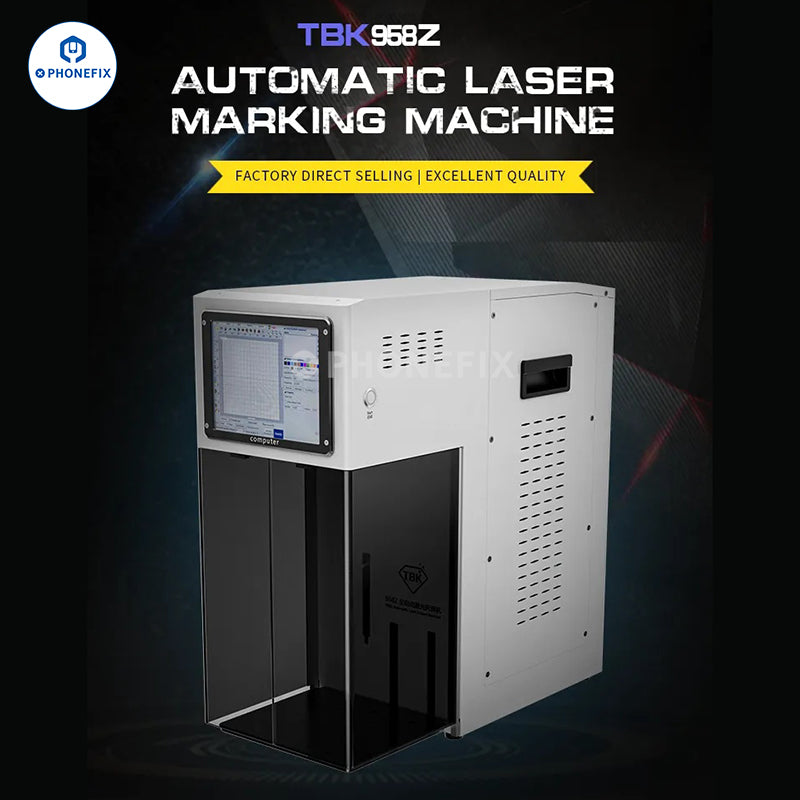

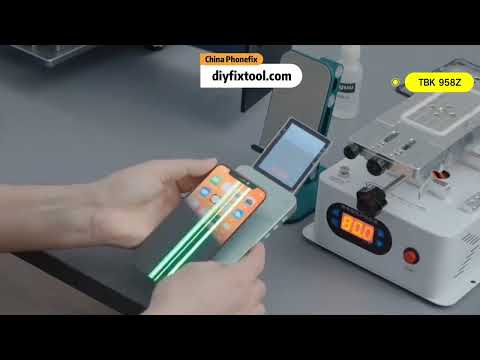

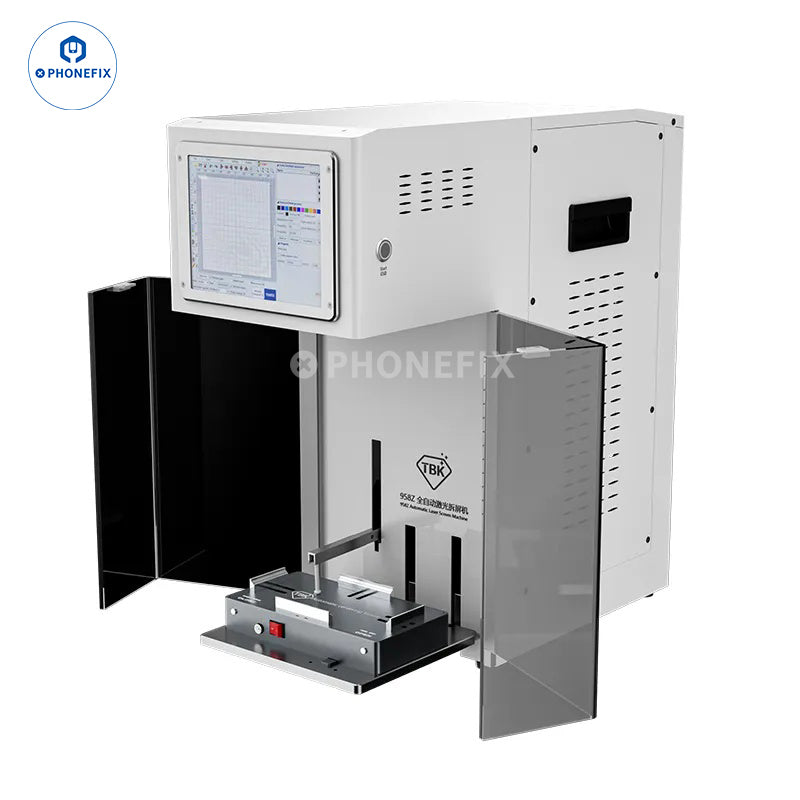

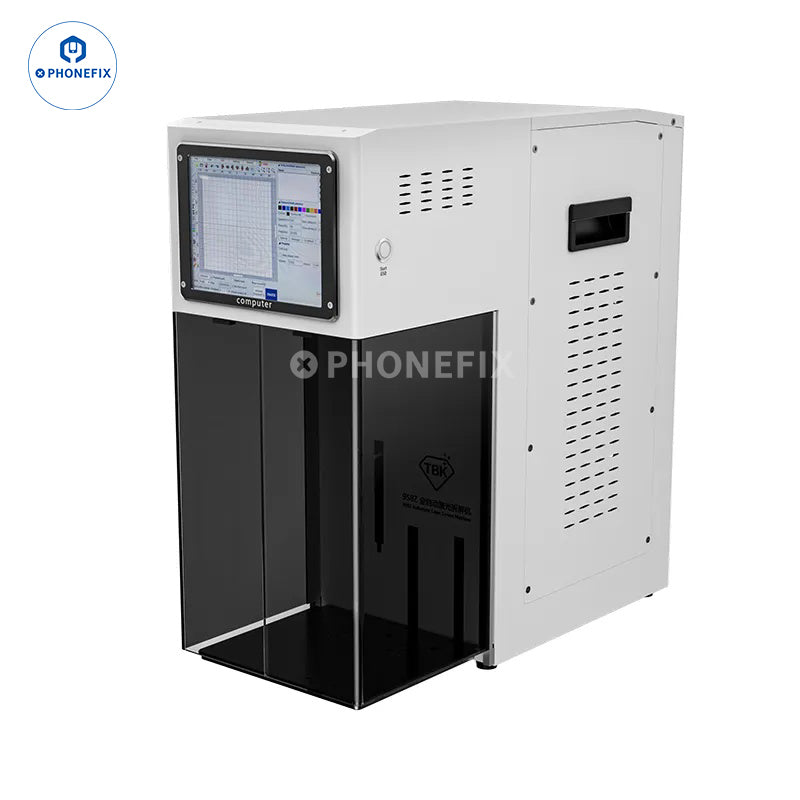

TBK 958Z Automatic UV Laser Engraving Machine for iPhone 6-15 Pro Max back cover glass removal, iPhone screen separation, mobile phone battery glass removal, mobile phone LCD screen frame separation, ect. TBK 958Z 3W UV laser machine supports marking and etching plastics, acrylic sheets, stainless steel, wood, etc.

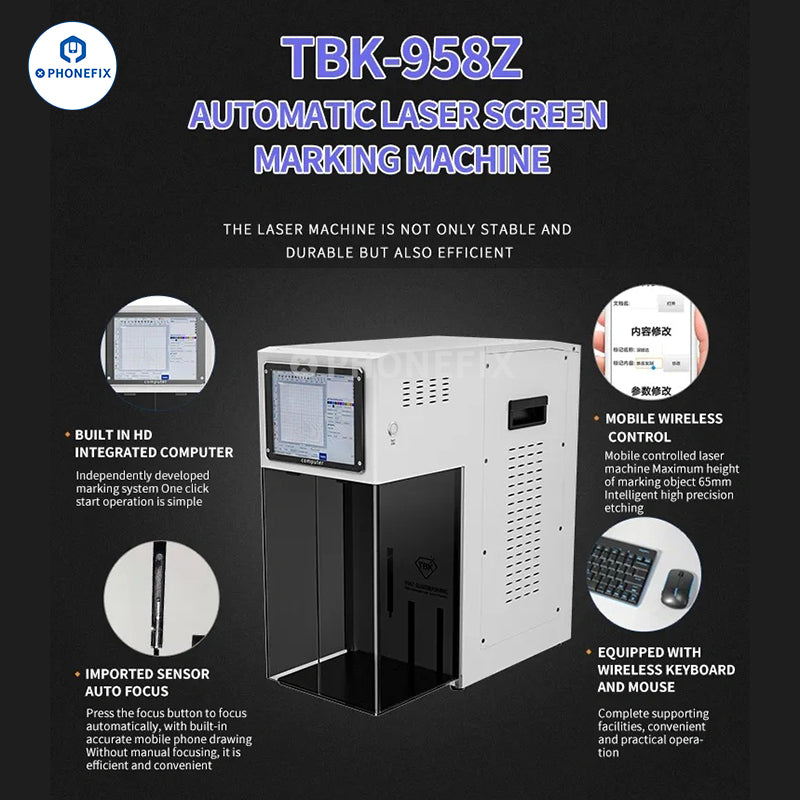

TBK 958Z Features:
1. Built-in HD computer, Bluetooth keyboard and fume extractor.
2. Fully automatic intelligent focus, platform automatic lifting up/down. Press the focus button, one button auto-focus, fast and accurate focus.
3. Laser removing back cover glass for Apple iPhone 6-15 Pro Max, and Android Phones.

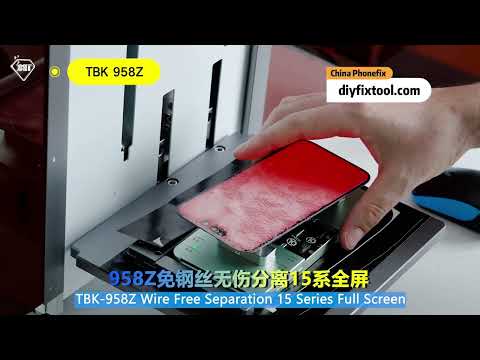

4. Disassemble the display screen for iPhone 13-15 Pro Max.
5. Disassemble mobile phone holder and frame.
6. Engraving is suitable for a wider range of materials: such as metal, glass, stone, ceramics, leather, plastic, plastic, stainless steel, wood, etc.
7.Brand LOGO and text can be engraved on the glass cover of the mobile phone.
8. Automatic focus by pressing the focus button, built-in accurate mobile phone drawings, no need to focus manually, efficient and convenient.
9. Laser head fixed and reliable.
10. One-button start,with wireless keyboard and mouse, easy to operate.
11. Equipped with automatic centering jig, one key automatic centering, fast and accurate.

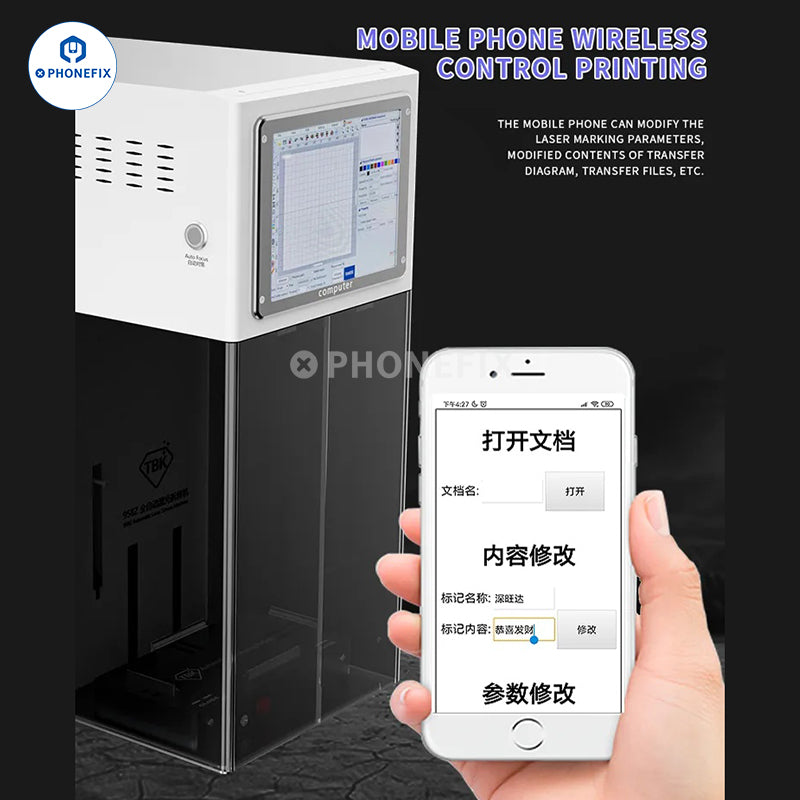

12. Mobile phone wireless control, mobile phone control of the laser machine, marking objects up to 65mm, intelligent high-precision etching.
13. The mobile phone can modify the laser marking parameters, the transmission diagram to modify the content, the transmission of files, and many other functions can be controlled in the mobile phone, the use of efficient and fast, simple and convenient.
Purple light Laser Parameters:
Laser power (Watts): 3.0W, Air cooling.
Laser wave length: 1064nM.
Laser marking accuracy: ≤0.01mm.
Repeat laser marking precision: ≤0.001mm.
Laser speed: ≤7000mm/s.
Laser marking depth: ±0.2mm.
Max marking size: 175*175mm.
Marked line width: 0.05-0.01mm.
Height of the object carved by laser (mm): 85.
Cooling mode: Built-in cold air.
Product use: Suitable for mobile phones, decoration, handicrafts, and other industries
TBK 958Z Parameters:
Model: TBK-958Z
AC input: 110V/60Hz, 220V/50Hz.
Product power: 500W.
Laser power: 1000W.

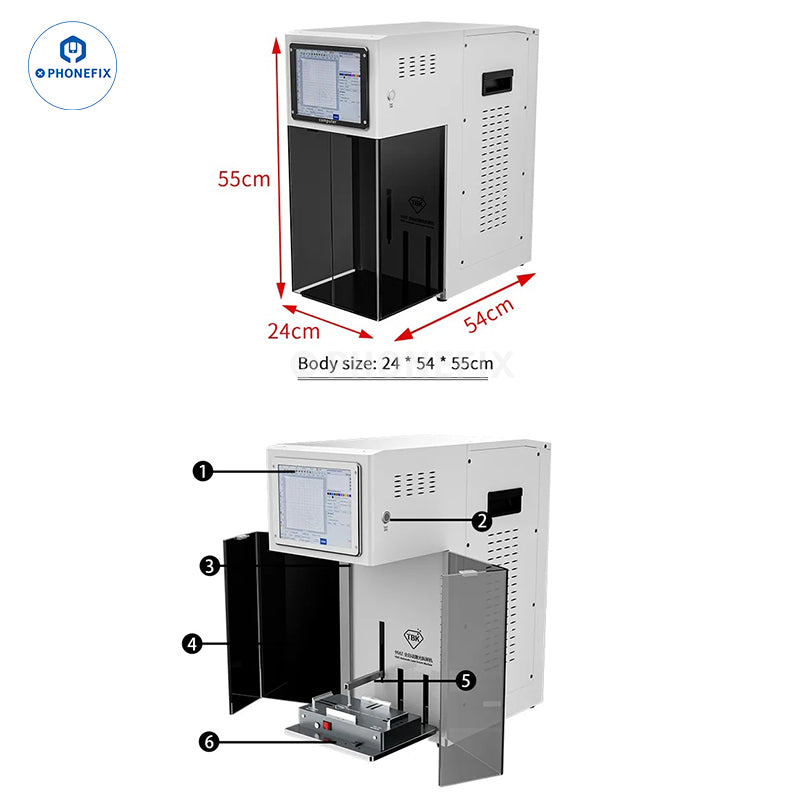

Product size (mm): 290*570*598
Computer screen size (cm): 20*15cm
Net weight: 33kg
Gross weight: 42kg
Package size: 68*40*70cm.
