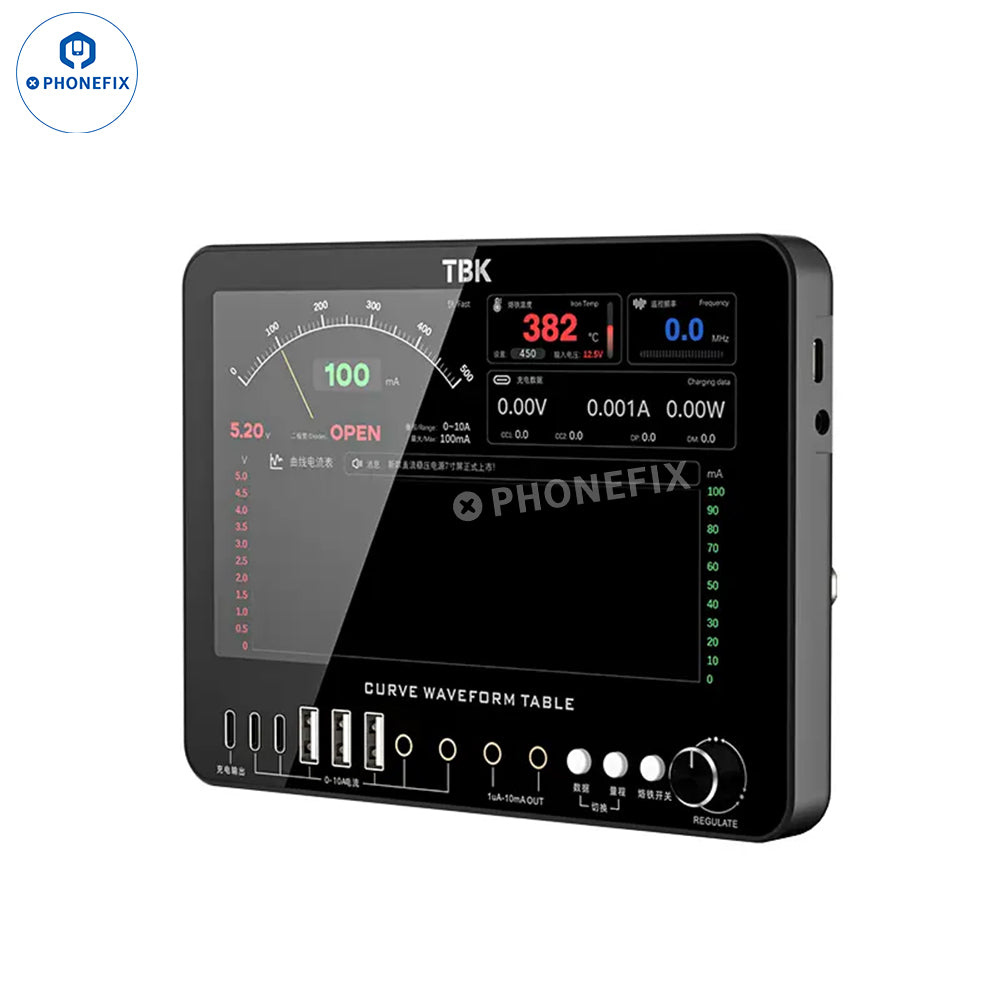

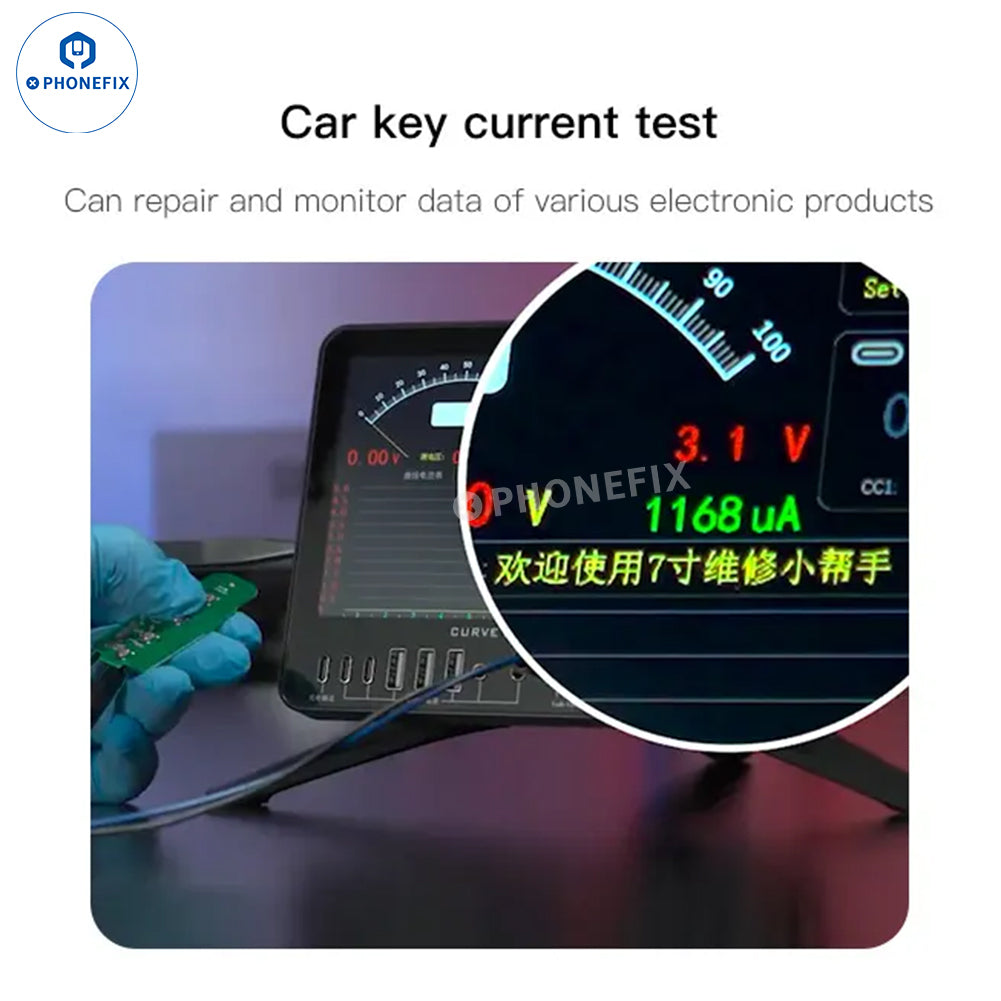

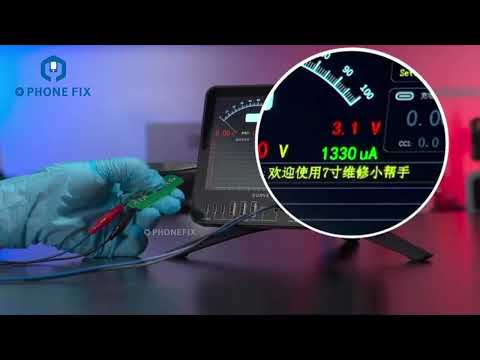

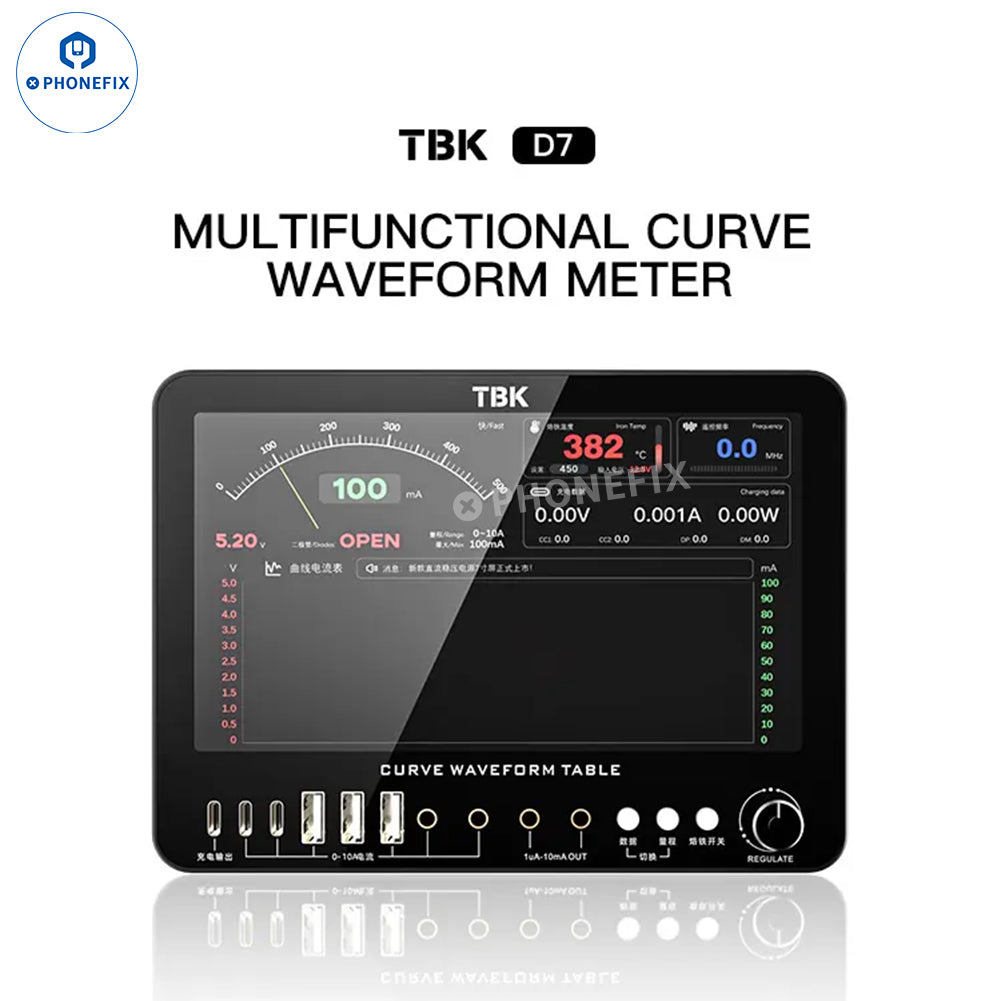

TBK D7 Curve Waveform Meter Features DC Power Supply, Soldering and Diagnostic functions, making it suitable for repairing mobile phones and other electronic products. TBK-D7 multi-functional waveform meters can display current, voltage, and waveform curves in real time. It supports precise measurement of mobile phone motherboards, car keys, diodes, etc., and is suitable for the repair, testing, and data monitoring of various electronic products, especially for the repair and debugging of mobile phones and other electronic products.
Features:
1. Multifunctional Testing: Equipped with multiple output interfaces, supporting multiple testing functions such as current, voltage, and waveform.
2. Real-time Data Monitoring: Can display multiple data such as charging, current, and soldering iron temperature in real time.
3. High-Precision Measurement: Provides accurate and stable measurement data, especially suitable for testing precision electronic equipment.
4. Multi-Range Current Switching: Supports different current output ranges and provides dual display of meter and curve.
5. Soldering Iron Function: Can be connected to a soldering iron interface to monitor soldering iron temperature changes in real time, ensuring soldering quality.

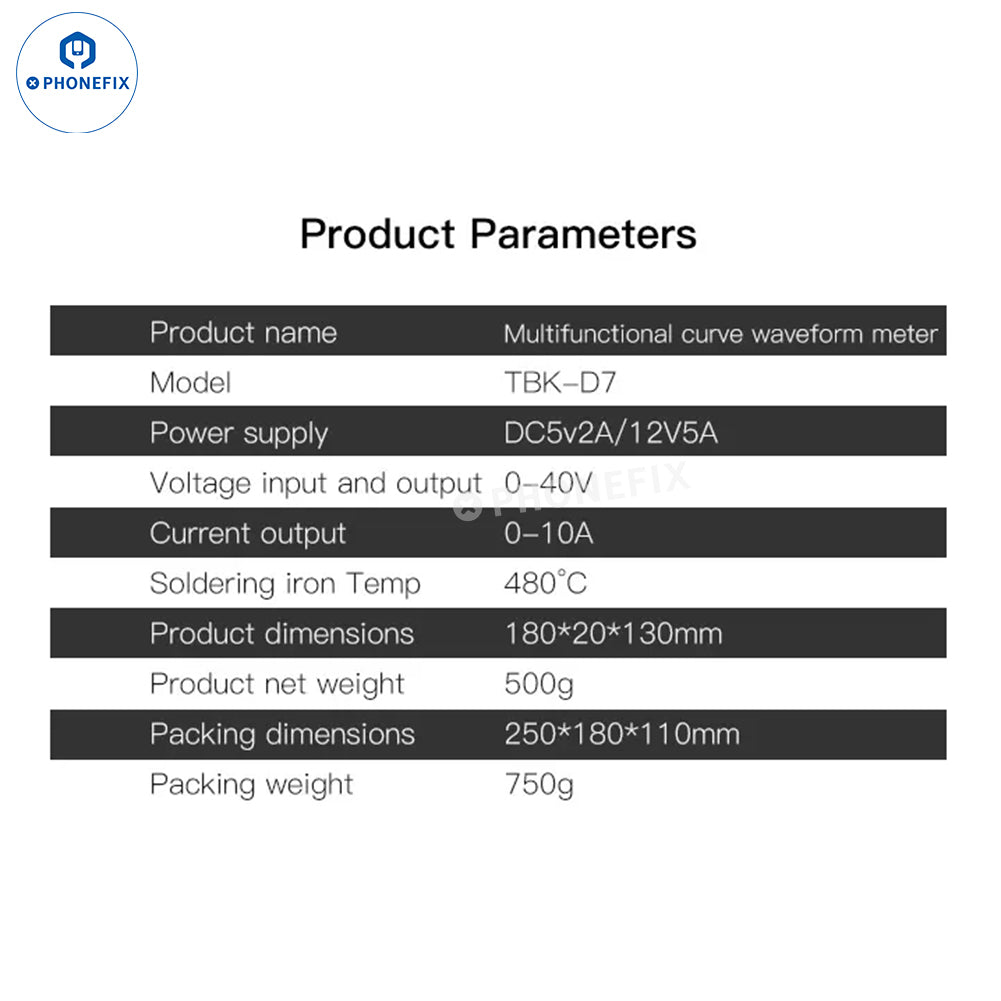

Product Specifications:
Product Name: TBK D7 Multifunctional Curve Waveform Meter
Power Supply: DC5V2A/12V5A
Voltage Input & Output: 0–40V
Current Output: 0–10A
Soldering Iron Temperature: 480°C
Packaging Weight: 750g
Net Weight: 500g
Packaging Dimensions: 250x180x110mm
Product Dimensions: 180x130mm
