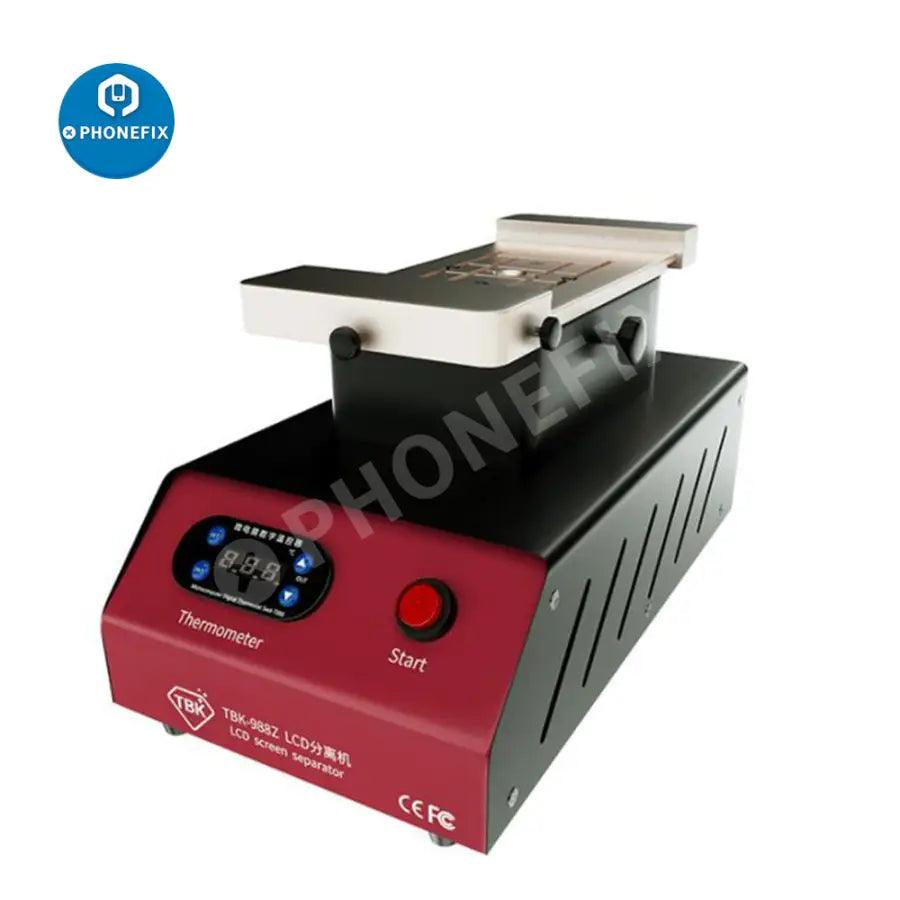

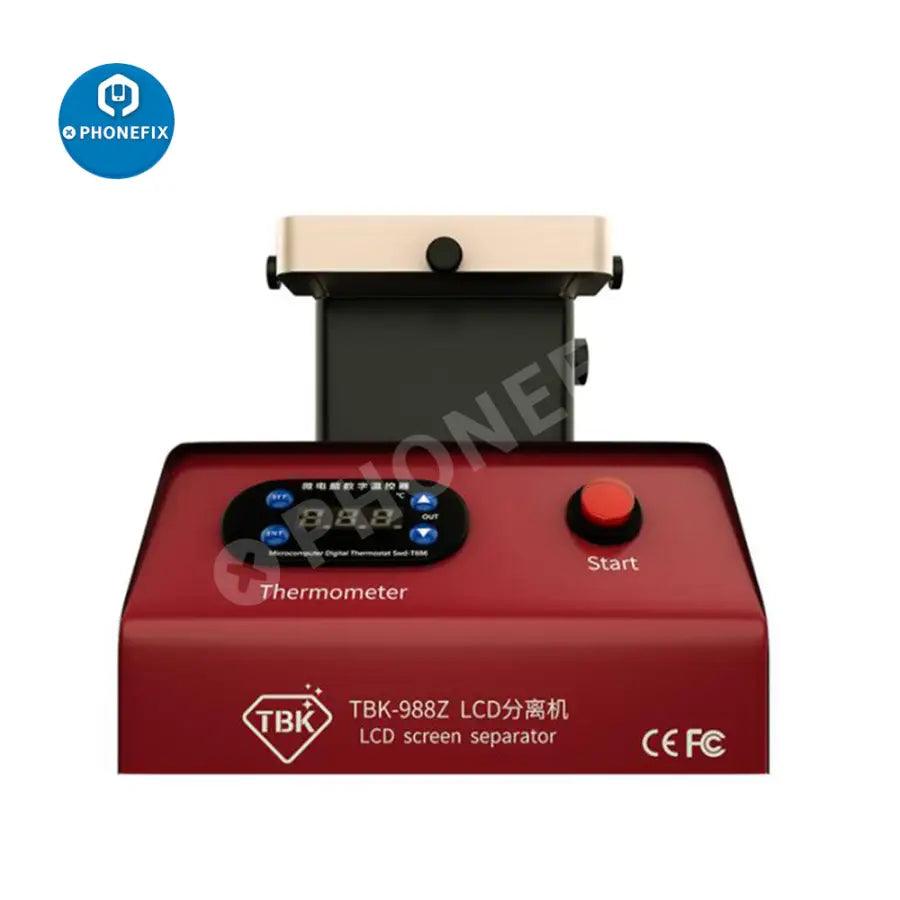

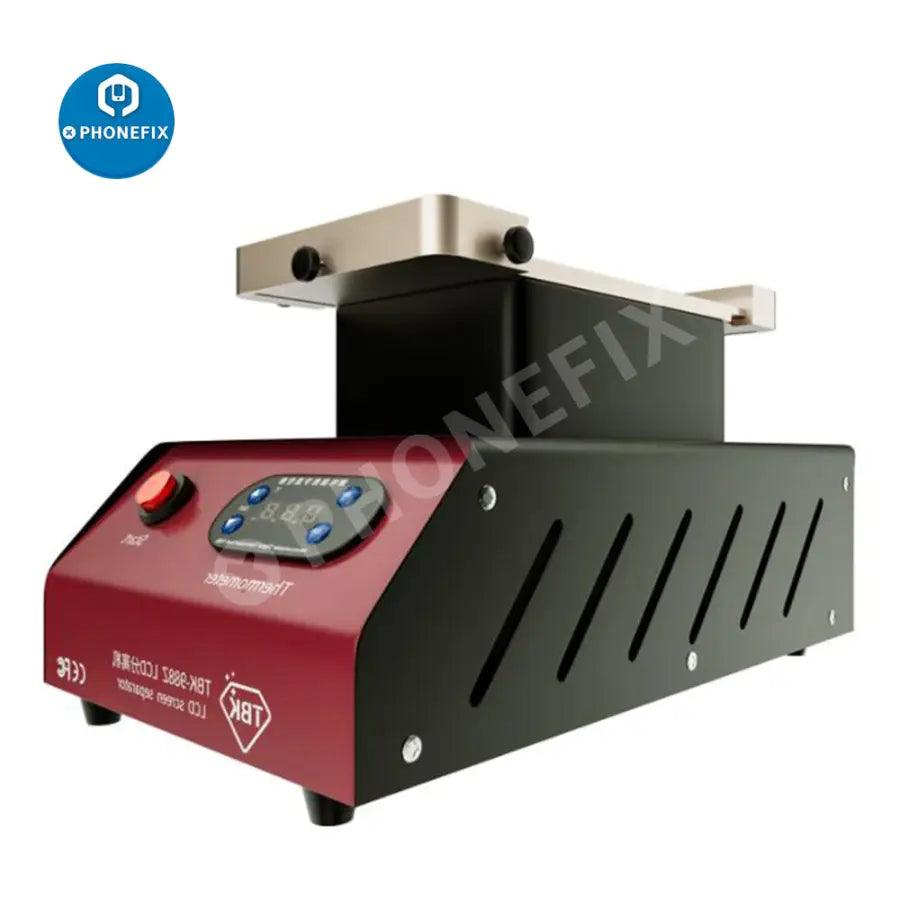

TBK 2021 built-in double pump vacuum separator, heating and separating the mobile phone LCD screen frame and OCA glue removal
Detailed Steps:

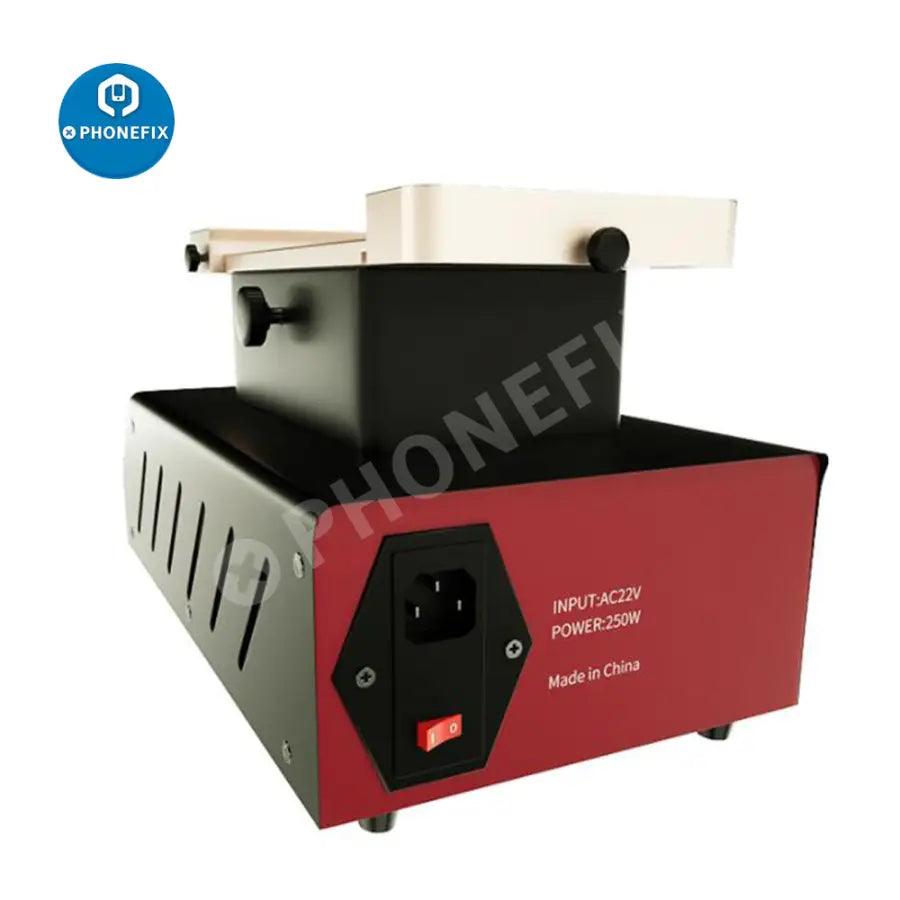

1. Turn on the power: Plug the power cord into the power connector on the back of the separator, and turn on the power switch.

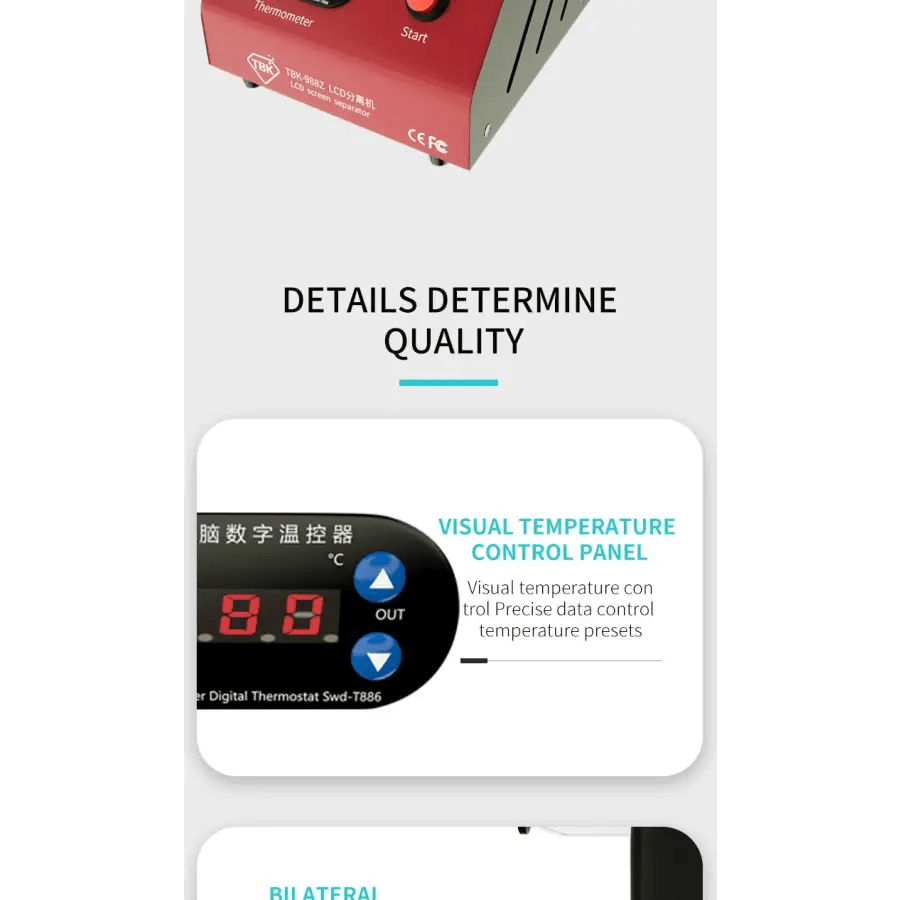

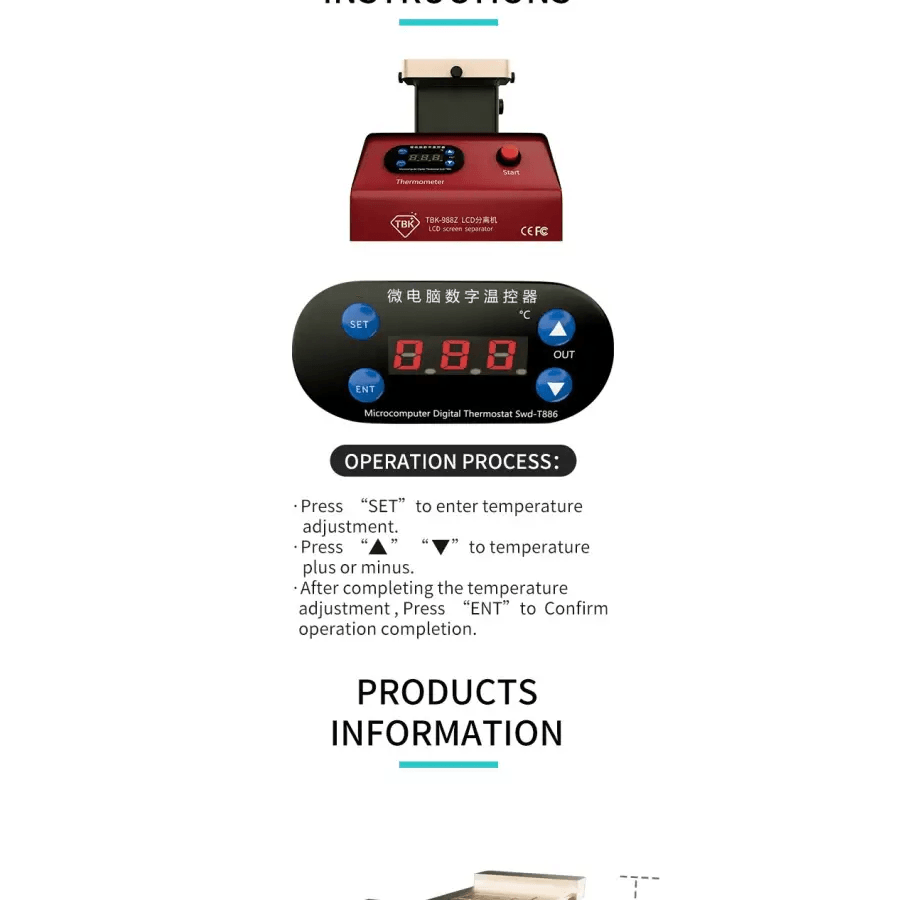

2. Preset temperature: Press the SET button to preset the temperature, press the up button to set the temperature to about 85 degrees, and press NET to save.
3. Prepare the wire handle: equipped with a wire handle to separate the screen
4. Place the silicone non-slip mat: put it on the panel of the separator, align the rubber mat with the panel holes.
5. Screen separation preparation: Put the screen to be separated in the center of the panel, press the start key to start vacuum adsorption, and ensure that the screen is held.
6. Start cutting the screen: the screen is preheated for 3-5 minutes to start cutting.
7. After removing the bad screen, turn off the power of the separator. If it is dry glue, you can directly tear it off. If the water glue needs to be removed with the help of a blade and a glue removing solution.
Features:
1. Can be used for straight screen or curved screen to remove glue LCD separation maintenance etc.

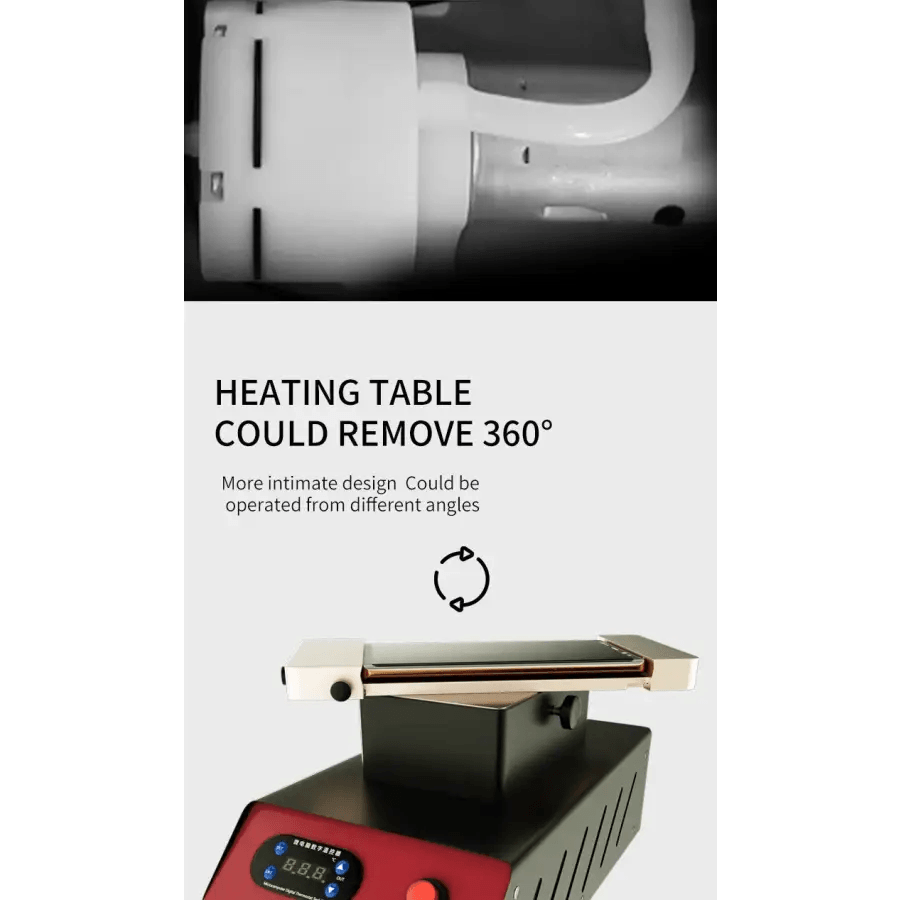

2. The heating table can rotate 360 degrees, the working temperature is 85℃, the highest temperature is 350℃, and the maximum support is 7 inches.

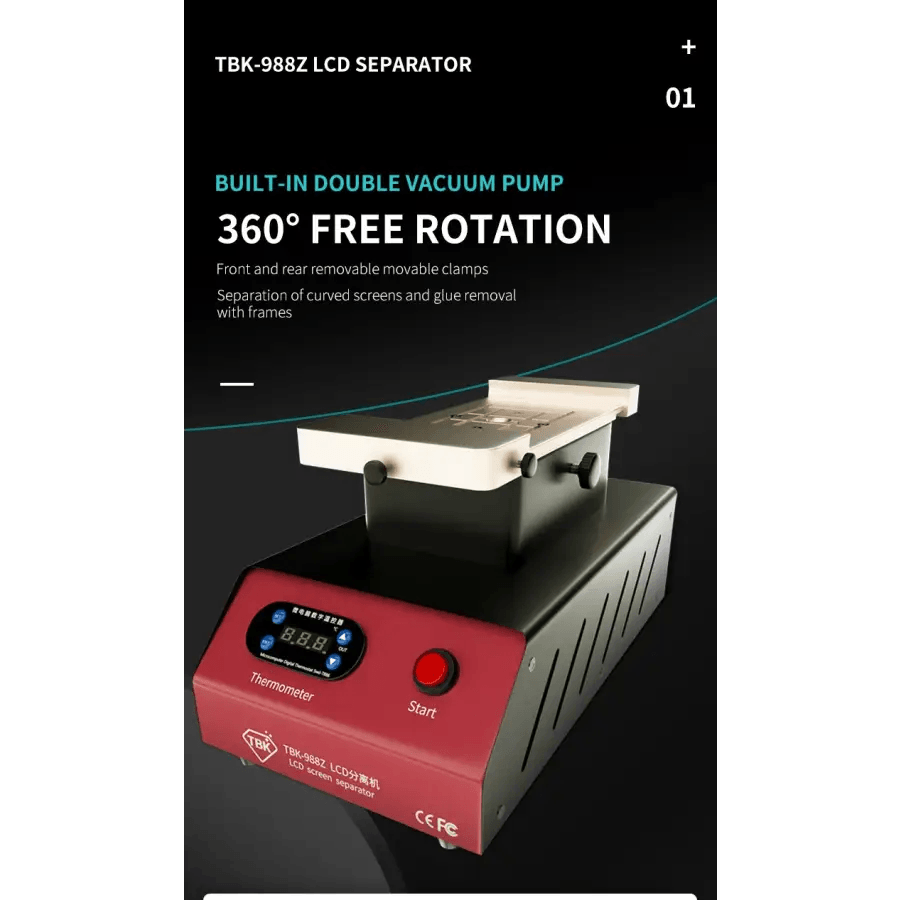

3. Built-in double vacuum pumps, strong suction, to ensure that the phone is firmly fixed.

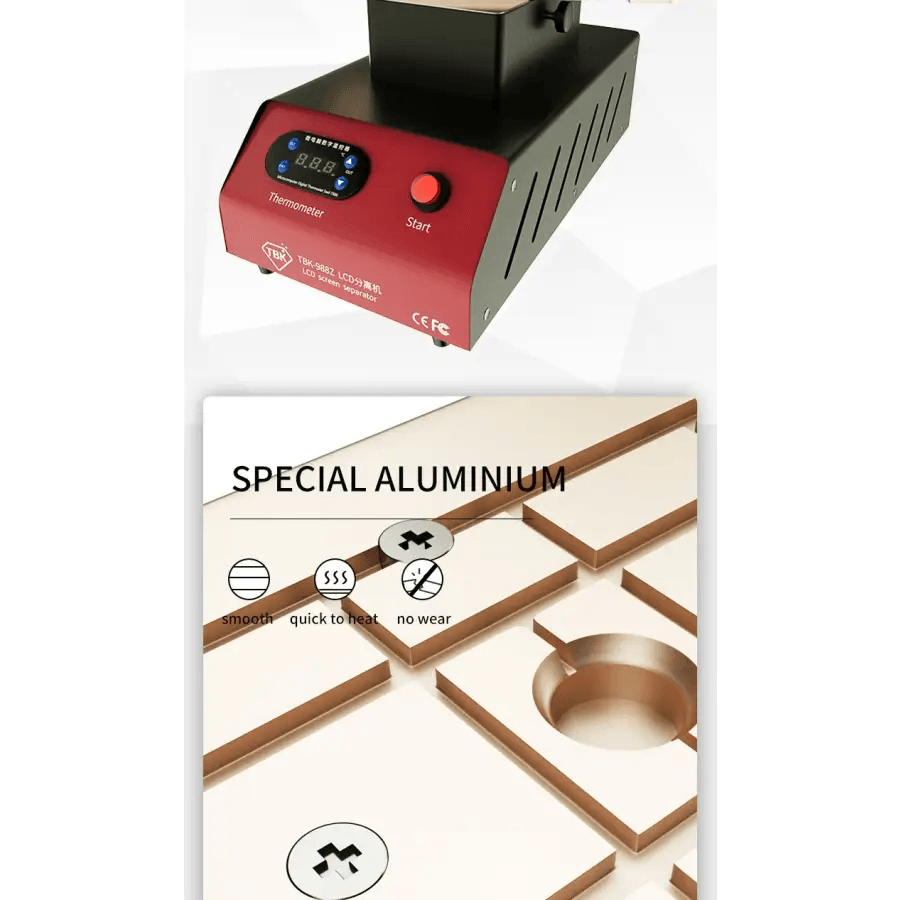

4. Thermal insulation non-slip silicone pad, high temperature resistant insulation material ddoes not affect the suction, you can also choose not to use silicone pad
5.The heating platform is protected by a fuse to prevent burnout.
