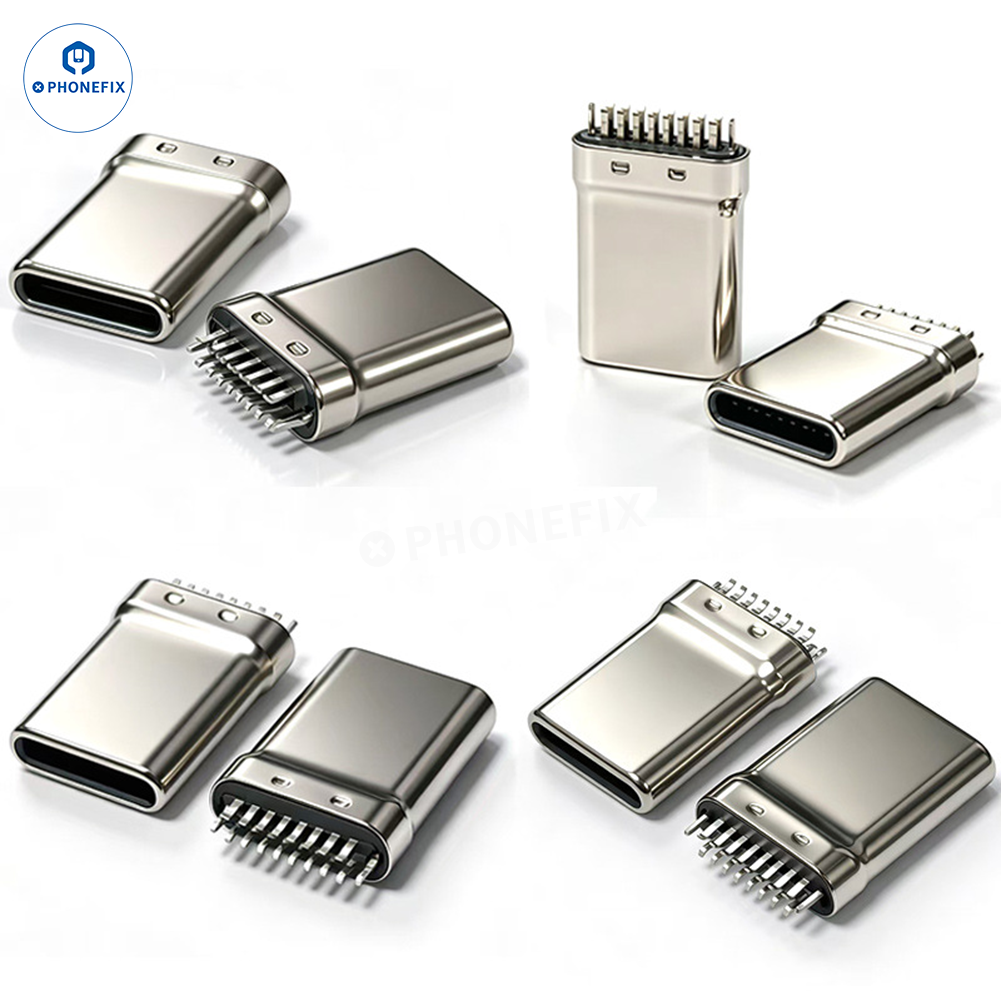

USB Type-C 16-Pin Male Connector Vertical PCB Mount features a 16-pin clamp-type mounting structure, providing stable mechanical fixation and reliable electrical connection. Its stretched metal housing design ensures a secure installation and supports PCB soldering. It meets the needs of electronic products for interface stability, durability, and miniaturization, and is suitable for Type-C interface replacement and repair.
Features
1. Uses a standard 16-pin Type-C female connector, meeting data transmission and power supply connection requirements.
2. Vertical PCB mounting structure facilitates circuit board layout and improves installation stability.
3. Reinforced stretched housing design enhances interface strength and insertion/removal resistance.
4. Provides stable and reliable signal and power connections, suitable for various electronic devices.
5. Compact size, suitable for space-constrained electronic products and PCB designs.
6. IP7 protection rating effectively improves the interface's environmental adaptability.
Product Specifications
Product Name: USB Type-C 16-Pin Female Connector
Interface Type: USB Type-C Female Connector
Pin Count: 16 Pins
Mounting Method: Vertical Clamped PCB Mounting
Mounting Type: Clamped Female Connector
Housing Type: Stretch Metal Housing
Housing Length: L=10.67 mm
PCB Clamp Thickness: 0.8 mm
Rated Current: 1A
Rated Voltage: 2.5V
Number of Ports: 1 Port
Protection Rating: IP7
