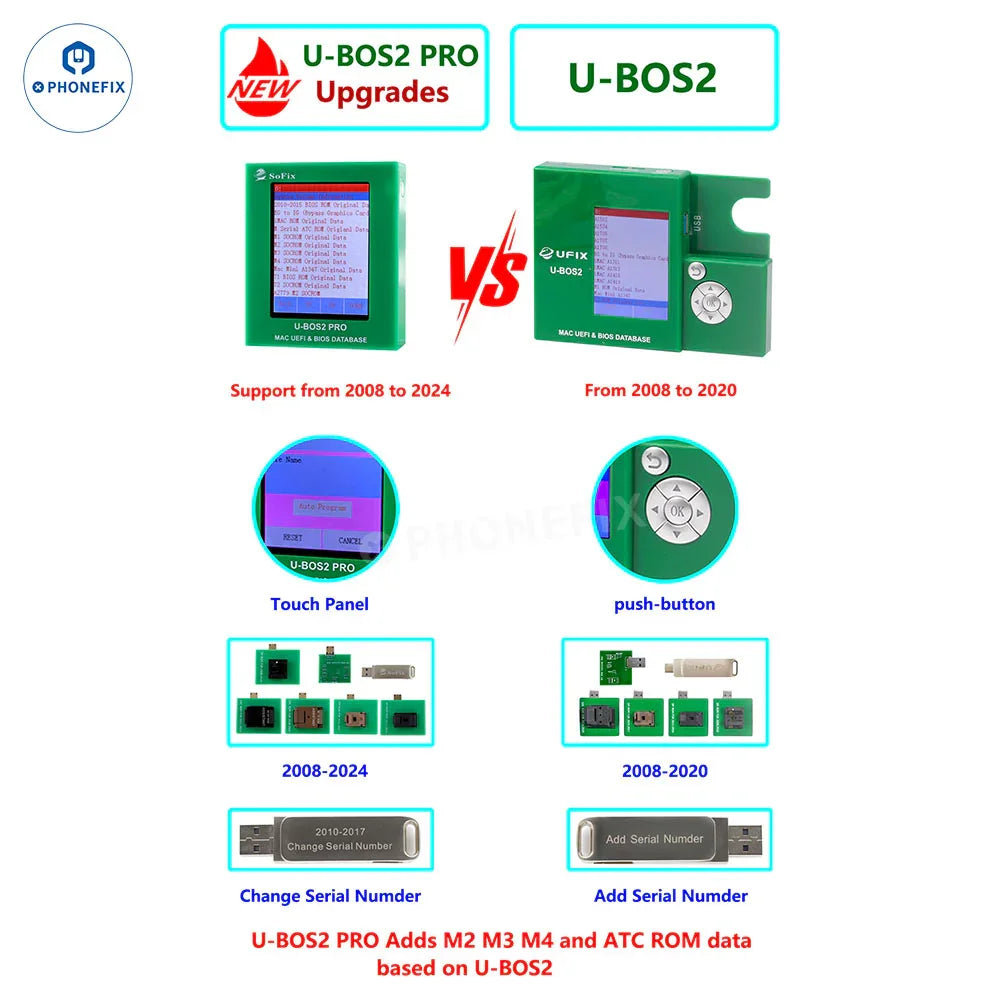

SoFix U-BOS2 PRO MAC UEFI and BIOS DATABASE Programmer has a complete and clean ROM data database for MacBook models from 2008 to 2024. U-BOS2 PRO programmer is a professional MacBook repair tool that can remove EFI locks, firmware locks, PIN code locks, MDM remote locks, and Google locks from 2008-2020 MacBooks. It can also write original data to the ROM of T2, M1, M2, M3, or M4 chipsets from 2018-2024 models. Can resolve issues such as MacBook motherboard BIOS data errors, etc. UFIX U-BOS2 Data Assistant for MacBook UEFI & BIOS Database Read Write Backup Repair, suitable for all MAC from 2008 to 2020, including iMac, Mac Mini/ MacBook Pro/ MacBook Air.

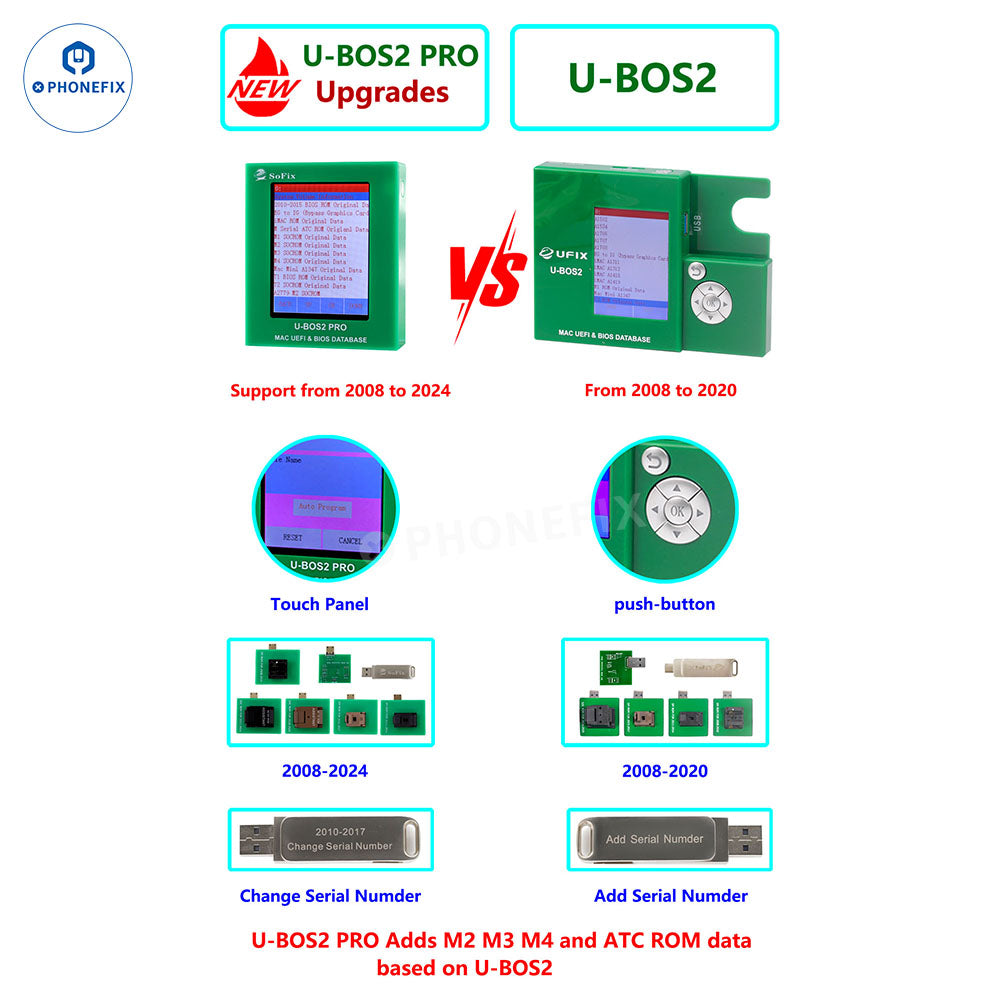

Option:1. U-BOS2 Pro programmer.
2. U-BOS2 programmer.
U-BOS2 PRO programmer Features:

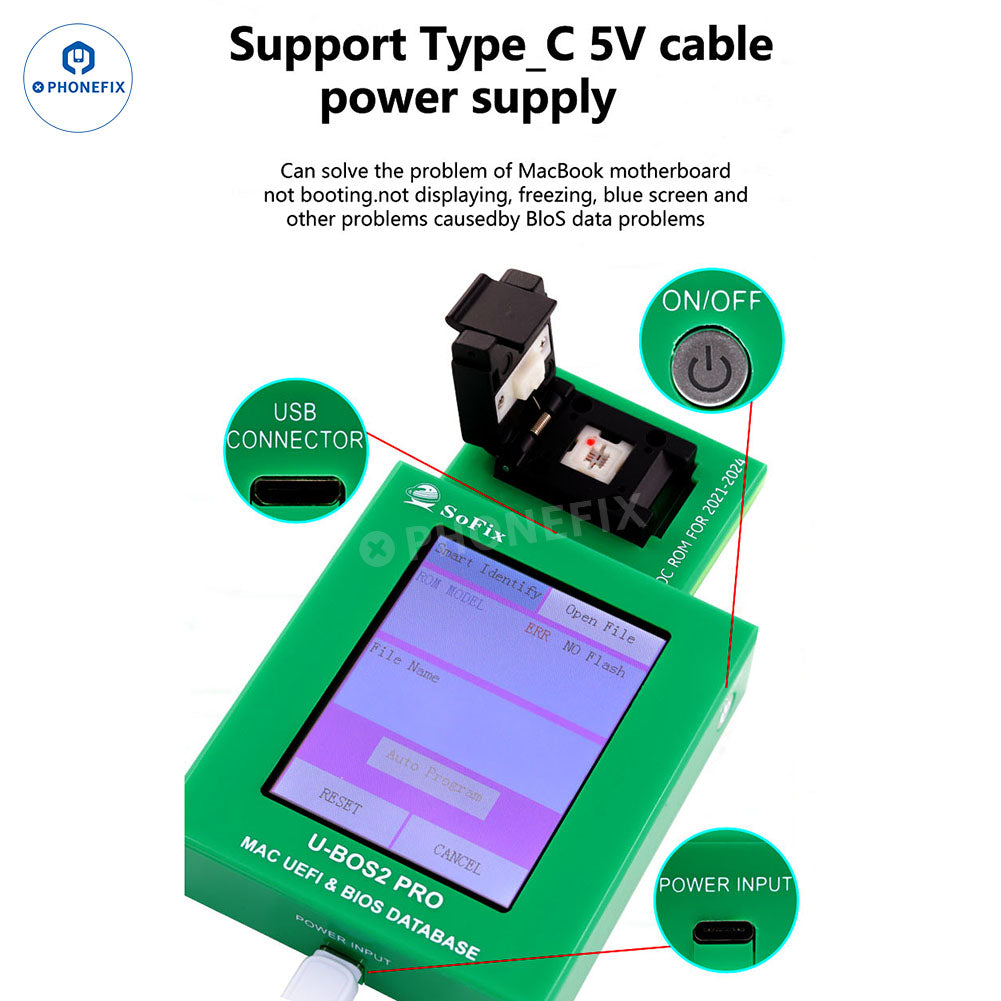

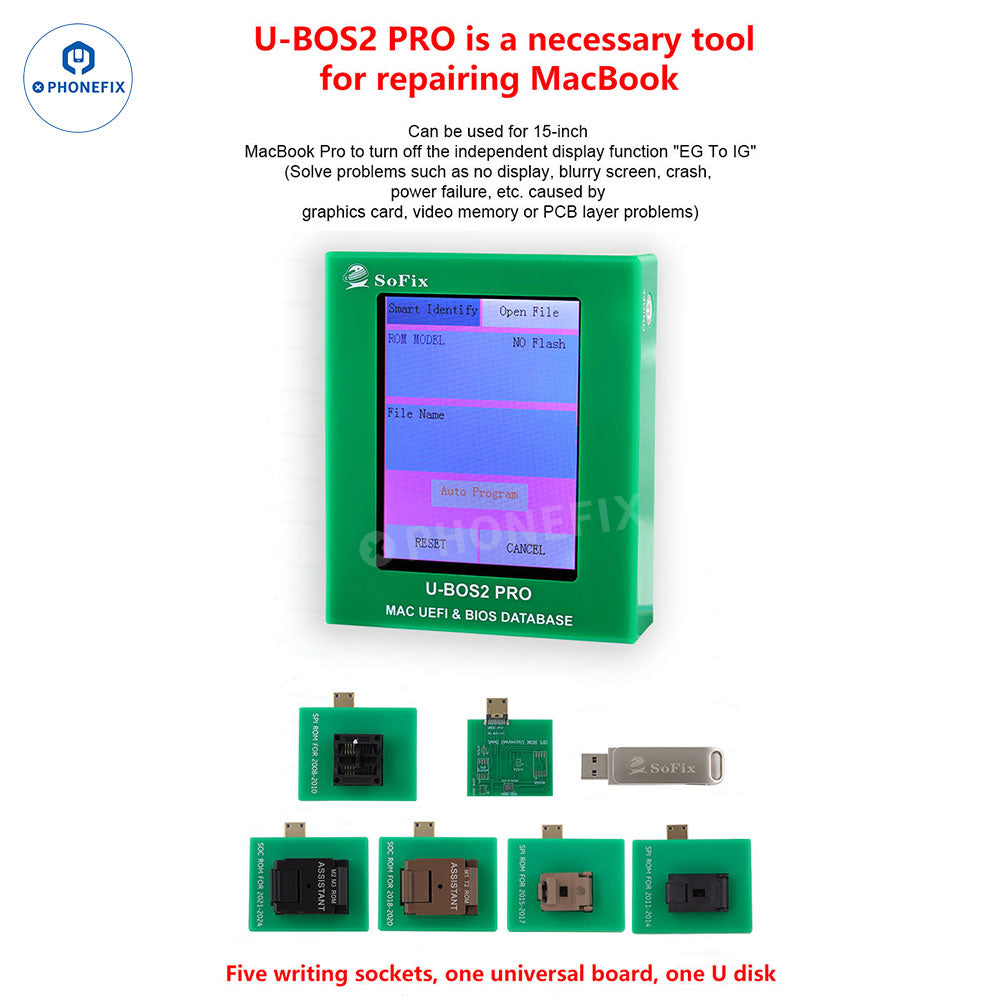

1. U-BOS2 PRO programmer is a professional MacBook repair tool featuring an LED touchscreen, powered via 5V Type-C cable. Includes one U-BOS2 PRO host unit, 5 writing adapters, 1 universal board, and 1 USB drive.
2. U-BOS2 PRO comes preloaded with SPI ROM data for 100+ MacBook models.
3. U-BOS2 PRO fixes MacBook motherboard issues caused by corrupted BIOS data, such as failure to power on, no display, freezing, or blue screens, ect.
4. Can be used to remove EFI locks, firmware locks, PIN code locks, MDM remote locks, and Google locks on 2008-2020 MacBooks (cannot be used to remove activation locks on T2 and M series models).
5. Supports writing original ROM data for 2018–2024 T2 or M1/M2/M3/M4 chip models to diagnose boot failures related to ROM corruption.
6. Can be used to modify the ME (Mean Equipment) data within the BIOS (for 2013-2020 MacBooks, after replacing the CPU, PCH, or BIOS chip, if the ME data is not replaced, the boot process will be very slow).
7. Can be used to disable the dedicated graphics function "EG To IG" on 15-inch MacBook Pro (resolves issues such as display problems, screen flickering, crashes, and power failures caused by GPU, VRAM, or PCB layer faults.).
8. Can be used to write data to M series ATC (Automatic Transmission Control) modules. ROM data used to resolve issues with external monitors or HDMI connections not working.
U-BOS2 PRO Supported Models:
1. Compatible with all MacBook models from 2008-2024, including iMac, Mac Mini, MacBook Pro, and MacBook Air.

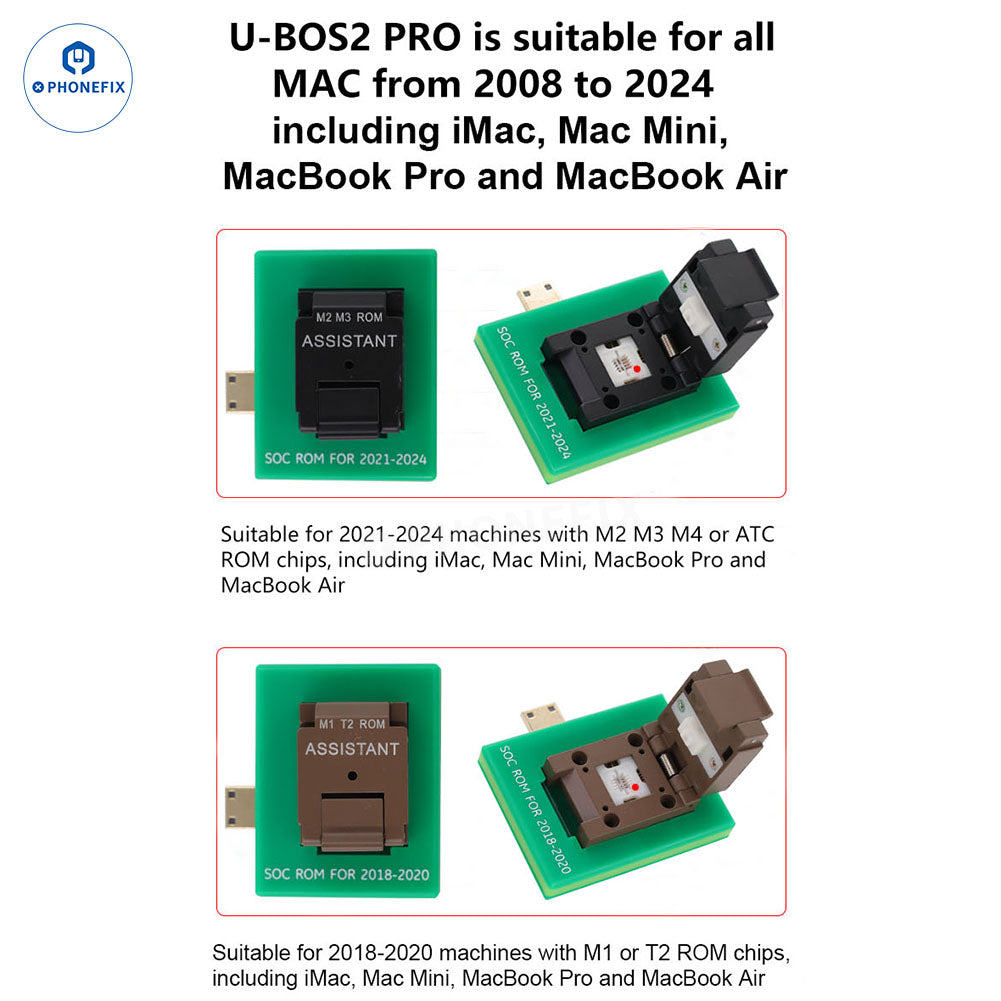

2. Compatible with iMac, Mac Mini, MacBook Pro, and MacBook Air models with M2, M3, M4, and ATC ROM chips (2021-2024)
3. Compatible with iMac, Mac Mini, MacBook Pro, and MacBook Air models with M1 or T2 ROM chips (2018-2020)
4. Compatible with iMac, Mac Mini, MacBook Pro, and MacBook Air models with SPI ROM chips featuring small QFNs (2015-2017)
5. Compatible with iMac, Mac Mini, MacBook Pro, and MacBook Air models with SPI ROM chips featuring large QFNs (2011-2014)
6. Compatible with iMac, Mac Mini, MacBook Pro, and MacBook Air models with SPI ROM chips featuring external 8 pins (2008-2010)
7. Compatible with universal soldering boards (2008-2024), including iMac, Mac Mini, MacBook, MacBook Pro, and MacBook Air models.

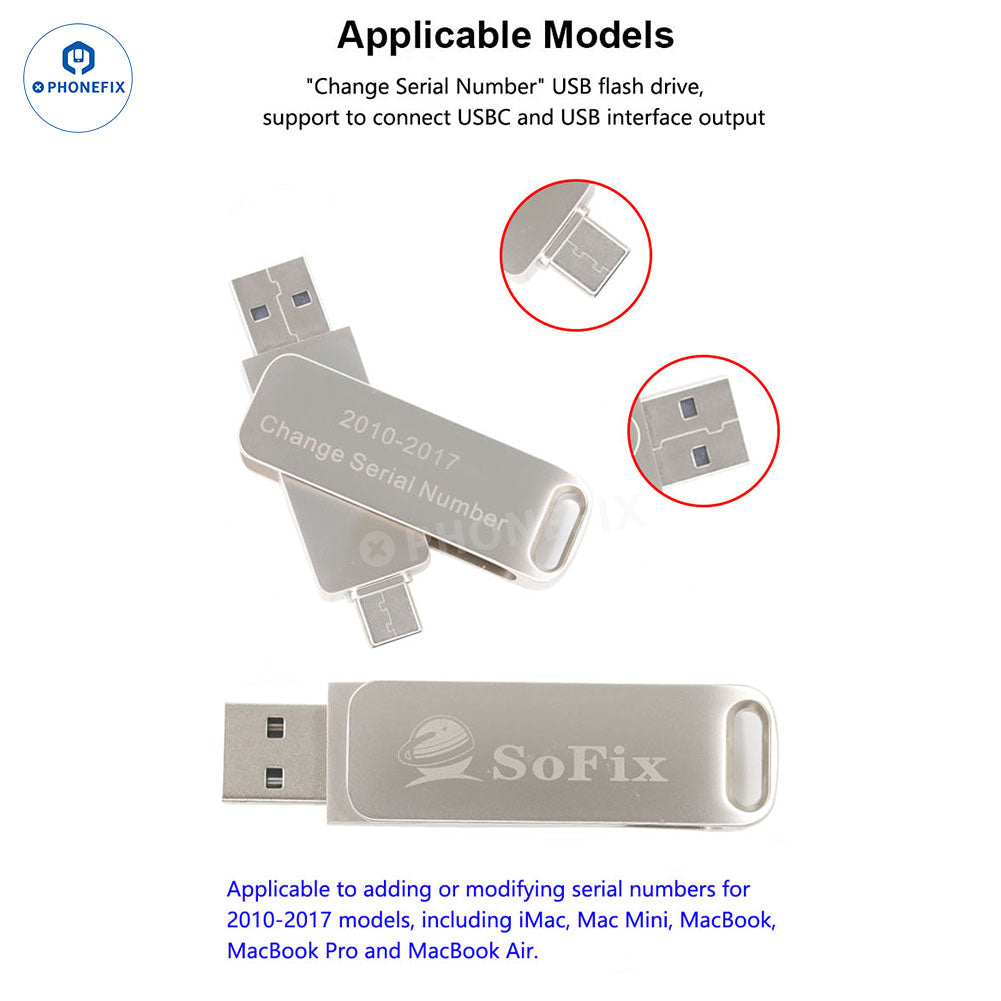

8. Add or modify serial numbers for MacBooks from 2010-2017, including iMac, Mac Mini, MacBook, MacBook Pro, and MacBook Air.
UFIX U-BOS2 Features:1. U-BOS2 is a necessary tool for repairing MacBook.
2. Using LED color screen, the display operation is more convenient.
3. Support Type_C, Micro USB cable power supply, Support four AAA batteries power supply.

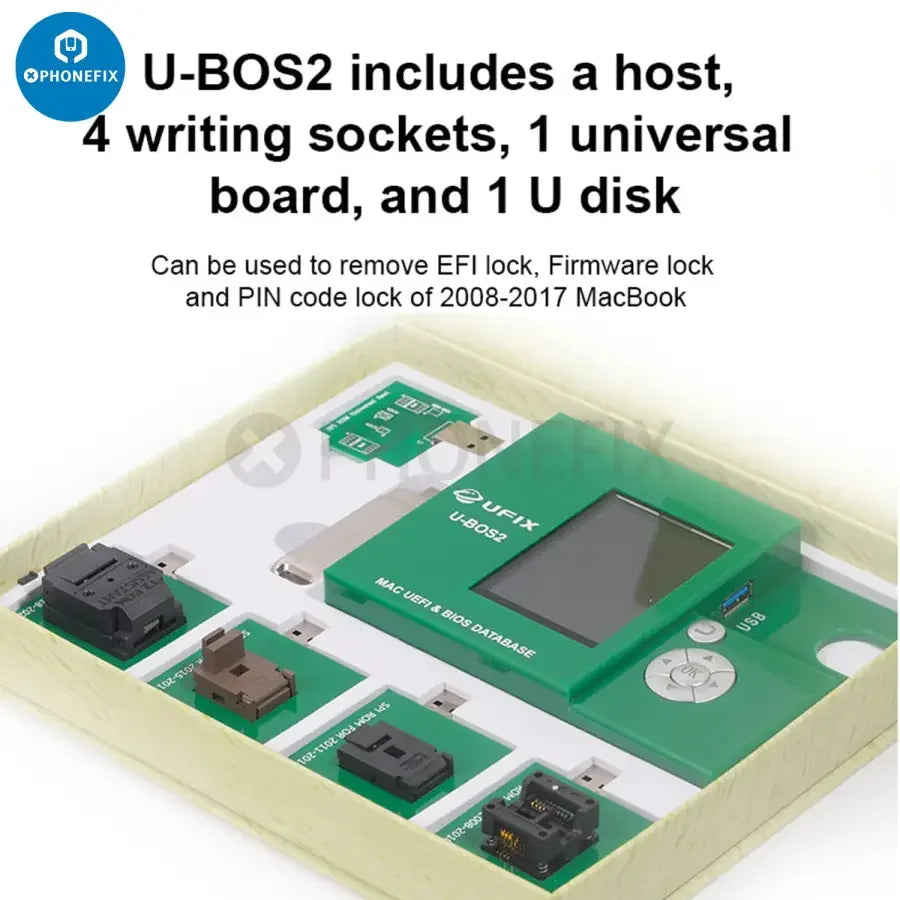

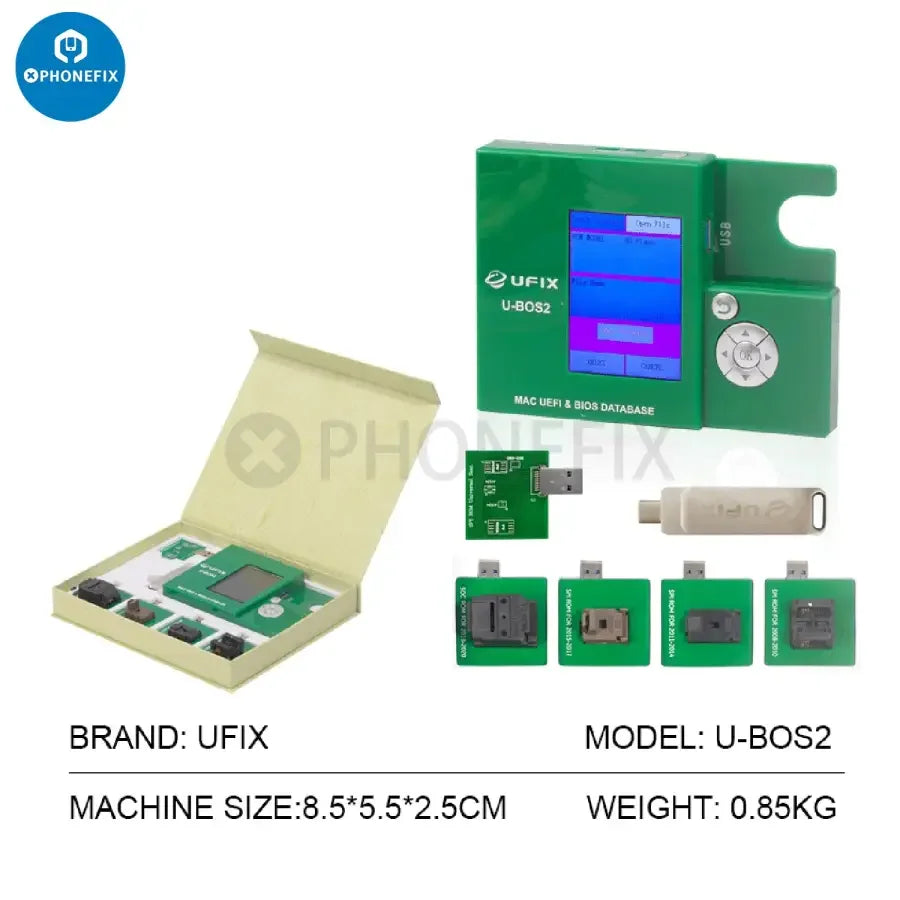

4. U-BOS2 includes a host, 4 writing sockets, 1 universal board, and 1 U disk.
5. The "SPI ROM" data of all Mac serial models from 2008 to 2020 are written inside the U-BOS2 host.
Function: 1. Can solve the problem of MacBook motherboard not booting, not displaying, freezing, blue screen and other problems caused by BIOS data problems.
2. Can be used to remove EFI lock, Firmware lock and PIN code lock of 2008-2017 MacBook.
3. Can be used to write the original data of 2018-2020 T2 or M1 chip ROM (Used to judge whether it is not powered on due to ROM data).
4. Can be used to replace the ME inside the BIOS data (2013-2017 MacBook, after replacing the CPU, PCH or BIOS chip, if the ME data is not replaced, the boot display will be very slow).

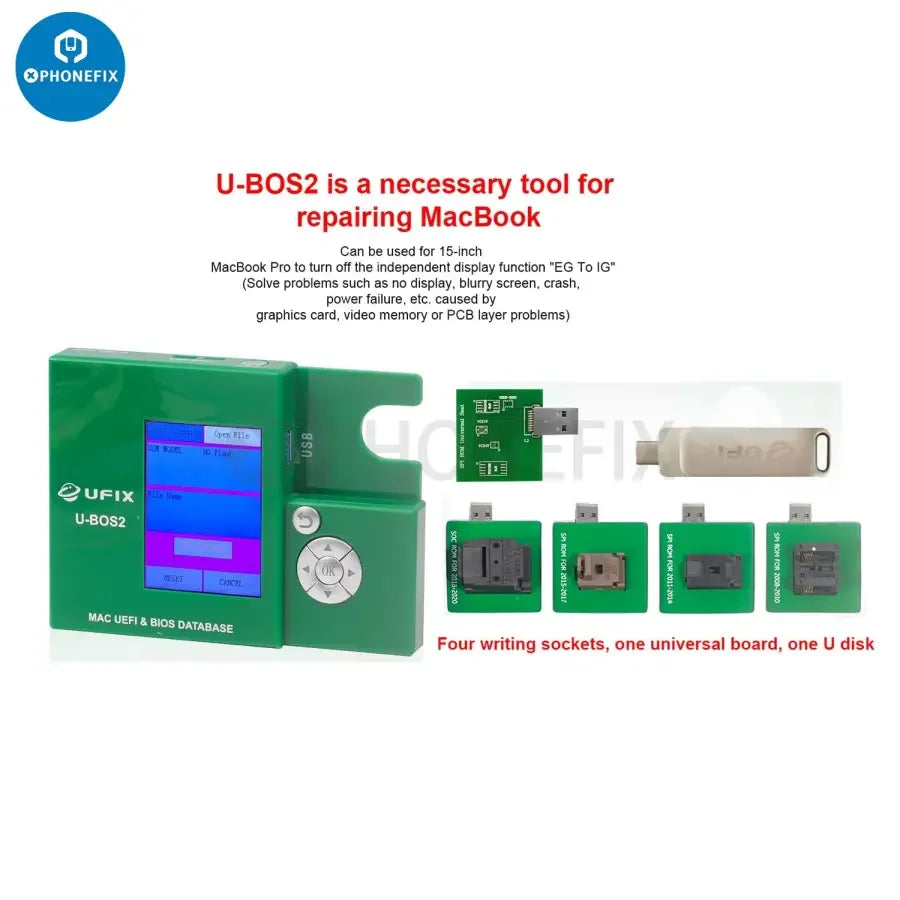

5. Can be used for 15-inch MacBook Pro to turn off the independent display function "EG To IG".
(Solve problems such as no display, blurry screen, crash, power failure, etc. caused by graphics card, video memory or PCB layer problems).

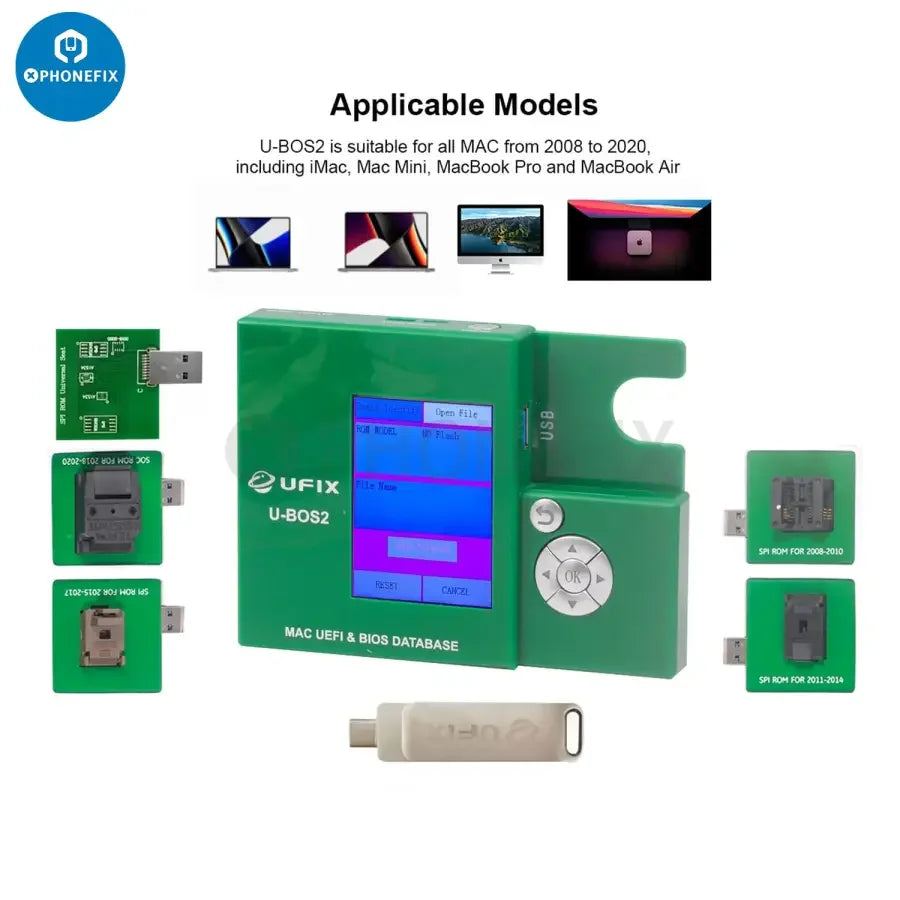

U-BOS2 Applicable Models:1. U-BOS2 is suitable for all MAC from 2008 to 2020, including iMac, Mac Mini, MacBook Pro and MacBook Air
2. Four writing sockets, one universal board, one U disk

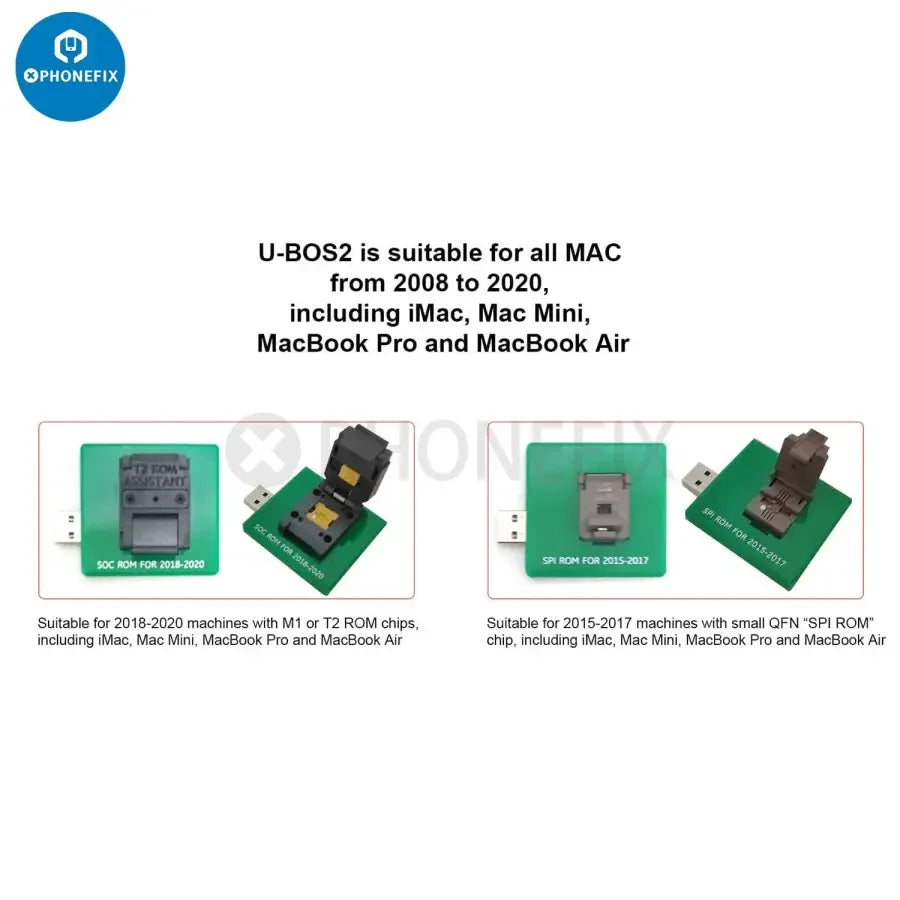

Suitable for 2018-2020 machines with M1 or T2 ROM chips, including iMac, Mac Mini, MacBook Pro and MacBook Air

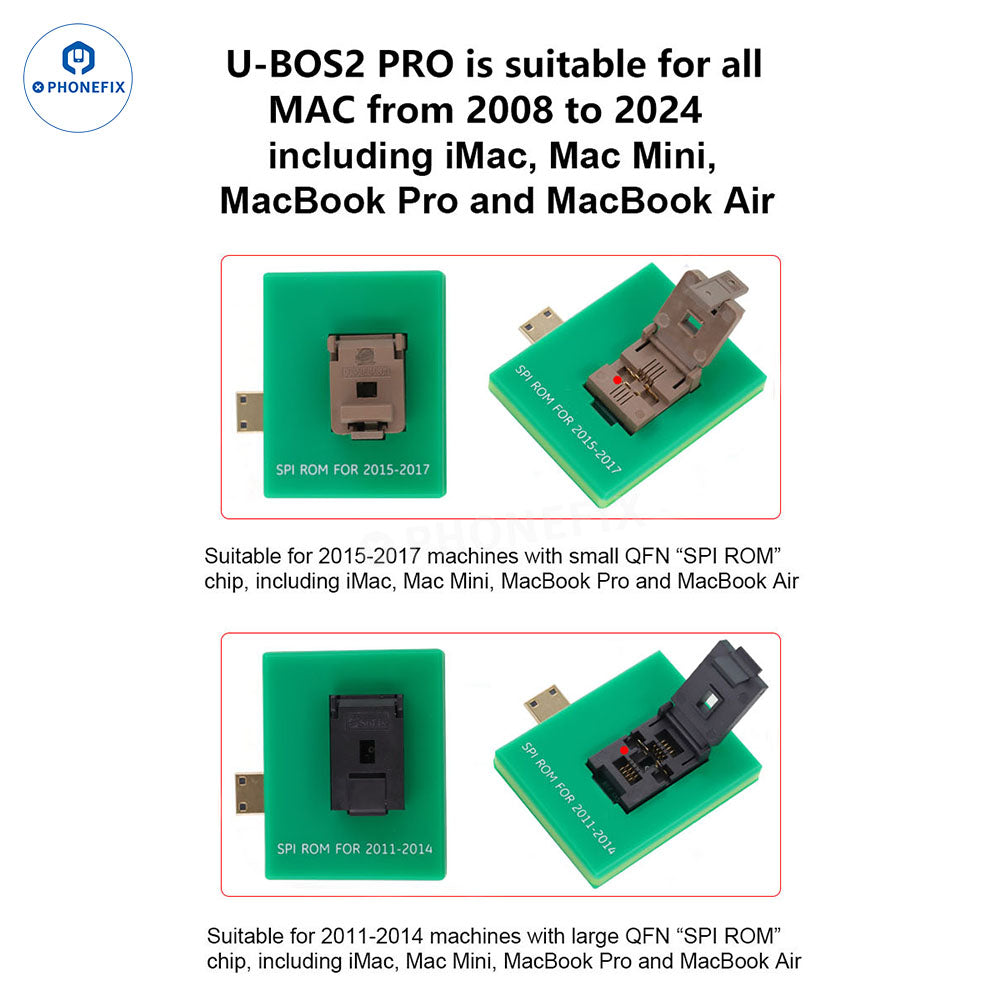

Suitable for 2015-2017 machines with small QFN “SPI ROM” chip, including iMac, Mac Mini, MacBook Pro and MacBook Air

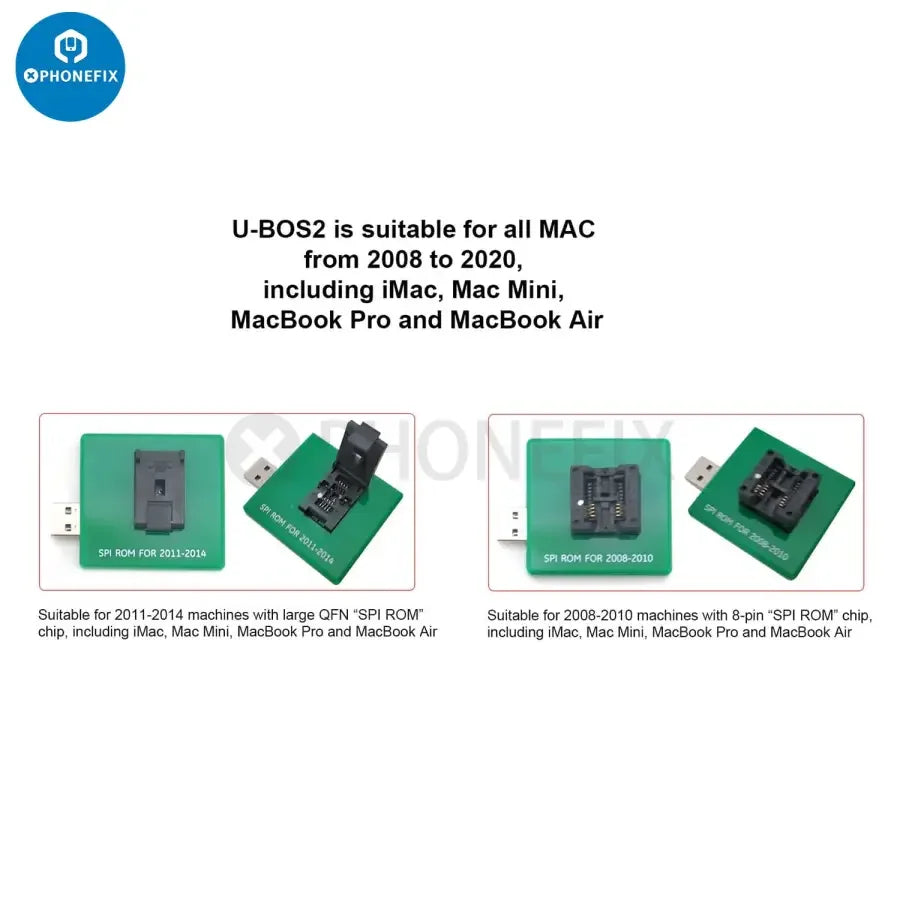

Suitable for 2011-2014 machines with large QFN “SPI ROM” chip, including iMac, Mac Mini, MacBook Pro and MacBook Air

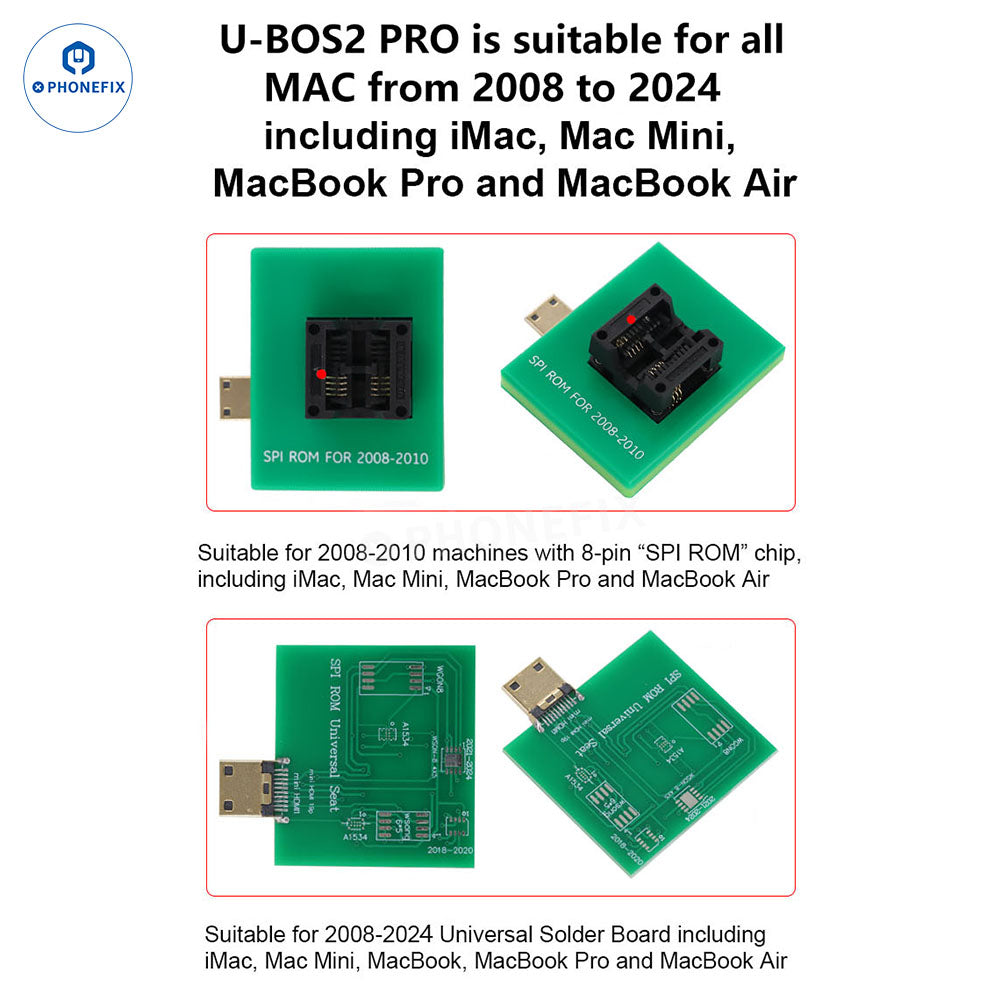

Suitable for 2008-2010 machines with 8-pin “SPI ROM” chip, including iMac, Mac Mini, MacBook Pro and MacBook Air

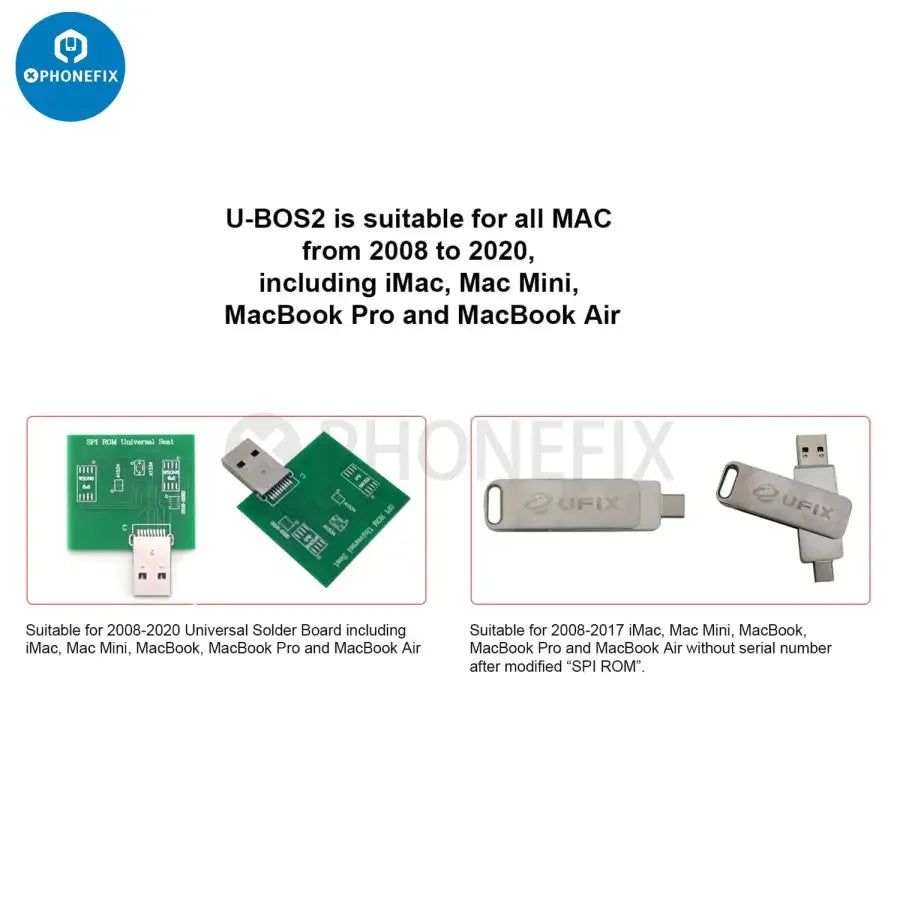

Suitable for 2008-2020 Universal Solder Board including iMac, Mac Mini, MacBook, MacBook Pro and MacBook Air
Suitable for 2008-2017 iMac, Mac Mini, MacBook, MacBook Pro and MacBook Air without serial number after modified “SPI ROM”.
