GigE Series Features:
1) Support 100 meters transmission or POE (optional).
2) Compatible with gige vision standard.
3) With hardware image processing acceleration.
4) Support multiple cameras to work at the same time.
5) Data packet retransmission technology to ensure reliable data transmission.
6) Provide SDK, easy to use and convenient.
7) Support external trigger and flash.
8) SDK supports Windows and Linux systems.
9) SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.
Product Feature:
1) Camera parameter archive is saved as a file.
2) Camera name can be modified to easily distinguish multiple cameras.
3) With a maximum of 16K bytes of data storage.
4) Support 8bit, 24bit, 32bit image format output.
5) Ethernet, USB3.0, and USB2.0 camera SDK are the same.

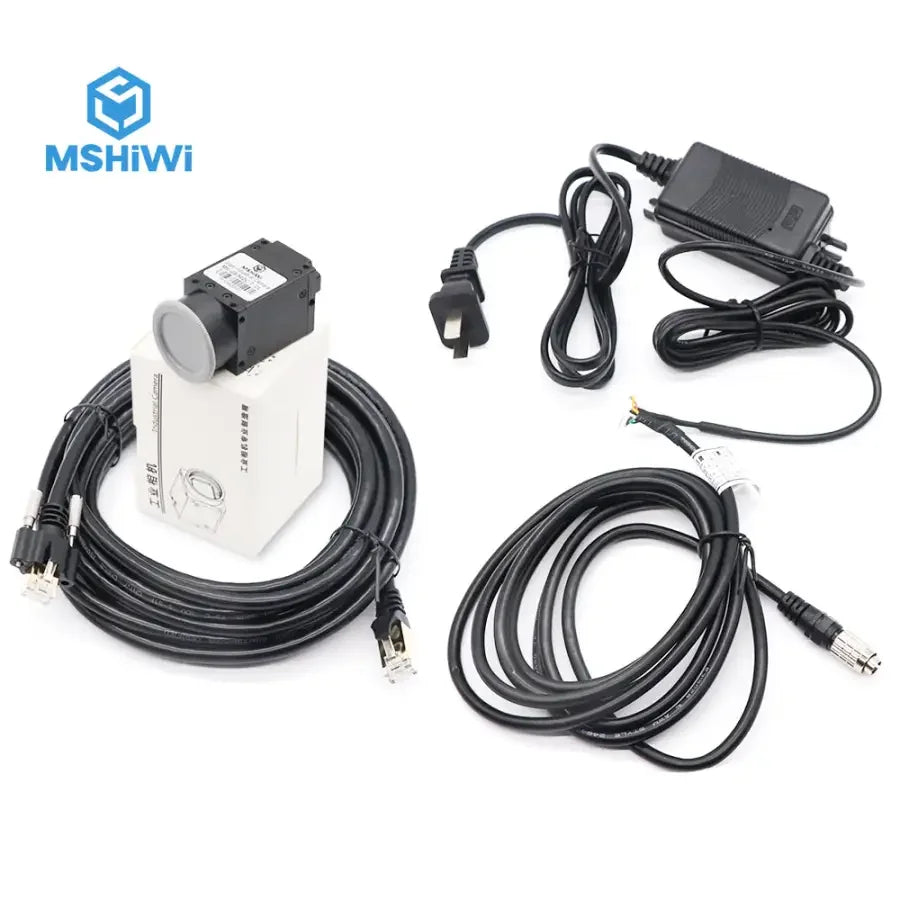

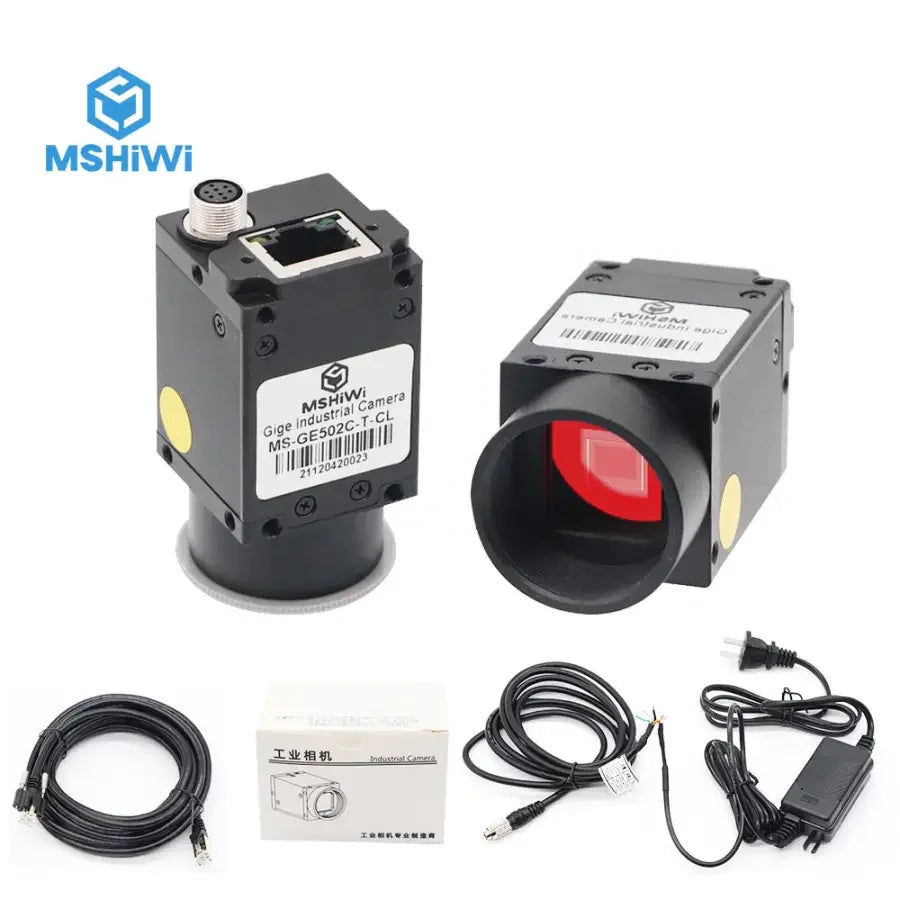

Package Incluede:
1 x Industrial Camera (No Include Lens)
1 x Trigger line
1 x 5 Meters Gigabit Ethernet Cable
1 x 12V Power Supply

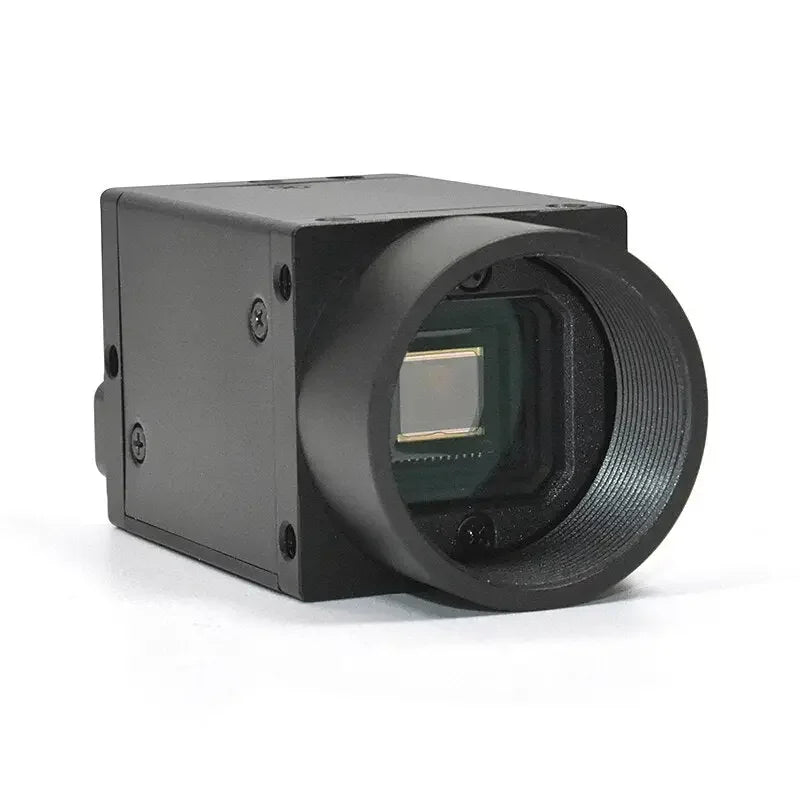

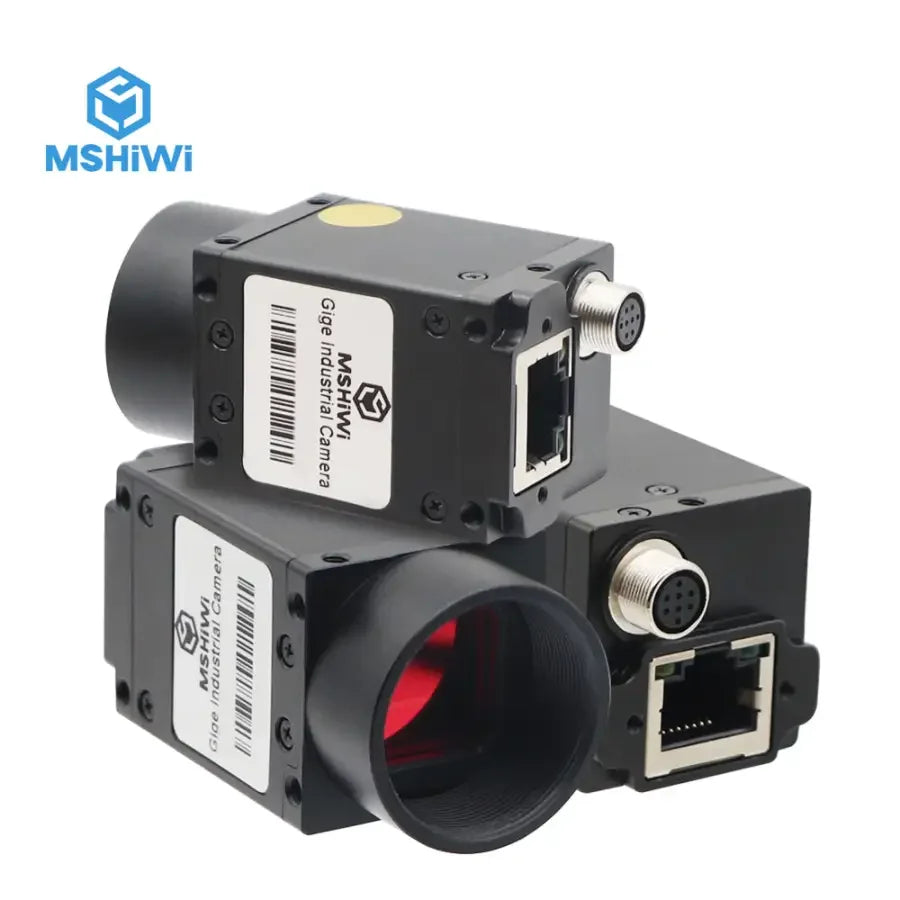

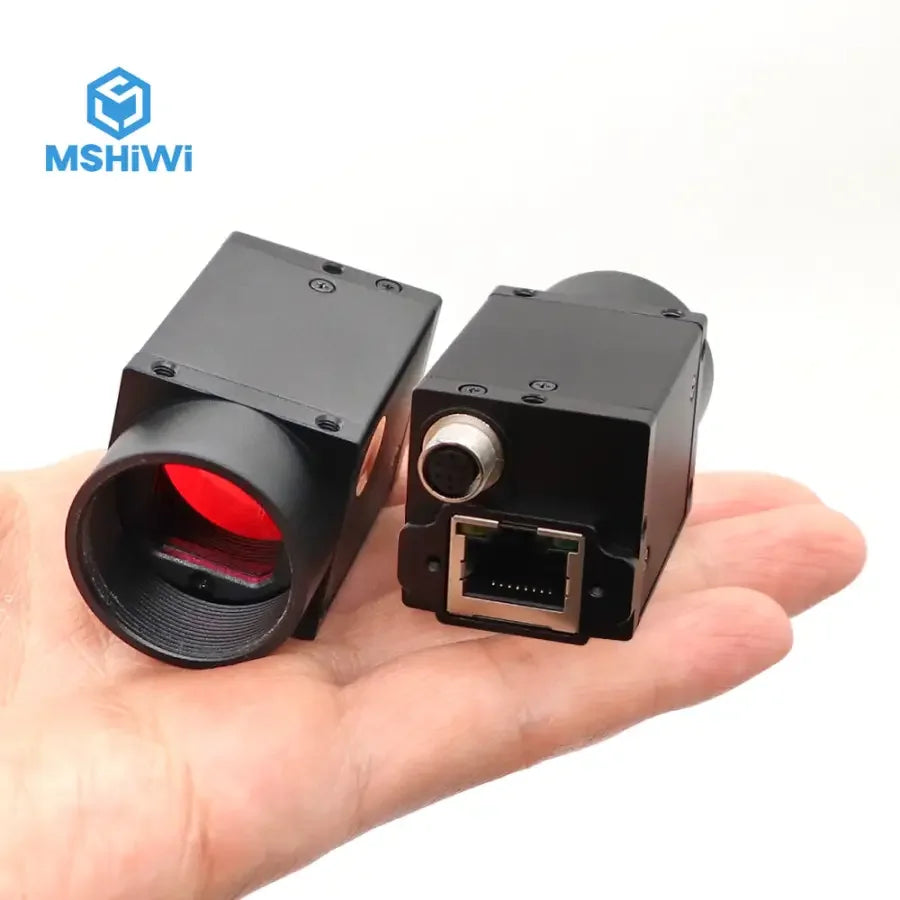

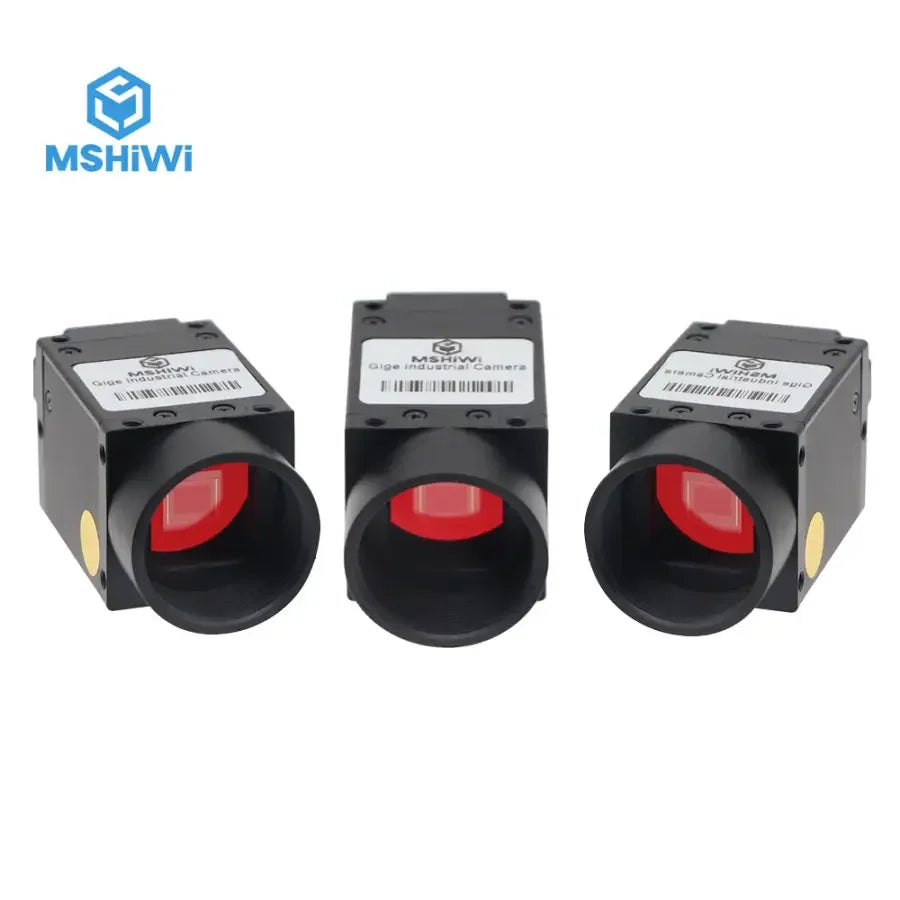

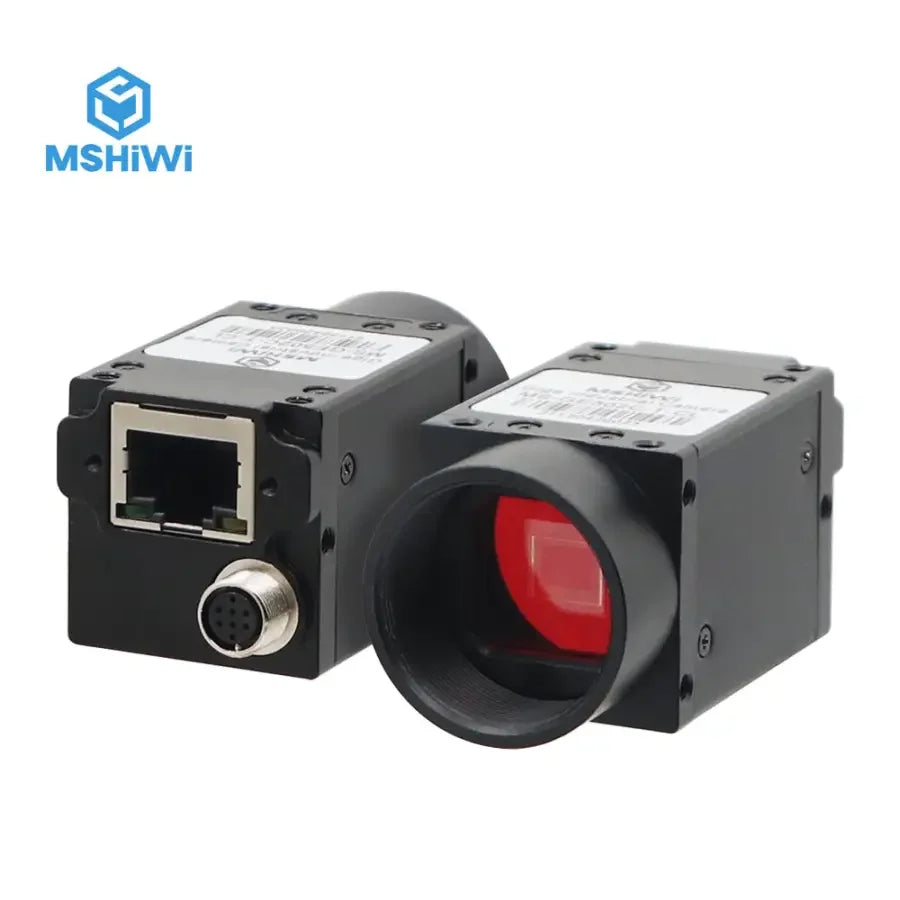

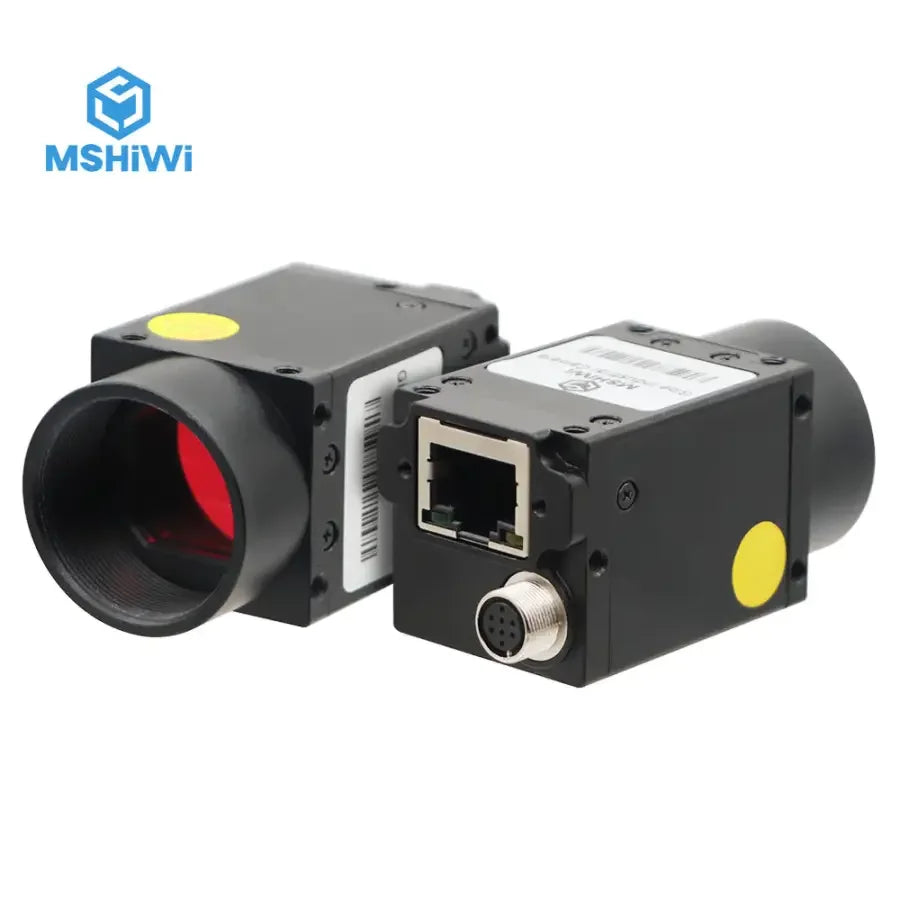

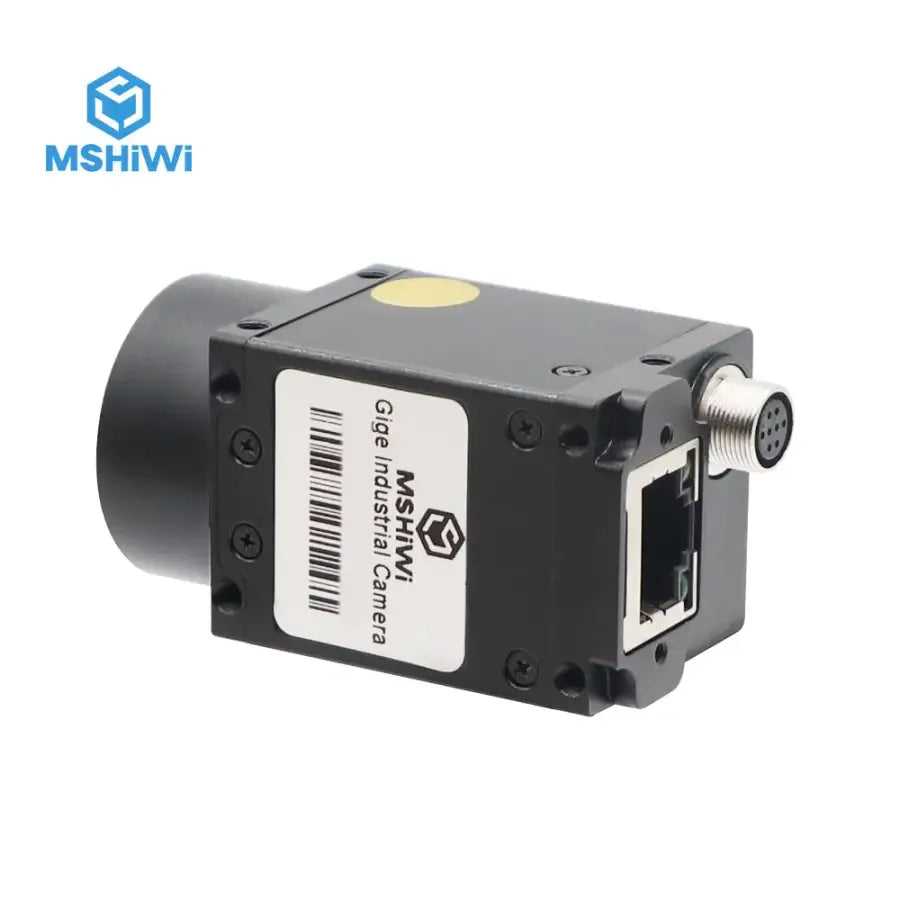

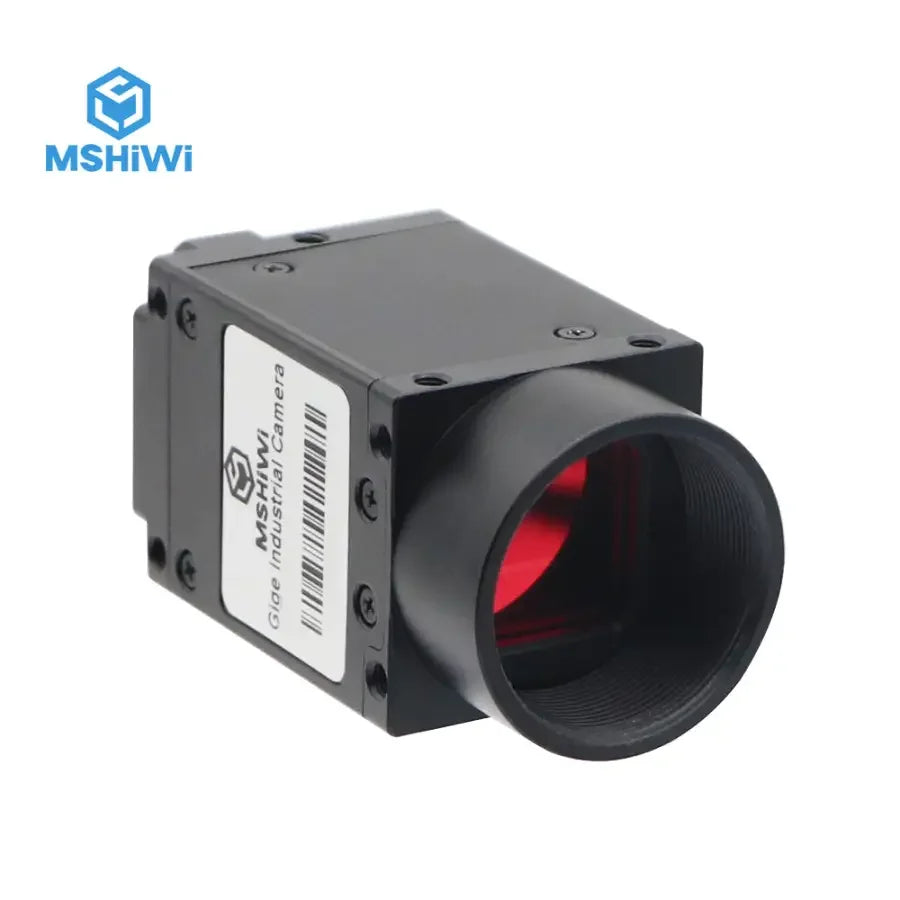

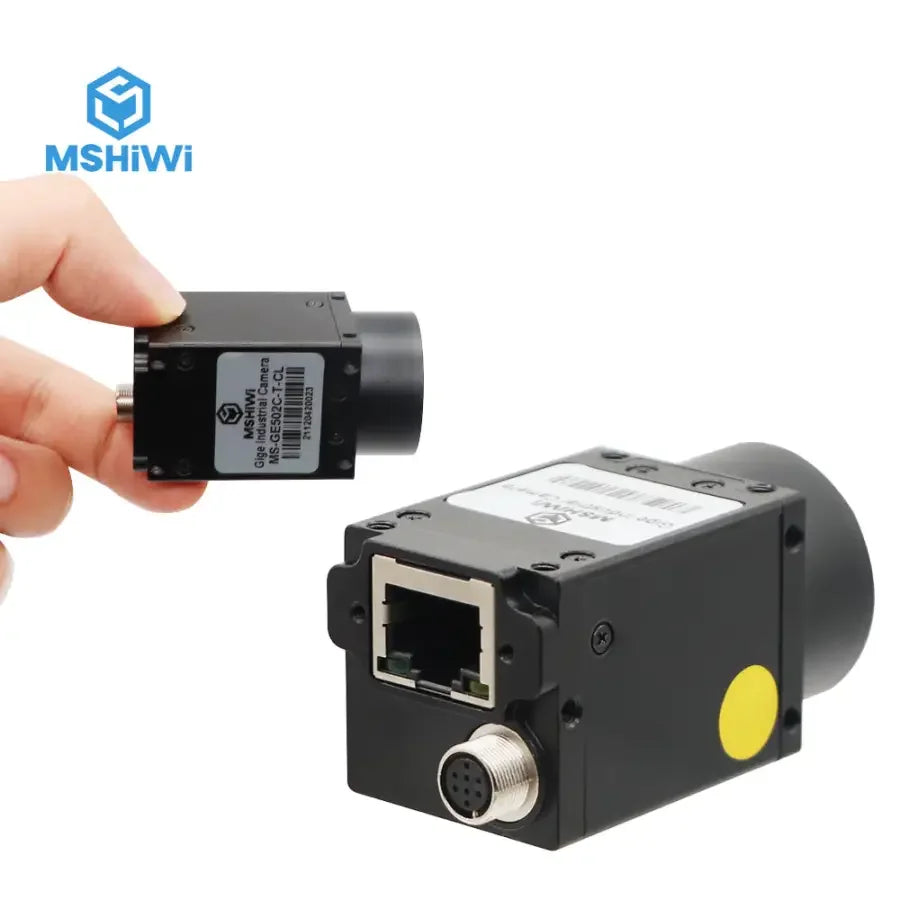

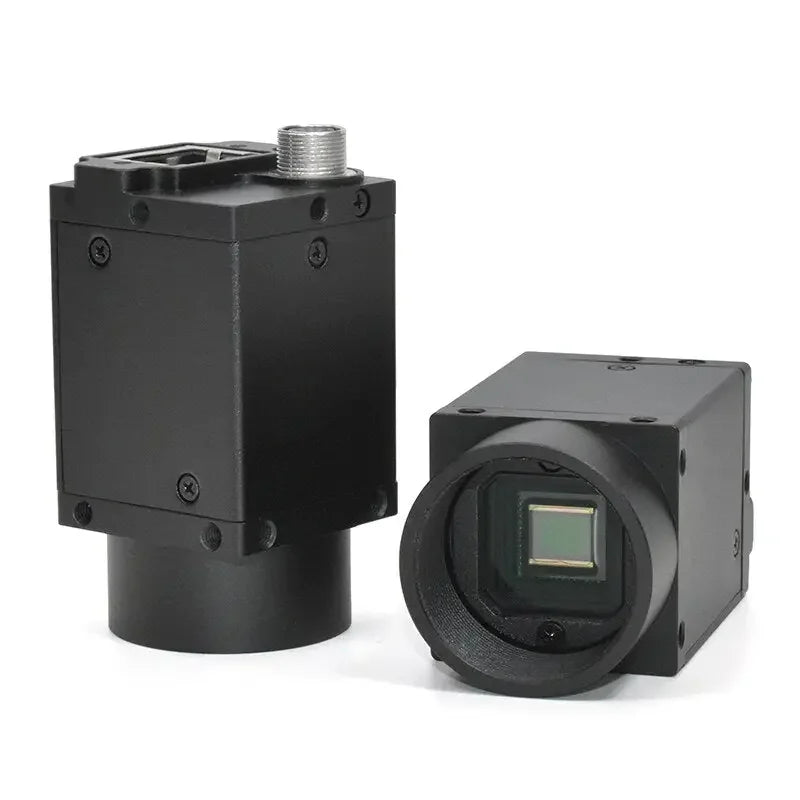

Industrial Camera Parameters:
Model
|
HT-GE231GM-T-CL
|

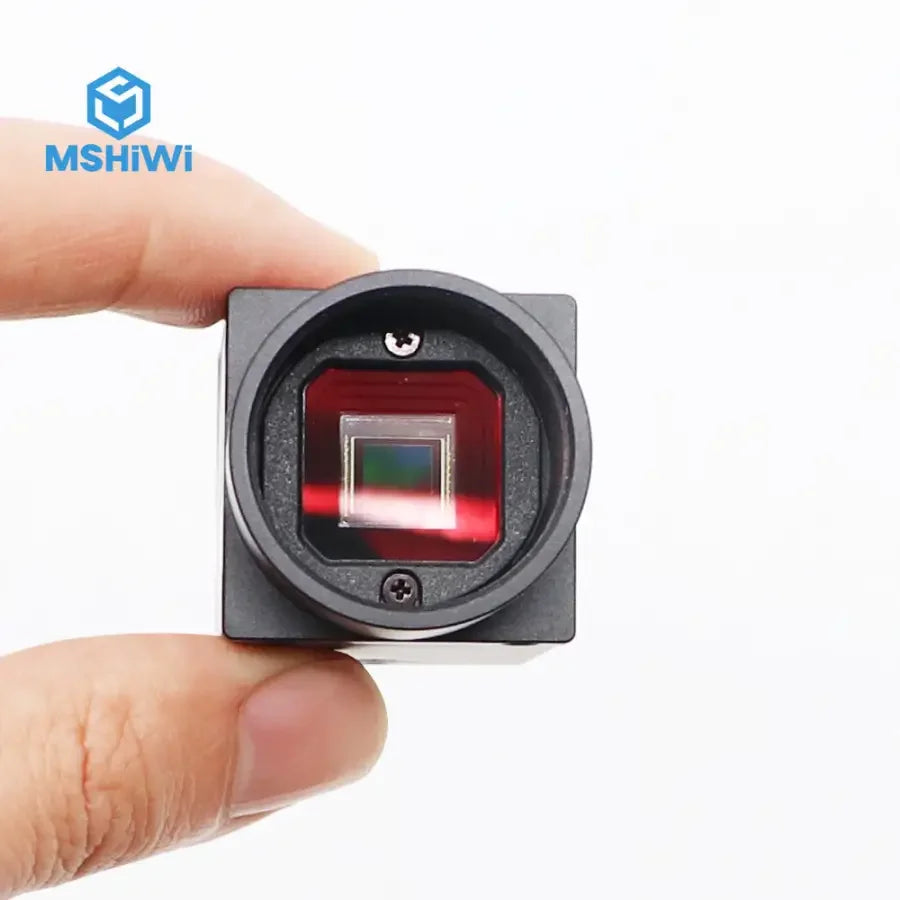

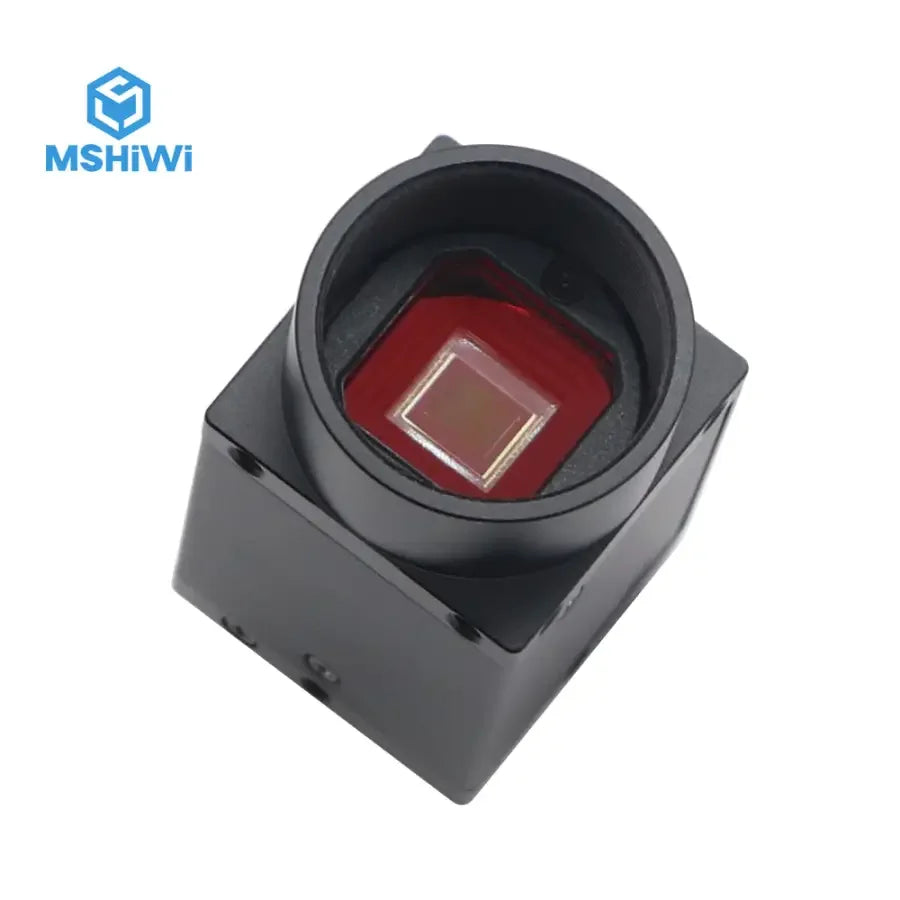

Sensor
|
1/1.2" CMOS
|
Shutter Type
|
Global Shutter
|
Camera Type
|
Monochrome
|
Pixel Size
|
5.86*5.86μm
|
Effective Pixels
|
2.3 MP
|
Resolution @FPS
|
|
1920X1200@40FPS
|
|
Pixel Bit Depth
|
12bit
|
Sensitivity
|
1016mV/ 1/30s
|
GPIO
|
6-pin Hirose Connector
|
Acquisition
|
Continuity/Soft Trigger/Hard Trigger
|
Maximum Gain (multiple)
|
64
|
Exposure Time (ms)
|
0.02~41943
|
Filters
|
None
|
Frame Buffer
|
32M Bytes
|
Custom Data
|
2K Bytes
|
Video Output Format
|
Bayer8、Bayer12、Mono8、Mono12、Mono16、RGB8、RGB32、RGB48
|
Visual Standard Protocol
|
GigE Vision 、GenICam
|

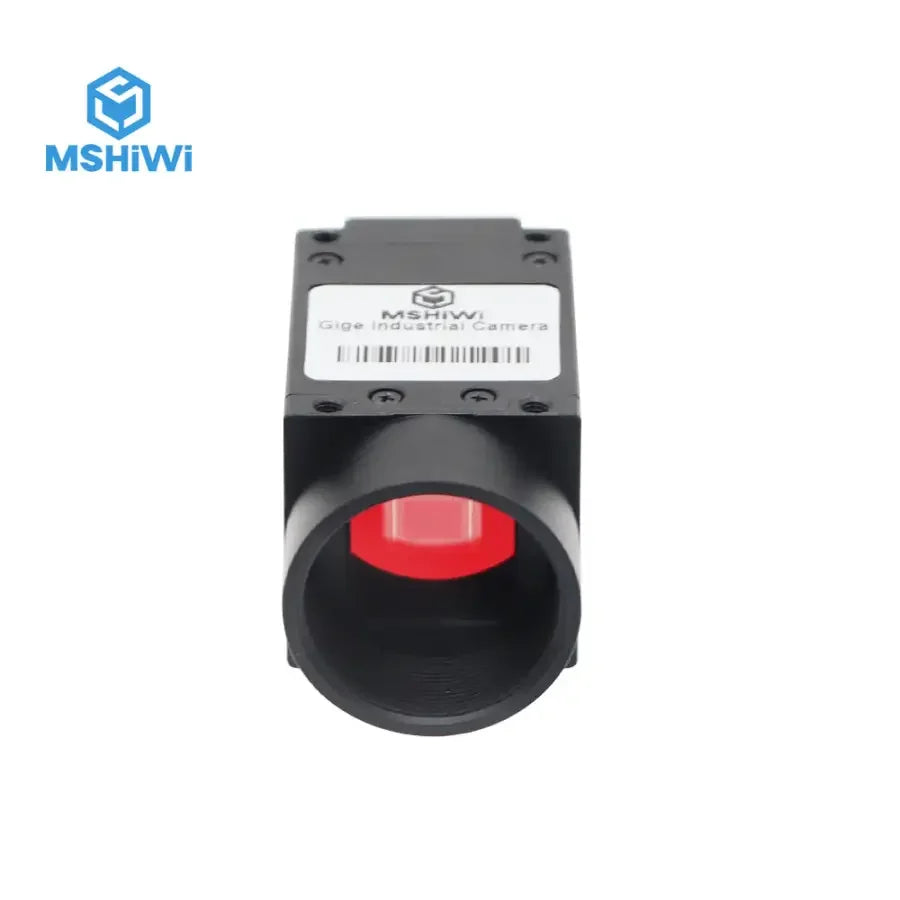

Lens Interface
|
C Mouth
|

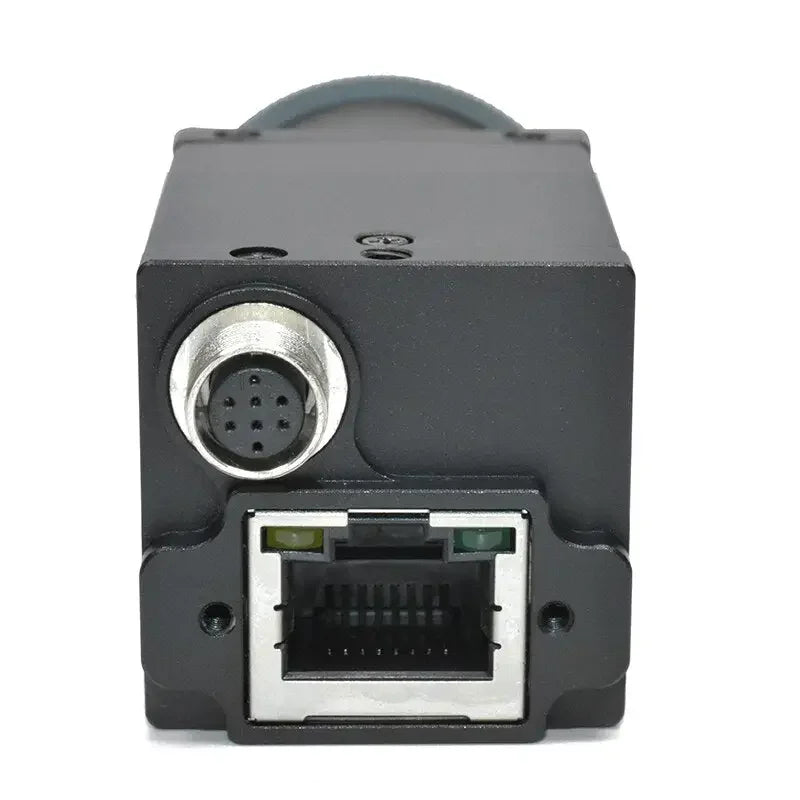

Data Interface
|

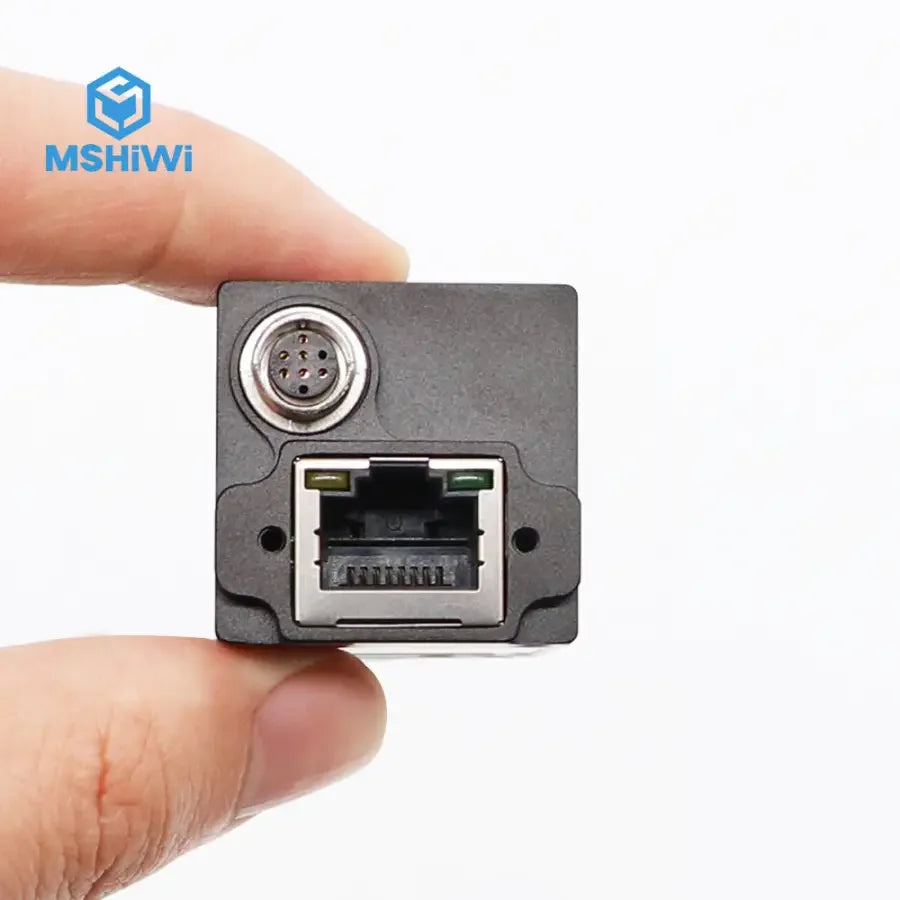

RJ45 Gigabit Ethernet interface
|
Power Supply
|
12V(Optional POE Power Supply)
|
Power
|
<2.5W
|

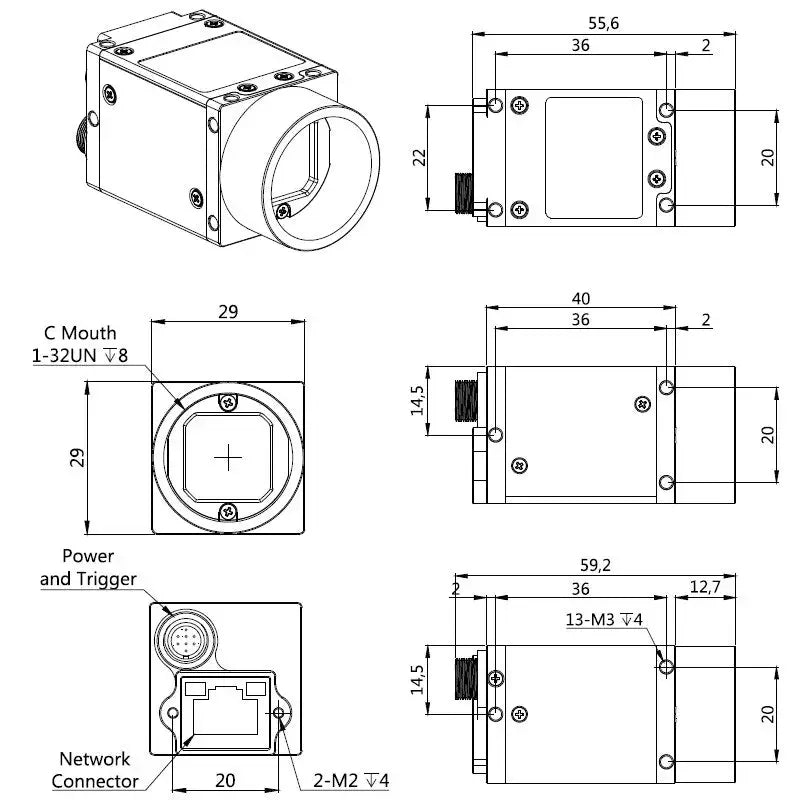

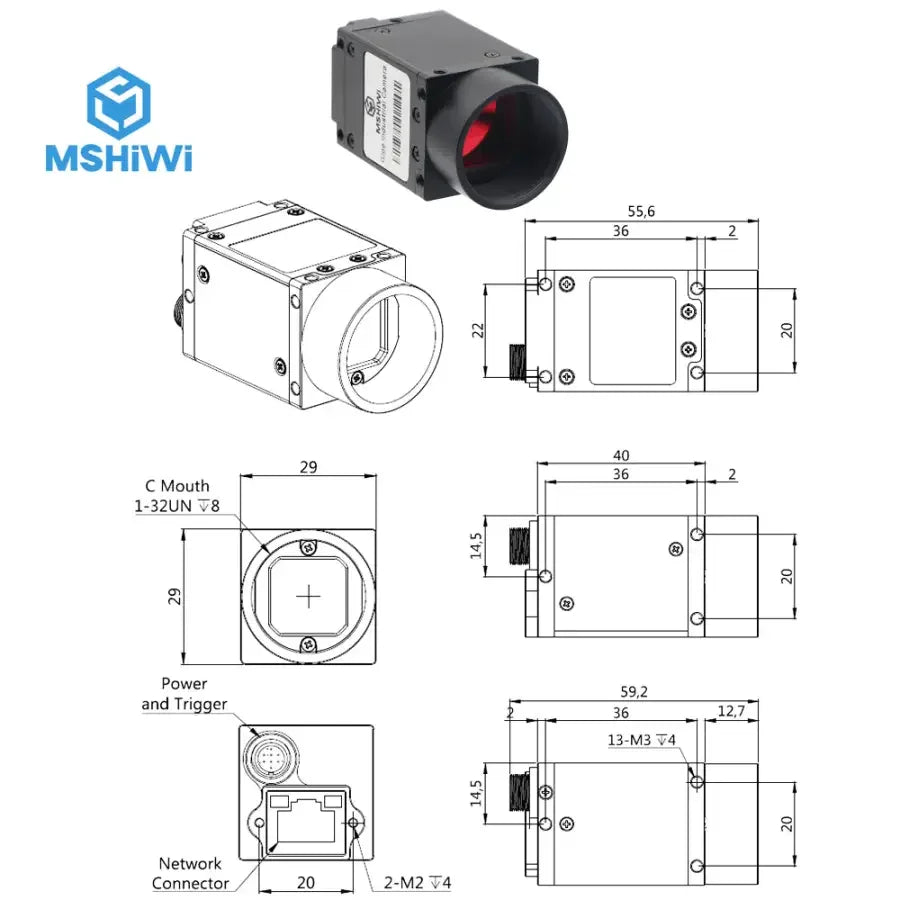

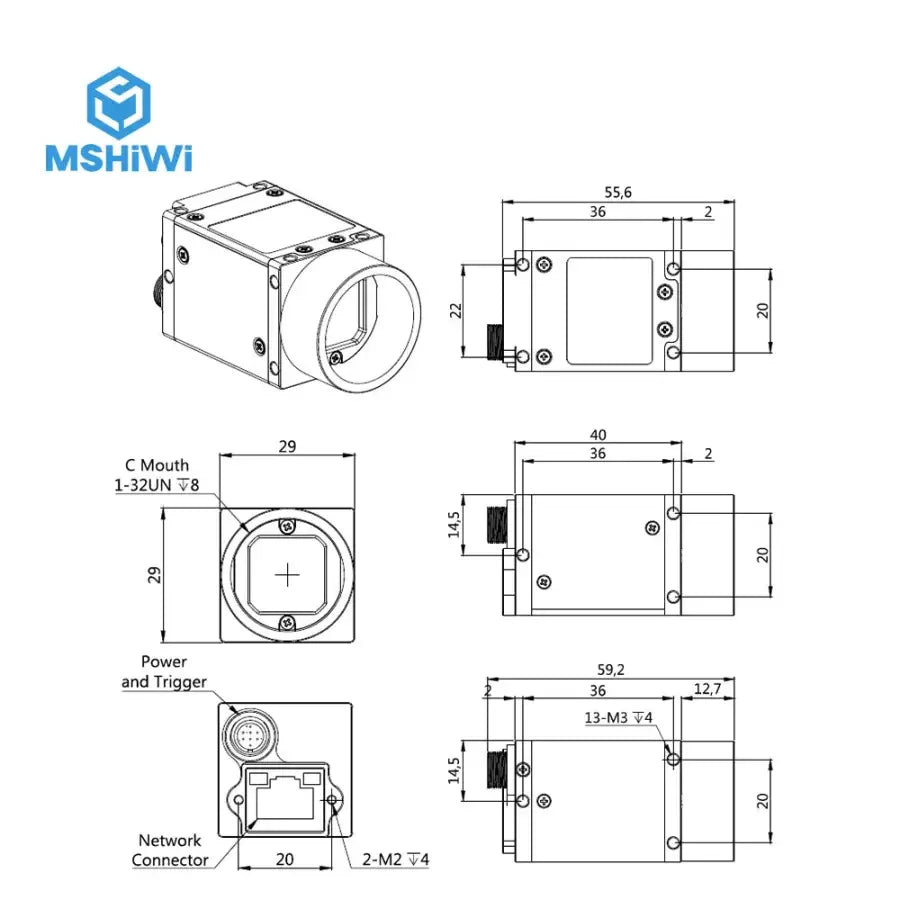

Dimensions
|
29(mm)X29(mm)X40(mm)
|
Weight
|
< 75g
|
Operating Temperature
|
0~50 Degrees
|
Operating System
|
Support WIN7/8/10 32&64 System; PC Linux System
|
Driver
|
Directshow; Halcon; Labview; OCX; TWAIN Component
|
Programming Ianguage
|
C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/OpenCV
|
Other Functions
|
Support ROI resolution, contrast and gamma adjustment, saturation adjustment, etc.
|

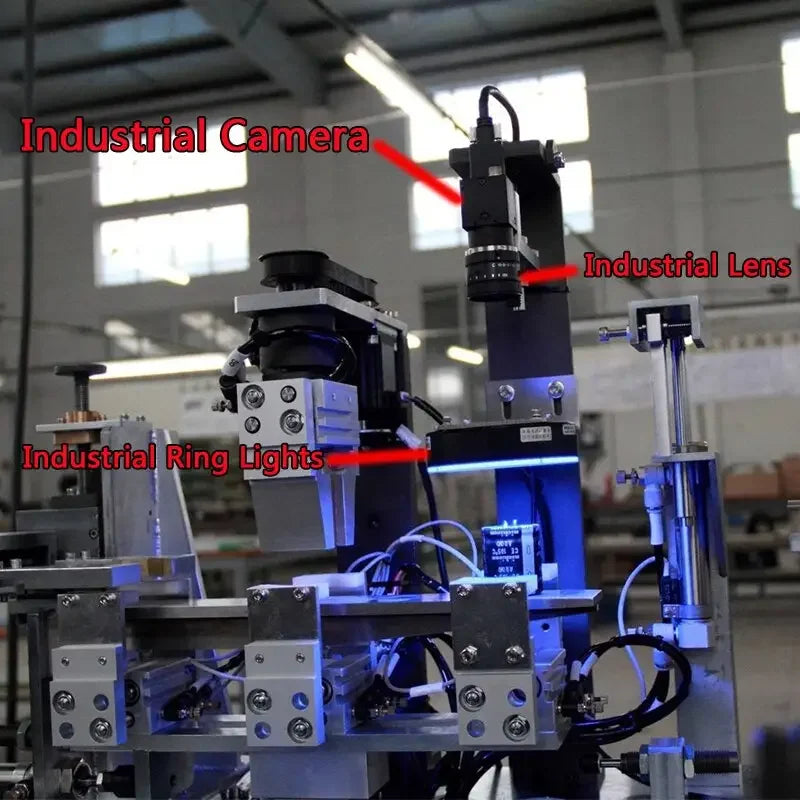

Machine Vision Software:
Support Halcon, OpenCV, LabView, Matlab, Python, etc.
Demo Source Code:
Hardware Trigger Line Sequence:
