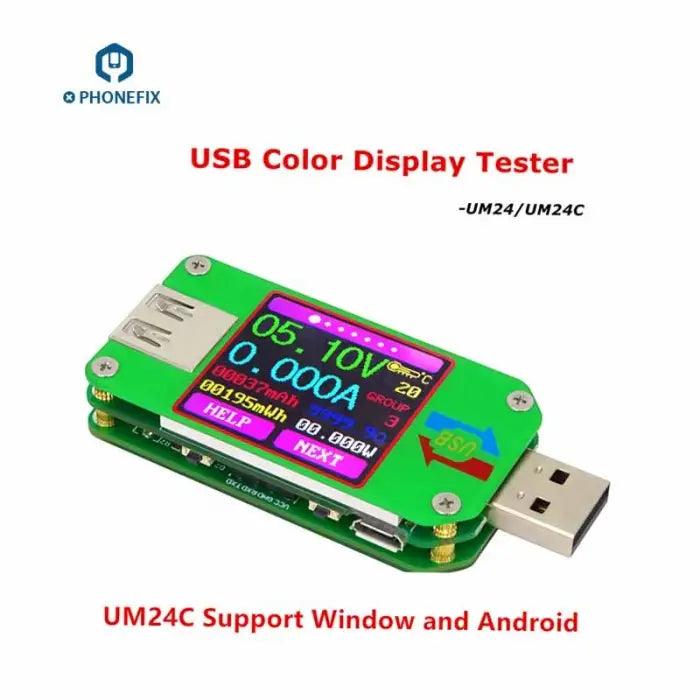

UM24C / UM24 USB Tester can measure voltage, current, power, temperature and other values and display on the 1.44" color LCD Screen.
Features :

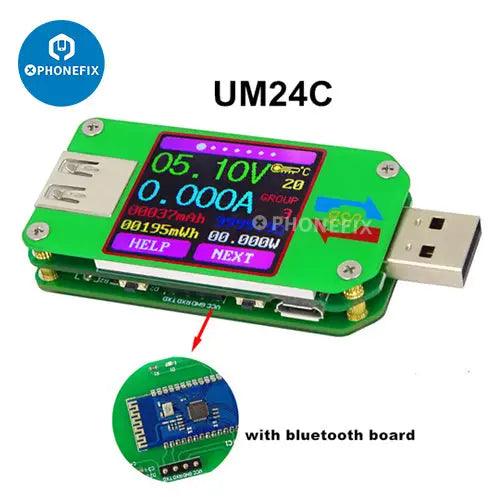

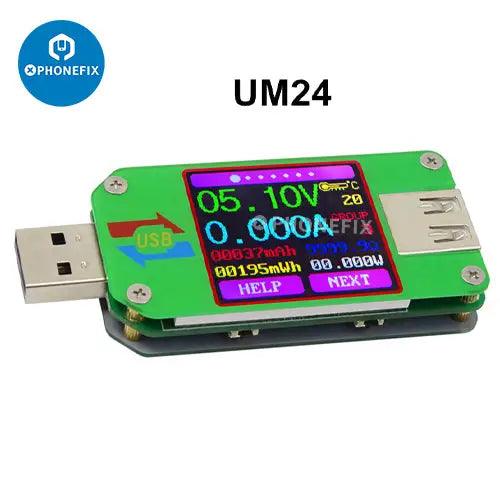

- UM24 is no communication version, UM24C is communication version by Bluetooth connection.
- 1.44 Inch color LCD display makes it easy and clear to read.
- Adjustable multi-angle view, more intelligent and convenient.
- Mini size and sandwich design structure, durable for use.
- Main functions: voltage / current / power / capacity / energy detection, quick charge recognition, data storage, etc.
- Wide applications: can be used to test power bank, charger, discharge load, tablet, mobile phone, etc.
Technical Parameter :
- Product Model: UM24/UM24C
- Product weight: 23.47g(UM24C) / 18.83g(UM24)
- Voltage measurement range: 4.50-24.00V
- Voltage measurement resolution: 0.01V
- Current measurement range: 0.000-3.000A
- Current measurement resolution: 0.001A
- Capacity accumulation range: 0-99999mAh
- Voltage measurement accuracy: ±(0.2%+1 digit)
- Energy accumulation range: 0-99999mWh
- Current measurement accuracy: ±(0.8%+3 digit)
- Load impedance range: 1.5-9999.9Ω
- Time measurement range: 0-99h59min59s
- Temperature range: -10℃ ~ 100℃/0℉ ~ 200℉
- Temperature measurement error: ±3℃/±6℉
- Screen brightness setting: 0-5 level
- Auto screen off time: 1-9mins
- Voltage graphing range: 04.5-24.0V
- Current graphing range: 0.00A-3.00A
- Display screen: 1.44 inch color LCD display
- Quick charge recognition mode: QC2.0 QC3.0
- Refresh rate : 2Hz

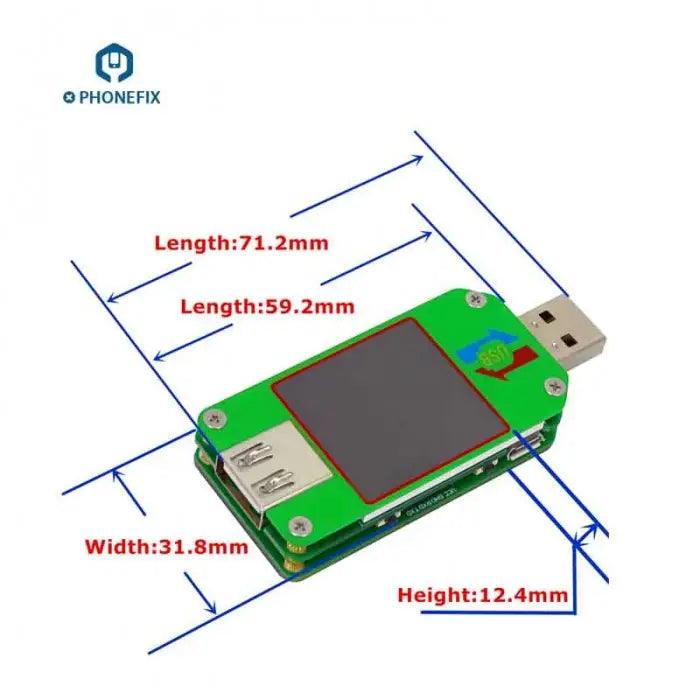

- Product size: 71.2mm x 31.8mm x 12.4mm (UM24C)
- 71.2mm x 31.8mm x 11.3mm (UM24)
Note :
- UM24 is no communication version, UM24C is conmmunication version by Bluetooth connection.
- PC software support PC window (Win 7 and above) and Phone Android (Android 5.0 and above, support 12 kinds language, chinese, english and Russia .... )
- User manual, PC software installation instruction and PC software and Android APP download link: http://www.mediafire.com/folder/0jt6xx2cyn7jt/UM24
- About demo video and APP test and other function introduction, pls contact with us.
- For Android APP :
- APP only support android 5.0 and above.
- Allow APP to do in the background, not be cleaned.
- Allow APP self-starting.
- Allow APP stay after screen locked, not be cleaned.

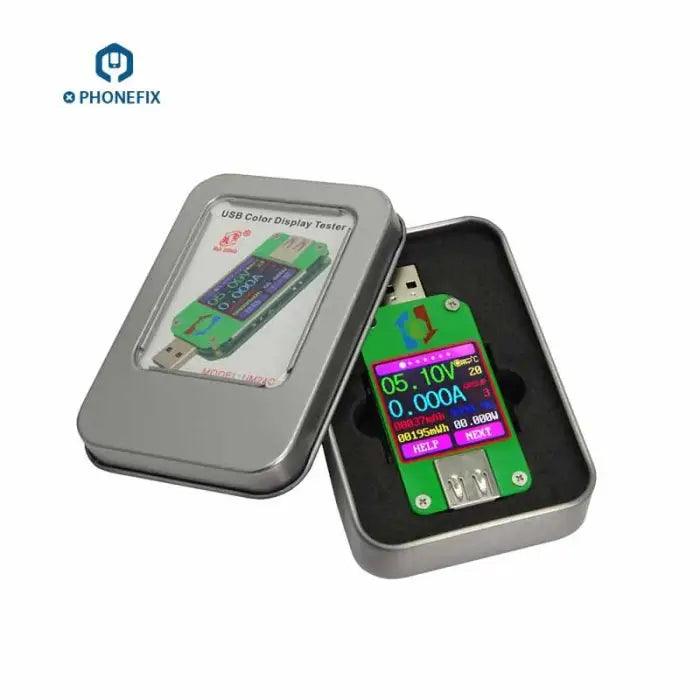

Package List :
- 1Pc USB Color Display Tester
