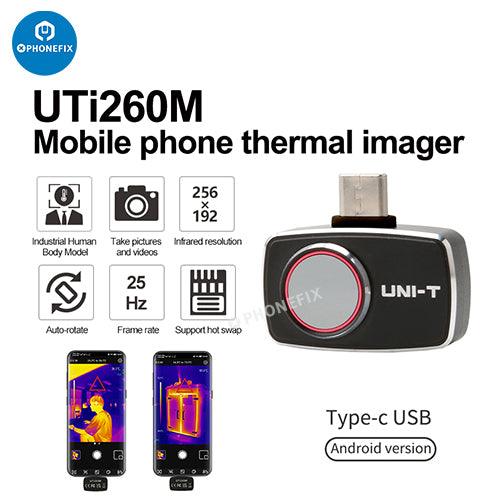

UNI-T Thermal Imager For Smart Phone UTI260M UTI256M 256x192 Pixel Thermographic Camera Thermal Camera PCB Circuit Failure Smartphone Test Tool.
Features:
- It includes two measurements modes for elevated skin temperature inspection and industry applications.

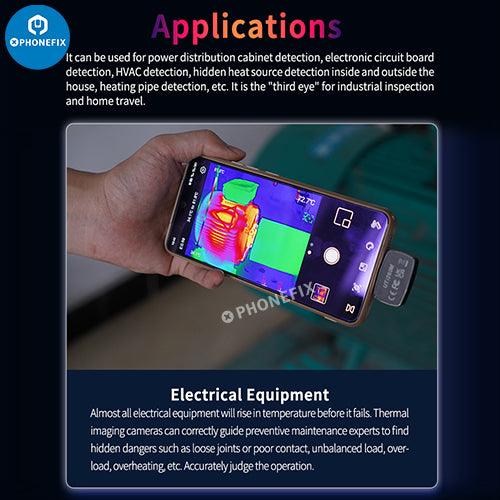

- Users can troubleshoot HVAC problems or investigate heat source issues around the house and hidden issues faster and easier with this thermal camera module.
- This Thermal Imager is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders etc.

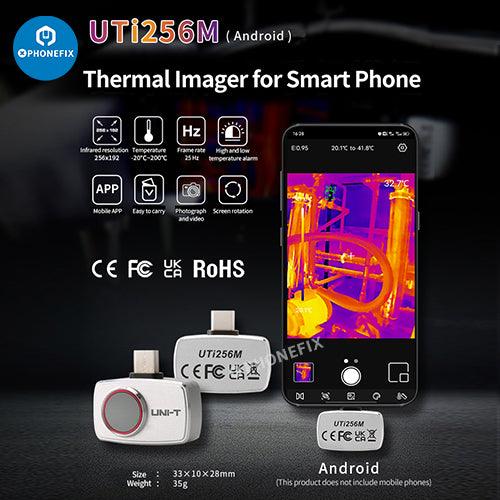

UTI256M
- It's a professional thermal camera module for smartphones, which is compact, portable, and easy to operate through connecting with mobile phones.
- It’s 256×192 IR resolution provides clear image with a fast response.
- It's with wide temperature measurement range -20℃ ~ 200℃.

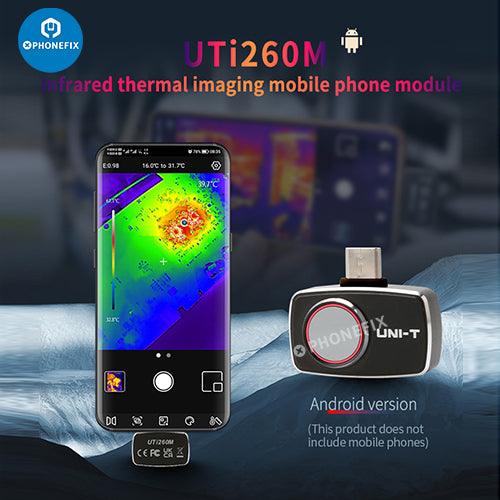

UTi260M
- It's a professional thermal camera module for smartphones, which is compact, portable, and easy to operate through connecting with mobile phones.
- It’s 256×192 IR resolution provides clear image with a fast response.
- It is with wide temperature measurement range -20℃ ~ 550℃.

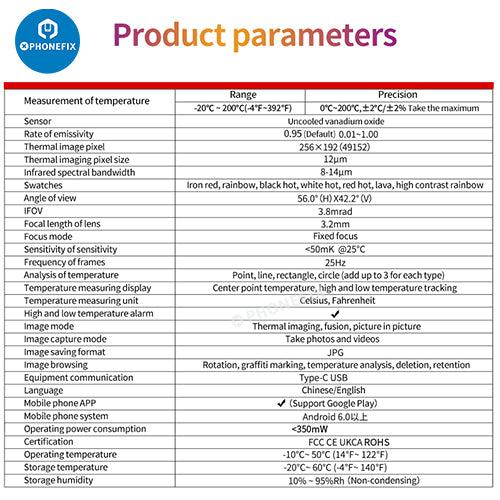

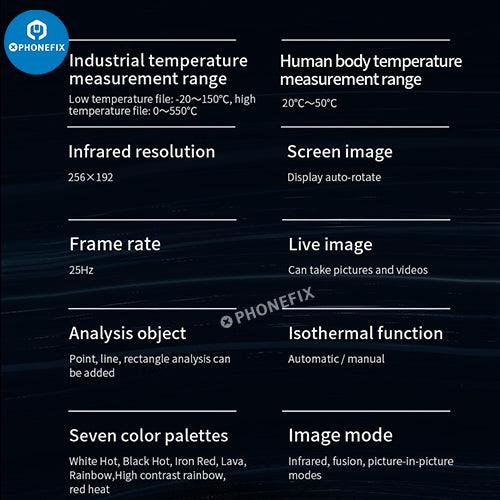

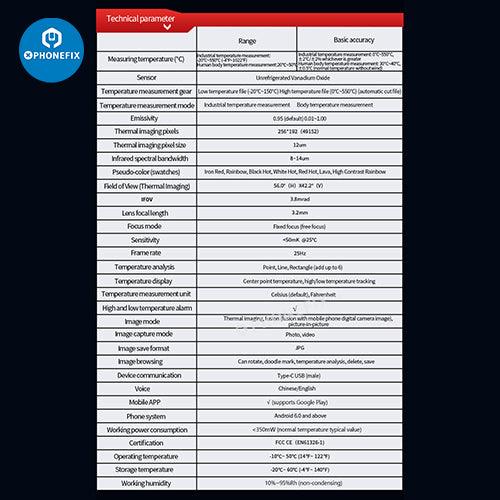

Applications:
- IR resolution: 256×192（49152）
- Temperature measurement range: -20℃to 550℃ / -4℉ to 1022 ℉

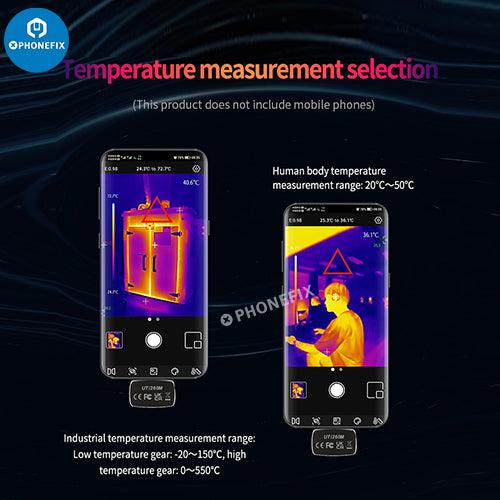

- Measurement modes: Industry, EST(Elevated Skin Temperature)
- Temperature scale: Low gain: -20℃~150℃, High gain: 0℃~550℃

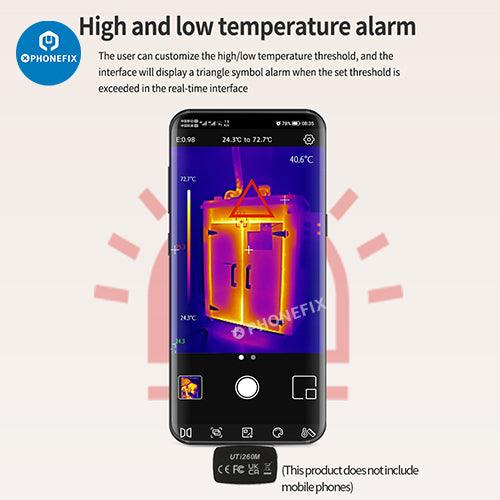

- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot

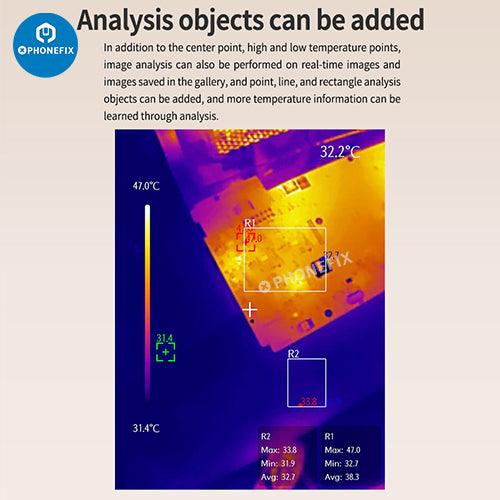

- On screen analyzer: Point 6/ Line 6/Rectangle 6/Circle 6
- Image capture
- Video recording

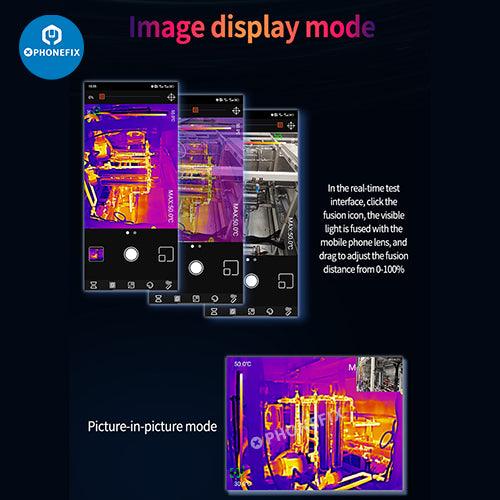

- Image modes: Thermal, Fusion, PIP

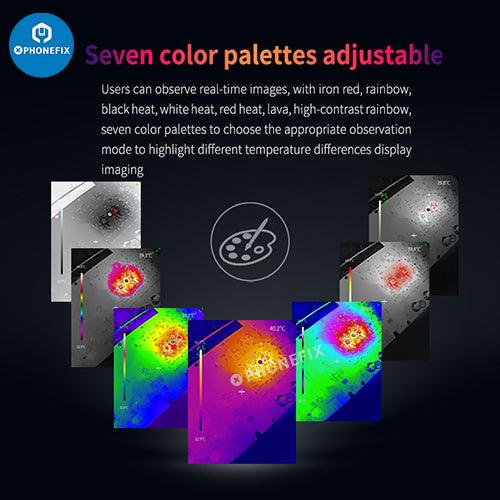

- Color palettes: 7(White hot, Black hot, Red hot Iron-bow, Lava, Rainbow, Rainbow HC)
- Phone: Android (USB Type-C interface)

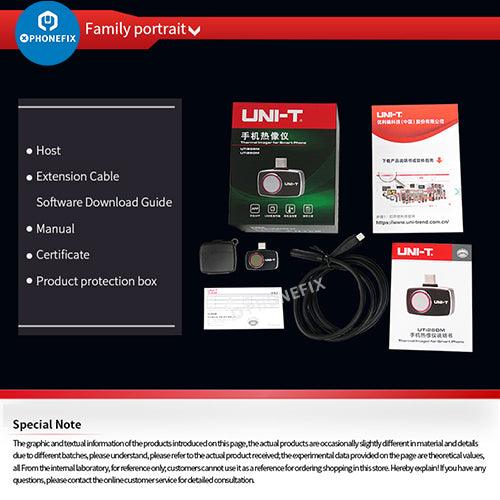

- 1m extension cable
- 2m drop proof
- UTI256M Temperature measurement range: -20℃ to 200℃ / -4℉ to 392 ℉
- UTI260M Temperature measurement range: -20℃to 550℃ / -4℉ to 1022 ℉
- UTI260M Measurement modes: Industry, EST(Elevated Skin Temperature).
