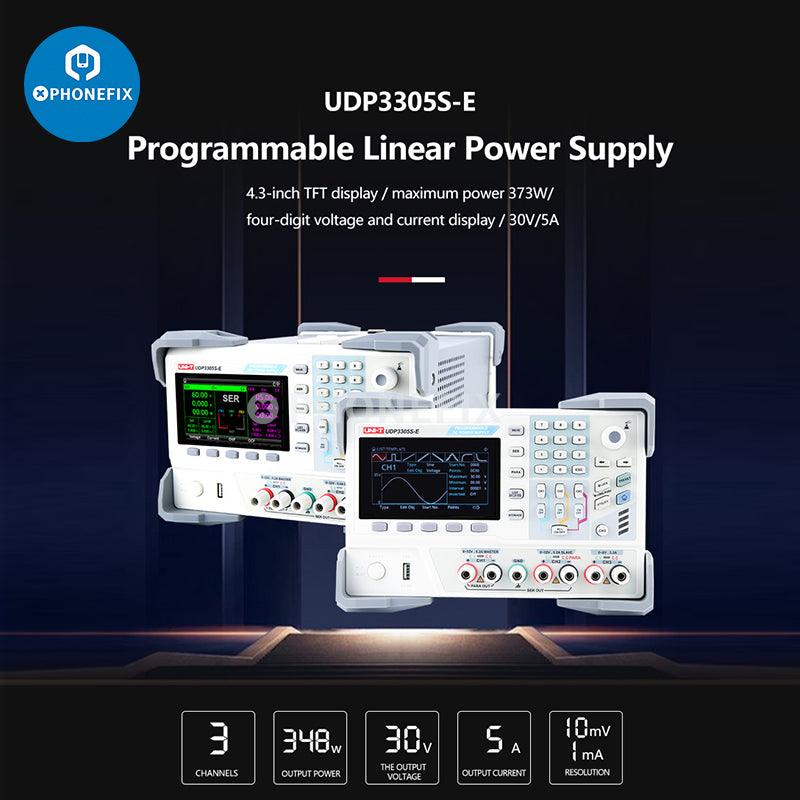

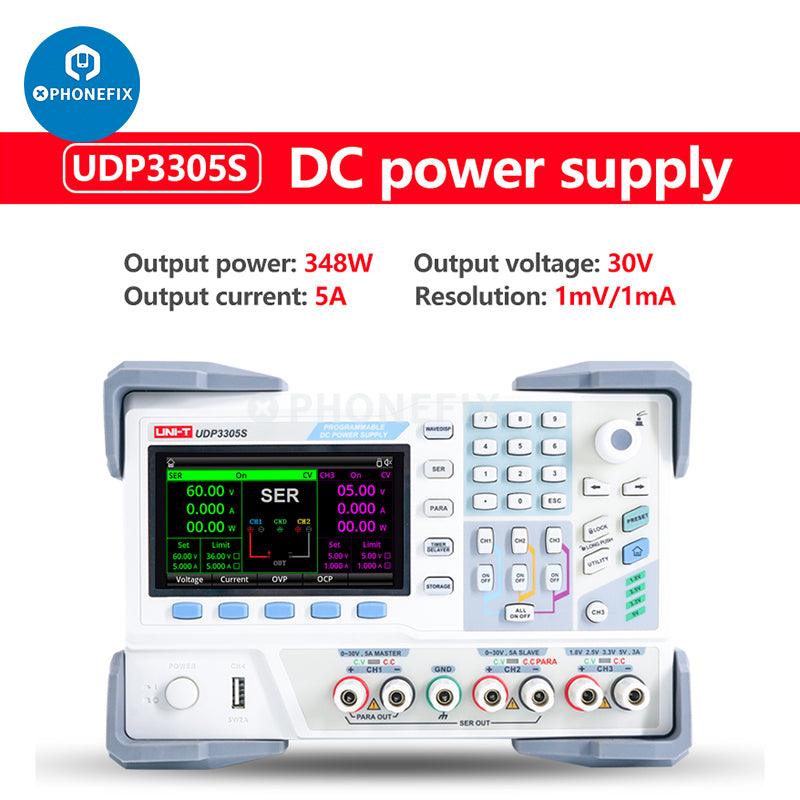

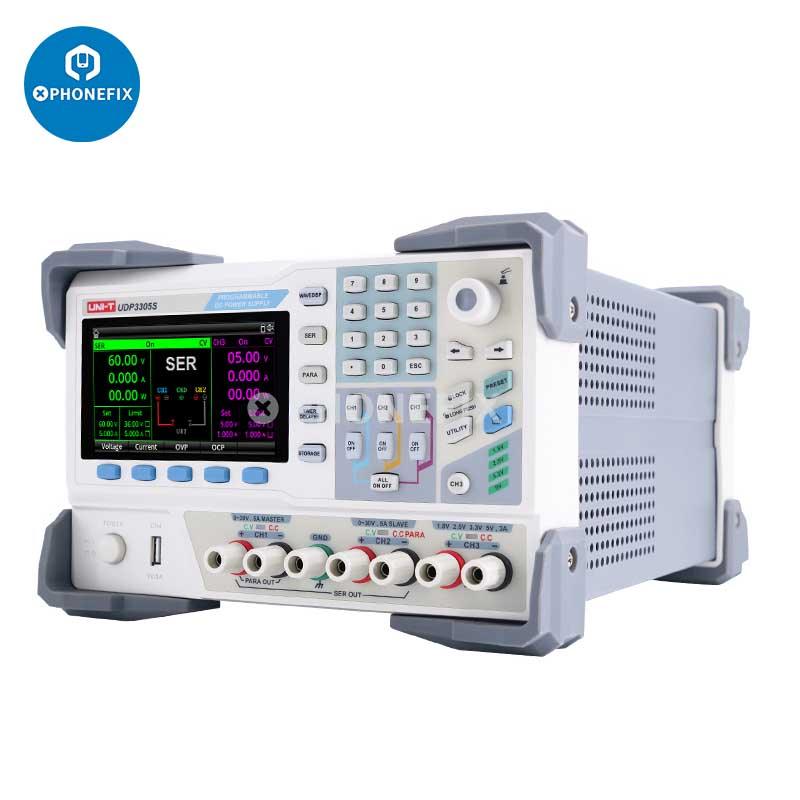

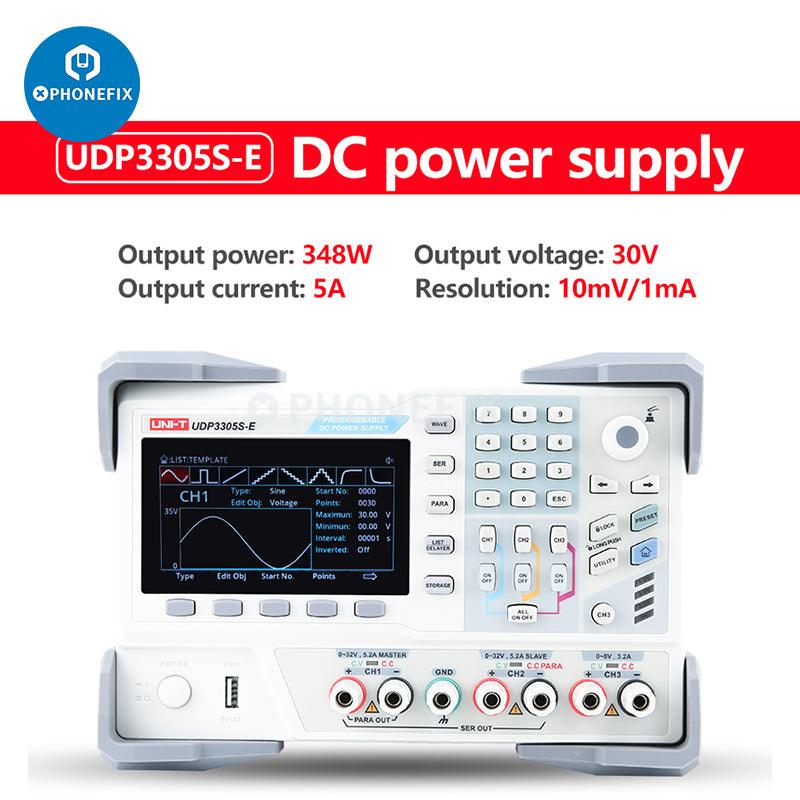

UNI-T UDP3305S-E UDP3305S 30V 5A adjustable DC power Supply, high-precision voltage regulator with 4 channels. It is for phone/tablets devices motherboard testing/ repairing, lab, scientific researching, industry and other fields.

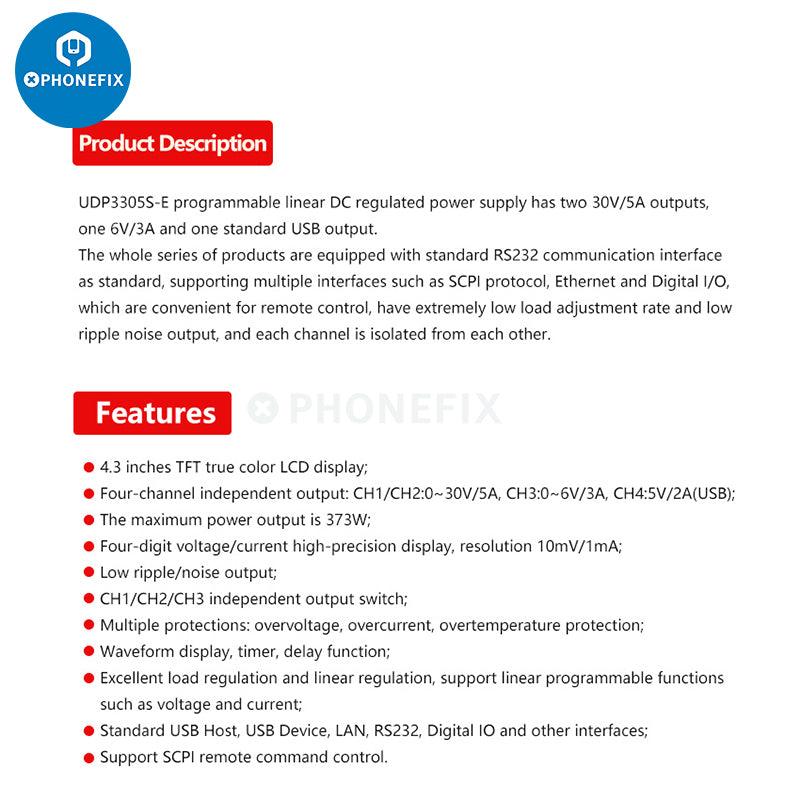

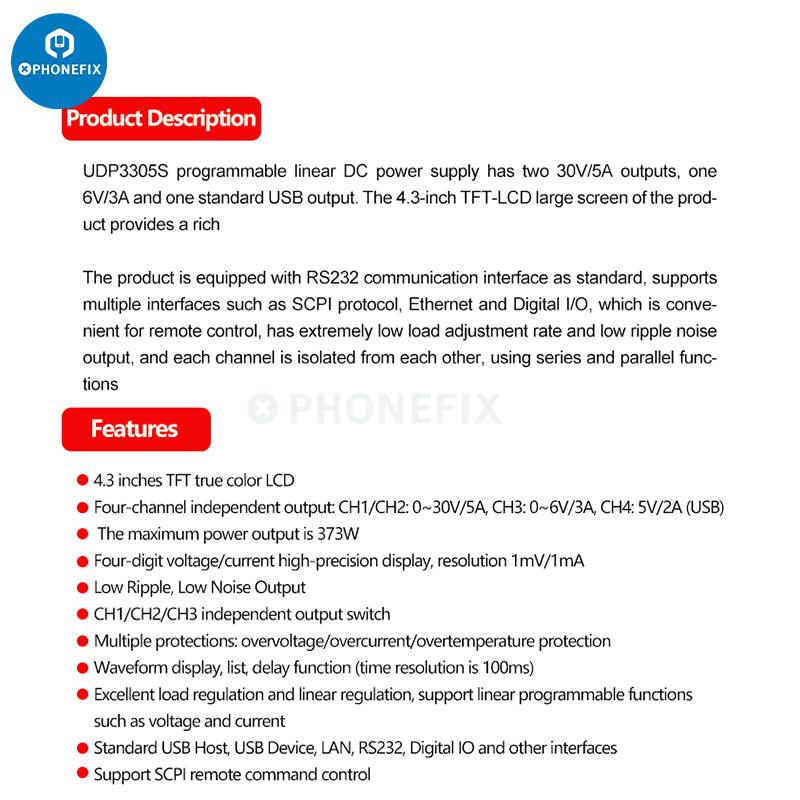

The UDP3000S series is a high-performance programmable linear DC power supply. It has a clear LCD user interface, excellent performance indicators, a variety of analysis functions and communication interfaces. It can meet the diversified test needs of users.
Features:
- Excellent load regulation and line regulation.
- Ultra-low output ripple and noise.
- Support one key serial and parallel output function.
- External trigger function to realize industrial automation control.
-

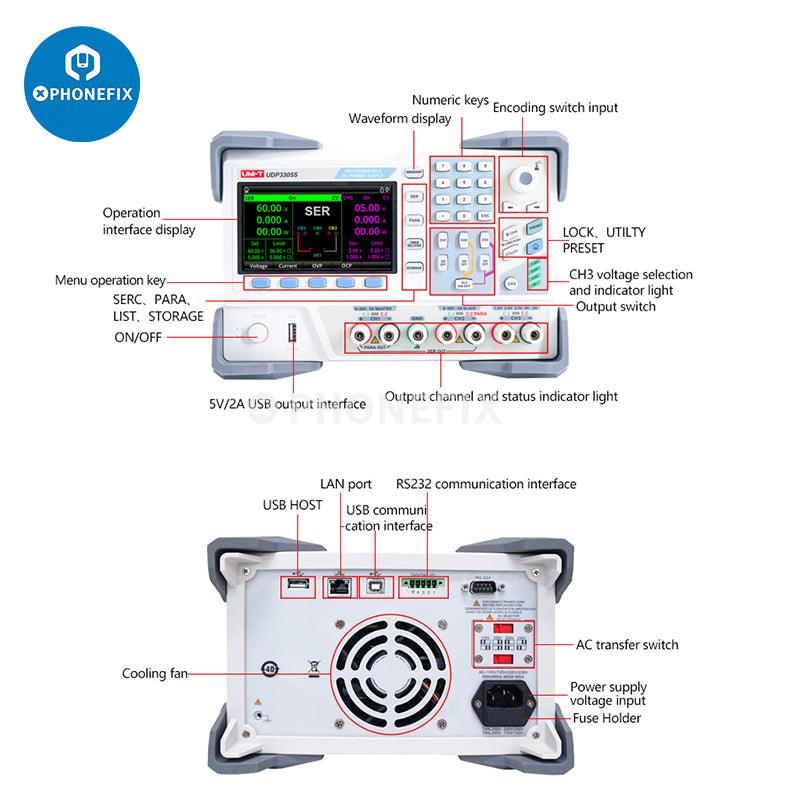

Rich remote-control interface: Provide USB host, USB device, LAN, RS232, digital IO and other interfaces.
- Intelligent speed control of fans can effectively reduce fan noise during operation.
- Support 10 groups of file storage and transfer out, and support USB FLASH read and write.
-
Waveform Display: With waveform display function, it can intuitively display the changing trend of voltage, current and power.
-
One-key setting for series and parallel: The series-parallel connection between CH1 and CH2 of the main channel can be realized without external connection, which simplifies the connection and makes the test easier.
-
List/Delayer function: With list and delay setting functions, it can set up to 2048 sets of data according to test requirements, and the number of cycles can reach 99999. It is used with waveform templates, which is very convenient for cycle testing and aging testing.
-

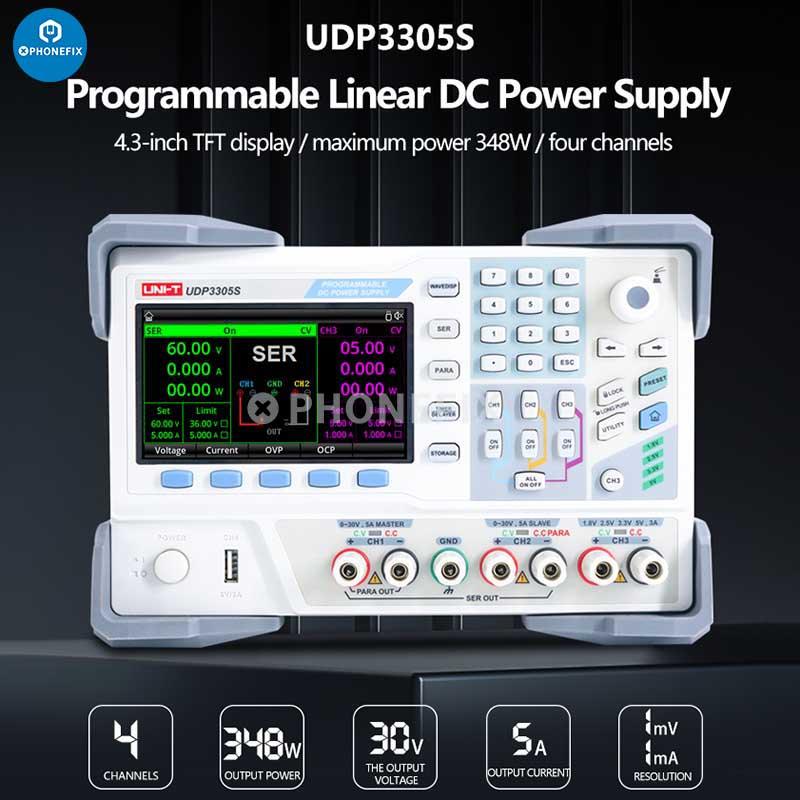

LCD interactive interface: Using a 4.3-inch high-definition display screen, it provides users with a man-machine interface with rich functions and simple operation, which can display the current set output voltage/current, actual output voltage/current and protection output voltage/current value of the power supply in real time.
Package Includes:
-
DC Power Supply*1
- Power Cord*1
- USB Data cable*1
- Download Guide*1
- Certificate*1
