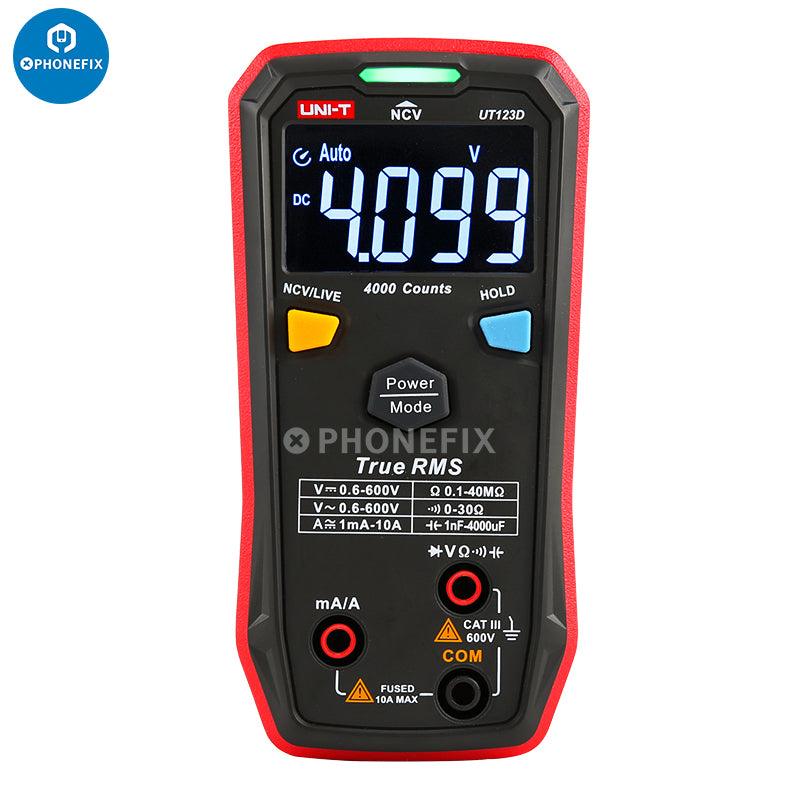

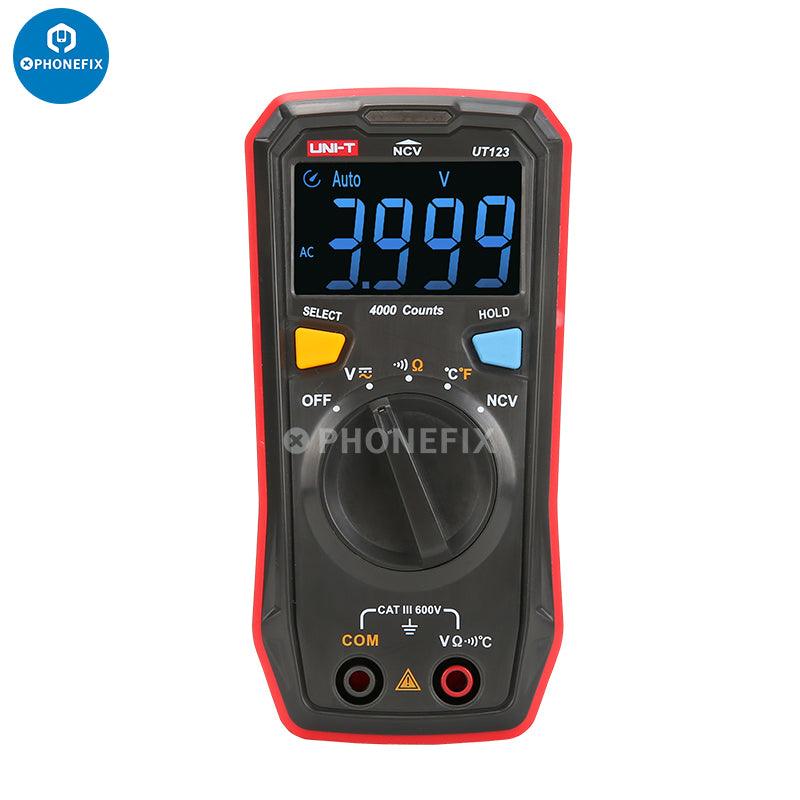

UNI-T UT123 UT123D Auto Range True-RMS EBTN Display intelligent digital multimeter. This temperature tester, AC/DC voltmeter has a unique design and functional configuration and is an entry-level phone repair tool.
Features:
- True RMS measurement.
- Intelligent anti-bum, no need to shift gears.

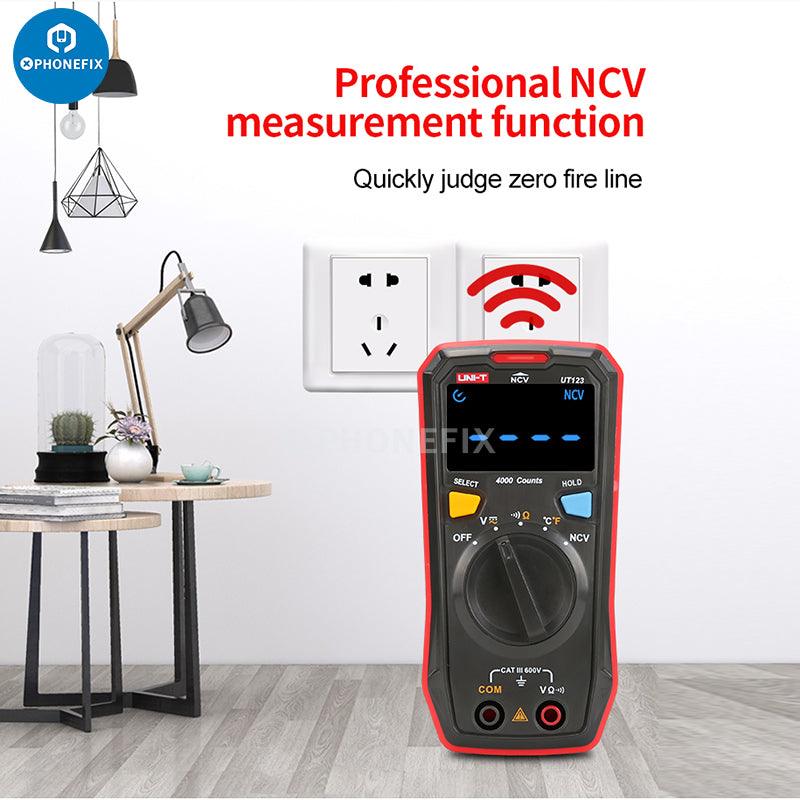

- Single meter pen distinguishes the zero line of fire, and audible and visual alarm prompts.
- With 4mF large capacitance measurement function, and circuit setting automatic power saving function.
- It meets safety standards, a functional anti-bum protection device to ensure the safe operation of users in the CAT Ill 600V environment.

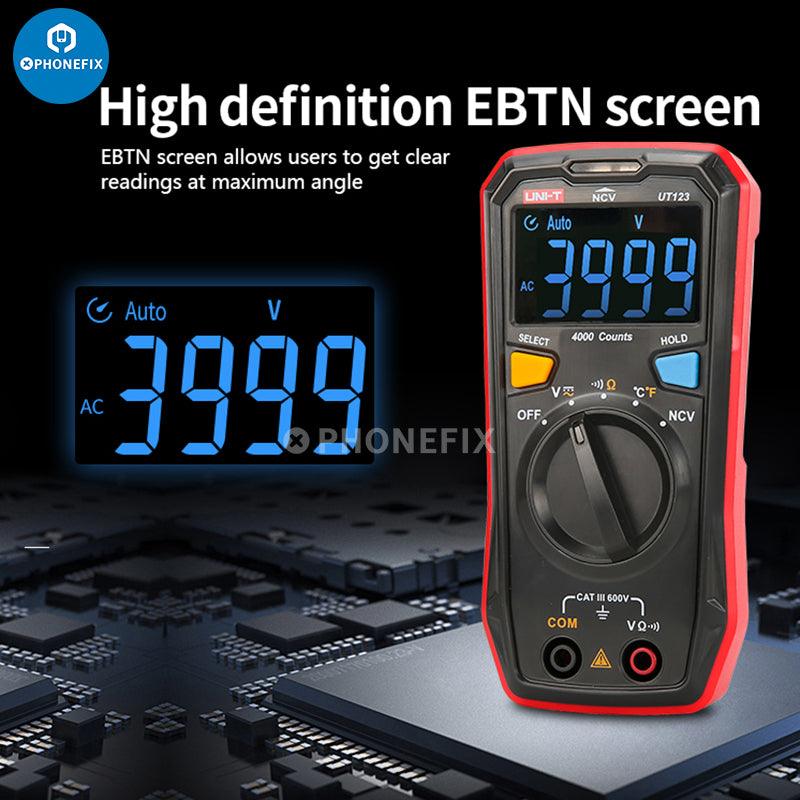

- Large screen EBTN/NCV sound and light alarm: The EBTN screen display enables the user to obtain clear readings at the maximum angle.
- Automatic power supply detection: The meter pen is inserted into the current input hole to automatically switch to the current measurement function.
- It can automatically identify the function gear and range according to the input signal, effectively reduces the difficulty of the operation and improves the work efficiency.
Specification:
- DC voltage: 4.000~600V ±(0.5%+3)
- AC voltage: 4.000~600V ±(1.0%+5)
- AC current: 999.9mA~9.999A ±(1.2%+3)
- DC current: 999.9mA~9.999A ±(1.0%+3)
- Resistance: 400Ω~40.00MΩ ±(1.0%+2)
- Capacitance: 40.00nF~4000uF
- Maximum display: 4099
- True RMS: Yes
- Diode: Yes
- On-off/buzzer: Yes
- NCV: Yes
- LIVE: Yes (Distinguish the zero line of fire)
- Auto range: Yes
- Low voltage display: Yes
- Automatic shut-down: Yes
- Weight: 137g

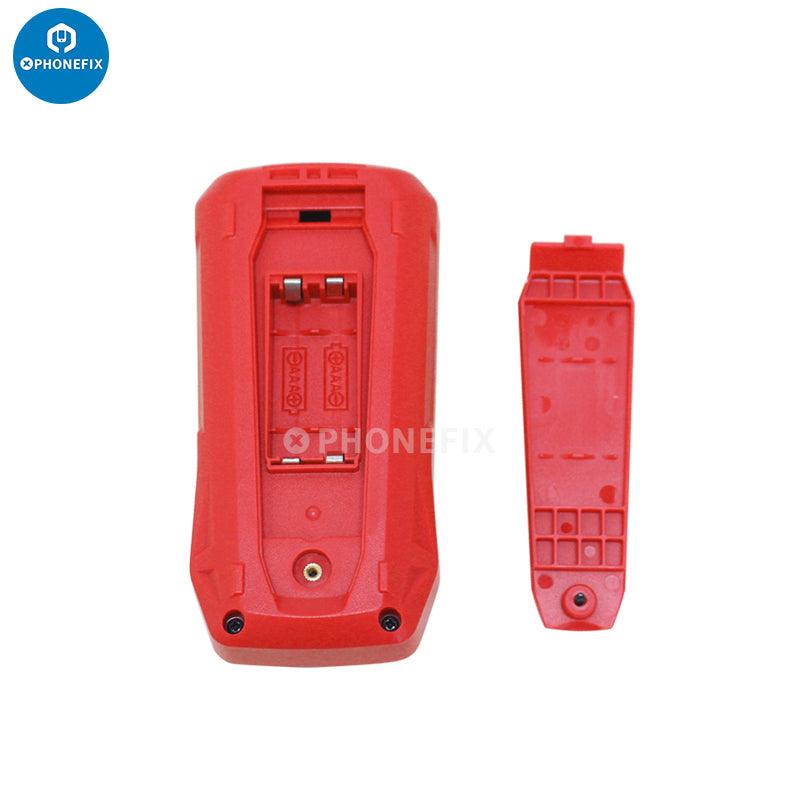

- Power supply: AAA 1.5V battery x2 (not included)
- Size: 130*65*28mm
Package includes:
- 1 x Multimeter (Without battery)

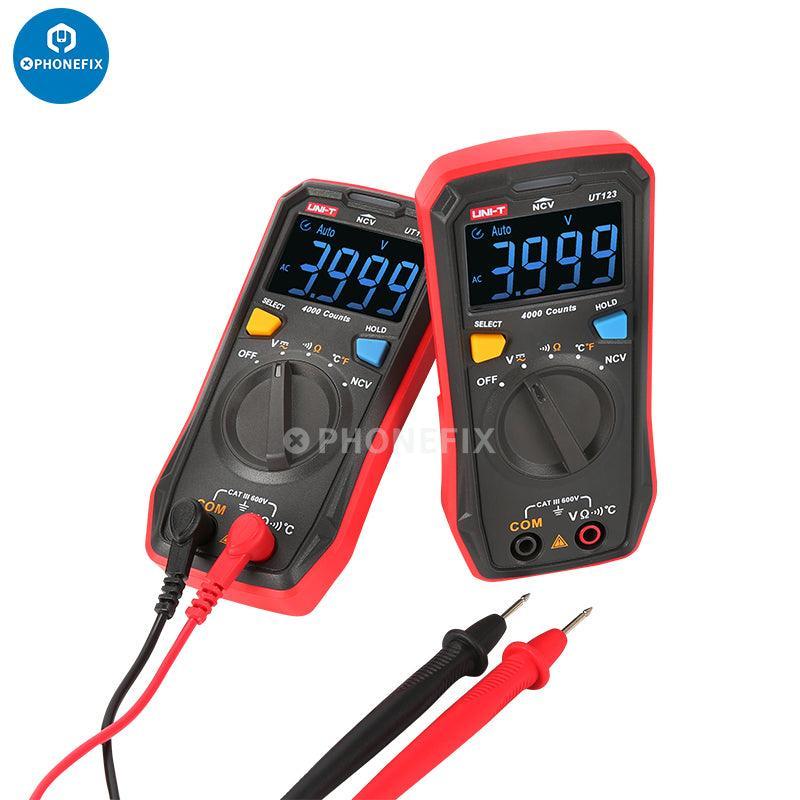

- 1 x Test line
