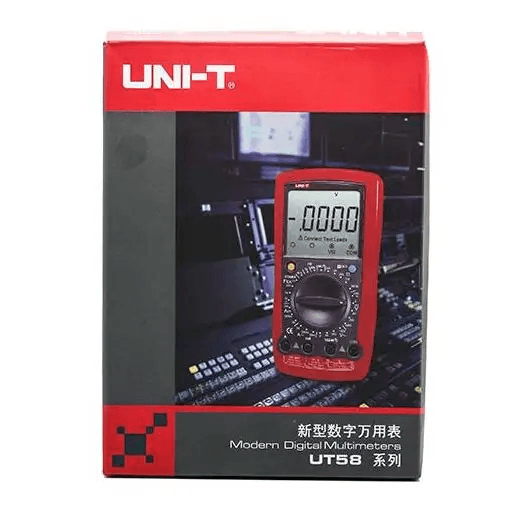

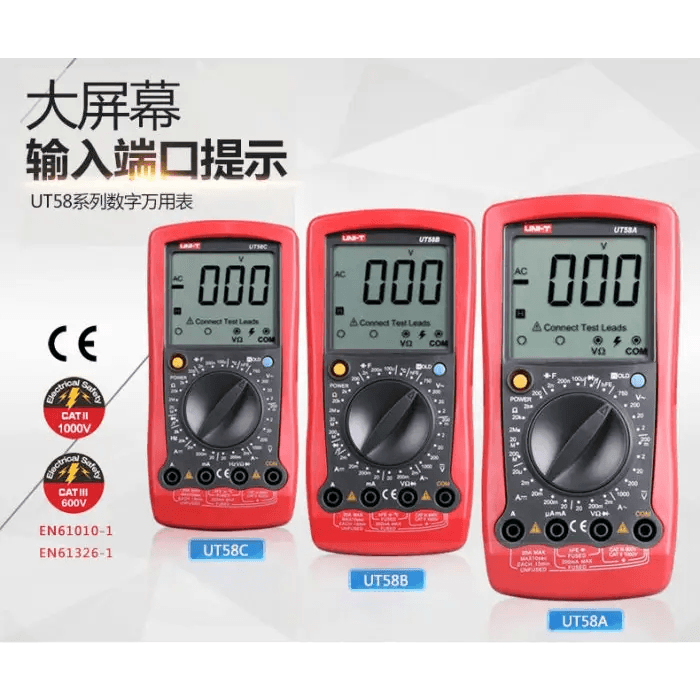

UNI-T UT58A 3.0" LCD Digital Multimeter Mobile Phone Repairs
UNI-T UT58A multimeter in mobile phone repairs. it is used for testing and to check readings of various parts and components in a mobile phone
Product Specification :
- DC voltage: 200mV/2V/20V/200V/1000V ±(0.5%+1)
- AC voltage: 2V/20V/200V/1000V ±(0.8%+3)
- DC current: 20uA/2mA/20mA/200mA/20A ±(0.8%+1)
- AC current: 2mA/200mA/20A ±(1%+3)
- Resistance: 200ohm/2Kohm/20Kohm/2Mohm/20Mohm/200Mohm ±(0.8%+1)
- Capacitance: 2nF/200nF/100uF ±(4%+3)
- Maximum display: 1999
- Input impedance for voltage test: 10Mohm
- Other functions: Full symbol display, input port prompt, diode testing, triode testing, continuity buzzer, low power warning, data hold, automatically power off
