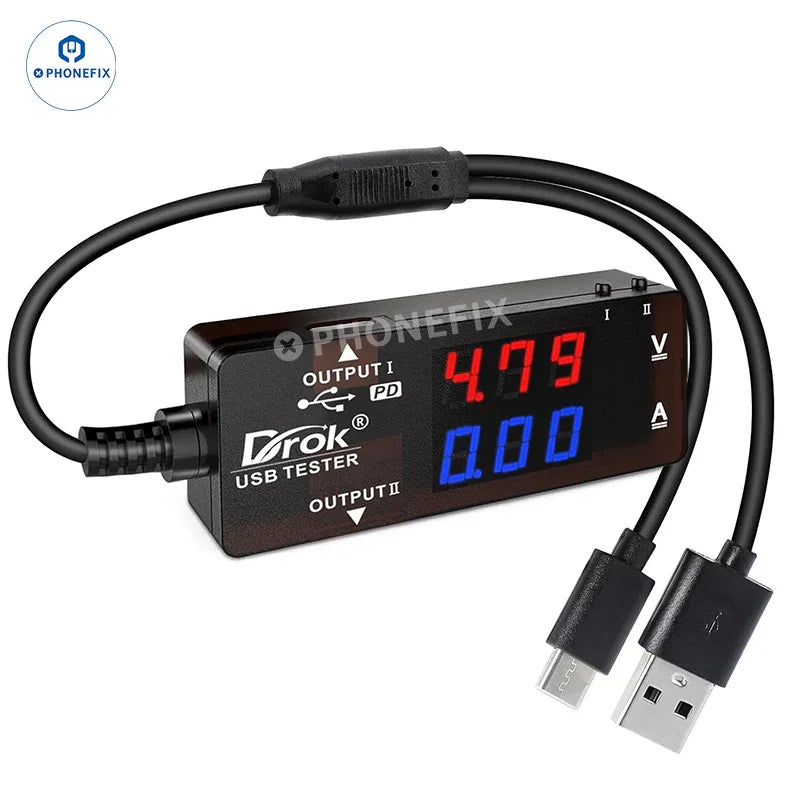

USB-A/USB-C 2.0 Dual USB Port Power meter supports precise measurement of parameters such as voltage and current, and features multiple protection functions to ensure safe charging of devices. Dual Port USB Charging Diagnostic Detector has a built-in intelligent charging IC that automatically identifies and matches the optimal charging mode to the device. Suitable for voltage and current testing of various USB devices, it is especially suitable for charging and power status checks of devices such as power banks, tablets, and smartphones.
Feature
1. Multiple Protections: Overvoltage protection, under voltage protection, overcurrent protection, and short circuit protection ensure device safety.
2. Multi-functional Display: Offers 7 display modes, supports 2-key switching, and 3 fixed display modes.
3. Precise Measurement: Measurement accuracy reaches 0.1% (±3 characters), with a measurement rate of 500ms/time.
4. Intelligent Charging Mode Recognition: Built-in intelligent charging control IC automatically identifies the device and provides the appropriate charging current.
5. USB cable length: The USB extension cable is 226mm (8.9 inches) for easy device connection.
Product Parameters

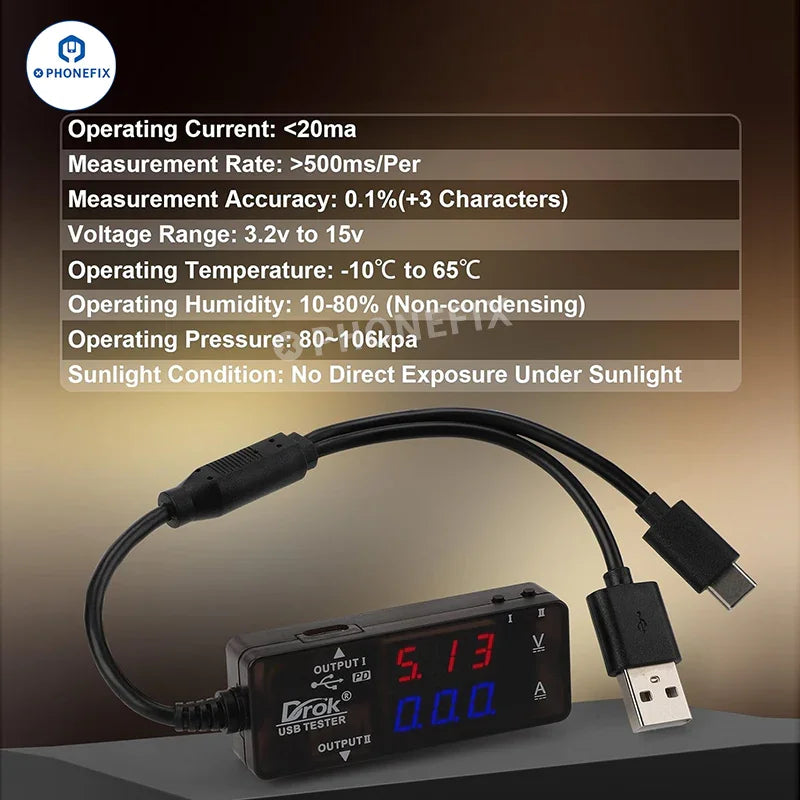

Product Name: USB Tester
Display Method: 0.28" LED, Single Color (Full Red), Dual Color (Red and Blue) Available
Product Dimensions: 69×26×19mm
USB Extension Cable: ≥120mm
Measurement Accuracy: 0.1% (±3 digits)
Measurement Rate: ≥500ms/time
Operating Temperature: -10～+65℃
Operating Pressure: 80～106kPa
Operating Humidity: 10～80% (Non-condensing)
Sunlight Exposure: No direct sunlight
Input Voltage: Test Voltage: 3.20-30.0V (Automatic decimal point shift)
Resolution below 10V: 0.01V
Resolution above 10V: 0.1V
Test Current: 0.00-5.00A (Up to 10A, cannot operate for extended periods)
Automatic Identification: OUTPUT Ⅱ has a built-in intelligent charging control IC, which can automatically match a suitable and safe high-current charging for your mobile phone or tablet.
