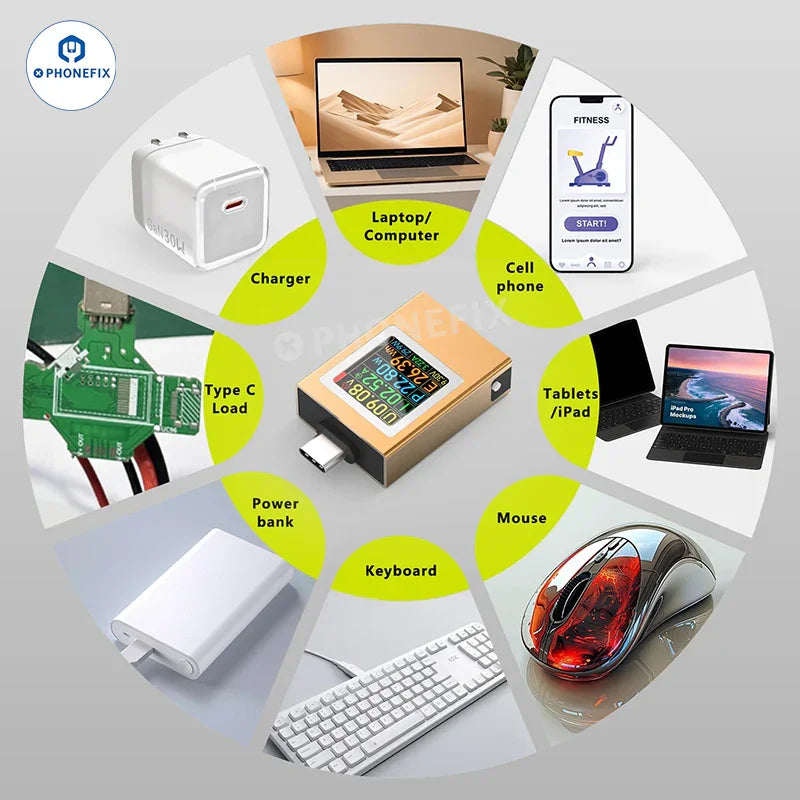

HDC-085C USB-C Interface Multifunctional Capacity Tester supports short-term peak currents up to 12A, features a gravity-sensing rotating screen, accurately records battery capacity, and performs efficient power management. It supports comprehensive protocol compatibility and is suitable for current, voltage, and power testing of various Type-C chargers, data cables, power banks, and other charging devices.

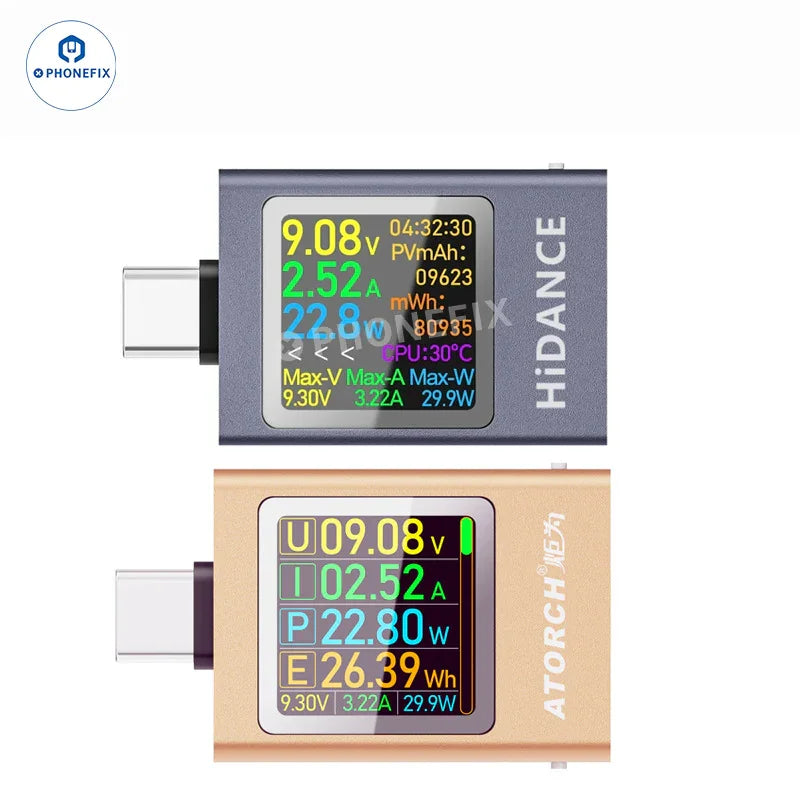

Option:

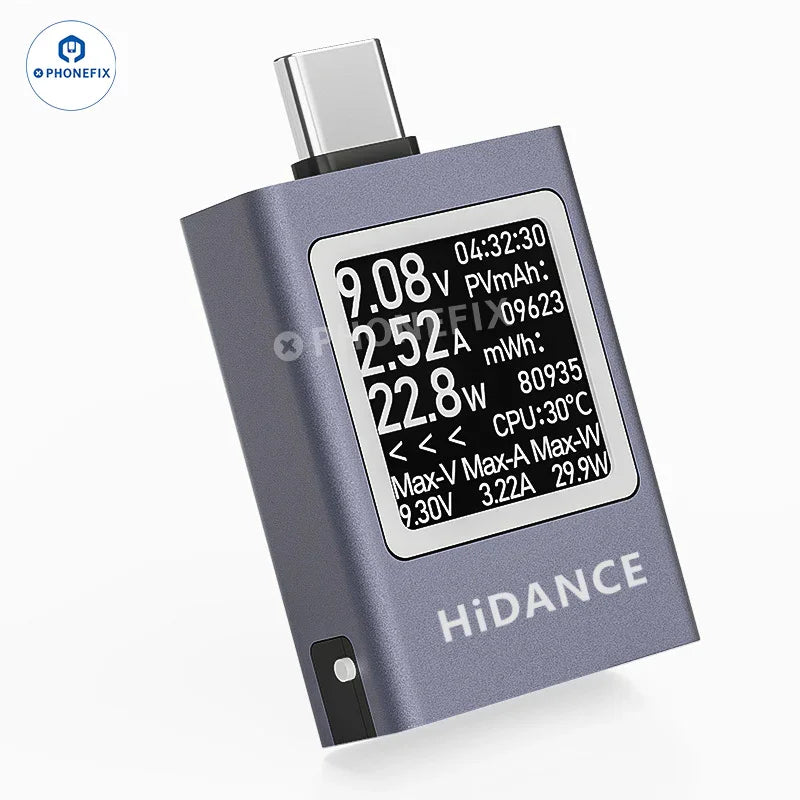

1. HDC-085C Gray Digital Display

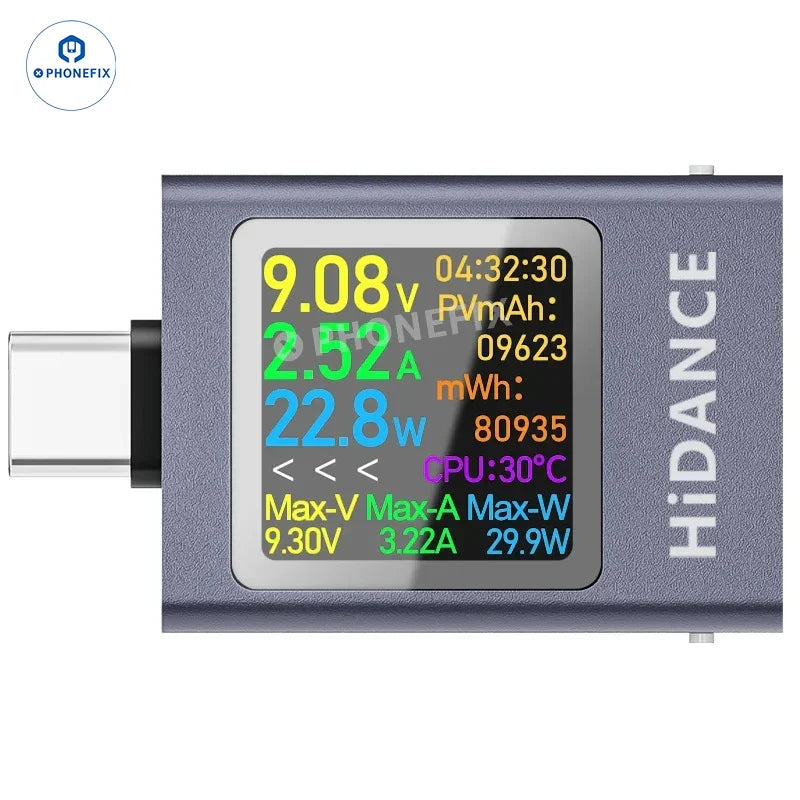

2. HDC-085C Color Digital Display

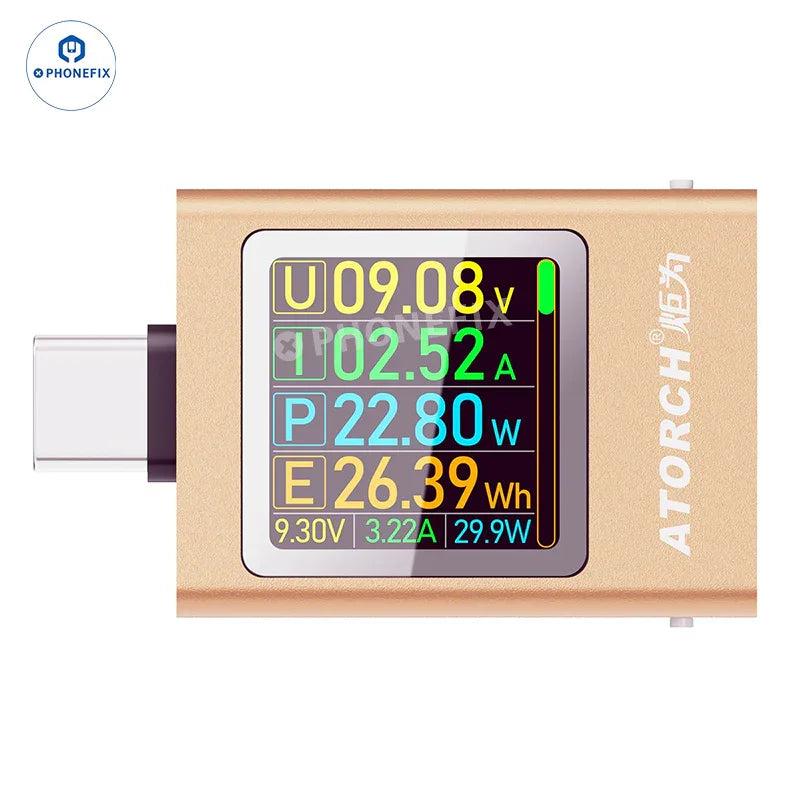

3. AT850 Color Digital Display
Features:
1. Protocol Compatibility: Supports multiple protocols including PD2.0, PD3.0, PPS, QC2.0, and QC3.0, covering almost all USB-C charging protocols.
2. High Peak Current: Can reach a peak current of 12A (50V 12A 600W) for short periods, suitable for high-power charging testing.
3. Gravity-Sensing Rotating Screen: Rotate the screen for easy viewing of test data from different angles.
4. Battery Capacity Calculation: Built-in dedicated logic algorithm calculates internal capacity based on battery voltage and conversion rate, avoiding the limitations of high-voltage testing.
5. Peak Recording Function: Records real-time peak values of voltage, current, and power during charging, facilitating later viewing of maximum values.

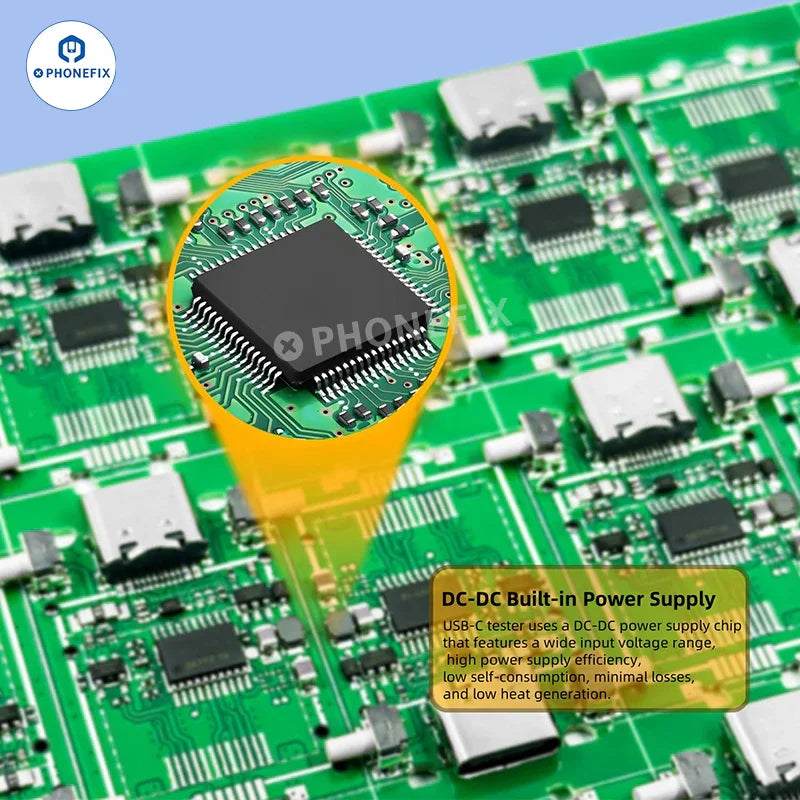

6. High-Efficiency Power Supply: Employs a built-in DC-DC switching power supply chip, offering high efficiency and low power consumption.
Product Parameters:
Product Name: Type-C Tester
Product Model: HDC-085C
Operating Voltage: DC4.5~50V
Data Retention Period: TA=55℃ 20 years
Operating Current: 0~6A (Short-time peak 12A)
Power Display: 0~9999WH
Power Consumption: <0.15W
Capacity Display: 0~99999mAh
Power Display: 0~600W
Operating Temperature: 0~45℃/32~113℉
Sampling Resistor: 0.001R
Product Dimensions: 43x25x10
