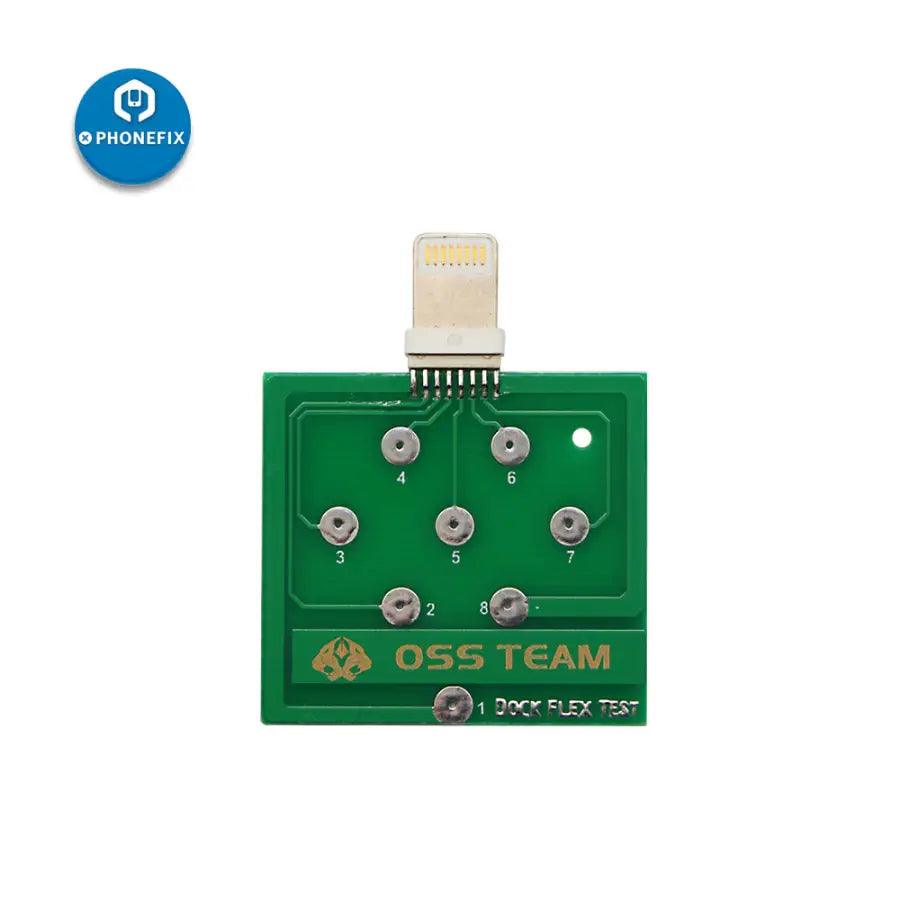

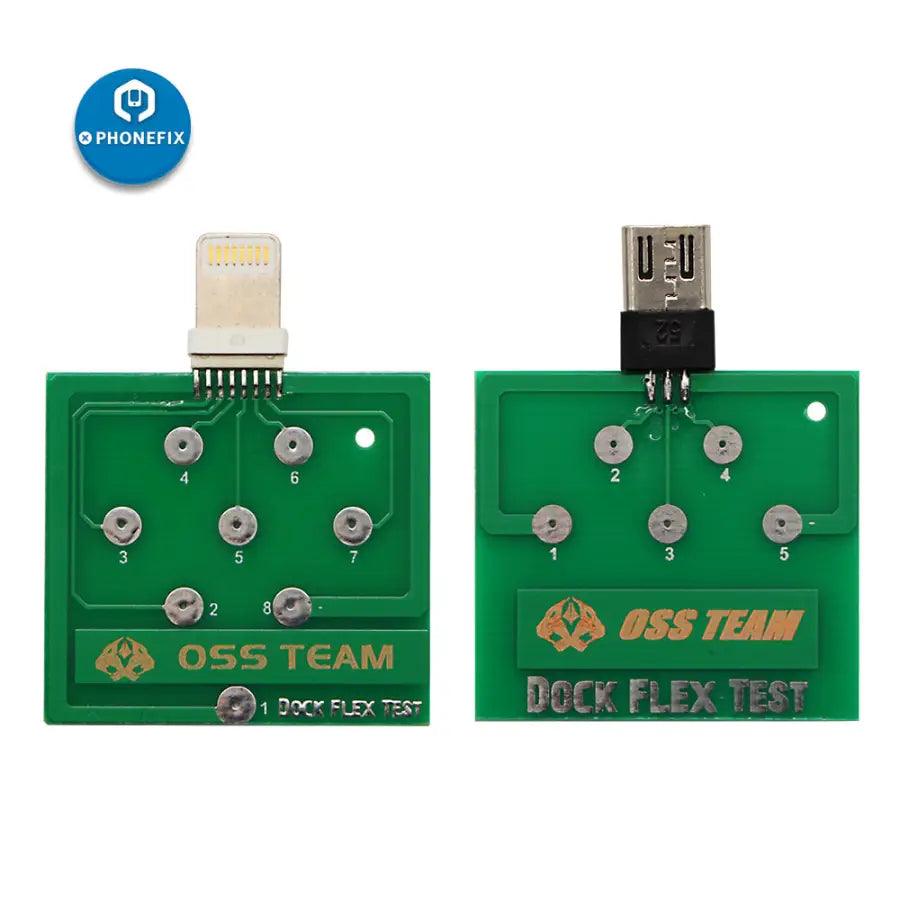

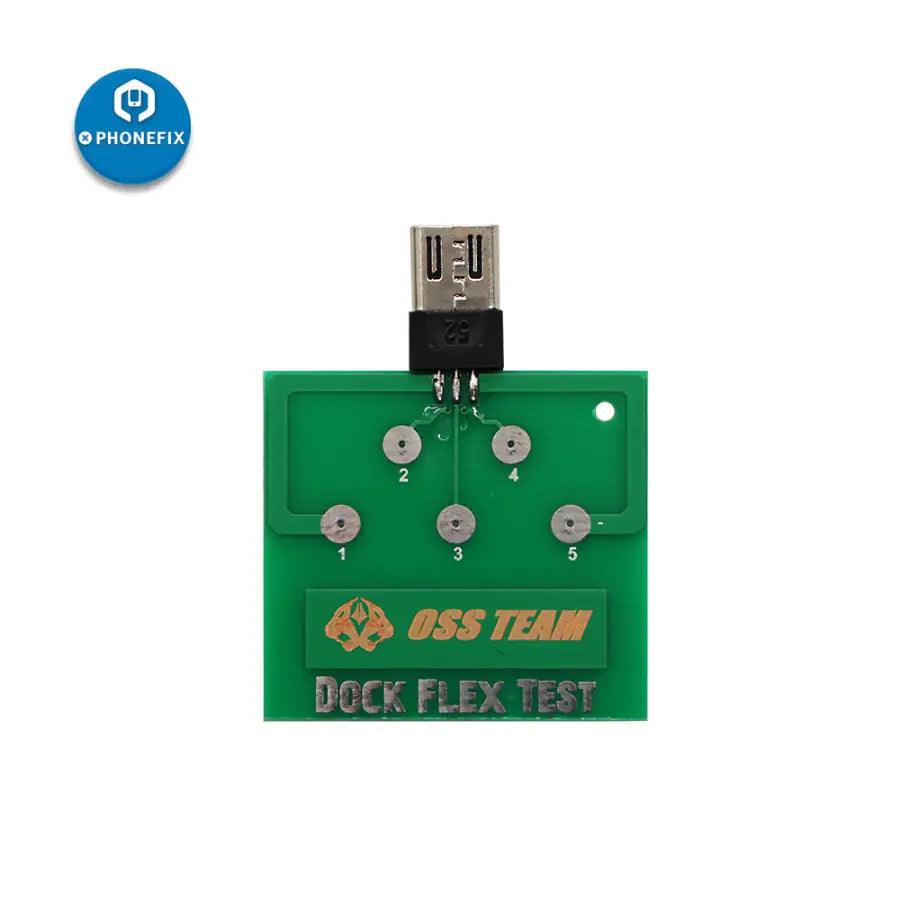

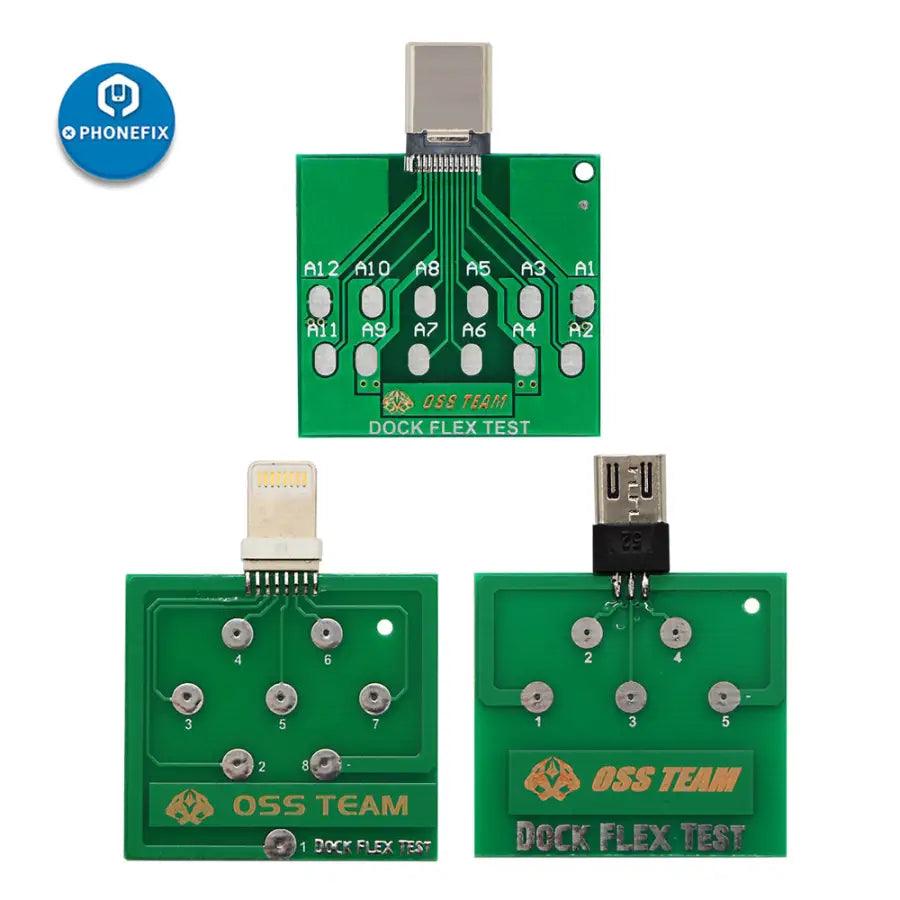

1. OSS Team Phone Tail Plug Test Board.
- Lightning port for iPhone.

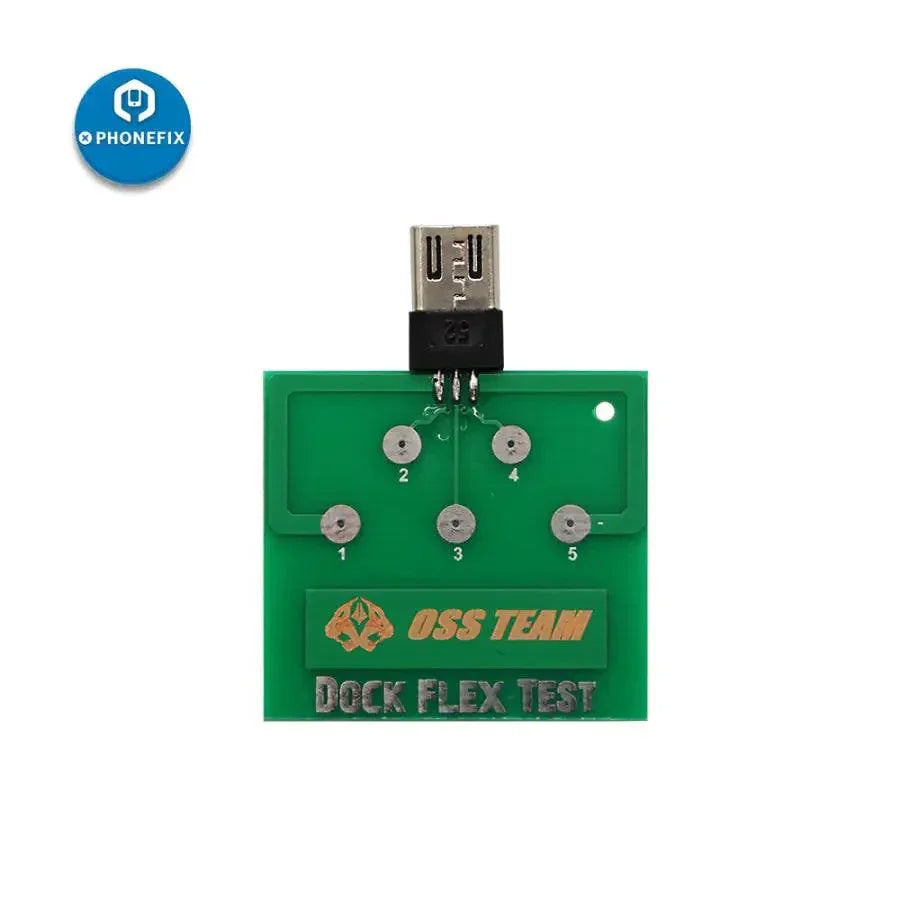

- Micro-USB port for Android Phone.

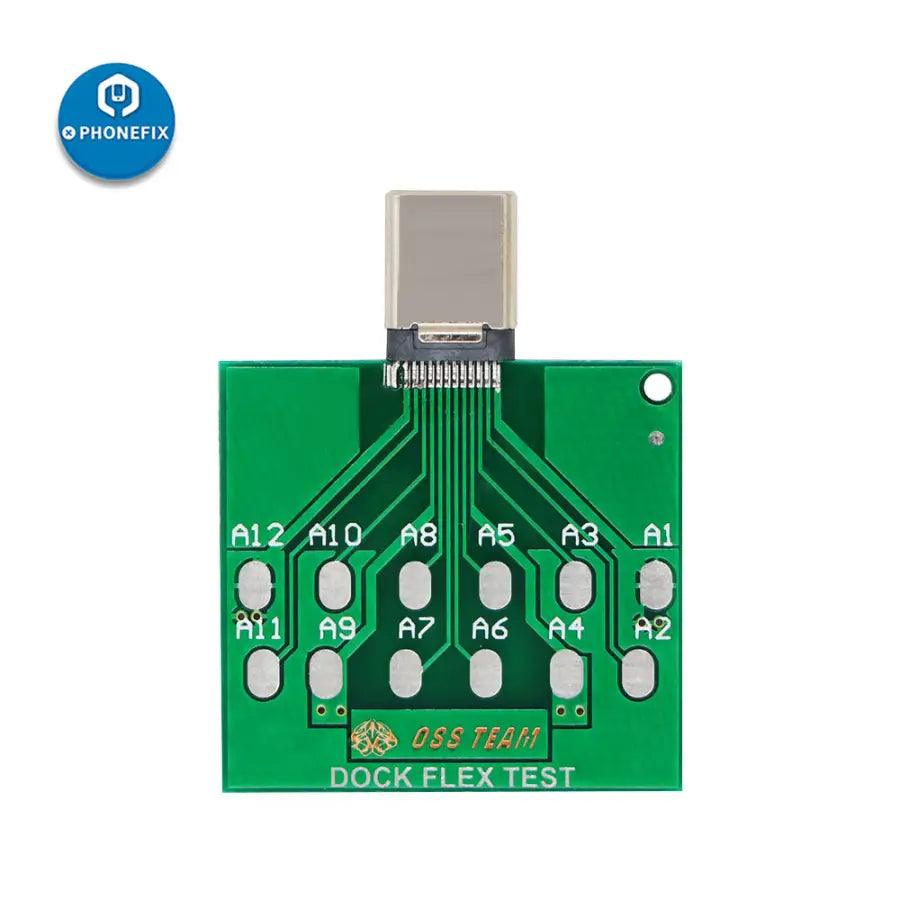

- USB-C port for Android Phone.

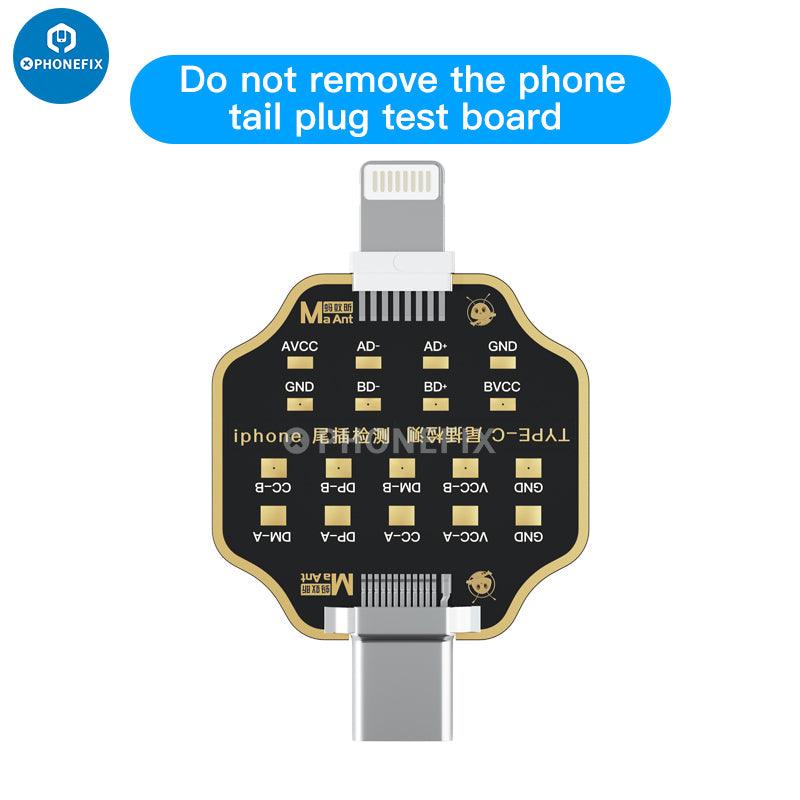

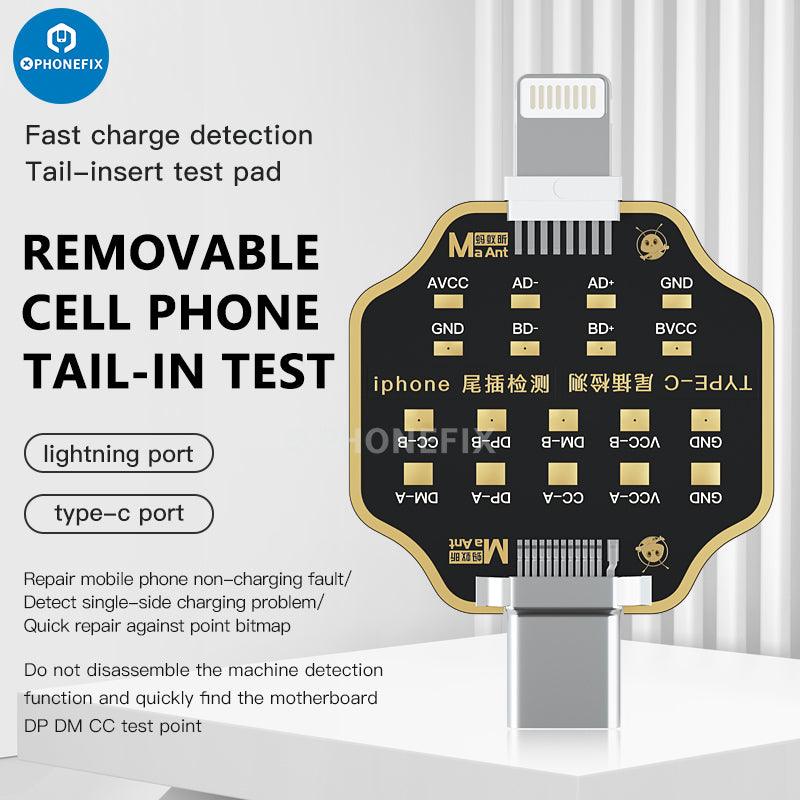

2. MaAnt Phone Tail Plug Test Board(with lighting and type-c port).

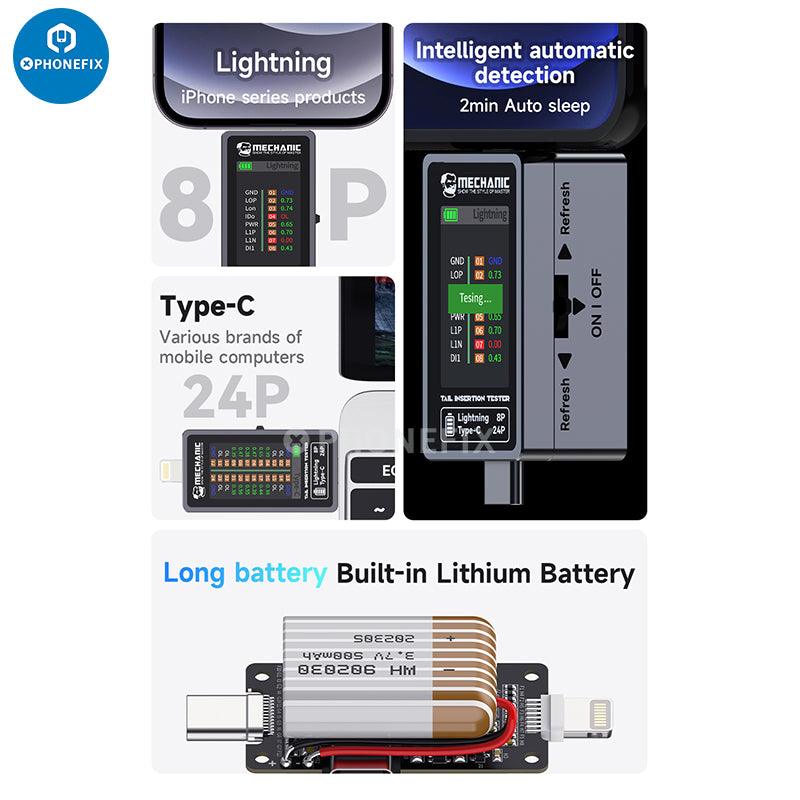

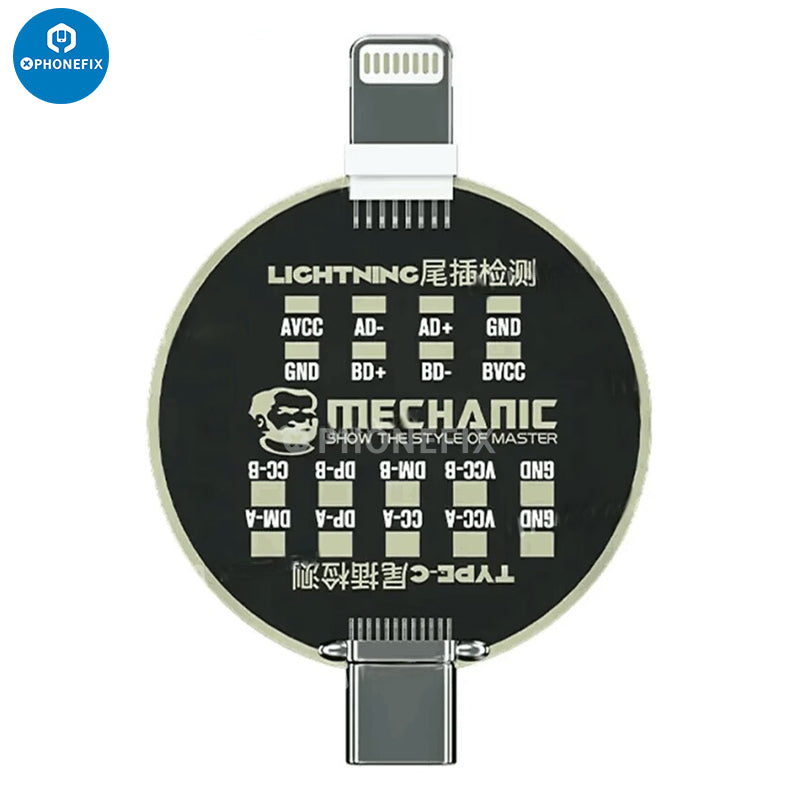

3. Mechanic T-824 Phone Tail Plug Tester(with lighting and type-c port).

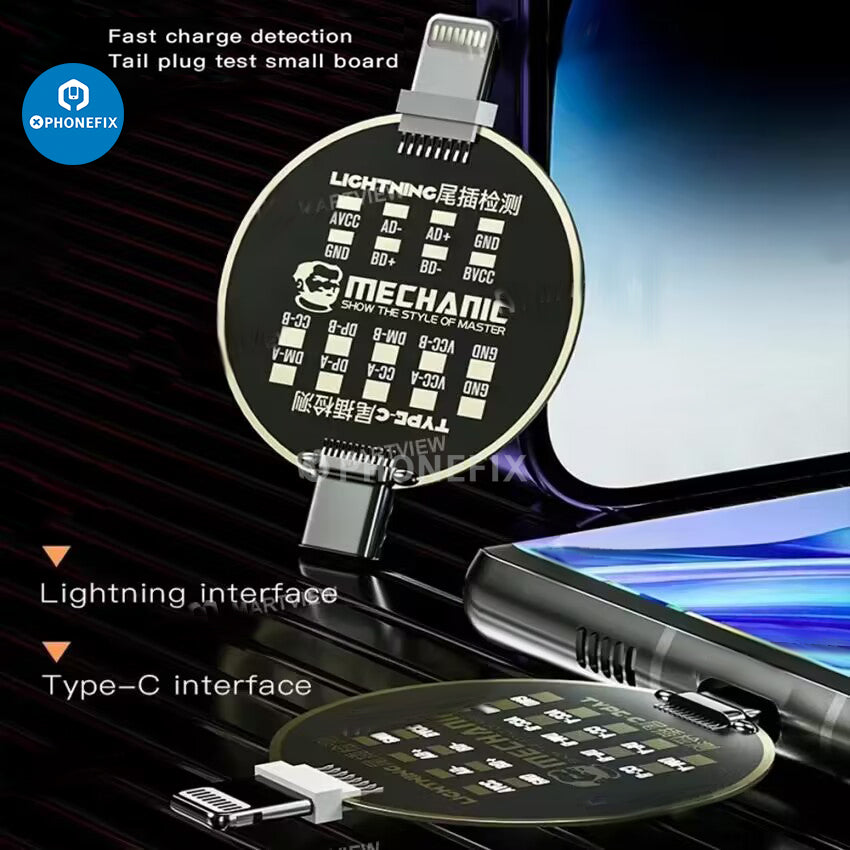

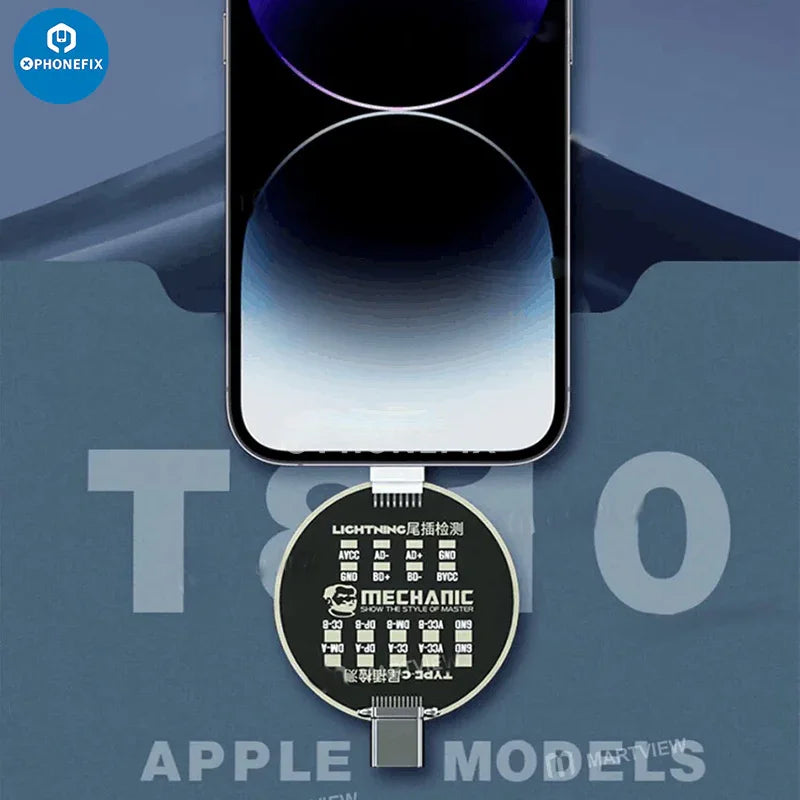

4. Mechanic T810 Phone Tail Plug Test Board (with lighting and type-c port).
1. Easy to use,directly plug to the USB charging port of your phone.

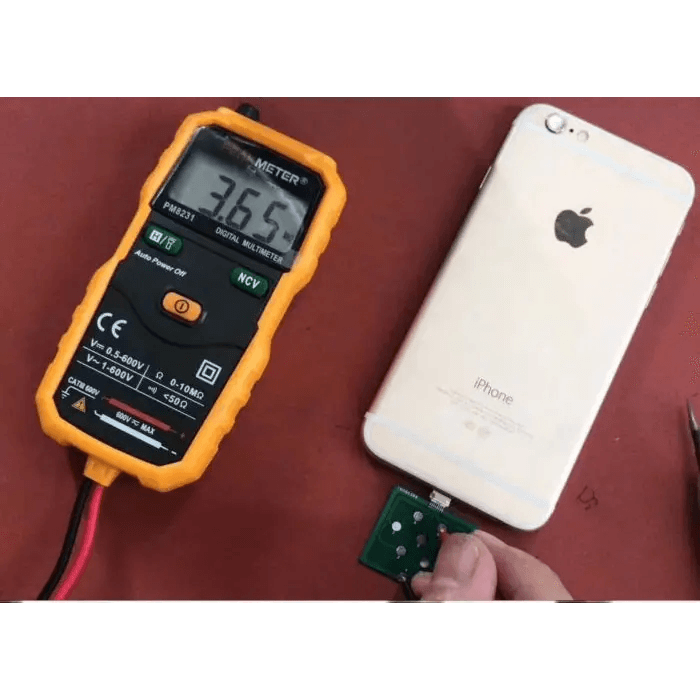

2. With this board,you can do test work without opening a mobile phone.
3. It is used for testing the mobile phone U2 IC, battery and charging port good / bad performance. The charging port can offer the best solution without cell phone parts removal neccessory, you can plug the test board to tail plug directly, it's designed for both iPhone and Android models.
4. Application: U2 IC Test, Battery Test, Charging Port Test.

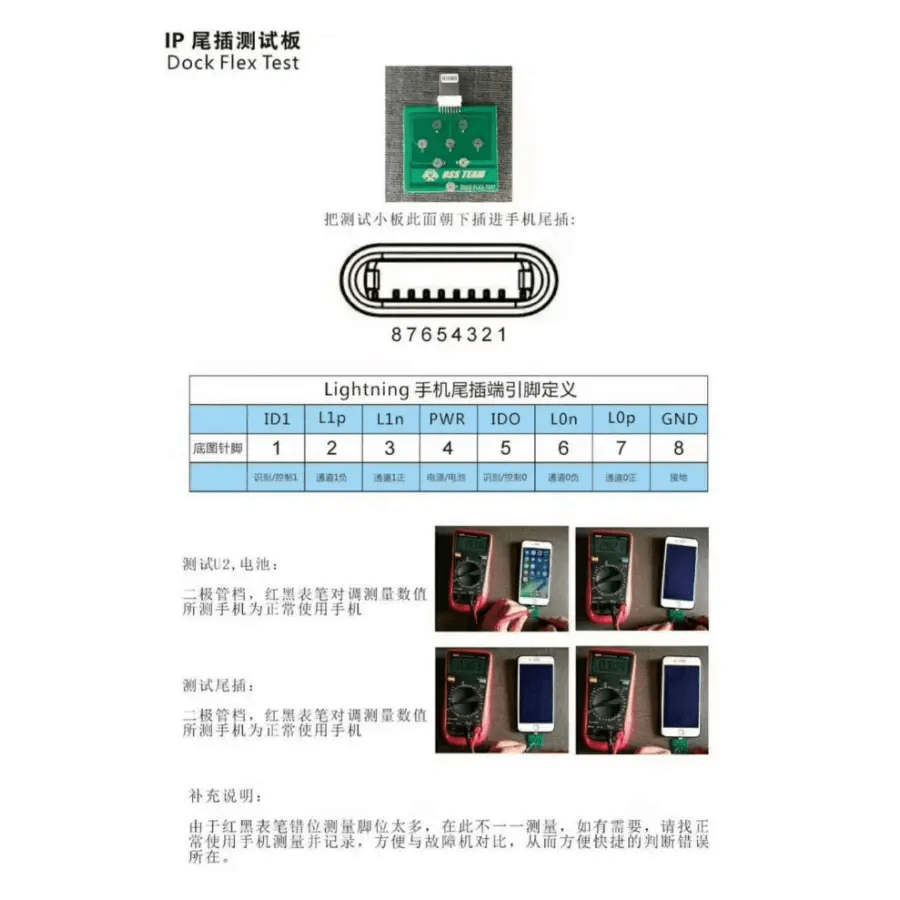

1- identification / control
2- channel 1 negative
3- channel 1 positive
4- power / battery
5- identification / control 0
6- channel 0 negative
7- channel 0 positive

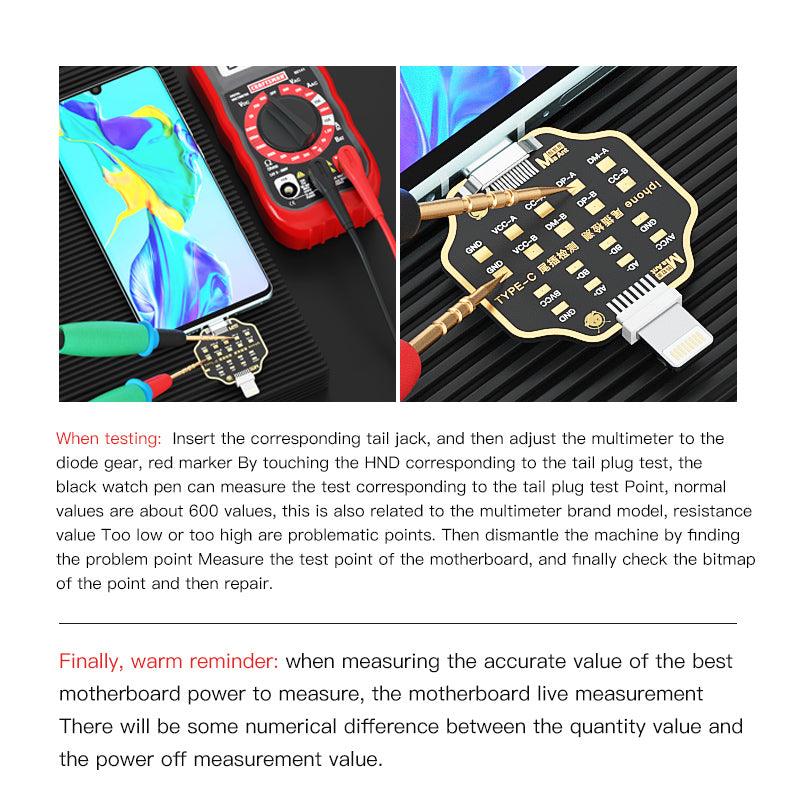

Test U2 / battery: diode file, exchange red and black multimeter probe to measure value
Test charging port: diode file, exchange red and black multimeter probe to measure value.
Supplementary explanation: Because the pin probe dislocation are too much, if necessary, please apply normal-working mobile phone measuring and recording, which will be convenient to compare with faulty phone and easier to judge the error.
