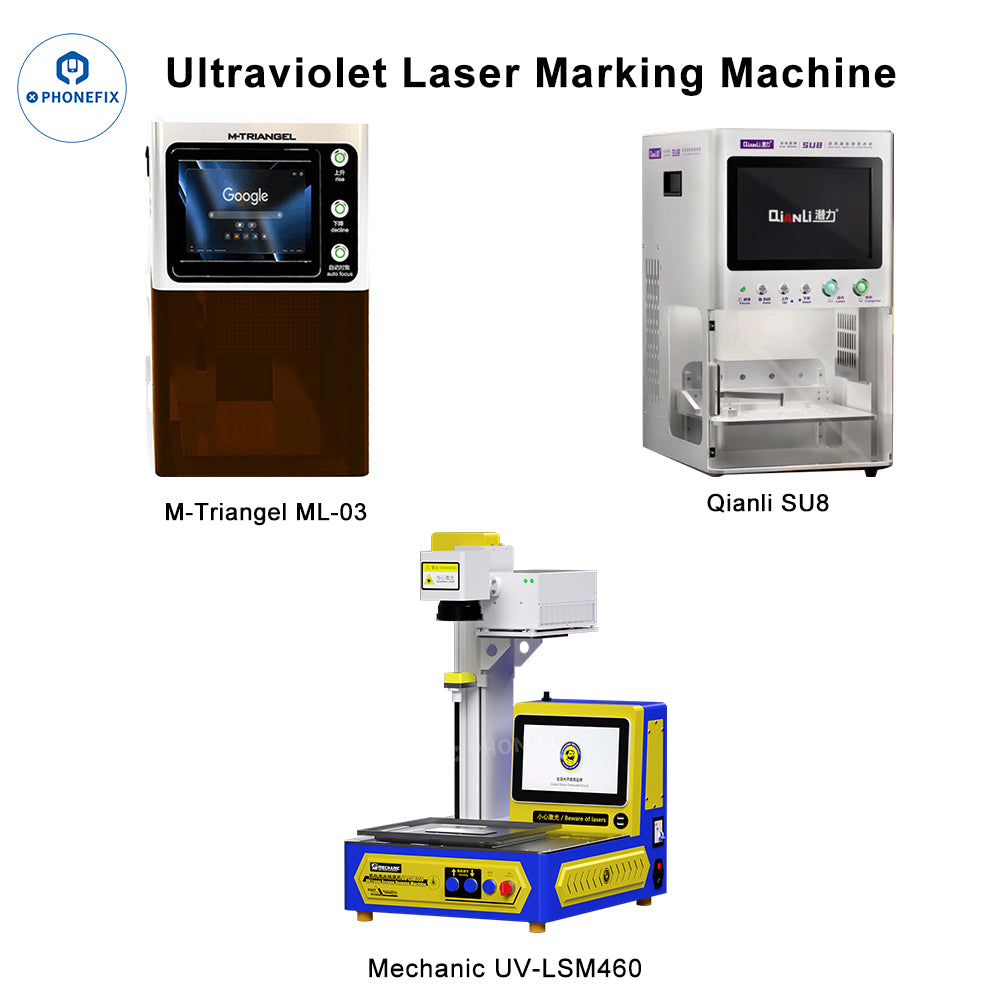

2024 Ultraviolet Laser Marking Machine: M-Triangel ML-03, Mechanic UV-LSM460, and Qianli SU8 Cold Light Source Laser Machine for mobile phone/iPhone screen separation/LCD Frame/Back Glass Removal. M-Triangel ML-03 UV laser marking machine built-in air cooling system for separating phone LCD glass without damage. Mechanic UV-LSM460 air-cooled UV laser screen removal machine supports mobile phone, iPad, tablet, metal, wood, plastic, leather, glass marking and glue removal. Qianli SU8 Cold Light Source UV Laser Machine.

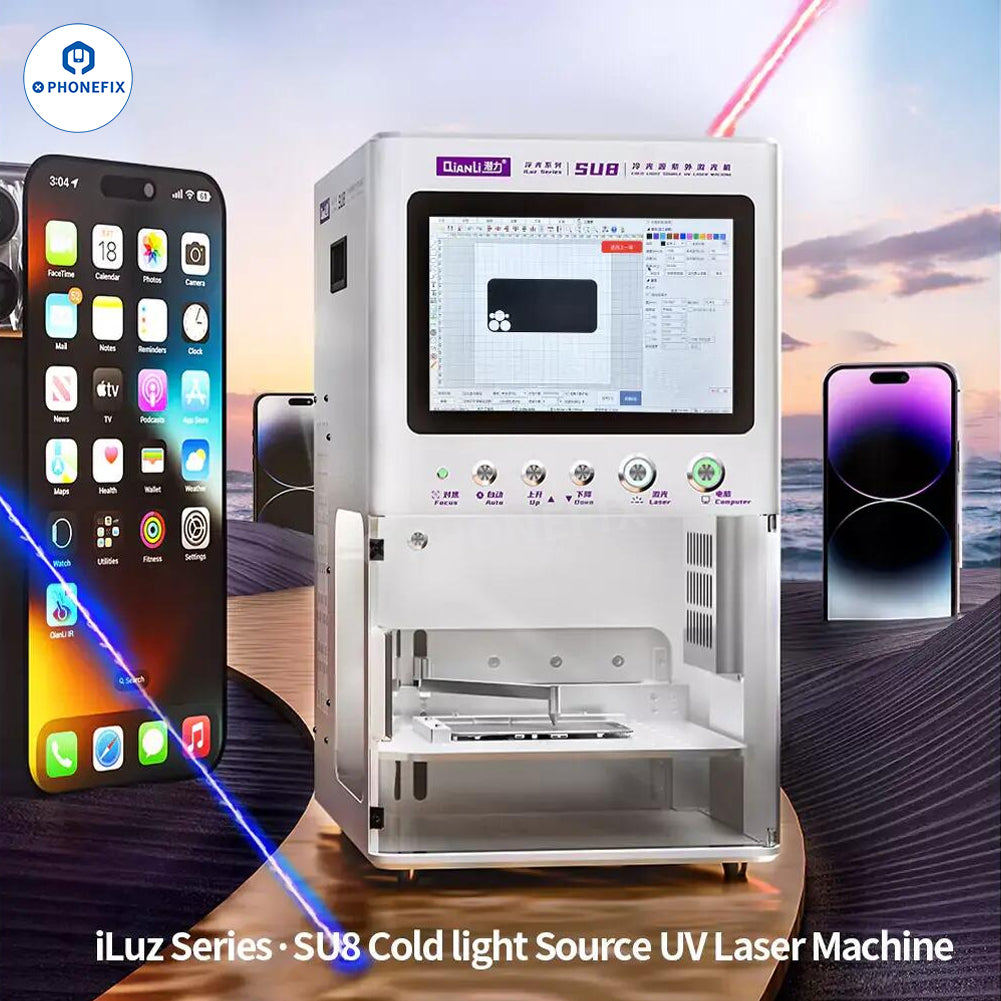

Qianli iLuz Series SU8 Cold Light Source UV Laser Machine is designed for high-precision laser engraving and mobile phone screen separation.
M-Triangel ML-03 Ultraviolet Laser Marking Machine can be used marking on PCB, phone chargers, and other electronic components.Marking logos, barcodes, and other information on plastic and glass product and so on. Capable of ultra-fine marking with minimal heat damage to the material.

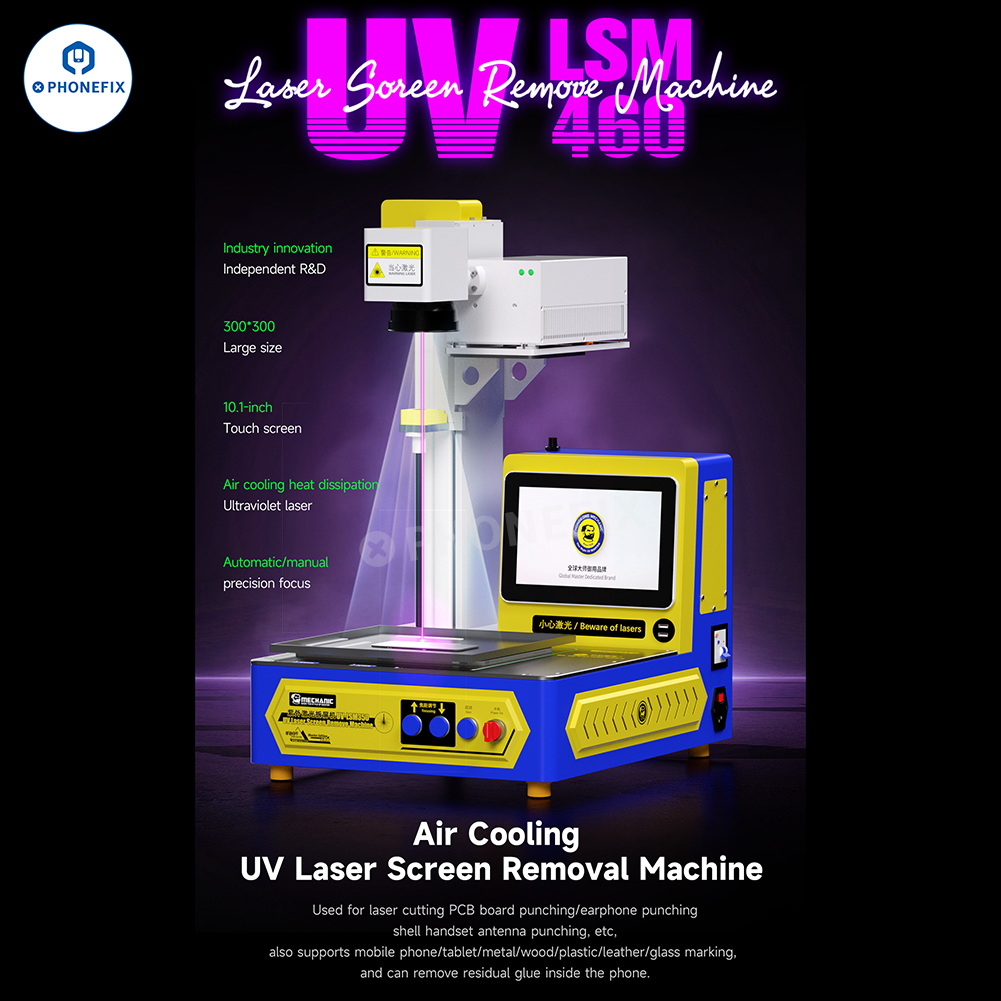

Mechanic UV-LSM460 UV Laser Screen Removal Machine used for laser cutting PCB board punching/earphone punching, shell handset antenna punching, etc, also supports mobile phone/tablet/metal/wood/plastic/leather/glass marking, and can remove residual glue inside the phone.
Qianli SU8 UV Laser Machine Features:
1. Qianli SU8 cold light source UV laser machine, improves the success rate and efficiency of screen repair, global servers connected to WiFi and automatic upgrade.
2. Multi-Language Support: Supports multiple languages with ongoing updates.
3. Dual Light Modules: Integrates infrared and UV light modules for superior performance.
4. Auto-Focusing: One-touch auto-focus ensures quick and precise operation.
5. High-Definition Touch Screen: Built-in computer with high-definition touch screen, supporting mouse and keyboard operations.
6. Large Laser Area: 175*175mm laser radiation area for extensive coverage.
7. Continuous Operation: Capable of 24-hour continuous working.
8. High Power: 20W hardcore fiber laser design.
9. Built-In Smoke Purification System: Features multiple air purification stages with rapid smoke exhaust.
10. Compact and Lightweight: 30kg. Small size and light weight for easy handling.
11. Fast Heat Dissipation: External heat emission holes for efficient operation.
12. Multiple Operation Modes: Offers shortcut button and touch screen for user-friendly operation.
13. Creative Uses: Supports engraving on various materials like aluminum alloy, plastic, and stainless steel. More creative usages are waiting to be discovered.

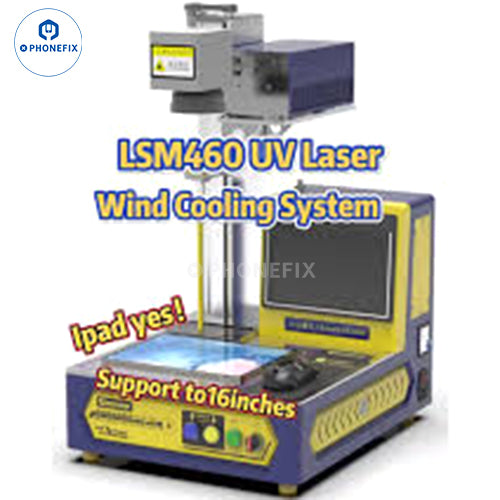

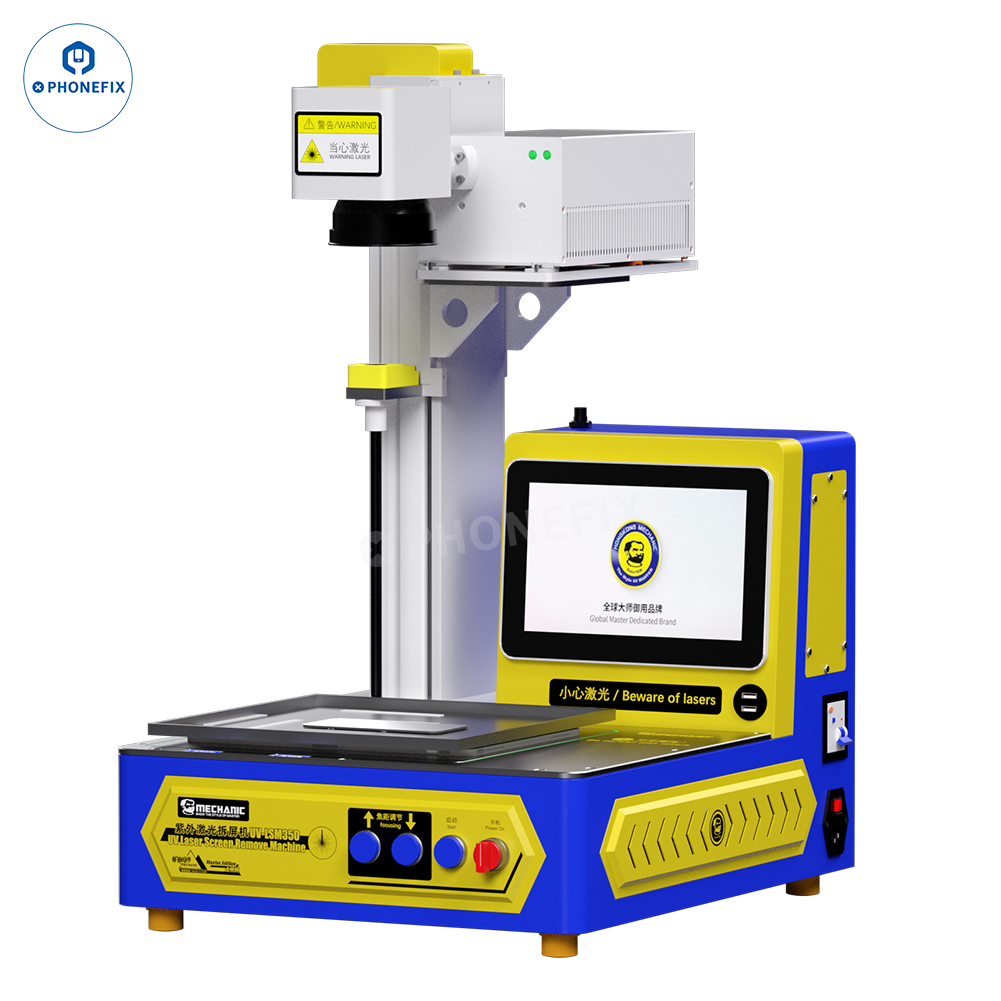

Mechanic UV-LSM460 UV Laser Machine Features:
1. It is suitable for face screen, curved screen, flat plate, laptop, car screet etc. It uses the characteristics of ultravialet laser to effectively remove the ink on the glass cover plate to reduce the difficulty of frame removal and separation, Some high-end models can improve the disassembly yield.
2.Support for glazing rear cover, all transparent glass back cover material can be used to remove the viscosity of the glue and thus more convenient disassembly.
3. Support for glue playing, can knock off some mobile phone accessories. such as the residues inside the camera, some residues on the chip packaging.
4. Laser cutting suitable parameters can be set, including PCB,board punching, shell receiver antenna punching, earphone punching, elc.

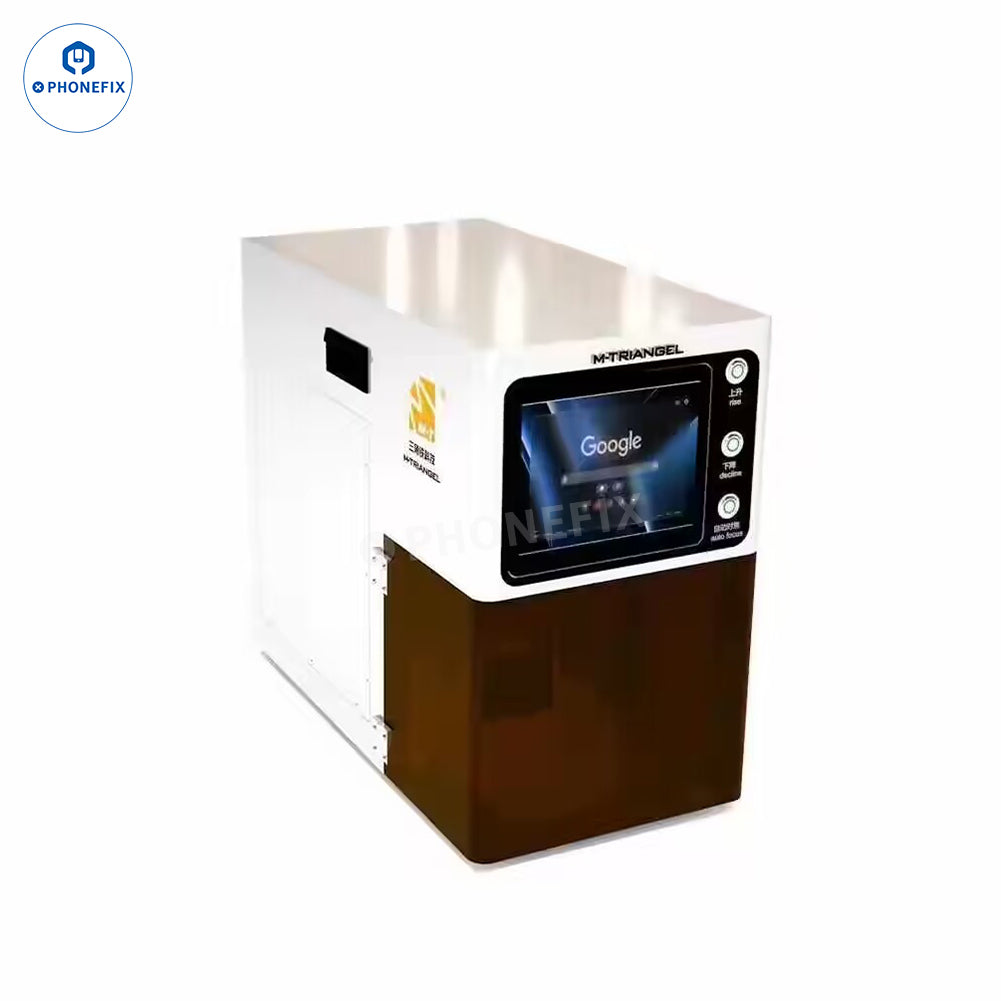

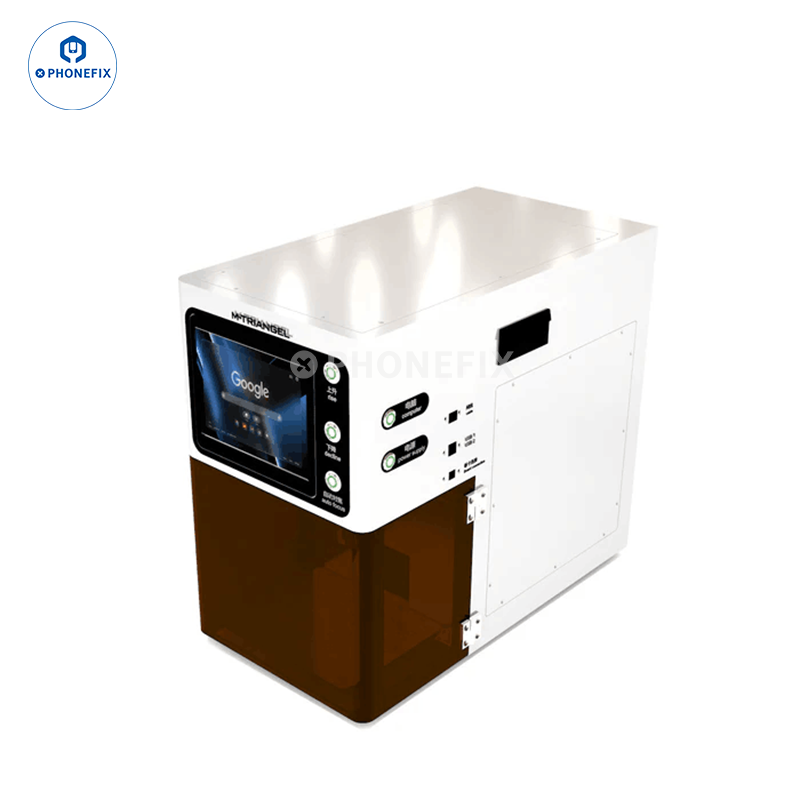

M-Triangel ML-03 UV Laser Machine Features:
1. Safe Ultraviolet Laser: The ML-03 uses ultraviolet laser technology to safely separate the outer bezel without damaging the touch panel. For separating the iPhone back glass, UV laser is less efficient, and fiber laser is recommended.
2. Built-in Smoke Extractor: The built-in smoke extractor optimizes the repair environment by effectively reducing harmful fumes, protecting your health.
3. Faster and Smarter Focusing: The new intelligent focusing system ensures precise alignment of the laser with the work area, significantly improving efficiency.
4. Acrylic Protective Cover: The laser working area is equipped with an acrylic protective cover, providing additional safety for the operator.
5. High precision with minimal heat effect, suitable for fine marking applications.
6. Suitable for marking on metals, plastics, glass, ceramics, and other heat-sensitive materials.

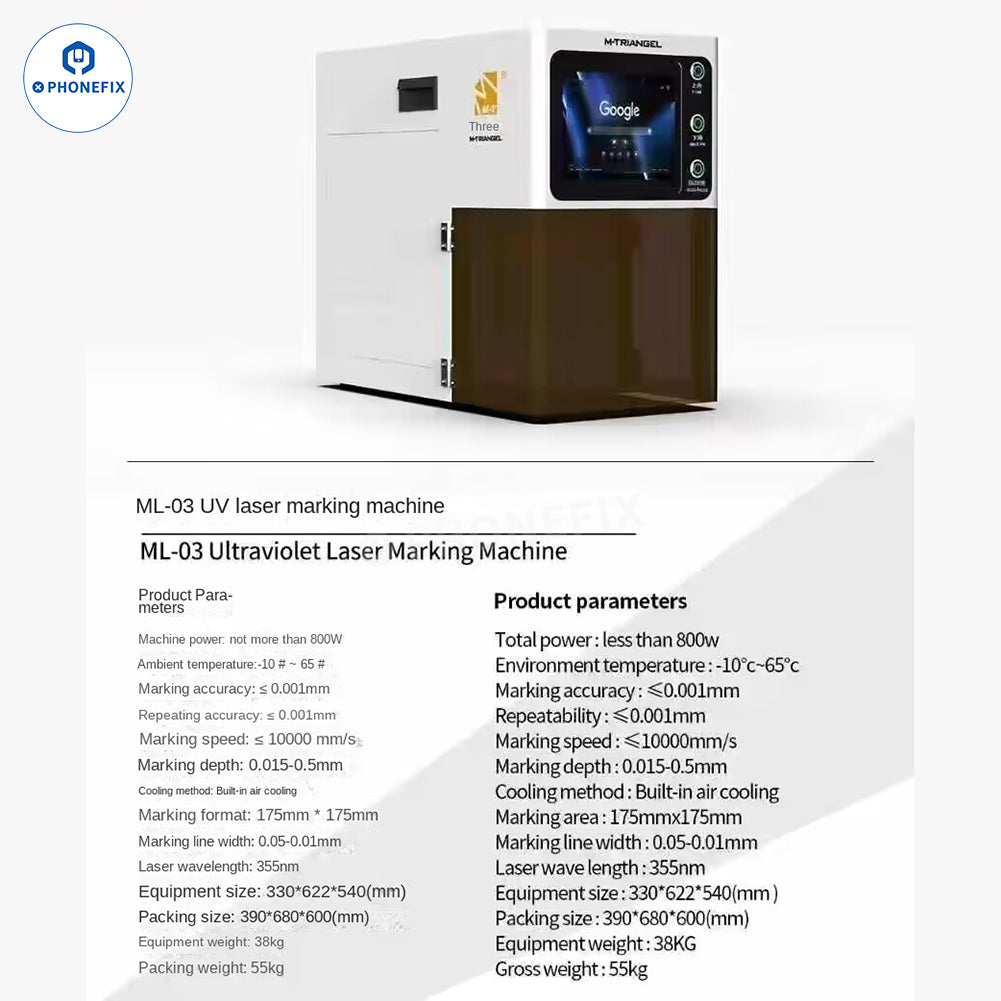

M-Triangel ML-03 Parameters:
Total power: less than 800w
Environment temperature:-10c~65℃
Marking accuracy:≤0.001mm
Repeatability:≤0.001mm
Marking speed:≤10000mm/s
Markingdepth:0.015-0.5mm
Cooling method: Built-in air cooling
Marking area:175mmx175mm
Marking linewidth:0.05-0.01mm
Laser wave length:355nm
Equipment size:330*622*540(mm)
Packing size:390*680*600(mm)
Equipmentweight:38KG
Gross weight: 55kg

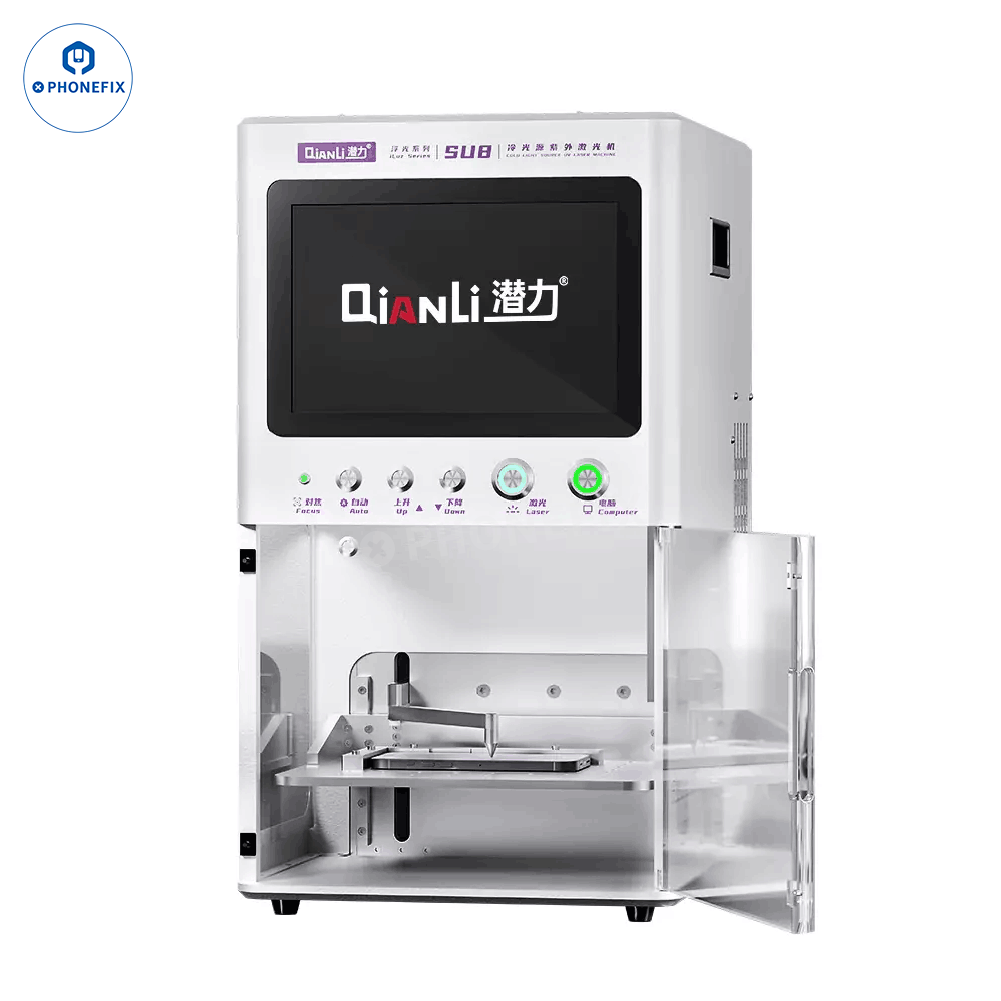

QianLi SU8 Parameters:
Model: iLuz Series SU8 Cold Light Source UV Laser Machine.
System: Android
Power: 500W
Voltage: 110-220v(require switching)
Humidity: <90%
UV Laser Power: 3W (4.2W Max)
Infrared laser power: 5mW
Temperature: 15-35℃(recommendation)
Drawing update: global serve auto update
Languages: support multiple languages and continuously update online
Net Weight: 30KG

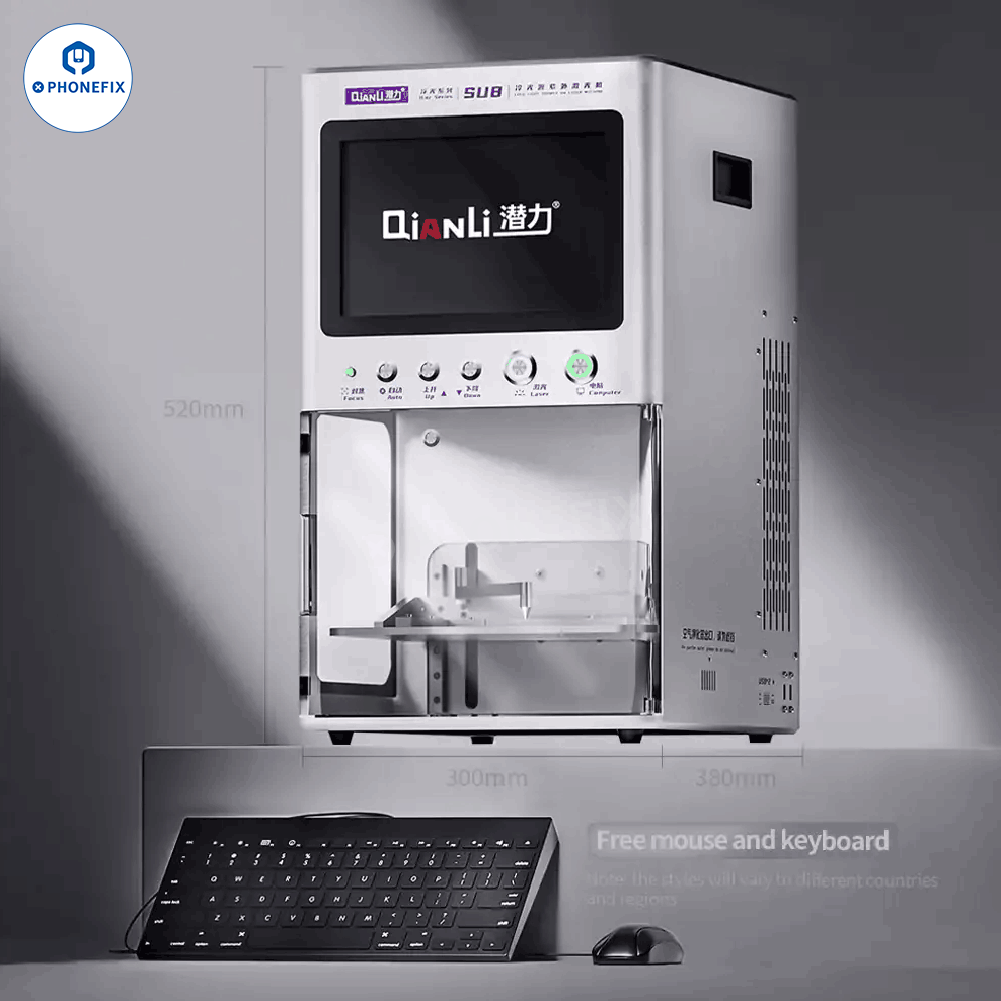

Size: 380*300*520mm
