400W UYUE 948 MAX screen separator 7-inch phone LCD glass heating separating glue cleaning tool. UYUE 948 MAX-2 LCD screen separator for Mobile Phone flat/edge screen repair. UYUE 948 MAX-3 LCD screen separator for Mobile Phone Samsung edge curved screen frame disassembly.
Features: 1. 360 degree rotary built-in vacuum pump. 2. Universal rotary degumming. 3. Rotation angle: 360C without dead angle. 4. Fixed by a special fixture, stable. 5. Rotating fixture for curved middle frame, more stable 6. Detachable fixture, more convenient

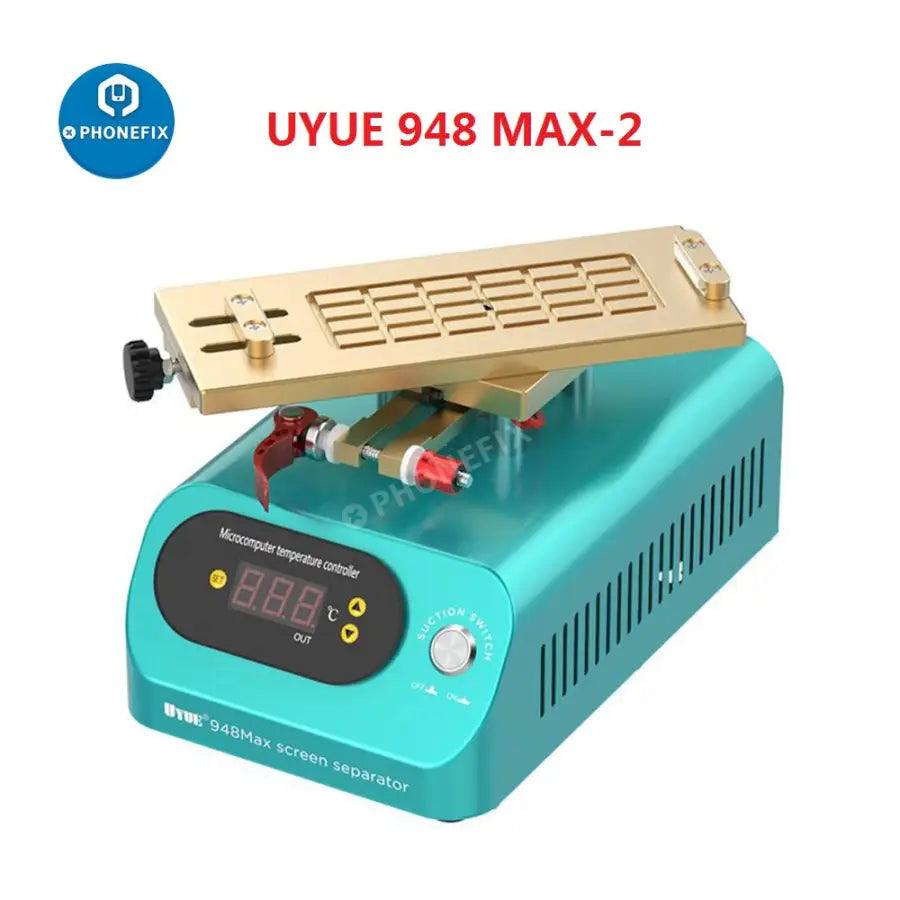

UYUE 948 MAX-2: Power: 400W Voltage: AC220V/110V. Temperature range: 40-200℃. Display: LCD digital display. Fever mode: heating pipe. Working size: 8x17cm. Application: for straight/curved screens below 7 inches. Product size: 155*245*150mm. Package size: 290*200*205mm. Weight: 3kg

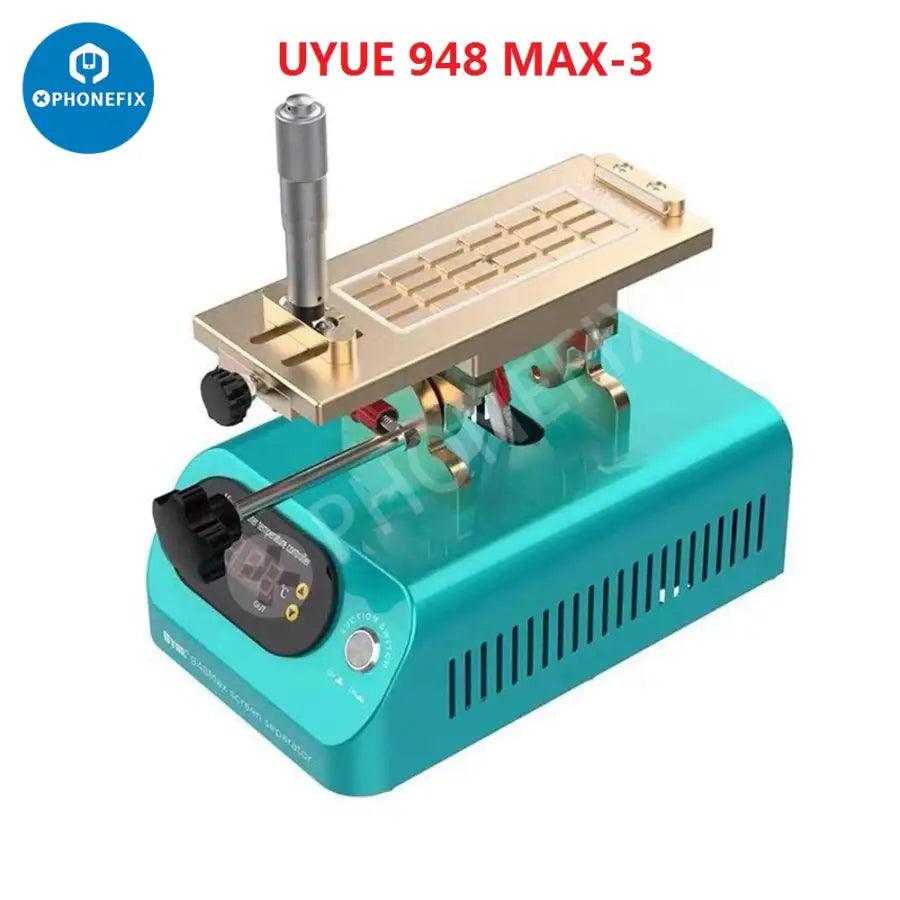

UYUE 948 MAX-3: Power: 400W Voltage: AC220V/110V. Temperature range: 40-200℃. Display: LCD digital display. Fever mode: heating pipe. Working size: 8x17cm. Application: for straight/curved screens below 7 inches. Product size: 240*275*150mm. Package size: 310*230*215mm. Weight: 3.5kg
Difference between UYUE 948 MAX-2 and UYUE 948 MAX-3: UYUE 948 MAX-3 can swing 120°left and right.

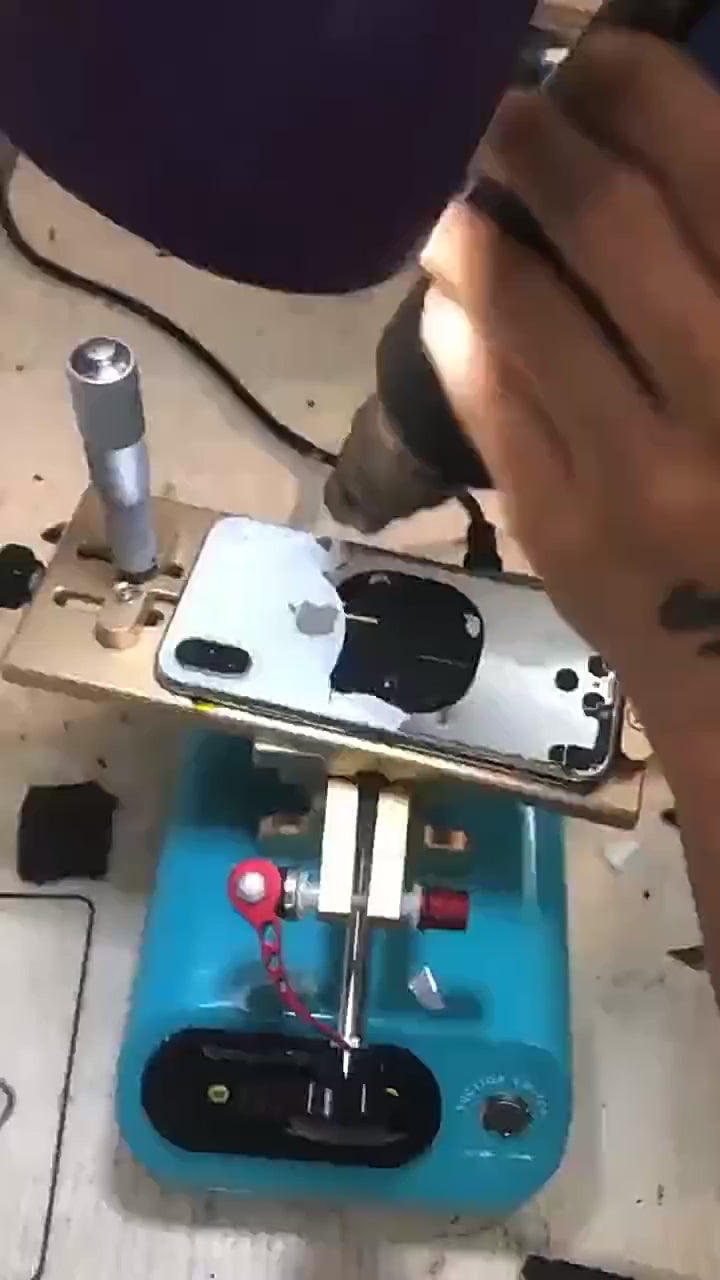

Usage: 1. Just put the LCD on the heating panel, turn on the "Vacuum Pump" switch, then you can separate the glass. And the LCD is firmly fixed on the panel while separating. 2. The LCD Screen Separator is used for separating glass lens, touch screen and LCD display assembly for Apple, Samsung, HTC as well as other cell phones.
