VC890C+ is a digital multimeter for Mobile Phone Repair Fix Tool. It can be used to measure AC voltage, DC voltage, DC current, AC current, resistance, capacitors, continuity test, diode test etc. The handle held design is the best choice for field work, laboratories, factories, and other applications.

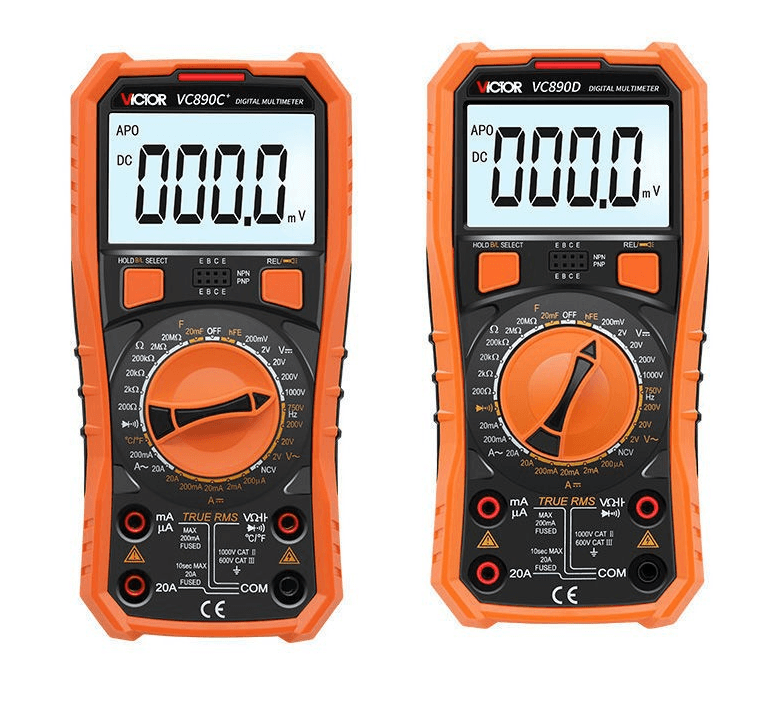

Note: VC890D is discontinued, upgraded version is VC890C+.
Product Features :
- New type holster, streamline design
- Large LCD makes the reading clearly.
- Metallic screen board with stronger anti-magnetic and anti-interference function.
- No power off under natural operation.
- Full function protection, anti-high voltage circuit design.
- Restorable fuse protection circuit design.
- 3 1/2 LCD Display
- Auto power off
- Capacitance test
- Stream line design
- Overload protection
- Self-recovery fuse
Product Specifications :
- Voltage DC: 200mV/2V/20V/200V/1000V ±(0.5%+3)
- Voltage AC: 200mV /2V/20V/200V/700V ±（0.8%+5）
- Current DC: 2mA/20mA/200mA/10A ±(1.0%+3)
- Current AC: 2mA/20mA/200mA/10A ±(2.0%+3)
- Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20 MΩ/200 MΩ ±(0.8%+3)
- Capacitance: 20nF/200nF/2μF/20μF/200μF ±(4.0%+3)
- Diode test: YES
- Triode test: YES
- On-off test: YES
- Auto power off: YES
- Data hold: YES
- Low battery display: YES

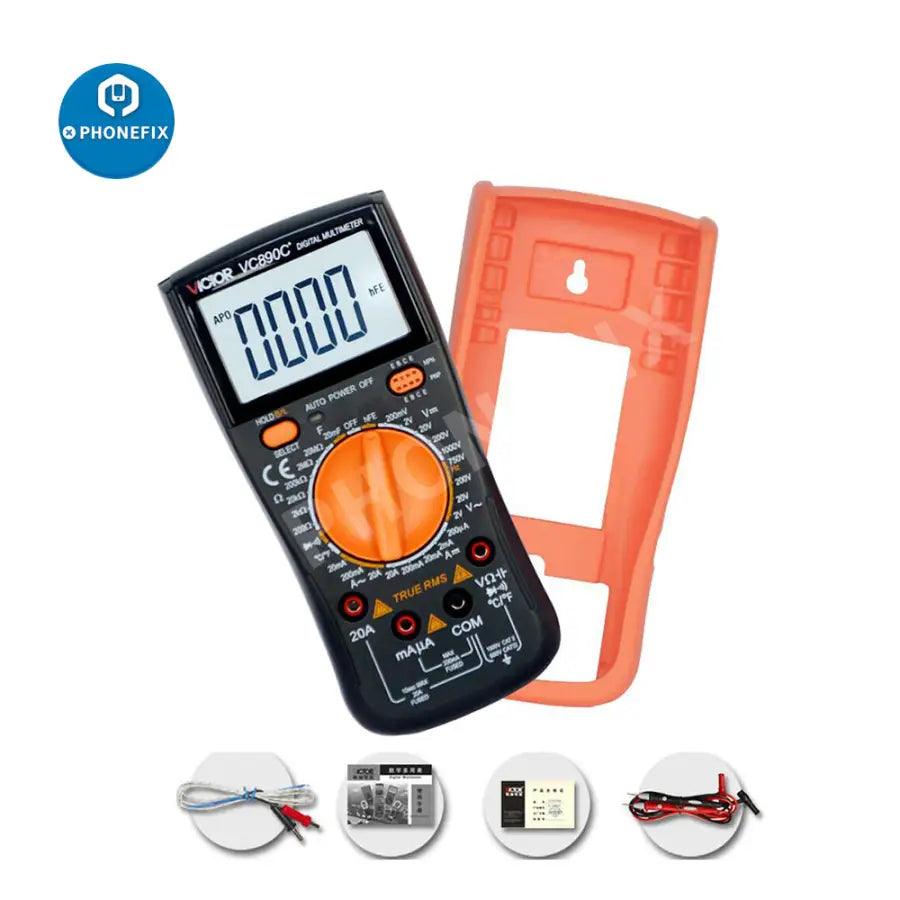

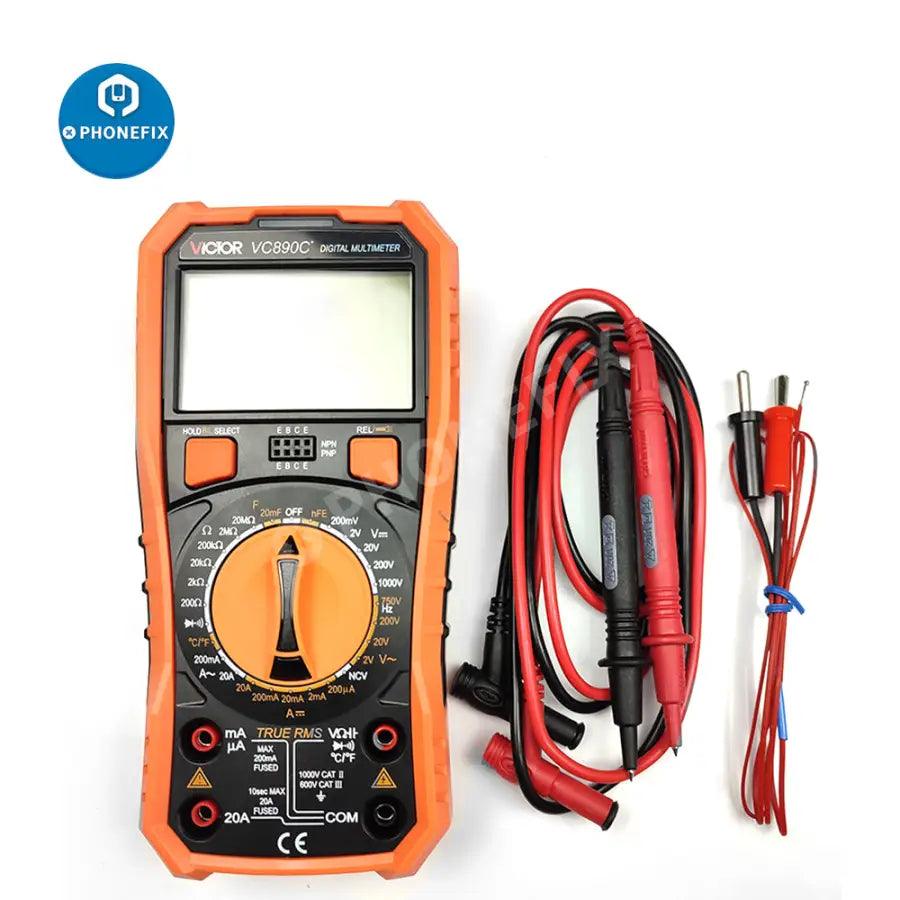

Package includes :
- 1pcs x VC890C+ digital multimeter without battery
- 1 Set of multimeter leads
- 1pcs x instruction manual
