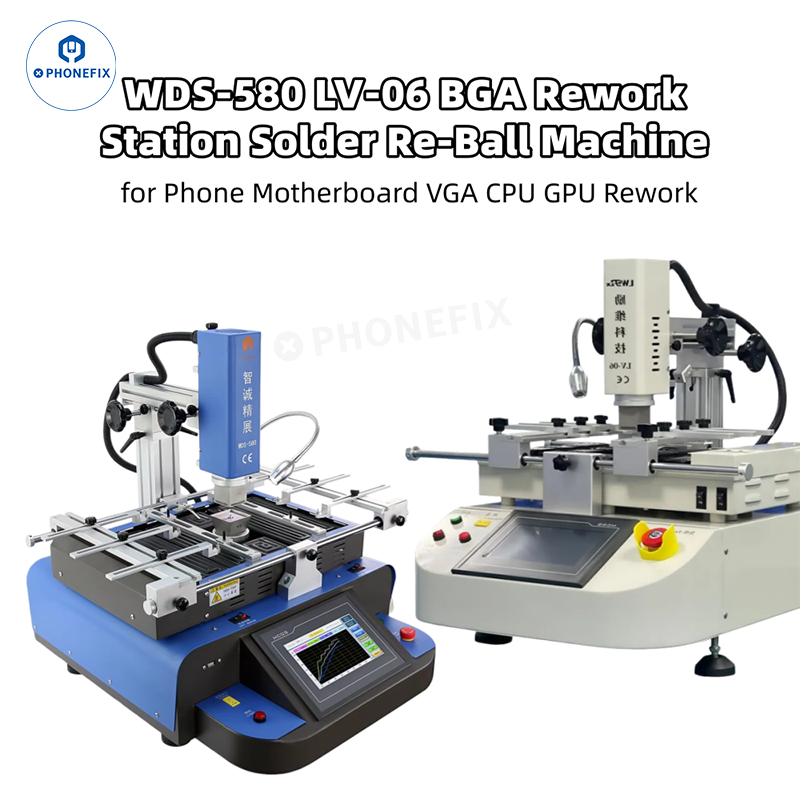

Professional-grade WDS-580 Rework Station is used for desoldering, reballing, and resoldering BGA, SMD, and IC components. features a three-zone independent heating system, equipped with high-power heaters and an intelligent temperature control system, ensuring precise and uniform heating. WDS-580 is CE-certified and supports industrial-grade PLC control and laser positioning systems, making it suitable for repairing PS4, Xbox, and mobile phone motherboards.
LV-06 BGA Rework Station is designed for repairing mobile phones, laptops, game consoles, and various motherboards. It features 4800W of output power, an independent three-zone heating system with hot air and infrared preheating, an industrial touch screen, laser positioning, and CE certification for uniform heat distribution, ensuring accuracy and compliance with EU safety standards. It is suitable for repairing TVs, laptops, and mobile phones.

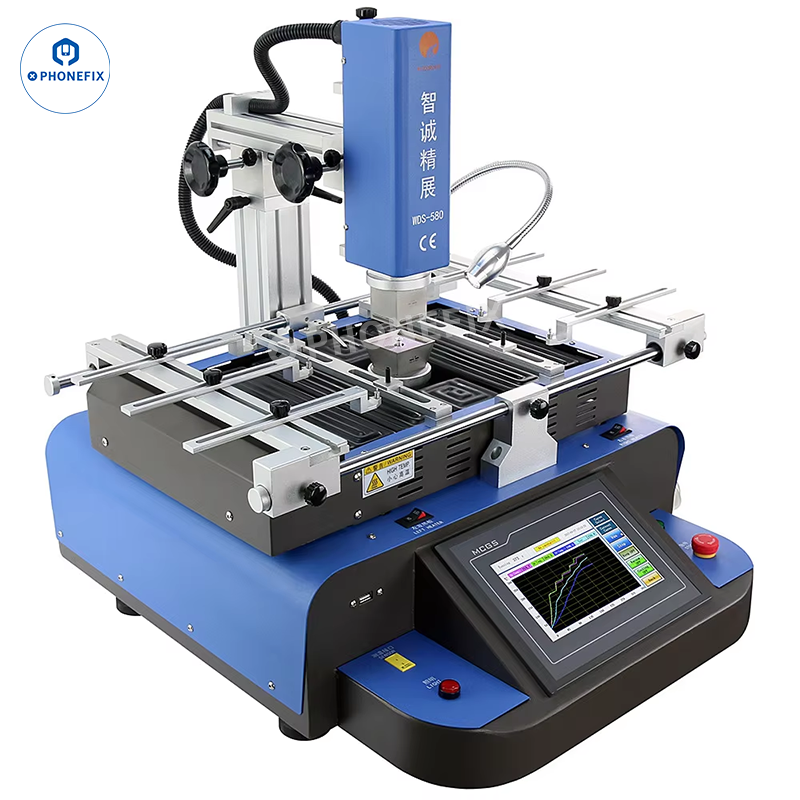

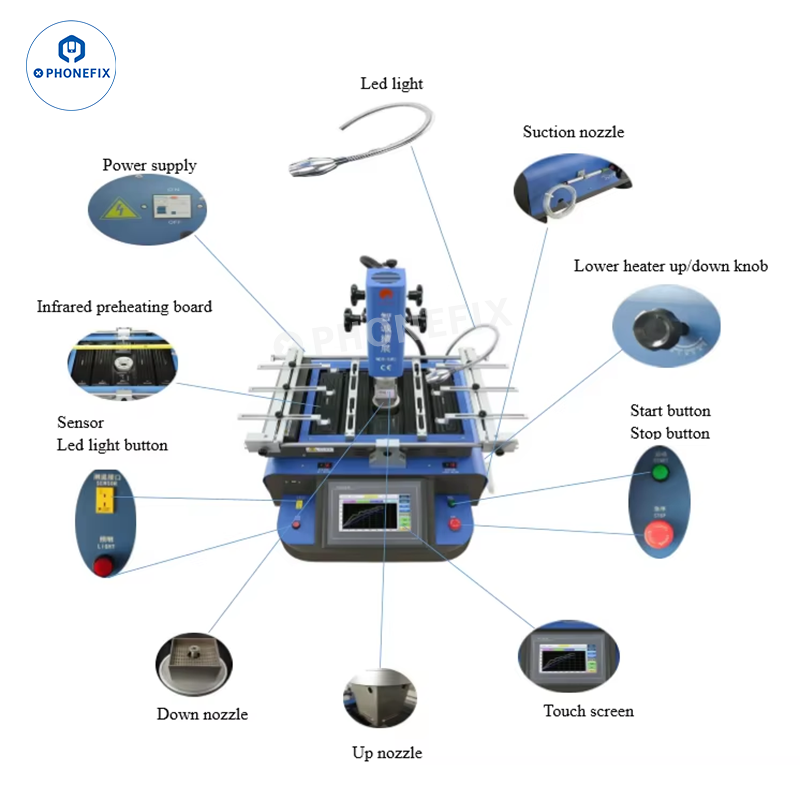

WDS-580 BGA Rework Station Features
1. Powerful Power Output: Total power up to 4800W ensures stable and efficient soldering and rework processes.

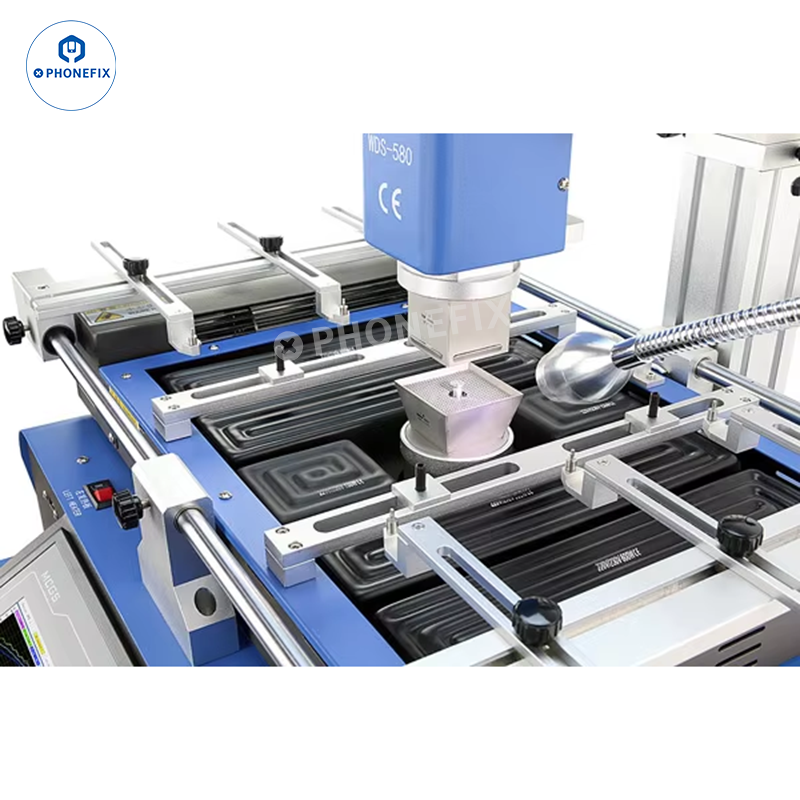

2. Three-zone independent heating system:
· Upper heater: 800W;
· Lower heater: 1200W;
· Bottom ceramic infrared heater: 2700W
Temperature control accuracy reaches ±3°C, ensuring uniform heating.
3. Intelligent Control System: Utilizes a well-known brand PLC controller and industrial touch screen, capable of storing multiple temperature curves and supporting real-time monitoring and parameter modification.
4. High-precision Positioning System: X/Y/Z three-axis fine-tuning structure + laser-assisted positioning ensures precise chip alignment.
5. Vacuum Adsorption and Cooling System: Built-in vacuum pump and external nozzle facilitate chip placement and handling; high-power fan provides rapid cooling.
6. Safety Features: Equipped with an emergency stop switch, dual over-temperature protection, and automatic power shut-off function, it ensures safe and reliable operation. 7. User-friendly Design: Five interchangeable heating nozzles are compatible with various chip and motherboard sizes.

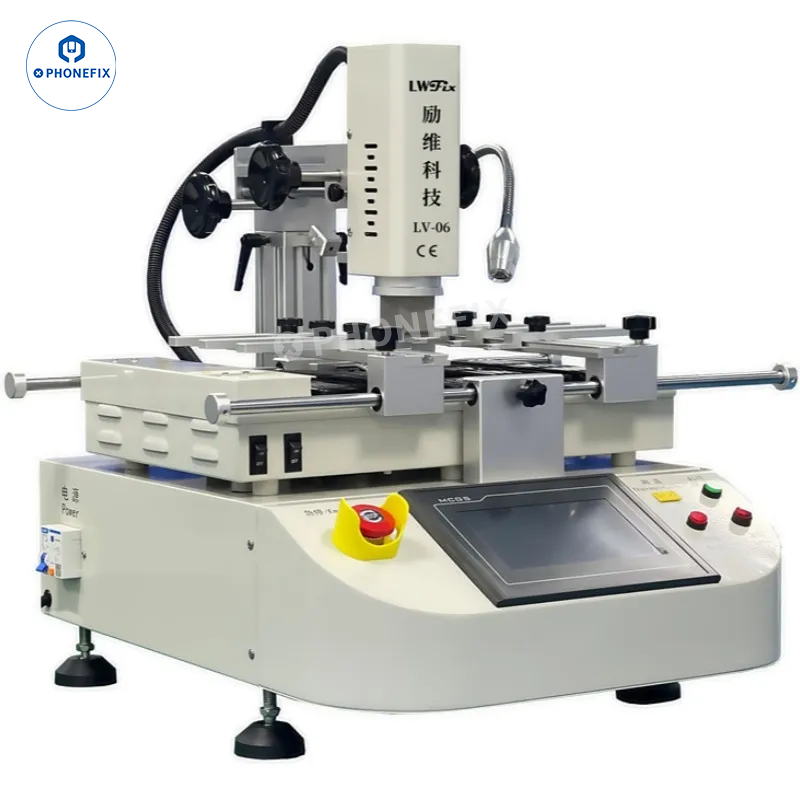

LV-06 BGA Rework Station Features
1. Cost-effective Design: An economical BGA rework station with performance comparable to high-end models.
2. Three-zone Heating System: Combined hot air and infrared heating ensures even heat distribution and a rework success rate of ≥99%.
3. Intelligent Temperature Control System: An industrial touchscreen displays real-time temperature curves, supporting curve storage and export.
4. Laser Precision Positioning: Quickly locates chip positions, reducing rework errors.
5. Vacuum Adsorption and Cooling System: A built-in vacuum pump and cooling fan facilitate chip adsorption and rapid cooling.
6. Multiple Safety Features: CE certification, emergency stop function, and automatic power off upon over-temperature ensure safe operation.
7. Wide Compatibility: Supports various PCB sizes and BGA packages, suitable for repairing mobile phones, computers, game consoles, and TV motherboards.
Option
1. WDS-580 BGA Rework Station
2. LV-06 BGA Rework Station
WDS-580 BGA Rework Station Specifications
Product Name: WDS-580 Rework Station
Model: WDS-580
Weight: 40kg
Voltage: 110V/220V
Power Supply: AC 220V ±10%, 50/60Hz
Rated Capacity: 4800W
Total Power: 4800W
PCB Dimensions: 400x370mm
Dimensions: 500x590x650mm

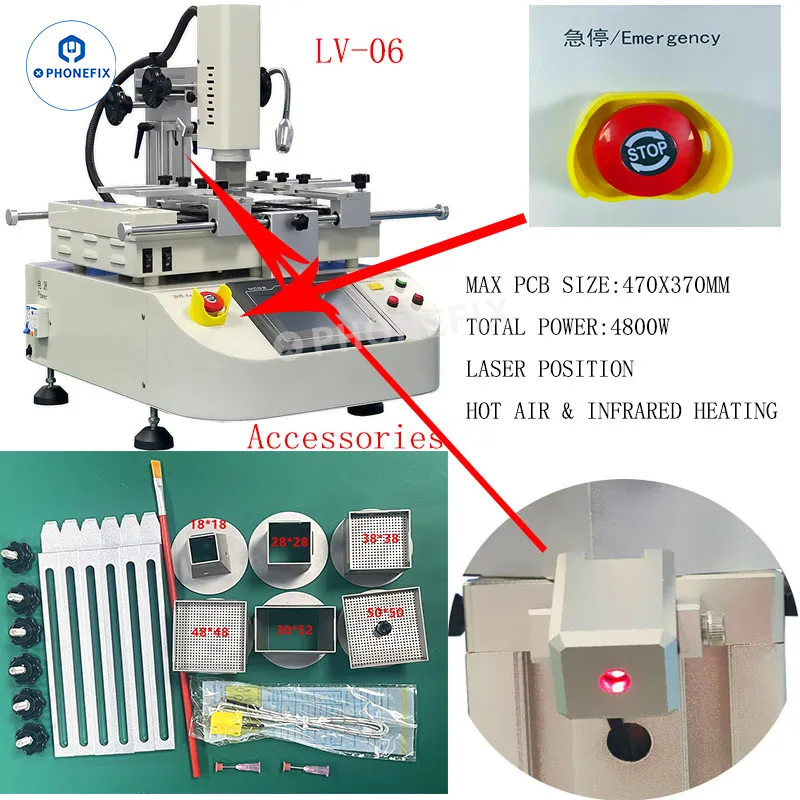

LV-06 BGA Rework Station Specifications
Product Name: LV-06 BGA Rework Station
Model: LV-06
Weight: 50kg
Power Supply: AC 220V ±10%, 50Hz
Dimensions: L 610xW 620xH 650mm
PCB Fixture Size: Maximum 470x370mm Minimum size: 10x10mm
PCB thickness: 0.3-5mm
Total power: 4800 watts
Electrical materials: Touch screen + temperature control module + PLC control
Positioning method: V-shaped slot + universal fixture + laser positioning
Effective preheating area: 260x350
