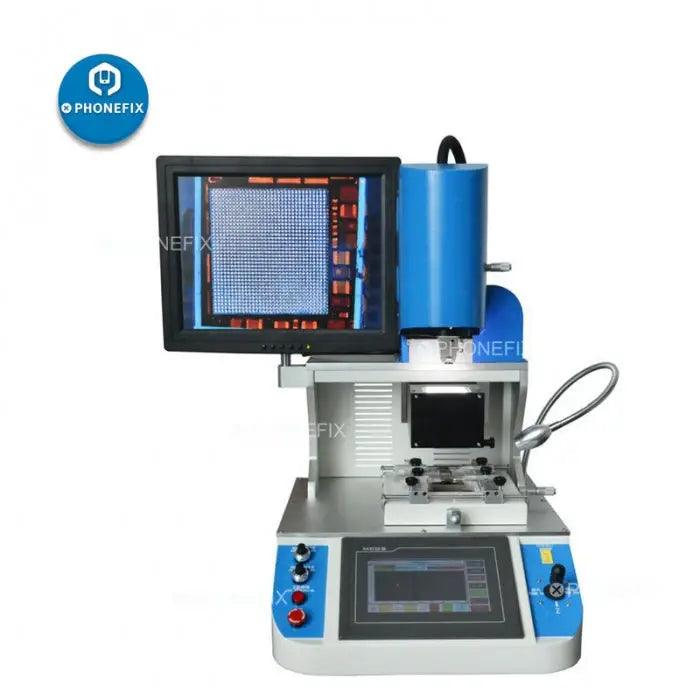

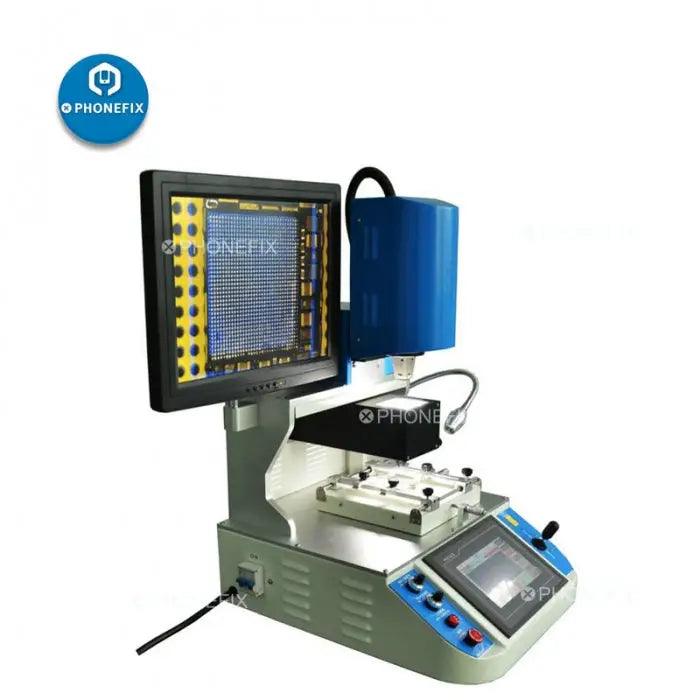

Wisdomshow WDS 700 mobile repairing bga/smd soldering machines 110V/220V Optical alignment system for phone chip for motherboard
Updated functions:
Newest WDS-700 is the updated system with 5 modes.It's Remove,Mount,Weld,Manual and Semi-auto.The mode can be changed freely.It can be used under automatic,semi-auto & manual mode.smd bga rework station
Independent2heating zones temperature control system
1.The upper and lower heating zone,temperature precision control within ±1℃. which can heat up at the same time from the top of he component to the bottom of the PCB; 8 segment temperature control independently.
2.Hot air district heating for BGA and PCB at the same time,the upper or lower temperature zones could be used alone and combine freely the energy of up and lower heating element.
3.Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;
4 temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed,set and correct on the touch screen at any time.mobile phone repair tools mobile phone repair machine auto bga rework station smd bga rework station

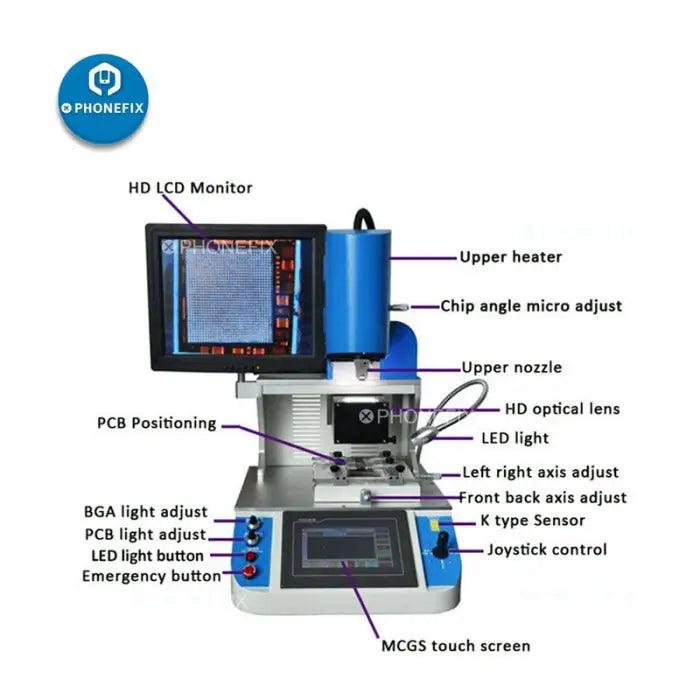

Precision optical alignment system
Using high definition and adjustable CCD color optical alignment system,beam split,amplification,lessening,fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast;equipped with 15 "high definition LCD monitor.

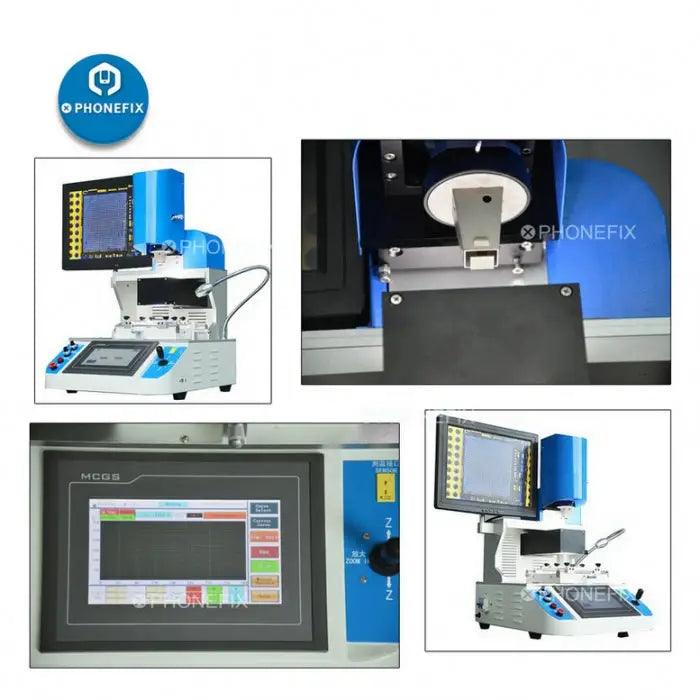

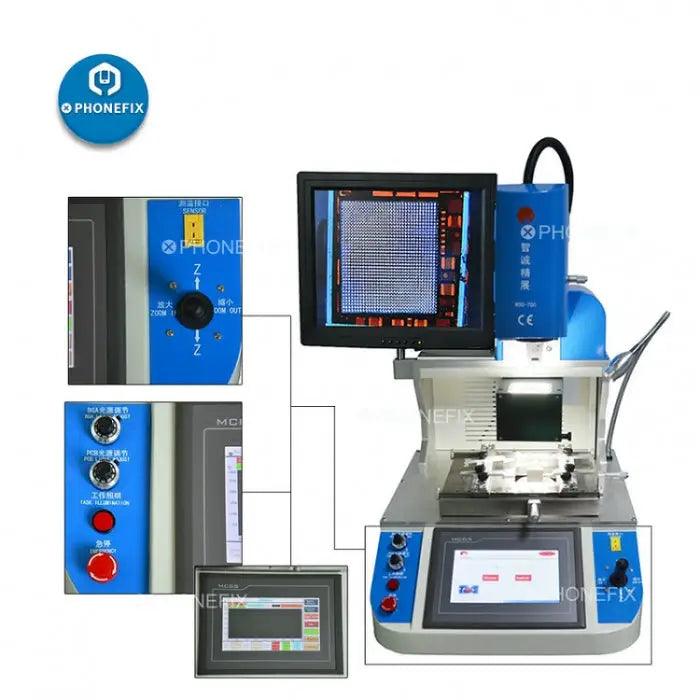

Multi-functional and humanized operation system
1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.
2.X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.
Superior safety protection function
With alarm function, after the BGA welding the machine can alarm by itself.
In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.Temperature parameter having password protection to prevent any modification.smd bga rework station.
Product Introduction:
|
1
|
Business type
|
BGA rework station factory
|
|
2
|
Power supply
|
AC 220V±10% 50/60Hz
|
|
3
|
Total power
|
Max 2500W
|
|
4
|
Heater power
|
Upper temp.zone 1200W,Down temp.zone 1200W
|
|
5
|
Electrical material
|
Driving motor+PLC smart temp.controller+color touch screen
|
|
6
|
Temperature controlling
|
(high precision K-sensor)(Closed Loop),independent temp.controller,the precision can reach ±1℃
|
|
7
|
Locating way
|
V shape slot,PCB support jigs can adjust
|
|
8
|
PCB size
|
Max 140×160mm Min 5×5 mm
|
|
9
|
Applicable chips
|
Max 80×80mm Min 1×1 mm
|
|
10
|
Overall dimension
|
L450×W470×H670mm
|
|
11
|
Temperature Interface
|
1 pcs
|
|
12
|
Weight of machine
|
50KG
|
|
13
|
Color
|
Blue+White
|
