WL Green UV welding fluxes oil net paint repair net for iPhone 5-X baseband and NAND BGA chip scratch repair, fix iPhone / iPad damaged insulation layer for BGA Chip, NAND & WIFI & Power IC. WL green UV solder mask net will repair BGA scratch (nick) at any location, A6/A7/A8 /A9/A10/A11 BGA nick paint repairing net.
Green UV Solder Mask Ink for iPhone BGA Reballing Stencil Paint-shedding, how to fix and repair damaged insulation layer of chip and logic board on iPhone (BGA Paint-shedding), especially for large damaged area, it's a big problem
WL Green Oil Net is the Green UV Welding Fluxes Oil Plastic net sheet for iPhone BGA CHIP Paint Repairing, repair iPhone BGA chip scratch,
for iPhone 5/ 5S/6/6P/6S/6SP/7/7P/8/8P NAND, WIFI, Baseband, A6/A7/A8/A9/A10/A11 BGA CHIP nick Paint Repairing net.

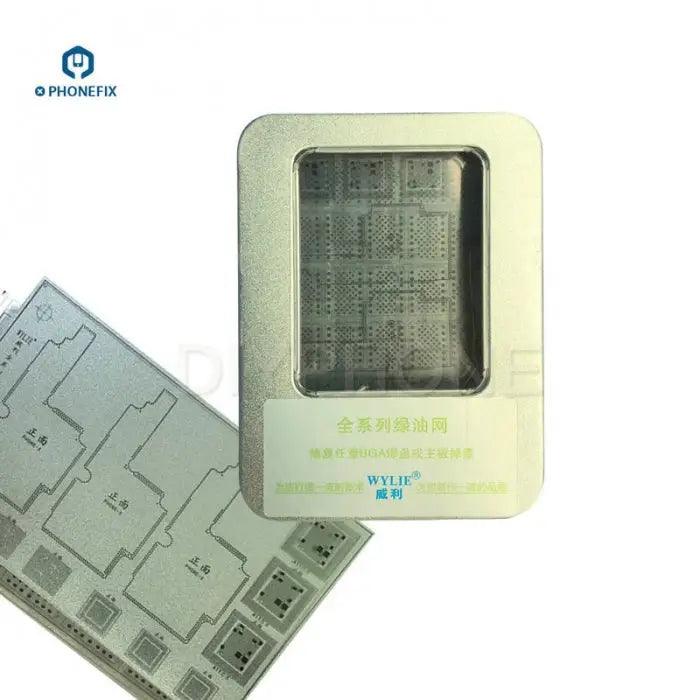

6 pieces of paper In a Aluminium Case, if don't need the Aluminium Case, save the shipping cost.
[ Optional Aluminium Case BOX Package ] : Option 1: without Option 2: included

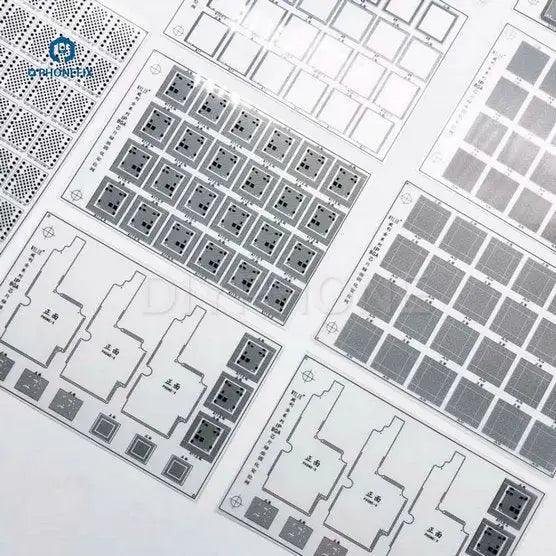

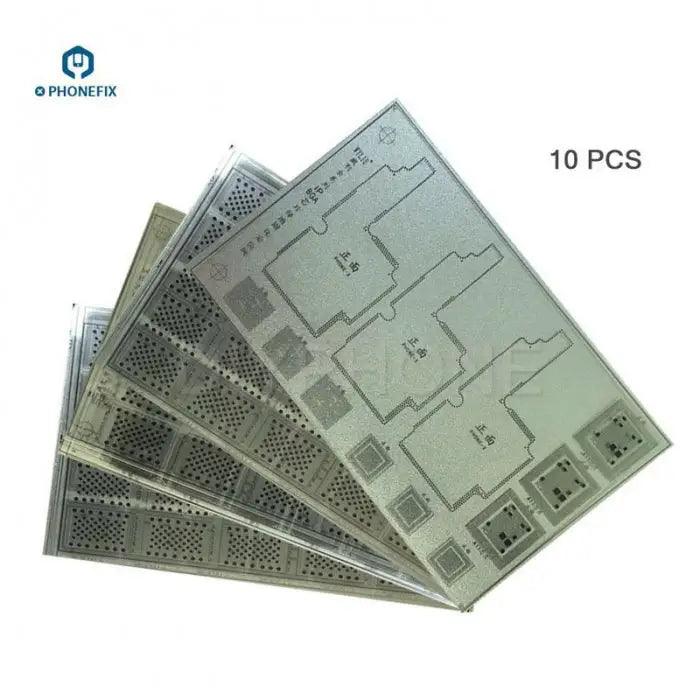

A packet: 5 pieces of paper, about 150pcs small Plastic net.
WL BGA Stencils of Solder Mask Ink for Paint-shedding on BGA CHIP, Fix Repair iPhone iPad NAND Flash Power Touch Baseband CPU Chip IC Logic Board Insulation Layer
For the damaged insulation layer of chip or logic board, especially for large area, this is a rapid and easy solution to fix the problem which can improve the success rate and save time.

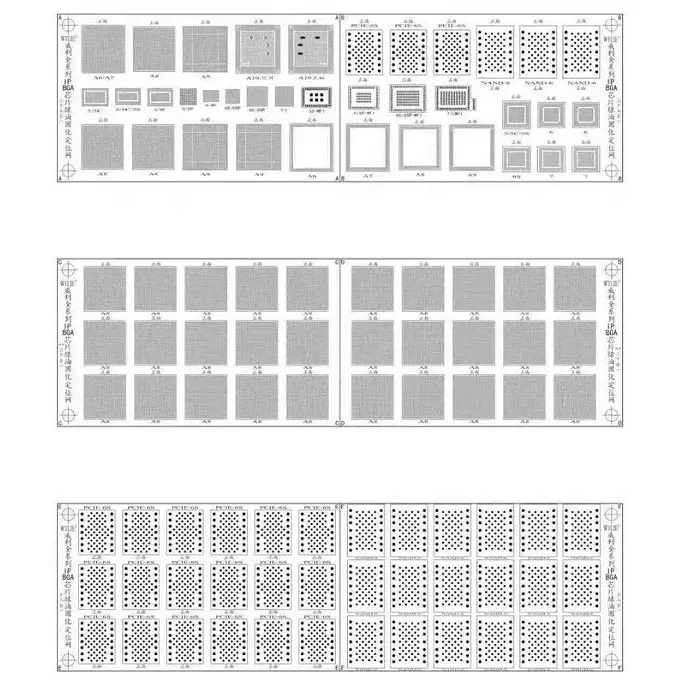

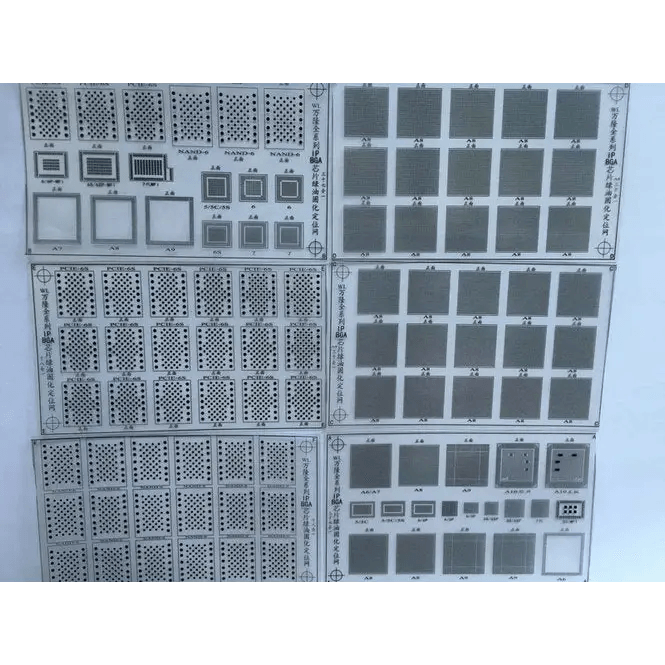

A6/A7 A8 A9 A10 A11 BGA chip WL Green Oil Plastic net iPone 5S 6 6P NAND CHIP A8 CPU upper / lower 6S NAND 6/6P/6S/6SP/7 WIFI 6S 7 7P NAND IC Green UV Welding Fluxes Oil Plastic net sheet
The working principle and use method of Wiley green oil mesh
In the course of using, users can cut out the green oil net corresponding to the BGA chip.
Note: in the use of green oil, it is recommended that both sides of the green oil mesh be coated with solder oil to prevent green oil from sticking to the net.

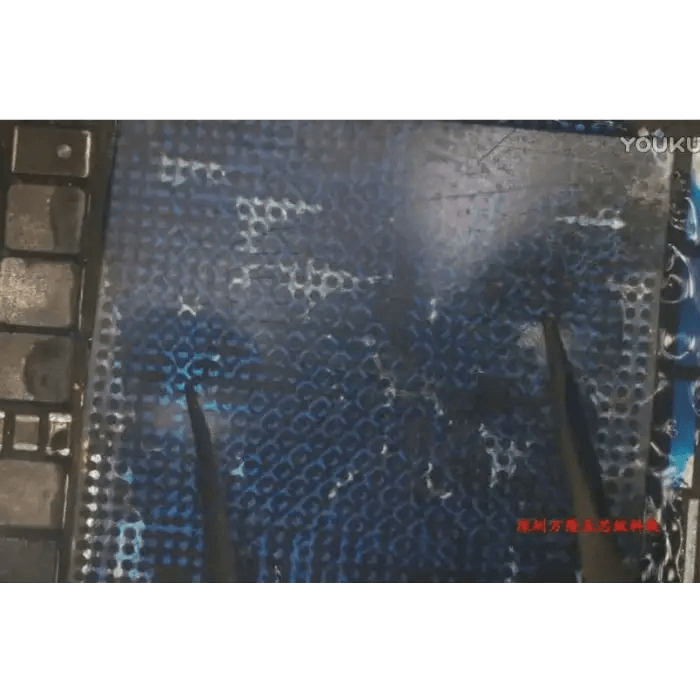

1. Before the operation, you must clean the chip part or the main board part that are needed to repair , then use hot air gun for drying and keep it in a dry state, apply appropriate amount of solidified green oil on the chip or the main board with a scalpel parallel, pay attention to paint the green oil as even as possible, and it's better to paint thinner. There should be no bubble when attach, then the green oil net (printed side) is pressed down to the pad, and the solder pad on the green oil should be aligned to the pad of the chip or motherboard.
2. According to the thickness of the green oil layer, if the purple light emitted in 6-15 seconds through the UV lamp can not penetrate the black solder pad on the green oil network in a short time, it's won't play the role of curing on the black solder pad, but the transparent part of the green oil net outside the chip or the motherboard solder pad can be cured at the extreme speed. Slowly tearing the green oil net and clean the pad with PCB cleaner or alcohol, then continue to use the UV curing lamp firmly, you will finish the repair on the chip or the main board that got paint removed.
The working principle and use method of Wiley green oil mesh
In the course of using, users can cut out the green oil net corresponding to the BGA chip.
WL Green UV Welding Fluxes Oil net Paint Repair net repair BGA scratch
