XwitZeal FAN1 UV Curing Cooling Fan 5-In-1 Phone Repair Tool integrates cooling, curing, lighting, dust removal and fume removal functions for mobile phone/tablet motherboard CPU BGA chip repair. Fast cooling, rapid curing, effective lighting, efficient dust display and fume extraction.
Features:

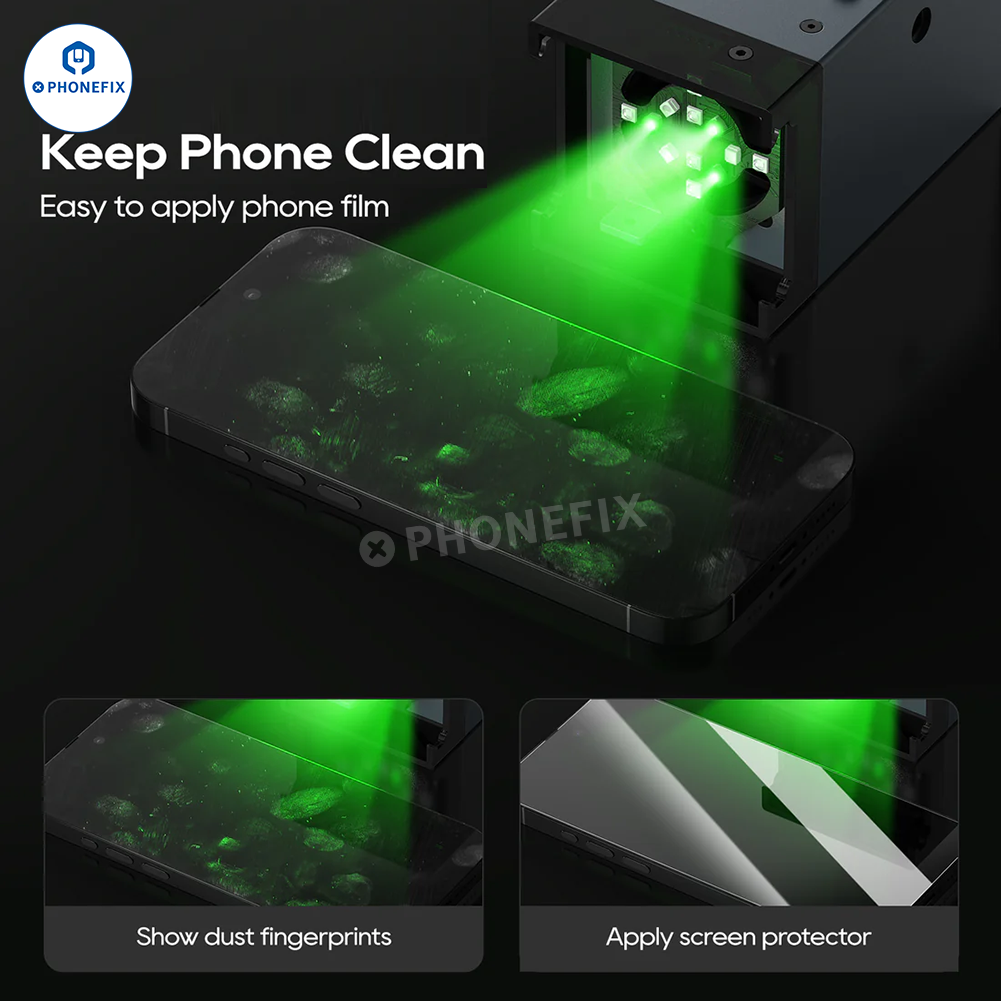

1. Five-in-one function: Integrates cooling, UV curing, dust display, smoke removal, and lighting into one device for multiple uses;
2. Fast cooling: 1-second cooling response improves work efficiency;

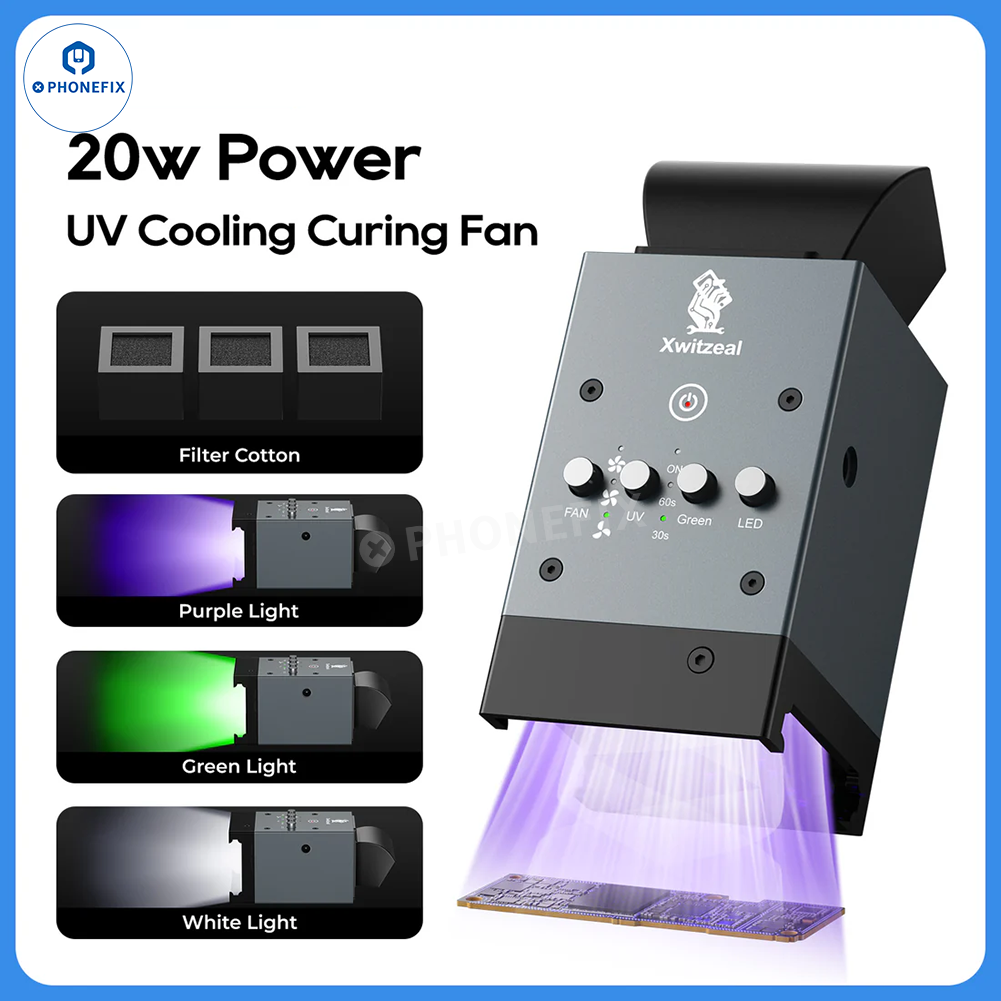

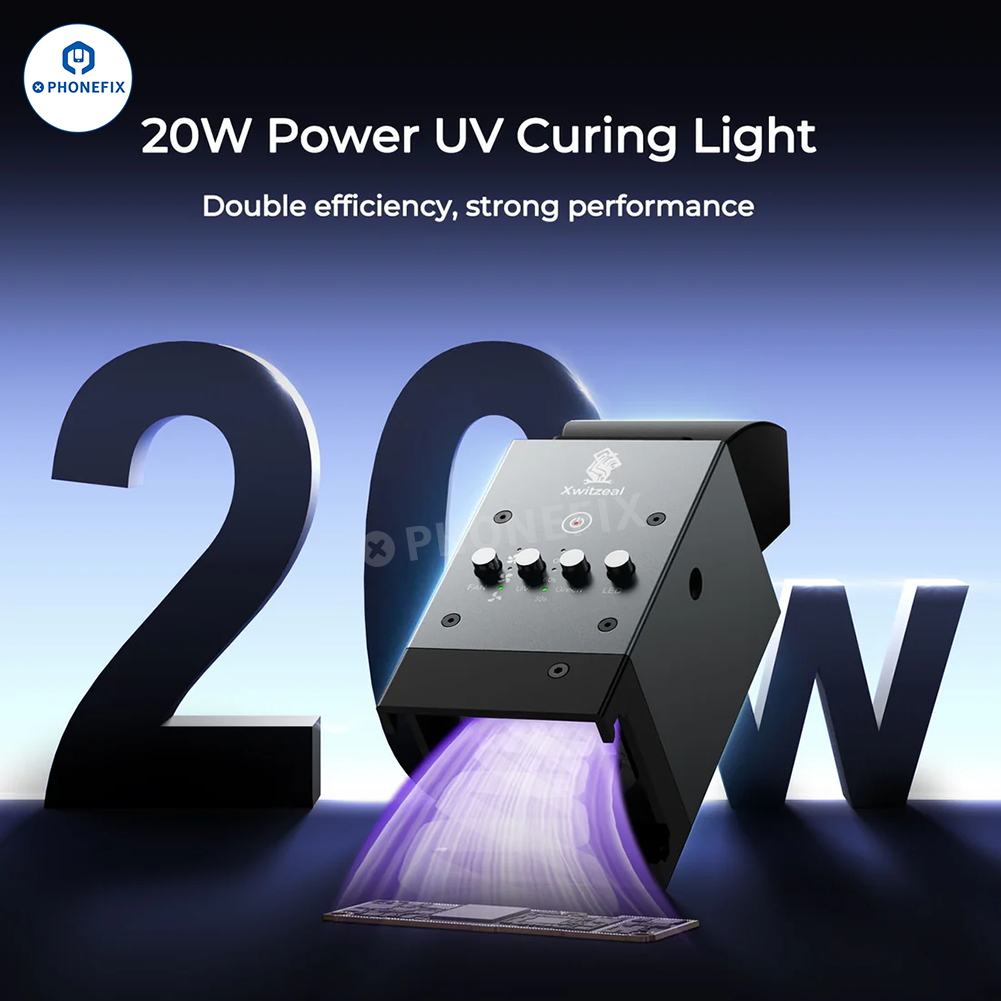

3. High-efficiency curing: 20W high-power UV lamp, violet wavelength 380–390nm, quickly cures glue;
4. Three-speed adjustment: Adjust the wind speed according to the usage scenario;

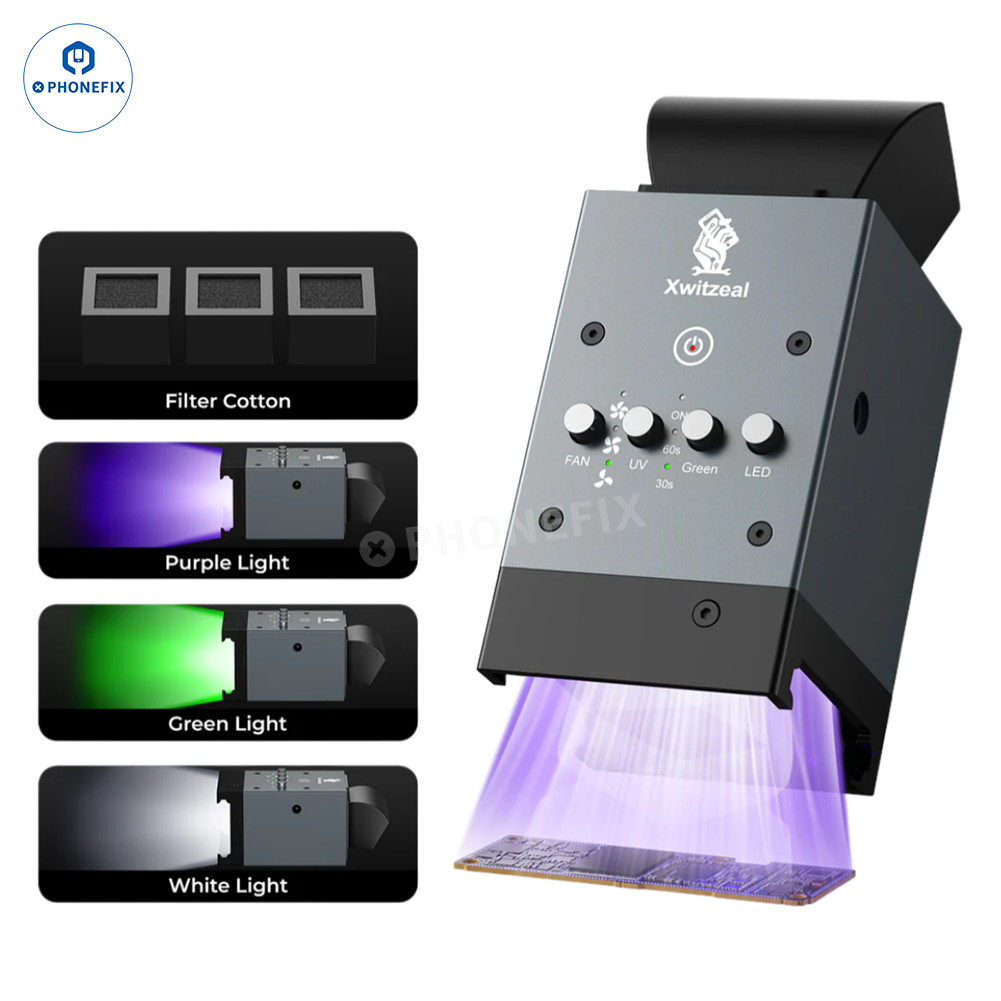

5. Three-speed light switching: Switch between green, white, and UV light;
6. Three-speed timer: Supports 30-second, 60-second, and continuous light modes;

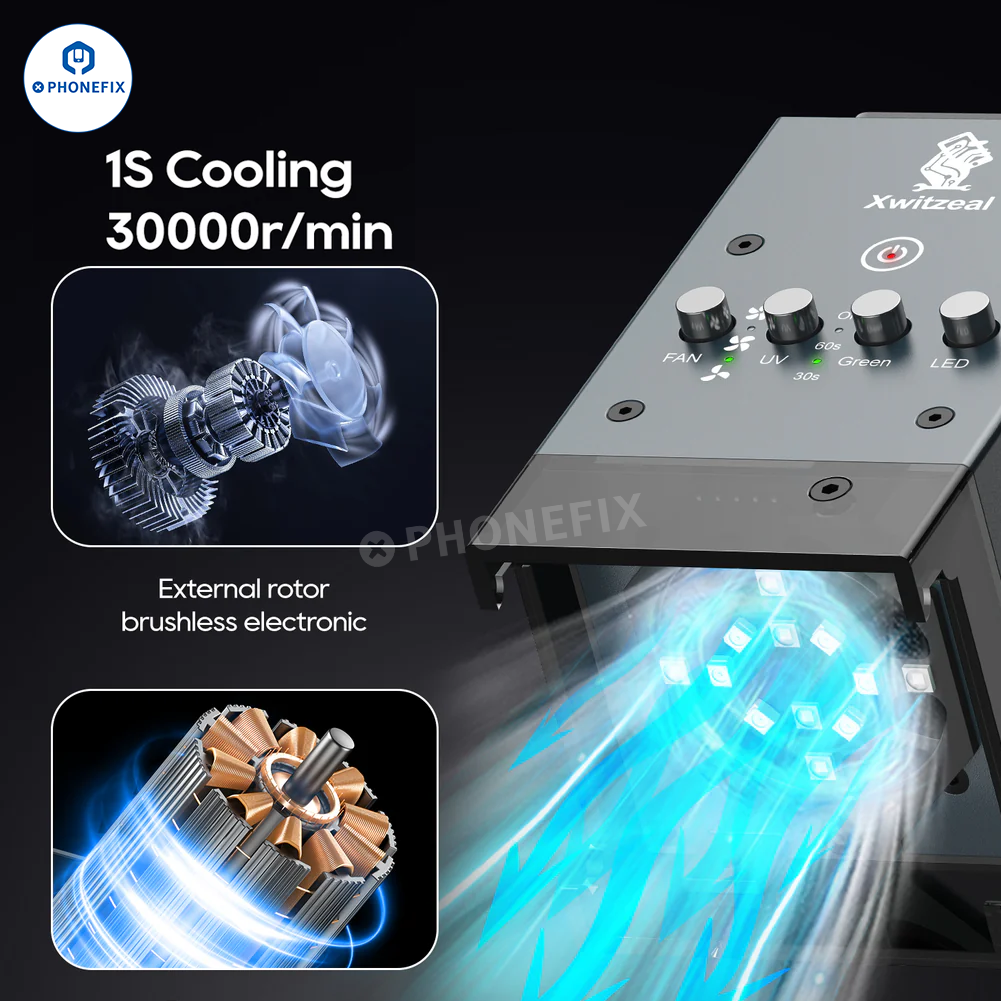

7. Intelligent air volume control: Built-in aviation-grade brushless motor with dual high-speed bearings for low noise and long life;

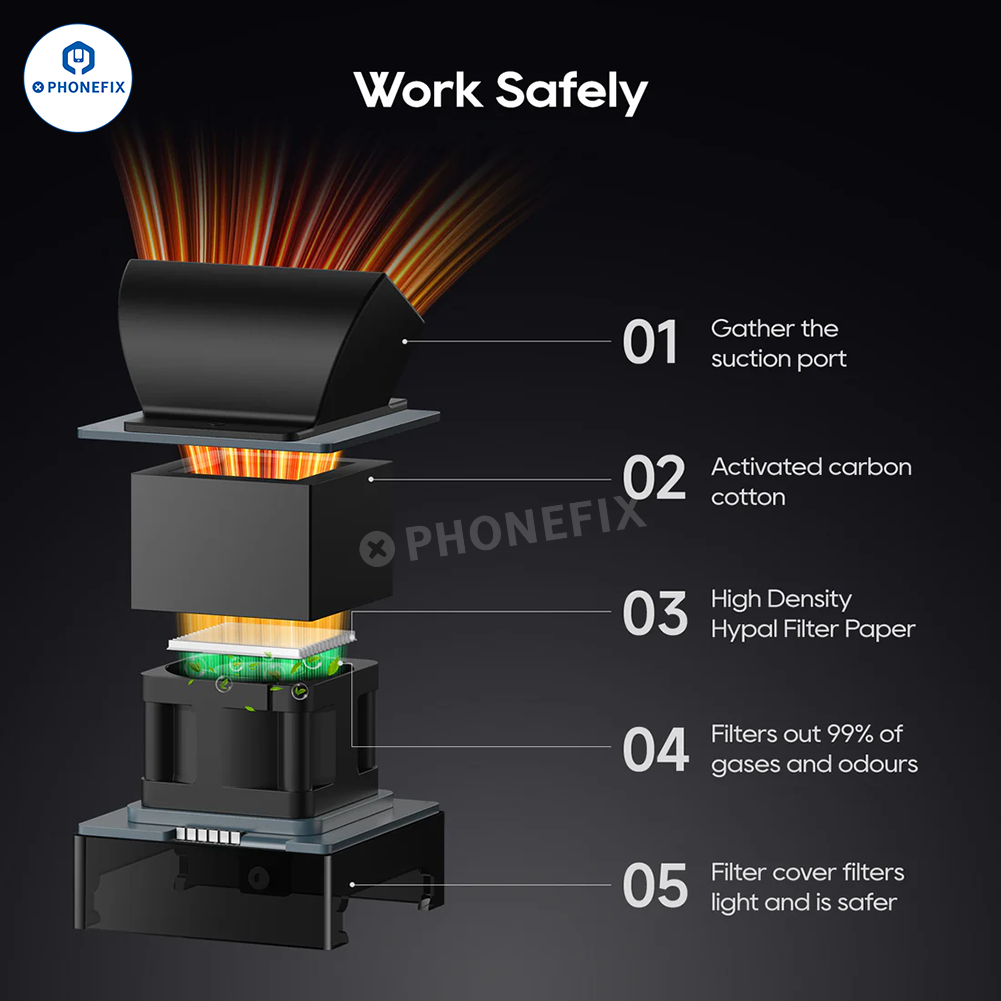

8. Filtration system: Dual-effect composite filter (HEPA filter paper + activated carbon cotton) blocks particles and odors, protecting maintenance safety;
9. Plug-and-play: No batteries or external power supply required, convenient and fast;
10. Highly adaptable: Suitable for a variety of applications, including motherboard chip repair, post-soldering cooling, UV adhesive curing, and task lighting.
Specifications：

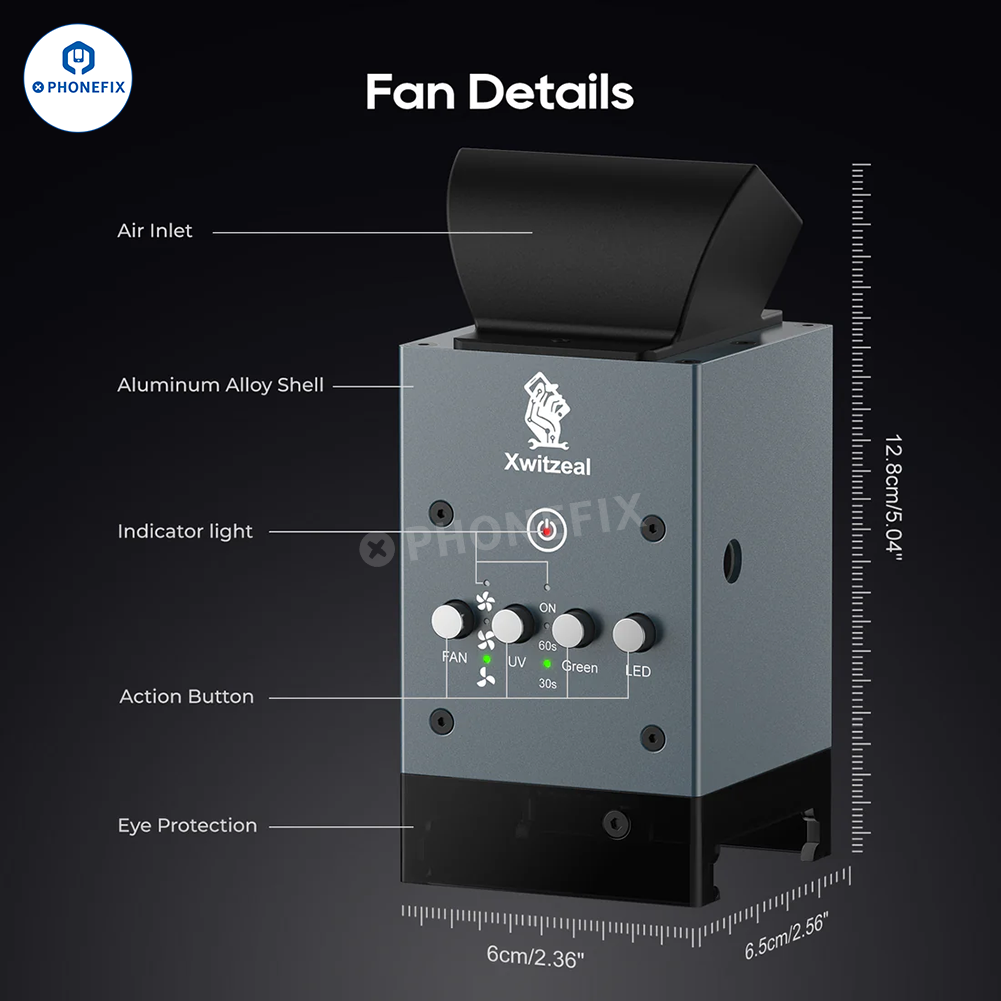

Product Name: XwitZeal FAN1 UV Cooling Curing Fan 5-in-1 Repair Tools
UV Lamp Power: 20W (3W LEDs)
Total Power: 120W
Fan Speed: 30,000 RPM
Speed Range: 1 / 2 / 3
Lighting Modes: Green / White / UV
Filter System: HEPA filter paper + activated carbon
Motor Type: Aviation-grade brushless motor + dual high-speed bearings
Packaging Dimensions: 180 × 180 × 130 mm
