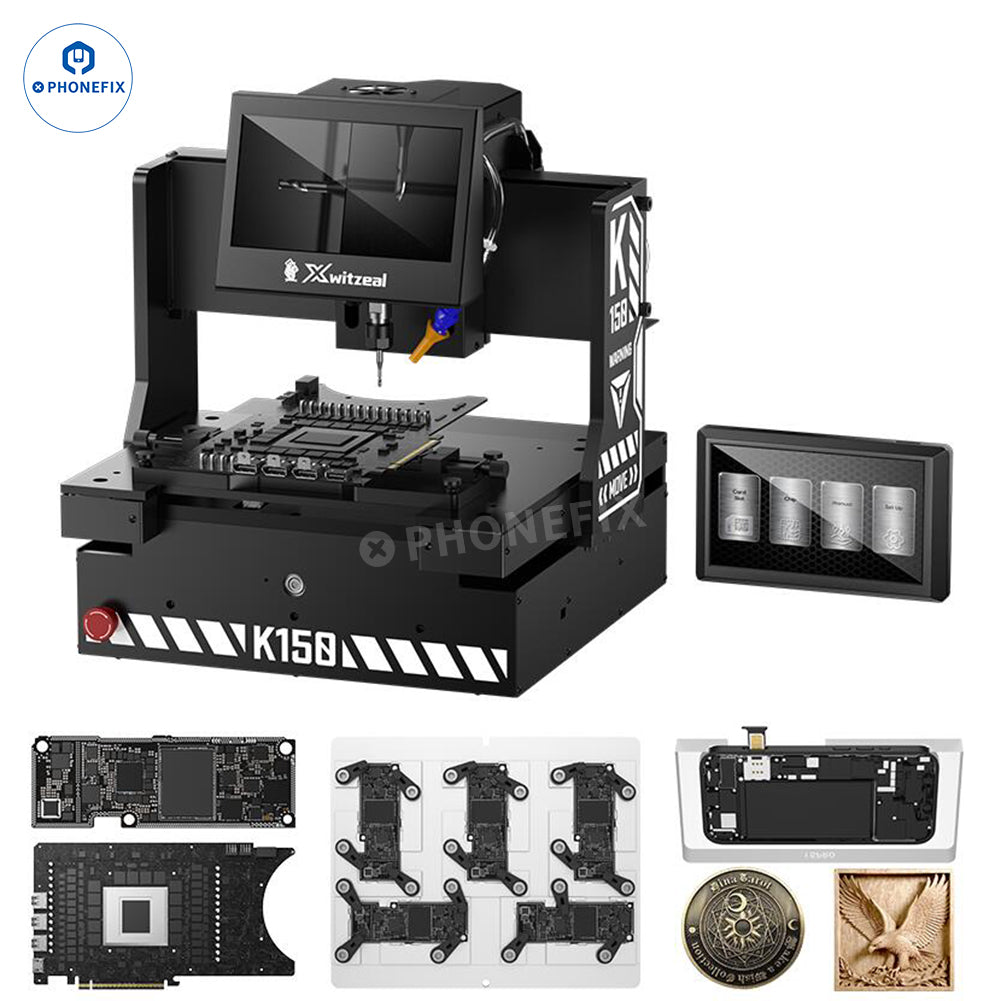

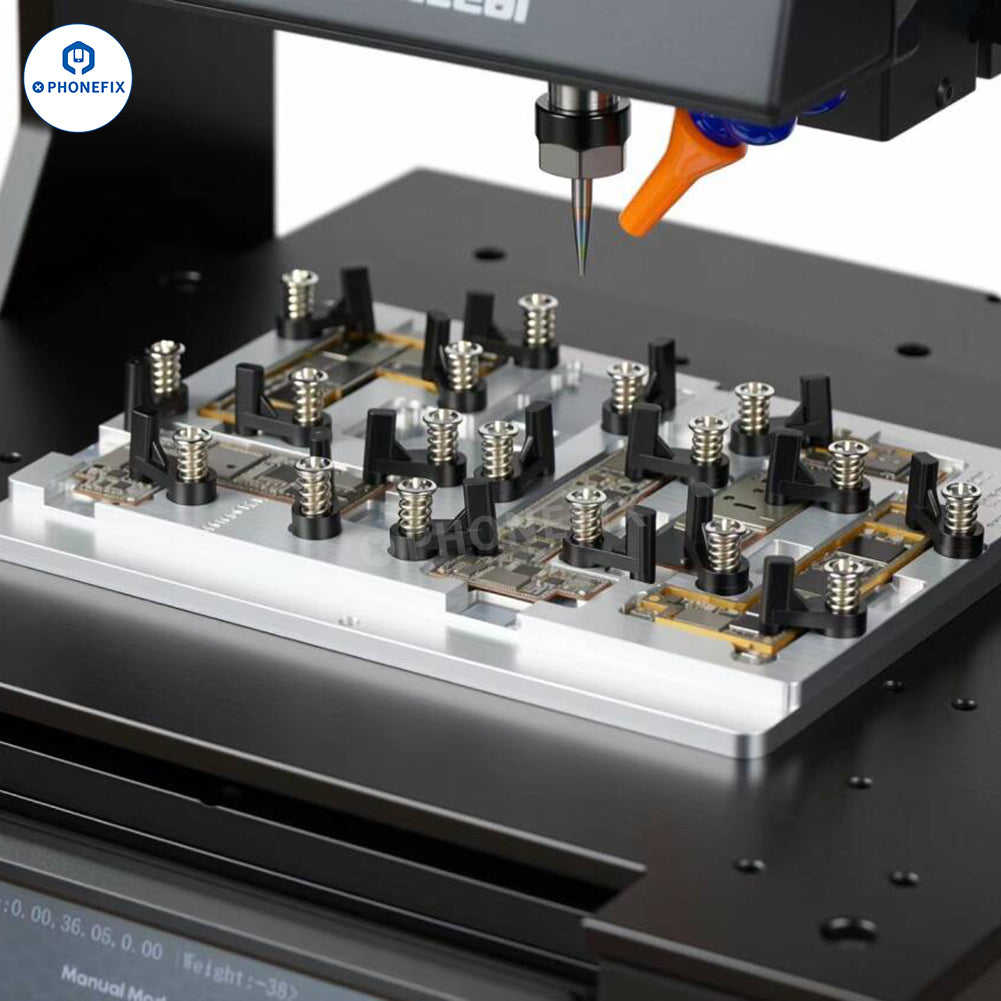

Xwitzeal K150 Precision SIM Slot Cutting & PCB Grinding Machine is a 3-in-1 CNC Grinder designed for automatically cuts SIM card slots for iPhone 13–17 series and batch iPhone motherboard grinding, PCB CPU grinding, hard disk (HDD), baseband ICs, and other components grinding. Automatic positioning, depth sensing, 0.01mm repeat positioning accuracy, fully automatic operation, it delivers efficient batch processing while protecting motherboards from damage. Dual 1080P cameras, low noise, and DIY grinding support make it ideal for phone repair shops and professional repair workshops.
Features:
1. Automatic SIM Slot Cutting – Automatically cuts SIM card slots for iPhone 13–17 series in approx. 9 minutes; features automatic positioning, depth sensing, and leveling to minimize manual adjustments.
2. CNC motherboard/IC grinding - Supports batch IC grinding, CPU/HDD grinding, and precise grooving for a wide range of chips including X-17 series CPUs and baseband ICs.
3. 0.01mm Precision – Accurate repeat positioning delivers consistent results while reducing the risk of motherboard damage.
4. 3-in-1 Multi-Function – One machine handles SIM slot cutting, batch IC grinding, CPU/HDD grinding, and precise grooving.

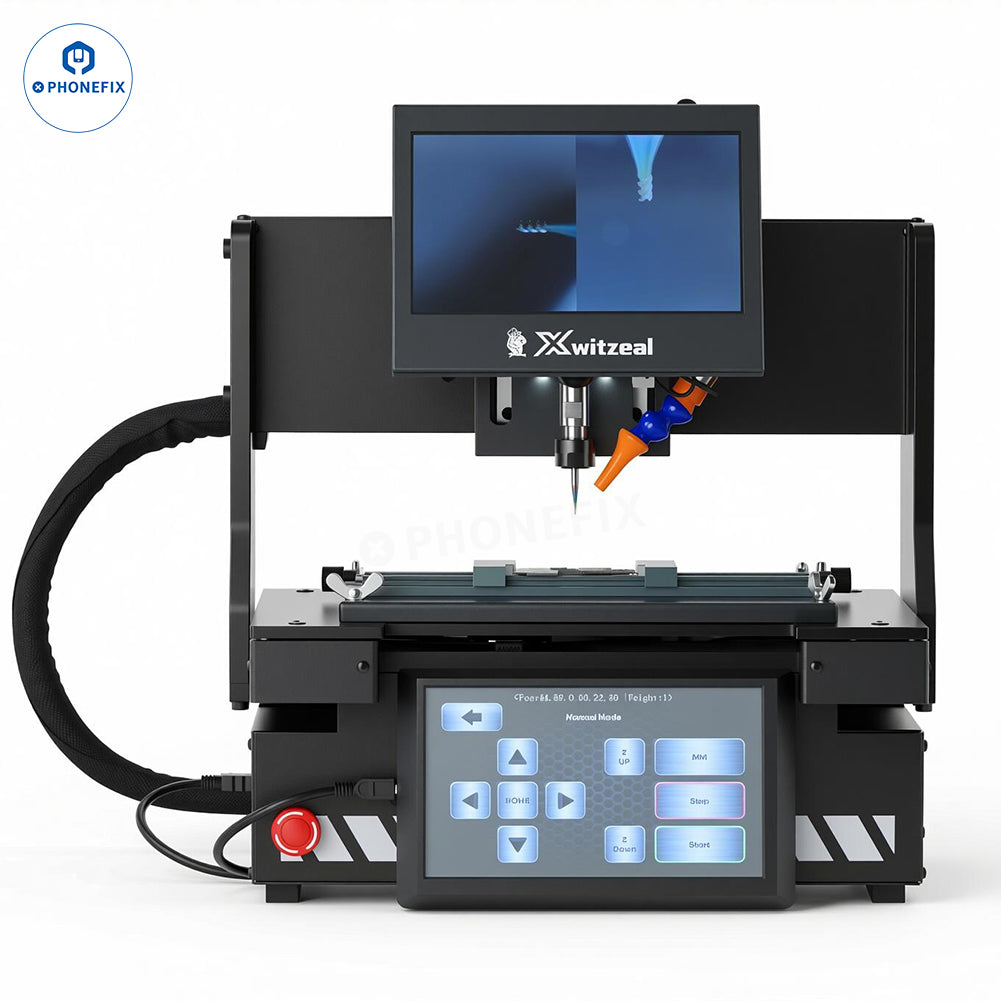

5. Dual 1080P Vision – Two HD cameras provide clear views for easier alignment and operation; main display and dedicated control screen.
6. Full Automatic Operation – No manual programming required; significantly improves batch processing performance and reduces labor costs.
7. Compact & Lightweight – lightweight design is significantly lighter than competitors (40-90kg), saving workspace while maintaining stability.
8. Ready for Daily Repairs – Includes 20 replacement cutter heads and essential installation tools; optional slotting and chip fixtures expand support for future repair applications.
Options:
1. K150 Slot Cutting Package: with iPhone 14-17 series SIM Slot Molds.
2. K150 Polishing Package: with iPhone 11-17 series Grinding Molds.
3. K150 Complete Set: with iPhone SIM Slot mold+PCB Grinding Molds.

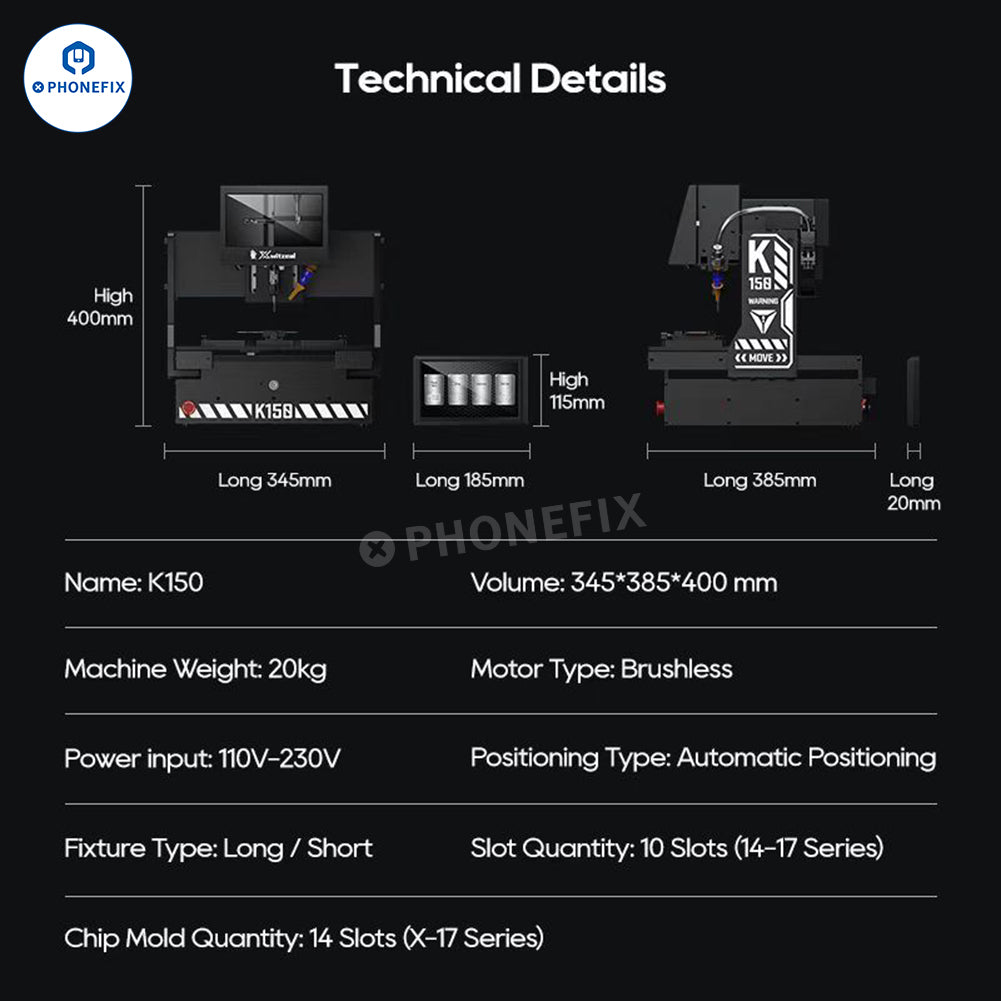

Product Parameters
Product Name: Automatic Chip Polishing & Slot Cutting Machine
Brand: Witzdeal
Product Model: K150
Positioning Method: Automatic Positioning
Motor Type: Brushless Motor
Input Voltage: AC 110–230V

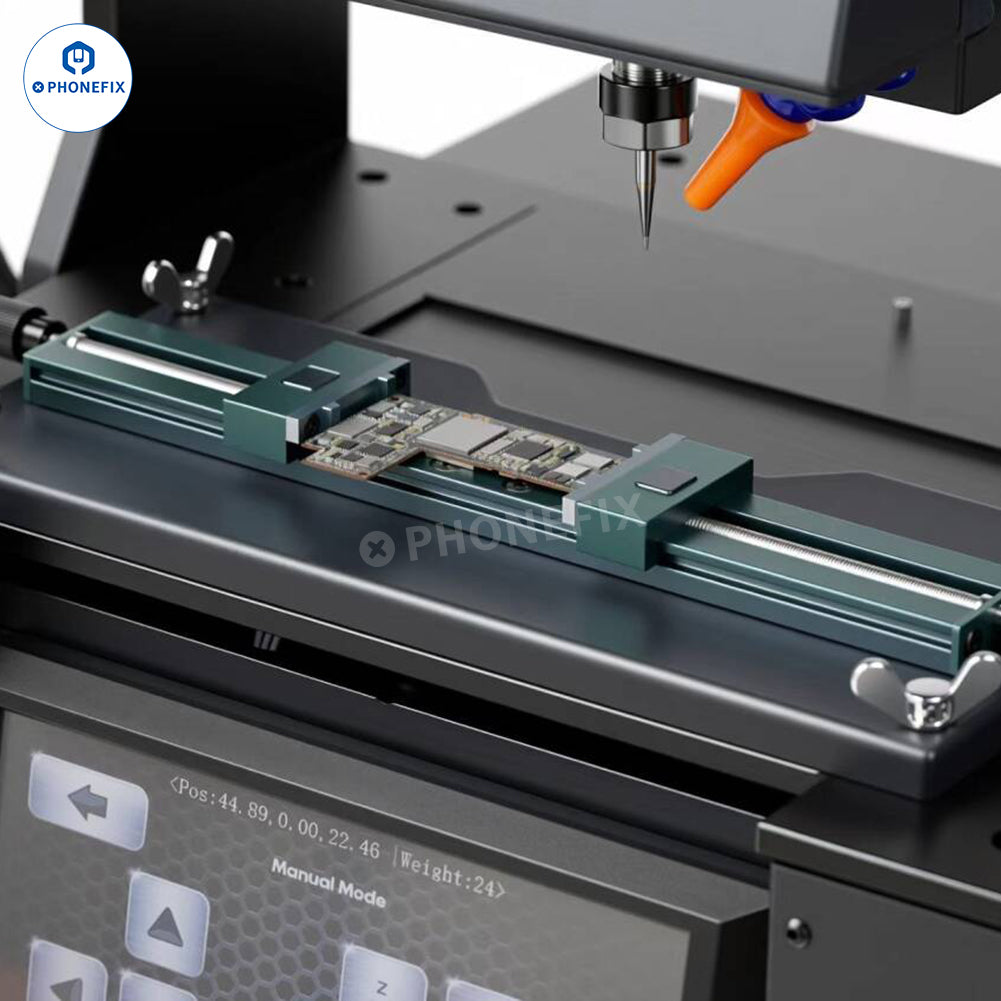

Supported Clamps: Long Clamps / Short Clamps
Number of Slotting Fixtures: 10 sets (14–17 series)
Number of Chip Fixtures: 14 sets (X–17 series)
Machine Dimensions: 345x385x400mm
Machine Weight: Approx. 20kg
Package List

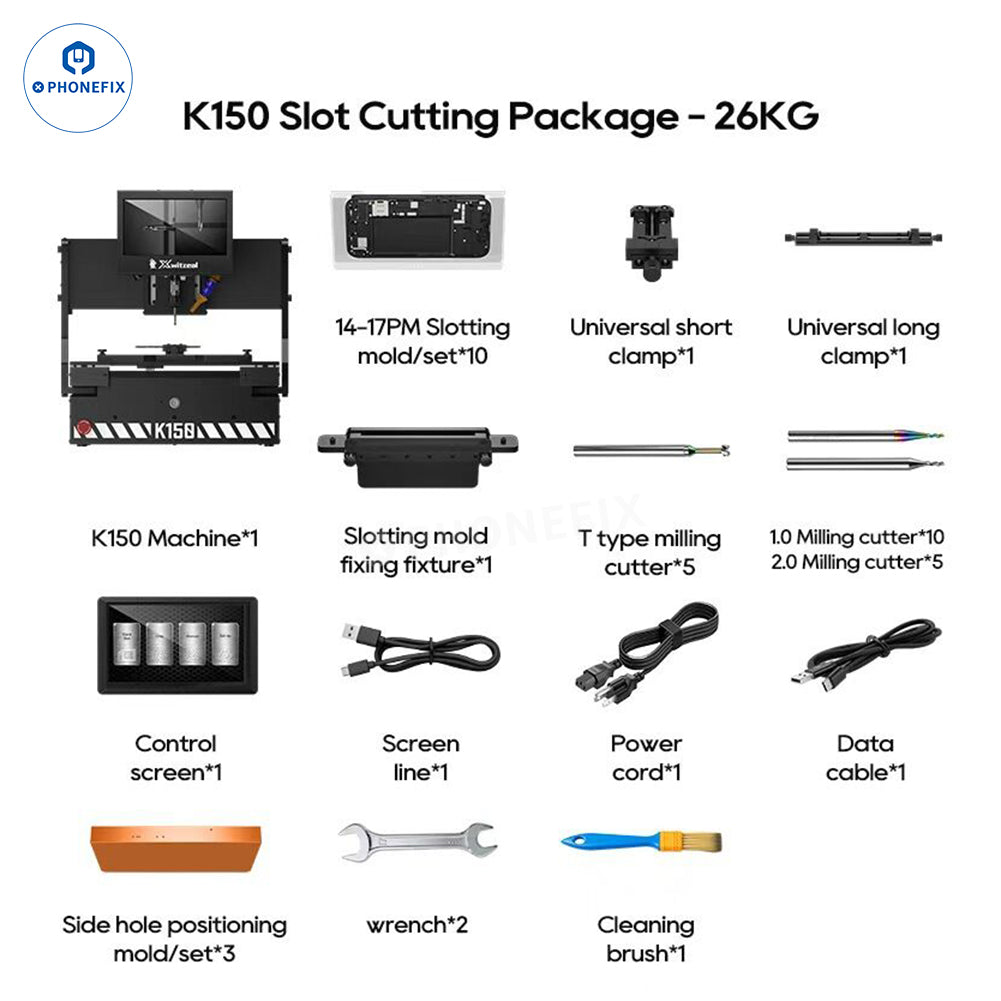

1. K150 Slot Cutting Package
· K150 Main Unit ×1
· 14–17 Pro Max Slotting Fixture ×10 sets
· Universal Short Clamp ×1
· Universal Long Clamp ×1
· Slotting Fixture Holder ×1
· T-Slot Cutter ×5
· 1.0mm End Mill ×10
· 2.0mm End Mill ×5
· Control Panel ×1
· Screen Connection Cable ×1
· Power Cord ×1
· Data Cable ×1
· Side Hole Positioning Fixture ×3 sets
· Wrench ×2
· Cleaning Brush ×1

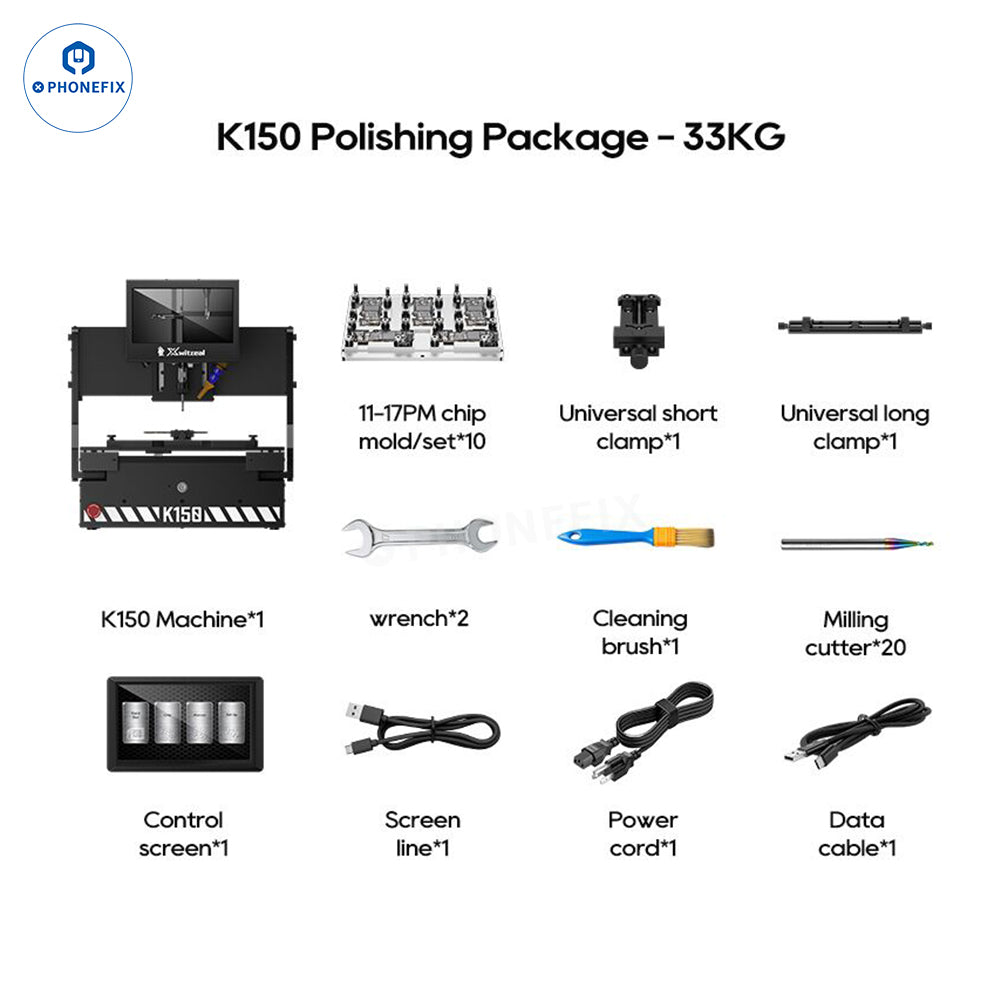

2. K150 Polishing Package
· K150 Main Unit ×1
· 11–17 Pro Max Chip Fixture ×10 sets
· Universal Short Clamp ×1
· Universal Long Clamp ×1
· End Mill ×20
· Control Panel ×1
· Screen Connection Cable 1. Power Cord ×1
· Data Cable ×1
· Wrench ×2
· Cleaning Brush ×1

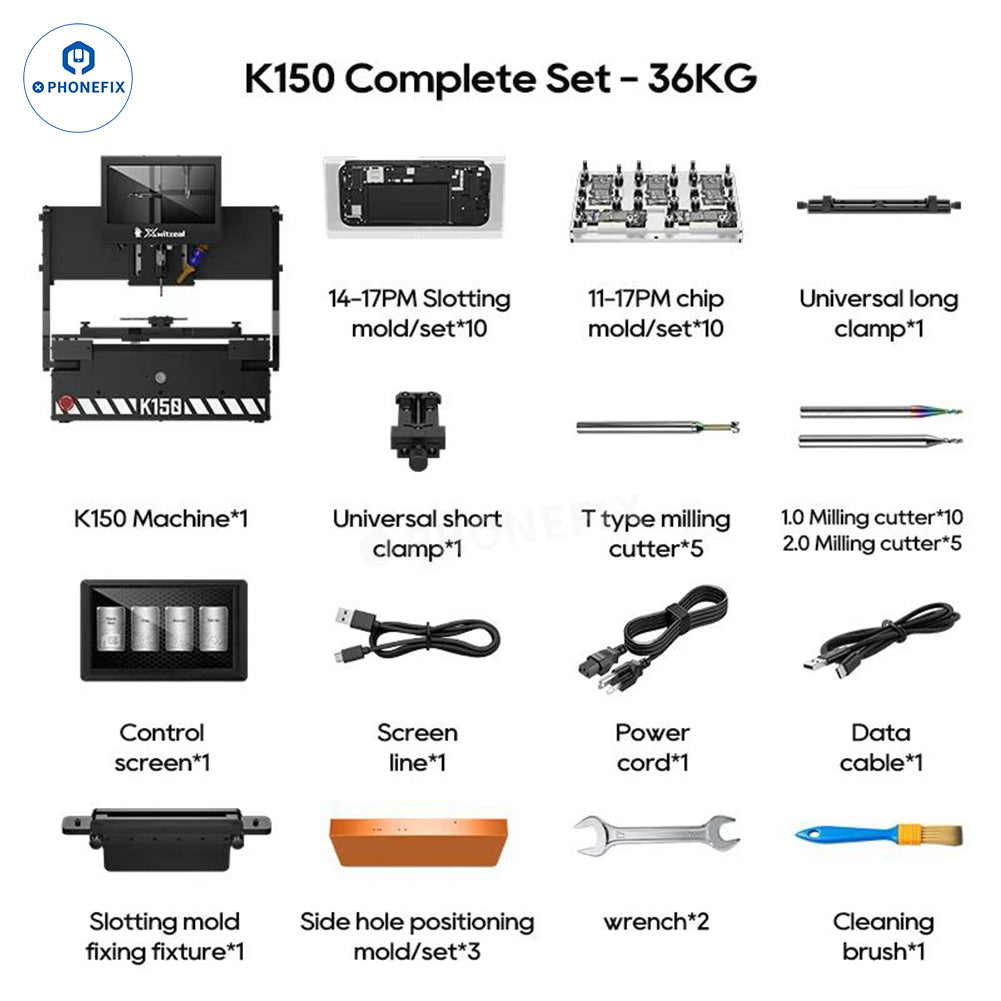

3. K150 Complete Set
· K150 Main Unit ×1
· 14–17 Pro Max Slotting Fixture ×10 sets
· 11–17 Pro Max Chip Fixture ×10 sets
· Universal Long Clamp ×1
· Universal Short Clamp ×1
· T-Slot Milling Cutter ×5
· 1.0mm Milling Cutter ×10
· 2.0mm Milling Cutter ×5
· Control Panel ×1
· Screen Connection Cable ×1
· Power Cord ×1
· Data Cable ×1
· Slotting Fixture Fixture Holder ×1
· Side Hole Positioning Fixture ×3 sets
· Wrench ×2
· Cleaning Brush ×1
