XZZ New Energy Vehicle Chip Stencil Set is a professional-grade BGA reballing kit designed specifically for electric vehicle (EV) and Tesla chip repair. Covers major automotive chip brands including Qualcomm, NVIDIA, NXP, Infineon, Texas Instruments, Marvell, Broadcom, STMicroelectronics, and Tesla. 0.12-0.20mm thickness.
Features:
1. Specifically designed for Tesla and new energy vehicle chip reballing repair, covering various mainstream chip models.
2. Made of high-quality material with smooth apertures and uniform solder application, ensuring complete solder points.
3. Available in 0.12mm, 0.15mm, and 0.20mm thicknesses to meet different chip reballing needs.
4. Precision manufactured with accurate dimensions for a perfect fit and improved reballing success rate.
5. Suitable for BGA chip soldering repair, widely used in new energy vehicle electronics repair.
Option:

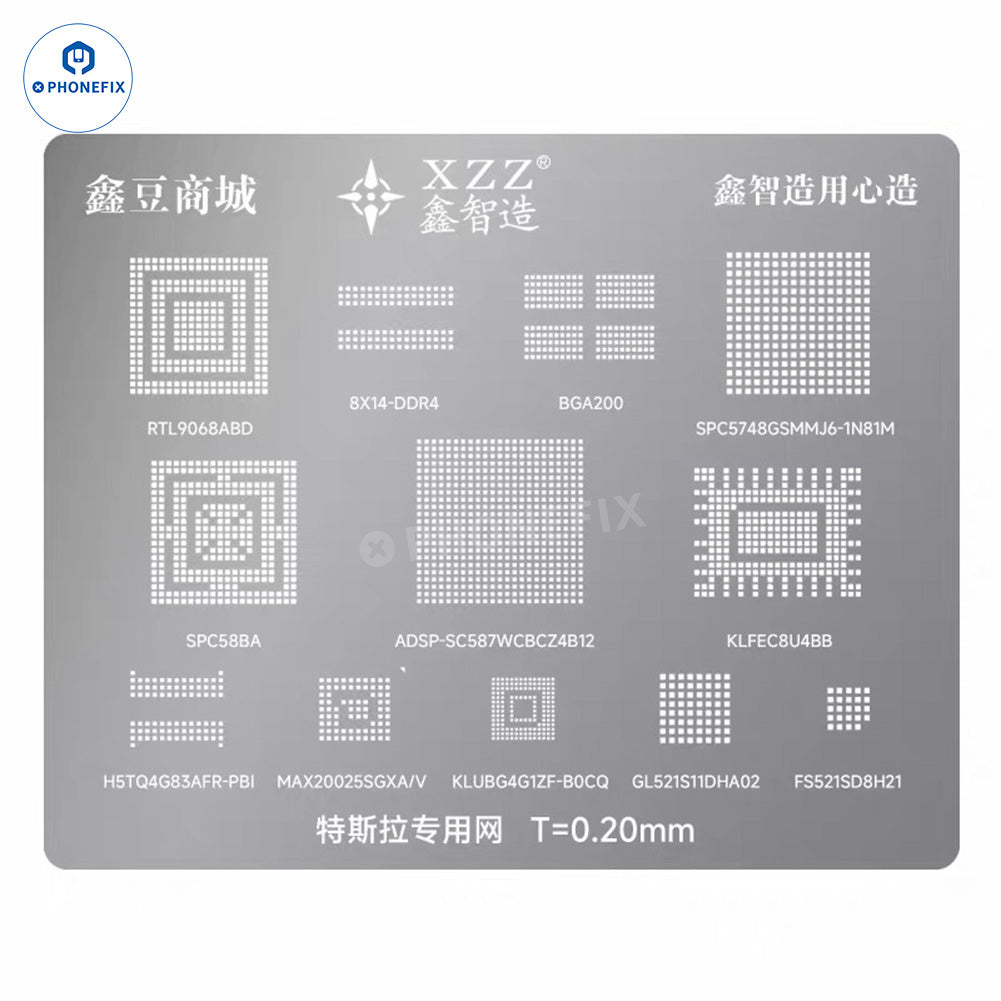

1. Tesla Dedicated Stencil: T=0.20mm, includes models: RTL9068ABD, 8X14-DDR4, BGA200, SPC5748GSMMJ6-1N81M, SPC58BA, ADSP-SC587WCBCZ4B12, KLFEC8U4BB, H5TQ4G83AFR-PBI, MAX20025SGXA/V, KLUBG4G1ZF-B0CQ, GL521S11DHA02, FS521SD8H21.

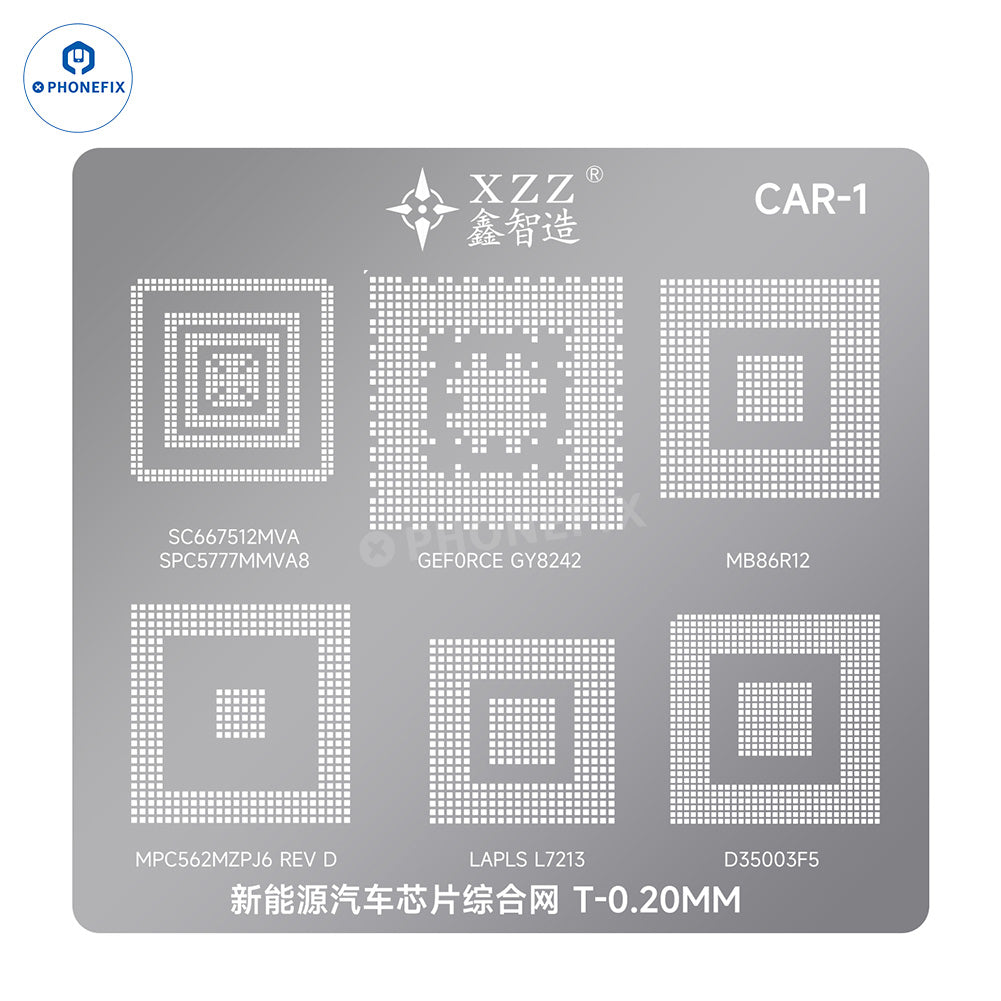

2. CAR-1: T=0.20mm, includes models: SC667512MVA, SPC5777MMVA8, GEFORCE GY8242, MB86R12, MPC562MZPJ6 REV D, LAPLS L7213, D35003F5.

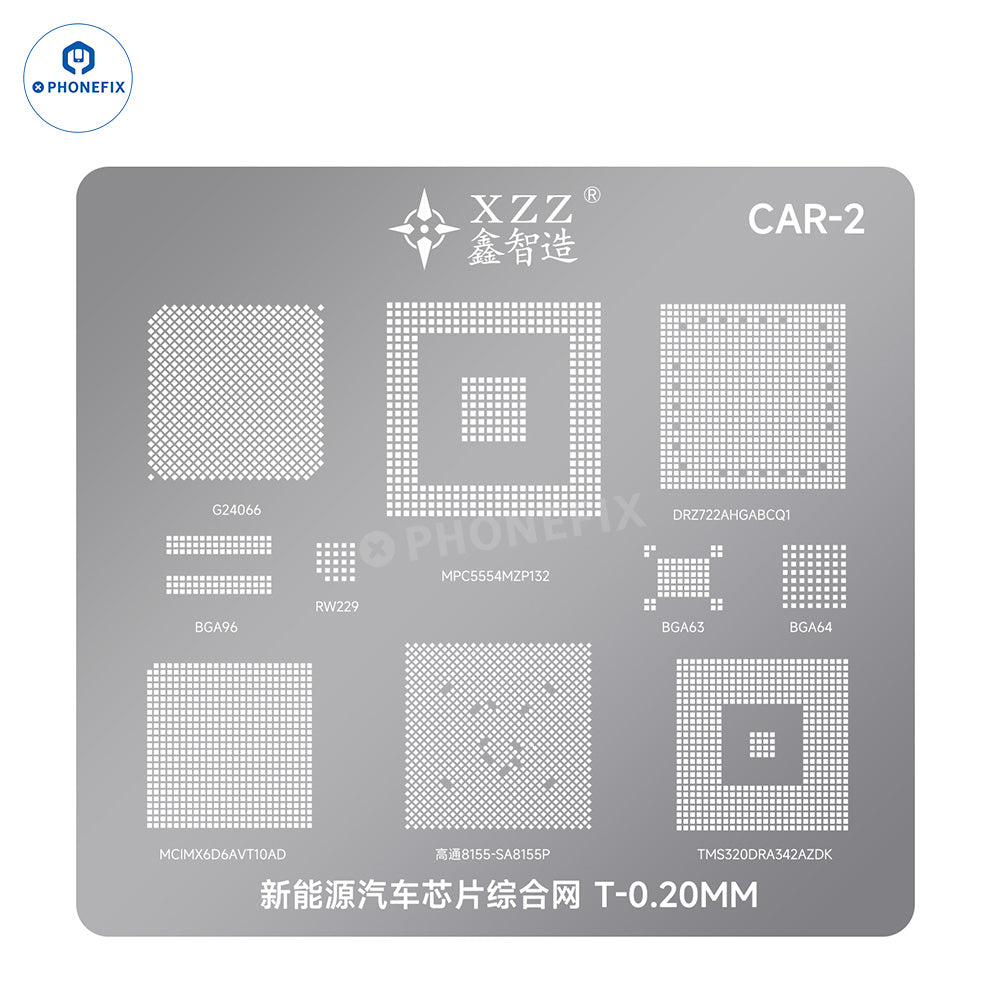

3. CAR-2: T=0.20mm, includes models: G24066, BGA96, RW229, MPC5554MZP132, DRZ722AHGABCQ1, BGA63, BGA64, MCIMX6D6AVT10AD, Qualcomm 8155-SA8155P, TMS320DRA342AZDK.

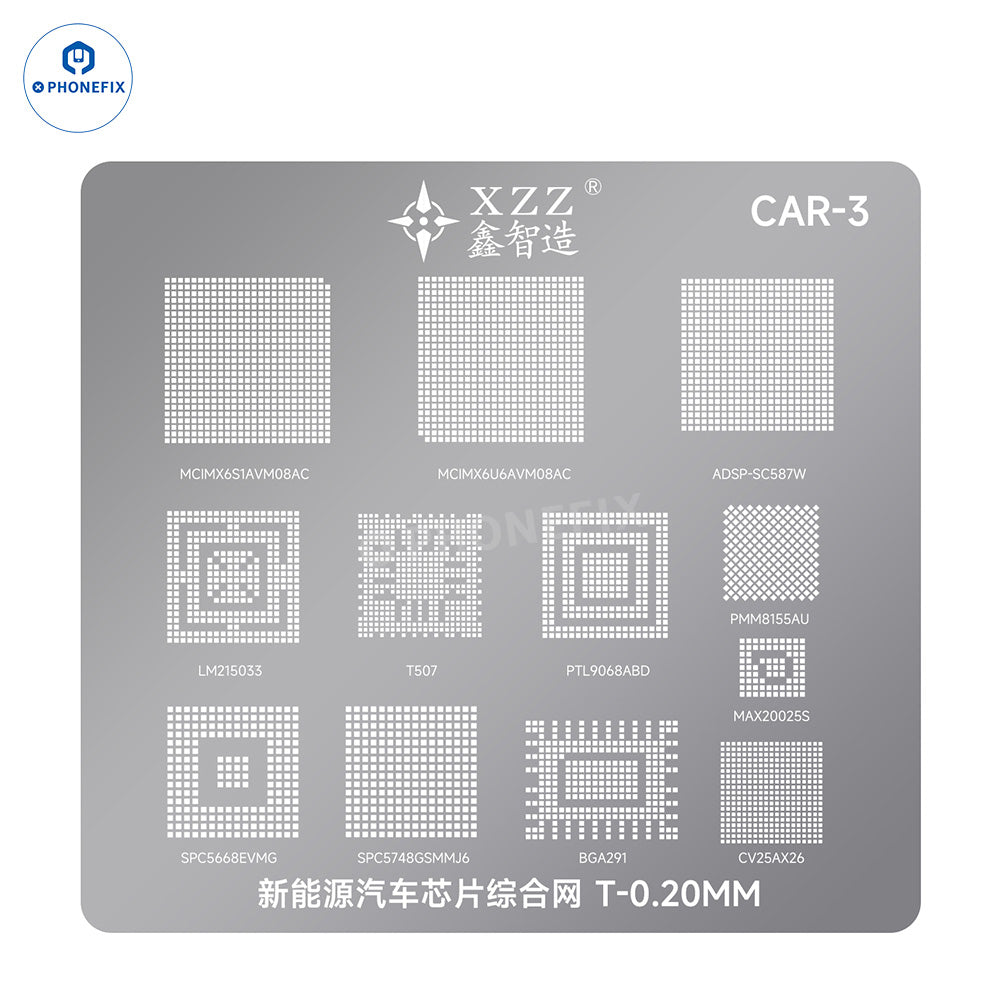

4. CAR-3: T=0.20mm, includes models: MCIMX6S1AVM08AC, MCIMX6U6AVM08AC, ADSP-SC587W, LM2150S33, T507, PTL9068ABD, PMM8155AU, MAX20025S, SPC5668EVMG, SPC5748GSMMJ6, BGA291, CV25AX26.

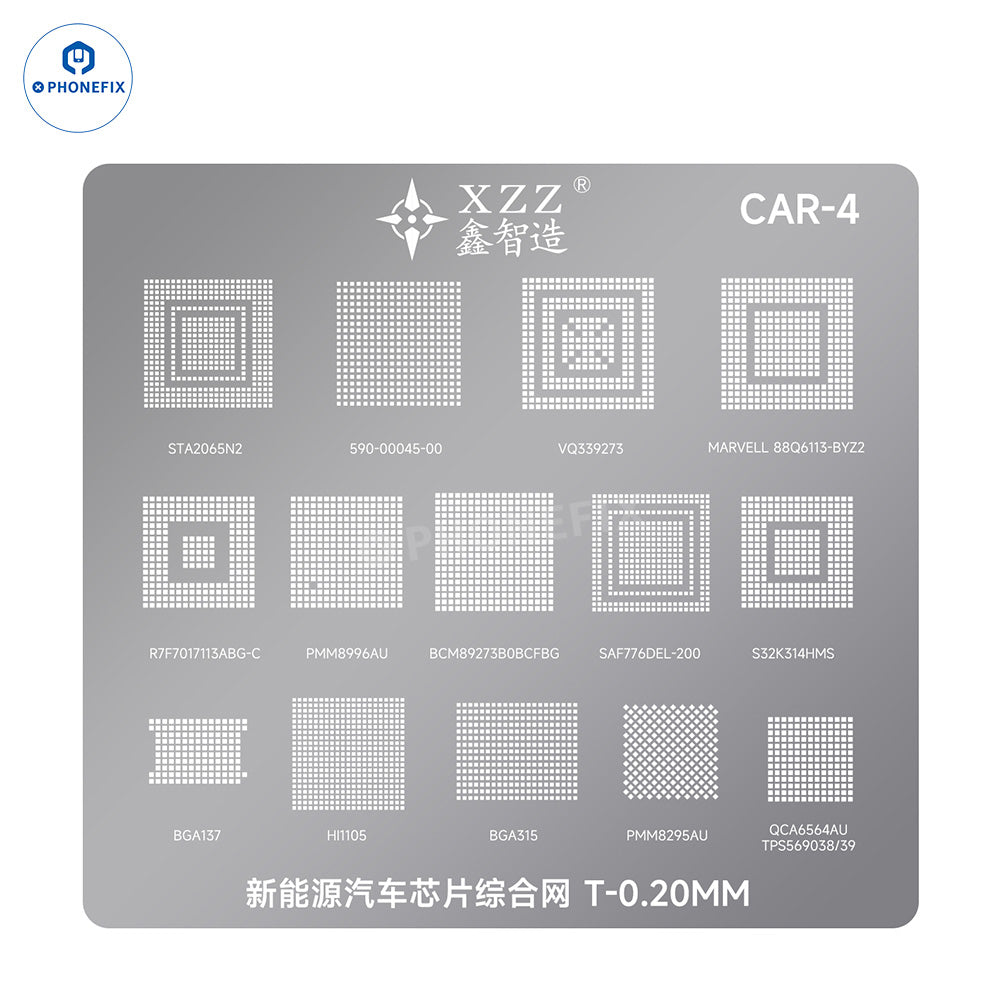

5. CAR-4: T=0.20mm, includes models: STA2065N2, 590-00045-00, VQ339273, MARVELL 88Q6113-BYZZ, R7F7017113ABG-C, PMM8996AU, BCM89273B0BCFBG, SAF776DEL-200, S32K314HMS, BGA137, HII105, BGA315, PMM8295AU, QCA6564AU TPS569038/39.

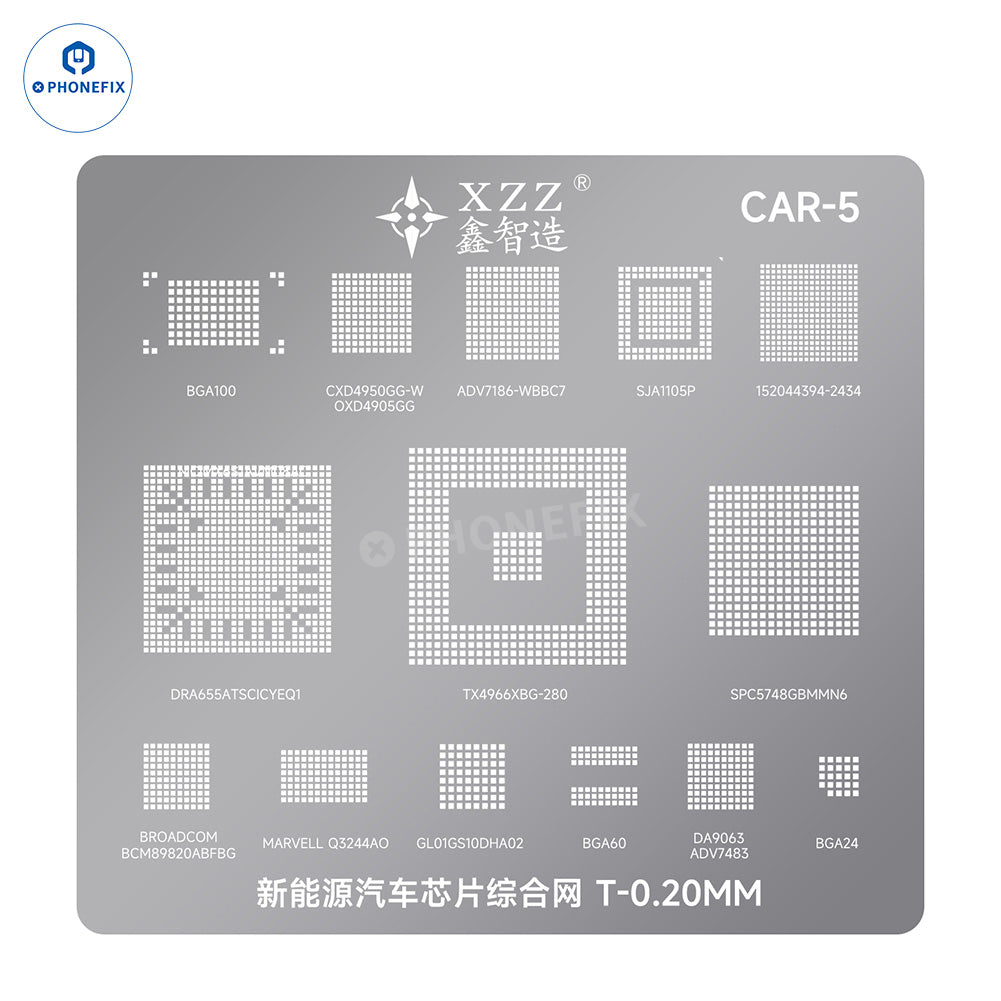

6. CAR-5: T=0.20mm, includes models: BGA100, CXD4950GG-W OXD4905GG, ADV7186-WBBC7, SJA1105P, 152044394-2434, DRA655ATSCICYEQ1, TX4966XBG-280, SPC5748GBMMN6, BROADCOM BCM89820ABFBG, MARVELL Q3244AO, GL01GS10DHA02, BGA60, DA9063 ADV7483, BGA24.

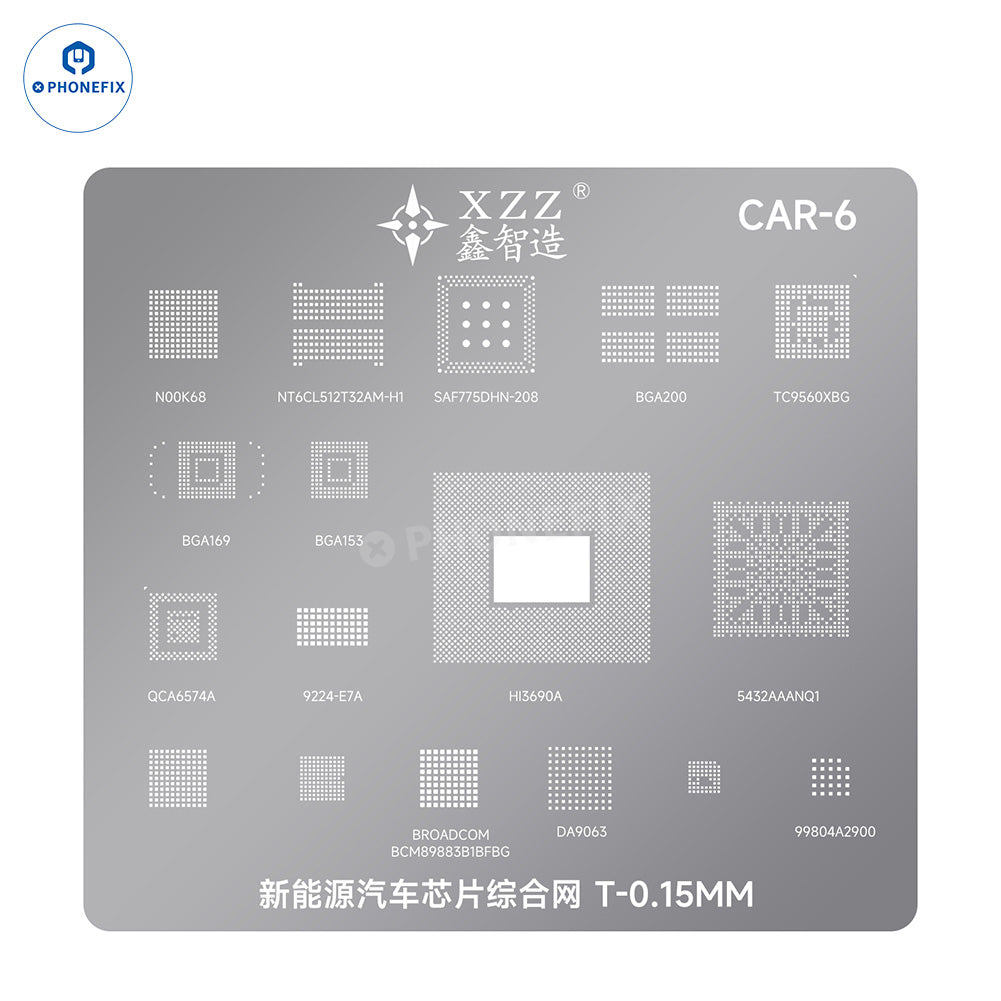

7. CAR-6: T=0.15mm, includes models: N00K68, NT6CL512T32AM-H1, SAF775DHN-208, BGA200, TC9560XBG, BGA169, BGA153, QCA6574A, 9224-E7A, HI3690A, 5432AAANQ1, BROADCOM BCM89883B1BFBG, DA9063, 99804A2900.

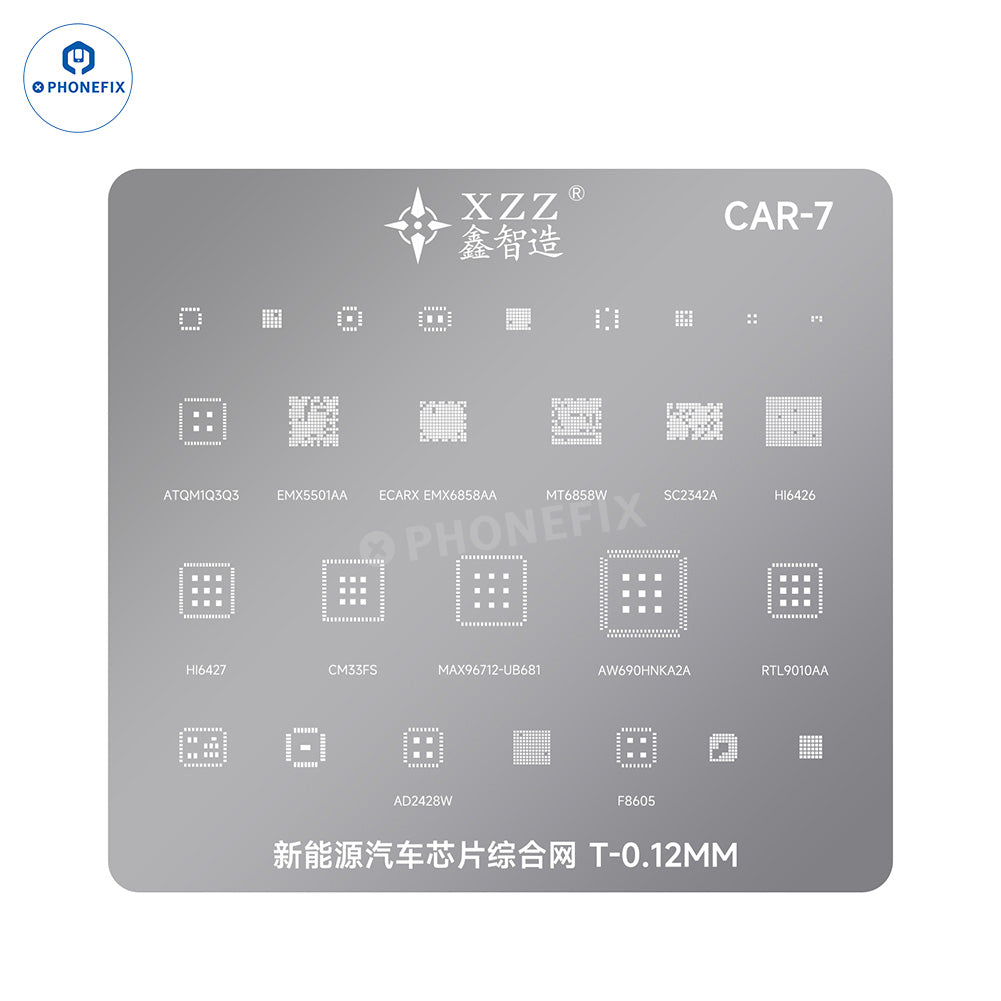

8. CAR-7: T=0.12mm, includes models: ATQM1Q3Q3, EMX5501AA, ECARX EMX6858AA, MT6858W, SC2342A, HI6426, HI6427, CM33FS, MAX96712-UB681, AW690HNK2A, RTL9010AA, AD2428W, F8605.
Product Parameters:
Brand: XZZ
Product Name: Tesla/New Energy Vehicle Chip Reballing Stencil
Models: Tesla Dedicated Stencil, CAR-1, CAR-2, CAR-3, CAR-4, CAR-5, CAR-6, CAR-7
Thickness: Tesla Dedicated Stencil, CAR-1 to CAR-5 are 0.20mm; CAR-6 is 0.15mm; CAR-7 is 0.12mm
Compatible Chips: See models listed in Option
Material: High-Quality Stencil Material
