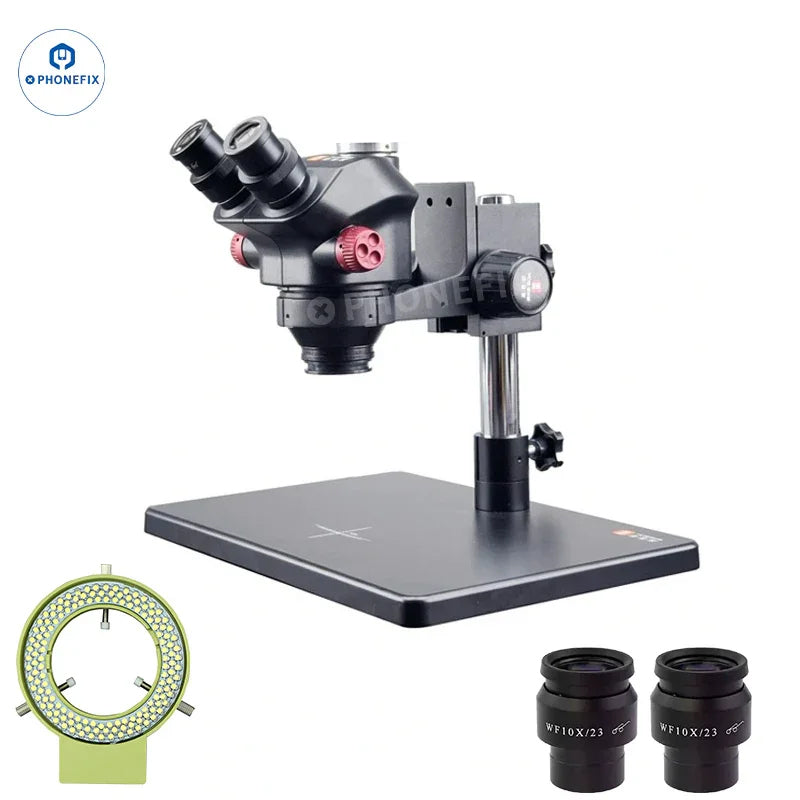

YCS 7050X 7-50X Synchronous Zoom Trinocular Stereo Microscope with Big Aluminum Alloy Base WF10X/23 Eyepiece 144 LED light and 0.35X CTV Lens for cell phone PCB BGA IC welding, electronic motherboard soldering, ect. Industrial grade YCS 7050X micro soldering microscopes for mobile phone repair.
Option:
1. YCS 7050X microscope standard set.
2. Mechanic D75T-B11 microscope standard set. More details, SKU: D75T.
3. Mechanic Mic 3-B11 microscope standard set. More details, SKU: Mic23.
4. RF4 RF-7050Pro FO19 microscope standard set. More details, SKU: RF24811.
5. RF4 RF7050TVP microscope standard set. More details, SKU: XZ2683.
6. YCS 7050X Microscope head with C-mount lens and holder + Shenlong Swing Arm Bracket + 4K camera + 144 LED Light.
YCS 7050X Specification:
Magnification: Continuous zoom 7X to 50X.
Head: 45-degree inclined 360-degree swiveling trinocular.
Eyepiece: WF10X/23MM adjustable.
Objective: 7-50X.
Zoom Knob: Metal knob.
Camera connector: 0.35X CTV Lens Adapter (Monitor and eyepiece Synchronous zoom).
Light source: 144 LED ring light
Base pad: Big Aluminum Alloy Base.
Accessories (optional): HDMI 4K camera, objective lens, etc.
Features:
1. YCS-7050X trinocular stereo microscope, 7X-50X zoom lens adjustment, continuous zoom 7X to 50X.
2. 45-degree inclined 360-degree swiveling trinocular microscope head.
3. 10X/23MM high point wide angle eyepiece, high transmittance optical glass, 23MM large lens, clear imaging, less fatigue during observation.
4. 0.35X CTV lens adapter, compatible with most microscope cameras and 4K cameras.
5. The microscope bracket assembly can be adjusted freely, the lens module can be adjusted 360°, and the working position can be freely adjusted.
4. The large range of loading base, metal base plate, stable and durable, suitable for more working scenes.
5. 144 LED light and dust proof Lens, suitable for a variety of scenes, snap-on design, low energy consumption design, long life, no shadow.
6. Multi-scene application, a wide range of applications, can be used for mobile phone repair, biological research, precision instruments, etc.
