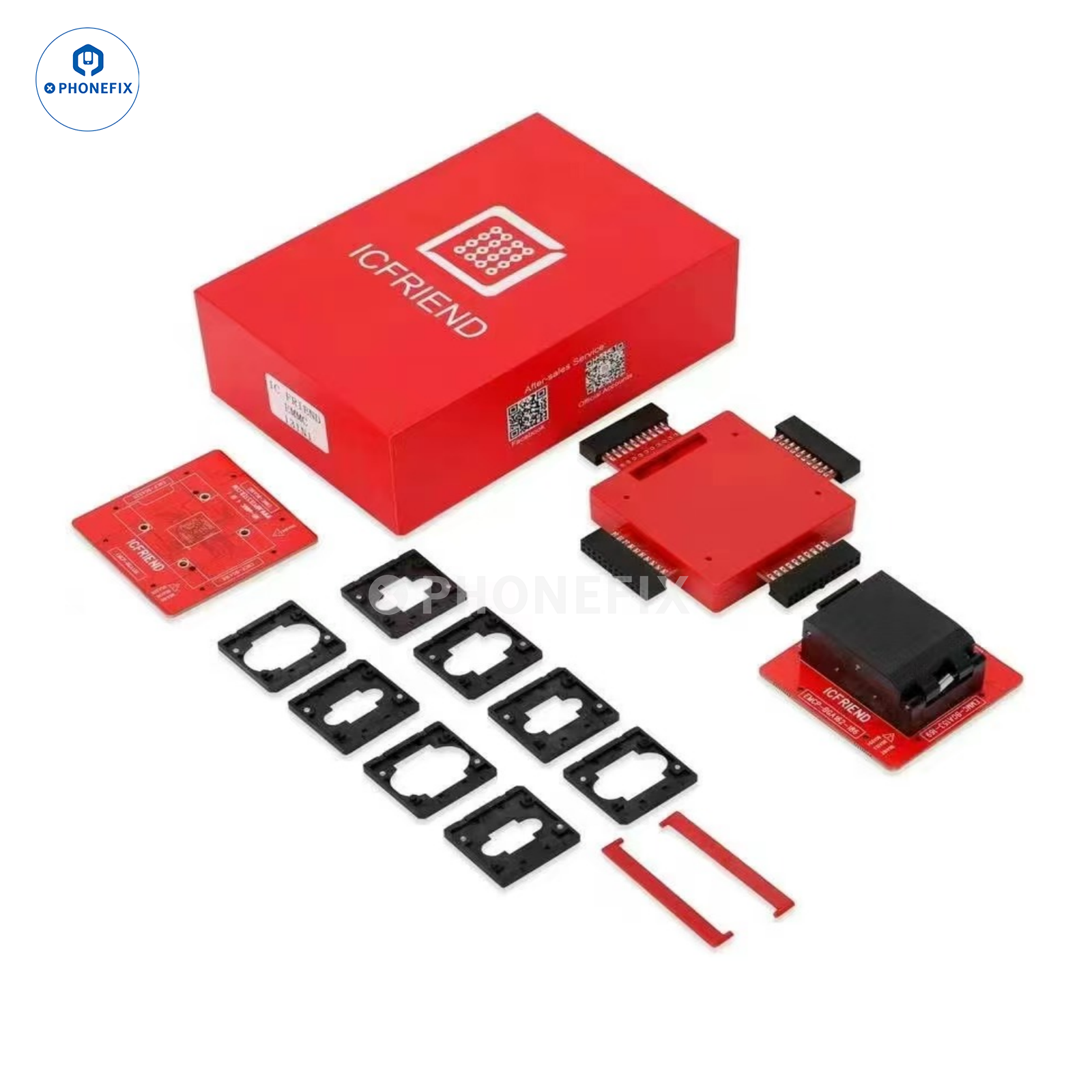

Z3X Easy Jtag Plus Box With ICFriend eMMC 13 In 1 BGA Socket

Z3X Easy Jtag Plus BOX is an innovative all in one service tool for phone and phone boot repair, data recovery, SPI memory programming and many other features. Supports eMMC, ISP, JTAG, SPI, NAND and many more protocols. ICFriend Moorc E-Mate X EMMC 13-in-1 BGA Adapter is designated for direct EMMC memory chips connection with the wide range of supported BGA types. It is compatible with all most known EMMC boxes: Riff, RIFF 2, ATF, Z3X Easy Jtag, Z3X Easy Jtag Plus, Medusa Pro.

Z3X Easy-Jtag Plus - Outstanding features:
One click device repair
Boot repair
Data recovery
eMMC firmware repair
Partition management
eMMC service operations
SPI memory programming

Z3X Easy-Jtag Plus - Hardware features:
Updated Host MCU SAM3X8E (comparing to LPC1768 in old box)
Updated high-speed FPGA SPARTAN6 (comparing to SPARTAN3 in old box)
Updated power management subsystem – full digital PWM with ADC control
Added Micro-USB connector (if additional power required)
Added VCC and VCCQ switch with overcurrent protection
Updated USB device interface: USB 2.0 480 Mbps (high speed)
Integrated ISP engine: Z3X high power pro engine (4 MB/s)
ISP support 1 and 4 bit* connection
Added eMMC 8-bit high-speed interface up to 42 MHz
Integrated NAND* engine: NFC with 4 KB RAM buffer and ECC
Integrated M-PHY* interface
Integrated SPI engine: up to 21 MHz clock for popular SPI memory flash IC
Integrated self-test core that excludes 90% faults in production
Integrated CCID card reader for Z3X Software Use

Z3X Easy-Jtag Plus - Hardware benefits:
Box to Host PC speed increased up to 40 MB/sec
JTAG Interface speed increased by 20%
eMMC 1 Bit ISP Speed increased up to 4 MB/sec
eMMC 4 Bit ISP Speed increased up to 12 MB/sec (eMMC 5.0+) **
eMMC 4 Bit Speed up to 18 MB/sec
eMMC 8 Bit Speed up to 28 MB/sec (eMMC 5.0+)
Compatible with 99% host PC systems and OS
Compatible with old Easy JTAG 1st generation ISP adapters (1 bit)
Compatible with most of the popular eMMC sockets (with supplied adapters)
Plug and Play for Windows OS 8/ 8.1/10
Full support for Windows XP

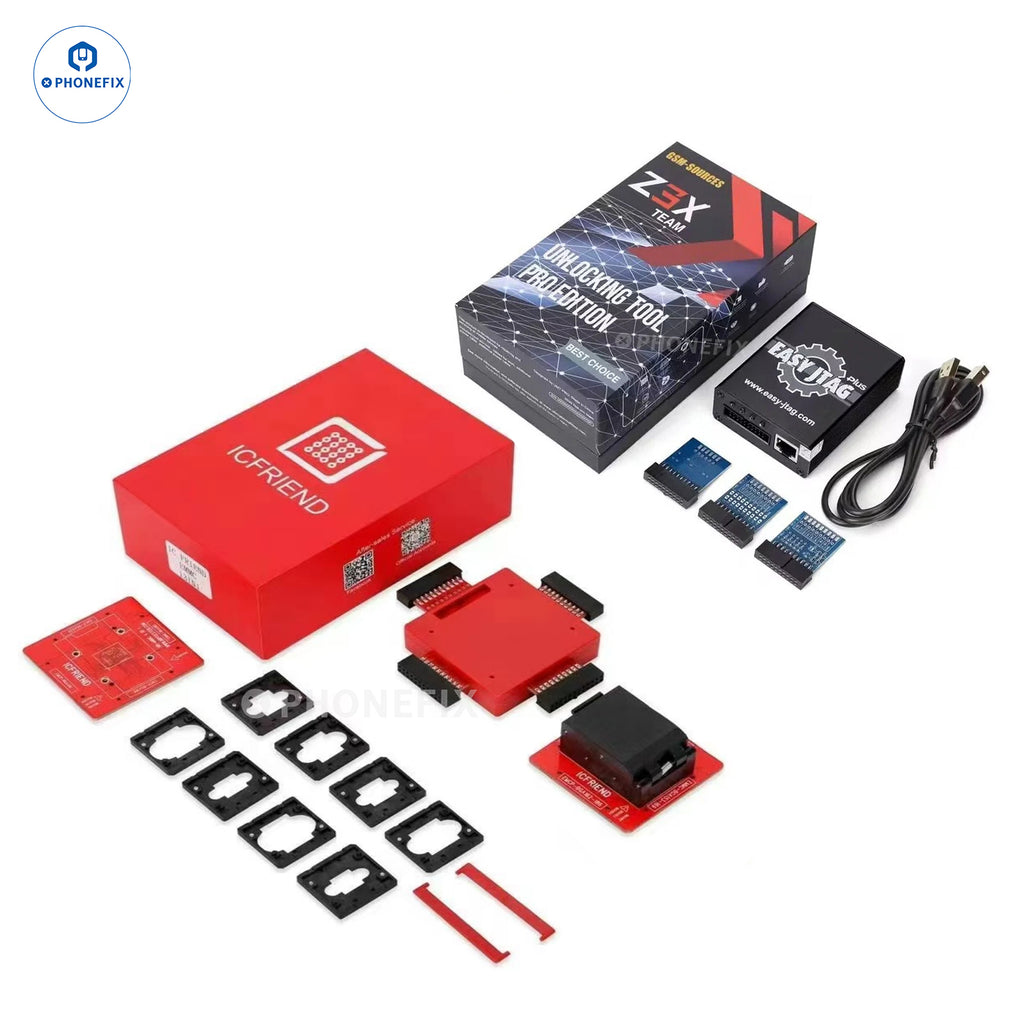

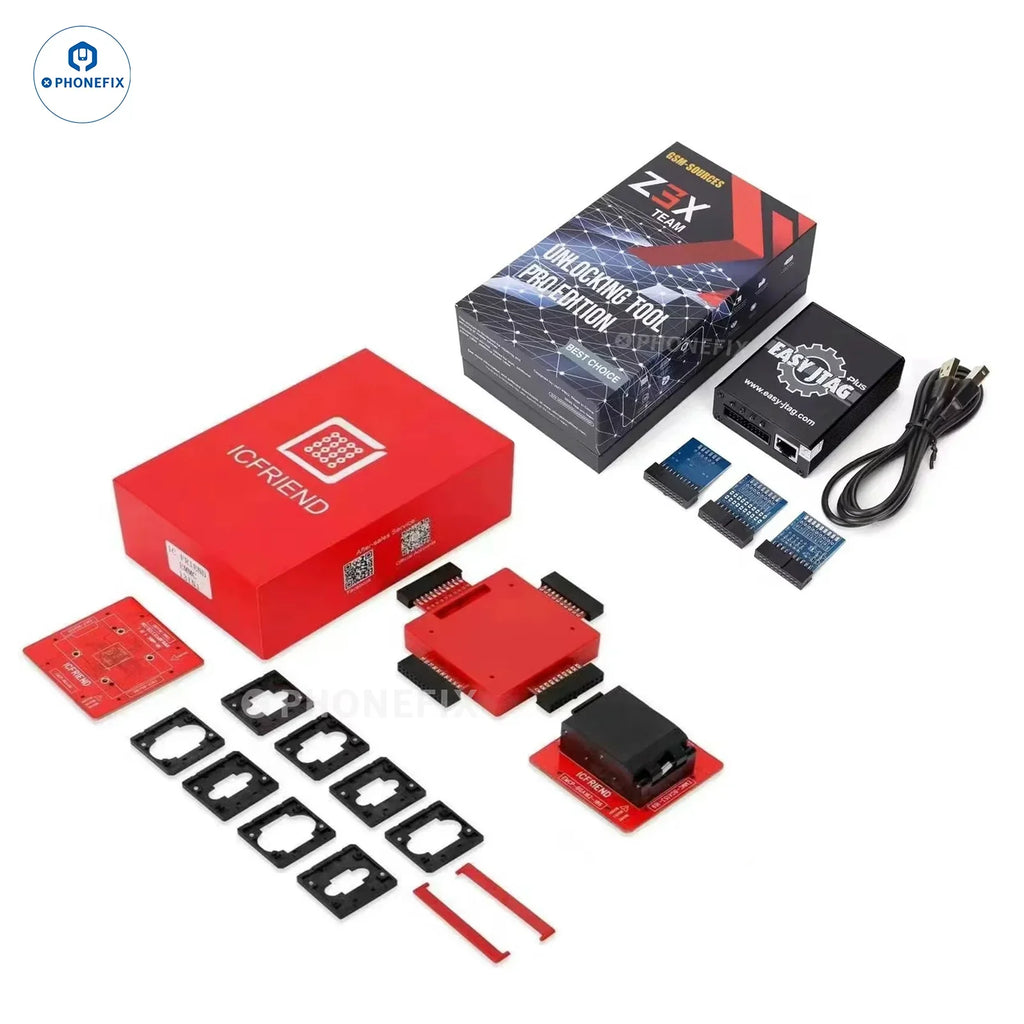

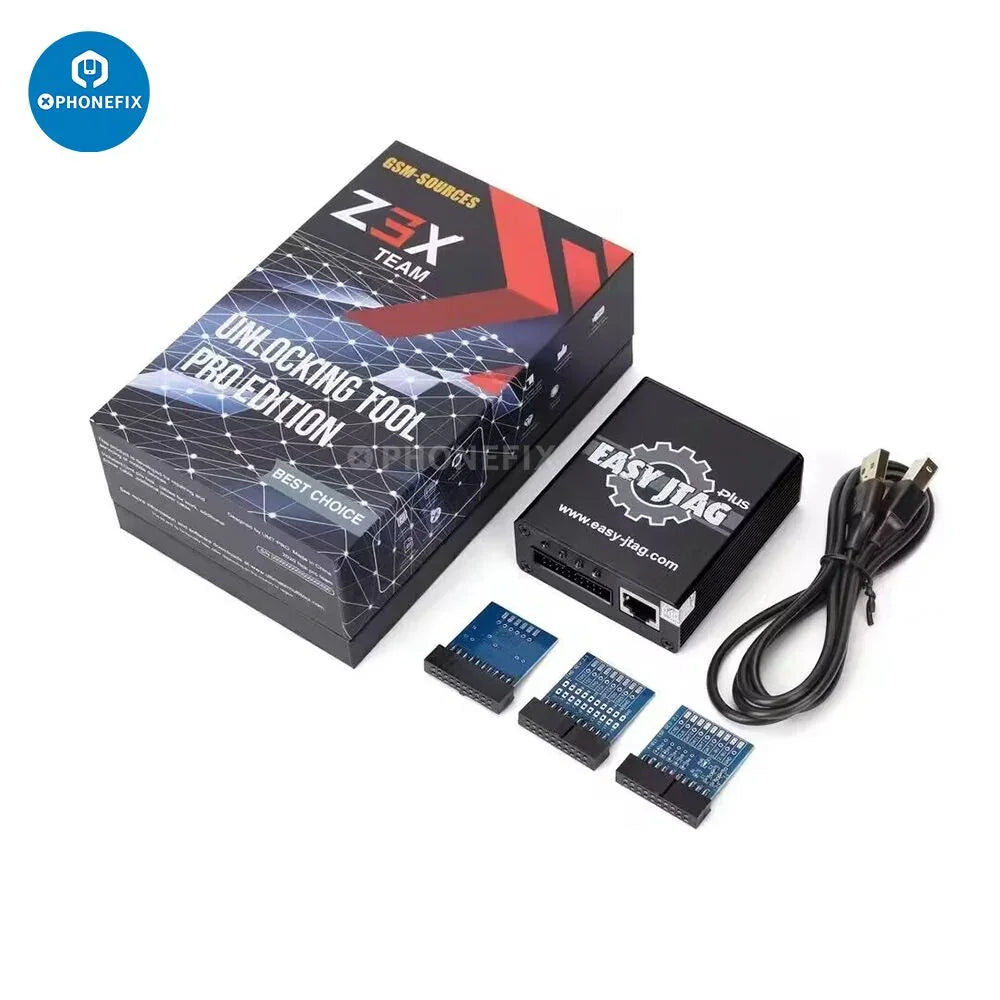

Z3X Easy-Jtag Plus Lite Set - Package Content:
Easy-JTAG Plus Box Hardware
Z3X preactivated card with EasyJTAG PLUS Activation
USB A-B cable
Adapter set - 5 pcs. (JTAG, ISP 1BIT, ISP 4BIT, U-SOCKET, E-SOCKET)

E-Mate X EMMC BGA - Compatible Boxes:
Medusa Pro Box
Octoplus Pro Box
Z3X Easy Jtag Box
Z3X Easy Jtag Plus Box
UFi Box
Riff
Riff Box 2
EMMC Pro Tool
GPG EMMC Box
ATF
E-Mate X EMMC BGA - Compatible eMMC:
BGA100
BGA136
BGA153
BGA162
BGA168
BGA169
BGA186
BGA211
BGA254
BGA529

E-Mate X EMMC 13-in-1 – Package Content:
Main adapter- 1 pc.
U-Socket Adapter (Z3X Easy Jtag Plus, RIFF2, GPG EMMC, EMMC Pro) – 1 pc.
U-Socket Adapter (Medusa PRO) – 1 pc.
U-Socket Adapter (UFI) – 1 pc.
8-in-1 U-Socket Adapter – 1 pc.
RJ45 Two-way Cable – 1 pc.
Flash Memory Adapter – 9 pcs.:
10 × 10
10.5 × 11
10.5 × 13
11.5 × 13
12 × 12
12 × 15
12 × 16
14 × 18
15 × 15
