ZJWY EN-50S EN-51S LCD Flex Constant Bonding Machines feature advanced temperature control, pressure regulation, and a built-in TP alignment function, enabling them to efficiently execute various bonding tasks—including TP, FOP, FOF, and FOG applications. With a compact design, these devices are suitable for use in the manufacturing processes of various display modules and touchscreens, specifically tailored for the thermocompression bonding of flex cables for COP displays and touch panels.
Feature

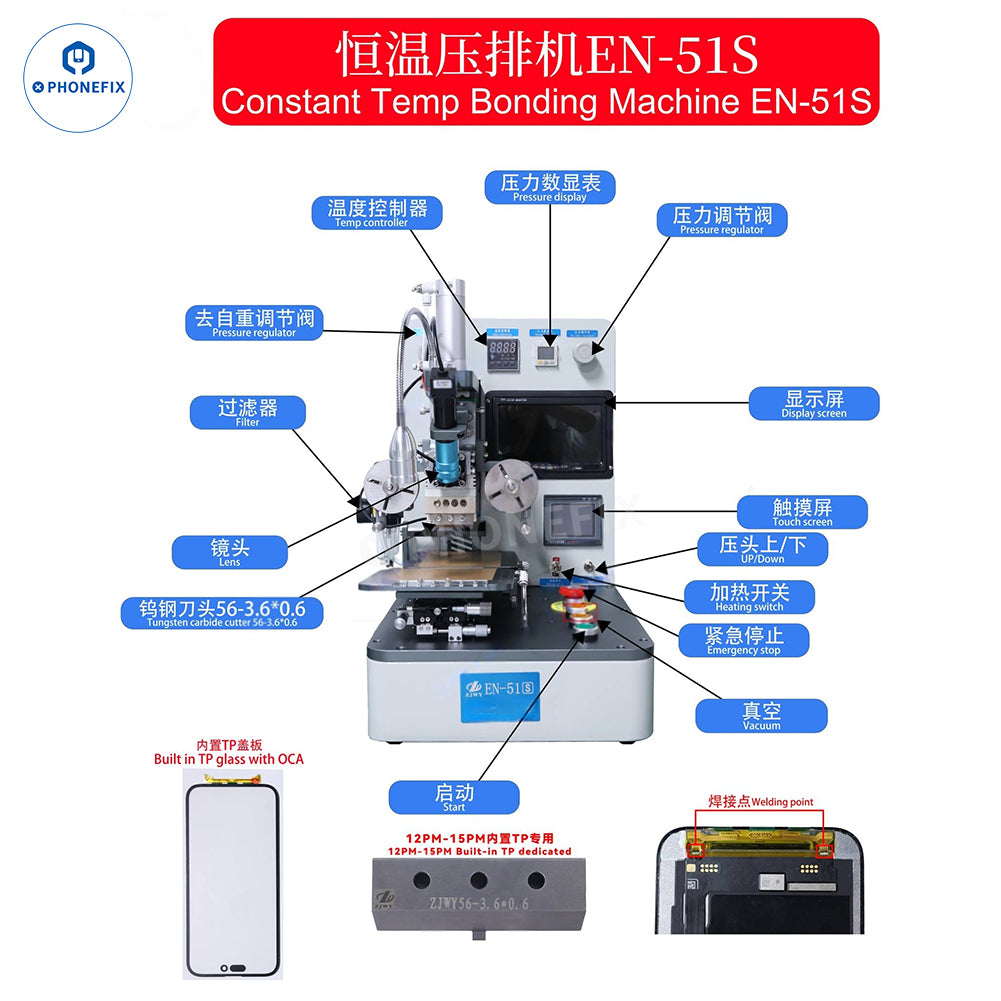

1. Built-in TP Alignment Function: Provides precise alignment and bonding pressure for Touch Panels (TP), ensuring superior bonding quality.
2. Multiple Bonding Modes Supported: Supports various bonding methods, including FOP, FOF, and FOG.
3. Adjustable Thermocompression Depth: Allows for the adjustment of bonding depth according to specific requirements, accommodating different flex cable specifications.
4. Intelligent Control: Equipped with a temperature controller and pressure regulation valve to ensure precise and controllable operation.
5. Emergency Stop & Vacuum Functions: Ensures operational safety and prevents accidents during the bonding process.
6. HD Display & Touch Operation: Features a touchscreen interface that displays real-time information (such as temperature and pressure), offering intuitive and convenient operation.
Product Specifications
Brand: ZJWY
Model: EN-50S / EN-51S
Dimensions:

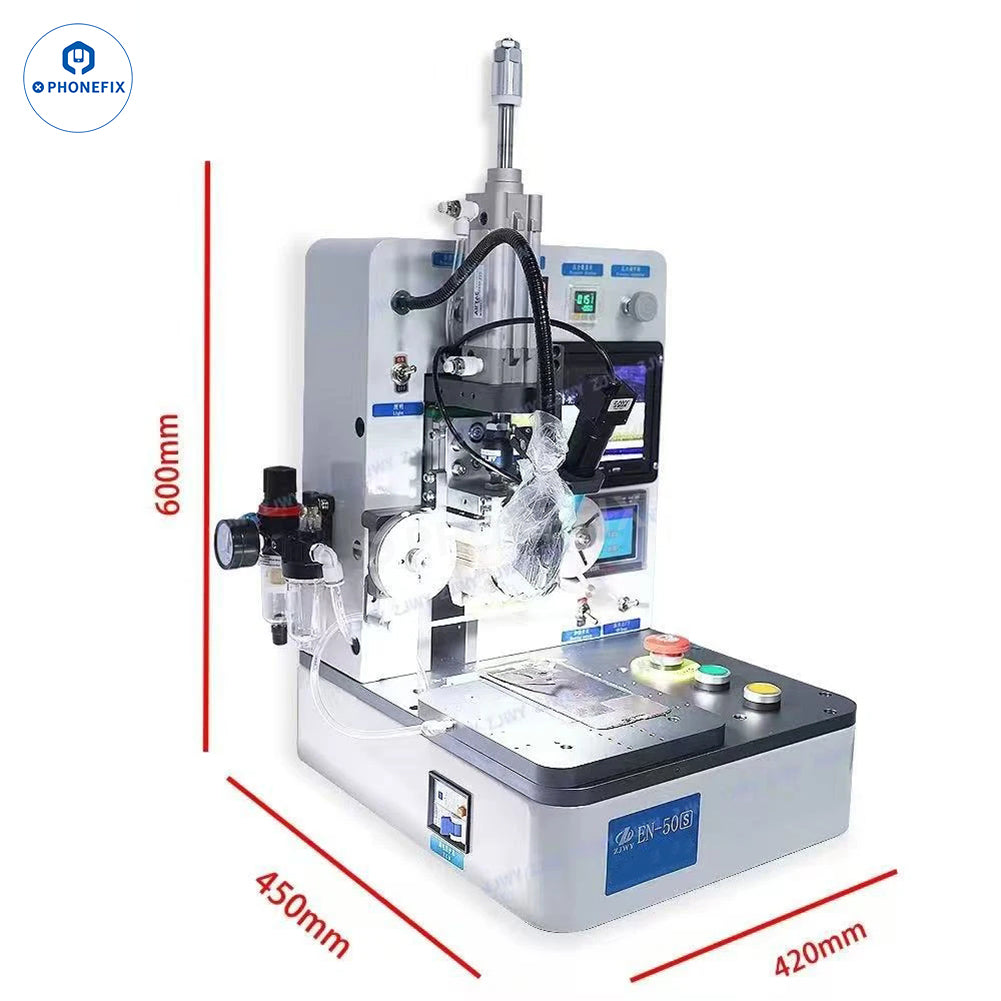

· EN-50S: 420 x 450 x 600 mm

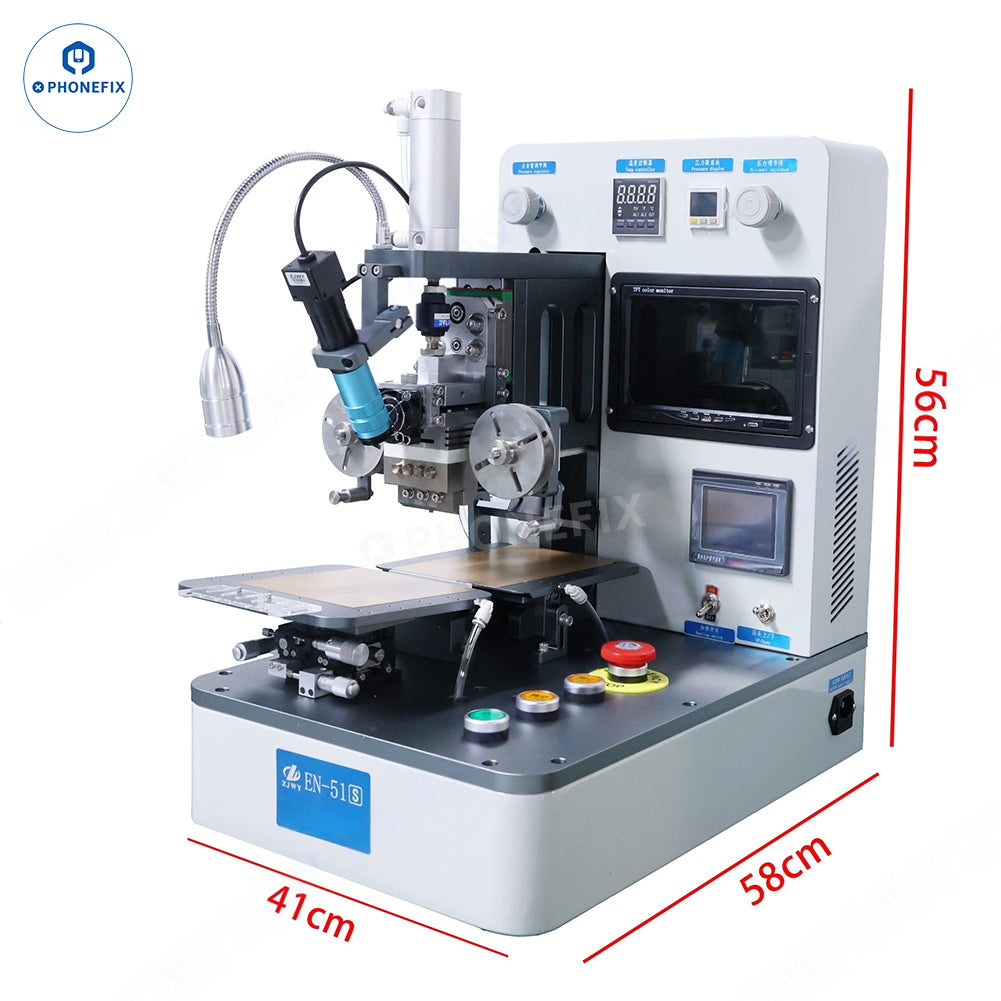

· EN-51S: 41 x 58 x 56 cm
Functions:

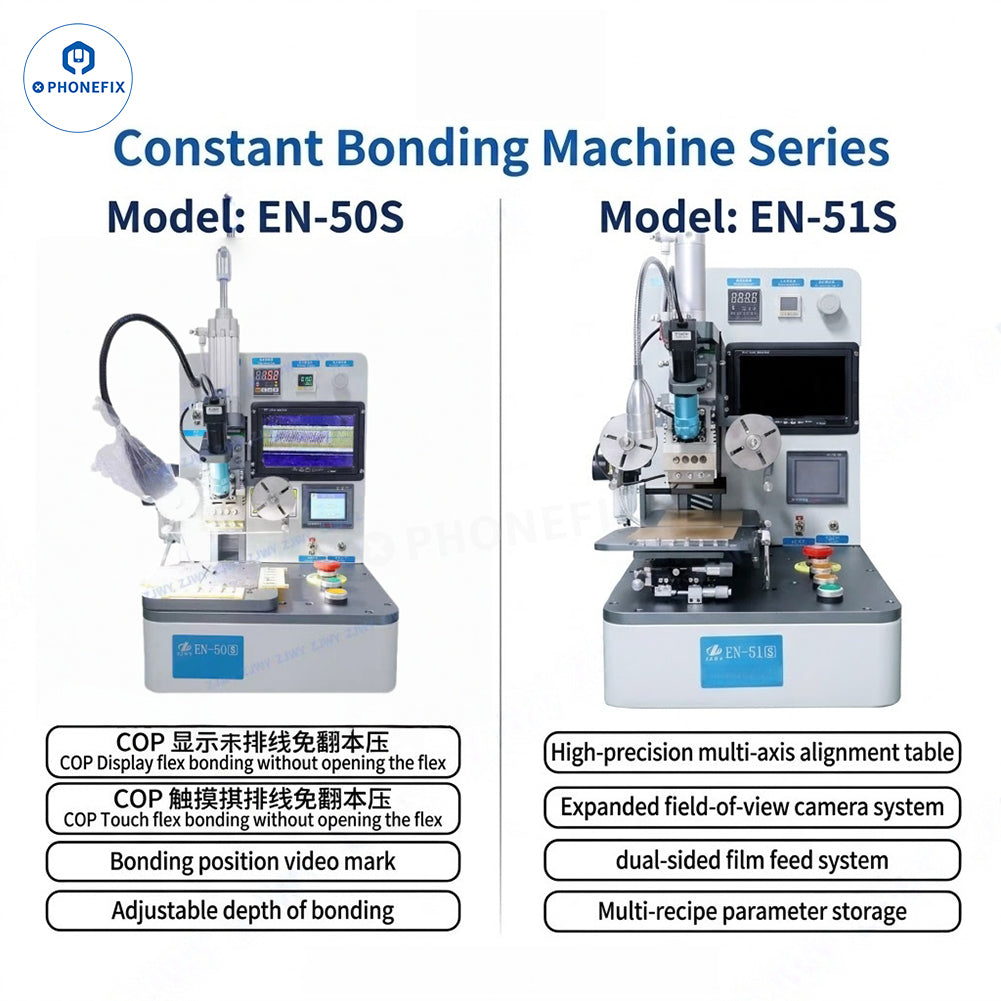

· EN-50S: Non-flip bonding for COP display flex cables; non-flip bonding for COP touch flex cables; video-assisted alignment for bonding position; adjustable thermocompression depth.

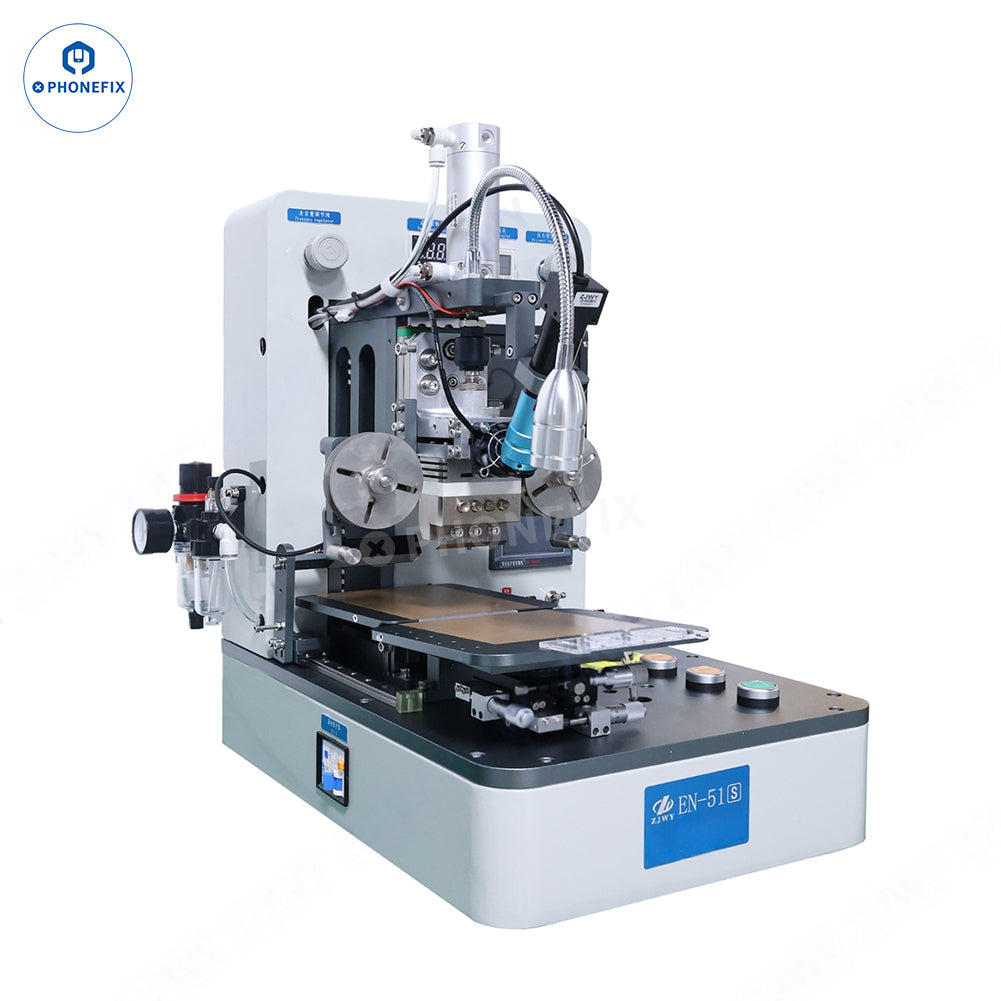

· EN-51S: Built-in TP alignment and bonding; FOP/FOF/FOG bonding support; built-in TP cover plate fixture; dedicated support for built-in TP models (iPhone 12PM through 15PM).
