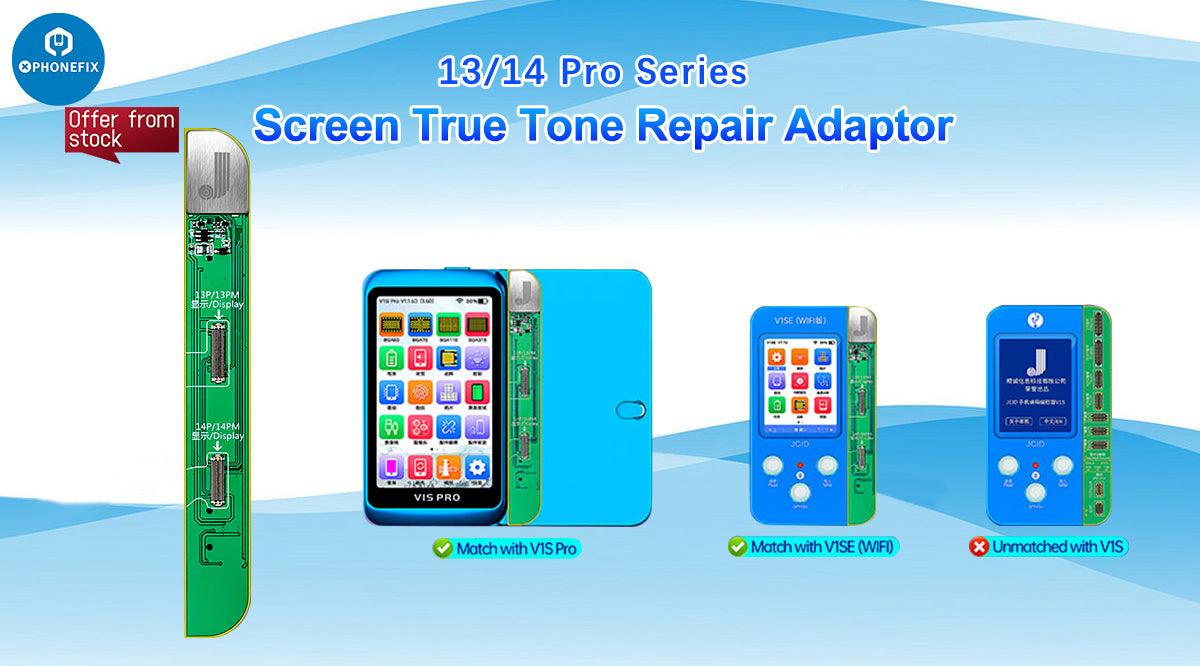

The new JC True Tone Repair Adaptor for the iPhone 13 Pro, 13 Pro Max, 14 Pro, and 14 Pro Max is a great moudle for reading and writing True Tone data with or without original screen. JC 13/14 Pro Series True Tone Repair Adaptor supports JC V1SE and V1S Pro Programmer. In the blog, Phonefix will show you how to use it in detail.

Usage Notes

  • For iPhone 13 Pro, 13 Pro Max, 14 Pro, and 14 Pro Max, the verification of True Tone is done using the cover code inside the display IC. You only need to write the cover code of the display IC and should not modify the data of the original touch IC to avoid touch IC data loss and pop-up issues.

  • The display IC has a limited number of write times, usually 3 to 5 times. If the write fails, it is likely that the limit has been exceeded, and it is not recommended to continue writing as it may damage the screen.

  • The data of the touch IC does not have a write limit and can be modified repeatedly.

  • For iPhone 12 series, 13 series, 14 Pro, and 14 Pro Max models, the verification of True Tone is done using the cover code inside the display IC. For iPhone 8-11 Pro Max, iPhone 14, and 14 Plus models, the verification of True Tone is done using the cover code inside the touch IC.

  • For iPhone 14 Pro Max, Samsung and LG screens are compatible with each other, but not all LG screens are compatible for interchangeability. You can differentiate the screen types by magnifying the area.

    Region 01 is incompatible with regions 02 and 03, while regions 02 and 03 are compatible for interchangeability.

Operating Instructions

Solution 1: When the original screen is present and the touch IC has not been replaced
  1. Read the data from the original screen and write it to the new screen.
  2. Transfer the touch IC to the new screen.
  3. Complete the installation to resolve the True Tone and pop-up issues.
Solution 2: When the original screen is present, but the touch IC has been transferred to the new screen
  1. Read the data from the new screen with the transferred touch IC.
  2. Write the data of the original touch IC to the new screen by selecting "True Tone Touch Repair Write" in the device's operation interface.
  3. Complete the installation to resolve the issue of missing True Tone and pop-ups.
Solution 3: When there is no original screen or the original screen data is lost
There are two methods to retrieve the original data:
  • Non-disassembly hard disk method: Unbind using V1SE Wi-Fi Programmer or V1S Pro according to the phone's system version, then use cloud burning on the device.
  • Disassembly hard disk method: Regardless of the system version, remove the hard disk and use P13 or JC V1S Pro Programmer with BGA110/315 module for unbinding, then use cloud burning on the device.
  1. Write the new screen into the cloud data to perform "No Original Screen Repair" function.
  2. Complete the installation to resolve the issue of missing True Tone functionality.

Video Tutorial
FAQ:

1. After writing the original display cover code, True Tone is still not working.
  • Solution: Confirm if the written display cover code matches the original one. Also, check if the distance sensor flex cable and the original ambient light code are used. If not, consider replacing them.
2. Auto brightness adjustment is not working after the repair.
  • Solution: The screen data may be incomplete. Read the data from a complete screen and modify the corresponding data before writing it to the new screen.
3. Failed to write True Tone.
  • Solution: The screen has a limited number of write times, typically 3 to 5 times. If the write fails, it may indicate that the limit has been exceeded.

Purchase Guide for True Tone Repair Adaptors

  • Supports iPhone 7-11 Pro Max, SE2, SE3, and other models.
  • Repair Types: Used for True Tone repair with both original screens and screens without original data.
  • Unbinding and Repair Sequence: For 11 Pro, 11 Pro Max, SE2, and SE3 models, unbind the display and touch functions first, then proceed with the read-write repair.
  • Function Support: Supports display and touch functions, with interfaces such as SDAO, OSCL, 3V3 GND 1V8.
  • Supports iPhone 12 series, 13 mini, 13, 14, 14 Plus, and other models.
  • Repair Types: Used for True Tone repair with original screens and third-party screen brands such as ZY, SL, RThe True Tone Repair Adaptor for the 13 Pro, 13 Pro Max, 14 Pro, and 14 Pro Max series is a tool used for repairing True Tone display issues after a screen replacement. It allows you to read and write screen data to restore the True Tone functionality.
JC 13/14 Pro Series True Tone Repair Adaptor
  • Supports iPhone 13 Pro, 13 Pro Max, 14 Pro, and 14 Pro Max models.
  • Support Samsung and LG screens.
  • Unbinding and Repair Sequence: For True Tone repair on 14 Pro and 14 Pro Max models without original screens, unbind the display and touch functions first, and then proceed with the read-write repair.
  • Function Support: Supports True Tone repair with original screens and without original screens, equipped with iPhone 13P/13Pro Max display interfaces.
