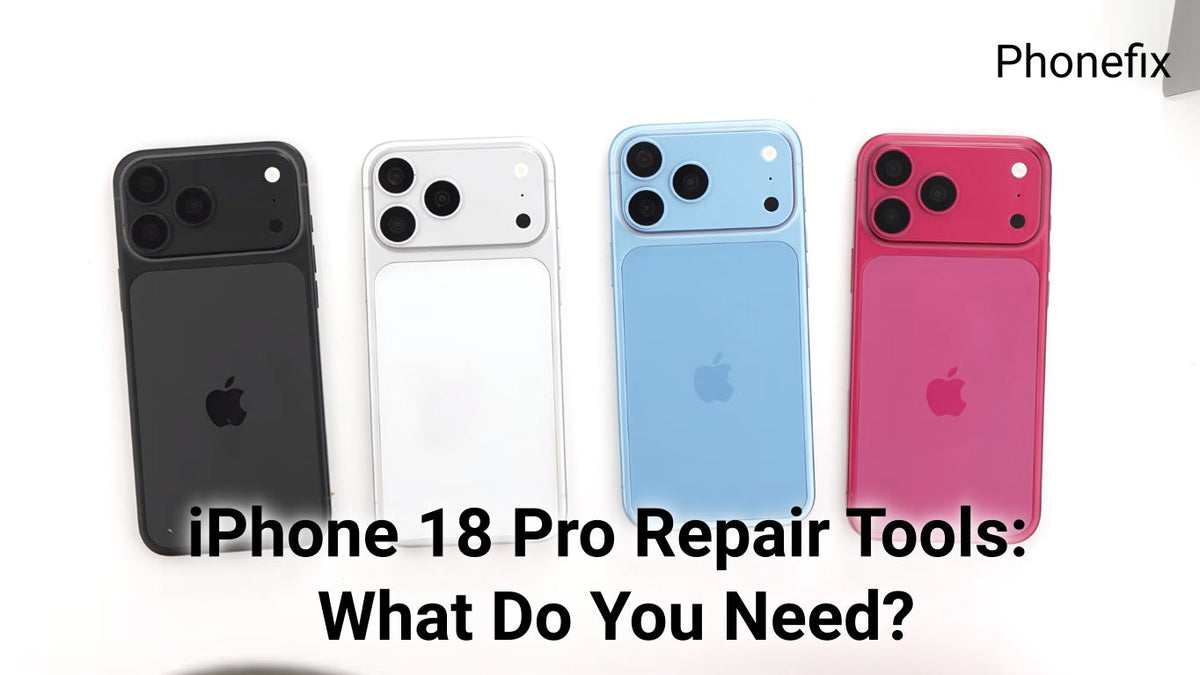

The iPhone 18 Pro is small and glued shut, but packed with high‑end hardware. Fixing it with the wrong tools can strip screws, break cables, or damage the battery. This guide sorts the tools into three levels: Beginner, DIY, and Pro. For each, we cover what repairs you can do, which tools are must‑haves, and how to stay safe.
I. iPhone 18 Pro at a Glance
Core Performance
· Chip: A20 Pro built on TSMC's 2nm process (N2), delivering approximately 15% higher CPU/GPU performance and 25–30% lower power consumption than the A19 Pro. This translates to snappier app launches, smoother multitasking, and noticeably longer battery life during daily use.
· Packaging: First Apple chip to adopt Wafer‑Level Multi‑Chip Module packaging. This allows for a more compact logic board, freeing up internal space for a larger battery or a thinner chassis design.
Display
· Size & Cutout: 6.3‑inch LTPO+ OLED iPhone Screen; Dynamic Island width reduced by approximately 35%, achieving a 94.7% screen‑to‑body ratio. The narrower cutout provides a more immersive viewing experience, especially for videos, gaming, and full‑screen apps.
· Refresh Rate: Supports 1–120Hz adaptive refresh rate with improved power efficiency. The display intelligently adjusts to content – buttery‑smooth scrolling and responsive gaming at 120Hz, while dropping to 1Hz for always‑on display to conserve battery.
Camera System
· Sensors: Triple 48MP rear cameras; main sensor upgraded to Sony IMX905. Higher resolution and a better sensor deliver sharper details, richer colours, and significantly improved low‑light performance – making every shot look more professional.
· Variable Aperture: Main lens introduces mechanical variable aperture (f/1.6–f/4.0). This allows manual control over depth of field and exposure, giving photographers creative flexibility similar to a dedicated camera – ideal for portraits and night scenes.
· Video Recording: Supports 8K 120fps video recording. Capture ultra‑slow‑motion 8K footage for cinematic slow‑mo effects, with plenty of resolution left for cropping, stabilisation, and professional editing.
Memory & Battery
· RAM: 12GB LPDDR5X. More RAM means apps stay in memory longer, reducing reloads when switching between multiple heavy apps – a noticeable boost for productivity and gaming.
· Battery Capacity: US/eSIM version: 4,288mAh. The larger battery ensures all‑day endurance, easily lasting through intensive use – streaming, navigation, and gaming without anxiety.
· Charging: Supports up to 40W wired fast charging and 25W MagSafe wireless charging. Get a significant charge in just minutes – 40W wired charging can top up the battery much faster than previous generations, while 25W MagSafe offers convenient cable‑free power.
Connectivity & Colours
· Modem: Apple's second‑generation C2 5G baseband. Improved modem efficiency means better signal reception in weak coverage areas and lower power drain during 5G usage, extending battery life on the go.
· Colours: Deep cherry, light blue, silver, and black.
· Expected Starting Price (256GB): $1,099–$1,399 (analyst estimates vary).
II. Beginner
1. Repairable Issues
· Replacing a cracked outer screen or the entire display assembly.
· Swapping an aged or swollen battery.
· Cleaning the bottom speaker grille / charging port.
2. Mandatory Tools
| Tool | Specification |
| Pentalobe screwdriver | P2 (0.8mm five‑point star) – for the two bottom screws |
| Precision screwdriver set | At least PH000 cross and Y000 tri‑point bits for internal shields |
| Suction cup | To create a gap between screen and frame |
| Plastic pick / spudger | Insulated material to avoid short circuits or scratching flex cables |
| ESD‑safe tweezers | Fine tips for manipulating small connectors and screws |
3. Key Precautions
· Power off the device and remove the SIM tray before any disassembly.
· The two bottom screws differ in length – memorise or mark their positions to avoid mixing them.
· The display flex cables are fragile. Do not open the screen beyond 90°; always disconnect the battery flex first before touching other components.
· Once the waterproof adhesive is broken, it must be replaced with a new seal to restore IP68 protection.
III. DIY User
1. Repairable Issues
· Replacing the rear camera module or the front TrueDepth assembly.
· Swapping the loudspeaker, Taptic Engine, or charging port flex cable.
· Replacing interconnect flex cables.
· Cleaning mild corrosion on connector sockets caused by liquid ingress.
2. Mandatory Tools
| Tool | Description |
| Heating Pad or hot air gun | To soften the adhesive under the screen and battery; a dedicated pad with adjustable temperature (70–80°C) is preferred |
| Magnetic screw mat | To organise screws by location – internal screws come in up to 8 different lengths |
| Multimeter | For checking battery voltage, flex continuity, and charging line integrity |
| Anti‑static wrist strap | To ground the user and protect sensitive motherboard components |
| More comprehensive screwdriver set | A 64‑piece kit including P2, Y000, T2, T3, etc. |
3. Key Precautions
· Do not overheat: keep battery area below 80°C and screen area below 70°C to avoid polariser discolouration.
· Always place each screw on the magnetic mat according to its exact location – using a wrong‑length screw can pierce the screen or motherboard.
· When using a multimeter, double‑check the range setting to prevent short circuits. Use tweezers to gently lift flex cables; never pull by force.
· After applying a new adhesive seal, press the screen evenly for at least 5 minutes (using a dedicated roller or heavy books) to ensure proper waterproofing.
IV. Professional Repair Technician
1. Repairable Issues
· Board‑level repairs: replacing power management ICs, audio ICs, baseband processors, and surrounding capacitors/resistors.
· Repairing lifted pads or broken traces from drop damage – performing jumper wires or micro‑soldering.
· Replacing board‑to‑board connector sockets or corroded flex‑cable holders.
· Data recovery.
2. Mandatory Tools
| Tool | Description |
| Microscope | 10x–50x magnification, resolution ≥50μm, for inspecting tiny solder joints and cracks |
| Hot air rework station | Precision temperature control (±2°C) with various nozzles, for BGA chip removal/installation |
| Professional‑grade multimeter | High accuracy in resistance, capacitance, and voltage measurements |
| Soldering Station | Temperature‑controlled iron (with interchangeable tips) for micro‑soldering |
3. Key Precautions
· Use demagnetised (antimagnetic) tools (measured magnetic field <0.1 Gauss) to avoid interfering with sensitive onboard components.
· Hot‑air temperature and airflow must be strictly set per chip specifications – typically 350–400°C with moderate airflow; preheat the board before concentrated heating to prevent pad blistering.
· All work should be performed on an ESD‑safe bench with a grounded wrist strap and moderate humidity.
· After repair, always measure the ground‑resistance values of each power rail with a multimeter to confirm no short circuits before applying power.
· Without authorised diagnostic software, back up customer data and clearly communicate repair risks beforehand.
Selecting the right implements is not about having the most expensive gear, but about matching the toolset to the intended repair depth. Beginners can start with a handful of basic drivers and picks, while seasoned DIYers benefit from heating equipment and a multimeter. Professionals, however, require specialised microscopes and rework stations for board‑level challenges. This guide offers a clear roadmap for anyone choosing Mobile Repair Tools, ensuring every repair is performed safely, accurately, and with confidence.
