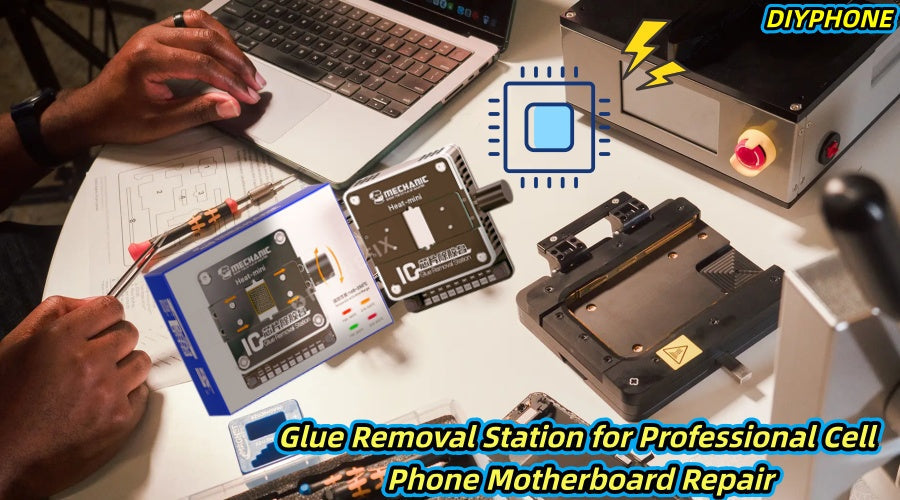

Traditional glue removal tools are struggling to meet the demands of disassembling and assembling various types of chips. Modern smartphones typically use BGA-packaged CPUs, flash memory, and power management chips, which are widely secured with high-hardness epoxy underfill. Faced with these challenges, chip glue removal stations have become indispensable tools for repair centers. They are not only an aid for safe repairs but also a core guarantee.
I. The Importance of Chip Glue Removal Stations
1. Precise Temperature Control
Traditional hot air guns use convective hot air, which easily causes localized overheating of the motherboard due to uneven heat distribution, leading to PCB bulging, delamination, or the displacement of peripheral capacitors. Based on constant-temperature thermal conduction from the base, the Glue Removal Station can preheat the entire area uniformly, keeping the temperature within the solder melting threshold and fundamentally eliminating the hidden dangers caused by thermal shock.
2. Enhancing Repair Efficiency
Through digital precision temperature control, repair technicians can preset parameters based on the material characteristics of different motherboards. This transforms complex processes like glue removal and delamination into standardized procedures with set temperatures and durations, significantly reducing the damage rate caused by human error.
3. Efficient Separation of Dual-Layer Motherboards
Faced with stacked motherboards (such as the iPhone series), dismantling the mid-frame solder connections is the most difficult part of the repair. The glue removal station provides the precise melting point temperature for solder, allowing dual-layer motherboards to be peeled apart smoothly under balanced thermal conditions, which greatly improves the speed and stability of motherboard repairs.
II. Applications of Chip Glue Removal Stations
1. iPhone CPU Glue Clearing and Removal
· Fault Symptom: The phone freezes on the logo or reboots repeatedly; the CPU must be removed for glue clearing and logic repair.
· Repair Preparation: Chip glue removal station, digital constant-temperature hot air gun, dedicated high-hardness scraping blade, cleaning swabs.
· Core Operation: Secure the motherboard onto the positioning fixture of the glue removal station and set the temperature (usually 180-200°C; refer to specific motherboard specifications). Once the heat has evenly permeated, use the scraping blade to gently separate the resin glue around the CPU. The constant temperature at the base softens the solder under the pads without causing the pads to detach. After removing the glue, use a hot air gun at a fine-tuned temperature to clean the remaining pads. Since the board is already preheated, the duration of Hot Air Gun use can be significantly reduced, ensuring the motherboard is not damaged by heat.
2. Dual-Layer Motherboard Delamination and Desoldering Repair
· Fault Symptom: The phone has circuit breaks between layers due to drops, requiring delamination, desoldering, and re-balling.
· Repair Preparation: Dedicated dual-layer motherboard mold, glue removal station, BGA re-balling stencil, solder wick.
· Core Operation: Install the mold onto the glue removal station and set the melting point temperature for the mid-frame solder. Once the solder paste melts, evenly and slowly peel apart the upper and lower motherboard layers. Use a solder wick with a low-temperature constant-temperature soldering iron to clean the residual old solder from the mid-frame to keep the surface flat. The constant-temperature platform of the glue removal station acts as a stable "workbench," preventing motherboard damage caused by hand tremors.
3. Disassembly and Assembly of Ribbon Cable Connectors
· Fault Symptom: The plastic of the charging port ribbon cable connector has melted or has poor contact, requiring a replacement.
· Repair Preparation: Smart glue removal station, anti-static tweezers, flux.
· Core Operation: Apply heat directly to the bottom of the ribbon cable connector through bottom heat conduction, rather than blowing hot air onto the interface. After the plastic interface is evenly heated and softened, gently remove the faulty connector and install the new one. Use the thermal characteristics of the base to ensure the solder on the new connector's contacts melts simultaneously, completing a reliable solder joint in one go.
4. Differences from Traditional Heating Tools
Traditional heating involves localized blowing, which easily leads to uneven heating. Additionally, due to the instability of wind speed and handheld distance, the margin of error is large. In contrast, the smart glue removal station uses digital closed-loop control with an error margin typically within ±1°C, achieving uniform global heating through constant-temperature thermal conduction. Furthermore, the glue removal station operates without airflow, completely eliminating the risk of small component displacement caused by air interference, significantly lowering the barrier to entry for operations. Even novices can achieve high-level performance by using preset parameters.
5. Tool Pairing Suggestions
Regardless of the model of the glue removal station used, the accompanying manual tools must be carefully selected. For example, when cleaning CPU underfill, it should be paired with a high-toughness, heat-resistant dedicated scraping blade; when cleaning pads, it should be equipped with a high-adsorption Copper Solder Wick. Only by efficiently integrating the heating platform with precision manual tools can high-standard repair work be truly achieved.
Conclusion
In summary, as an intelligent constant-temperature heating tool for mobile phone repair, the chip glue removal station can effectively reduce the risk of chip damage caused by overheating through rapid heating and stable constant-temperature operation. Repair technicians can complete repairs with lower risk and improve their skill levels and efficiency through simpler and more effective operations.
